Remove/Install Rear-End Door Holder - AR72.20-S-2781E
Model 447.6/7
With Code W54 (2-wing rear-end door, 270 degrees)

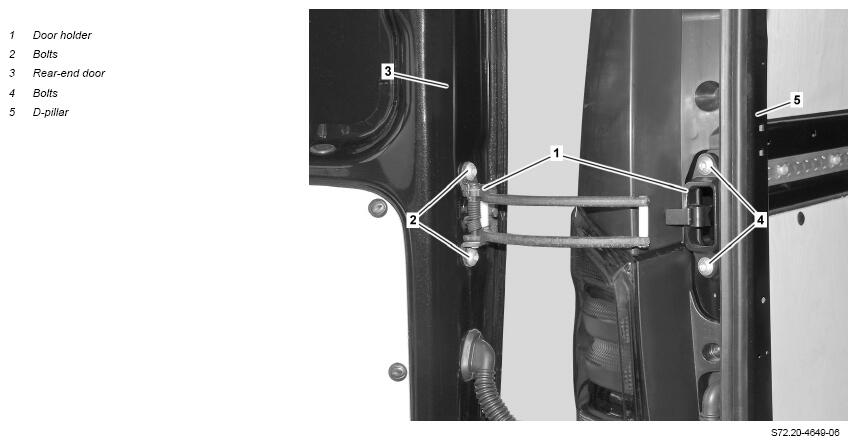

Shown On left rear-end door (3)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open corresponding rear-end door (3) | ||
| 2 | Unhook bracket of door holder (1) from C-pillar (5) | ||
| 3 | Unscrew bolts (2) and remove door holder (1) from rear-end door (3) | *BA72.20-Z-1010-01KOJ | |
| 4 | Unscrew bolts (4) and remove door holder (1) from D-pillar (5) | *BA72.20-Z-1011-01KOJ | |
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check door holder (1) for proper function |
REAR-END DOOR
| Number | Designation | Model 447.6/7 with code W54 | Model 447.6/7 with code W50 | |
|---|---|---|---|---|
| BA72.20-Z-1010-01KOJ | Bracket, door arrester to door | Nm | 23 | 23 |
REAR-END DOOR
| Number | Designation | Model 447.6/7 with code W54 | Model 447.6/7 with code W50 | |
|---|---|---|---|---|
| BA72.20-Z-1011-01KOJ | Bracket, door arrester to body | Nm | 23 | 23 |
