Remove/Install Handle For Rear Door Inner Lock - AR72.20-S-4870E

Model 447.6/7

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Open both rear-end doors

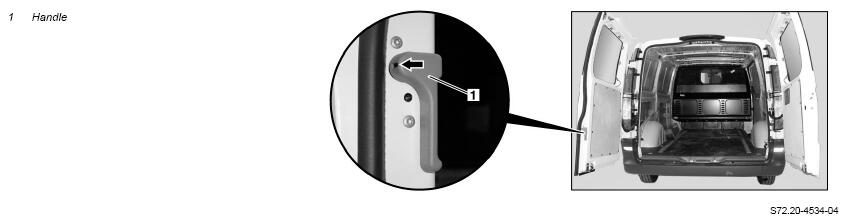

2	Detach door rubber seal on left rear-end door in area of handle (1)
3	Detach catch hook in groove (arrow) and remove handle (1)	Carefully detach catch hook on lock on inside with suitable tool. Danger of breakage.
4	Install in the reverse order
