Remove/Install Electric Liftgate Drive Unit - AR72.29-S-5590E
Model 447, 448
With Code W68 (EASY-PACK-tailgate)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove rear right side paneling | Model 447.8 with code W68 (EASY-PACK-tailgate) except code ZK7 (Equipment line MARCO POLO) Model 448.7 with code V23 (Interior trim, premium version) with code W68 (EASY-PACK-tailgate) Model 448.8 with code W68 (EASY-PACK-tailgate) |
AR68.30-S-4780E |
| Model 447.8 with code W68 (EASY-PACK-tailgate) with code ZK7 (Equipment line MARCO POLO) | AR68.30-S-1207E | ||

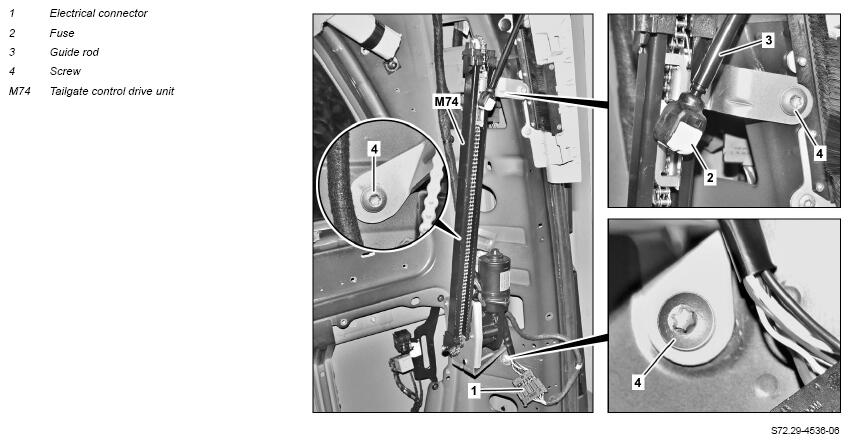

| 2 | Disconnect electrical connection (1) | ||
| 3 | Unlock retainer (2) and remove guide rod (3) from liftgate control drive unit (M74) | ||
| 4 | Unscrew bolts (4) and remove liftgate control drive unit (M74) | ||
| Install | |||
| 5 | Position liftgate control drive unit (M74) and tighten bolts (4) | *BA72.20-Z-1021-03KOJ | |
| 6 | Connect electrical connector (1) | ||
| 7 | Adjust liftgate control drive unit (M74) by actuating liftgate open/close switch to "Liftgate open" position | When replacing tailgate control drive unit (M74). | |
| 8 | Install guide rod (3) on liftgate control drive unit (M74) and lock retainer (2) | ||
| 9 | Install rear right side paneling | Model 447.8 with code W68 (EASY-PACK-tailgate) except code ZK7 (Equipment line MARCO POLO) Model 448.7 with code V23 (Interior trim, premium version) with code W68 (EASY-PACK-tailgate) Model 448.8 with code W68 (EASY-PACK-tailgate) |
AR68.30-S-4780E |
| Model 447.8 with code W68 (EASY-PACK-tailgate) with code ZK7 (Equipment line MARCO POLO) | AR68.30-S-1207E | ||
| Check | |||
| 10 | Check electric liftgate for proper function |
LIFTGATE
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.20-Z-1021-03KOJ | Bolt, drive unit for power liftgate to body | Nm | 25 |
