Remove/Install Door Frame Seal Of Liftgate - AR72.20-S-2120E
Model 447, 448
With Code W65 (Tailgate)
Model 447, 448
With Code W68 (EASY-PACK-tailgate)

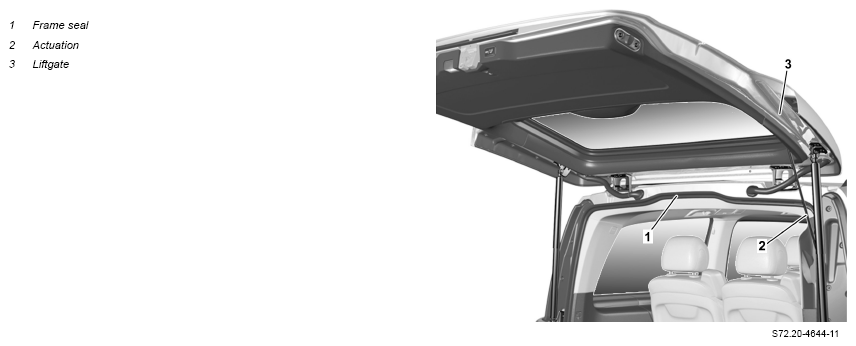

Shown On vehicle With Code W68 (Electrically actuated liftgate)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open liftgate (3) | ||
| 2 | Remove actuator (2) from liftgate (3) | Model 447, 448 with code W68 (EASY-PACK-tailgate) Carefully lift retaining bracket on retainer for actuator (2) until retainer can be detached. Danger of breaking retainer. |
|
| 3 | Remove frame seal (1) | ||
| 4 | Install in the reverse order |
