Outer Rear Wheel Well Section Prepare For Installation - Ar63.10-S-0660-03E

Model 447, 448

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

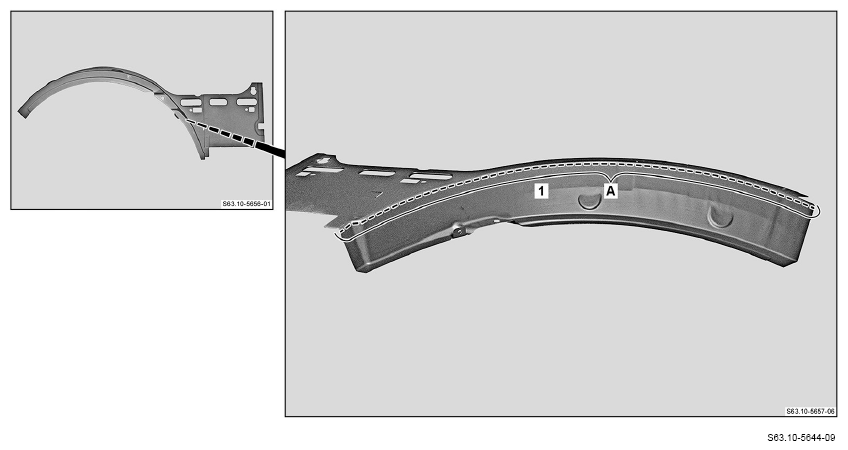

1. Mark separating point on outer rear wheel well (1) and cut (area A).

   Transfer separation point from vehicle.

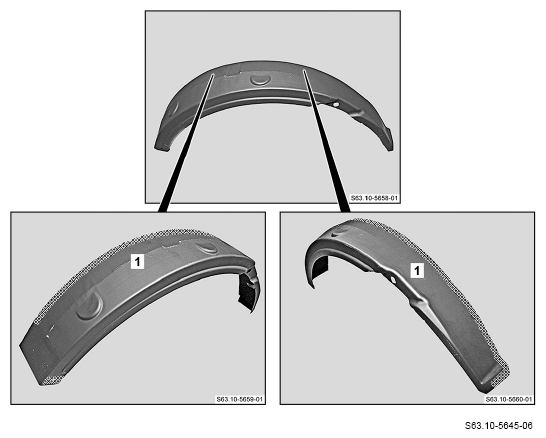

2. Grind mating surfaces on outer rear wheel well (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

3. Remove shavings.
4. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
