Inner Section Of Rear Side Wall Paneling Up To Window Cutout Prepare For Installation - Ar63.10-S-0040-02E

Model 447.6

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 447.6

with code W29 (Window fixed behind)

Right side of vehicle

Model 447.7

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Left side of vehicle

Model 447.7

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Right side of vehicle

Model 447.8

Right side of vehicle

Model 447.8

with code T19 (Sliding door left)

Left side of vehicle

Model 448.7

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 448.7

with code W29 (Window fixed behind)

Right side of vehicle

Model 448.8

Right side of vehicle

Model 448.8

with code T19 (Sliding door left)

Left side of vehicle

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Refer to the superordinate service document for further information. Observe safety information in the superordinate service document.

The next steps are shown on component parts on the right side of the vehicle for model 447.703 and must be similarly performed on the left side of the vehicle for the other body lengths or in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Mark separating point on C-pillar (1) (area A).

   Transfer separation point from vehicle.

2. Separate at separating point on C-pillar (1) (area A).
3. Grind mating surfaces on C-pillar section (2) down to bare metal in crosshatched areas.
4. Remove shavings and drill chips.
5. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surface with zinc dust paint (area B).

   Otherwise there may be adhesion problems.

   Observe pretreatment of bonding surfaces (area B).

   Courtesy of MERCEDES-BENZ USA

6. Mark separating points on inner side wall (3) (areas C and D).

   Transfer separation points from vehicle.

7. Separate at separating points on inner side wall (3) (areas C and D).
8. Grind mating surfaces on inner side wall section (4) down to bare metal in crosshatched areas.
9. Remove shavings and drill chips.
10. Coat insides of spot weld flanges with zinc dust paint.

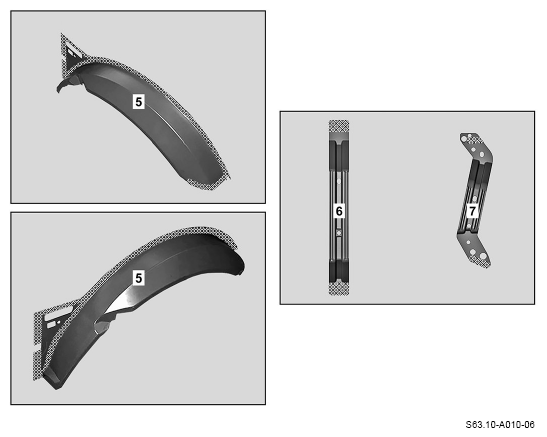

11. Grind mating surfaces on outer rear wheel well (5), rear reinforcement (6), and front reinforcement (7) down to bare metal in cross-hatched areas.
12. Remove shavings and drill chips.
13. Coat insides of spot weld flanges with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA
