Inner Section Of Rear Side Wall Paneling Up To Window Cutout Install And Weld - Ar63.10-S-0040-03E

	000 588 12 84 00 Welder		WS00.00-P-0318K
	000 588 13 84 00 Welder		WS60.00-P-0437K

Model 447.6

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 447.6

with code W29 (Window fixed behind)

Right side of vehicle

Model 447.7

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Left side of vehicle

Model 447.7

with code W29 (Window fixed behind)

with code ZK4 (Mixto)

Right side of vehicle

Model 447.8

Right side of vehicle

Model 447.8

with code T19 (Sliding door left)

Left side of vehicle

Model 448.7

with code T19 (Sliding door left)

with code W29 (Window fixed behind)

Left side of vehicle

Model 448.7

with code W29 (Window fixed behind)

Right side of vehicle

Model 448.8

Right side of vehicle

Model 448.8

with code T19 (Sliding door left)

Left side of vehicle

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
BR00.45-Z-1092-02A	Adhesive kit, body, 2-component adhesive	A 012 989 17 71

Refer to the superordinate service document for further information. Observe safety information in the superordinate service document.

The next steps are shown on the right side of the vehicle for model 447.703 and must be similarly performed on the left side of the vehicle for the other body lengths or in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install outer rear wheel well (1), inner side wall (2), front reinforcement (3), and rear reinforcement (4), fit, and fix in place.

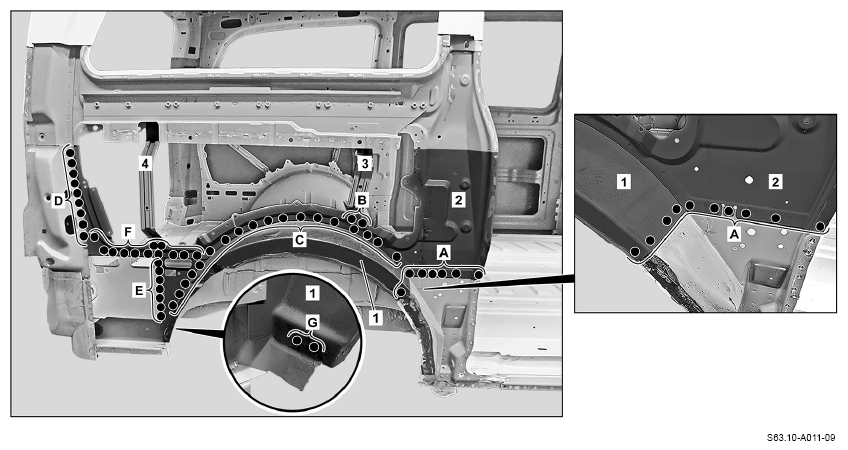

2. Outer rear wheel well (1), inner side wall (2), front reinforcement (3), rear reinforcement (4) (areas A to G).

   Courtesy of MERCEDES-BENZ USA

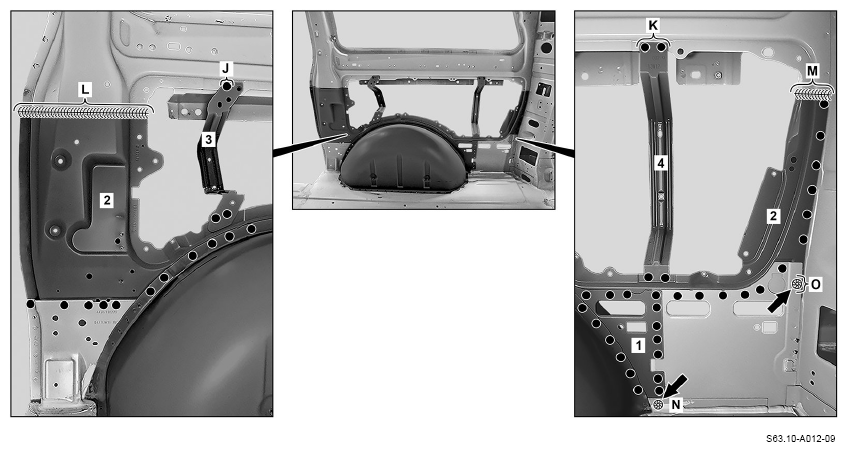

3. Front reinforcement (3) and rear reinforcement (4) (areas J and K).
4. Inner sidewall (2) (areas L and M).
5. Drill outer rear wheel well (1) and inner side wall (2) before shielding gas welding (arrows).
6. Outer rear wheel well (1) (area N) and inner side wall (2) (area O).
7. Grind shielding gas welds and shielding gas spot welds down flat.
8. Restore and clean surfaces on inner sidewall (2).
9. Clean welding areas that are no longer accessible after installing the following component parts and coat with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

10. Apply 2-component adhesive to body (area P).

    Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

11. Install, fit and fix in place C-pillar (5).

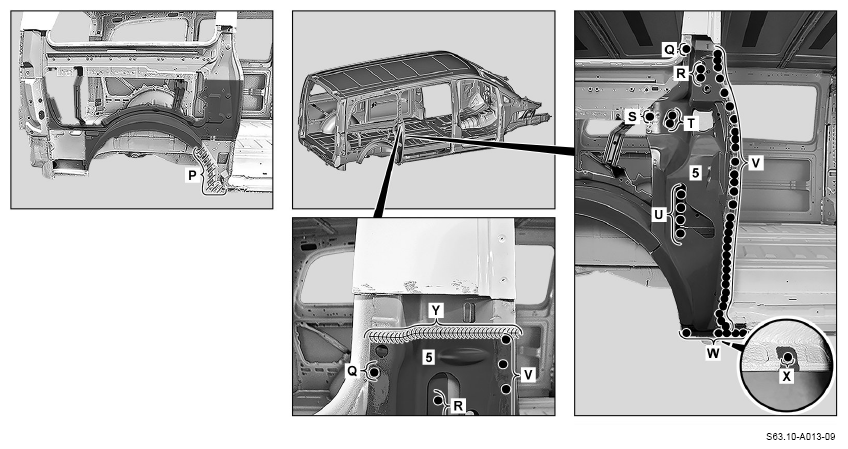

12. C-pillar (5) (areas Q to X).
13. C-pillar (5) (area Y).
14. Grind shielding gas welds down flat.
15. Clean weld joints.
16. Remove shavings and drill chips.
17. Clean welding areas no longer accessible after installing sidewall paneling and coat with zinc dust paint.
