Connection Points Of Left Side Wall Paneling With Window Cutout Prepare For Installation - Ar63.10-S-0120-03EB

Model 447.605

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 447.705

with code W18 (Sliding window front left in side/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.705

with code W18 (Sliding window front left in side/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 447.815

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 447.815

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

Model 448.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W29 (Window fixed behind)

except code T19 (Sliding door left)

Model 448.705

with code W16 (Window front left, fixed, in sidewall/sliding door)

with code W32 (Rear passenger compartment electric pop-out windows)

except code T19 (Sliding door left)

19.02.2020

First infoblock and repair materials, added.

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Refer to the superordinate service document for further information.

Safety information in superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

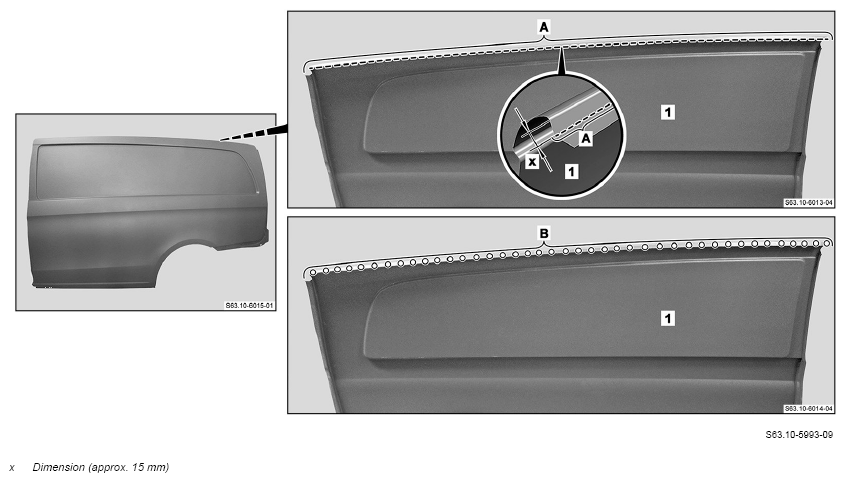

1. Mark separating point on sidewall paneling (1) (area A).
2. Cut separating point on sidewall paneling (1) (area A).
3. Punch holes for MAG welding on side wall paneling (1) (area B).
4. Grind mating surface on side wall paneling (1) down to bare metal around holes (area B).
5. Remove shavings and drill chips.

   Courtesy of MERCEDES-BENZ USA

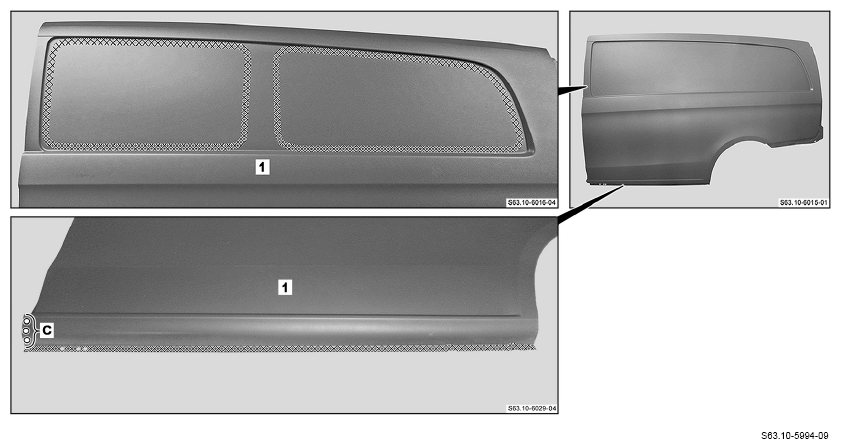

6. Punch holes for MAG welding on side wall paneling (1) (area C).
7. Grind mating surfaces on side wall paneling (1) down to bare metal and around holes (area C).

   Sand down spot weld flanges to bare metal on both sides.

8. Remove shavings and drill chips.
9. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

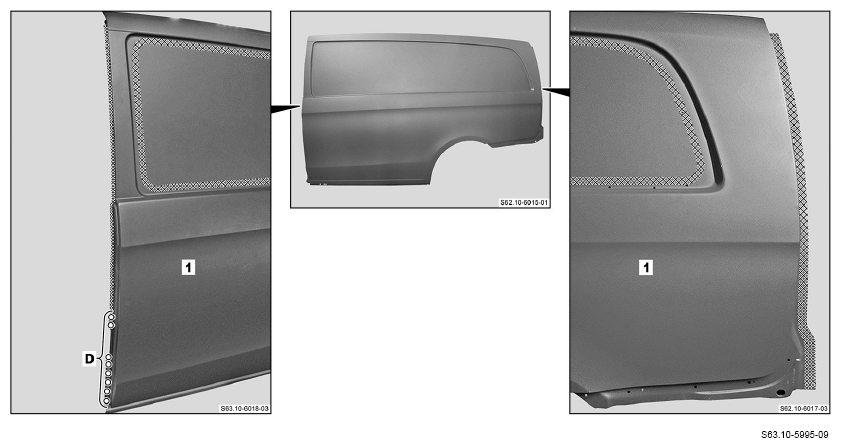

10. Punch holes for MAG welding on side wall paneling (1) (area D).
11. Grind down mating surfaces to bare metal on sidewall paneling (1) in crosshatched areas and around the holes (areas D).

    Sand down spot weld flanges to bare metal on both sides.

12. Remove shavings and drill chips.
13. Coat insides of spot weld flanges with zinc dust paint.

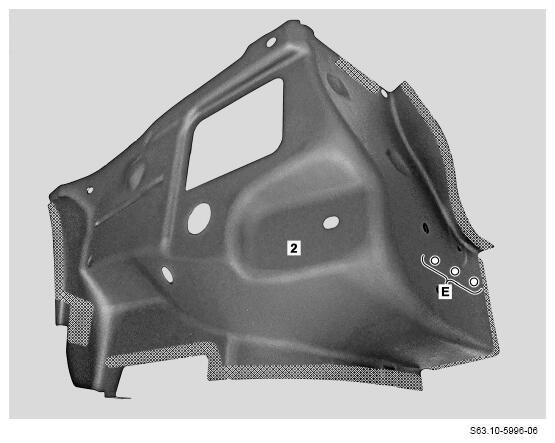

14. Grind mating surfaces on bottom section of rear side wall paneling (2) down to bare metal in crosshatched areas and around holes (area E).

    Sand down spot weld flanges to bare metal on both sides.

15. Remove shavings and drill chips.
16. Coat insides of spot weld flanges with zinc dust paint.
