Prepare End CROSSMEMBER Inner Section For Installation - Ar64.20-S-1120-02EA
Model 447.6
Model 447.7
except code UR1 (Seat rail system with quick-release attachment system)
except code UR3 (Seat mount with quick fastener (2 passenger seat rows))
except code UR6 (Rear seats with quick-release locks (1st row))
except code ZU4 (Production Argentina)
Model 448.7
except code UR1 (Seat rail system with quick-release attachment system)
except code UR3 (Seat mount with quick fastener (2 passenger seat rows))

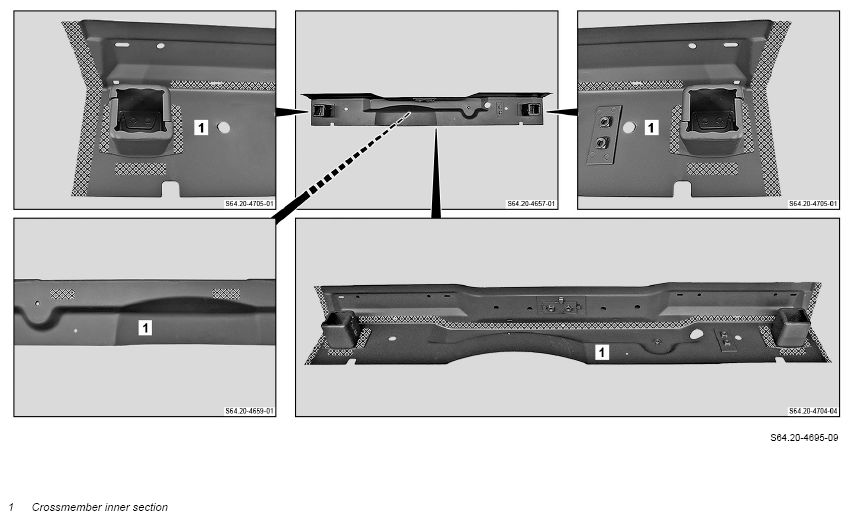

- Sand down mating surfaces to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove shavings and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
