Outer Corner Pillar Paneling Partially Separate - Ar64.30-S-5725-01E
Model 447, 448
with code W65 (Tailgate)
Model 447, 448
with code W68 (EASY-PACK-tailgate)

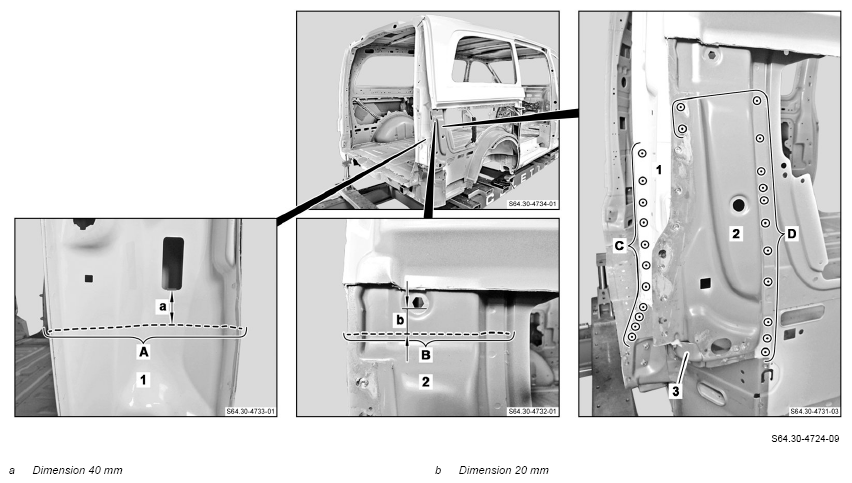

- Scribe separating points and cut (areas A and B).
Do not make the cuts too deep. Otherwise the components below can be damaged and weakened.
- Expose spot welds on corner pillar (1), side corner pillar (2) and connecting panel (3) and cut out (areas C and D).
- Remove damaged corner pillar (1), side corner pillar (2) and connecting panel (3).

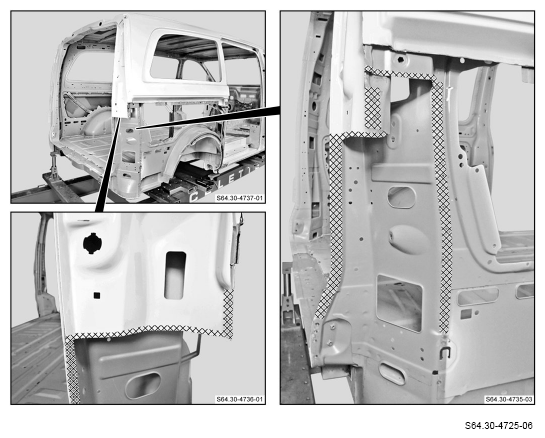

- Sand down mating surfaces to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove shavings and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
