Bottom Corner Pillar Reinforcement Weld In - Ar64.30-S-5710-03E

Model 447, 448

Fig 1: Identifying Locating Tool (447 589 01 23 00)

Courtesy of MERCEDES-BENZ USA

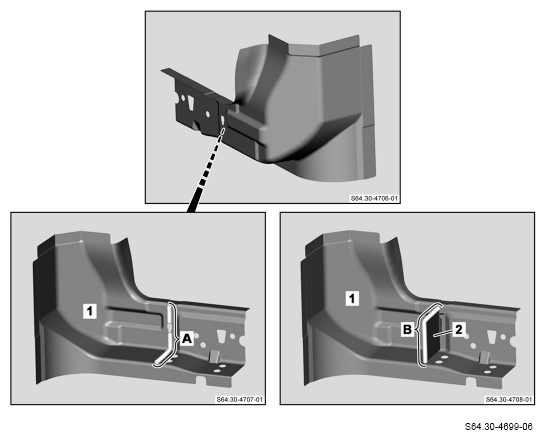

1. Apply sealant to bottom corner pillar reinforcement (1) (area A).
2. Install soundproofing (2).
3. Apply sealant to soundproofing (2) (area B).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

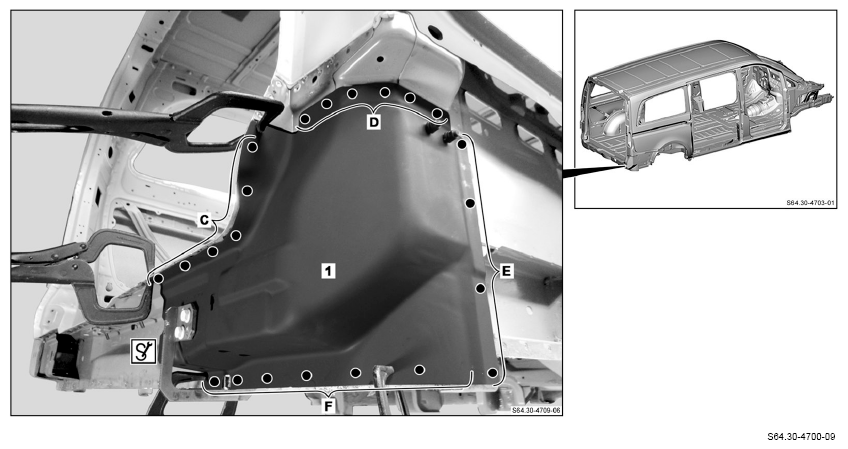

4. Install bottom corner pillar paneling (1) and fit with locating tool.
5. Fix corner pillar reinforcement (1) in place.
6. Bottom corner pillar reinforcement (1) (areas C to F).
7. Clean weld joints.
8. Remove shavings and drill chips.
9. Coat welding areas no longer accessible after installing crossmember outer section and rear side wall paneling bottom section and coat with zinc dust paint.
