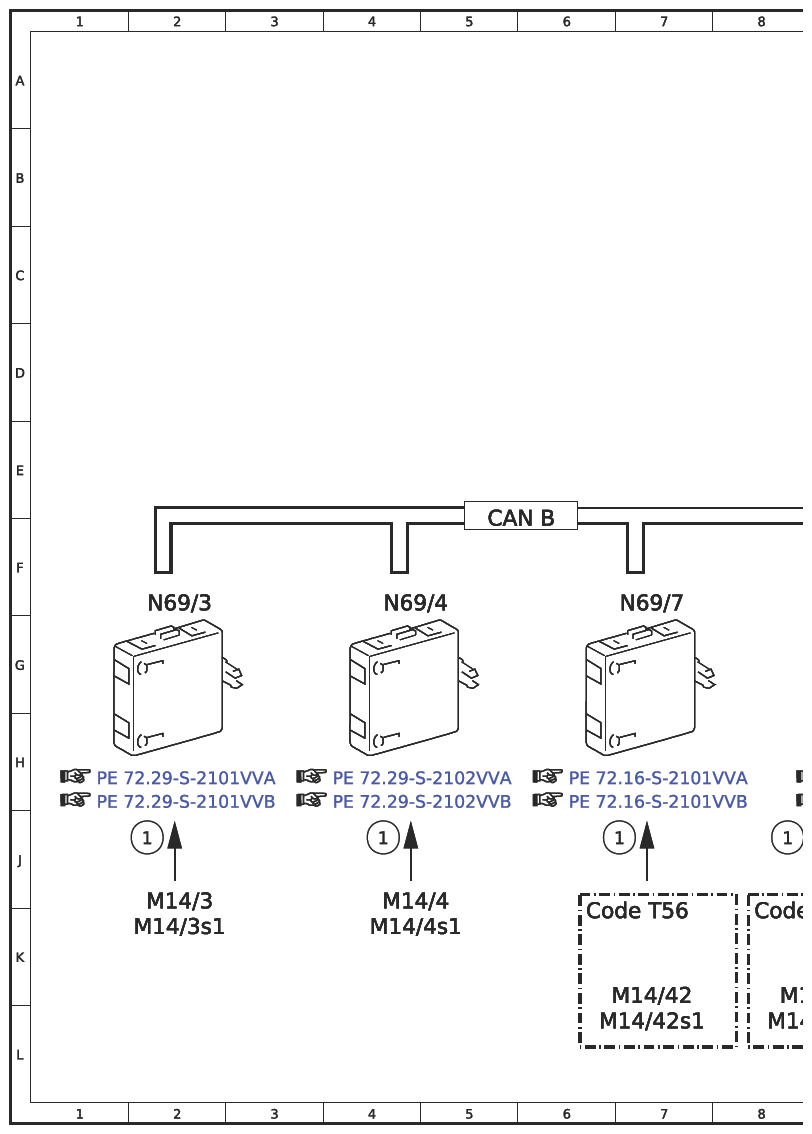

Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation - PE80.50-S-2053-97TRA
Model 447.6/7/8 with code FY1 (Anti-Theft Protection package) except code XM0 (Facelift)
Model 447.6/7/8 with code FZ5 (Anti-theft alarm system) except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Door rotary tumbler switch, status | 2J |
| 1 | Door rotary tumbler switch, status | 4J |
| 1 | Door rotary tumbler switch, status | 7J |
| 1 | Door rotary tumbler switch, status | 8J |
| 1 | Door rotary tumbler switch, status | 19J |
| 1 | Door rotary tumbler switch, status | 21J |
| 1 | Door rotary tumbler switch, status | 18G |
| 1 | Door rotary tumbler switch, status | 18H |
| 1 | Door rotary tumbler switch, status | 18F |
| 1 | Door rotary tumbler switch, status | 18E |
| 2 | Engine hood contact switch, status | 18D |
| 3 | Liftgate latch main button switch, status | 10J |
| 3 | Liftgate latch main button switch, status | 17E |
| 4 | Central locking (CL [ZV]), status | 19D |
| 4 | Central locking (CL [ZV]), status | 25C |
| 5 | ATA [EDW] alarm, signal | 21E |
| 6 | Alarm siren, status | 25G |
| 6 | Alarm siren, status | 22E |
| 7 | Alarm siren, actuation | 25H |
| 8 | Fanfare horns, actuation | 23J |
| 8 | Fanfare horns, actuation | 22F |
| 9 | Circuit 15, status | 19D |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 19C |
| CAN B | Interior CAN | 22E |
| CAN B | Interior CAN | 24B |
| Code FY1 | Theft protection package | 24D |
| Code T19 | Left sliding door | 11K |
| Code T55 | Electric controls for right sliding door | 8K |
| Code T56 | Electric controls for left sliding door | 6K |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 20K |
| Code W64 | Separately opening rear window | 18K |
| Code W65 | Liftgate | 15K |
| Code W68 | EASY PACK liftgate | 10K |
| H2/1 | Right fanfare horn | 23K |
| H3/1 | Alarm siren with additional battery | 25J |
| K40/10kJ | Fanfare horn relay | 23H |
| LIN B14 | Alarm system LIN | 25G |
| M14/3 | Left front door central locking actuator | 2K |
| M14/3s1 | Left front door rotary tumbler microswitch | 2K |
| M14/4 | Right front door central locking actuator | 4K |
| M14/40 | Left manual sliding door central locking actuator | 12K |
| M14/40s1 | Left manual sliding door rotary tumbler microswitch | 12L |
| M14/41 | Right manual sliding door central locking actuator | 14K |
| M14/41s1 | Right manual sliding door rotary tumbler microswitch | 14L |
| M14/42 | Left electric sliding door central locking actuator | 7K |
| M14/42s1 | Left sliding door rotary tumbler microswitch | 7L |
| M14/43 | Right electric sliding door central locking actuator | 8K |
| M14/43s1 | Right sliding door rotary tumbler microswitch | 8L |
| M14/46 | Opening assist of separately opening rear window | 19K |
| M14/46s1 | Rotary tumbler microswitch of separately opening rear window | 19L |
| M14/47 | Opening assist of electrically operated liftgate | 10K |
| M14/47s1 | Rotary tumbler microswitch of electrically operated liftgate | 10L |
| M14/4s1 | Right front door rotary tumbler microswitch | 4K |
| M14/7 | Rear-end door central locking actuator | 16K |
| M14/7s1 | Liftgate rotary tumbler microswitch | 16L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 19E |
| N26/6 | Anti-theft alarm system (ATA [EDW]) control unit | 26E |
| N69/3 | Left front door control unit | 2F |
| N69/4 | Right front door control unit | 4F |
| N69/6 | Right sliding door (E-LSTR) control unit | 9F |
| N69/7 | Left sliding door (E-LSTL) control unit | 7F |
| N73 | Electronic ignition lock (EZS) control unit | 19A |
| S49/6 | Right rear-end door rotary tumbler switch | 20K |
| S49/7 | Left rear-end door rotary tumbler switch | 20L |
| S62/41 | Engine hood switch | 17C |
| U138 | Valid without code FZ5 ATA I, antitheft alarm system | 22G |
