Door Lock, Basic Function - GF80.20-S-2017A
Model All (Light transporter)

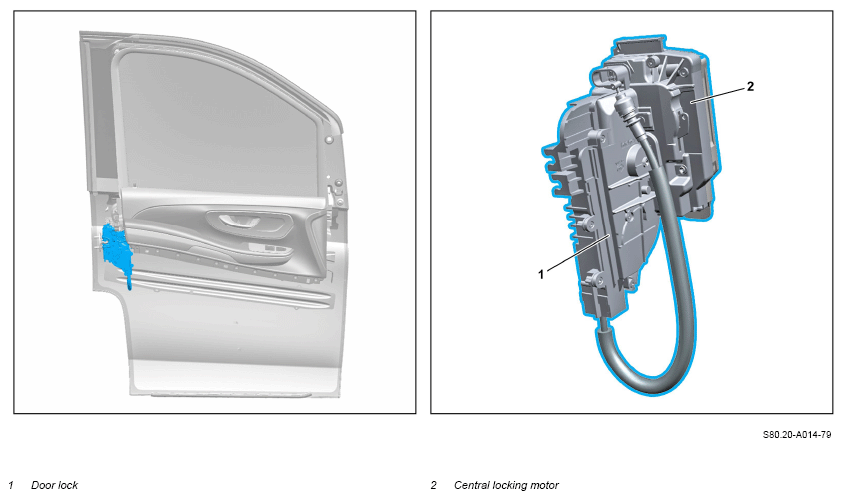

Example illustration of driver's door door lock
Overview
This document contains the following information:
- Location
- Structure
- Task
Location
The door locks are located in the corresponding door.
Structure
Depending on the equipment, a central locking motor is installed in each door lock.
Task
The mechanical part of the door lock connects the door with the lock striker, holds it securely closed or releases it again in the case of an opening request.
The door lock has the following tasks:
- Definition of door status (open or closed) via status of the microswitch
- Locking/unlocking of the door via the central locking system through the actuation of the central locking motor
The door control unit reads in the status of the respective switch and actuates the relevant actuators.
