Central Locking System Inside Door Handle Switch, Basic Function - GF80.20-S-2014A
Model All (Light transporter)

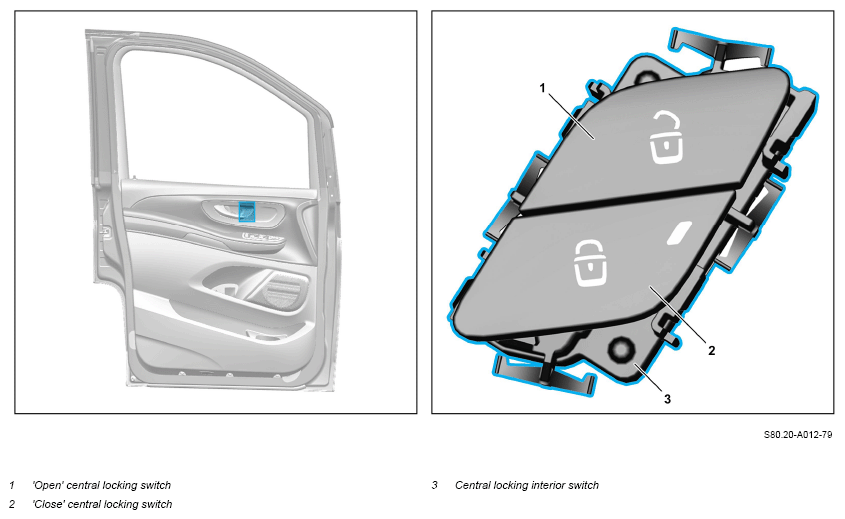

Example illustration of model 447
Overview
This document contains the following information:
- Location
- Task
- Function
Location
The central locking inside door handle switch (3) is located in the driver's door trim.
Task
Via the central locking inside door handle switch, the locking/unlocking of the central locking system can be triggered and the automatic locking/unlocking activated and deactivated.
Function
The front door control unit reads the status of the central locking system switch and actuates the integrated indicator lamp.
