Wiring Diagram Of Exterior Lights - PE82.10-S-2000-97VKB
Model 447 with code XM7 (MOPF II) except code L45 (Multibeam LED with high beam assist plus) except code LG4 (Taillights, brake lights and turn signal light in LED technology) E1, E2, E3, E4
| Code: | Designation: | Position: |
|---|---|---|

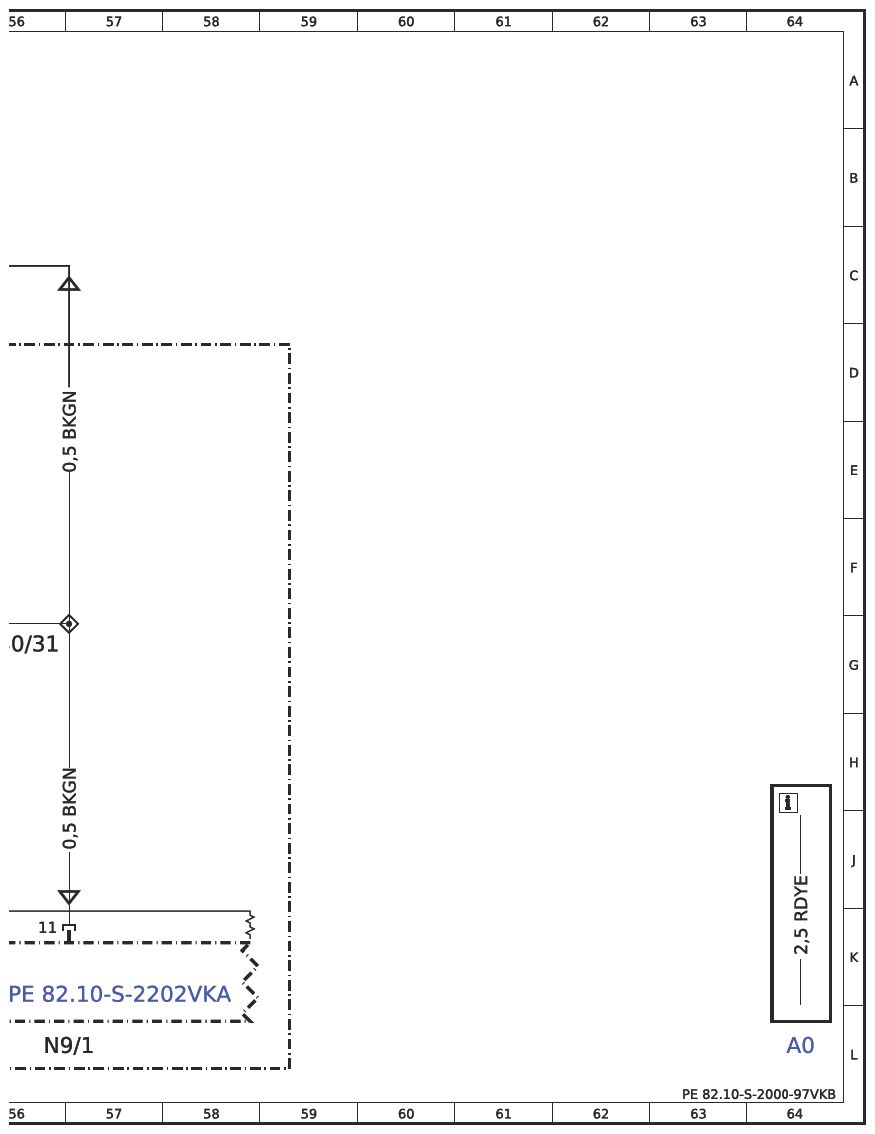

| A0 | Color code key | 64L |
| Code JW0 | Backup warning system | 40G |
| Code JW0 | Backup warning system | 36D |
| Code L | Valid for left-hand drive vehicles | 8G |
| Code L | Valid for left-hand drive vehicles | 24G |
| Code L84 | Additional rear turn signal lamps on roof | 42G |
| Code L84 | Additional rear turn signal lamps on roof | 43D |
| Code L84 | Additional rear turn signal lamps on roof | 53G |
| Code L84 | Additional rear turn signal lamps on roof | 54D |
| Code R | Valid for right-hand drive vehicles | 10G |
| Code R | Valid for right-hand drive vehicles | 26G |
| Code R | Valid for right-hand drive vehicles | 50G |

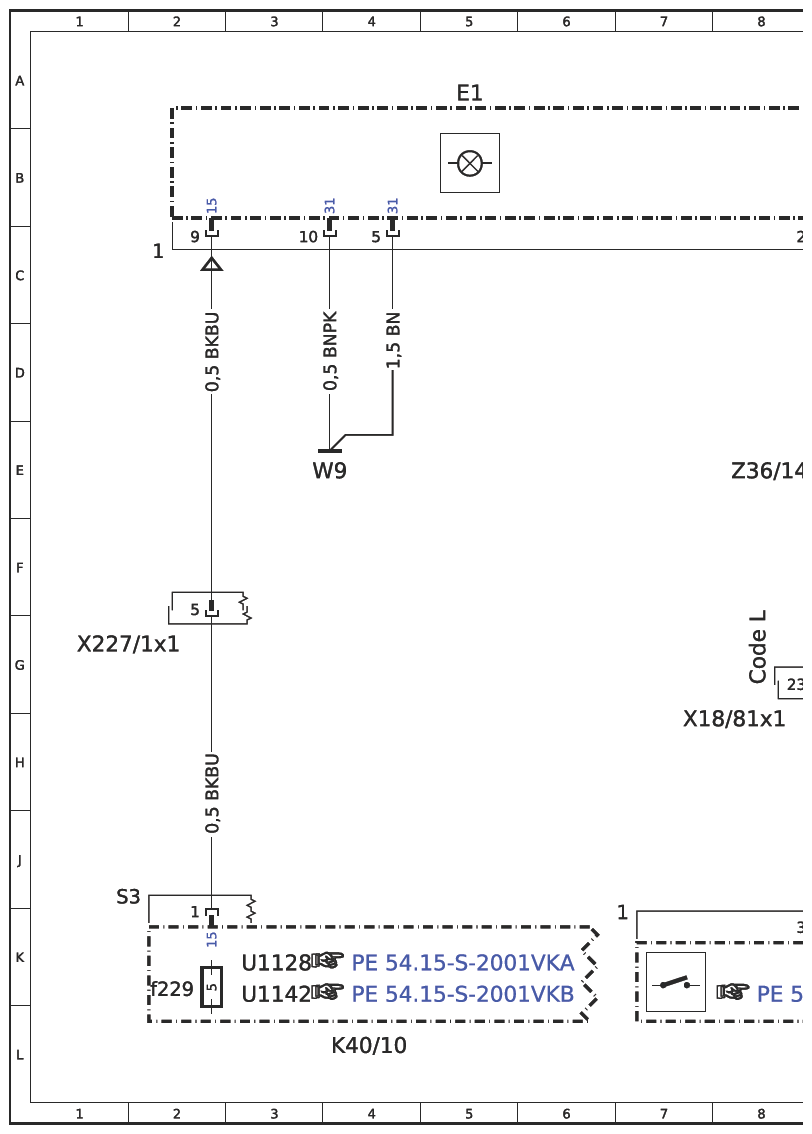

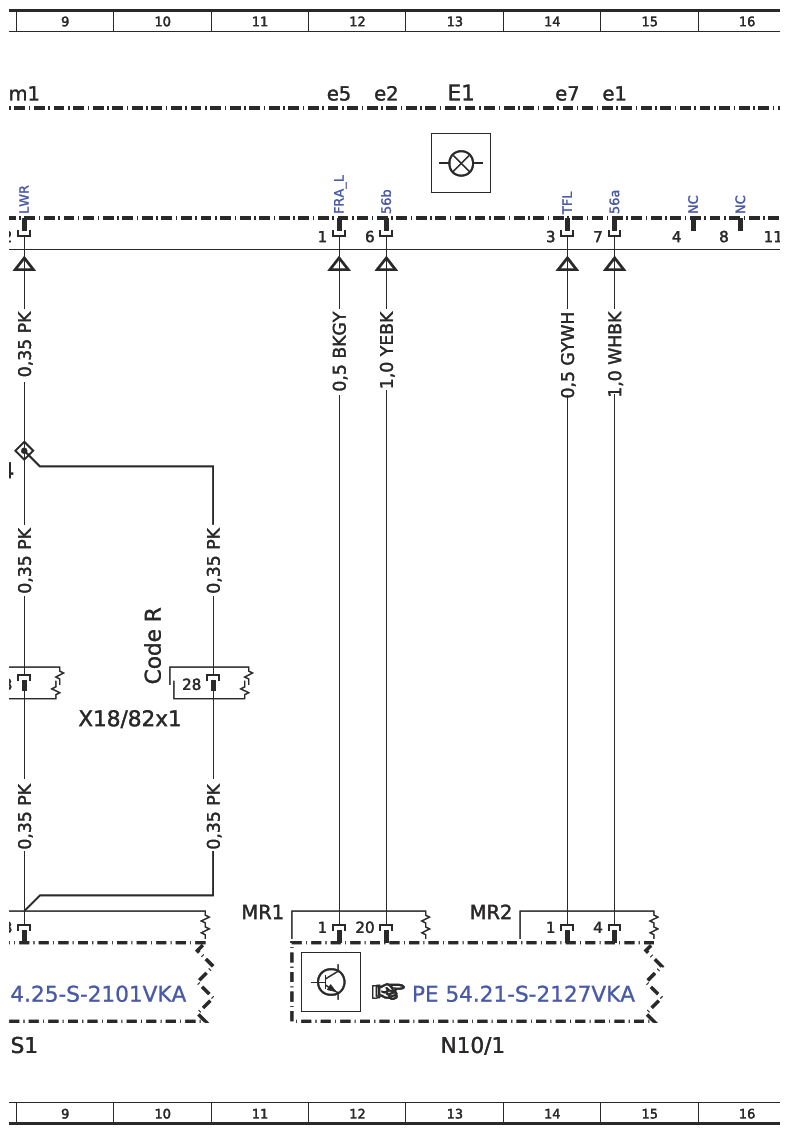

| E1 | Left front lamp unit | 5A |
| E1 | Left front lamp unit | 13A |
| E1e1 | Left high beam | 15A |
| E1e2 | Left low beam | 12A |
| E1e5 | Left front turn signal lamp | 12A |
| E1e7 | Left parking light, standing light and daytime running light | 14A |
| E1m1 | Left headlamp range adjustment actuator motor | 9A |

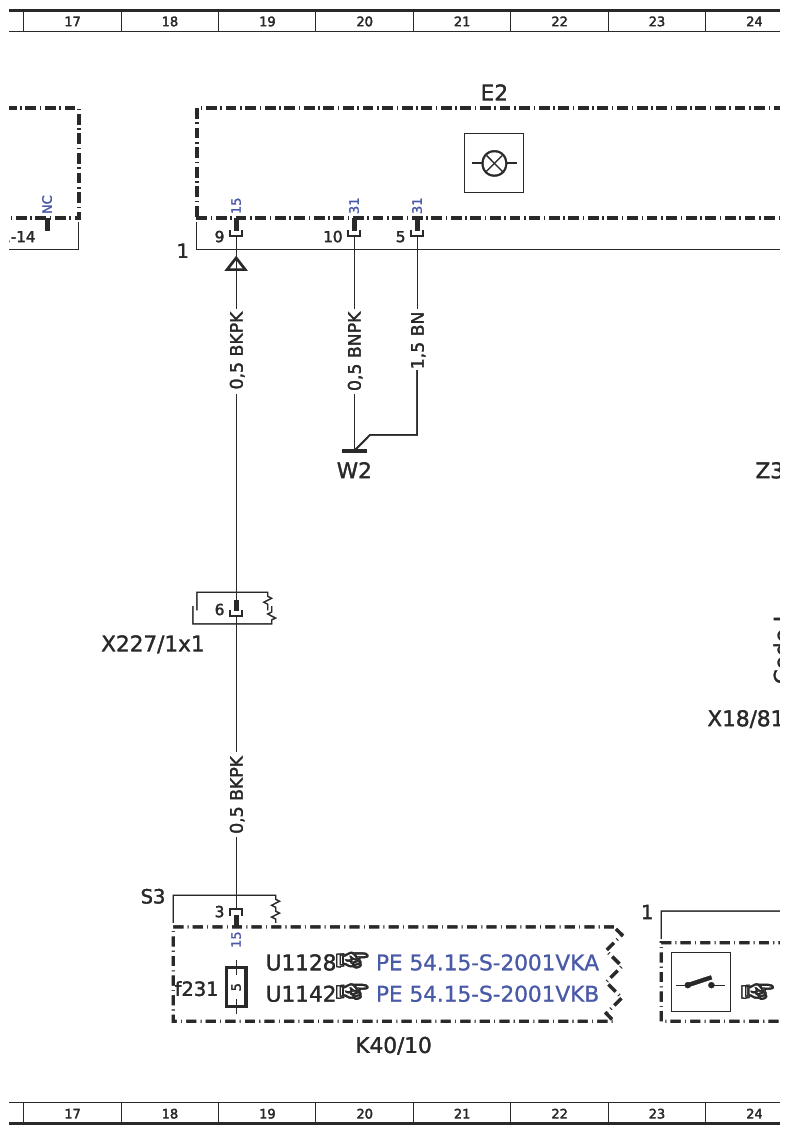

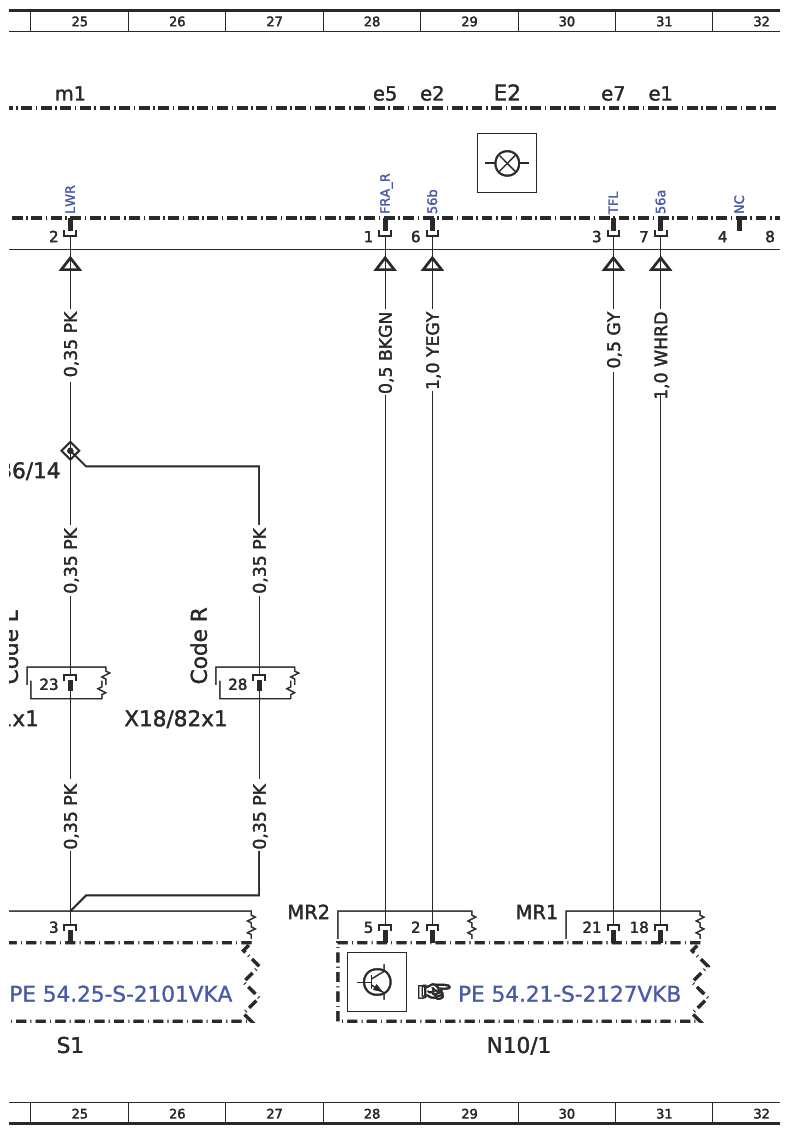

| E2 | Right front lamp unit | 21A |
| E2 | Right front lamp unit | 29A |
| E2e1 | Right high beam | 31A |
| E2e2 | Right low beam | 29A |
| E2e5 | Right front turn signal lamp | 28A |
| E2e7 | Right parking light, standing light and daytime running light | 30A |
| E2m1 | Right headlamp range adjustment actuator motor | 25A |

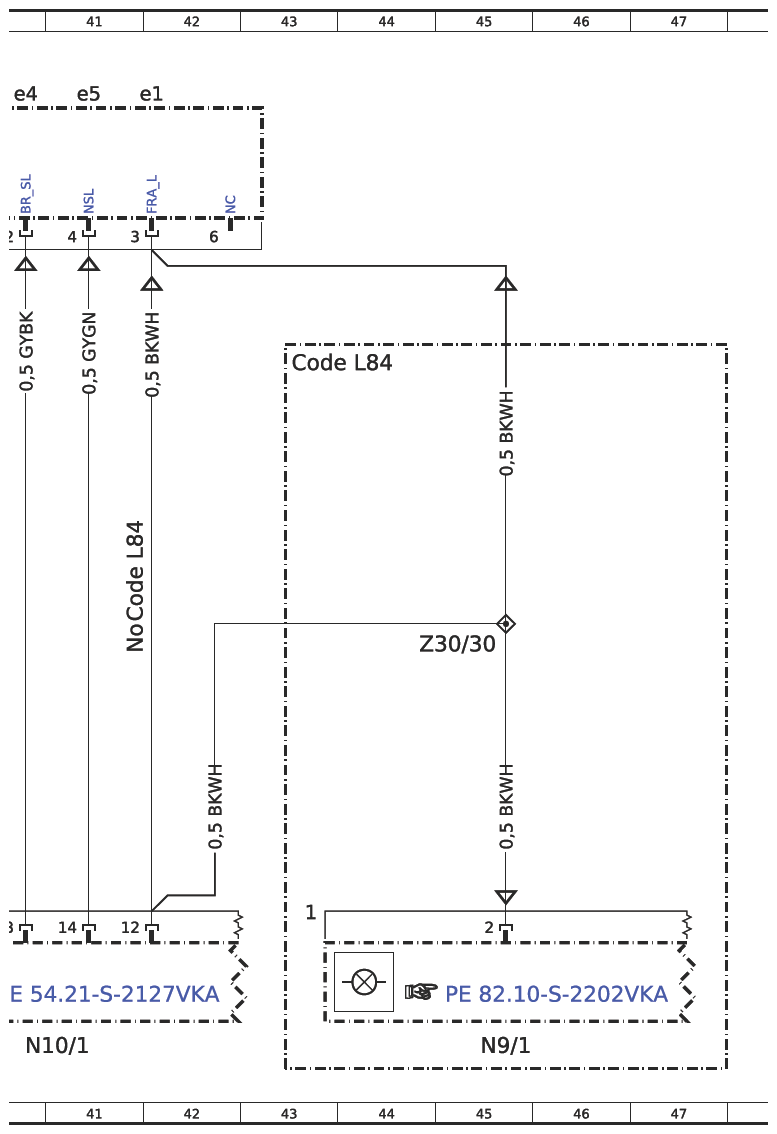

| E3 | Left rear lamp unit | 39A |
| E3e1 | Left rear turn signal lamp | 42A |
| E3e3 | Left backup lamp | 40A |
| E3e4 | Left taillight and brake light | 40A |
| E3e5 | Left rear fog lamp | 41A |

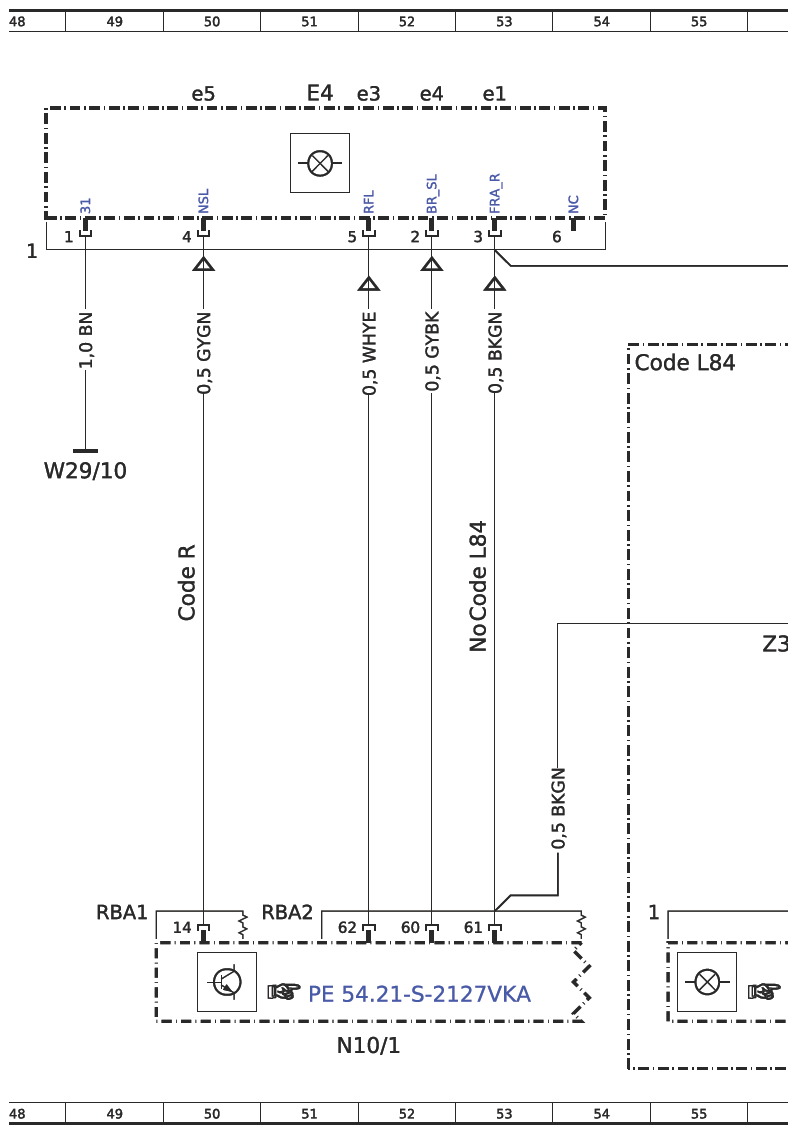

| E4 | Right rear lamp unit | 51A |
| E4e1 | Right rear turn signal lamp | 53A |
| E4e3 | Right backup lamp | 52A |
| E4e4 | Right taillight and brake light | 52A |
| E4e5 | Right rear fog lamp | 50A |

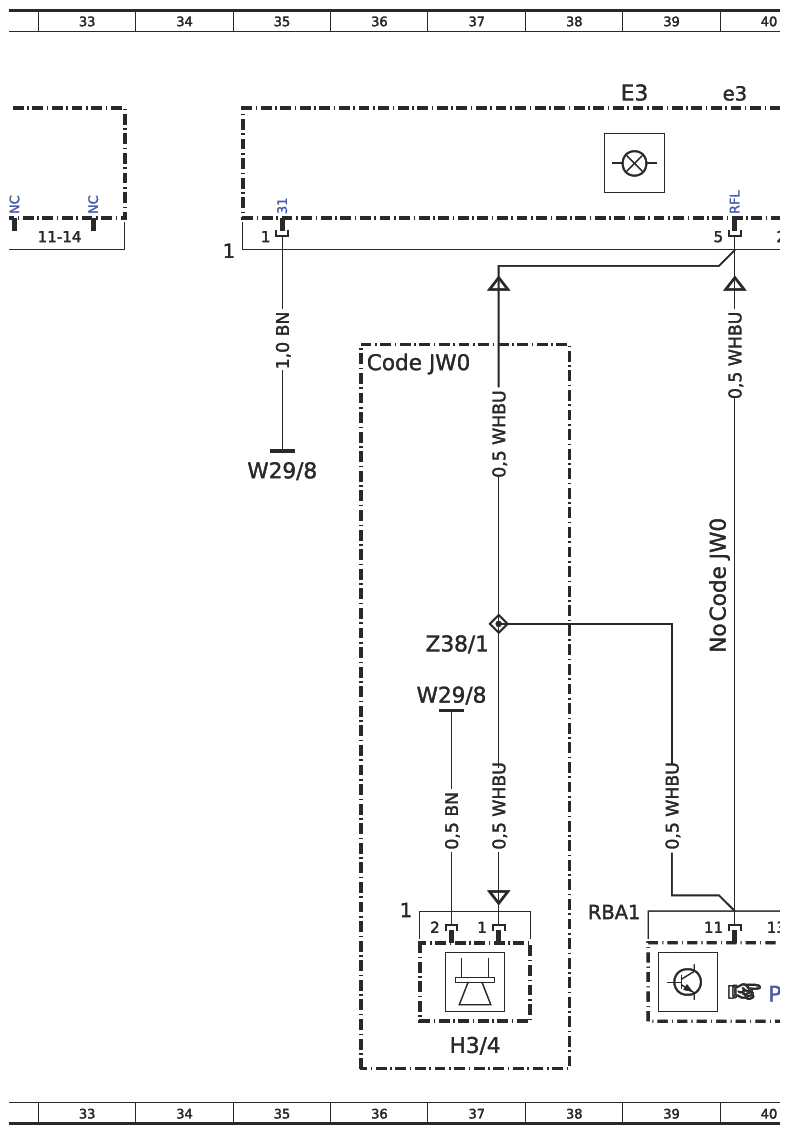

| H3/4 | Backup warning system horn | 37L |
| K40/10 | Engine compartment fuse and relay module | 4L |
| K40/10 | Engine compartment fuse and relay module | 20L |
| K40/10f229 | Fuse 229 | 2K |
| K40/10f231 | Fuse 231 | 18K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 13L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 29L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 40L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 51L |
| N9/1 | Additional turn signal module control unit | 45L |
| N9/1 | Additional turn signal module control unit | 56L |
| S1 | Light switch | 9L |
| S1 | Light switch | 25L |
| U1128 | Valid for combustion engine | 3K |
| U1128 | Valid for combustion engine | 19K |
| U1142 | Valid for electric vehicle | 3K |
| U1142 | Valid for electric vehicle | 19K |
| W2 | Right front lamp unit ground point | 20E |
| W29/10 | Right D-pillar ground point | 49E |
| W29/8 | Left D-pillar ground point | 35E |
| W29/8 | Left D-pillar ground point | 37G |
| W9 | Left front lamp unit ground point | 4E |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 8H |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 24H |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 10H |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 26H |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 2G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 18G |
| Z30/30 | Left additional turn signal connector sleeve | 45G |
| Z30/31 | Right additional turn signal connector sleeve | 56G |
| Z36/14 | Headlamp range control signal end sleeve | 8E |
| Z36/14 | Headlamp range control signal end sleeve | 24E |
| Z38/1 | Backup lamp connector sleeve | 37G |
