Wiring Diagram Interior Illumination - PE82.20-S-2000-97VVH
Model 447.6 with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) Sheet 2
Model 447.7 with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |

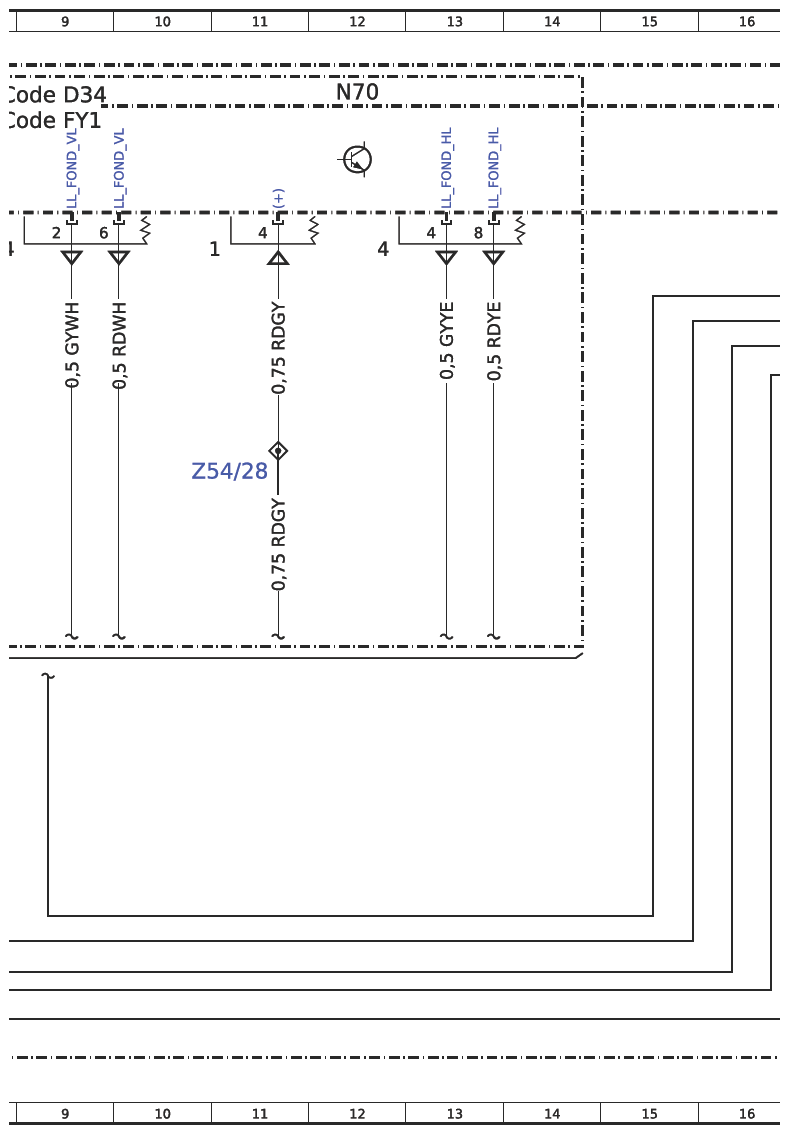

| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 33D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 8A |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 4A |
| Code FKA | Panel van | 54F |
| Code FKB | Vito Mixto and Tourer | 59F |
| Code FKB | Vito Mixto and Tourer | 1A |
| Code FKB | Vito Mixto and Tourer | 42A |
| Code FKB | Vito Mixto and Tourer | 73D |
| Code FKB | Vito Mixto and Tourer | 54G |
| Code FS5 | Illuminated mirrors for sun visors | 54D |
| Code FS5 | Illuminated mirrors for sun visors | 55F |
| Code FY1 | Theft protection package | 33D |
| Code FY1 | Theft protection package | 8A |
| Code FY1 | Theft protection package | 4A |
| Code LC3 | Illumination in rear grab handle | 42A |
| Code LC4 | Comfort overhead control panel | 54D |
| Code LC4 | Comfort overhead control panel | 33C |

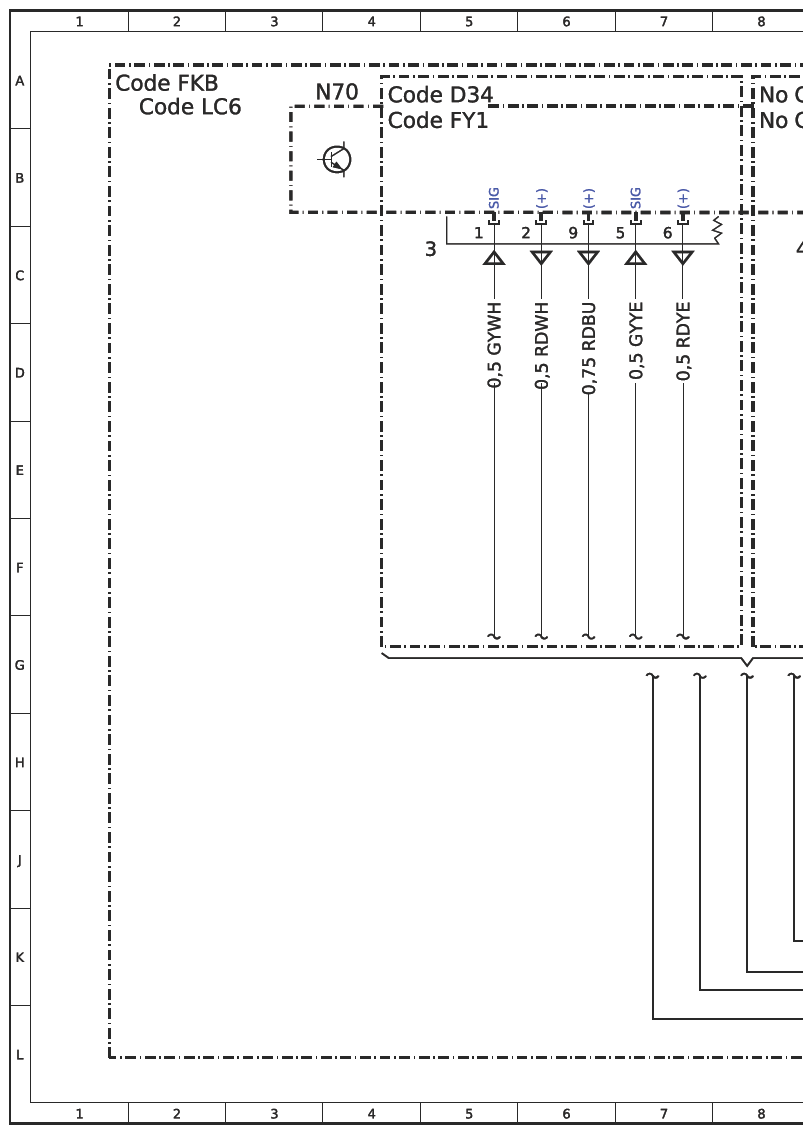

| Code LC6 | Illumination in rear grab handle with reading spotlight | 2A |
| Code LC7 | Lighting for front footwell | 68D |
| Code YG4 | Load compartment tray | 74D |
| Code ZK4 | Mixto | 60F |
| Code ZK4 | Mixto | 55G |

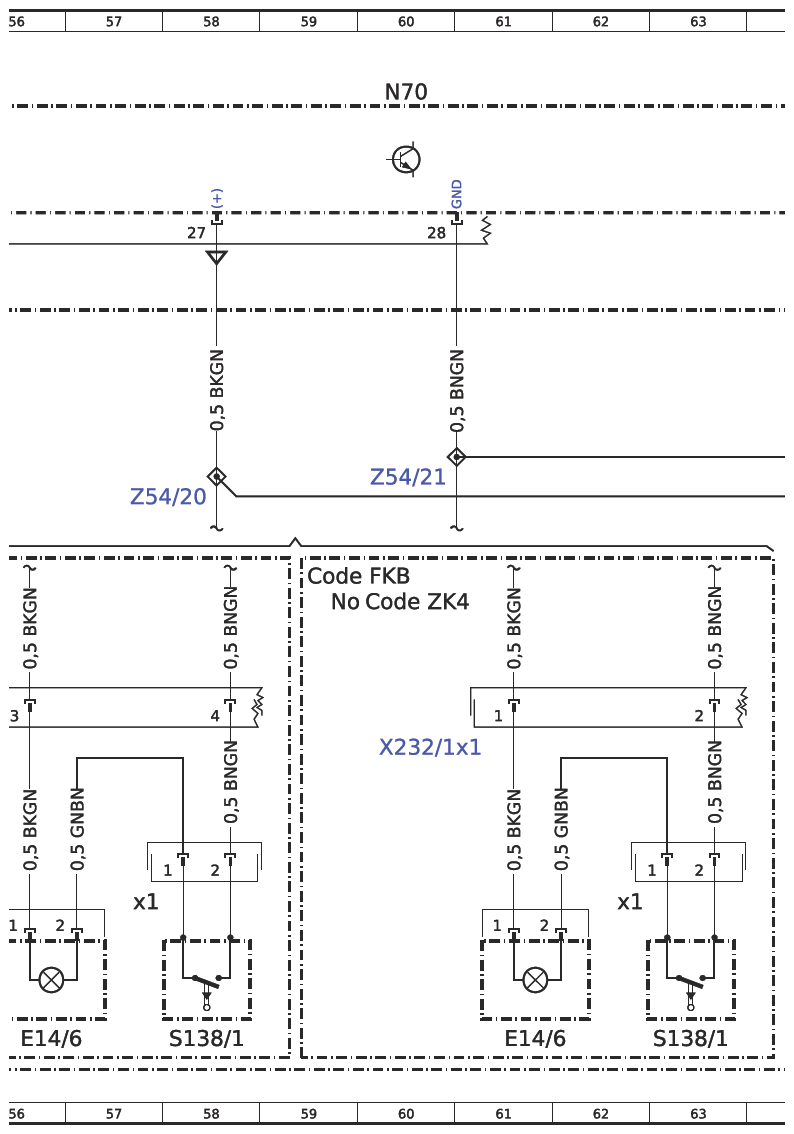

| E14/6 | Left front vanity mirror illumination | 56L |
| E14/6 | Left front vanity mirror illumination | 61L |

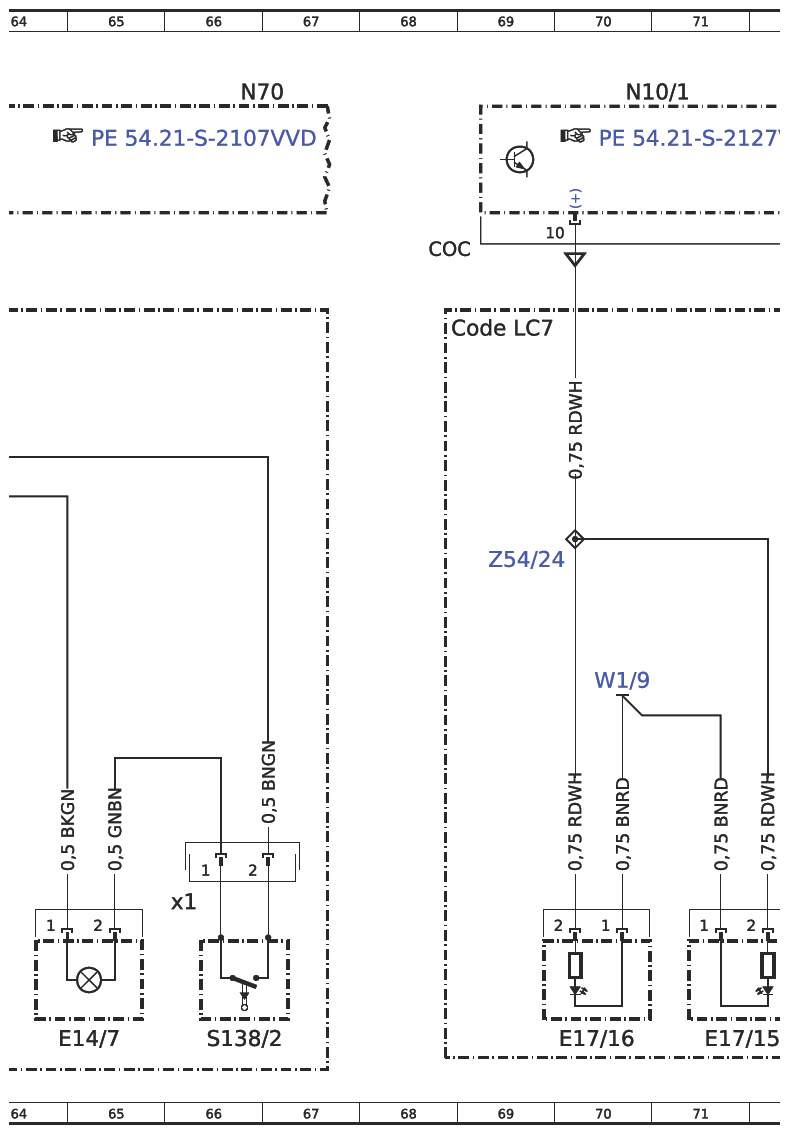

| E14/7 | Right front vanity mirror illumination | 65L |

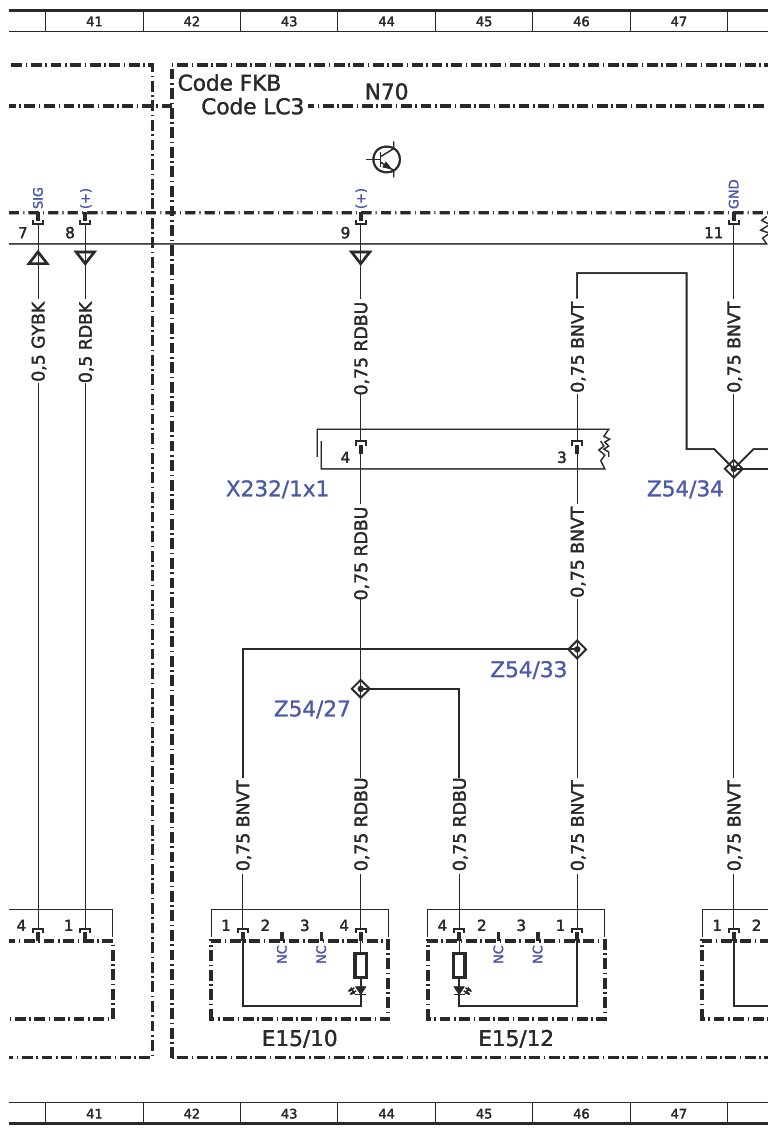

| E15/10 | Dome lamp in left front grab handle | 43L |

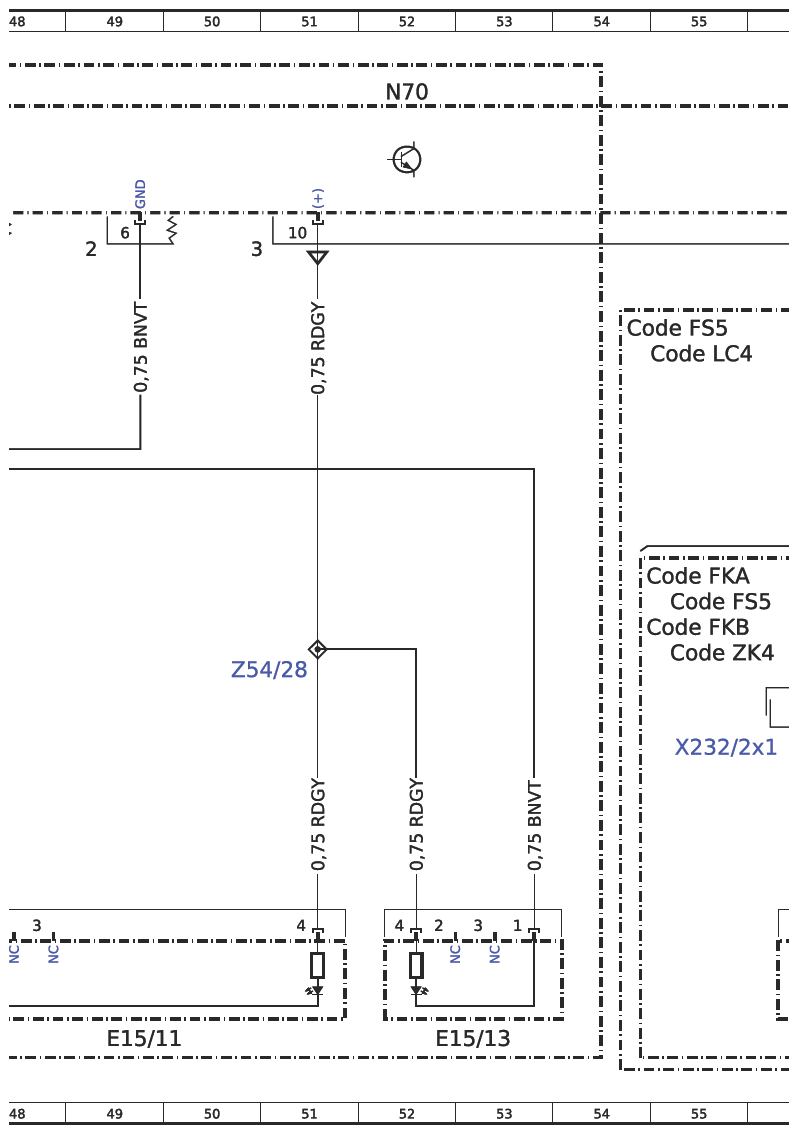

| E15/11 | Dome lamp in right front grab handle | 49L |
| E15/12 | Dome lamp in left rear grab handle | 45L |
| E15/13 | Dome lamp in right rear grab handle | 53L |

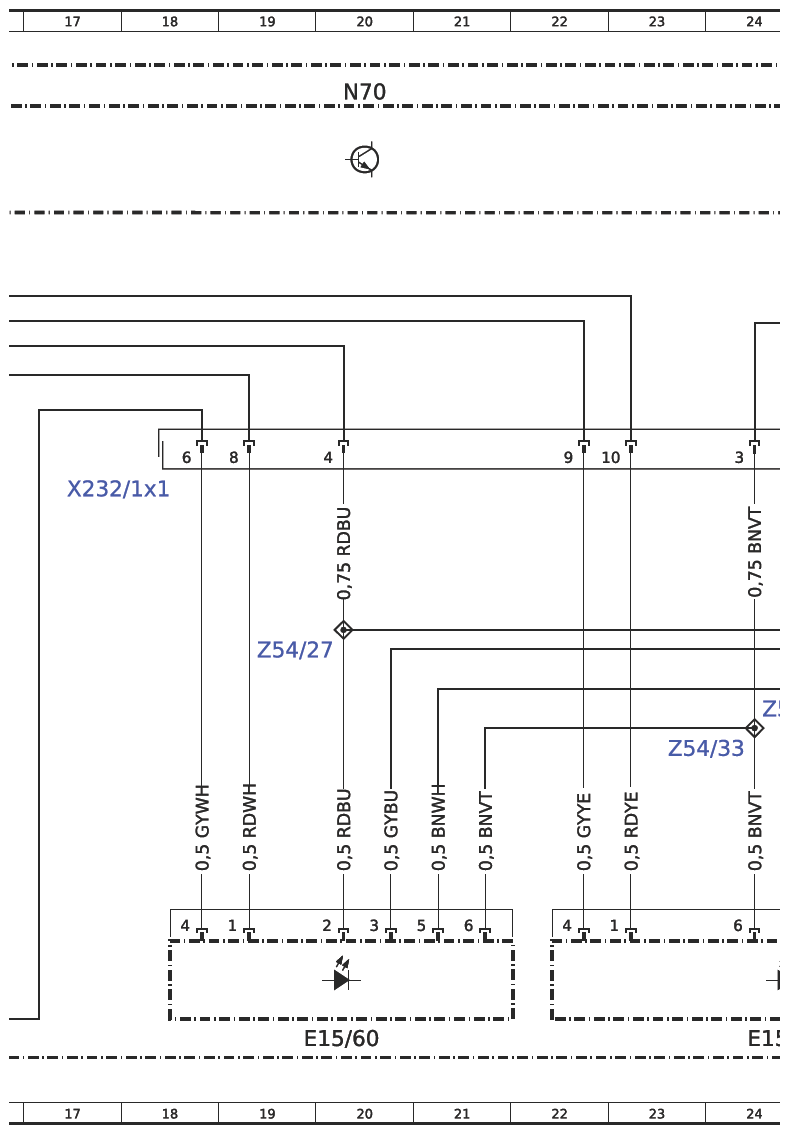

| E15/60 | Left front grab handle ambiance illumination | 20L |

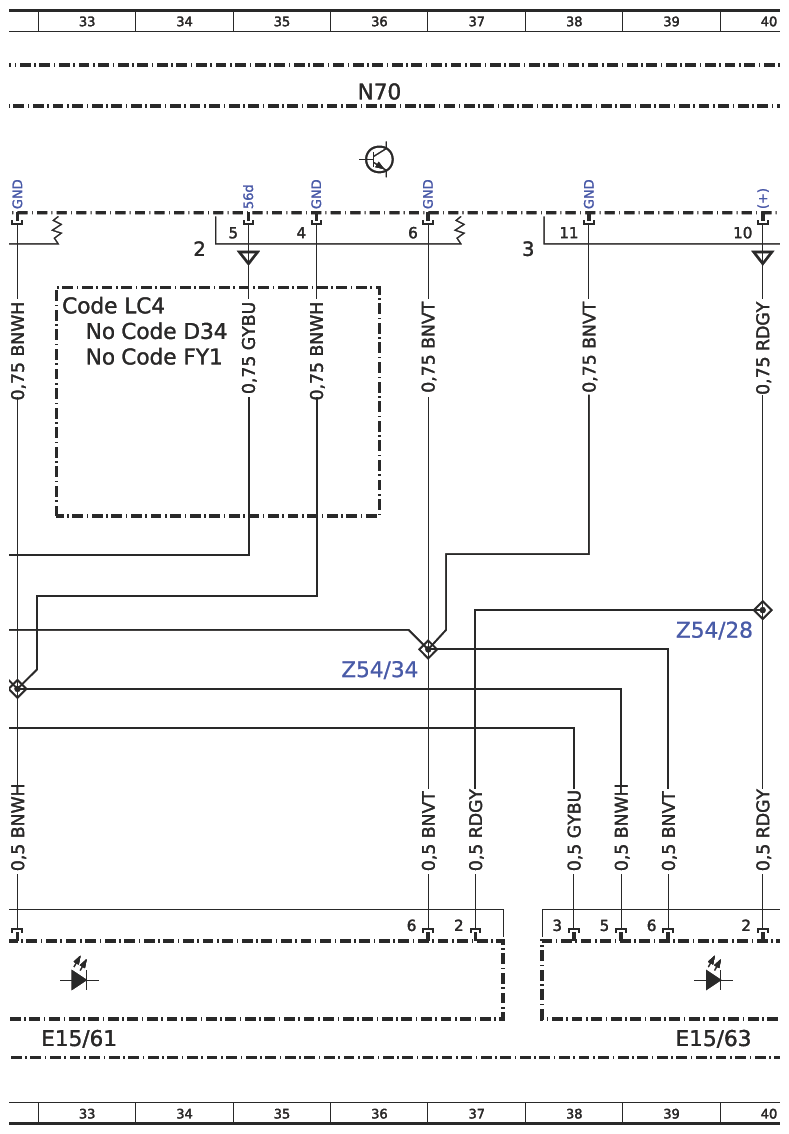

| E15/61 | Right front grab handle ambiance illumination | 33L |
| E15/62 | Left rear grab handle ambiance illumination | 24L |
| E15/63 | Right rear grab handle ambiance illumination | 39L |
| E17/15 | Right front footwell lamp | 71L |
| E17/16 | Left front footwell lamp | 70L |

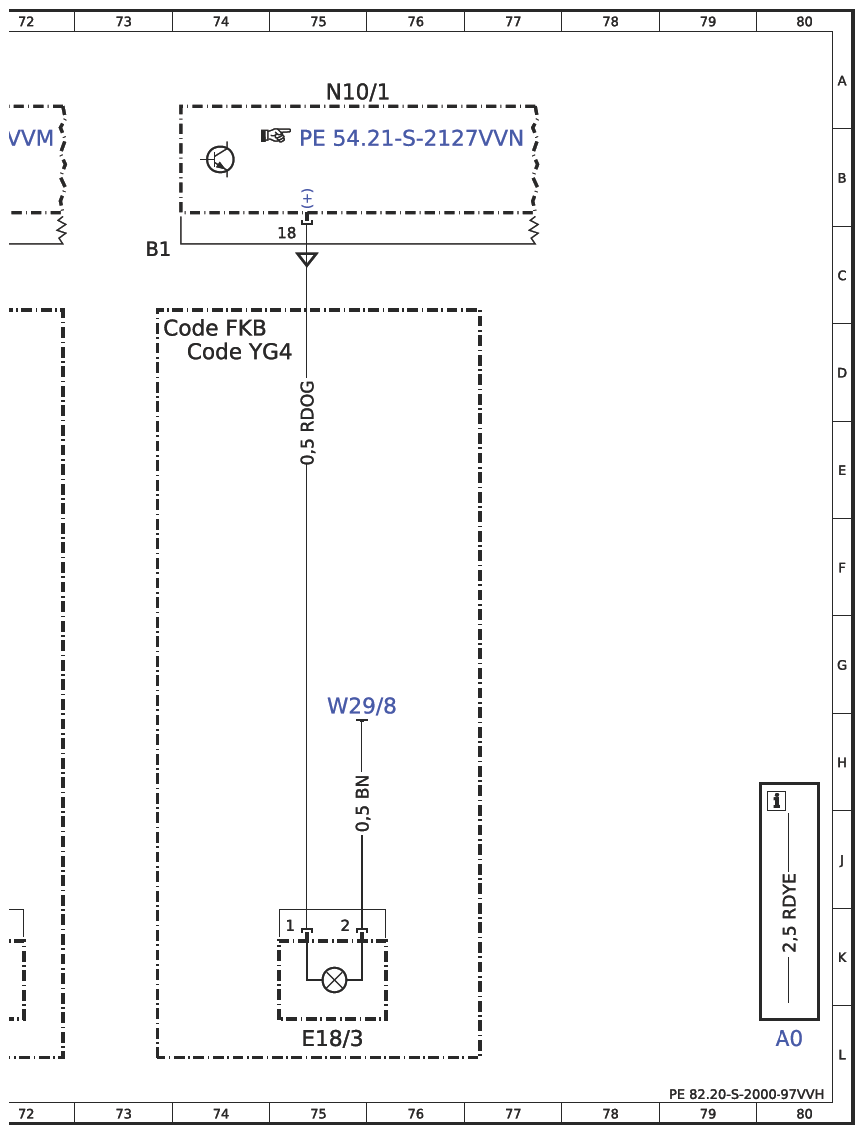

| E18/3 | Left luggage compartment lamp | 75L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 75A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 70A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 4A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 66A |
| S138/1 | Left sun visor illumination switch | 58L |
| S138/1 | Left sun visor illumination switch | 63L |
| S138/1x1 | Left sun visor illumination switch electrical connector | 57K |
| S138/1x1 | Left sun visor illumination switch electrical connector | 62K |
| S138/2 | Right sun visor illumination switch | 66L |
| S138/2x1 | Right sun visor illumination switch electrical connector | 66K |
| W1/9 | Right cockpit ground point | 70G |
| W29/8 | Left D-pillar ground point | 75H |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 60H |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 18E |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 43E |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 55H |
| Z54/20 | Vanity mirror supply connector sleeve | 58E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 60E |
| Z54/24 | Front footwell lamps supply connector sleeve | 69F |
| Z54/27 | Left grab handle lamps supply connector sleeve | 19G |
| Z54/27 | Left grab handle lamps supply connector sleeve | 43H |
| Z54/28 | Right grab handle lamps supply connector sleeve | 40G |
| Z54/28 | Right grab handle lamps supply connector sleeve | 51G |
| Z54/28 | Right grab handle lamps supply connector sleeve | 11E |
| Z54/32 | Switch and controls illumination left grab handle lamps ground connection end sleeve | 25H |
| Z54/33 | Left grab handle lamps ground connection end sleeve | 24H |
| Z54/33 | Left grab handle lamps ground connection end sleeve | 46G |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 36G |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 47E |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 32H |

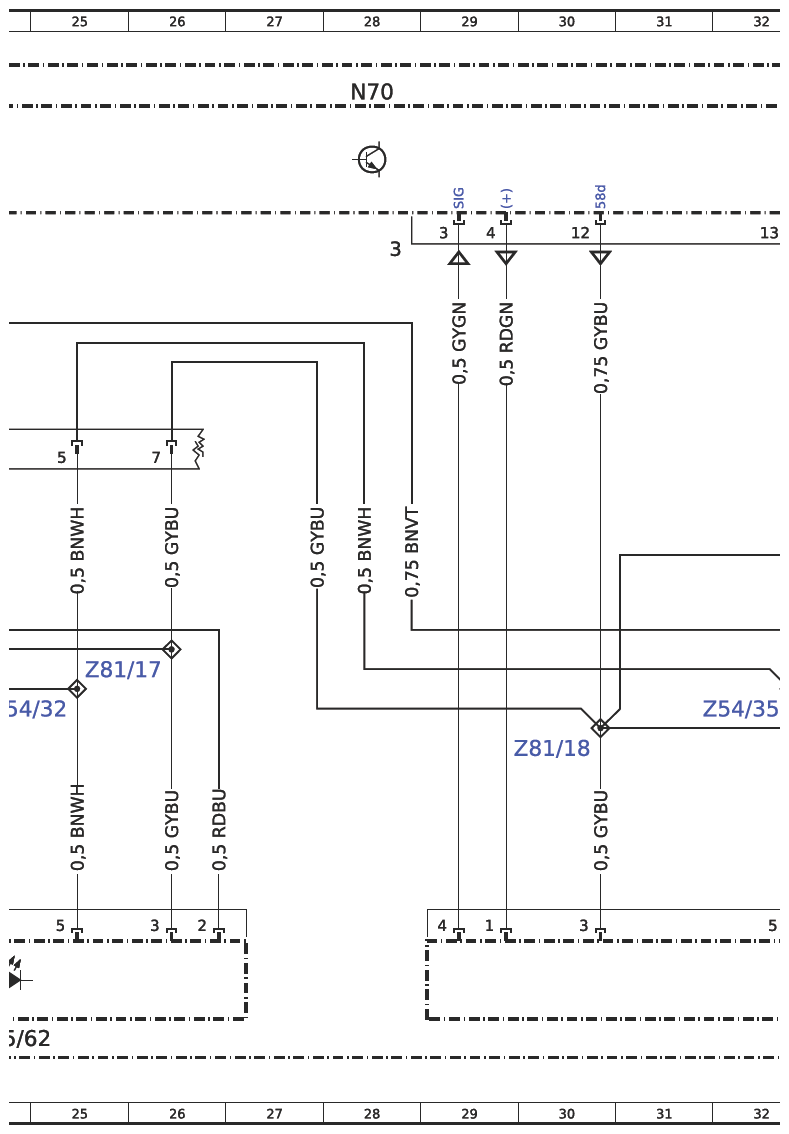

| Z81/17 | Rear interior lamps terminal 58d connector sleeve | 26G |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 30H |
