Wiring Diagram Interior Illumination - PE82.20-S-2000-97VVG
Model 447.6 with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) Sheet 1
Model 447.7 with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) Sheet 1

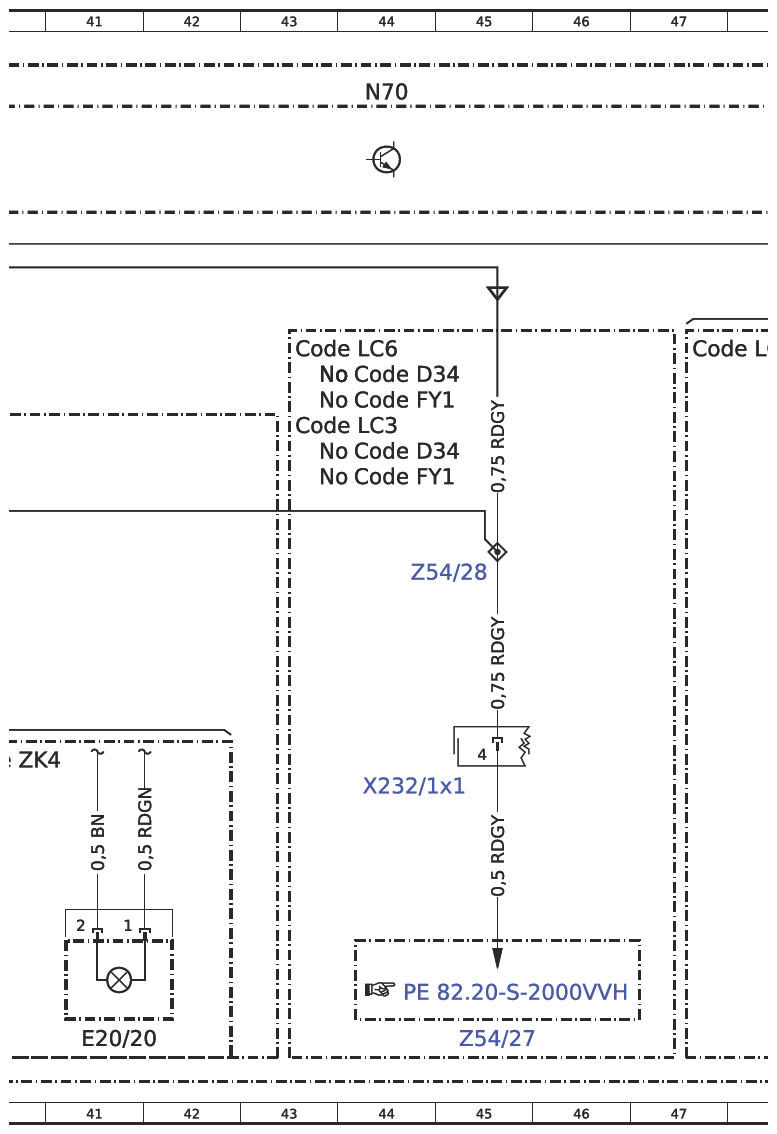

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 44D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 44E |
| Code D57 | Full-width partition wall at C-pillar with window | 17D |
| Code D57 | Full-width partition wall at C-pillar with window | 21D |
| Code FKA | Panel van | 2A |
| Code FKA | Panel van | 59F |
| Code FKB | Vito Mixto and Tourer | 17A |
| Code FKB | Vito Mixto and Tourer | 63F |
| Code FKB | Vito Mixto and Tourer | 59G |
| Code FS5 | Illuminated mirrors for sun visors | 58D |
| Code FS5 | Illuminated mirrors for sun visors | 59F |
| Code FY1 | Theft protection package | 44D |
| Code FY1 | Theft protection package | 44E |
| Code LC2 | LED light strip in load compartment | 47D |
| Code LC2 | LED light strip in load compartment | 13D |
| Code LC3 | Illumination in rear grab handle | 43E |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 43D |

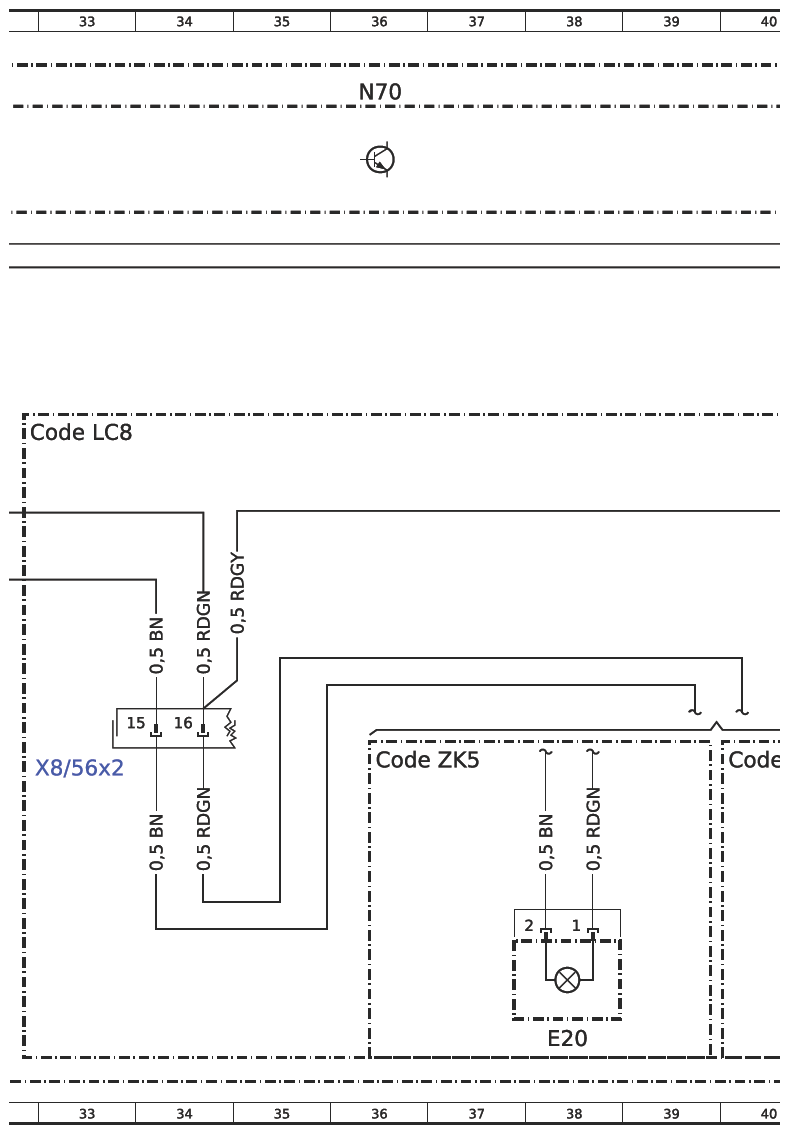

| Code LC8 | Liftgate ambient illumination | 55E |
| Code LC8 | Liftgate ambient illumination | 8D |
| Code LC8 | Liftgate ambient illumination | 32E |
| Code LC8 | Liftgate ambient illumination | 6D |
| Code LC8 | Liftgate ambient illumination | 53E |
| Code LD9 | Interior lights in rear passenger compartment | 56E |
| Code V36 | Headliner | 51D |
| Code V36 | Headliner | 28G |
| Code VD2 | Standard headliner, B-D pillar | 21G |
| Code ZK4 | Mixto | 17D |
| Code ZK4 | Mixto | 20D |
| Code ZK4 | Mixto | 64F |
| Code ZK4 | Mixto | 40H |
| Code ZK4 | Mixto | 59G |
| Code ZK5 | Passenger van | 36H |

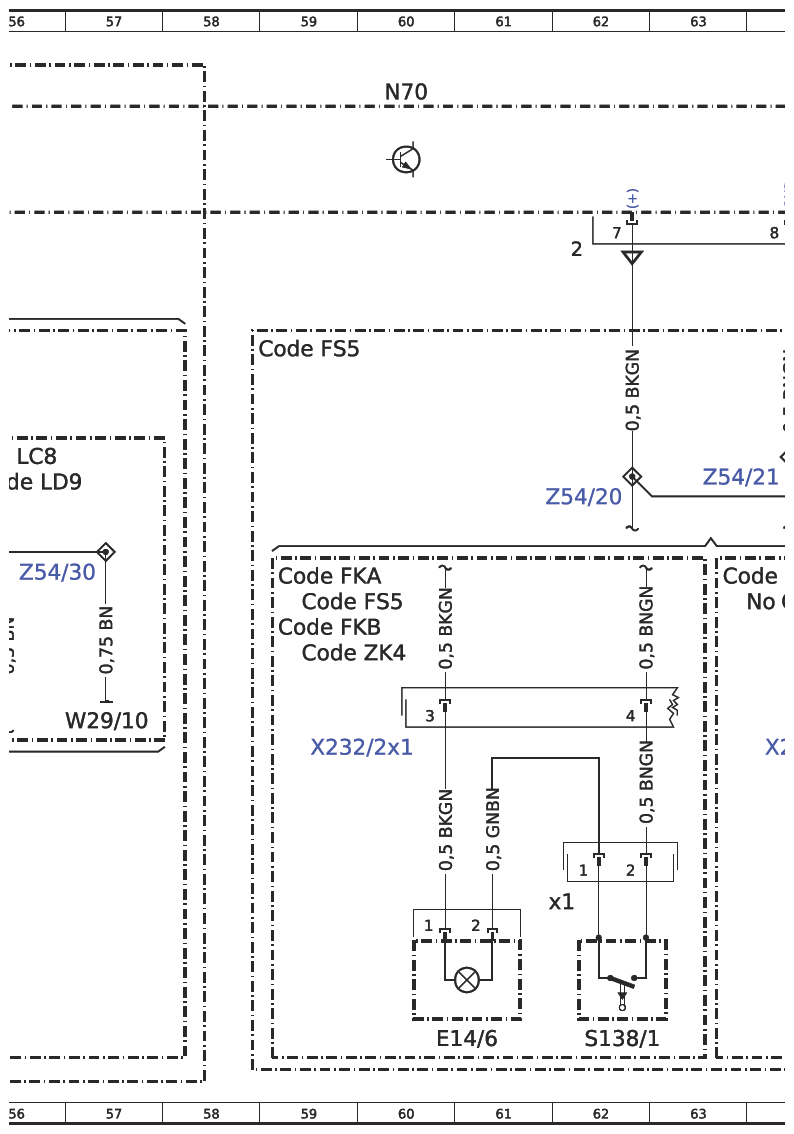

| E14/6 | Left front vanity mirror illumination | 60L |
| E14/6 | Left front vanity mirror illumination | 65L |

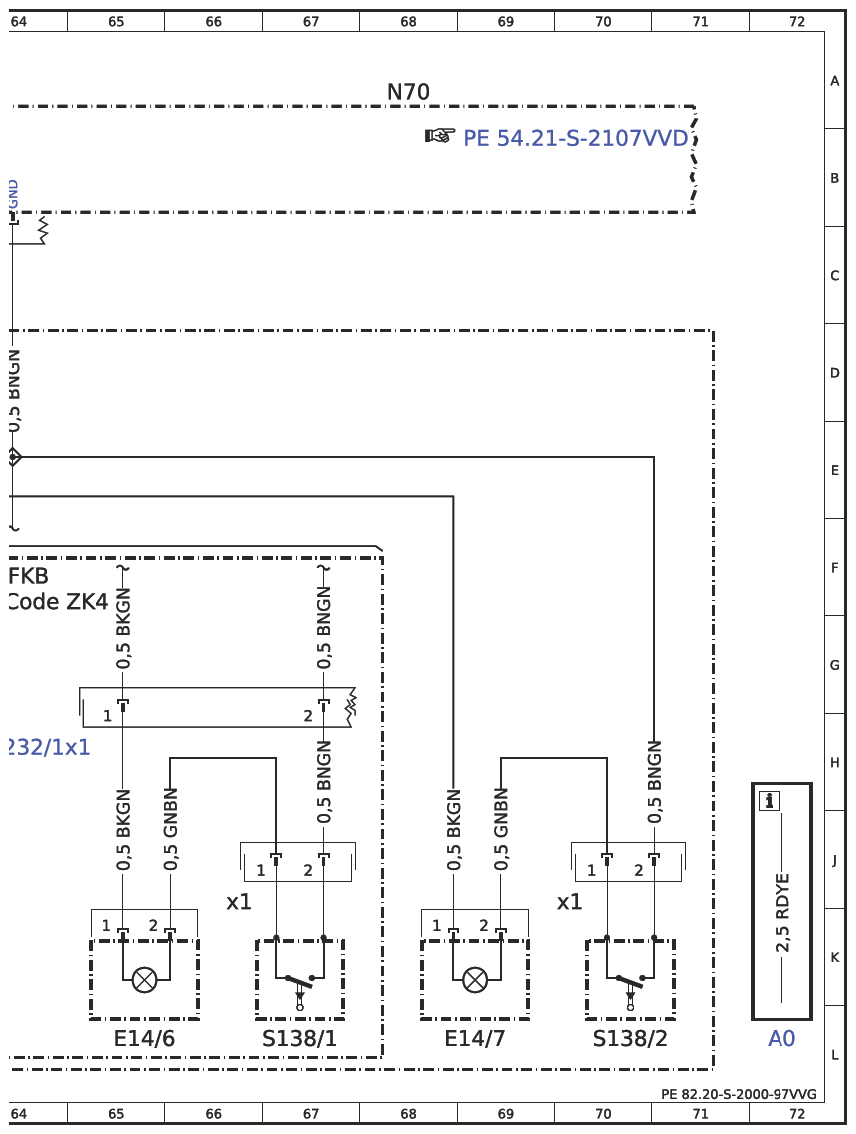

| E14/7 | Right front vanity mirror illumination | 69L |

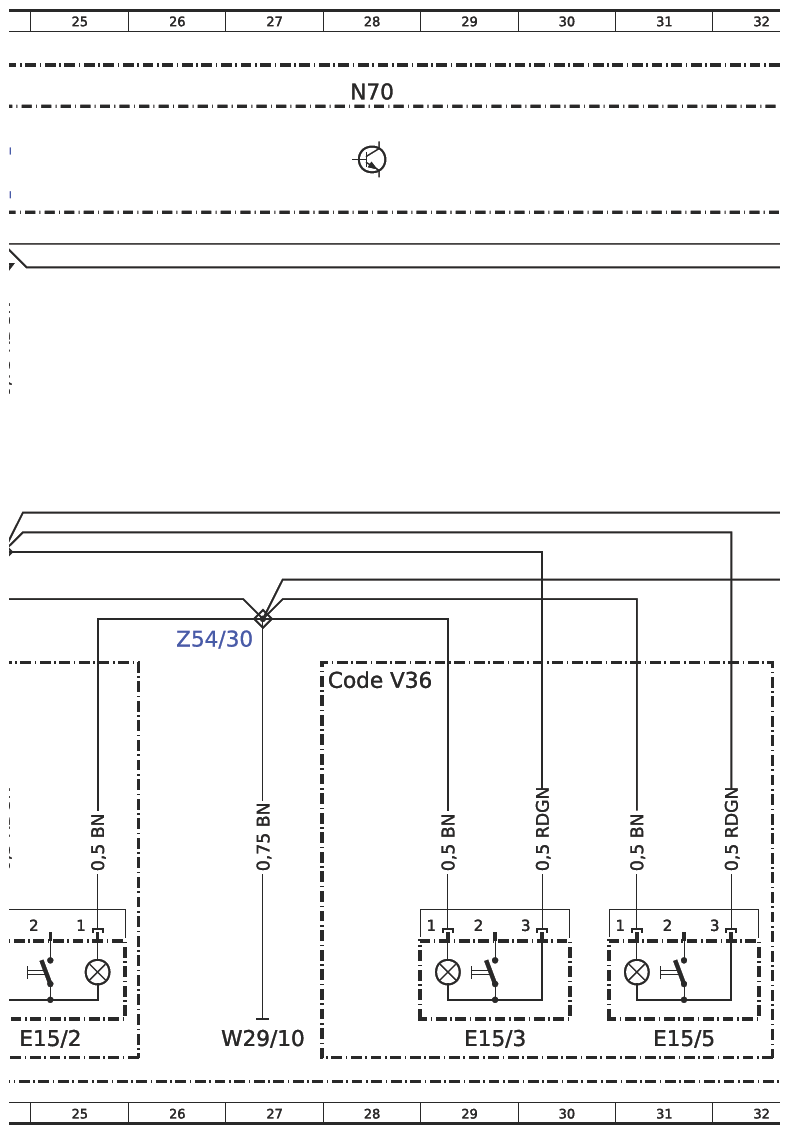

| E15/2 | Dome lamp, front of rear | 25L |

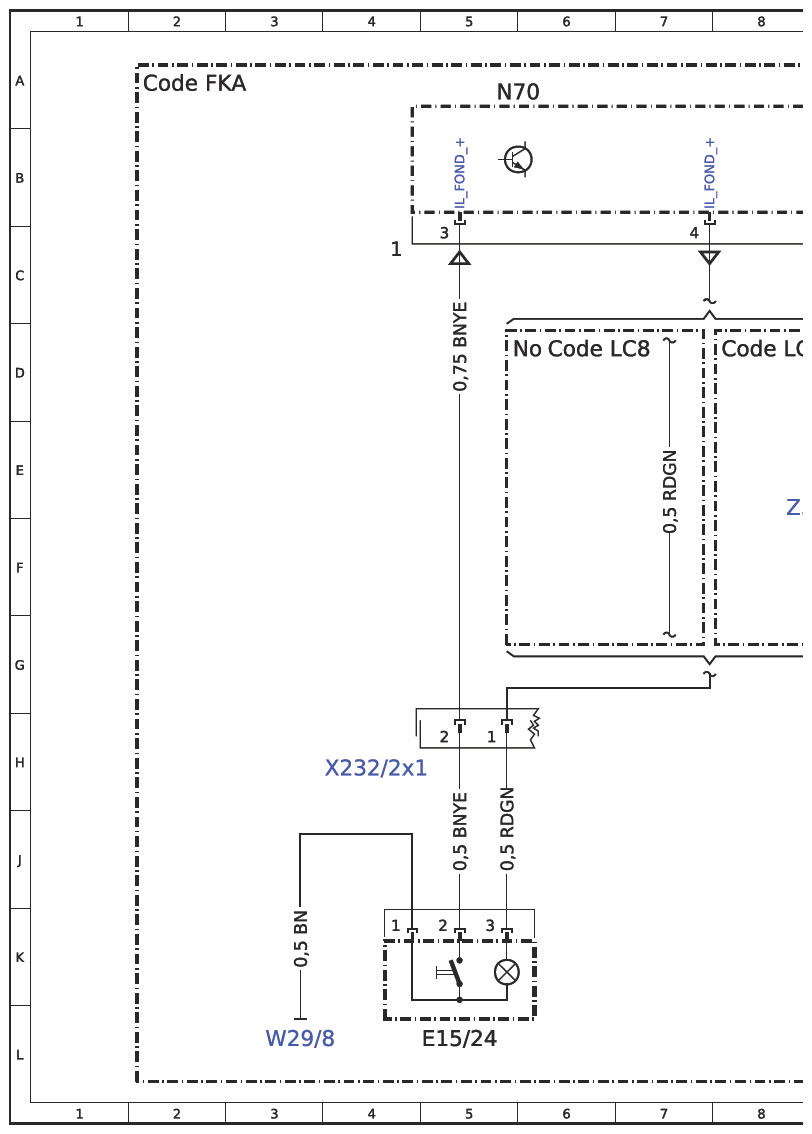

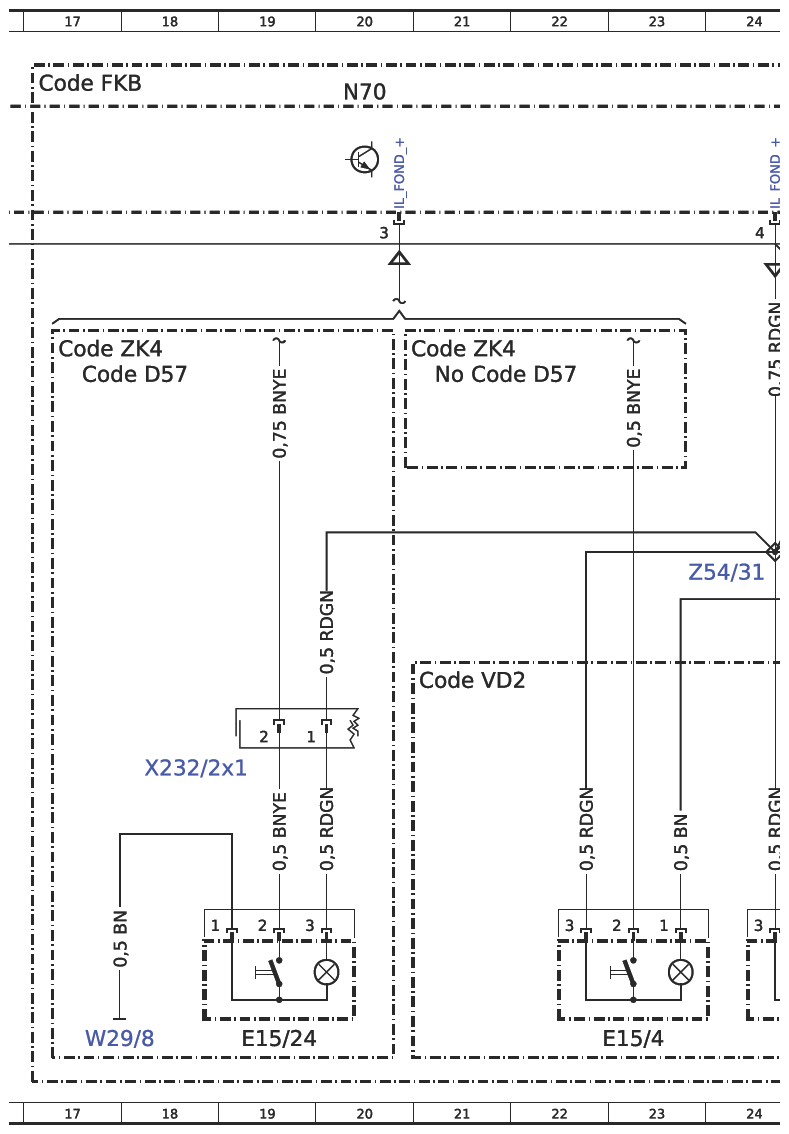

| E15/24 | Left rear load compartment lamp | 5L |
| E15/24 | Left rear load compartment lamp | 19L |
| E15/3 | Dome lamp, front of rear | 29L |
| E15/4 | Dome lamp, rear of rear | 23L |
| E15/5 | Dome lamp, rear of rear | 31L |

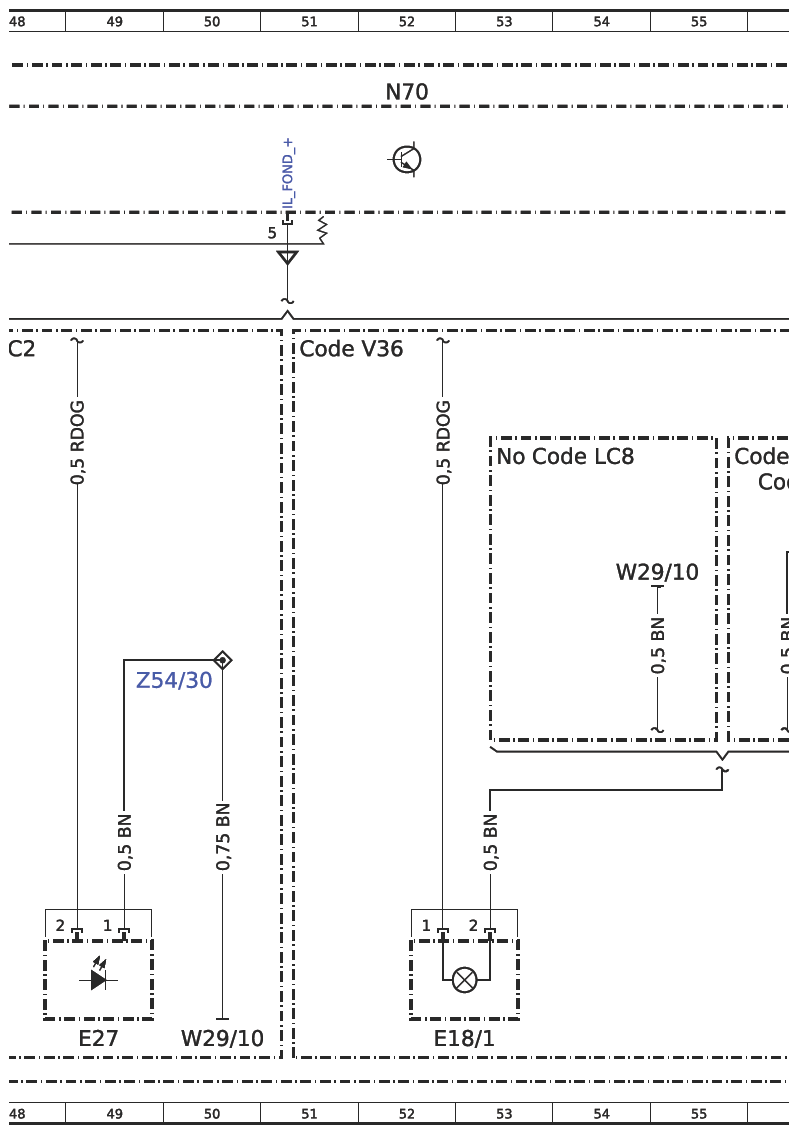

| E18/1 | Center trunk lamp | 52L |
| E20 | Liftgate ambient illumination | 38L |

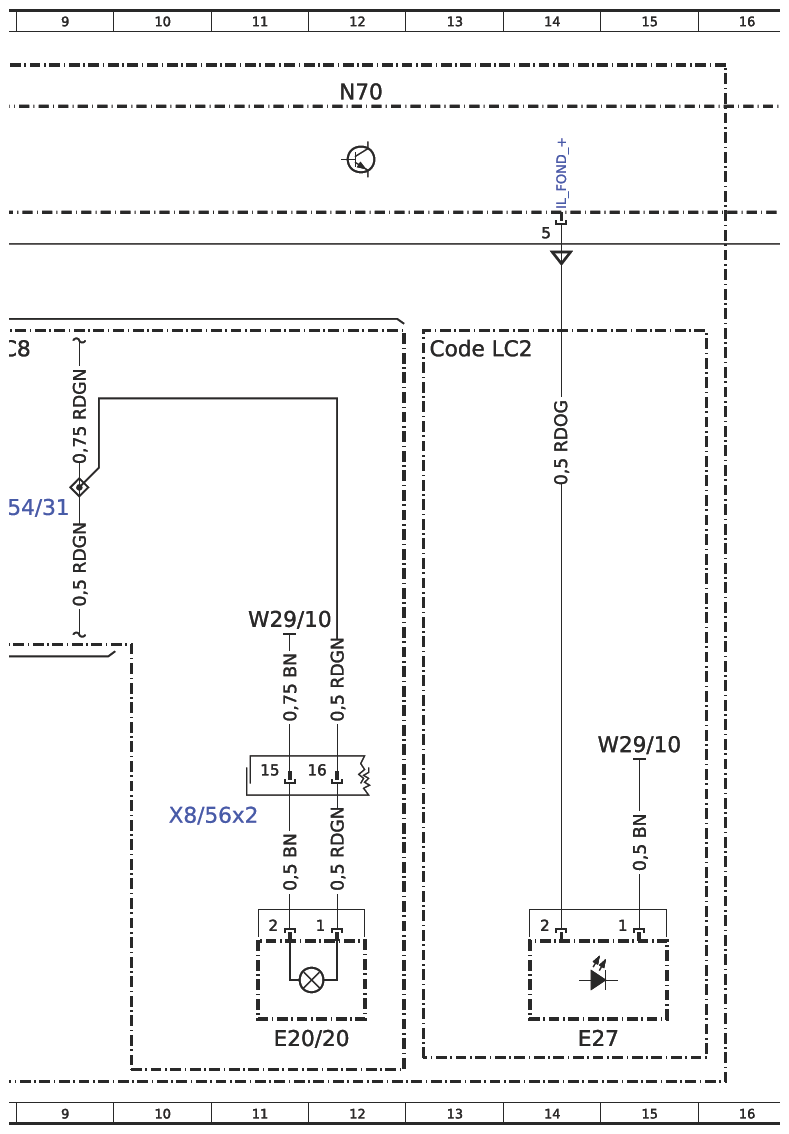

| E20/20 | Liftgate front area illumination | 11L |
| E20/20 | Liftgate front area illumination | 41L |
| E27 | Load compartment work lamp LED light strip | 49L |
| E27 | Load compartment work lamp LED light strip | 14L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 5A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 68A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| S138/1 | Left sun visor illumination switch | 62L |
| S138/1 | Left sun visor illumination switch | 67L |
| S138/1x1 | Left sun visor illumination switch electrical connector | 62K |
| S138/1x1 | Left sun visor illumination switch electrical connector | 66K |
| S138/2 | Right sun visor illumination switch | 70L |
| S138/2x1 | Right sun visor illumination switch electrical connector | 70K |
| W29/10 | Right D-pillar ground point | 57H |
| W29/10 | Right D-pillar ground point | 54F |
| W29/10 | Right D-pillar ground point | 50L |
| W29/10 | Right D-pillar ground point | 27L |
| W29/10 | Right D-pillar ground point | 11G |
| W29/10 | Right D-pillar ground point | 15H |
| W29/8 | Left D-pillar ground point | 3L |
| W29/8 | Left D-pillar ground point | 17L |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 64H |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 44H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 4H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 18H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 60H |
| X8/56x2 | Right liftgate electrical connector 2 | 33H |
| X8/56x2 | Right liftgate electrical connector 2 | 11J |
| Z54/20 | Vanity mirror supply connector sleeve | 62E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 64E |
| Z54/27 | Left grab handle lamps supply connector sleeve | 45L |
| Z54/28 | Right grab handle lamps supply connector sleeve | 45F |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 56F |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 50G |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 26G |
| Z54/31 | Roof interior lighting power supply end sleeve | 9E |
| Z54/31 | Roof interior lighting power supply end sleeve | 24F |
