Wiring Diagram Interior Illumination - PE82.20-S-2000-97VVD
Model 447.6 except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) Sheet 2
Model 447.7 except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| Code FS5 | Illuminated mirrors for sun visors | 32D |
| Code LC3 | Illumination in rear grab handle | 22A |
| Code LC4 | Comfort overhead control panel | 32D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 2A |
| Code LC7 | Lighting for front footwell | 45D |
| Code YG4 | Load compartment tray | 50D |
| Code ZK4 | Mixto | 32G |

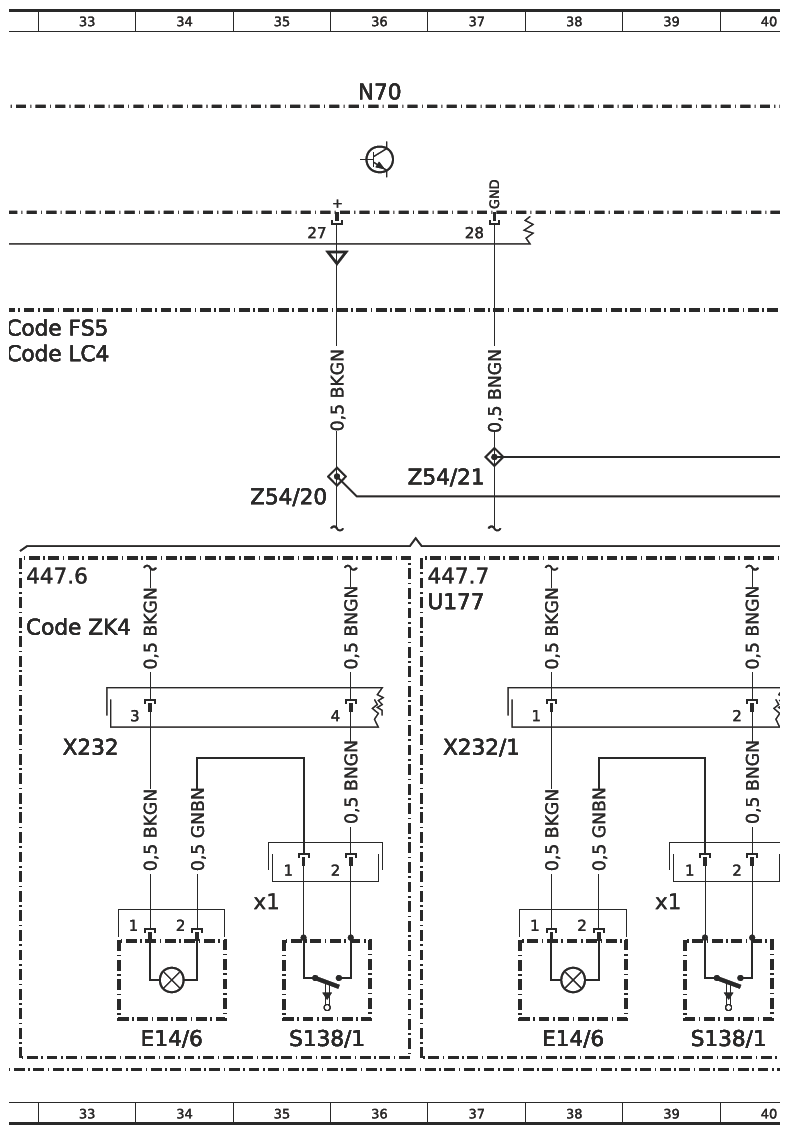

| E14/6 | Left front vanity mirror illumination | 34L |
| E14/6 | Left front vanity mirror illumination | 38L |

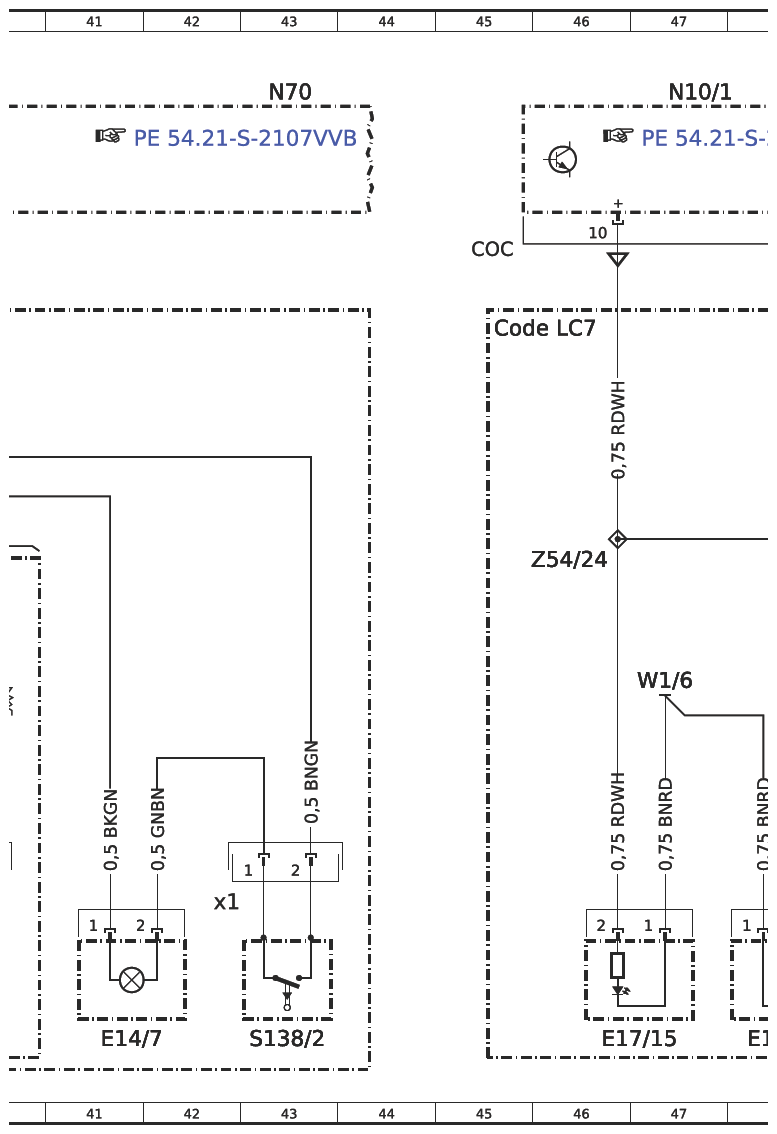

| E14/7 | Right front vanity mirror illumination | 41L |
| E15/10 | Dome lamp in left front grab handle | 23L |

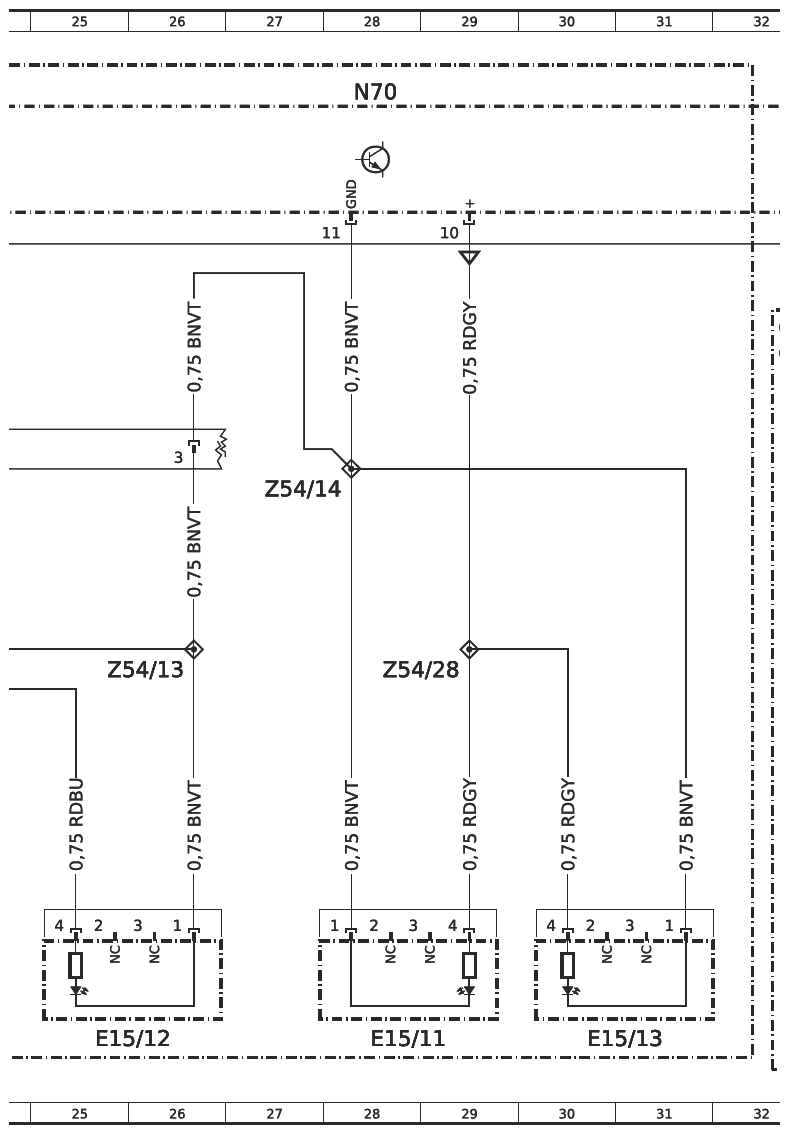

| E15/11 | Dome lamp in right front grab handle | 28L |
| E15/12 | Dome lamp in left rear grab handle | 25L |

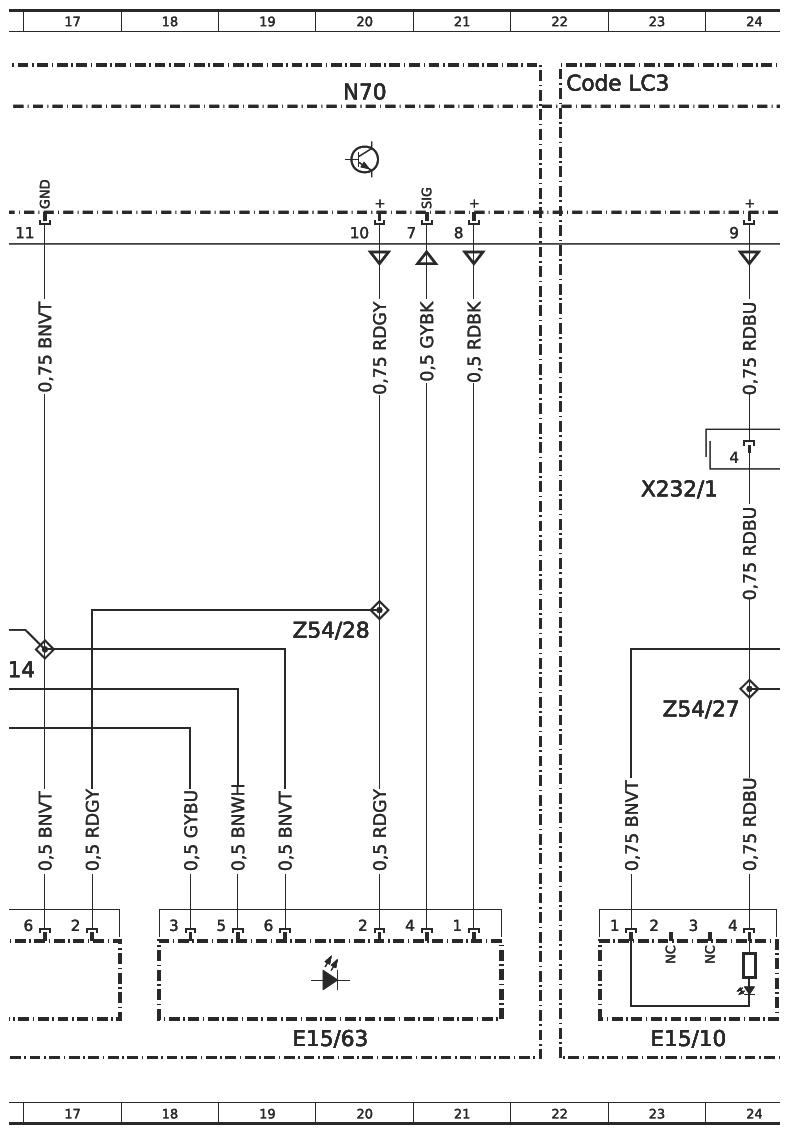

| E15/13 | Dome lamp in right rear grab handle | 30L |

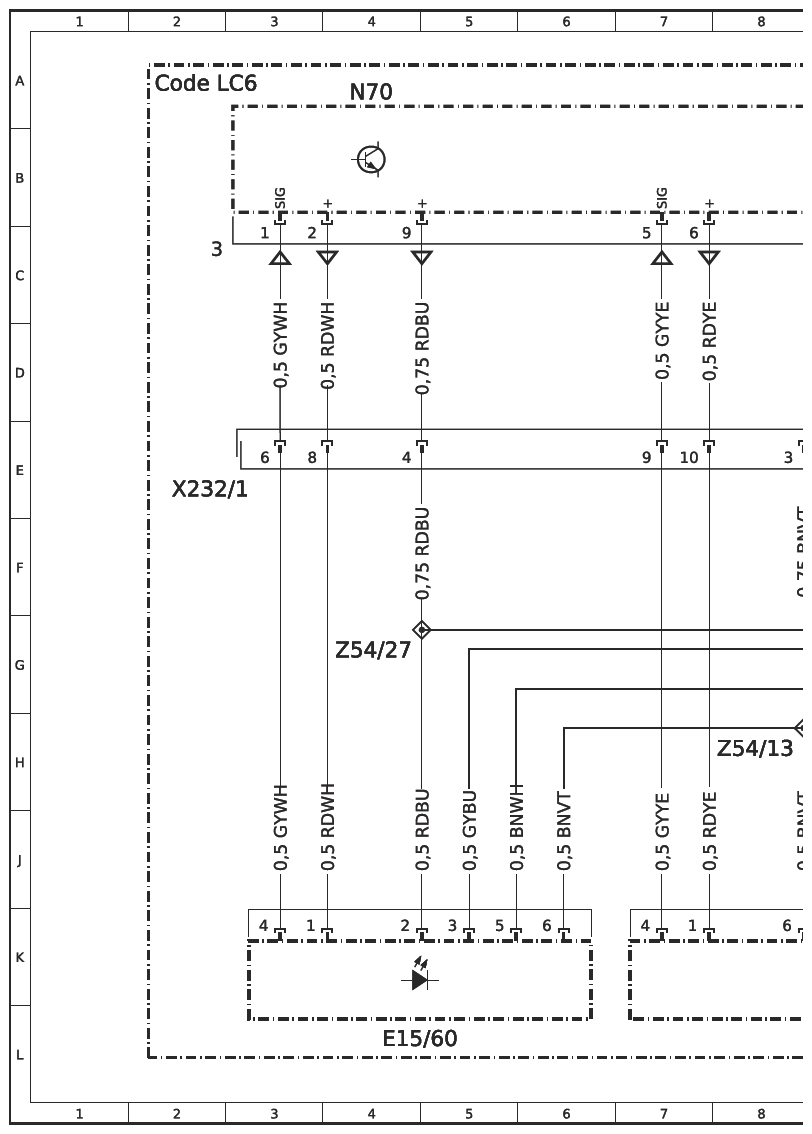

| E15/60 | Left front grab handle ambiance illumination | 4L |

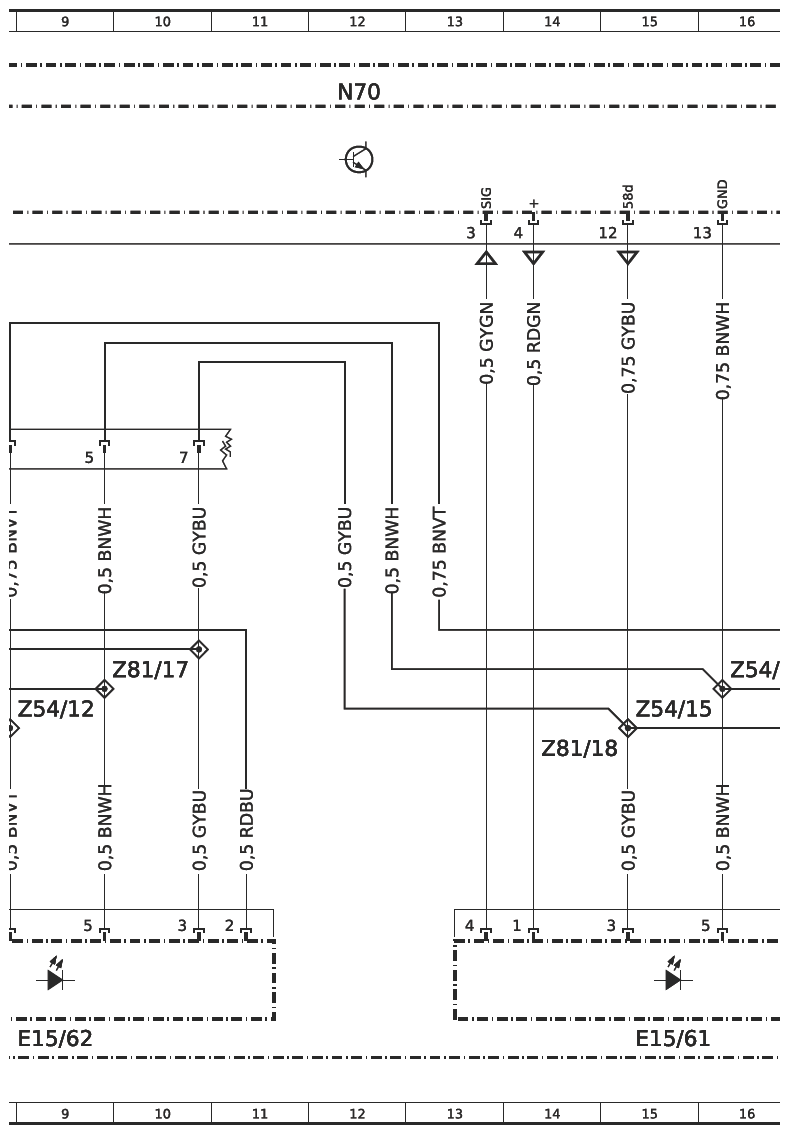

| E15/61 | Right front grab handle ambiance illumination | 15L |
| E15/62 | Left rear grab handle ambiance illumination | 9L |
| E15/63 | Right rear grab handle ambiance illumination | 19L |
| E17/15 | Right front footwell lamp | 46L |
| E17/16 | Left front footwell lamp | 48L |

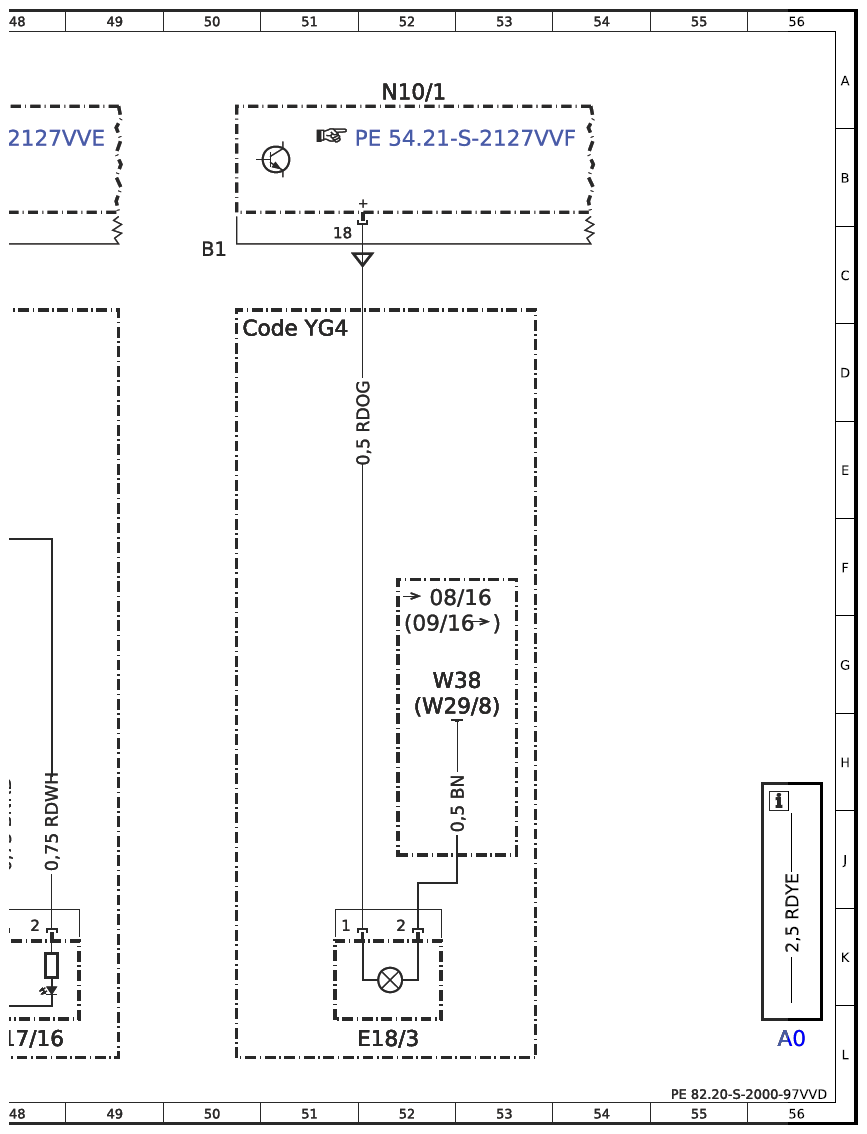

| E18/3 | Left luggage compartment lamp | 52L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 52A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 47A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 4A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 43A |
| S138/1 | Left sun visor illumination switch | 35L |
| S138/1 | Left sun visor illumination switch | 39L |
| S138/1x1 | Left sun visor illumination switch electrical connector | 35K |
| S138/1x1 | Left sun visor illumination switch electrical connector | 39K |
| S138/2 | Right sun visor illumination switch | 43L |
| S138/2x1 | Right sun visor illumination switch electrical connector | 42K |
| U177 | Valid without code ZK4 Mixto | 36F |
| W1/6 | Cockpit ground point | 47G |
| W29/8 | Left D-pillar ground point | 52H |
| W38 | Roof frame ground point 1 | 52G |
| X232 | Main wiring harness/roof main wiring harness electrical connector | 33H |
| X232/1 | Main wiring harness/roof main wiring harness electrical connector | 37H |
| X232/1 | Main wiring harness/roof main wiring harness electrical connector | 2E |
| X232/1 | Main wiring harness/roof main wiring harness electrical connector | 23E |
| Z54/12 | Switch and controls illumination left grab handle lamps tml. 31 connector sleeve | 9H |
| Z54/13 | Left interior/reading light grab handle lamps tml. 31 connector sleeve | 8H |
| Z54/13 | Left interior/reading light grab handle lamps tml. 31 connector sleeve | 26G |
| Z54/14 | Right interior/reading light grab handle lamps tml. 31 connector sleeve | 16G |
| Z54/14 | Right interior/reading light grab handle lamps tml. 31 connector sleeve | 27E |
| Z54/15 | Switch and controls illumination grab handle lamps tml. 31 connector sleeve | 15H |
| Z54/20 | Vanity mirror supply connector sleeve | 35E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 37E |
| Z54/24 | Front footwell lamps supply connector sleeve | 46F |
| Z54/27 | Left grab handle lamps supply connector sleeve | 4G |
| Z54/27 | Left grab handle lamps supply connector sleeve | 24H |
| Z54/28 | Right grab handle lamps supply connector sleeve | 20G |
| Z54/28 | Right grab handle lamps supply connector sleeve | 29G |
| Z81/17 | Rear interior lamps terminal 58d connector sleeve | 10G |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 14H |
