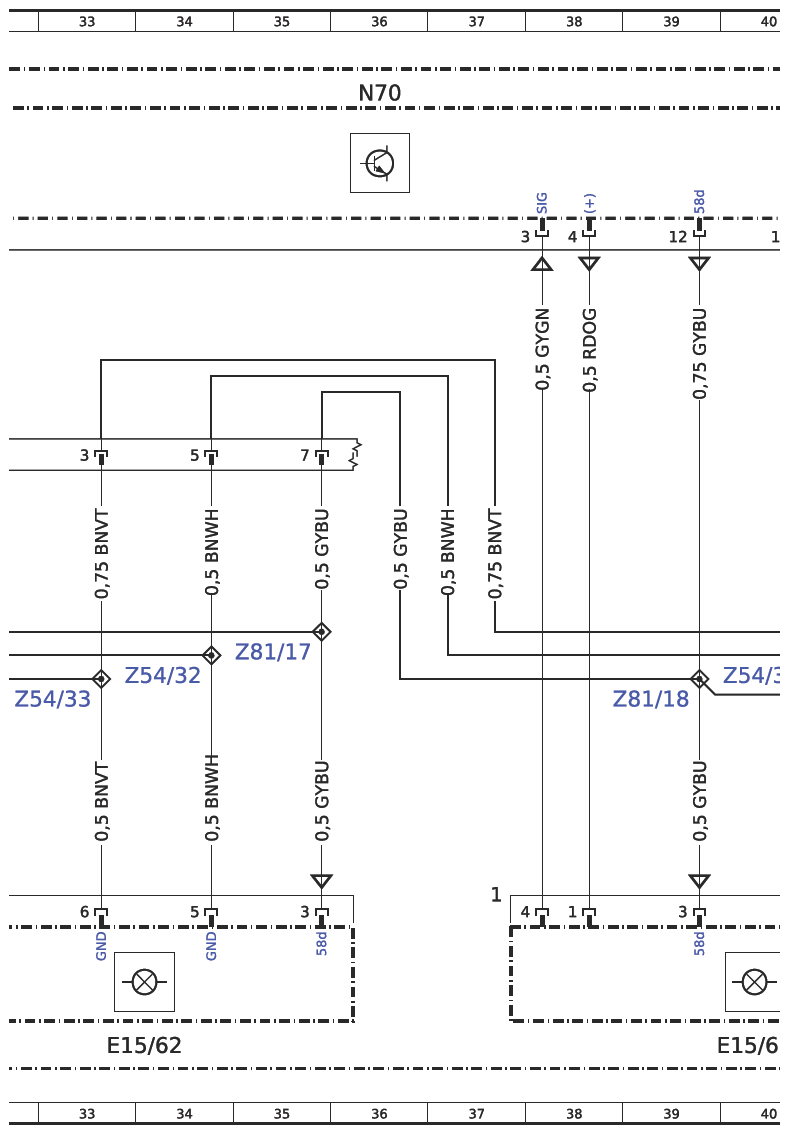

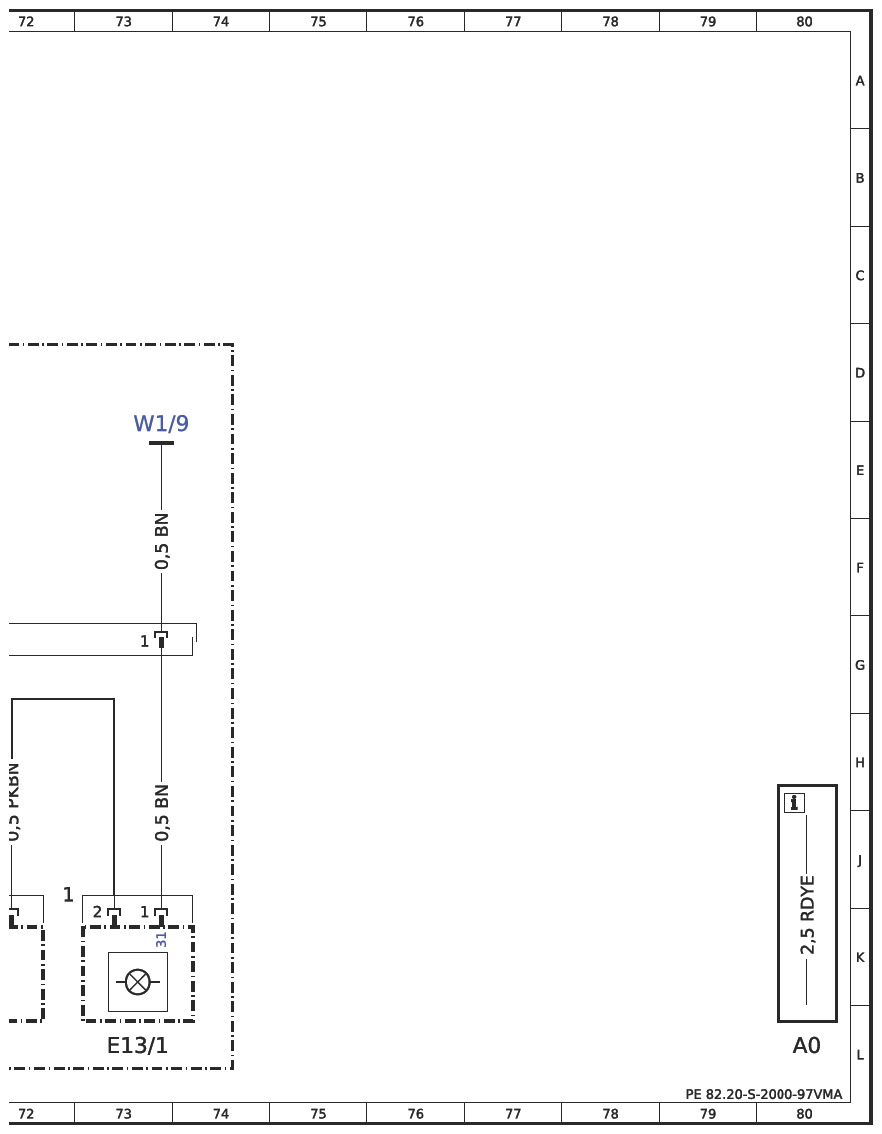

(Wiring Diagram Interior Illumination - PE82.20-S-2000-97VMA)
Model 447.6/7 with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II)
Model 447.6 with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code XM7 (MOPF II)
Model 447.7 with code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code XM7 (MOPF II)
Model 447.7 with code ME4 (Electric motor 145 kW) except code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| Code F66 | Glove compartment, lockable | 65D |
| Code FY1 | Theft protection package | 25A |
| Code FY1 | Theft protection package | 47A |
| Code FY1 | Theft protection package | 2A |
| Code LC3 | Illumination in rear grab handle | 47A |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 26A |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 2A |
| Code LC7 | Lighting for front footwell | 58D |
| Code YG4 | Load compartment tray | 63D |
| E13/1 | Glove box lamp | 73L |

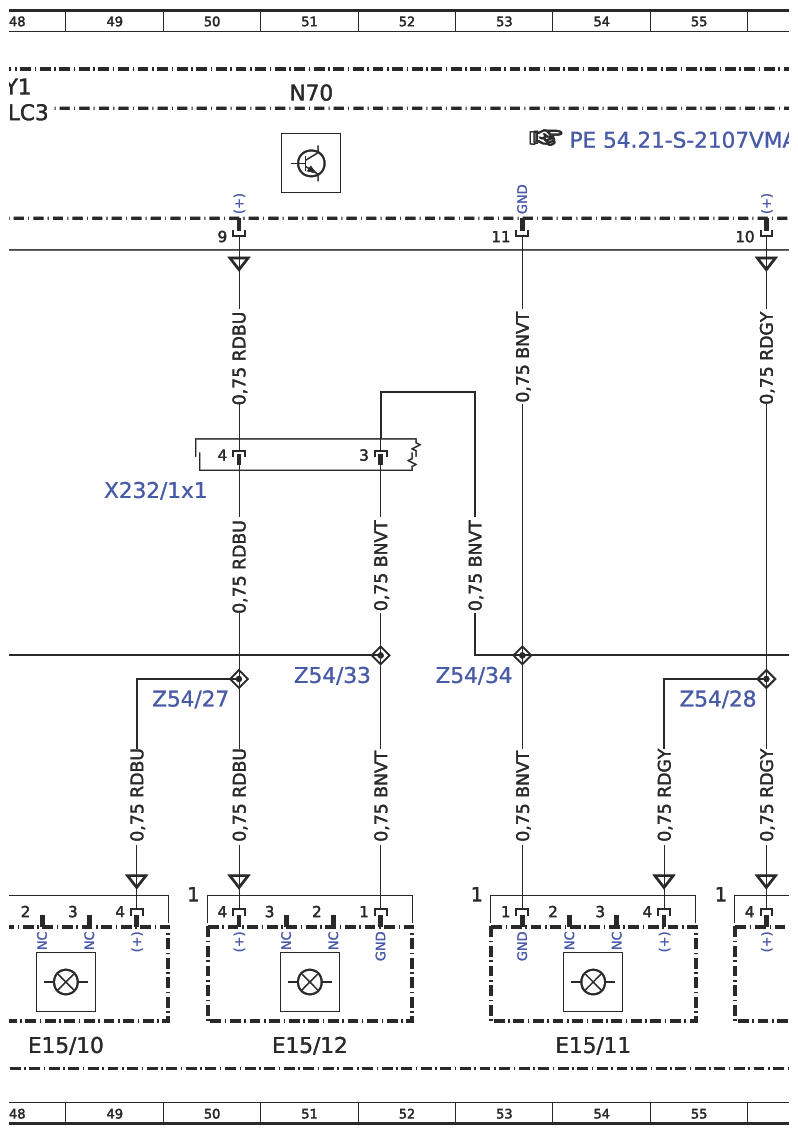

| E15/10 | Dome lamp in left front grab handle | 48L |
| E15/11 | Dome lamp in right front grab handle | 54L |
| E15/12 | Dome lamp in left rear grab handle | 51L |
| E15/13 | Dome lamp in right rear grab handle | 56L |

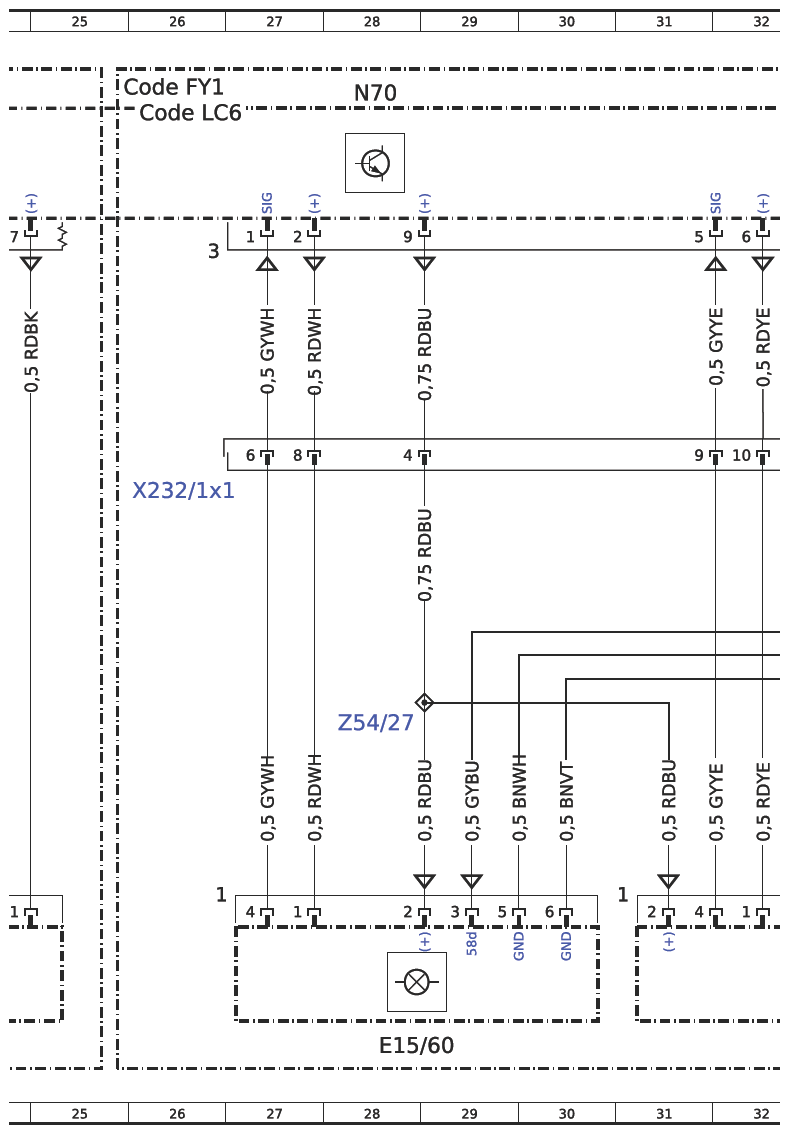

| E15/60 | Left front grab handle ambiance illumination | 28L |

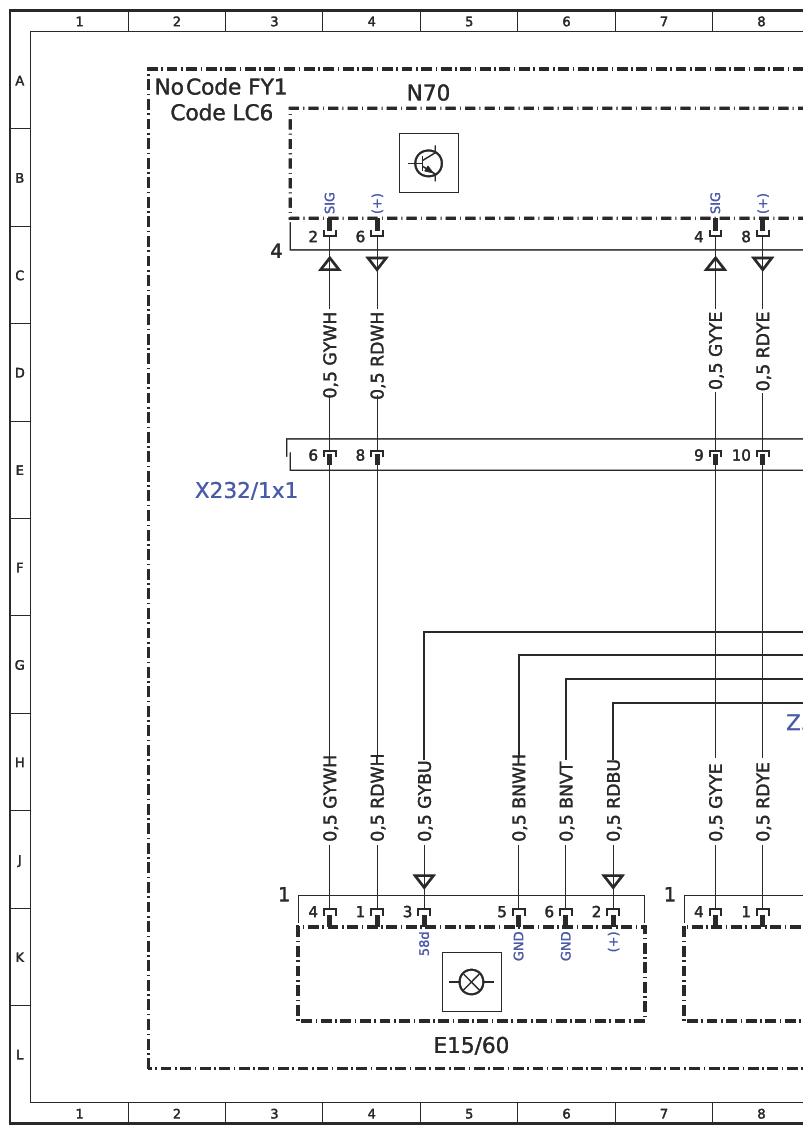

| E15/60 | Left front grab handle ambiance illumination | 5L |
| E15/61 | Right front grab handle ambiance illumination | 40L |

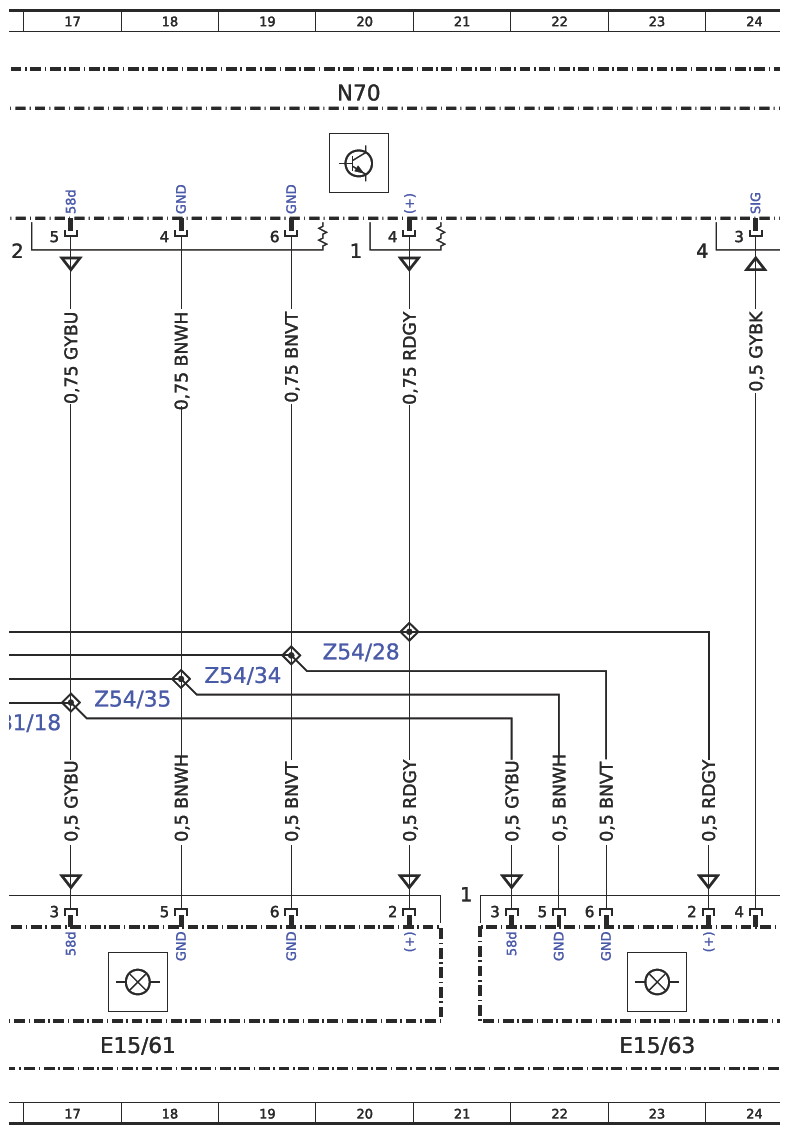

| E15/61 | Right front grab handle ambiance illumination | 18L |
| E15/62 | Left rear grab handle ambiance illumination | 33L |

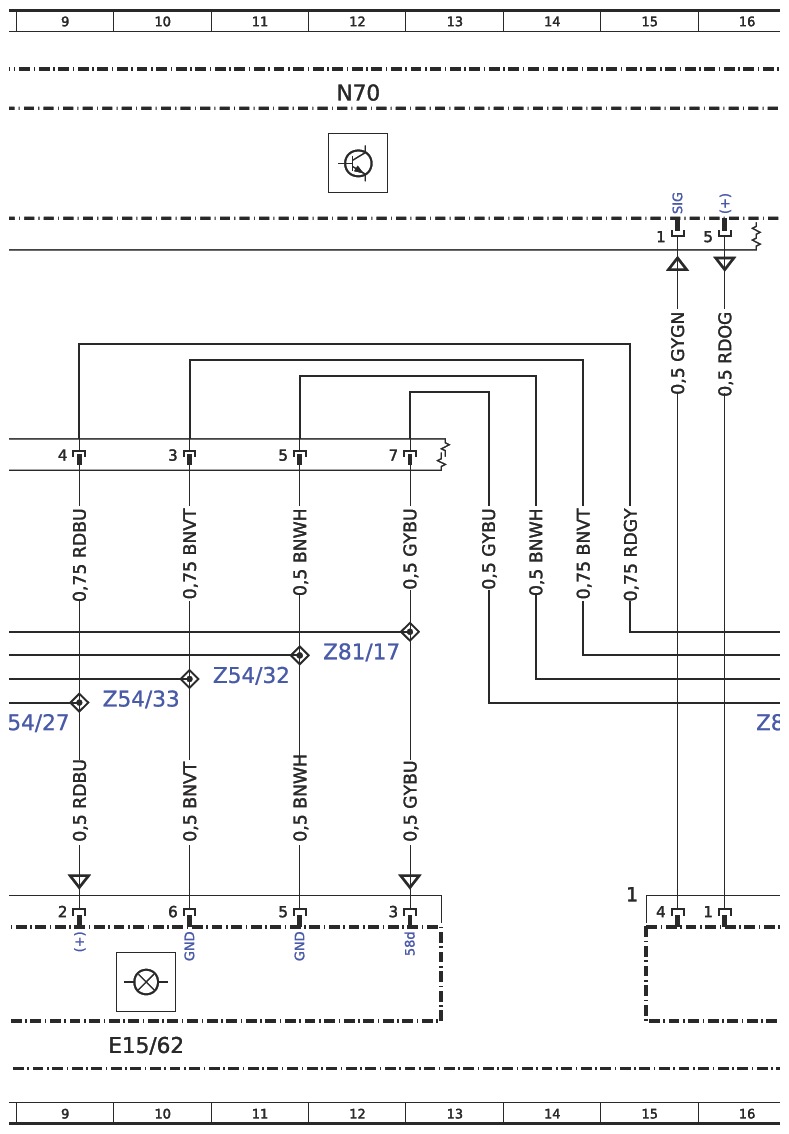

| E15/62 | Left rear grab handle ambiance illumination | 10L |

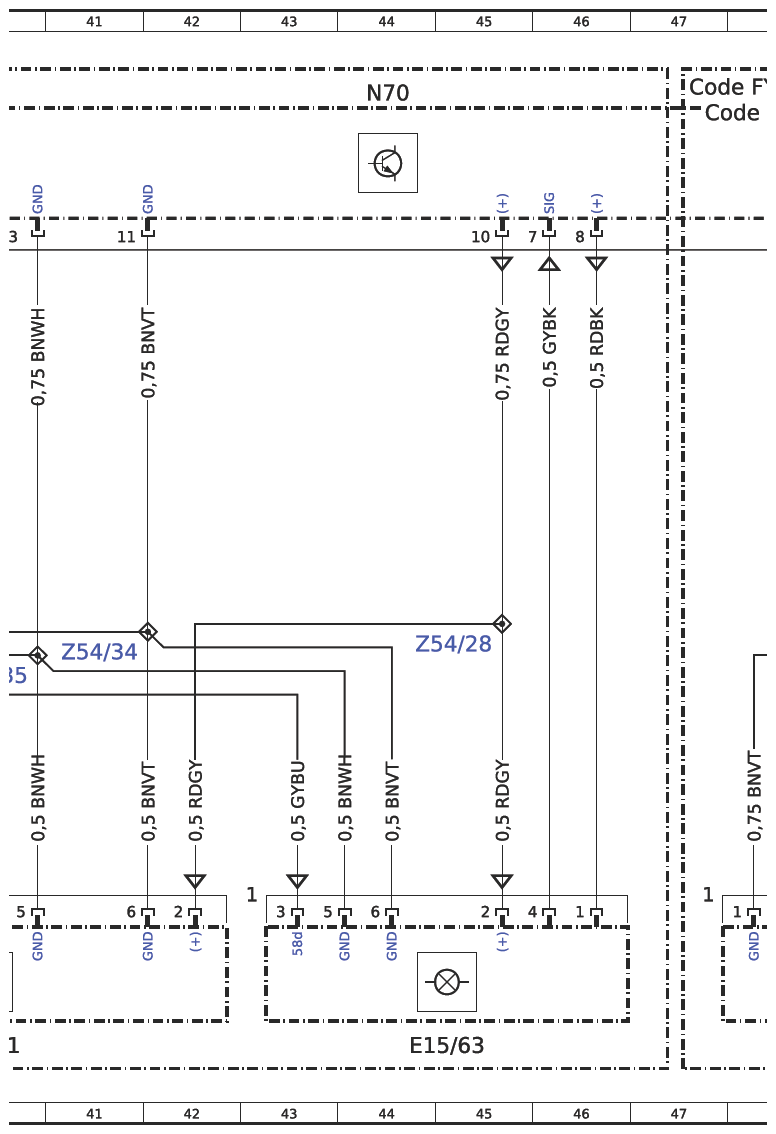

| E15/63 | Right rear grab handle ambiance illumination | 44L |
| E15/63 | Right rear grab handle ambiance illumination | 23L |

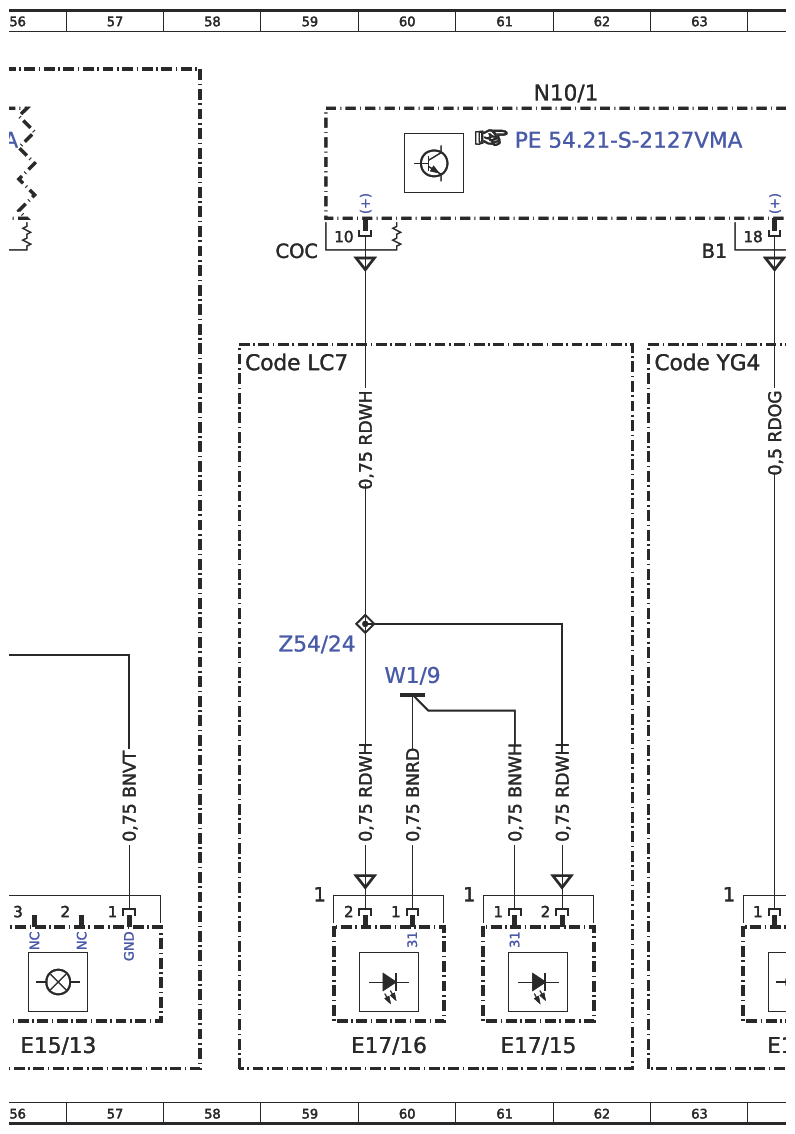

| E17/15 | Right front footwell lamp | 61L |
| E17/16 | Left front footwell lamp | 60L |
| E18/3 | Left luggage compartment lamp | 64L |

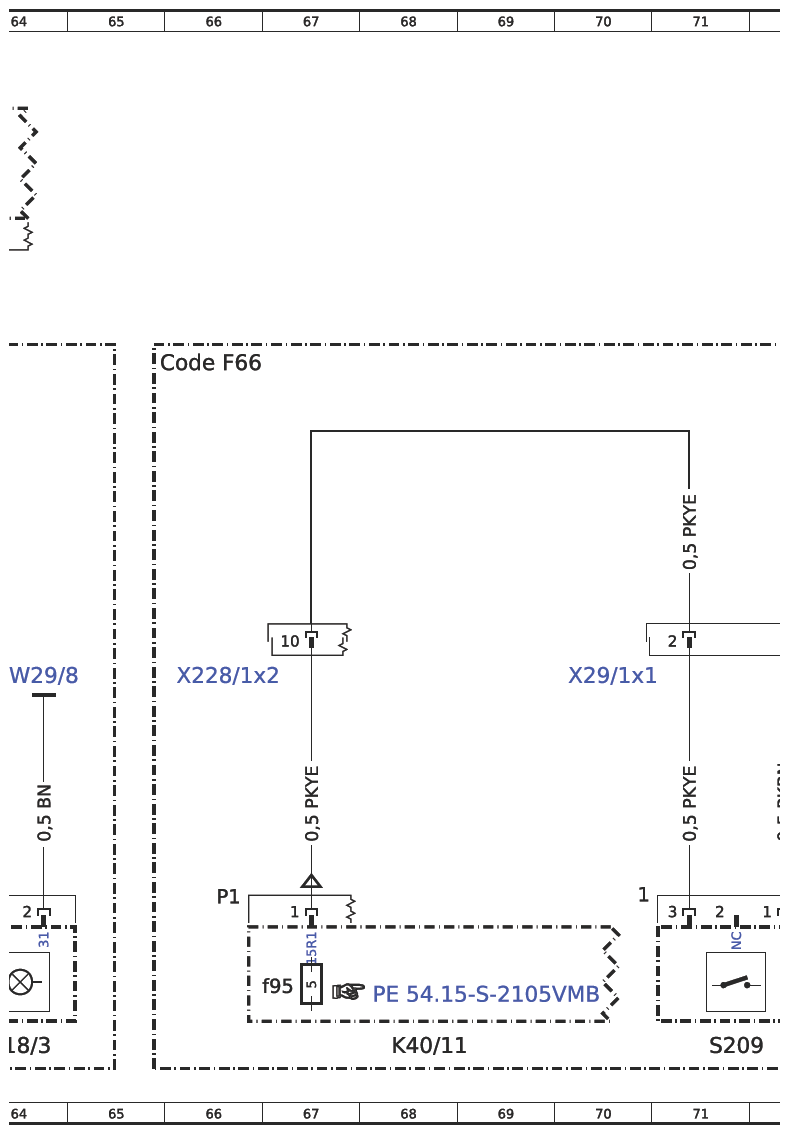

| K40/11 | Firewall fuse and relay module | 68L |
| K40/11f95 | Fuse 95 | 67K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 61A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 5A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 51A |
| S209 | Left manual sliding door central locking main lock switch | 71L |
| W1/9 | Right cockpit ground point | 60G |
| W1/9 | Right cockpit ground point | 73E |
| W29/8 | Left D-pillar ground point | 64G |
| X228/1x2 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 66G |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 50E |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 26E |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 3E |
| X29/1x1 | Glove compartment electrical connector | 70G |
| Z54/24 | Front footwell lamps supply connector sleeve | 59G |
| Z54/27 | Left grab handle lamps supply connector sleeve | 50G |
| Z54/27 | Left grab handle lamps supply connector sleeve | 28H |
| Z54/27 | Left grab handle lamps supply connector sleeve | 9H |
| Z54/28 | Right grab handle lamps supply connector sleeve | 55G |
| Z54/28 | Right grab handle lamps supply connector sleeve | 45G |
| Z54/28 | Right grab handle lamps supply connector sleeve | 20G |
| Z54/32 | Switch and controls illumination left grab handle lamps ground connection end sleeve | 34G |
| Z54/32 | Switch and controls illumination left grab handle lamps ground connection end sleeve | 11G |
| Z54/33 | Left grab handle lamps ground connection end sleeve | 51G |
| Z54/33 | Left grab handle lamps ground connection end sleeve | 33G |
| Z54/33 | Left grab handle lamps ground connection end sleeve | 10G |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 53G |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 41G |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 19G |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 40G |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 18G |
| Z81/17 | Rear interior lamps terminal 58d connector sleeve | 35G |
| Z81/17 | Rear interior lamps terminal 58d connector sleeve | 12G |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 39G |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 17H |
