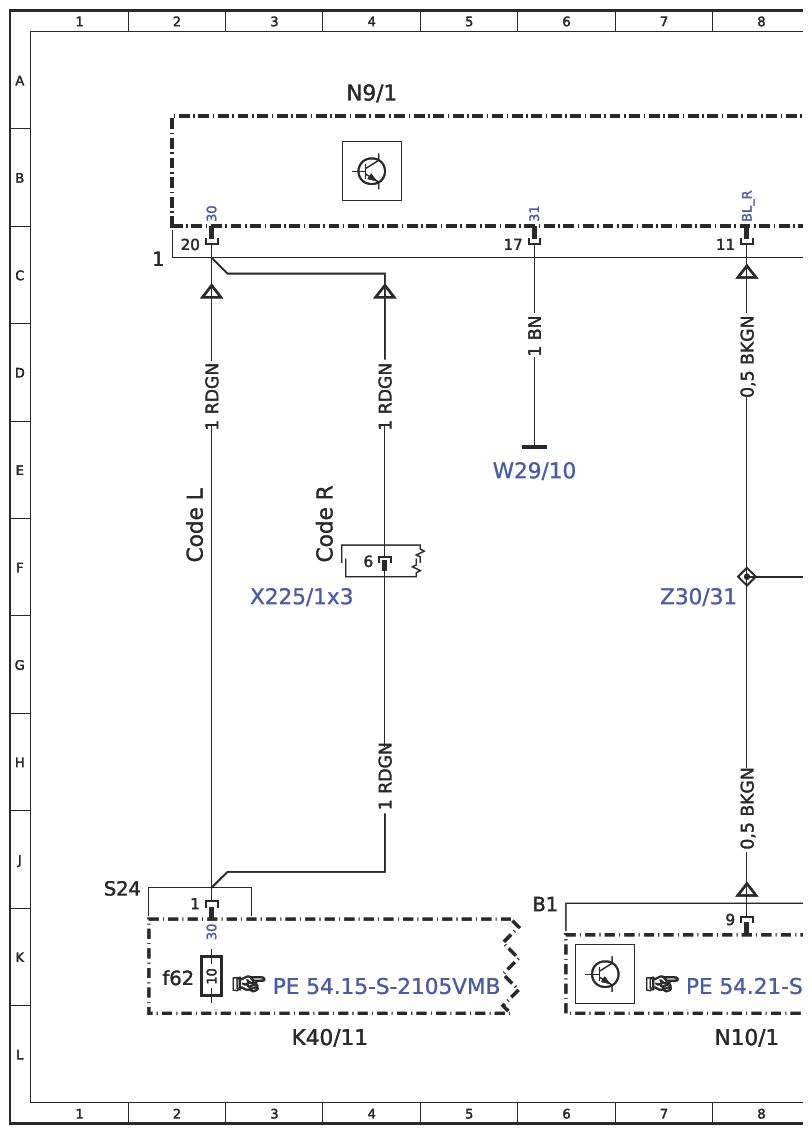

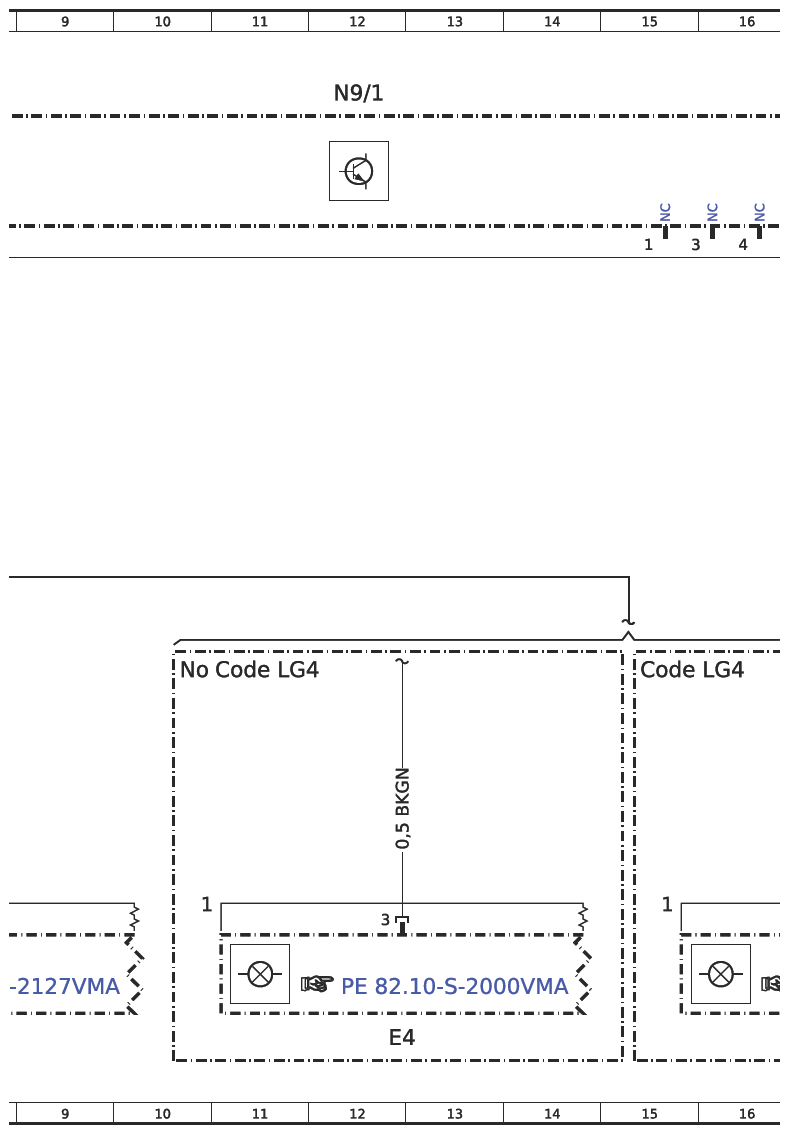

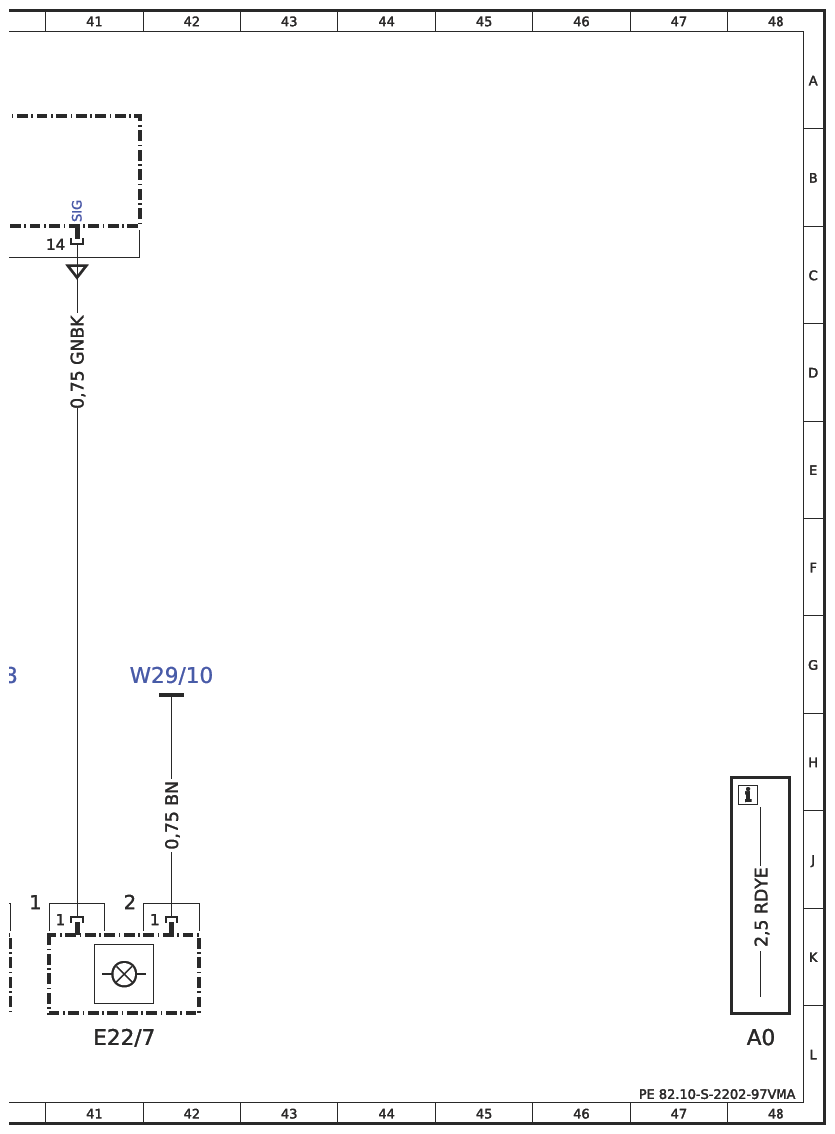

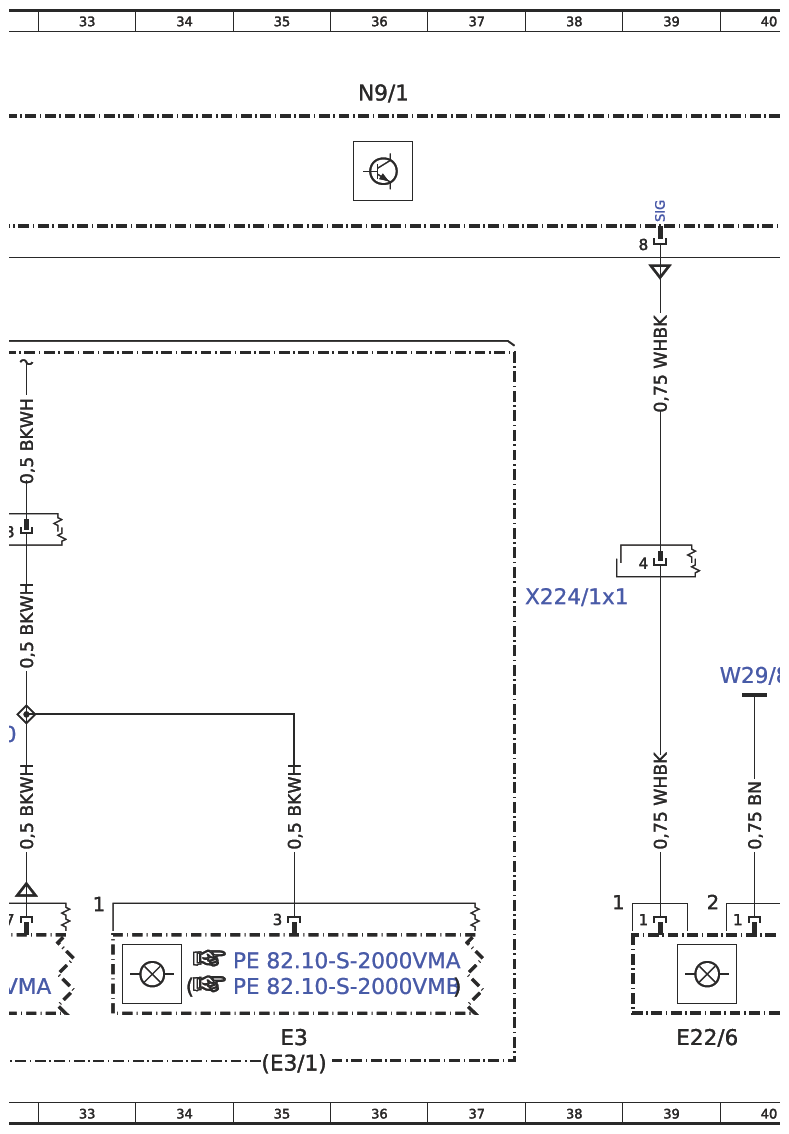

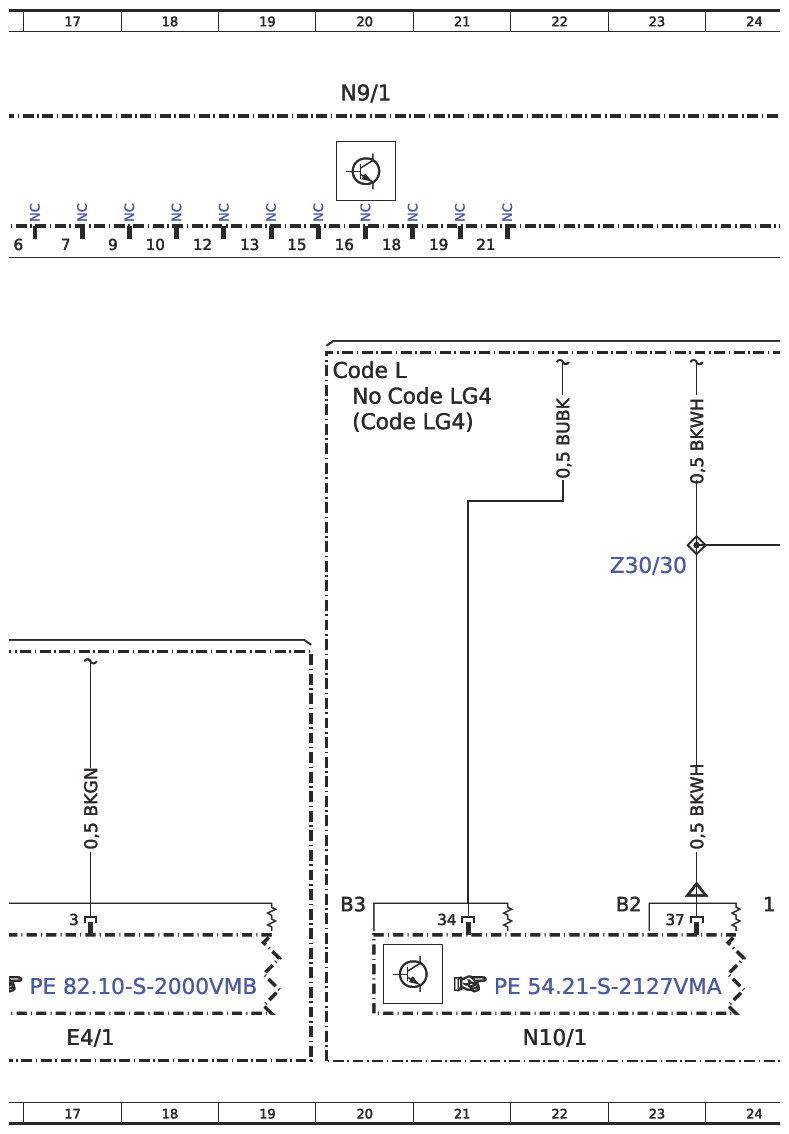

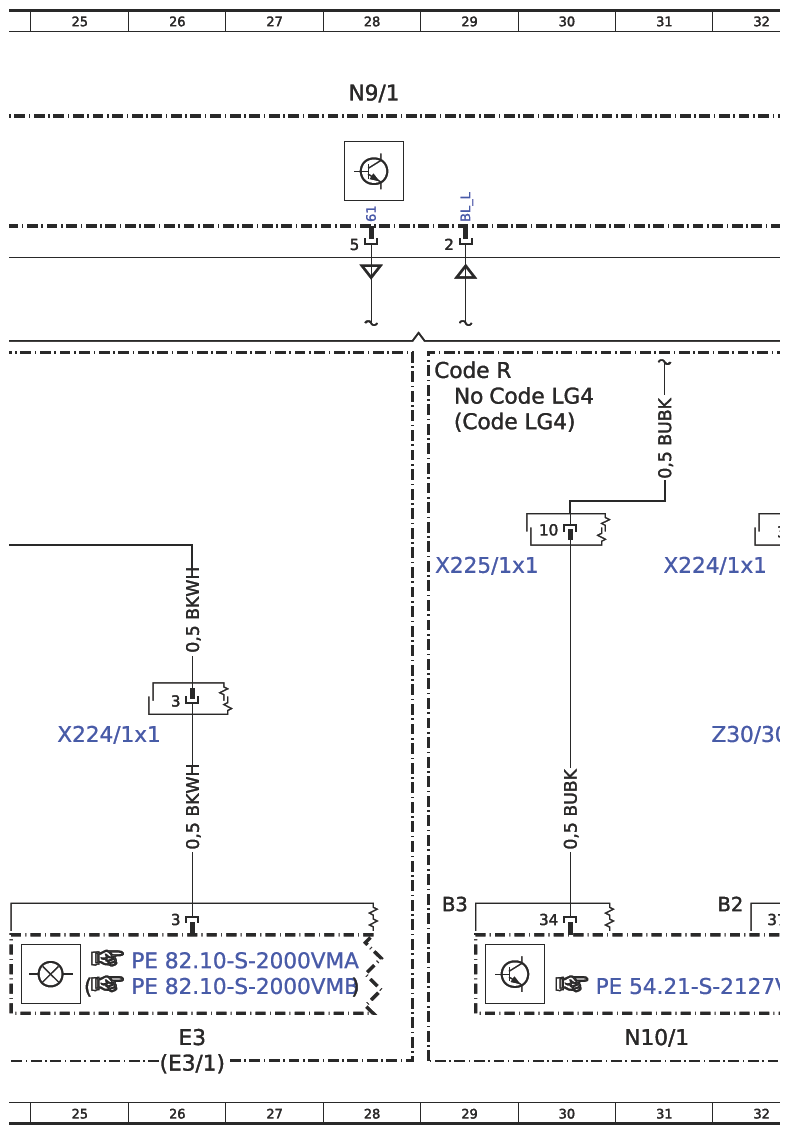

(Wiring Diagram For Turn Signal/Hazard Warning Lights - PE82.10-S-2202-97VMA)
Model 447.6/7 with code L84 (Blinker lights behind on roof) with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N9/1
Model 447.6 with code L84 (Blinker lights behind on roof) with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) N9/1
Model 447.7 with code L84 (Blinker lights behind on roof) with code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) N9/1
Model 447.7 with code L84 (Blinker lights behind on roof) with code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N9/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| Code L | Valid for left-hand drive vehicles | 2F |
| Code L | Valid for left-hand drive vehicles | 20D |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 11G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 15G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 20D |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 29D |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 20E |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 29E |
| Code R | Valid for right-hand drive vehicles | 4F |
| Code R | Valid for right-hand drive vehicles | 29D |
| E22/6 | Left roof additional turn signal lamp | 39L |
| E22/7 | Right roof additional turn signal lamp | 41L |
| E3 | Left rear lamp unit | 26L |
| E3 | Left rear lamp unit | 35L |
| E3/1 | Left rear LED lamp unit | 26L |
| E3/1 | Left rear LED lamp unit | 35L |
| E4 | Right rear lamp unit | 12L |
| E4/1 | Right rear LED lamp unit | 17L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f62 | Fuse 62 | 2K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 22L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 31L |
| N9/1 | Additional turn signal module control unit | 4A |
| N9/1 | Additional turn signal module control unit | 12A |
| N9/1 | Additional turn signal module control unit | 20A |
| N9/1 | Additional turn signal module control unit | 28A |
| N9/1 | Additional turn signal module control unit | 36A |
| W29/10 | Right D-pillar ground point | 6E |
| W29/10 | Right D-pillar ground point | 42G |
| W29/8 | Left D-pillar ground point | 40G |
| X224/1x1 | Main wiring harness/rear-end door main wiring harness electrical connector | 25H |
| X224/1x1 | Main wiring harness/rear-end door main wiring harness electrical connector | 32F |
| X224/1x1 | Main wiring harness/rear-end door main wiring harness electrical connector | 38F |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 29F |
| X225/1x3 | Main wiring harness/firewall main wiring harness 3 electrical connector | 3F |
| Z30/30 | Left additional turn signal connector sleeve | 23F |
| Z30/30 | Left additional turn signal connector sleeve | 32H |
| Z30/31 | Right additional turn signal connector sleeve | 7F |
