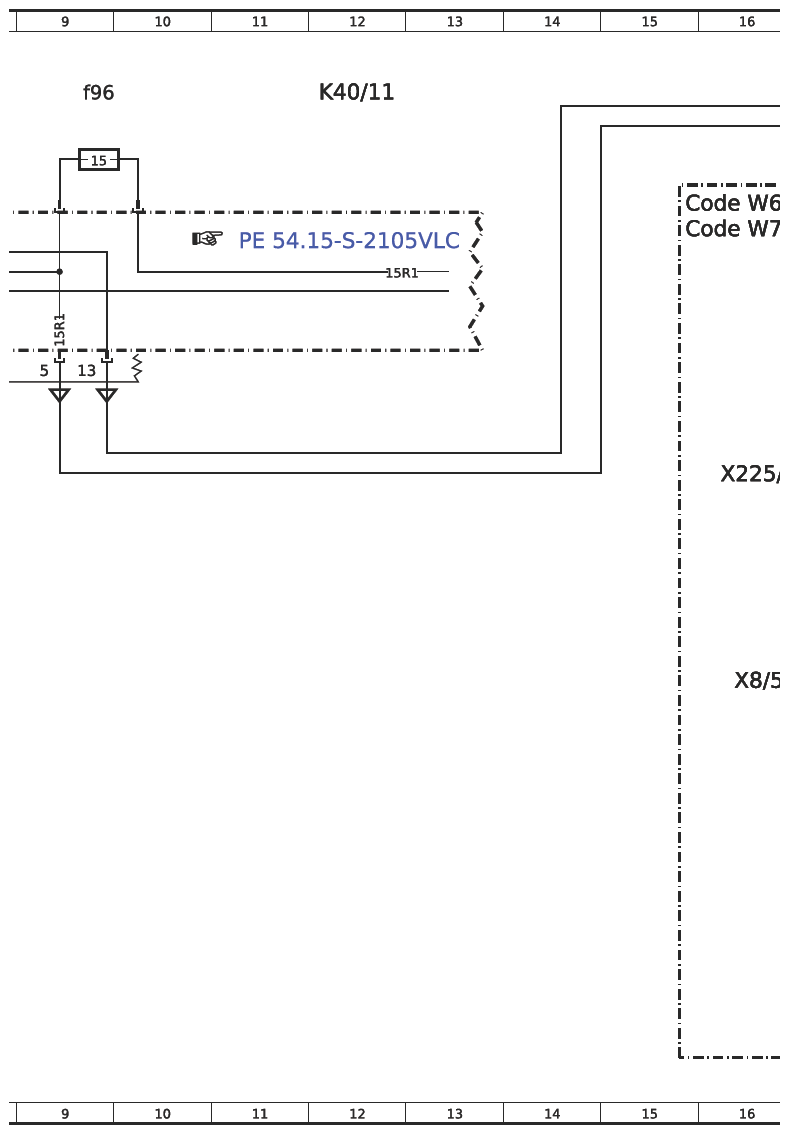

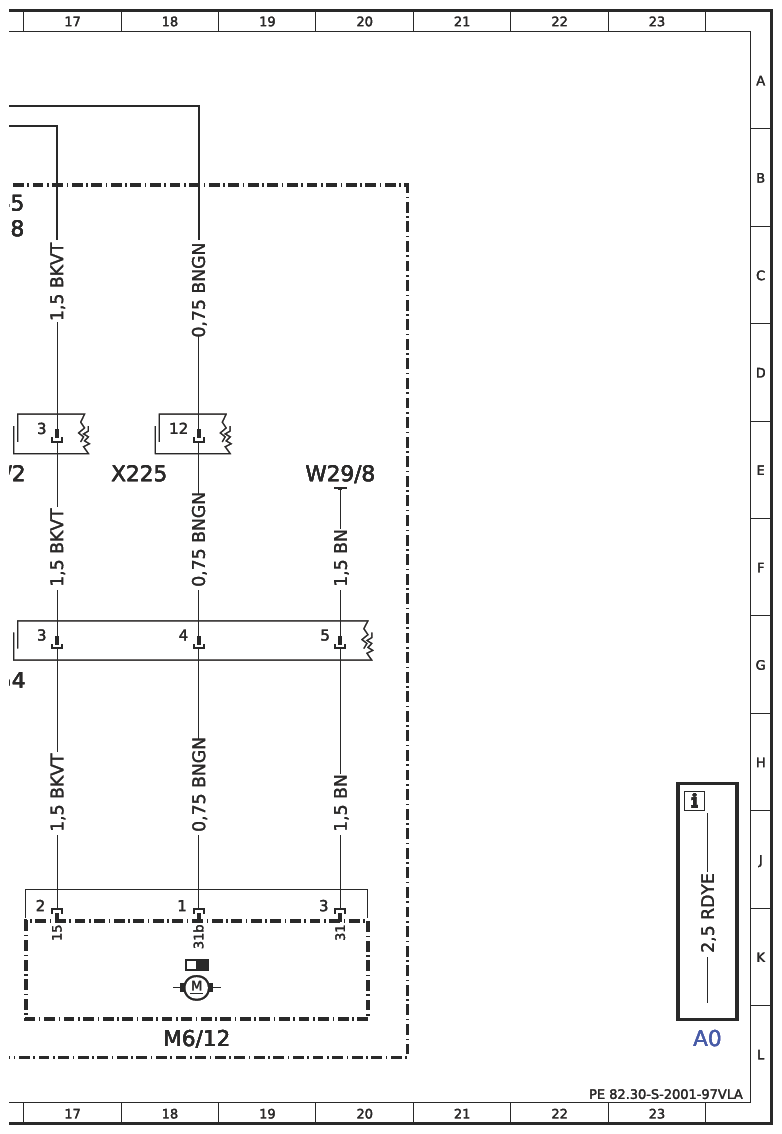

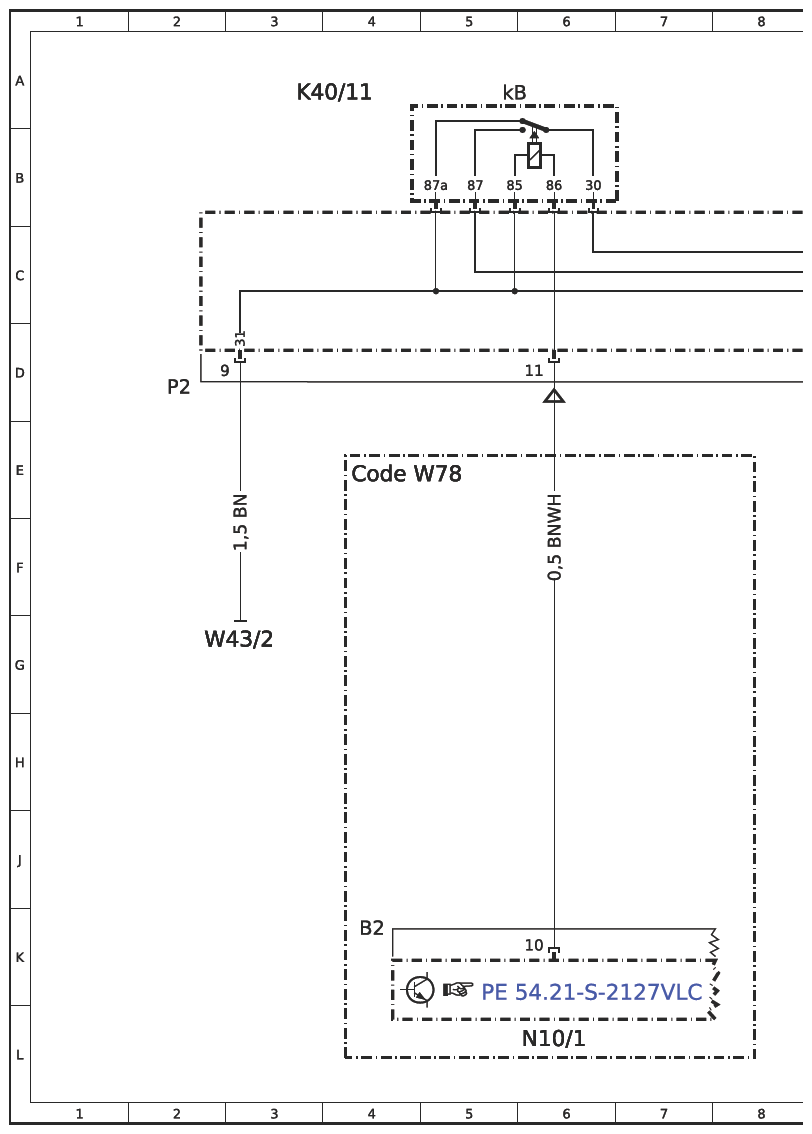

(Wiring Diagram For Rear Window Wiper - PE82.30-S-2001-97VLA)
Model 447.6 with code ZL3 (National version for Latin America) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) M6/12
Model 447.7 with code ZL3 (National version for Latin America) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) M6/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| Code W65 | Liftgate | 15B |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 15C |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 4E |
| K40/11 | Firewall fuse and relay module | 3A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11f96 | Fuse 96 | 9A |
| K40/11kB | Rear window wiper relay | 5A |
| M6/12 | Tailgate wiper motor | 18L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 6L |
| W29/8 | Left D-pillar ground point | 20E |
| W43/2 | Right vehicle interior firewall ground point | 3G |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 18E |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 16E |
| X8/54 | Left liftgate electrical connector 1 | 16G |
