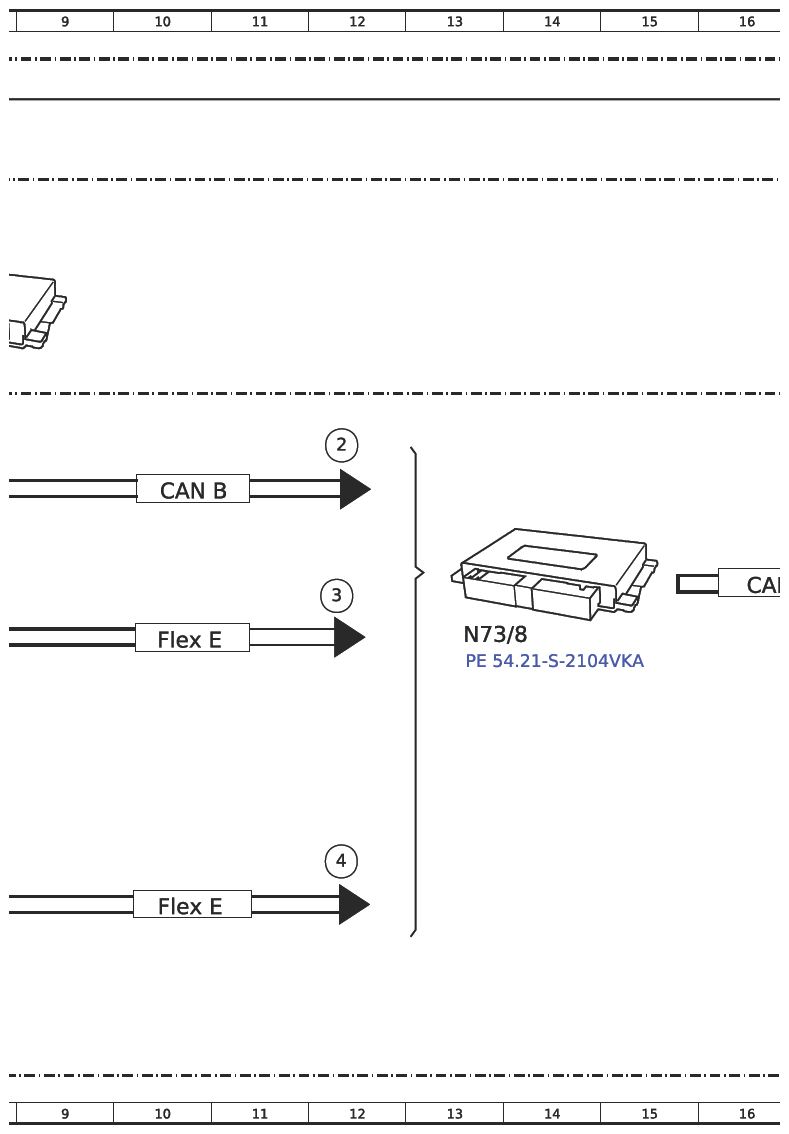

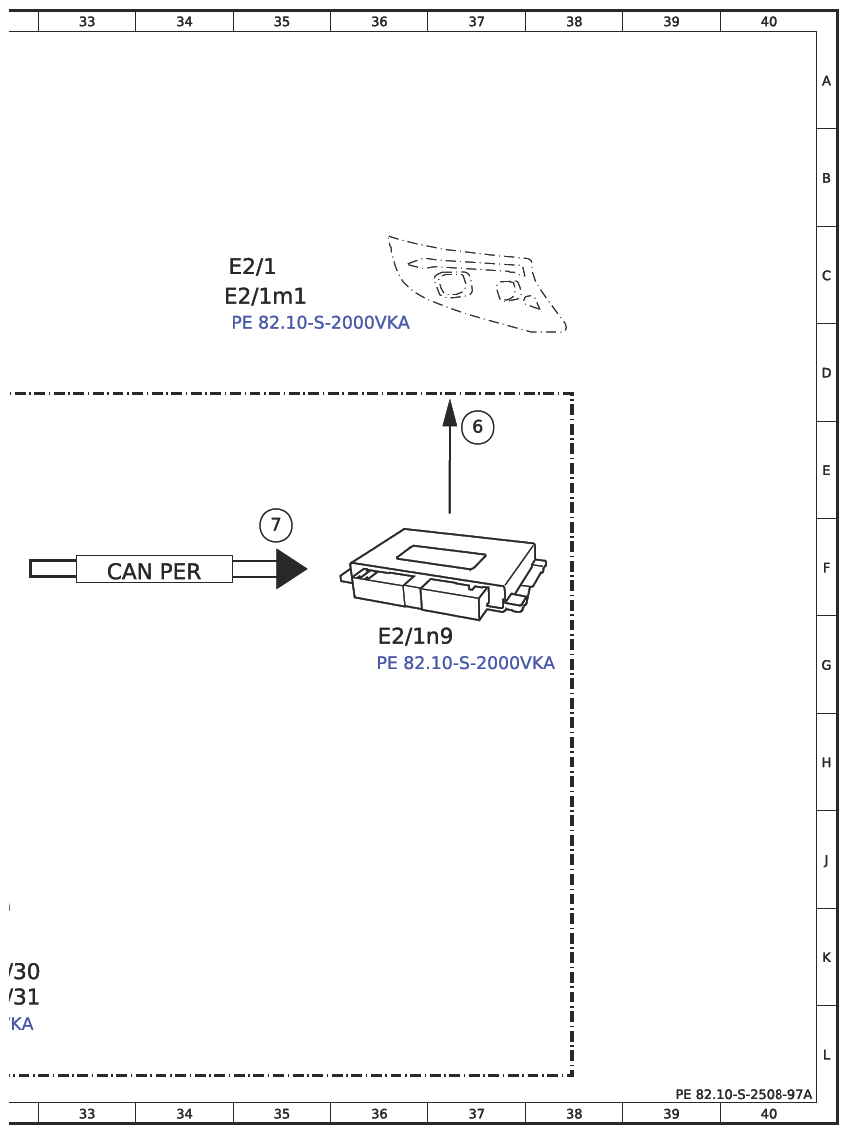

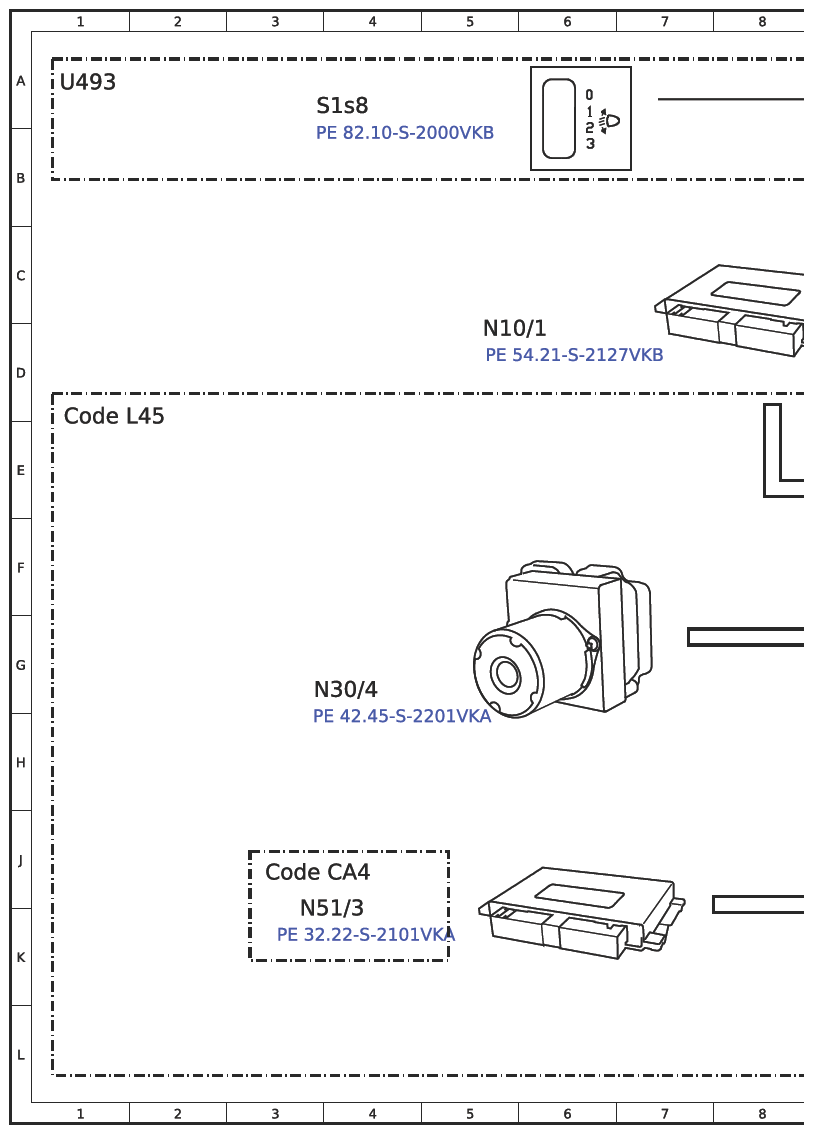

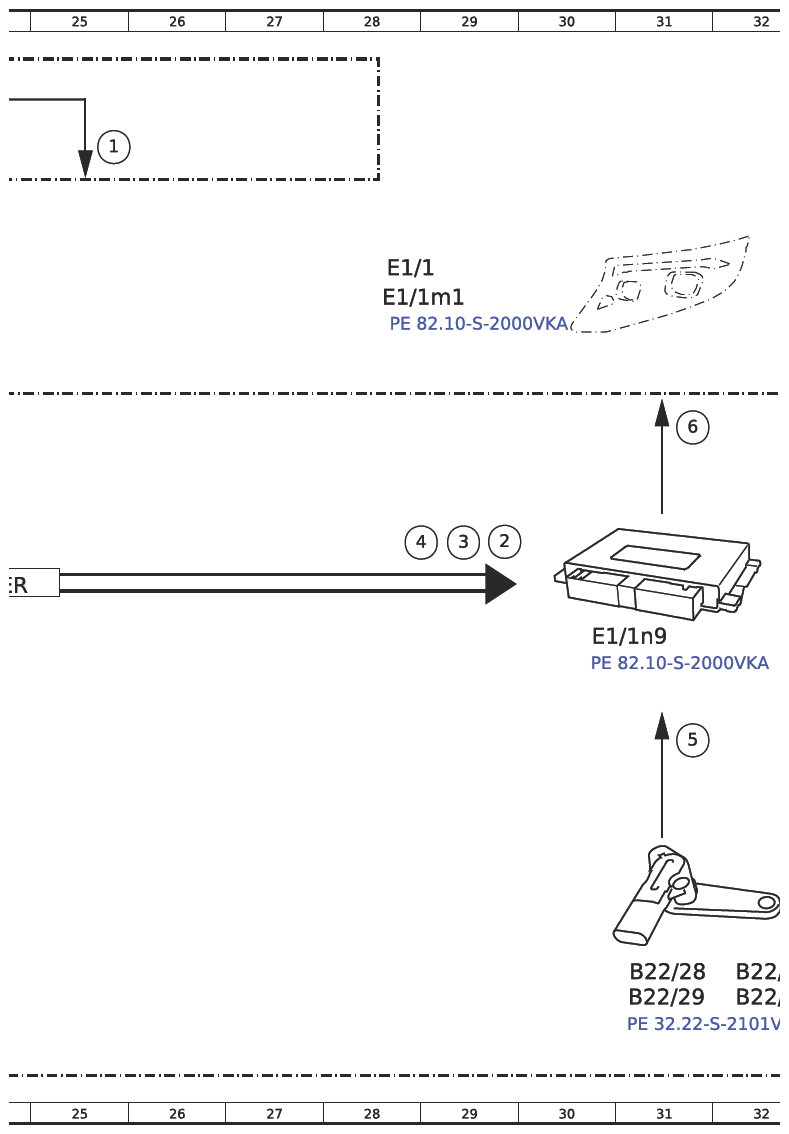

Function Schematic, Adjust Headlamp Range - PE82.10-S-2508-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Headlamp range adjustment actuator motor, actuation | 20B |
| 1 | Headlamp range adjustment actuator motor, actuation | 25B |
| 2 | Low beams, request | 12E |
| 2 | Low beams, request | 29F |
| 3 | Vehicle speed, signal | 12F |
| 3 | Vehicle speed, signal | 29F |
| 4 | - | 12J |
| 4 | - | 28F |
| 5 | Level sensor, signal | 31H |
| 6 | Headlamp range adjustment actuator motor, actuation | 31E |
| 6 | Headlamp range adjustment actuator motor, actuation | 37E |
| 7 | Synchronization, signal | 35F |
| B22/28 | Left rear axle level sensor | 31K |
| B22/29 | Left front axle level sensor | 31K |
| B22/30 | Right rear axle level sensor | 32K |
| B22/31 | Right front axle level sensor | 32K |
| CAN B | Interior CAN | 10E |
| CAN PER | Peripherals CAN | 16F |
| CAN PER | Peripherals CAN | 33F |
| CAN PER | Peripherals CAN | 24F |
| Code CA4 | AIRMATIC | 3J |
| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 1E |
| E1 | Left front lamp unit | 17C |
| E1/1 | Left front LED lamp unit | 28C |
| E1/1m1 | Left headlamp range adjustment actuator motor | 28C |
| E1/1n9 | Left headlamp control unit | 30G |
| E1m1 | Left headlamp range adjustment actuator motor | 17C |
| E2 | Right front lamp unit | 22C |
| E2/1 | Right front LED lamp unit | 35C |
| E2/1m1 | Right headlamp range adjustment actuator motor | 35C |
| E2/1n9 | Right headlamp control unit | 36G |
| E2m1 | Right headlamp range adjustment actuator motor | 23C |
| Flex E | Chassis FlexRay | 10K |
| Flex E | Chassis FlexRay | 10G |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 5D |
| N30/4 | Electronic Stability Program (ESP) control unit | 4G |
| N51/3 | AIRMATIC control unit | 3K |
| N73/8 | Electronic ignition lock (EZS) control unit | 13G |
| S1s8 | Headlamp range controller | 3A |
| U493 | - | 1A |
