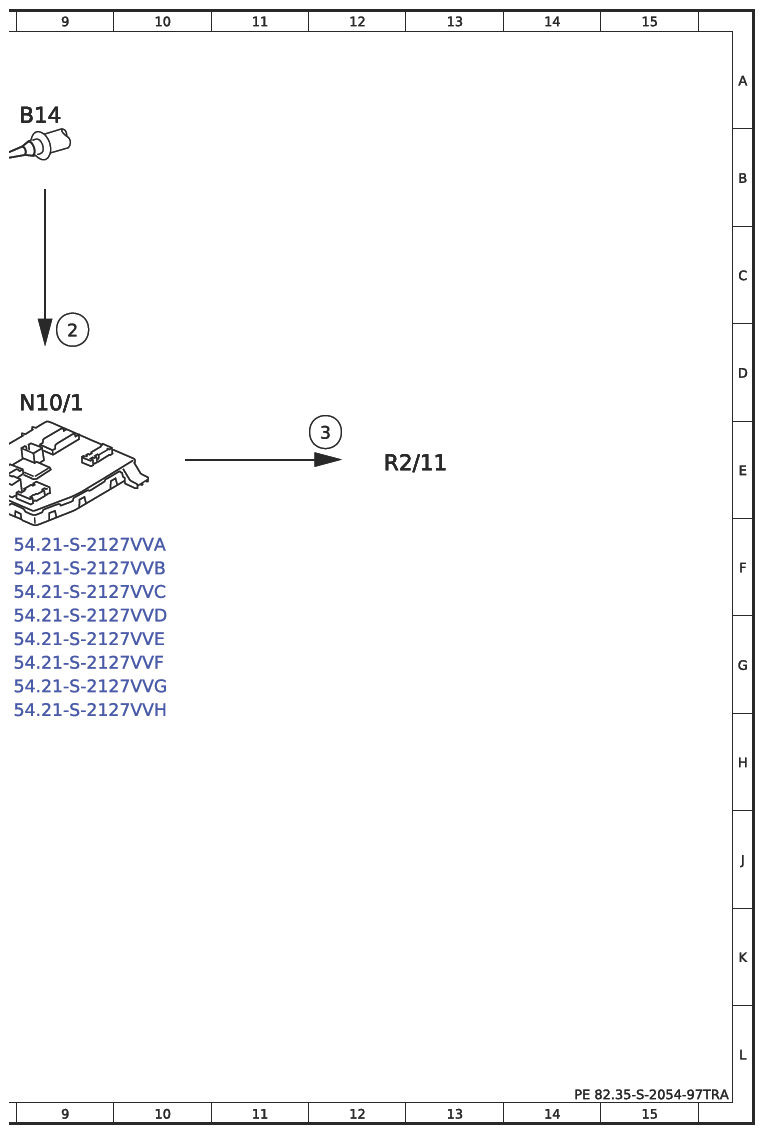

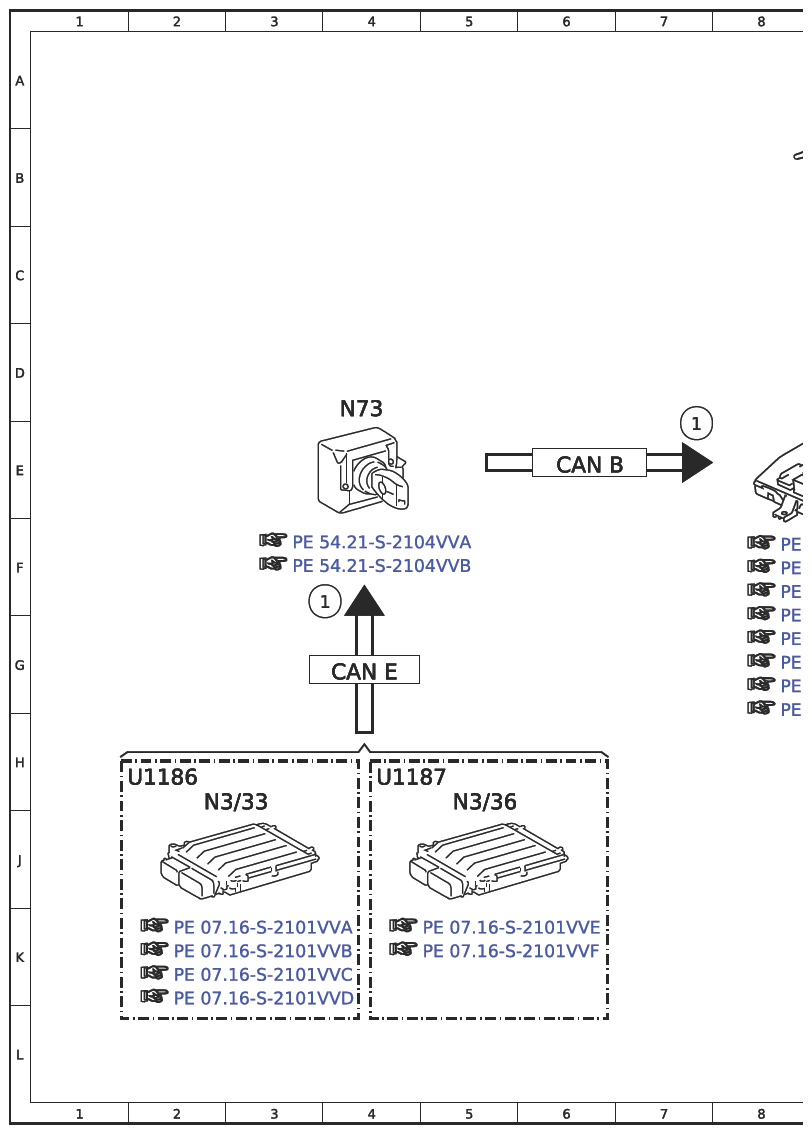

Electrical Function Schematic For Spray Nozzle Hose Heater - PE82.35-S-2054-97TRA
Model 447.6/7/8 with code F48 (Heated windshield washer system) except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 3F |
| 1 | Engine running, signal | 7E |
| 2 | Outside temperature sensor, signal | 9D |
| 3 | Spray nozzle hose heater, actuation | 12E |
| B14 | Outside temperature sensor | 9A |
| CAN B | Interior CAN | 6E |
| CAN E | Chassis CAN | 4G |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 9D |
| N3/33 | CDI control unit | 2H |
| N3/36 | CDI control unit | 5H |
| N73 | Electronic ignition lock (EZS) control unit | 4D |
| R2/11 | Spray nozzle hose heater | 12E |
| U1186 | Valid for engine 651.9 | 1H |
| U1187 | Valid for engine 622.9 | 4H |
