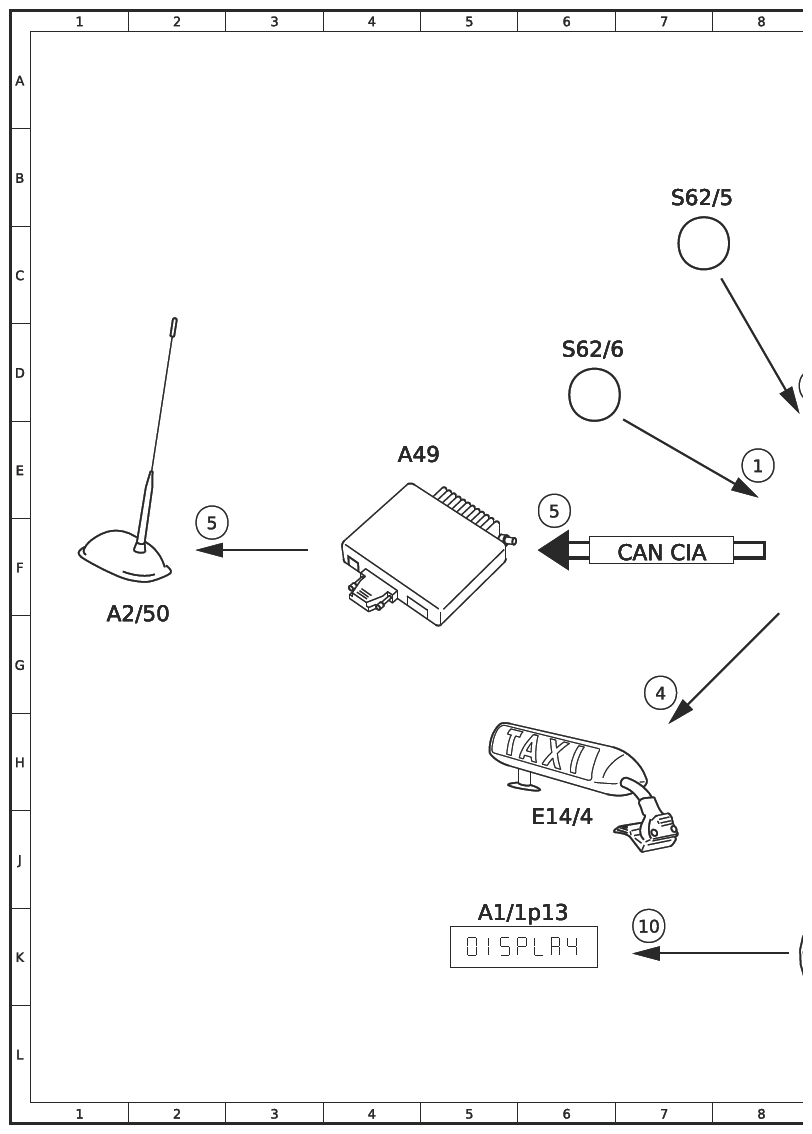

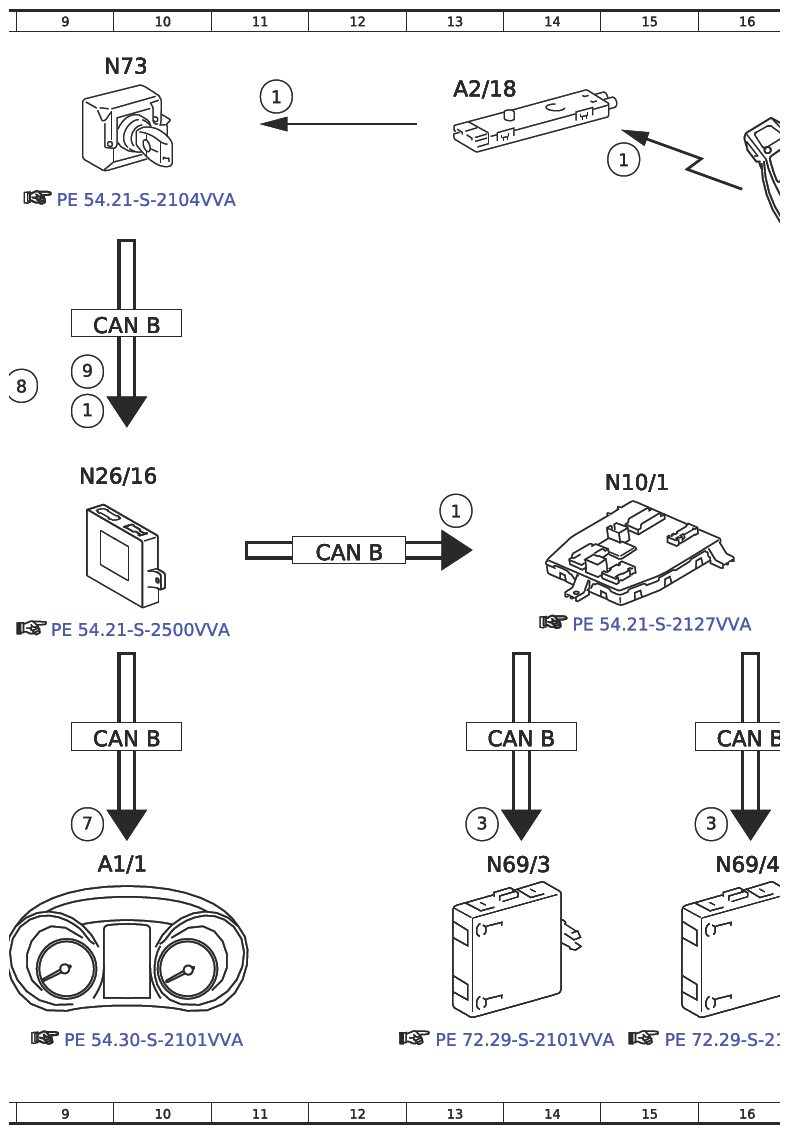

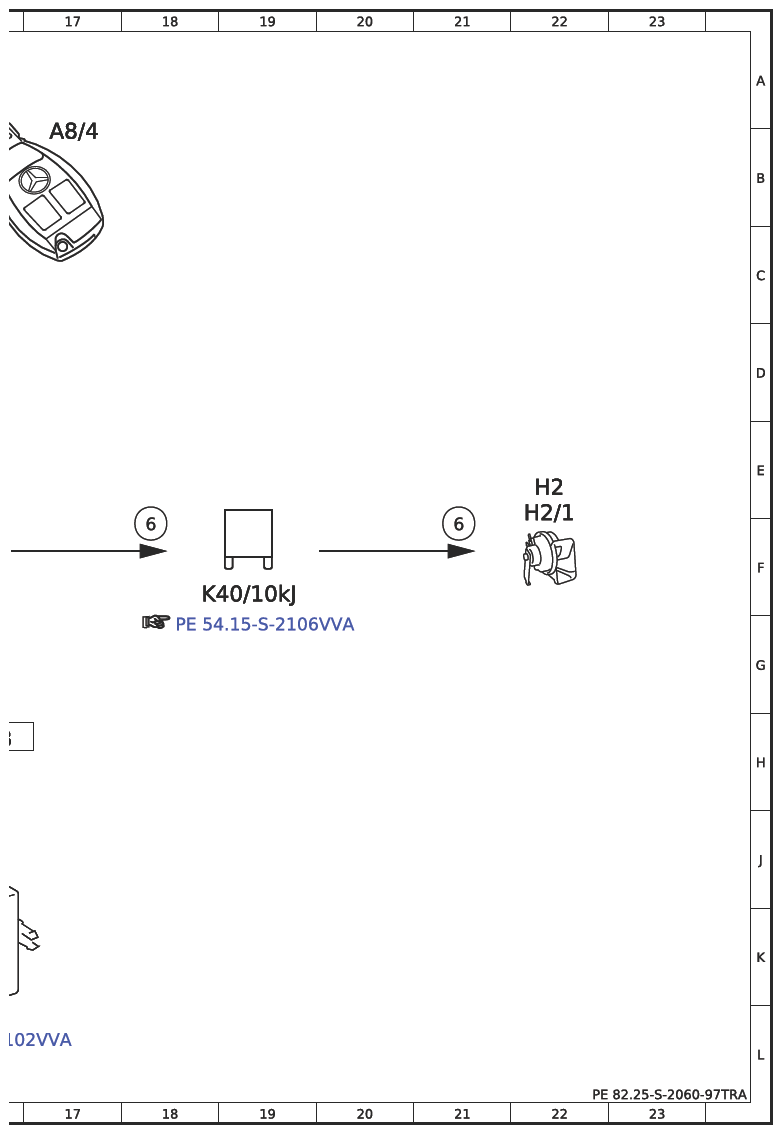

Electrical Function Schematic For Emergency Alarm - PE82.25-S-2060-97TRA
Model 447.7
with code ZK2 (Taxi version with emergency alarm system)
with code ZM7 (Rental vehicle package with emergency alarm system)
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | - | 8E |
| 1 | - | 9D |
| 1 | - | 11A |
| 1 | - | 13E |
| 1 | - | 15B |
| 10 | Multifunction display, actuation | 7K |
| 3 | - | 13J |
| 3 | - | 16J |
| 4 | - | 7G |
| 5 | - | 2F |
| 5 | - | 6E |
| 6 | Fanfare horns, actuation | 18F |
| 6 | Fanfare horns, actuation | 21F |
| 7 | Instrument cluster message, request | 9J |
| 8 | - | 9D |
| 9 | Circuit 15, status ON | 9D |
| A1/1 | Instrument cluster (KI) control unit | 9J |
| A1/1p13 | Multifunction display | 5K |
| A2/18 | FM/AM antenna amplifier | 13A |
| A2/50 | Two-way radio roof antenna | 1G |
| A49 | Taxi two-way radio | 4E |
| A8/4 | Taxi alarm system radio remote triggering transmitter | 17B |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 10D |
| CAN B | Interior CAN | 16H |
| CAN B | Interior CAN | 14H |
| CAN CIA | CIA-CAN | 7F |
| E14/4 | Roof sign lamp | 6J |
| H2 | Right fanfare horn | 22E |
| H2/1 | Right fanfare horn | 22F |
| K40/10kJ | Fanfare horn relay | 19F |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 15E |
| N26/16 | Parameterizable special module (PSM) control unit | 9E |
| N69/3 | Left front door control unit | 14J |
| N69/4 | Right front door control unit | 16J |
| N73 | Electronic ignition lock (EZS) control unit | 10A |
| S62/5 | Emergency alarm system release button switch | 7B |
| S62/6 | Emergency alarm system activation button switch | 6D |
