Retrofit SDAR Tuner For Satellite Radio Mode For Communication And Navigation System (CNS) - AZ82.85-S-0014-02E
Model 447.6/7
with code ZU7 (National version for Canada)
Model 447.6/7
with code ZU8 (National version for USA)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS |

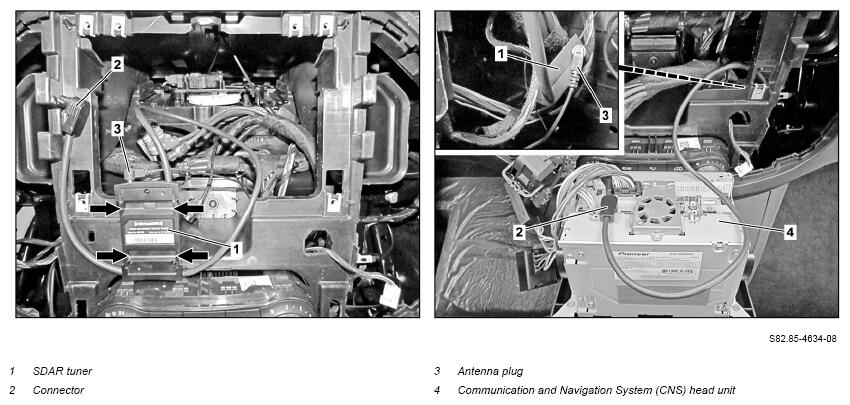

- Connect antenna plug (3) to SDAR tuner (1).
- Route cable ties supplied in parts kit through molded clips (arrows) on underside of SDAR tuner (1).
- Fasten SDAR tuner (1) under the device installation frame with inserted cable ties to factory-installed electrical wiring harness.
The plug (2) of the SDAR tuner (1) is connected during installation of the CNS head unit (4).
