Prepare Communication And Navigation System (CNS) For Installation - AZ82.85-S-0008-01E

Model 447.6/7

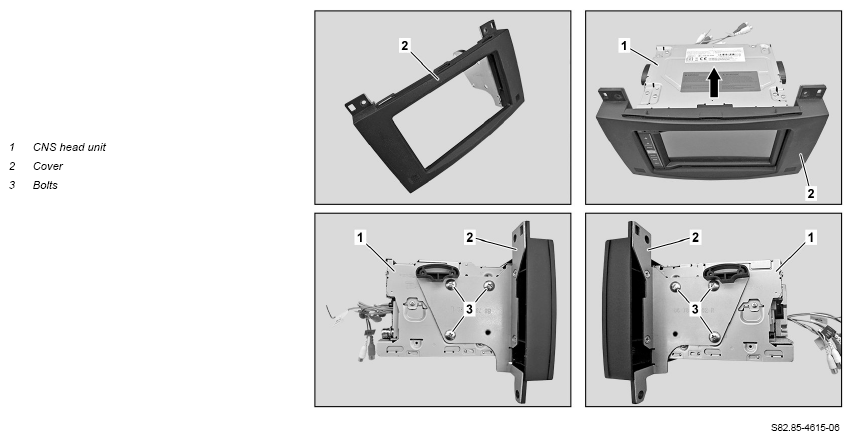

1. Position cover (2), as shown, on

   Communication and Navigation System (CNS) head unit (1).

   Ensure correct installation position of cover (2) on CNS head unit (1).

   Courtesy of MERCEDES-BENZ USA

2. Fit screws (3) on both sides.

   Use the 6 fillister head screws from the CNS parts kit.

3. Tighten cover (2) on CNS head unit (1).

   To do this, tighten screws (3) on CNS head unit (1).
