Collision Warning System, Function Schematic - PE54.70-S-2500-97A
Model 447 with code BA3 (Active Brake Assist System) with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 9A |
| 1 | Wheel speed, signal | 20C |
| 10 | Accelerator pedal sensor, signal | 24J |
| 10 | Accelerator pedal sensor, signal | 28G |
| 10 | Accelerator pedal sensor, signal | 25C |
| 11 | Processed image data, signal | 25C |
| 12 | Display, message | 33F |
| 13 | Warning tone, request | 33F |
| 2 | Wheel rotation direction, signal | 9A |
| 2 | Wheel rotation direction, signal | 20C |
| 3 | Brake vacuum sensor, signal | 9C |
| 3 | Brake vacuum sensor, signal | 19C |
| 4 | Brake pedal, status | 9D |
| 4 | Brake pedal, status | 20C |
| 5 | Speed, turn rate and lateral acceleration, signal | 8K |
| 5 | Speed, turn rate and lateral acceleration, signal | 20C |
| 6 | Service brake braking torque, request | 12C |
| 7 | Steering wheel angle sensor, signal | 19C |
| 8 | - | 20B |
| 9 | Engine running, signal | 28G |
| 9 | Engine running, signal | 22J |
| 9 | Engine running, signal | 24C |
| A1 | Instrument cluster | 37D |
| A68 | Accelerator pedal module | 23G |
| B150 | ESP® control unit brake vacuum sensor | 6C |
| B167 | Left frontal acceleration sensor | 6K |
| B167/1 | Right frontal acceleration sensor | 6K |
| B37/1 | Pedal angle sensor | 6E |

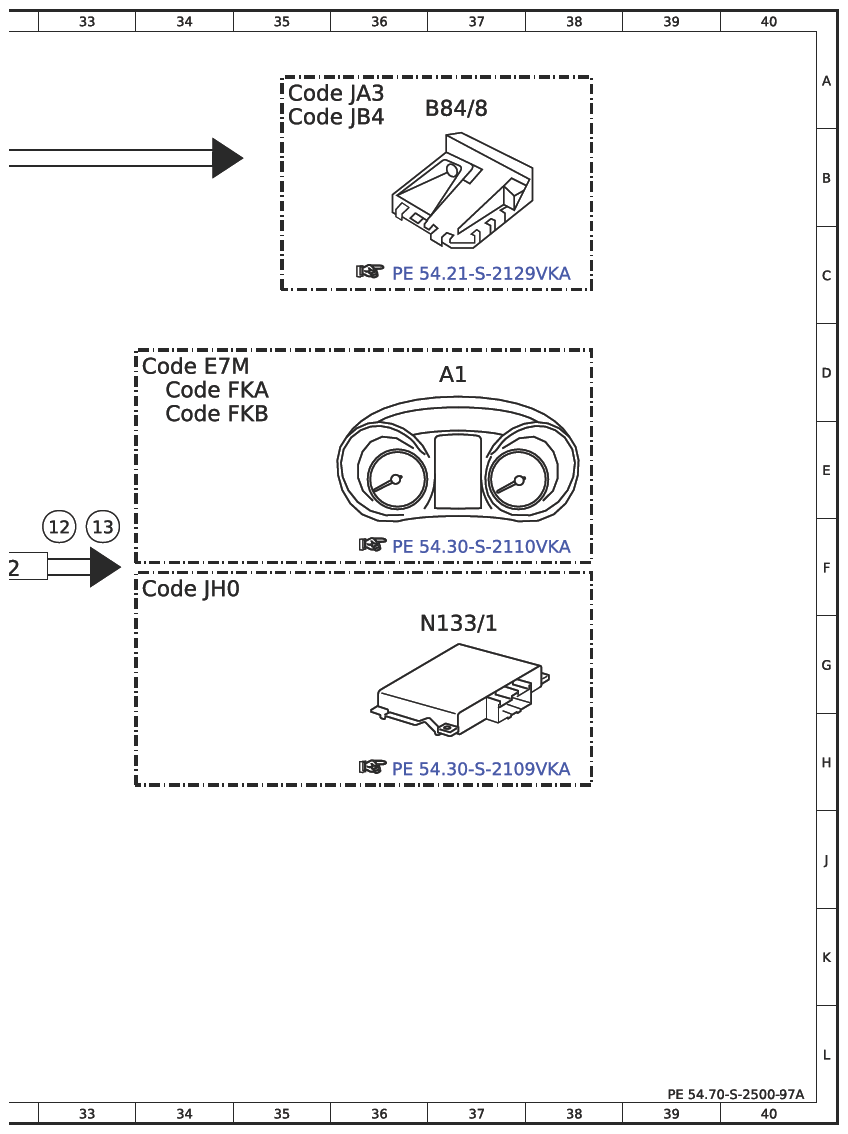

| B84/8 | Multifunction camera (MFK) control unit | 36A |

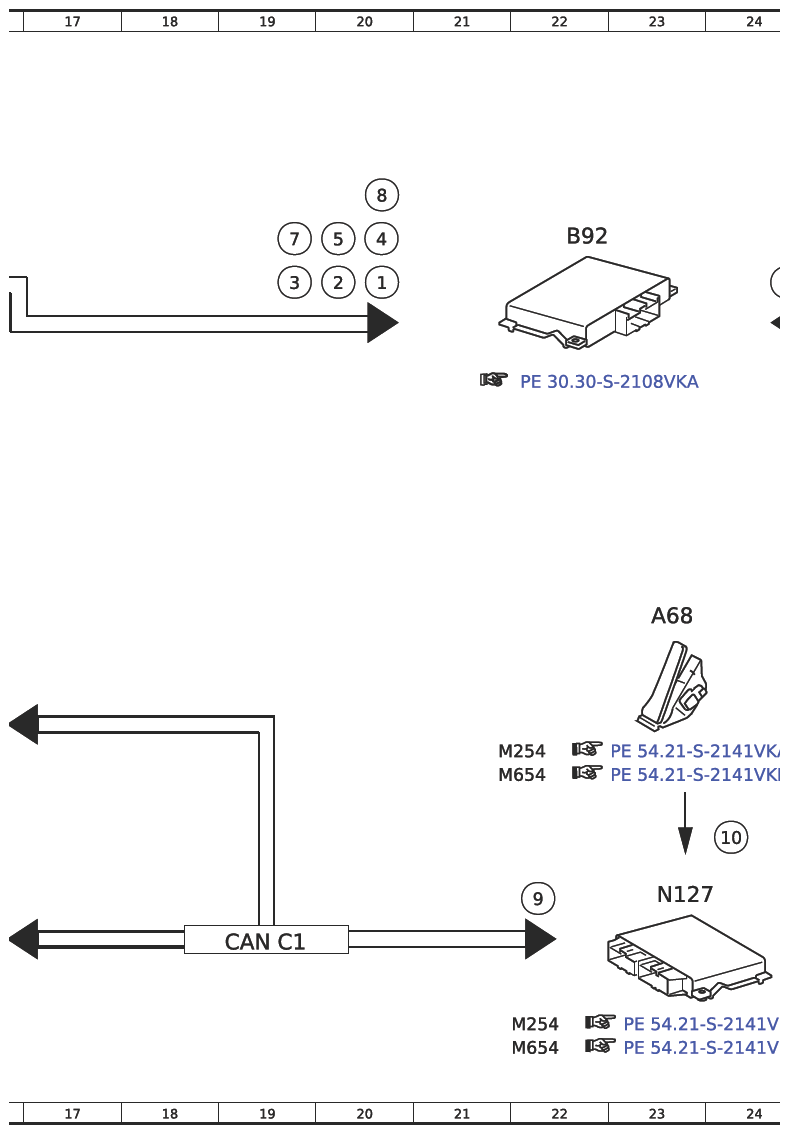

| B92 | Active Brake Assist controller unit | 22C |
| CAN C1 | Engine CAN | 19K |
| CAN HMI2 | User interface CAN 2 | 32F |
| CAN PER | Peripherals CAN | 27K |
| Code E7M | MBUX multimedia system | 34D |
| Code FKA | Panel van | 34D |
| Code FKB | Vito Mixto and Tourer | 34E |
| Code JA3 | Intelligent body control | 35A |
| Code JB4 | Active Lane Keeping Assist | 35A |
| Code JH0 | Display package | 34F |
| Flex E | Chassis FlexRay | 29B |
| Flex E | Chassis FlexRay | 15C |

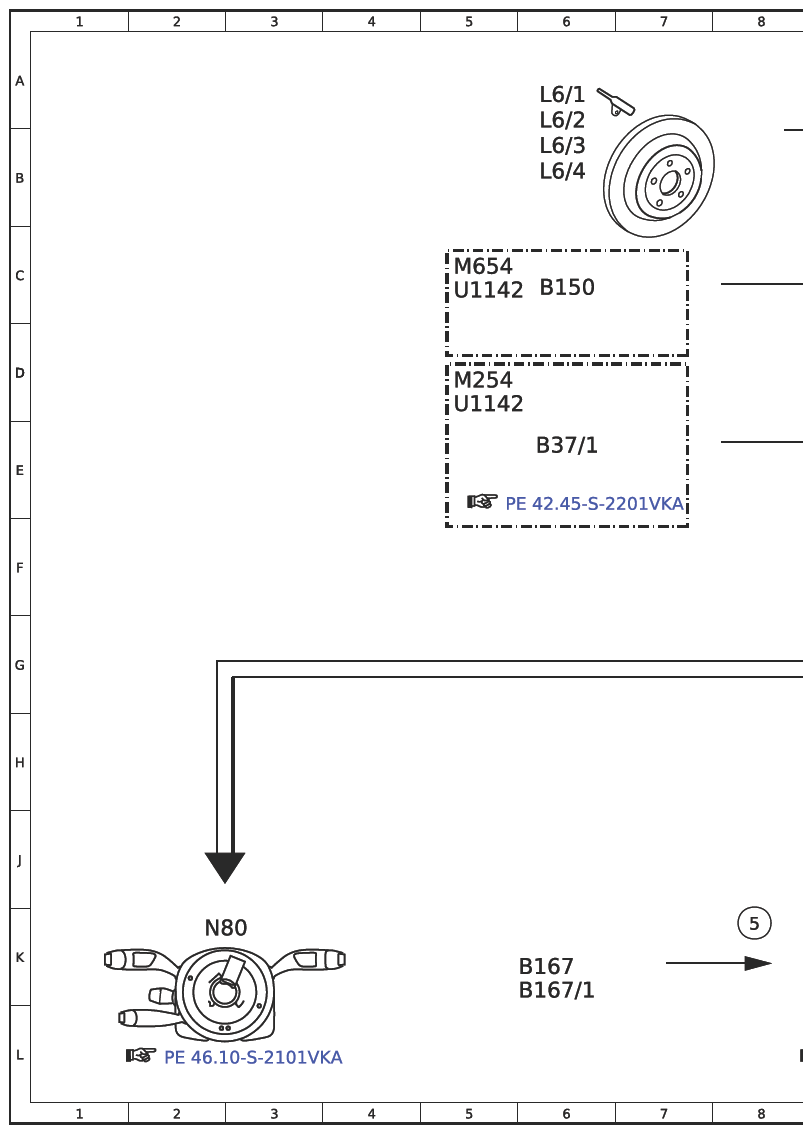

| L6/1 | Left front axle rpm sensor | 6A |
| L6/2 | Right front axle rpm sensor | 6A |
| L6/3 | Left rear axle rpm sensor | 6B |
| L6/4 | Right rear axle rpm sensor | 6B |
| N127 | Drivetrain control unit | 23J |
| N133/1 | Instrument cluster control unit | 37G |
| N2/5 | Supplemental restraint system (SRS) control unit | 9K |
| N3/34 | ME-SFI [ME] control unit | 15F |
| N3/40 | CDI control unit | 15J |

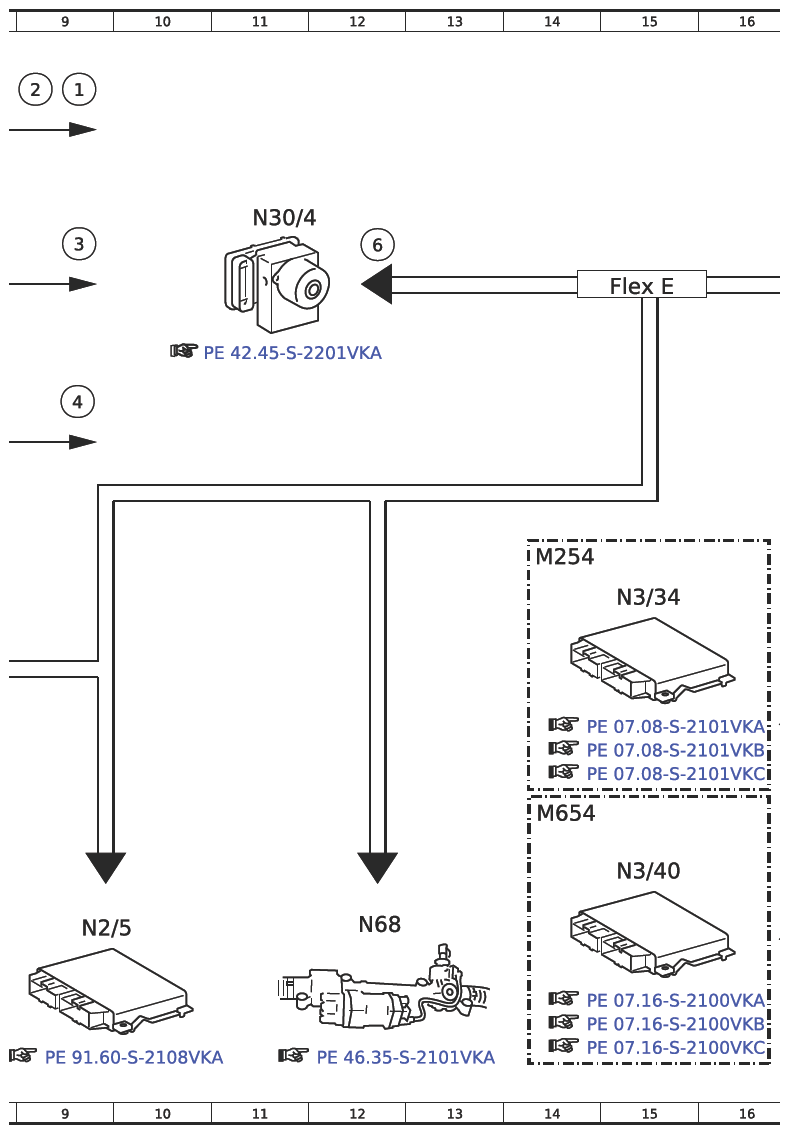

| N30/4 | Electronic Stability Program (ESP) control unit | 11B |
| N68 | Electrical power steering (ES) control unit | 12K |

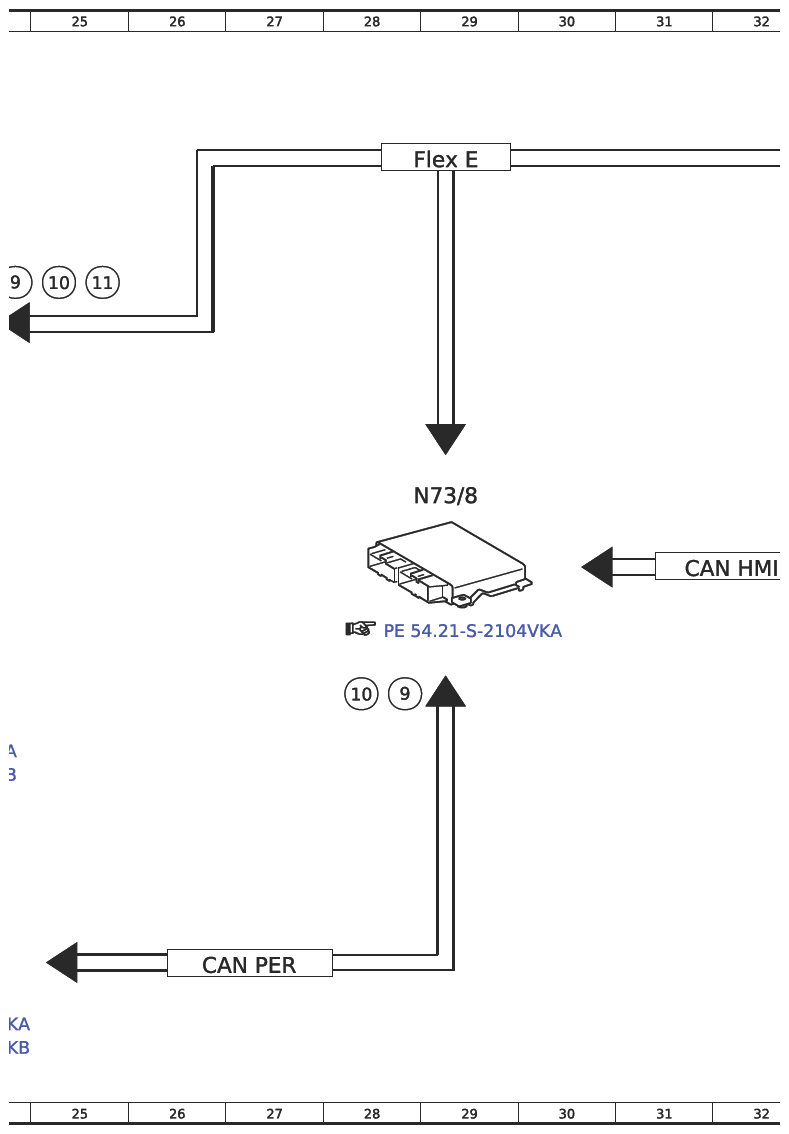

| N73/8 | Electronic ignition lock (EZS) control unit | 29E |
| N80 | Steering column tube module (MRM) control unit | 2K |
| U1142 | Valid for electric vehicle | 5D |
| U1142 | Valid for electric vehicle | 5C |
