360 Degree Camera Picture Display, Function Schematic - PE54.65-S-2504-97A
Model 447 with code EZ6 (Parking package with 360-degree camera) with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camera image, signal | 6D |
| 1 | Camera image, signal | 13D |
| 1 | Camera image, signal | 19D |
| 1 | Camera image, signal | 26D |
| 2 | Reverse gear engaged, signal | 22C |
| 2 | Reverse gear engaged, signal | 17B |
| 2 | Reverse gear engaged, signal | 11B |
| 3 | Camera image display, request | 22F |
| 3 | Camera image display, request | 23D |
| 3 | Camera image display, request | 17D |
| 3 | Camera image display, request | 10D |
| A105 | Touchpad | 16K |

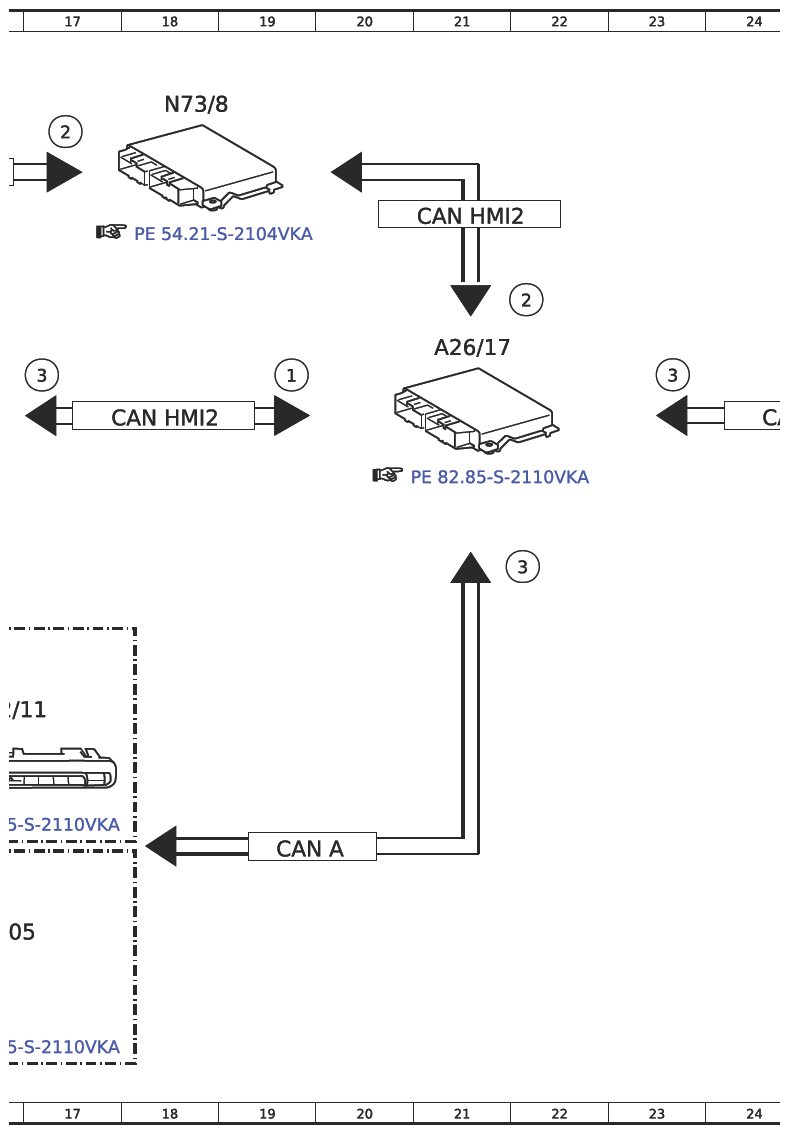

| A26/17 | Head unit | 21D |

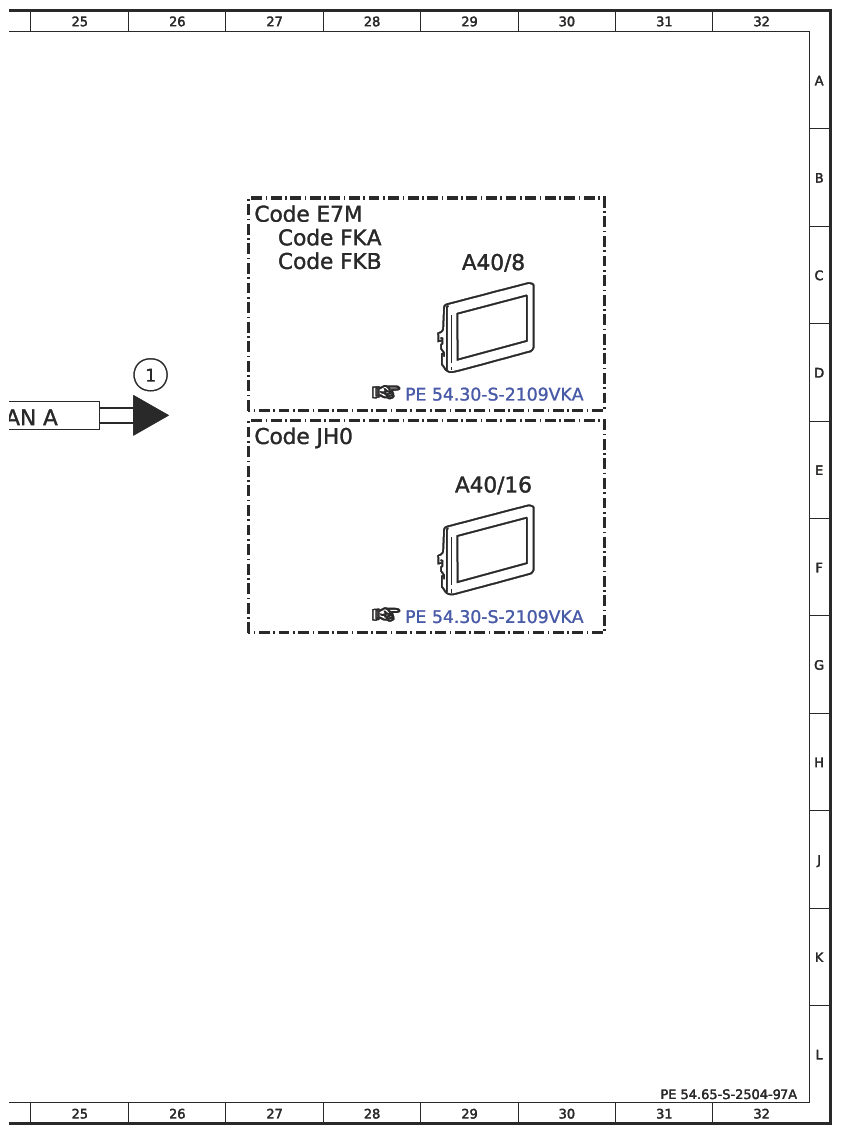

| A40/16 | Head unit/instrument cluster display cluster | 29E |
| A40/8 | Audio/COMAND display control unit | 29C |

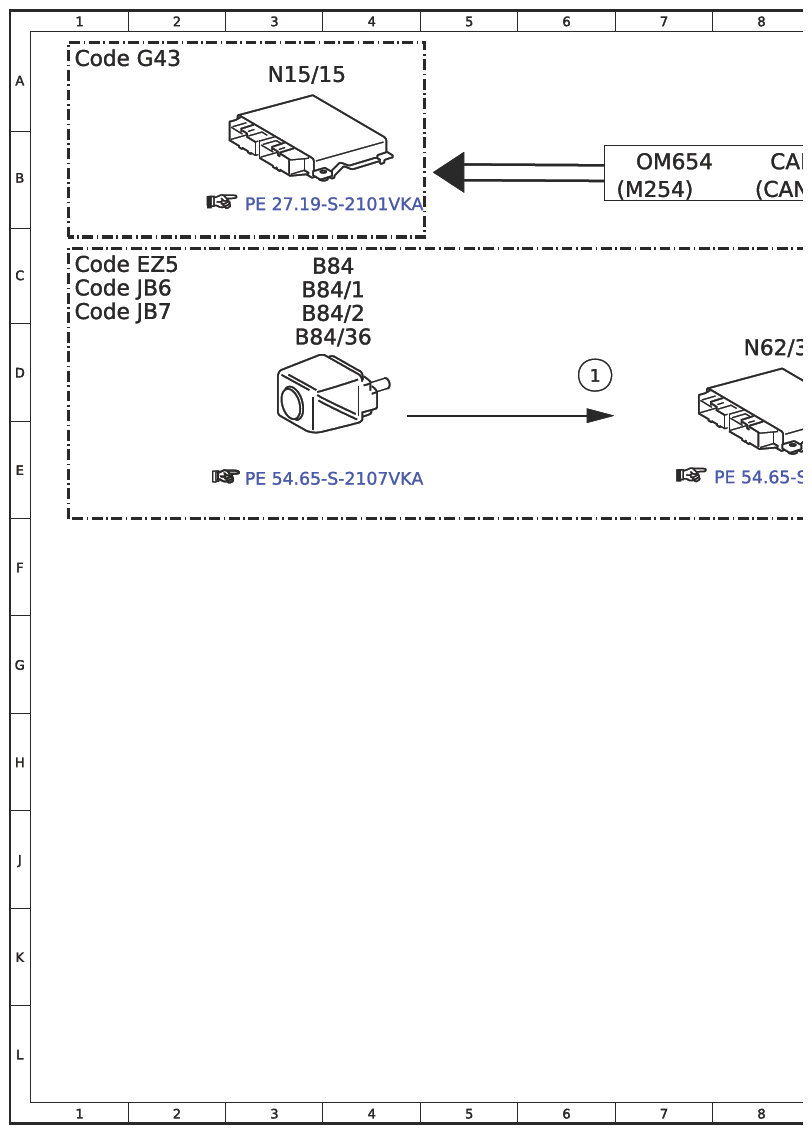

| B84 | Front 360° camera | 4C |
| B84/1 | Left outside mirror 360° camera | 3C |
| B84/2 | Right outside mirror 360° camera | 3C |
| B84/36 | Rear reversing camera/360° camera | 3D |
| CAN A | Telematics CAN | 24E |
| CAN A | Telematics CAN | 19J |
| CAN C | Drive train CAN | 8B |
| CAN C2 | Powertrain CAN 2 | 8B |
| CAN HMI2 | User interface CAN 2 | 18E |
| CAN HMI2 | User interface CAN 2 | 21B |
| Code E7M | MBUX multimedia system | 27B |
| Code EZ5 | Parking package | 1C |
| Code FKA | Panel van | 27C |
| Code FKB | Vito Mixto and Tourer | 27C |
| Code G43 | 9G-TRONIC | 1A |
| Code JB6 | Parking package with 360° camera | 1C |
| Code JB7 | Parking Package with reversing camera | 1C |
| Code JH0 | Display package | 27E |
| Flex E | Chassis FlexRay | 11E |
| Flex E | Chassis FlexRay | 15B |

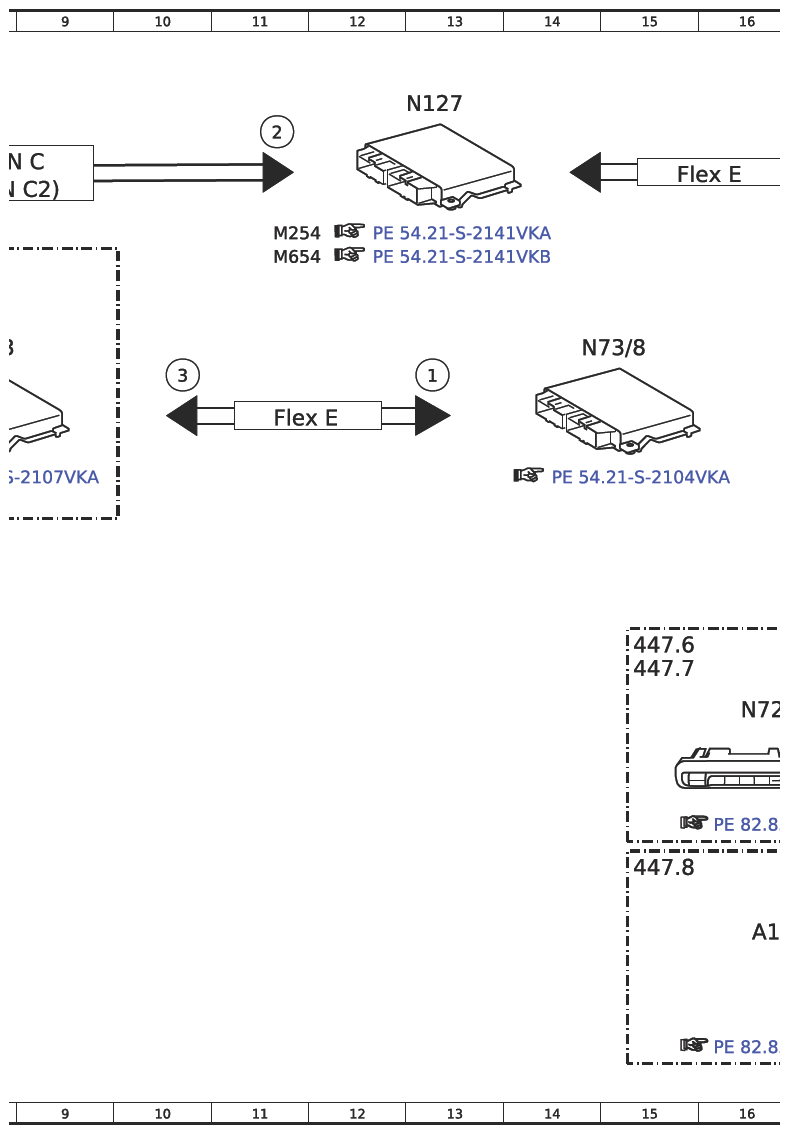

| N127 | Drivetrain control unit | 13A |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 3A |
| N62/3 | Parking system control unit | 8D |
| N72/11 | Head unit control panel control unit | 16H |
| N73/8 | Electronic ignition lock (EZS) control unit | 14D |
| N73/8 | Electronic ignition lock (EZS) control unit | 18A |
