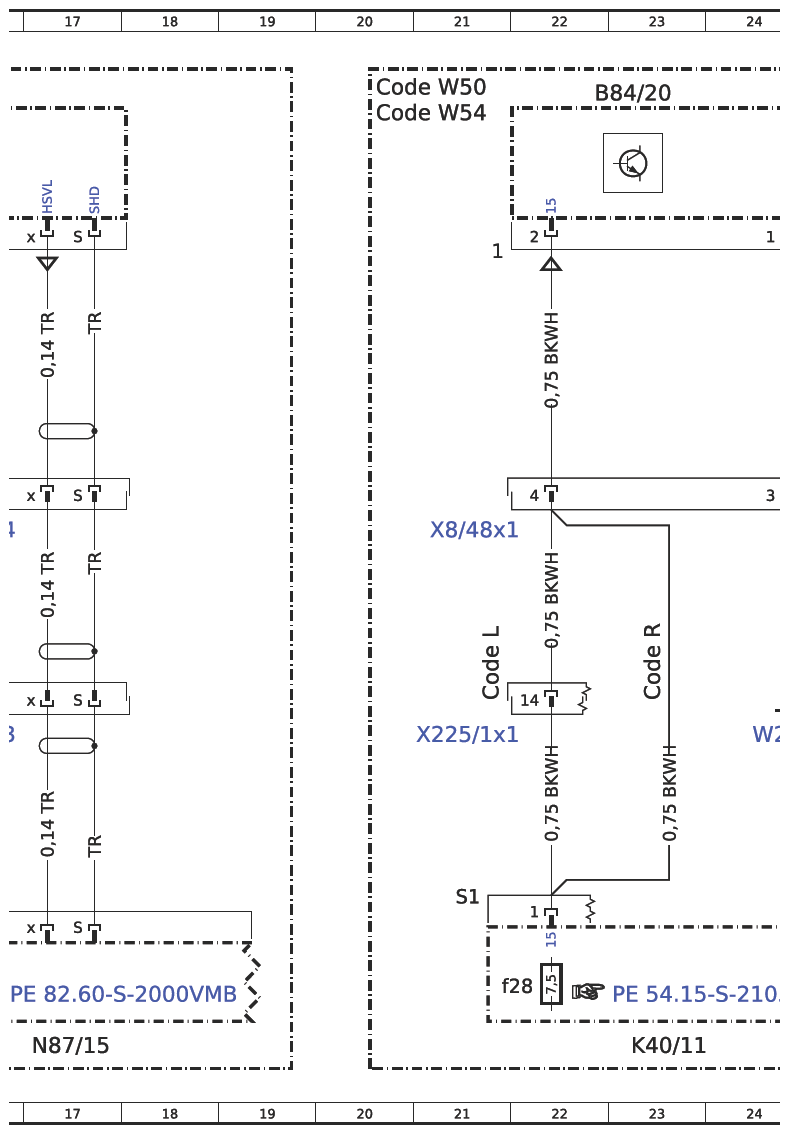

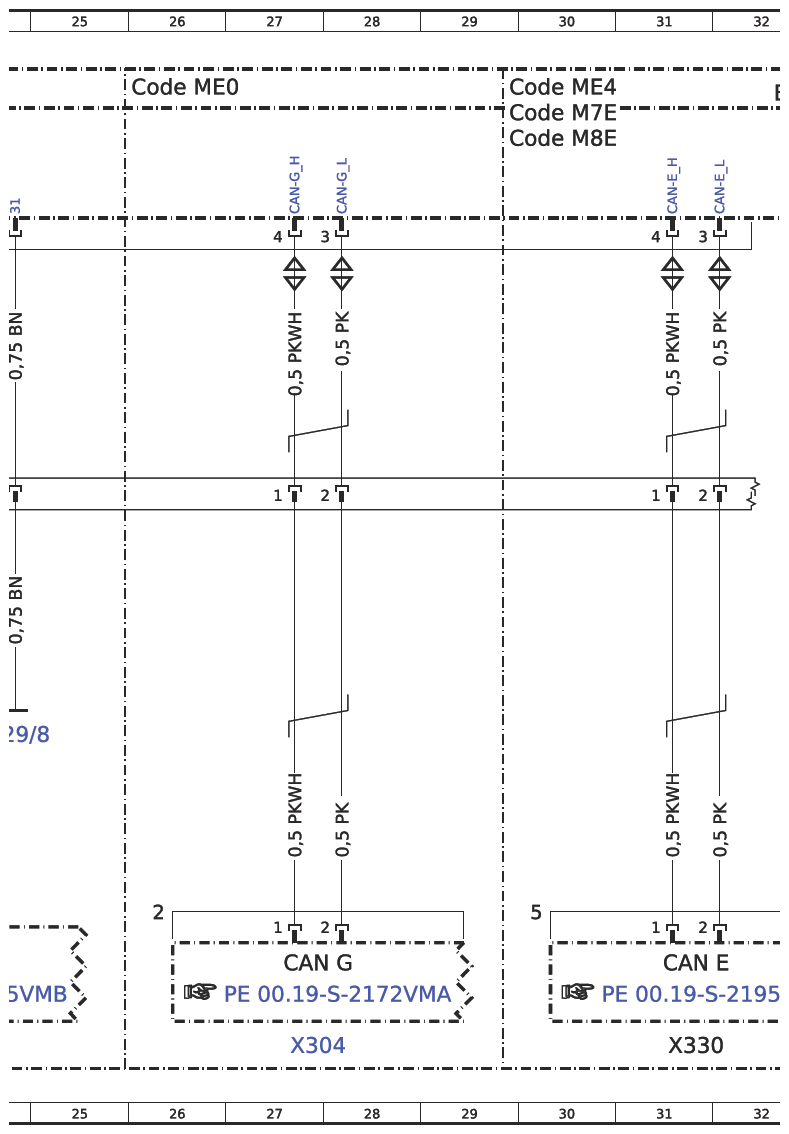

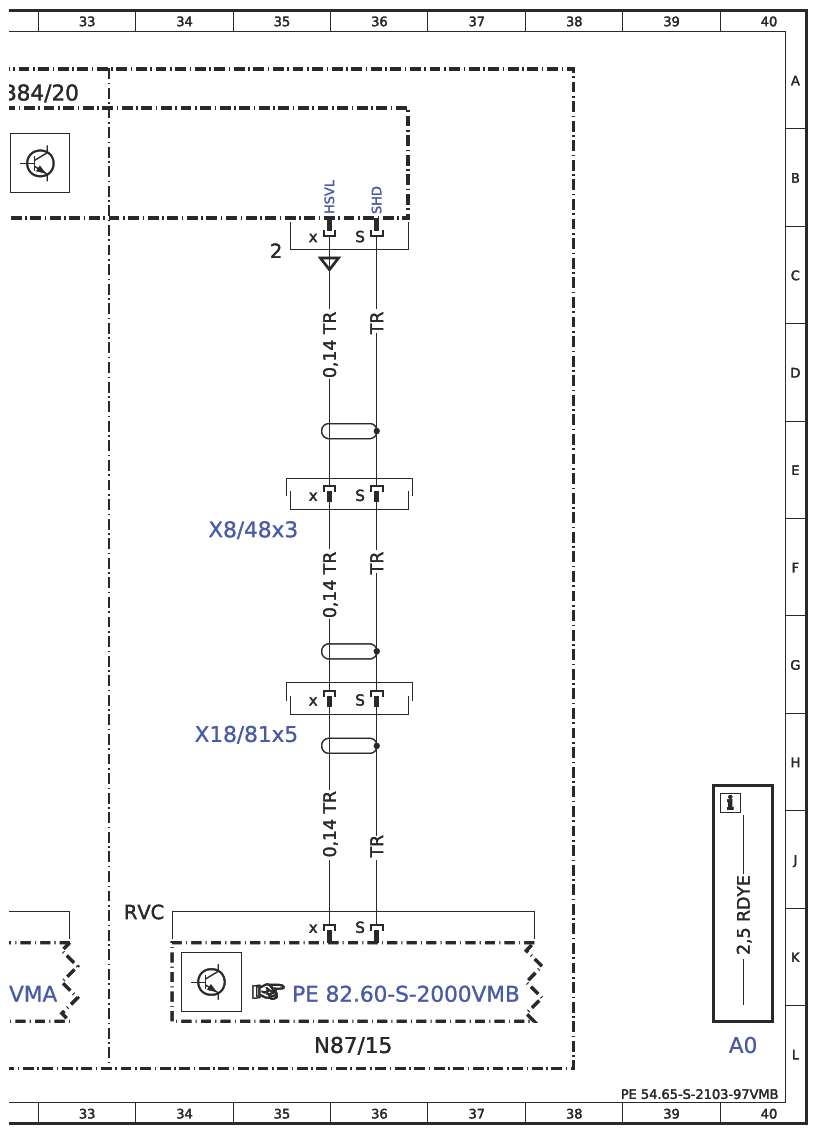

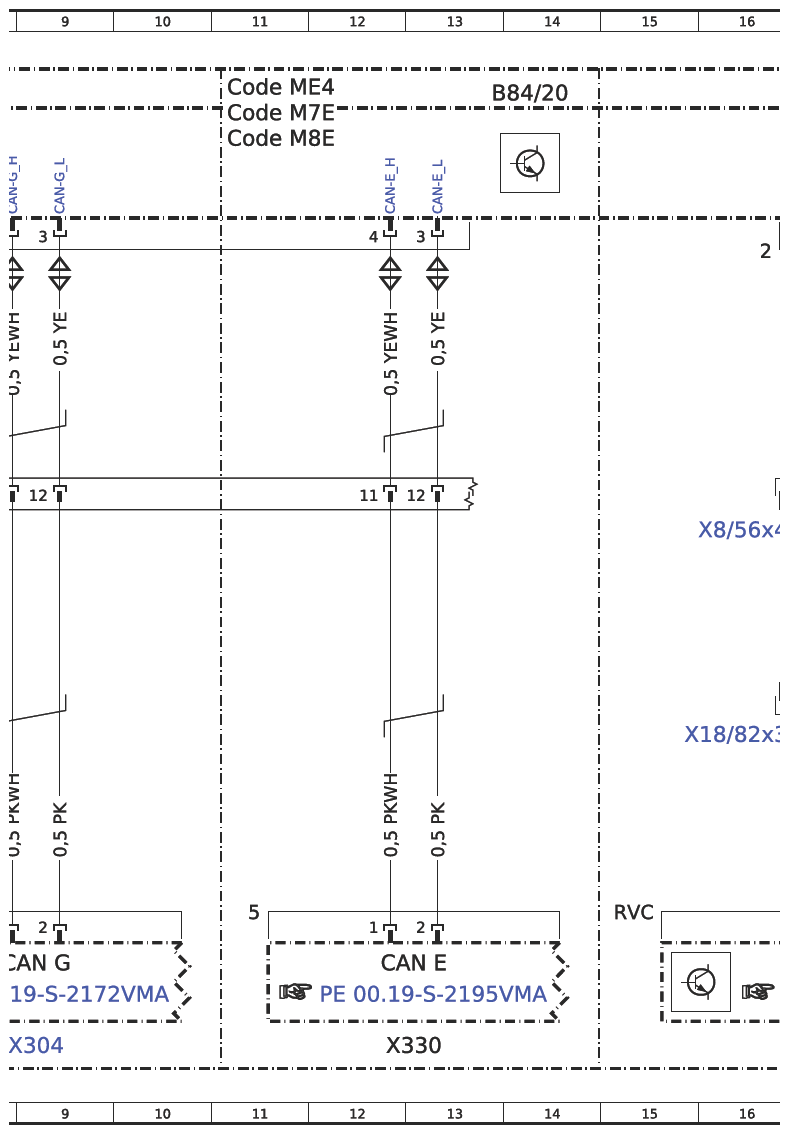

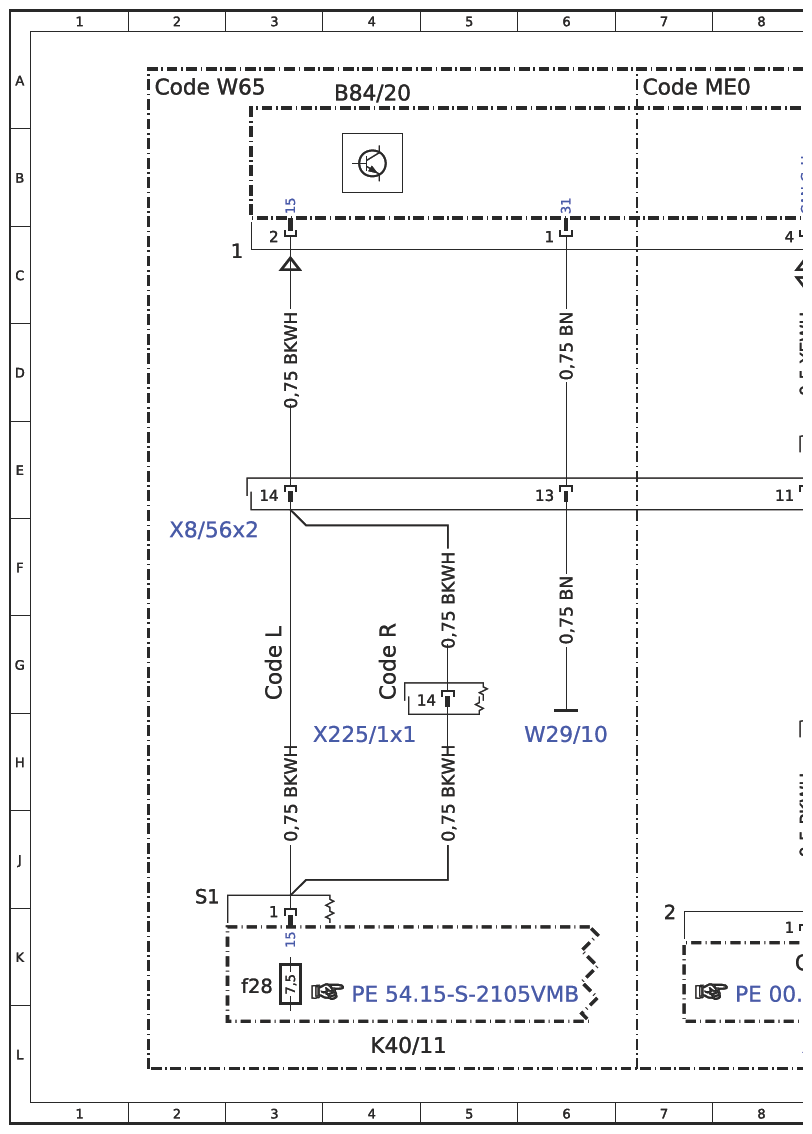

(Wiring Diagram Of Reversing Camera - PE54.65-S-2103-97VMB)
Model 447.6/7 as of 7/1/20 with code FR8 (Rear view camera) with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) B84/20
Model 447.6 with code FR8 (Rear view camera) with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) B84/20
Model 447.7 with code FR8 (Rear view camera) with code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) B84/20
Model 447.7 with code FR8 (Rear view camera) with code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) B84/20
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| B84/20 | Reversing camera (RFK) control unit | 14A |
| B84/20 | Reversing camera (RFK) control unit | 4A |
| B84/20 | Reversing camera (RFK) control unit | 32A |
| B84/20 | Reversing camera (RFK) control unit | 23A |
| CAN E | Chassis CAN | 12K |
| CAN E | Chassis CAN | 31K |
| CAN G | Front end CAN | 9K |
| CAN G | Front end CAN | 27K |
| Code L | Valid for left-hand drive vehicles | 3G |
| Code L | Valid for left-hand drive vehicles | 21G |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 11A |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 29A |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 11B |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 29B |
| Code ME0 | Electric motor 85 kW | 7A |
| Code ME0 | Electric motor 85 kW | 26A |
| Code ME4 | Electric motor 145 kW | 11A |
| Code ME4 | Electric motor 145 kW | 29A |
| Code R | Valid for right-hand drive vehicles | 4G |
| Code R | Valid for right-hand drive vehicles | 23G |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 20A |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 20A |
| Code W65 | Liftgate | 2A |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11 | Firewall fuse and relay module | 23L |
| K40/11f28 | Fuse 28 | 3K |
| K40/11f28 | Fuse 28 | 22K |
| N87/15 | Radio/radio navigation | 17L |
| N87/15 | Radio/radio navigation | 36L |
| W29/10 | Right D-pillar ground point | 6H |
| W29/8 | Left D-pillar ground point | 24H |
| X18/81x5 | Left cockpit/main wiring harness electrical connector 5 | 35H |
| X18/82x3 | Right cockpit/main wiring harness electrical connector 3 | 16H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 4H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 21H |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 9L |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 27L |
| X330 | CAN for suspension (CAN E) potential distributor electrical connector | 12L |
| X330 | CAN for suspension (CAN E) potential distributor electrical connector | 31L |
| X8/48x1 | Left rear-end door electrical connector 1 | 21F |
| X8/48x3 | Left rear-end door electrical connector 3 | 35F |
| X8/56x2 | Right liftgate electrical connector 2 | 2F |
| X8/56x4 | Right liftgate electrical connector 4 | 16F |
