Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VVN
Model 447.6 with Code XM0 (Facelift) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) N10/1 plug B1
Model 447.7 with Code XM0 (Facelift) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) N10/1 plug B1
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 112L |
| B14 | Outside temperature sensor | 62L |
| Code E28 | Additional battery for retrofitted consumers | 69J |
| Code E28 | Additional battery for retrofitted consumers | 43H |
| Code E57 | Electrical system for trailer socket | 90J |
| Code E57 | Electrical system for trailer socket | 89J |
| Code E57 | Electrical system for trailer socket | 38J |
| Code E58 | Electrics system for NAFTA trailer socket | 38J |
| Code ES3 | 12V sockets for right and left rear seat rows | 69J |
| Code ES3 | 12V sockets for right and left rear seat rows | 43J |
| Code ET4 | DISTRONIC PLUS adaptive cruise control | 94E |
| Code ET4 | DISTRONIC PLUS adaptive cruise control | 92E |
| Code EZ7 | Active Parking Assist | 92E |
| Code EZ7 | Active Parking Assist | 94E |
| Code F48 | Heater for windshield washer system | 100D |
| Code FKB | Vito Mixto and Tourer | 64D |
| Code FKB | Vito Mixto and Tourer | 42J |
| Code FY1 | Theft protection package | 94D |
| Code FY1 | Theft protection package | 92D |
| Code FZ5 | ATA I, anti-theft alarm system | 94D |
| Code FZ5 | ATA I, anti-theft alarm system | 92D |
| Code JW0 | Backup warning system | 21J |
| Code JW0 | Backup warning system | 18J |
| Code JW0 | Backup warning system | 20J |
| Code JW0 | Backup warning system | 29J |
| Code L | Valid for left-hand drive vehicles | 101E |
| Code L | Valid for left-hand drive vehicles | 91G |
| Code L | Valid for left-hand drive vehicles | 70J |
| Code L | Valid for left-hand drive vehicles | 89J |
| Code L | Valid for left-hand drive vehicles | 32D |
| Code L | Valid for left-hand drive vehicles | 49E |
| Code L16 | Halogen front fog lamps | 49D |
| Code L84 | Additional rear turn signal lamps on roof | 25J |
| Code L84 | Additional rear turn signal lamps on roof | 27J |
| Code LG2 | LED Intelligent Light System | 3J |
| Code LG2 | LED Intelligent Light System | 6J |
| Code LG2 | LED Intelligent Light System | 8J |
| Code LG2 | LED Intelligent Light System | 46J |
| Code LG2 | LED Intelligent Light System | 45J |
| Code LG2 | LED Intelligent Light System | 47J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 14J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 16J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 18J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 20J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 23J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 26J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 27J |
| Code MG3 | Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 rpm | 75J |
| Code MG4 | Engine OM 651 DE 22 LA 140 kW (190 hp) 3800 rpm | 75J |
| Code MG7 | Engine OM 651 DE 22 LA 100 kW 3800 rpm | 75J |
| Code MJ8 | ECO start/stop function | 94D |
| Code MJ8 | ECO start/stop function | 92D |
| Code MM1 | Engine M274 DEH 20 LA 155 kW (211 hp) 5500 rpm | 78J |
| Code MX1 | Engine OM 622 DE 16 LA 65 kW (88 hp) 3800 rpm | 76J |
| Code MX2 | Engine OM 622 DE 16 LA 84 kW (114 hp) 3800 rpm | 77J |
| Code Q22 | Trailer hitch with non-removable ball head | 38J |
| Code Q24 | NAFTA trailer crossmember, towing capacity 5000Ibs | 39J |
| Code Q50 | Trailer hitch with removable ball head | 90J |
| Code Q50 | Trailer hitch with removable ball head | 90J |
| Code Q50 | Trailer hitch with removable ball head | 38J |
| Code R | Valid for right-hand drive vehicles | 103E |
| Code R | Valid for right-hand drive vehicles | 91G |
| Code R | Valid for right-hand drive vehicles | 70J |
| Code R | Valid for right-hand drive vehicles | 90J |
| Code R | Valid for right-hand drive vehicles | 34D |
| Code R | Valid for right-hand drive vehicles | 51E |
| Code T55 | Electric controls for right sliding door | 54) |
| Code T56 | Electric controls for left sliding door | 54J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 31J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 88J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 41J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 31J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 88J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 41J |
| Code W64 | Separately opening rear window | 79G |
| Code W64 | Separately opening rear window | 82G |
| Code W65 | Liftgate | 82G |
| Code W65 | Liftgate | 86J |
| Code W65 | Liftgate | 40J |
| Code YG4 | Load compartment tray | 64D |
| Code ZU7 | Canada version | 24J |
| Code ZU7 | Canada version | 28J |
| Code ZU7 | Canada version | 43J |
| Code ZU7 | Canada version | 48J |
| Code ZU8 | USA version | 24J |
| Code ZU8 | USA version | 28J |
| Code ZU8 | USA version | 43J |
| Code ZU8 | USA version | 48J |
| E1 | Left front lamp unit | 6L |
| E1 | Left front lamp unit | 6L |
| E1/1 | Left front LED lamp unit | 8L |

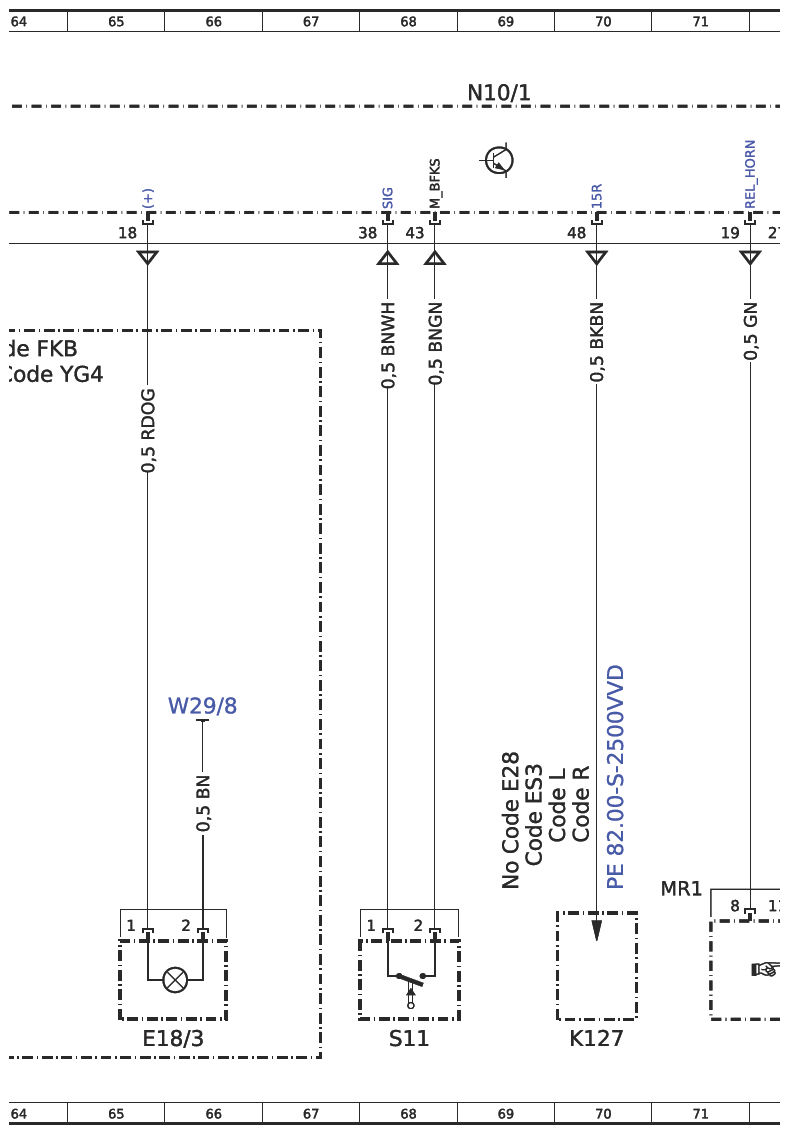

| E18/3 | Left luggage compartment lamp | 65L |
| E19/1 | Left license plate lamp | 86L |
| E19/3 | Left rear-end door license plate lamp | 88L |

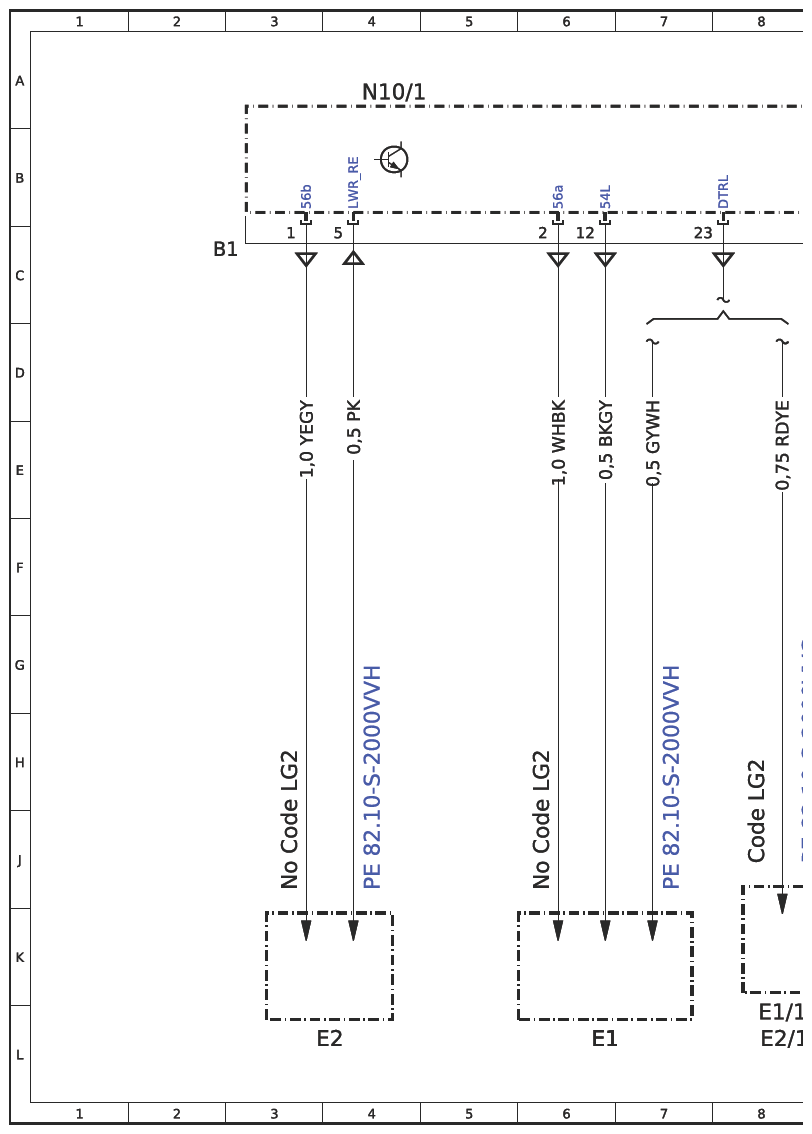

| E2 | Right front lamp unit | 4L |
| E2/1 | Right front LED lamp unit | 8L |

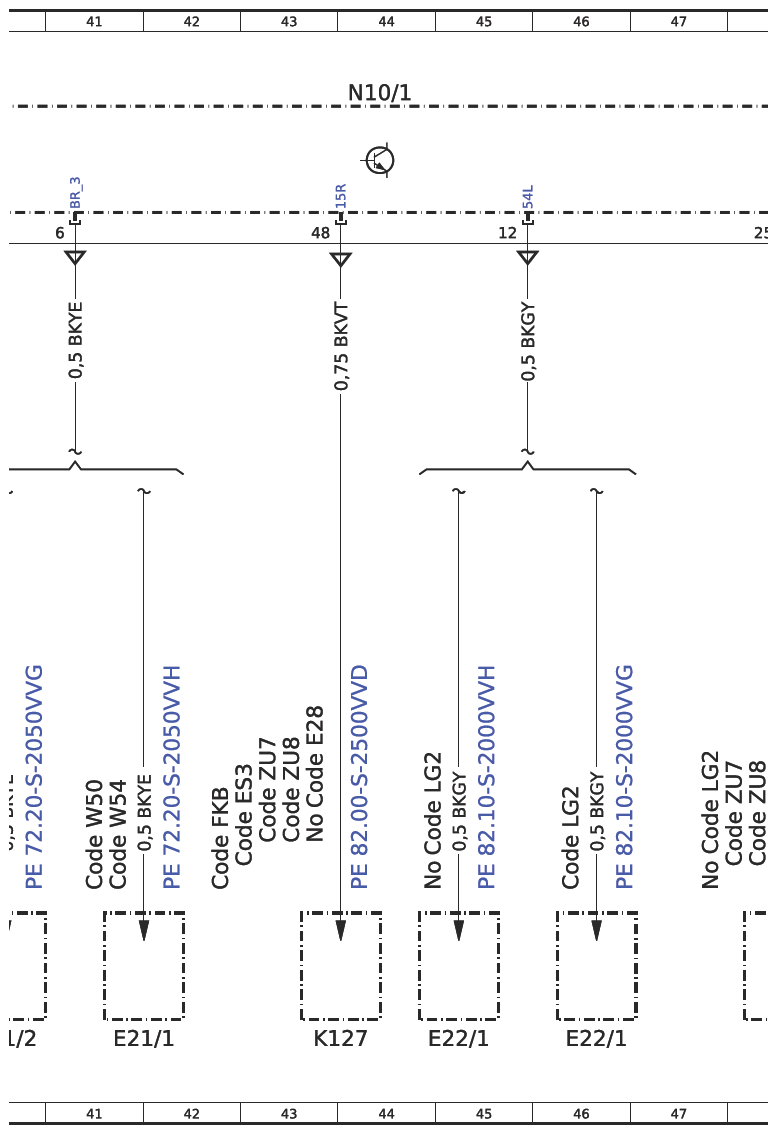

| E21/1 | Rear-end door third brake light | 41L |
| E21/2 | Liftgate third brake light | 84L |
| E21/2 | Liftgate third brake light | 40L |

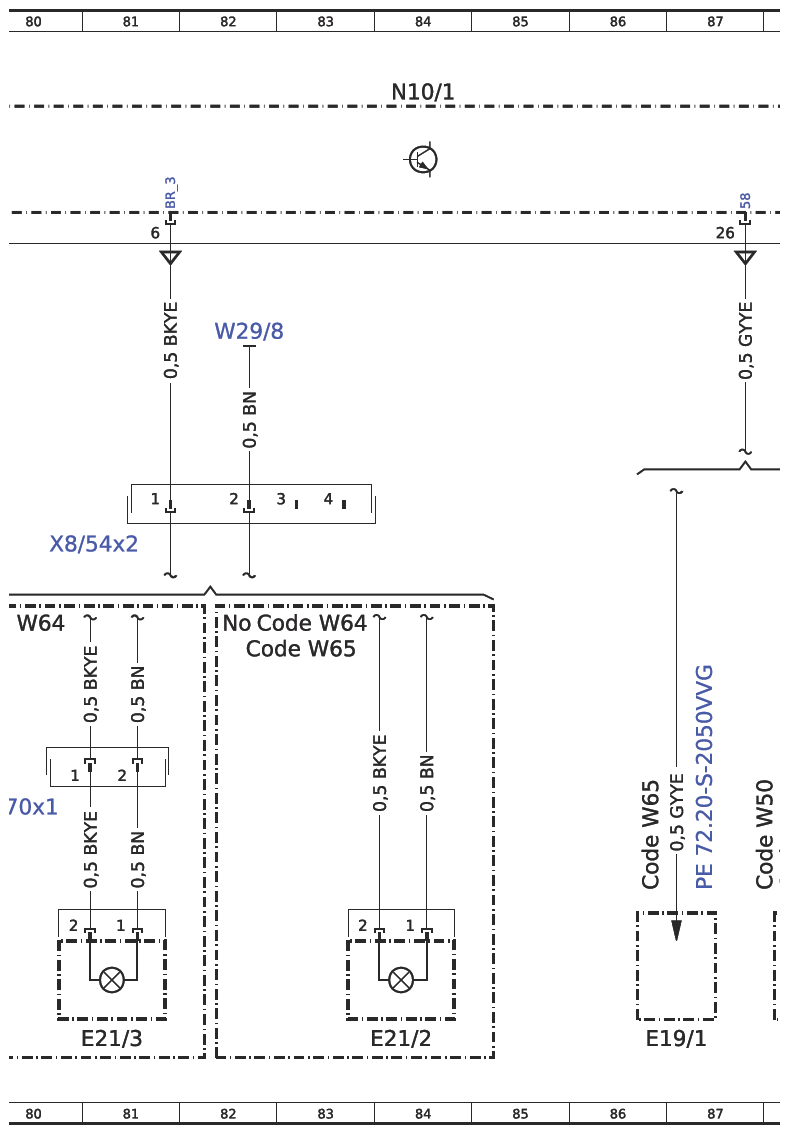

| E21/3 | Center high-mounted brake lamp of separately opening rear window | 81L |
| E22/1 | Left additional turn signal lamp | 45L |
| E22/1 | Left additional turn signal lamp | 46L |

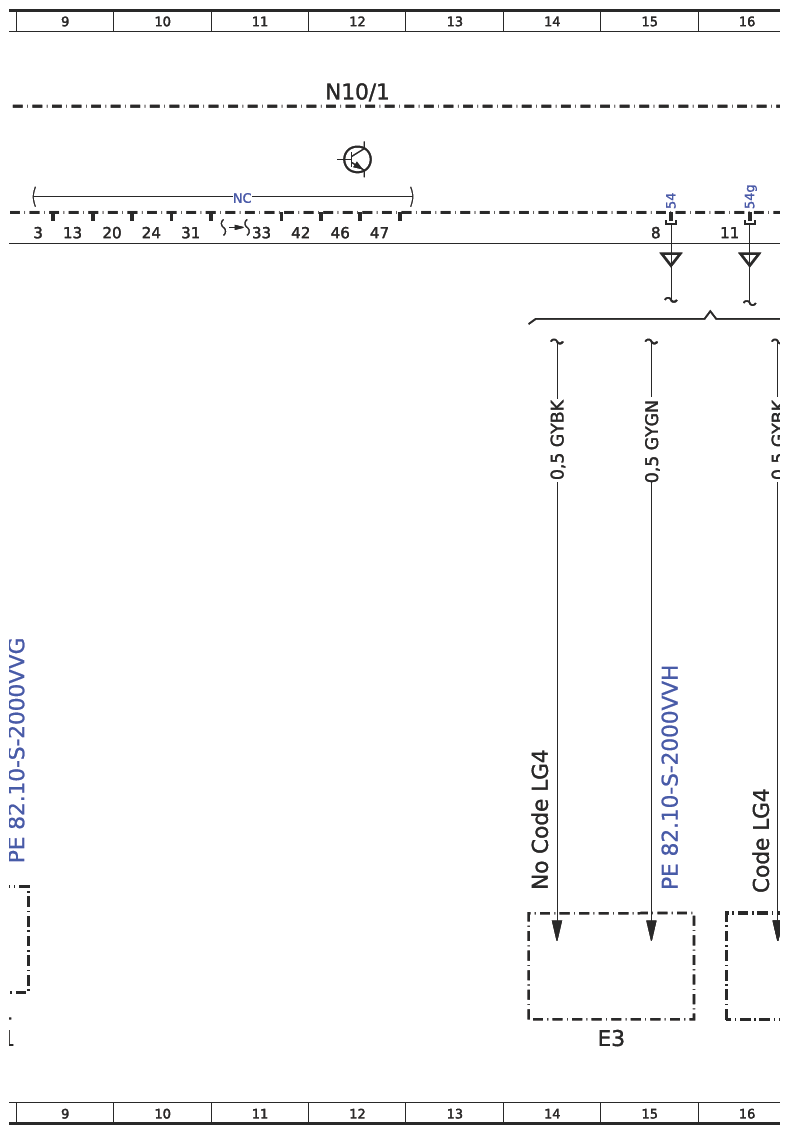

| E3 | Left rear lamp unit | 15L |
| E3 | Left rear lamp unit | 19L |

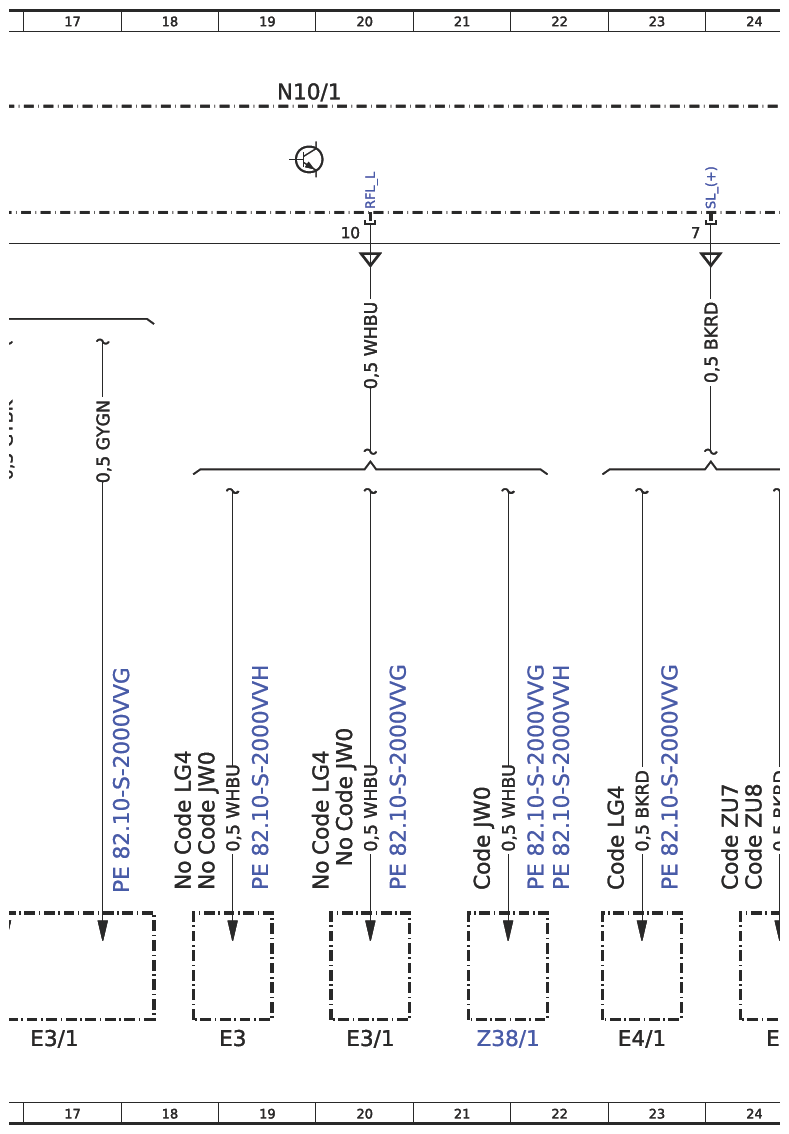

| E3/1 | Left rear LED lamp unit | 17L |
| E3/1 | Left rear LED lamp unit | 20L |

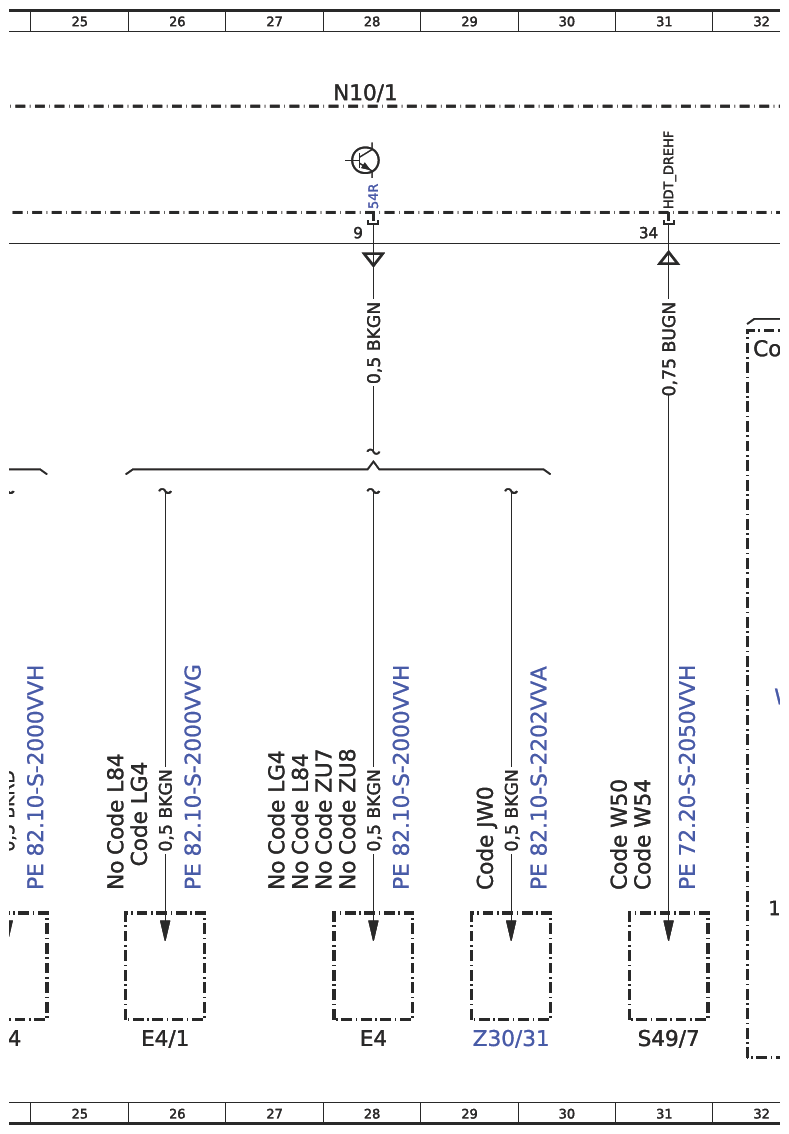

| E4 | Right rear lamp unit | 24L |
| E4 | Right rear lamp unit | 28L |
| E4/1 | Right rear LED lamp unit | 23L |
| E4/1 | Right rear LED lamp unit | 26L |

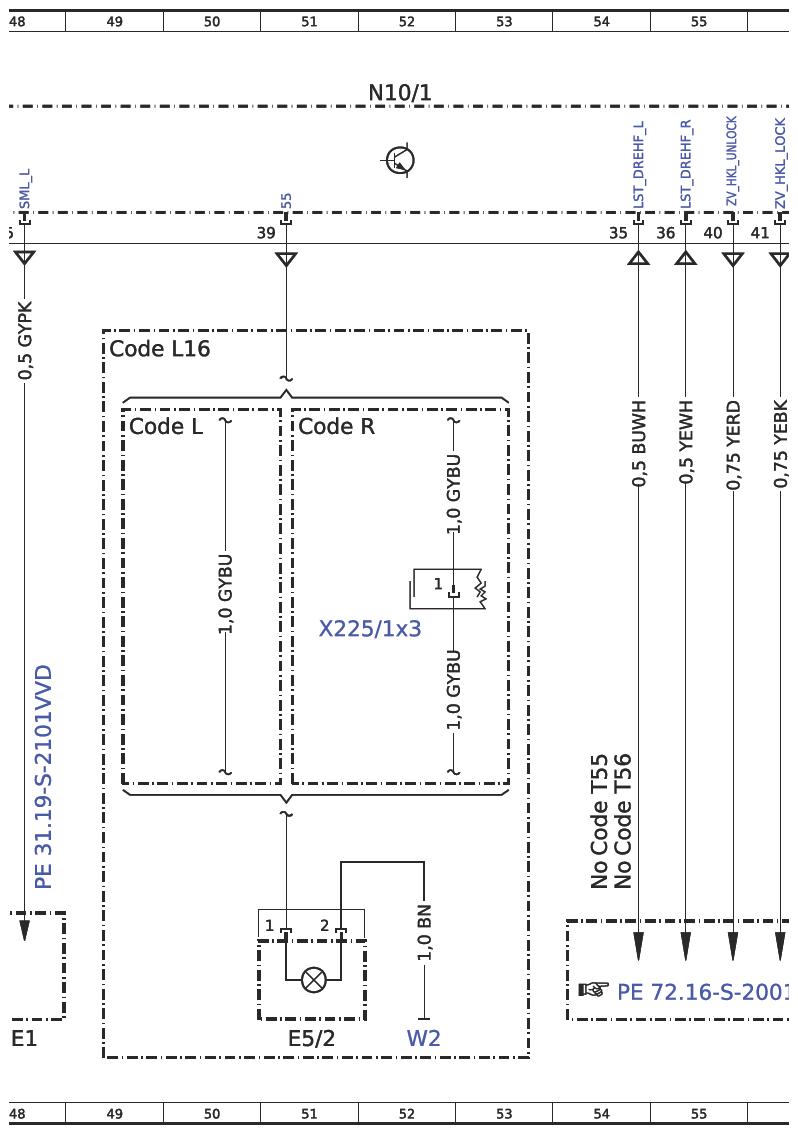

| E5/2 | Right fog lamp | 51L |
| K127 | Rear passenger compartment socket relay | 70L |
| K127 | Rear passenger compartment socket relay | 43L |
| K40/10 | Engine compartment fuse and relay module | 72L |
| LIN B13 | Roof LIN | 57K |

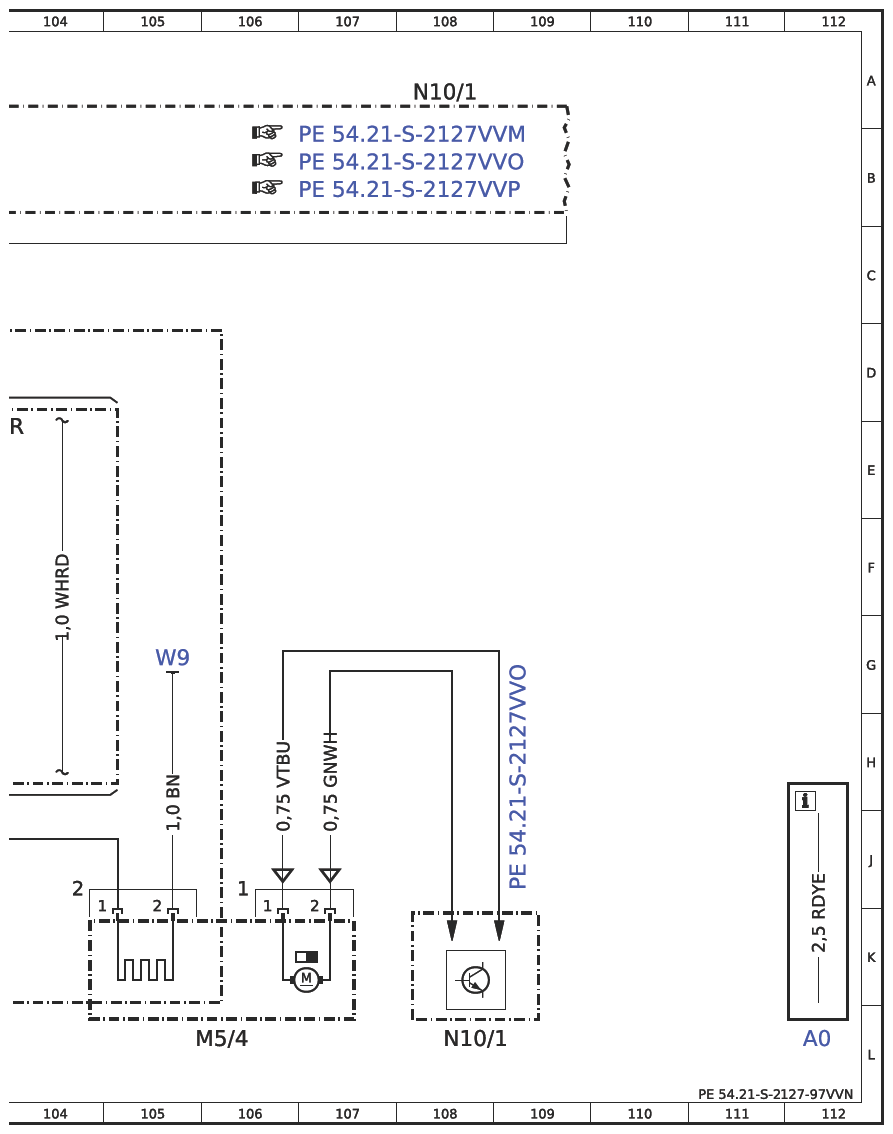

| M5/4 | Windshield washer system pump | 106L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 19A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 59A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 84A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 92A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 100A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 52A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 69A |

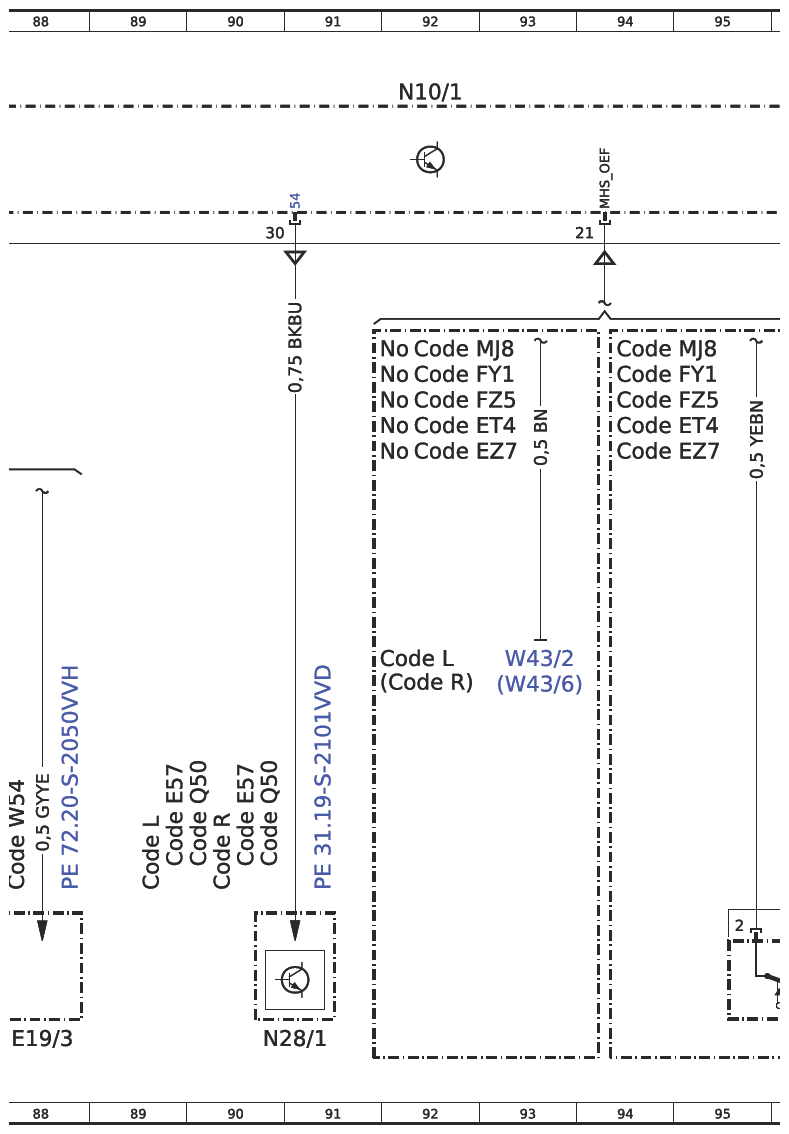

| N28/1 | Trailer recognition (AAG) control unit | 90L |
| N28/1 | Trailer recognition (AAG) control unit | 39L |

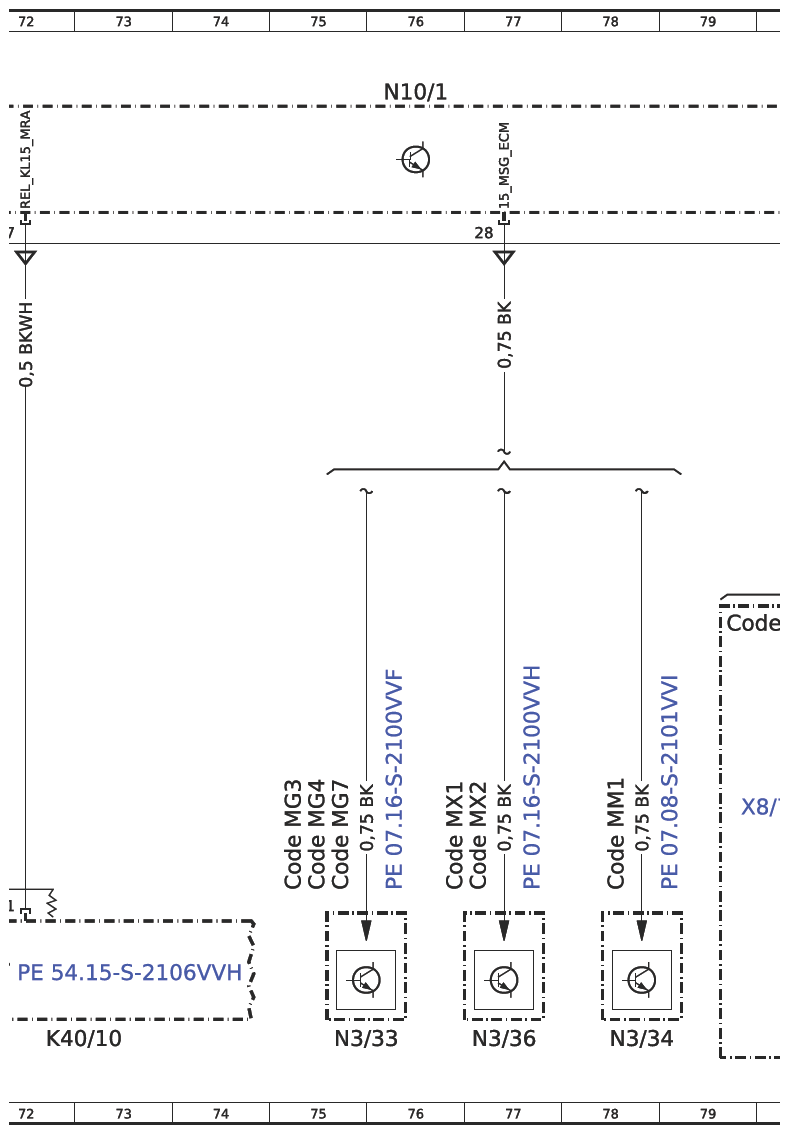

| N3/33 | CDI control unit | 75L |
| N3/34 | ME-SFI [ME] control unit | 78L |
| N3/36 | CDI control unit | 77L |
| N30/4 | Electronic Stability Program (ESP) control unit | 59L |

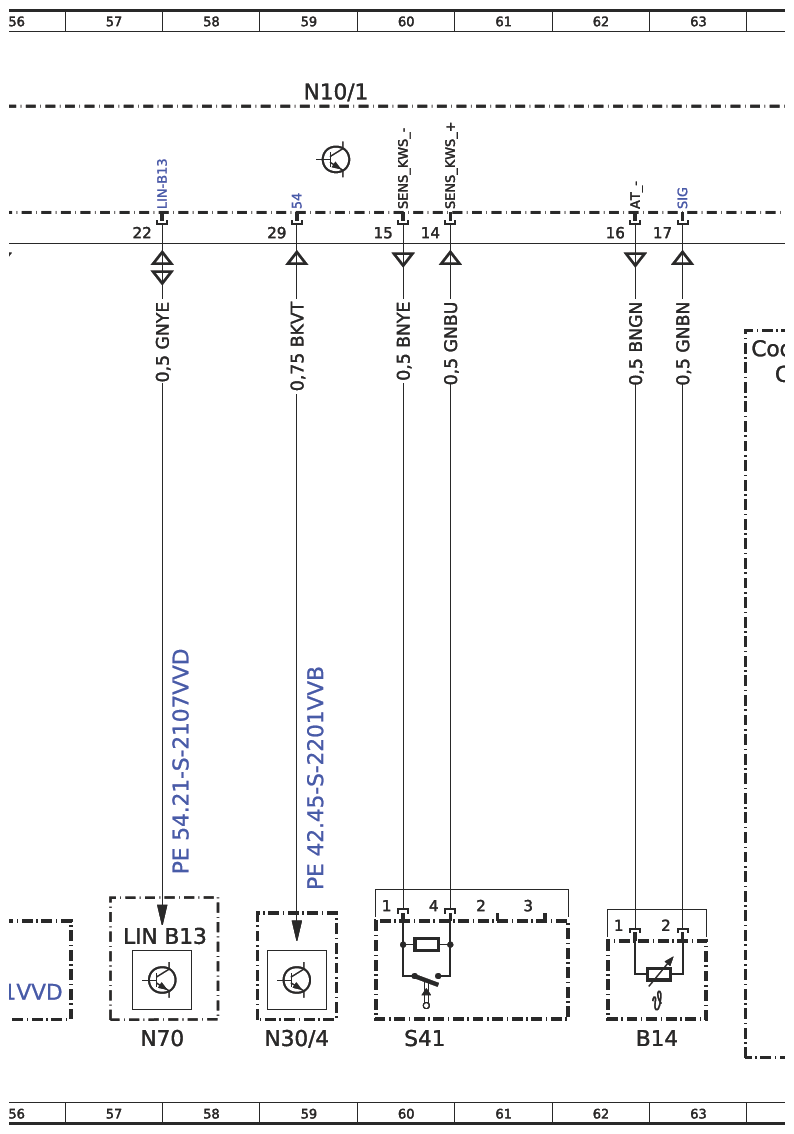

| N70 | Overhead control panel (OCP [DBE]) control unit | 57L |
| S10/2 | Right front brake wear sensor | 99L |
| S11 | Brake fluid level switch | 68L |

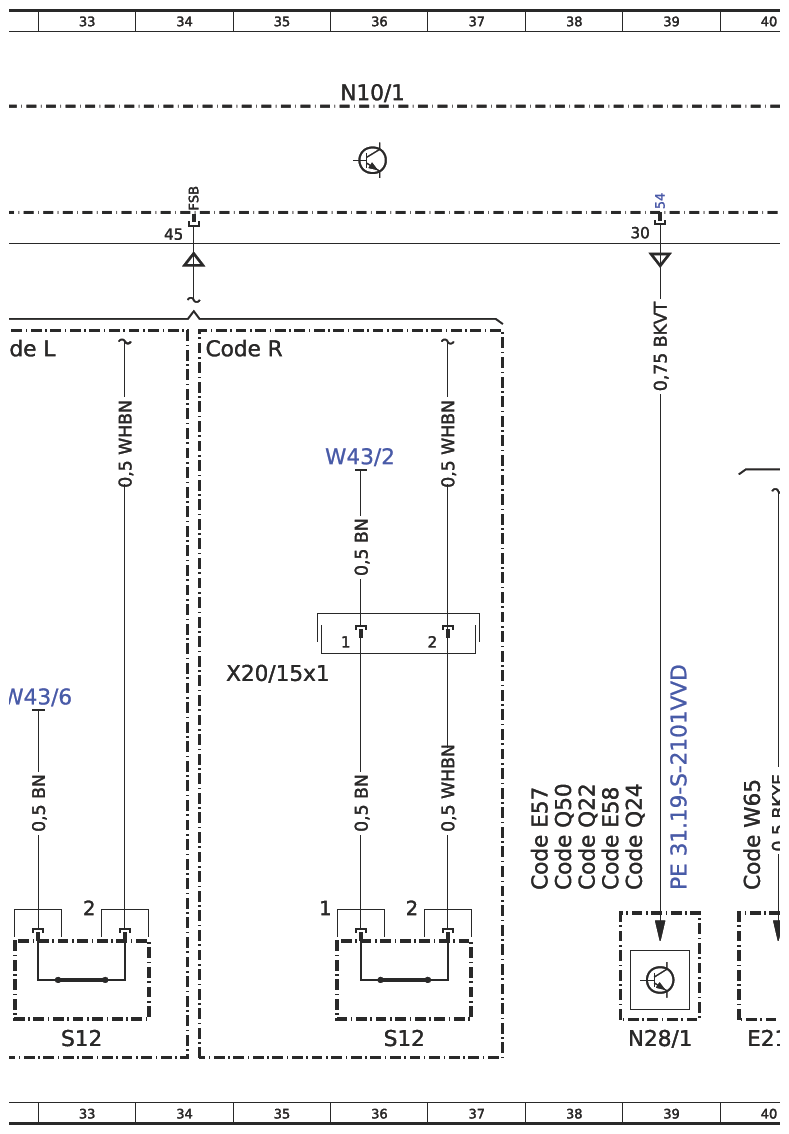

| S12 | Parking brake indicator switch | 33L |
| S12 | Parking brake indicator switch | 36L |
| S41 | Coolant level indicator switch | 60L |
| S49/7 | Left rear-end door rotary tumbler switch | 31L |

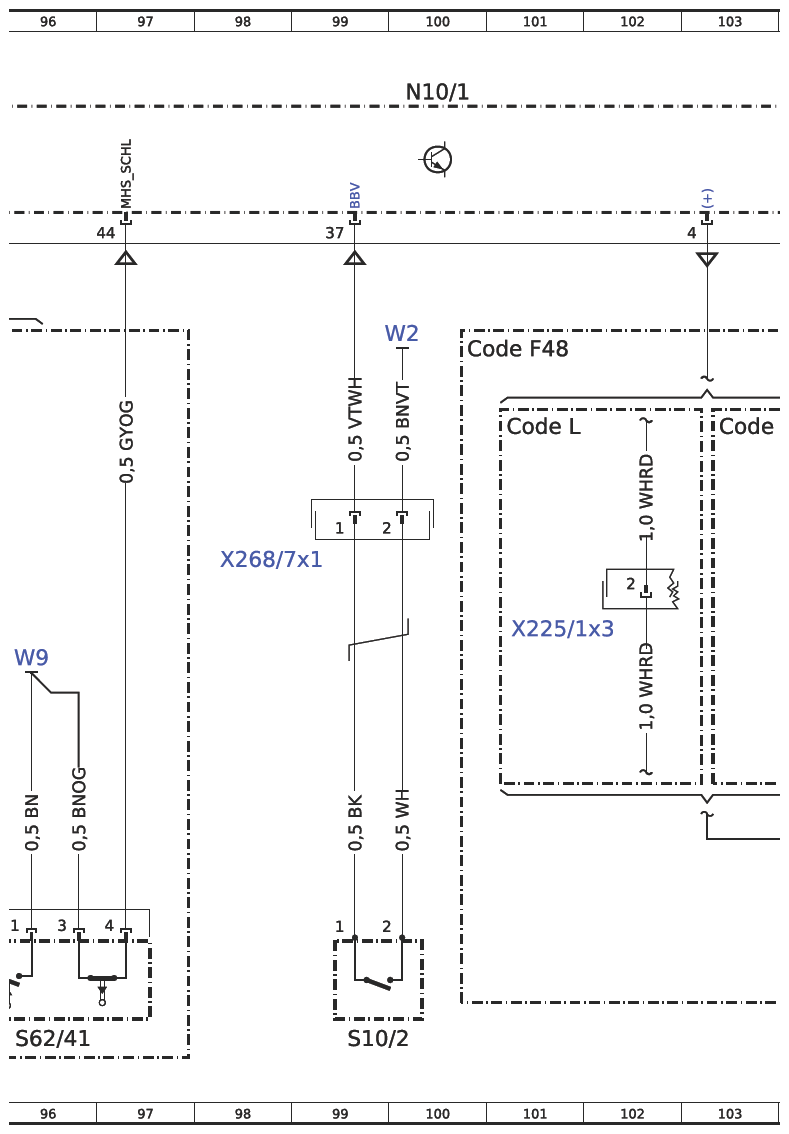

| S62/41 | Engine hood switch | 96L |
| W2 | Right front lamp unit ground point | 100D |
| W2 | Right front lamp unit ground point | 52L |
| W29/8 | Left D-pillar ground point | 82D |
| W29/8 | Left D-pillar ground point | 66H |
| W43/2 | Right vehicle interior firewall ground point | 93G |
| W43/2 | Right vehicle interior firewall ground point | 36E |
| W43/6 | Left vehicle interior firewall ground point 2 | 93G |
| W43/6 | Left vehicle interior firewall ground point 2 | 32G |
| W9 | Left front lamp unit ground point | 96G |
| W9 | Left front lamp unit ground point | 105G |
| X20/15x1 | Parking brake indicator switch electrical connector | 35G |
| X225/1x3 | Main wiring harness/firewall main wiring harness 3 electrical connector | 101G |
| X225/1 x3 | Main wiring harness/firewall main wiring harness 3 electrical connector | 52G |
| X268/7x1 | Right front axle brakepad wear sensor electrical connector | 98F |
| X8/54x2 | Left liftgate electrical connector 2 | 81F |
| X8/70x1 | Left liftgate/separately opening rear window electrical connector 1 | 80J |
| Z30/31 | Right additional turn signal connector sleeve | 29L |
| Z38/1 | Backup lamp connector sleeve | 21L |
