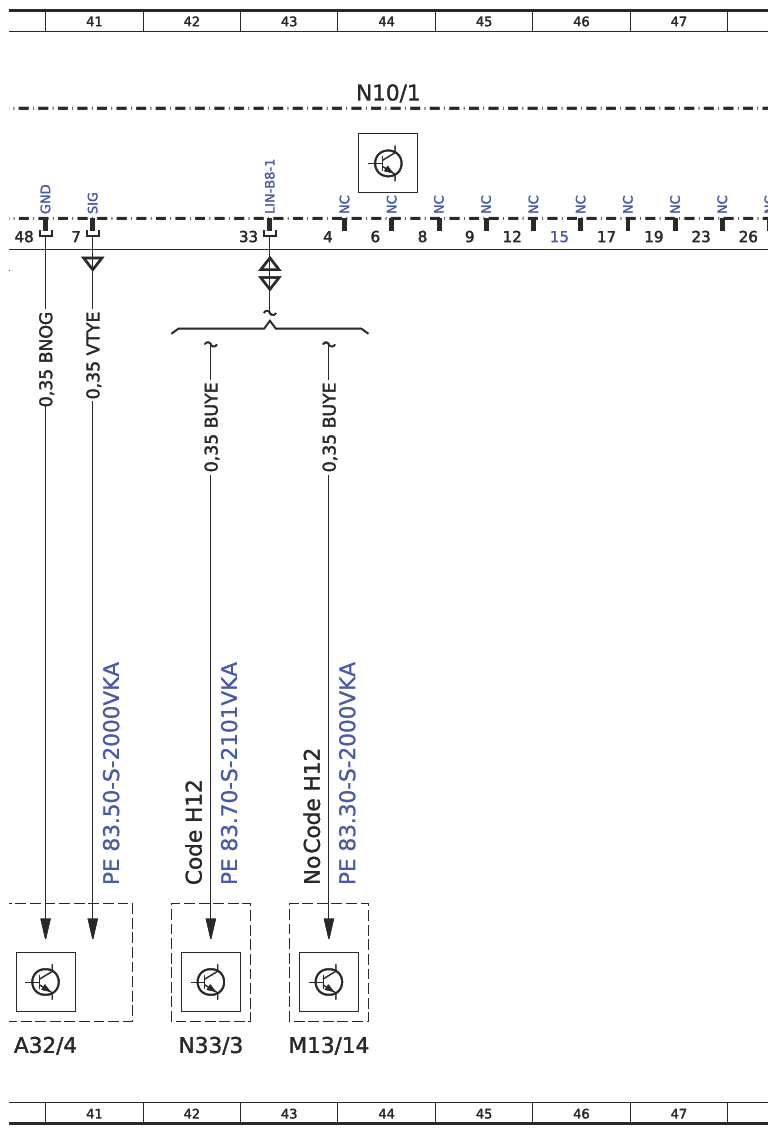

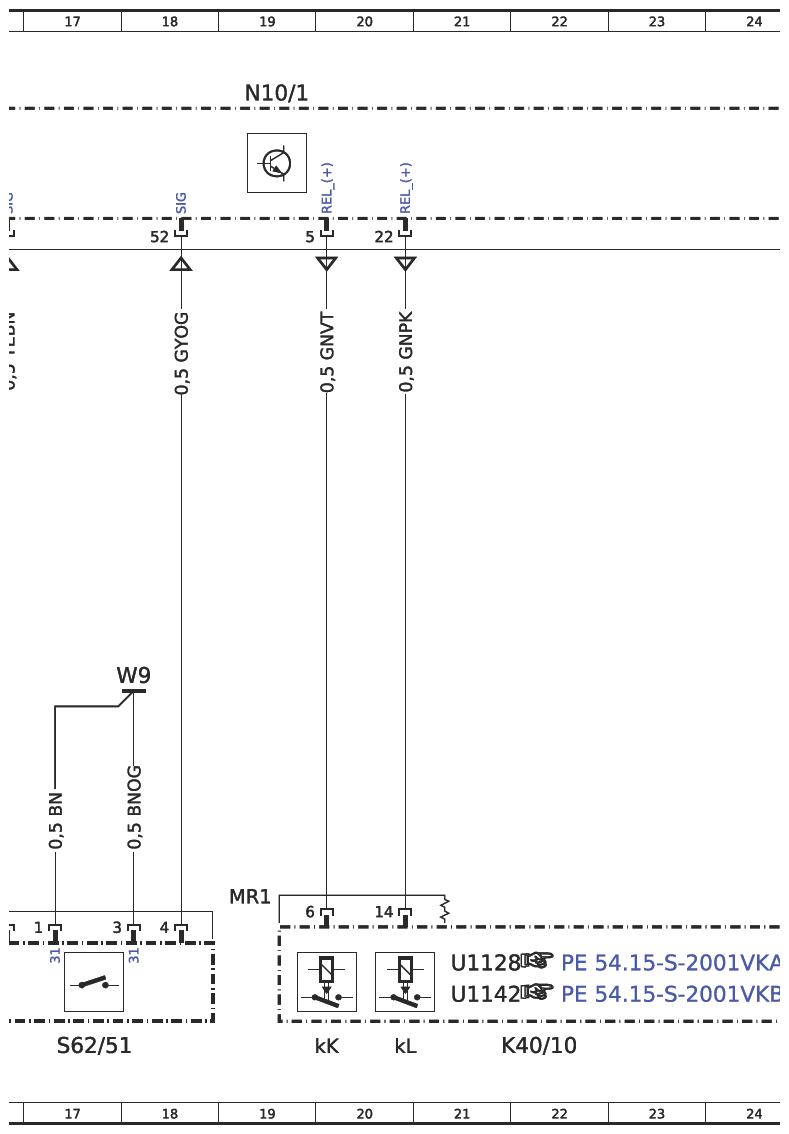

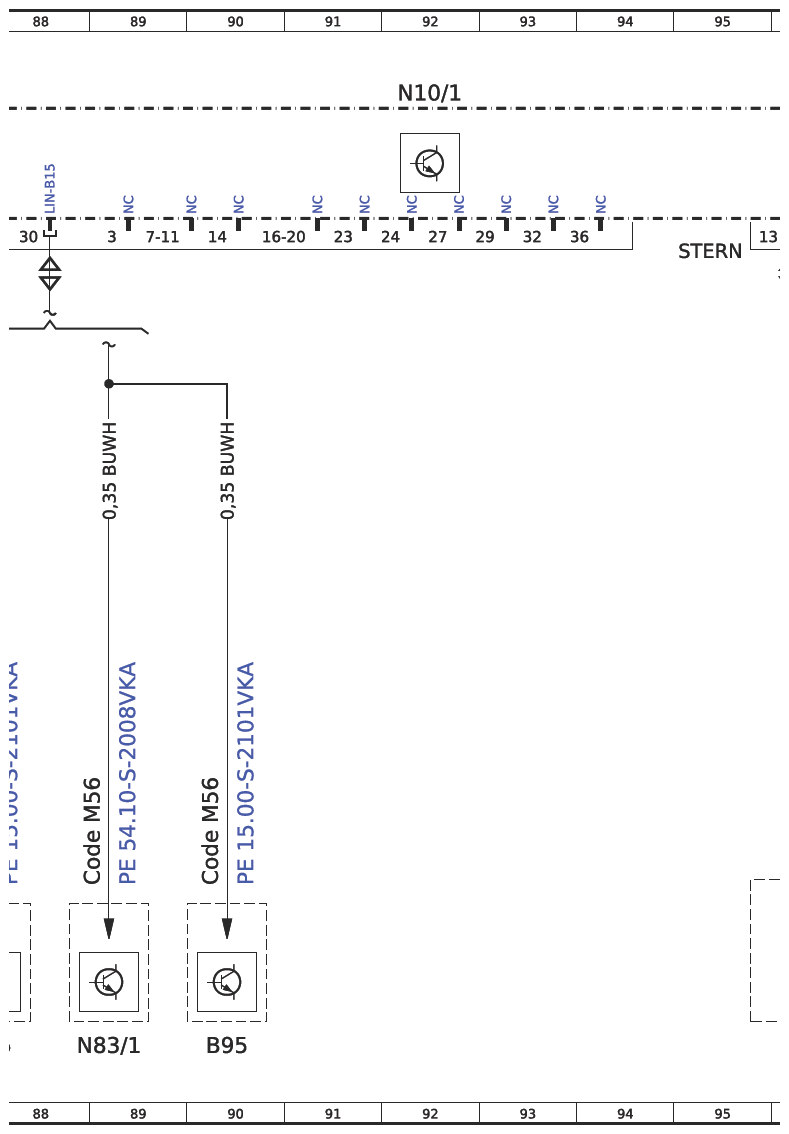

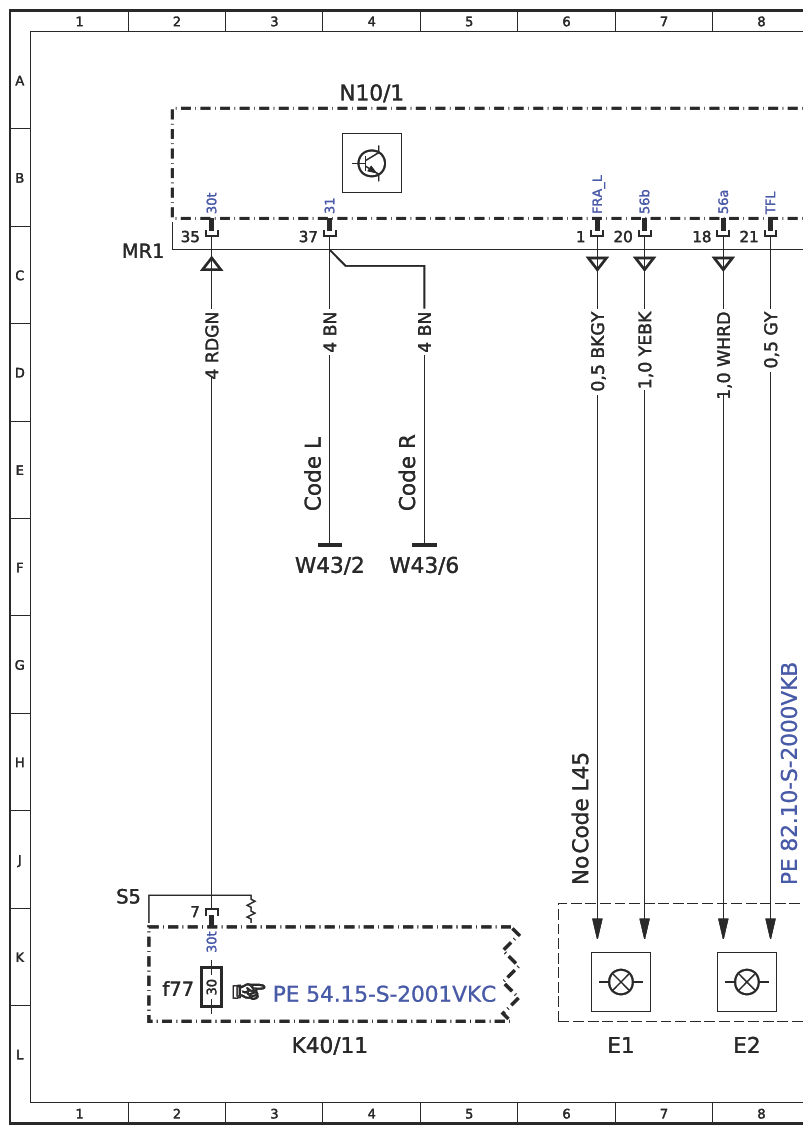

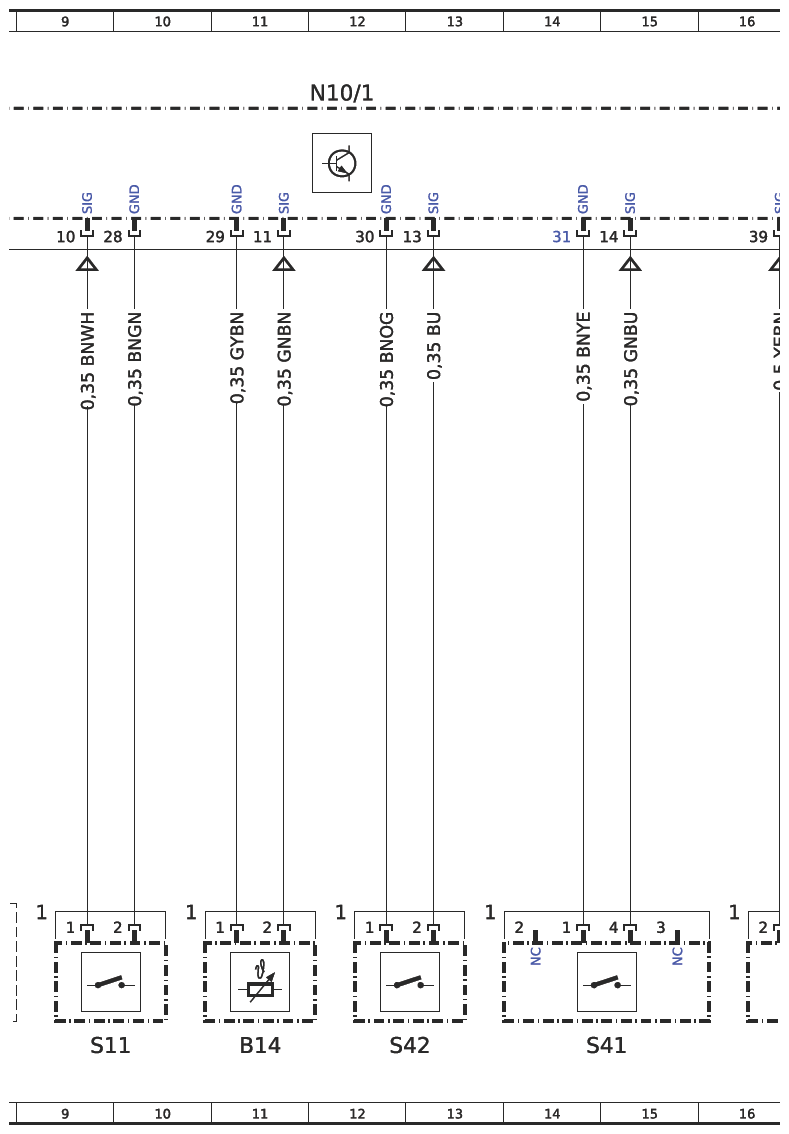

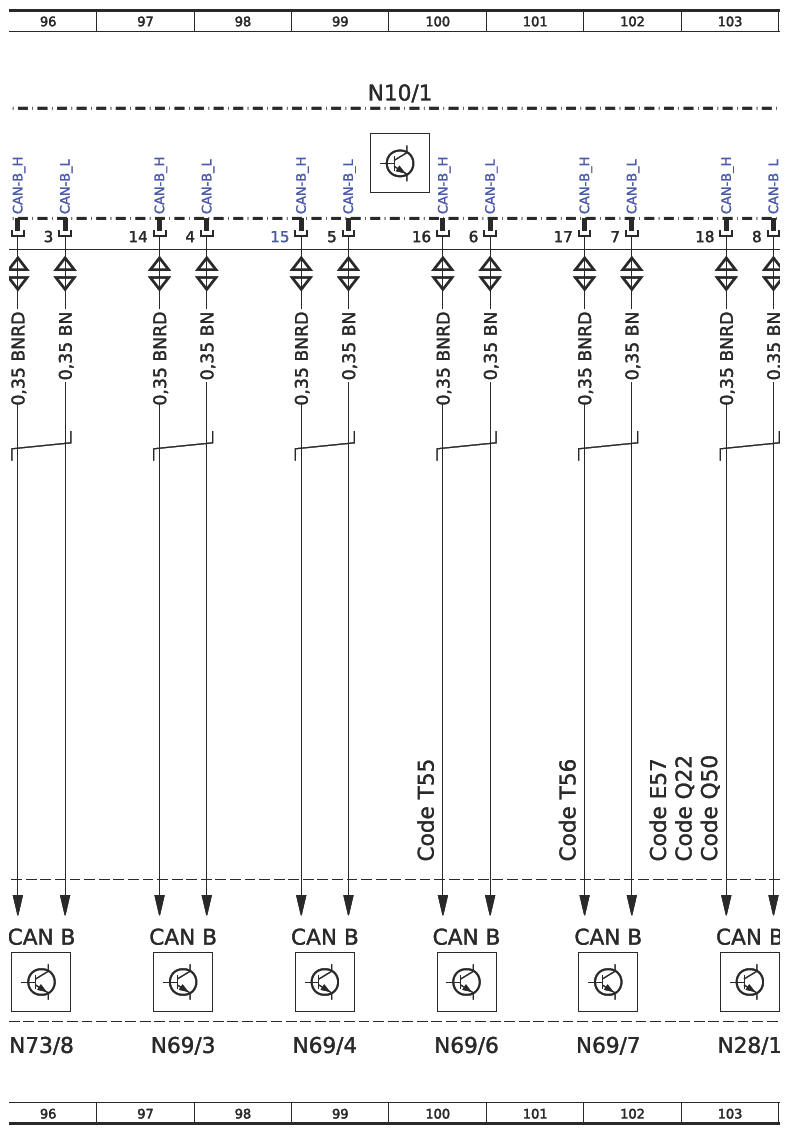

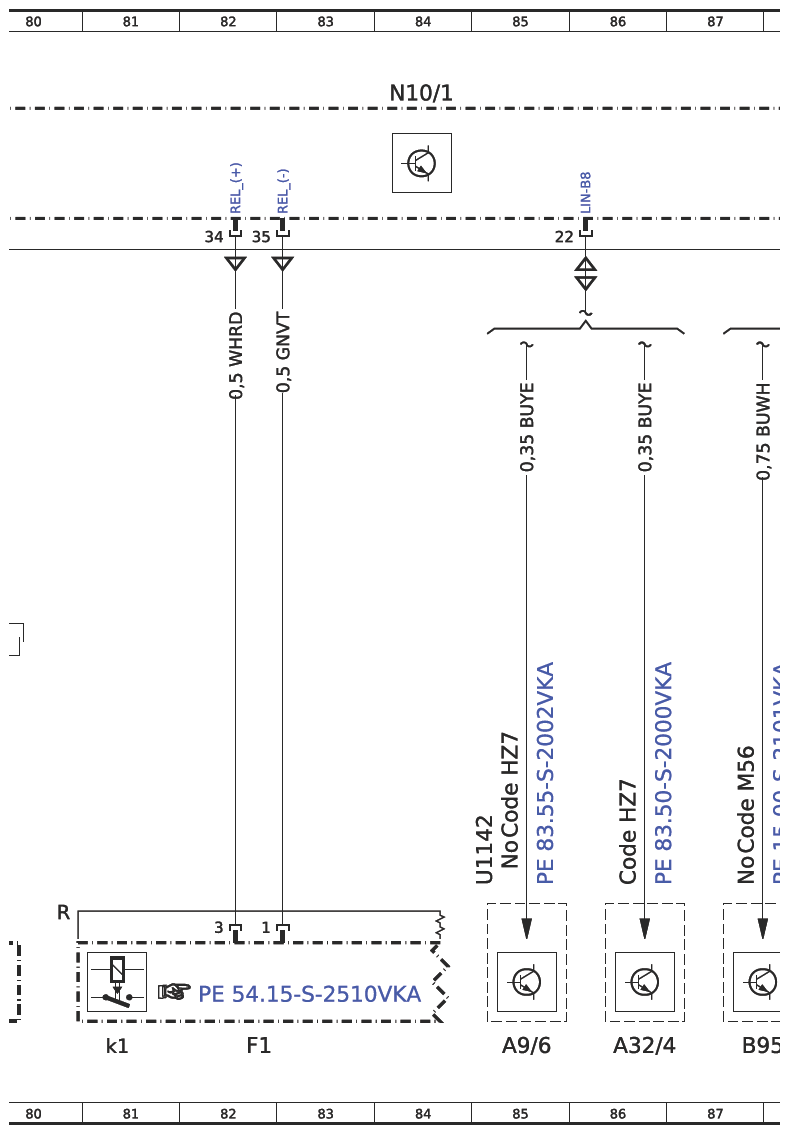

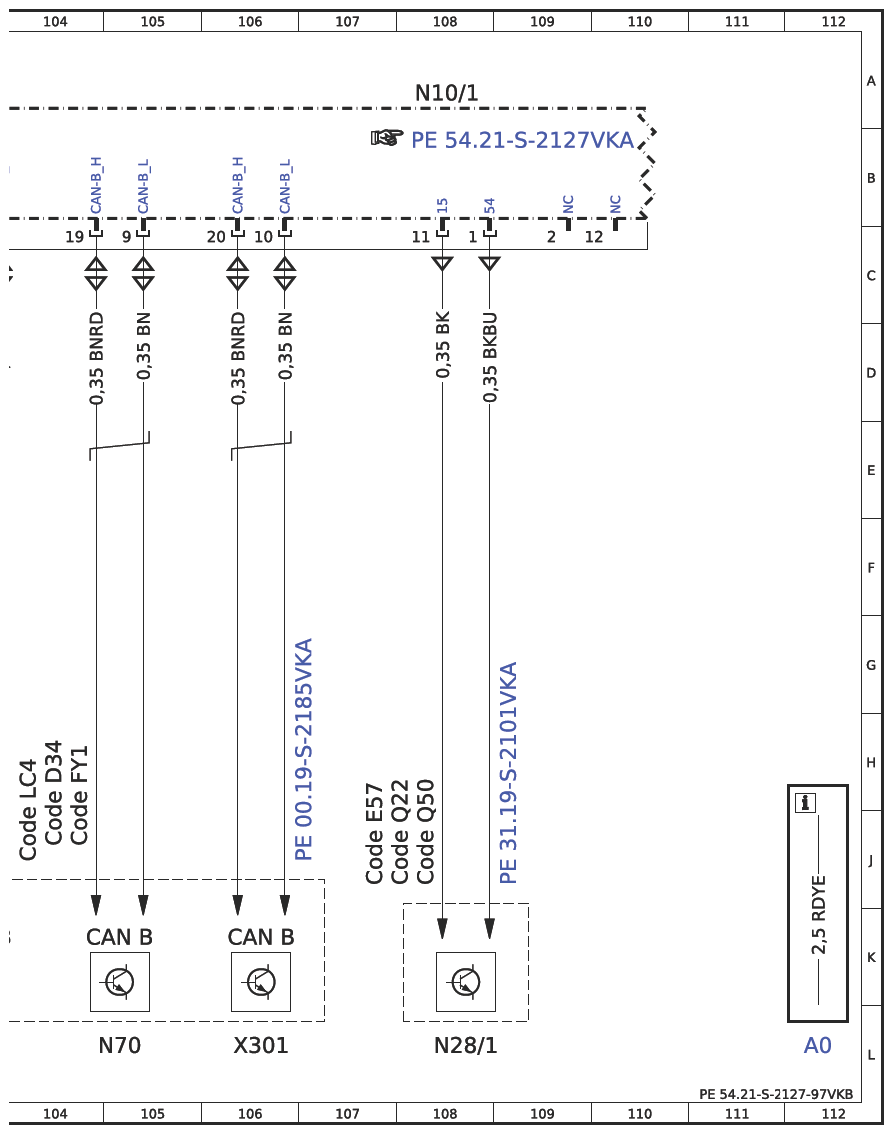

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VKB
Model 447 with Code XM7 (MOPF II) N10/1 Plug MR1, MR2, STAR
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 112L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 36L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 40L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 86L |
| A9/10 | Refrigerant compressor with magnetic clutch | 31L |
| A9/6 | Electric refrigerant compressor | 85L |
| B12 | Refrigerant pressure sensor | 29L |
| B14 | Outside temperature sensor | 11L |
| B94/36 | Condenser temperature sensor | 35L |
| B95 | Battery sensor | 87L |
| B95 | Battery sensor | 90L |
| CAN B | Interior CAN | 96K |
| CAN B | Interior CAN | 97K |
| CAN B | Interior CAN | 99K |
| CAN B | Interior CAN | 100K |
| CAN B | Interior CAN | 102K |
| CAN B | Interior CAN | 103K |
| CAN B | Interior CAN | 105K |
| CAN B | Interior CAN | 106K |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 104J |
| Code E57 | Electrical system for trailer socket | 102J |
| Code E57 | Electrical system for trailer socket | 107J |
| Code F48 | Heater for windshield washer system | 77J |
| Code FY1 | Theft protection package | 104J |
| Code H12 | Auxiliary water heater | 26J |
| Code H12 | Auxiliary water heater | 42J |
| Code H12 | Auxiliary water heater | 43J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 26J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 28J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 30J |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 28J |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 30J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 27J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 36J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 40J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 85J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 86J |
| Code L | Valid for left-hand drive vehicles | 3E |
| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 6J |
| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 72J |
| Code LC4 | Comfort overhead control panel | 104J |
| Code M56 | 48V technology | 89J |
| Code M56 | 48V technology | 90J |
| Code M56 | 48V technology | 87J |
| Code Q22 | Trailer hitch with non-removable ball head | 103J |
| Code Q22 | Trailer hitch with non-removable ball head | 108J |
| Code Q50 | Trailer hitch with removable ball head | 103J |
| Code Q50 | Trailer hitch with removable ball head | 108J |
| Code R | Valid for right-hand drive vehicles | 4E |
| Code T55 | Electric controls for right sliding door | 100J |
| Code T56 | Electric controls for left sliding door | 101J |
| E1 | Left front lamp unit | 7L |
| E1 | Left front lamp unit | 72L |
| E2 | Right front lamp unit | 8L |
| E2 | Right front lamp unit | 73L |
| F1 | Pre-fuse box | 82L |
| F1k1 | Battery disconnect switch relay | 81L |

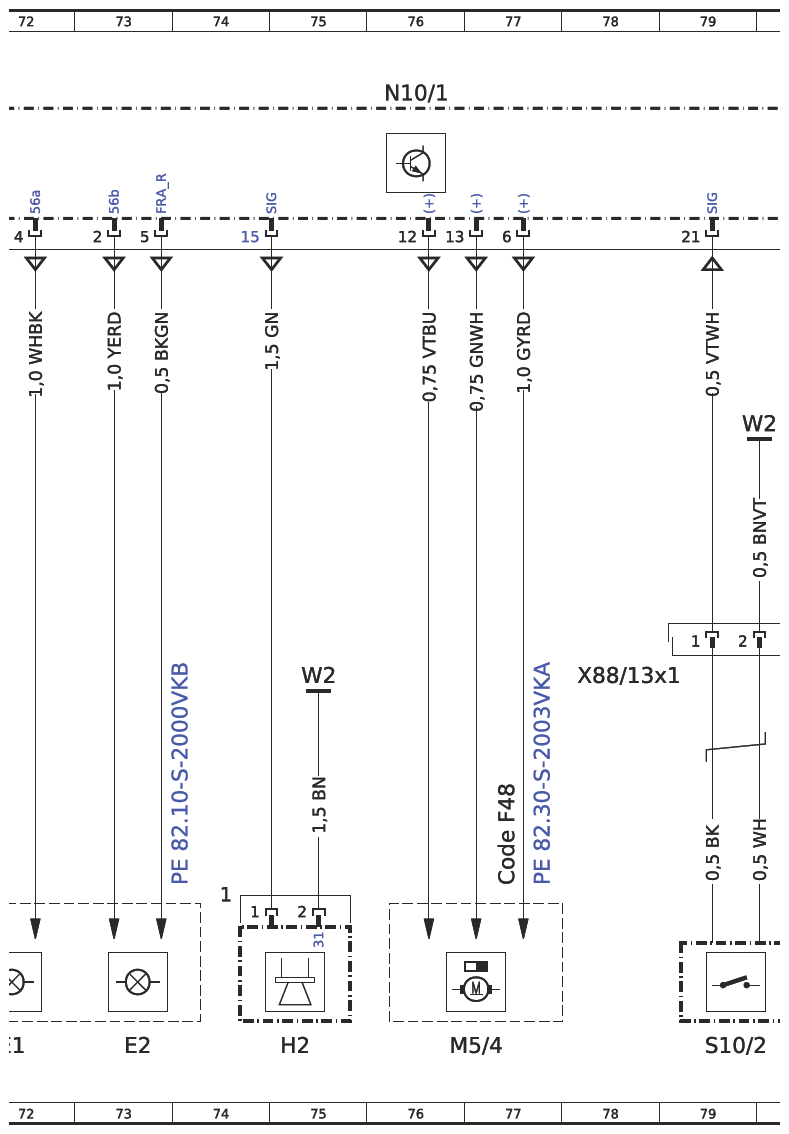

| H2 | Right fanfare horn | 75L |
| K40/10 | Engine compartment fuse and relay module | 22L |
| K40/10 | Engine compartment fuse and relay module | 63L |
| K40/10 | Engine compartment fuse and relay module | 67L |
| K40/10f225 | Fuse 225 | 62K |
| K40/10f227 | Fuse 227 | 66K |
| K40/10kK | Wiper level 1/2 relay | 20L |
| K40/10kL | Windshield wiper ON/OFF relay | 20L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11 | Firewall fuse and relay module | 58L |

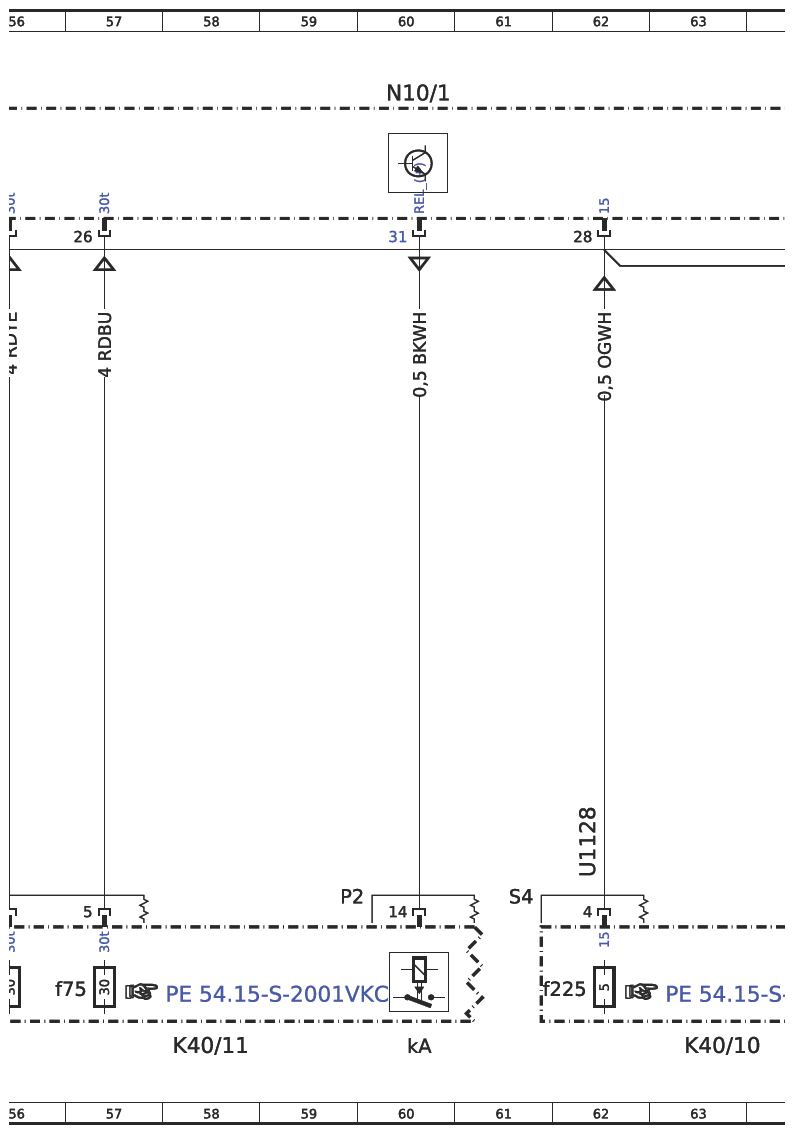

| K40/11f75 | Fuse 75 | 57K |
| K40/11f76 | Fuse 76 | 56K |
| K40/11f77 | Fuse 77 | 2K |
| K40/11 kA | Circuit 15 relay | 60L |
| M13/14 | Electric auxiliary water pump | 27L |
| M13/14 | Electric auxiliary water pump | 43L |
| M5/4 | Windshield washer system pump | 77L |

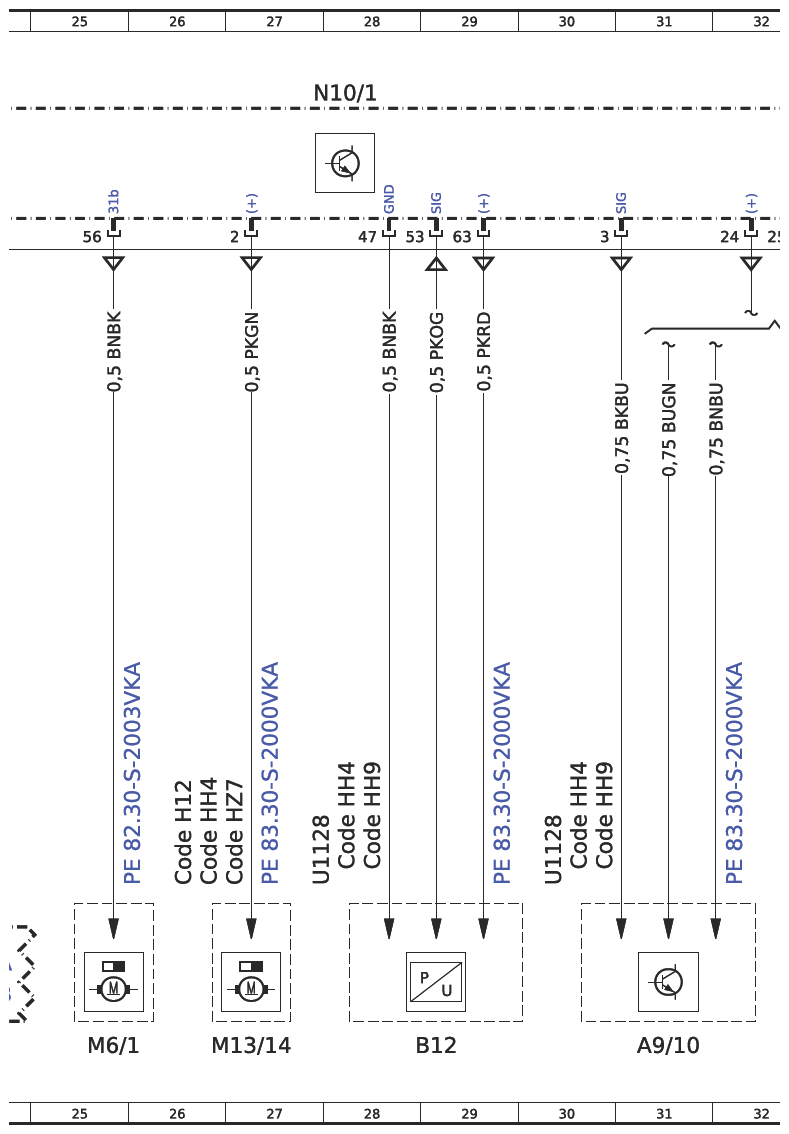

| M6/1 | Wiper motor | 25L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 19A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 52A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 60A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 68A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 84A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 92A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 99A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108A |
| N28/1 | Trailer recognition (AAG) control unit | 103L |
| N28/1 | Trailer recognition (AAG) control unit | 108L |

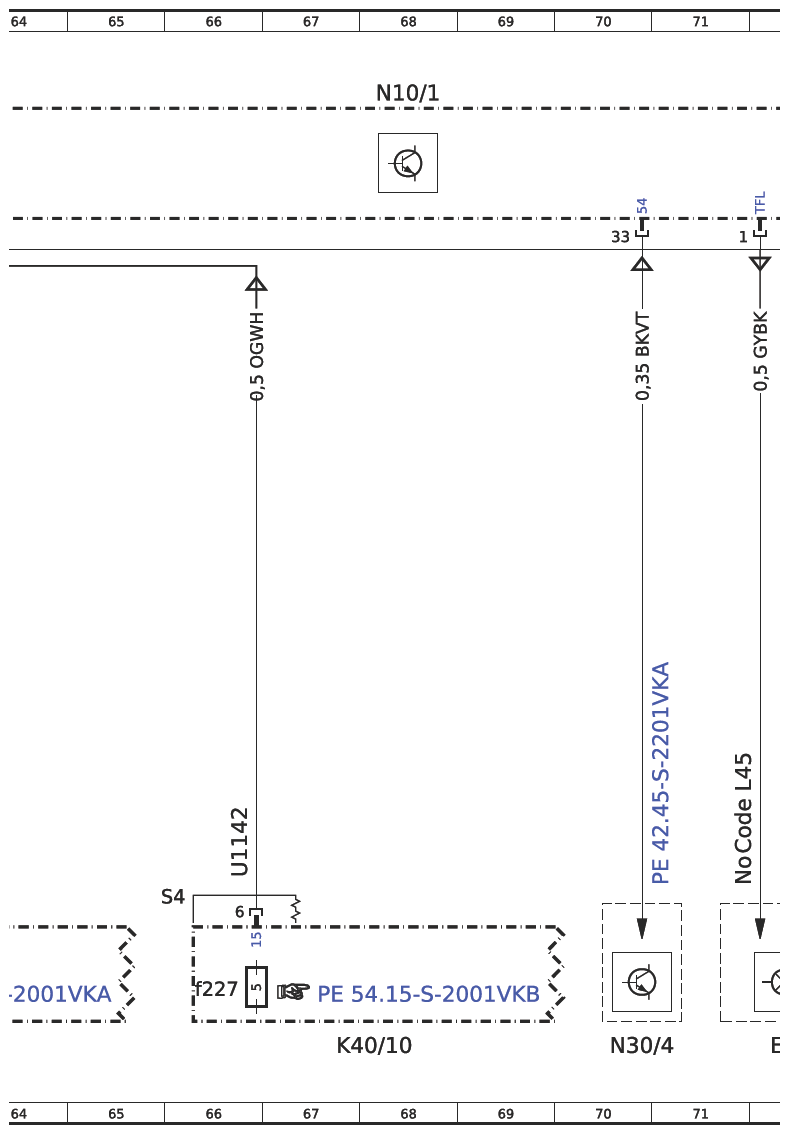

| N30/4 | Electronic Stability Program (ESP) control unit | 70L |
| N33/3 | Hot water stationary heater (STH) control unit | 42L |
| N69/3 | Left front door control unit | 97L |
| N69/4 | Right front door control unit | 99L |
| N69/6 | Right sliding door (E-LSTR) control unit | 100L |
| N69/7 | Left sliding door (E-LSTL) control unit | 102L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 105L |
| N73/8 | Electronic ignition lock (EZS) control unit | 96L |
| N83/1 | - | 89L |
| S10/2 | Right front brake wear sensor | 79L |
| S11 | Brake fluid level switch | 9L |
| S41 | Coolant level indicator switch | 14L |
| S42 | Windshield washer system water level indicator switch | 12L |
| S62/51 | Engine hood switch | 17L |
| U1128 | Valid for combustion engine | 21K |
| U1128 | Valid for combustion engine | 28J |
| U1128 | Valid for combustion engine | 30J |
| U1128 | Valid for combustion engine | 36J |
| U1128 | Valid for combustion engine | 62J |
| U1142 | Valid for electric vehicle | 21K |
| U1142 | Valid for electric vehicle | 33J |
| U1142 | Valid for electric vehicle | 34J |
| U1142 | Valid for electric vehicle | 38J |
| U1142 | Valid for electric vehicle | 66J |
| U1142 | Valid for electric vehicle | 85J |
| W2 | Right front lamp unit ground point | 79E |
| W2 | Right front lamp unit ground point | 75G |
| W43/2 | Right vehicle interior firewall ground point | 3F |
| W43/6 | Left vehicle interior firewall ground point 2 | 4F |
| W9 | Left front lamp unit ground point | 18G |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 106L |
| X88/13X1 | Right front brake lining wear sensor electrical connector | 78G |

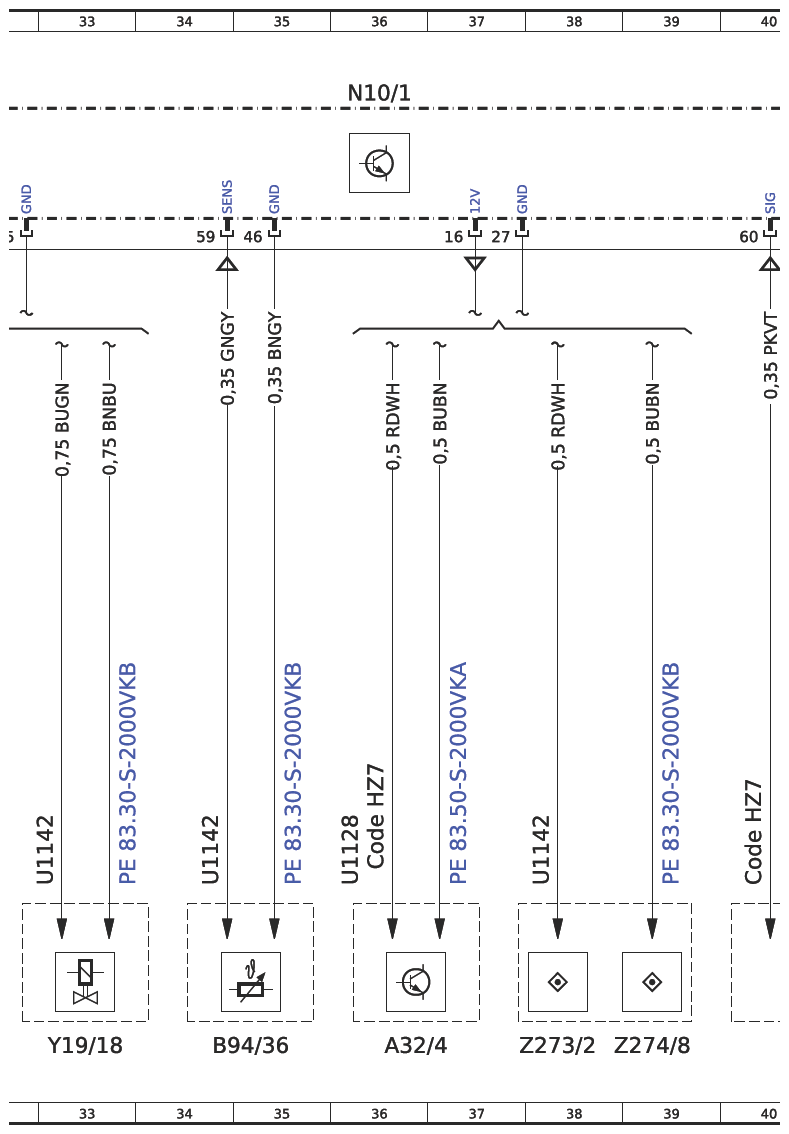

| Y19/18 | High-voltage battery cooling system evaporator shutoff valve | 33L |
| Z273/2 | Sensor power supply connector sleeve | 38L |
| Z274/8 | Negative LIN signal connector sleeve | 39L |
