Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VKA
Model 447 with Code XM7 (MOPF II) N10/1 Plug RBA1, RBA2, RBA3
| Code : | Designation: | Position: |
|---|---|---|

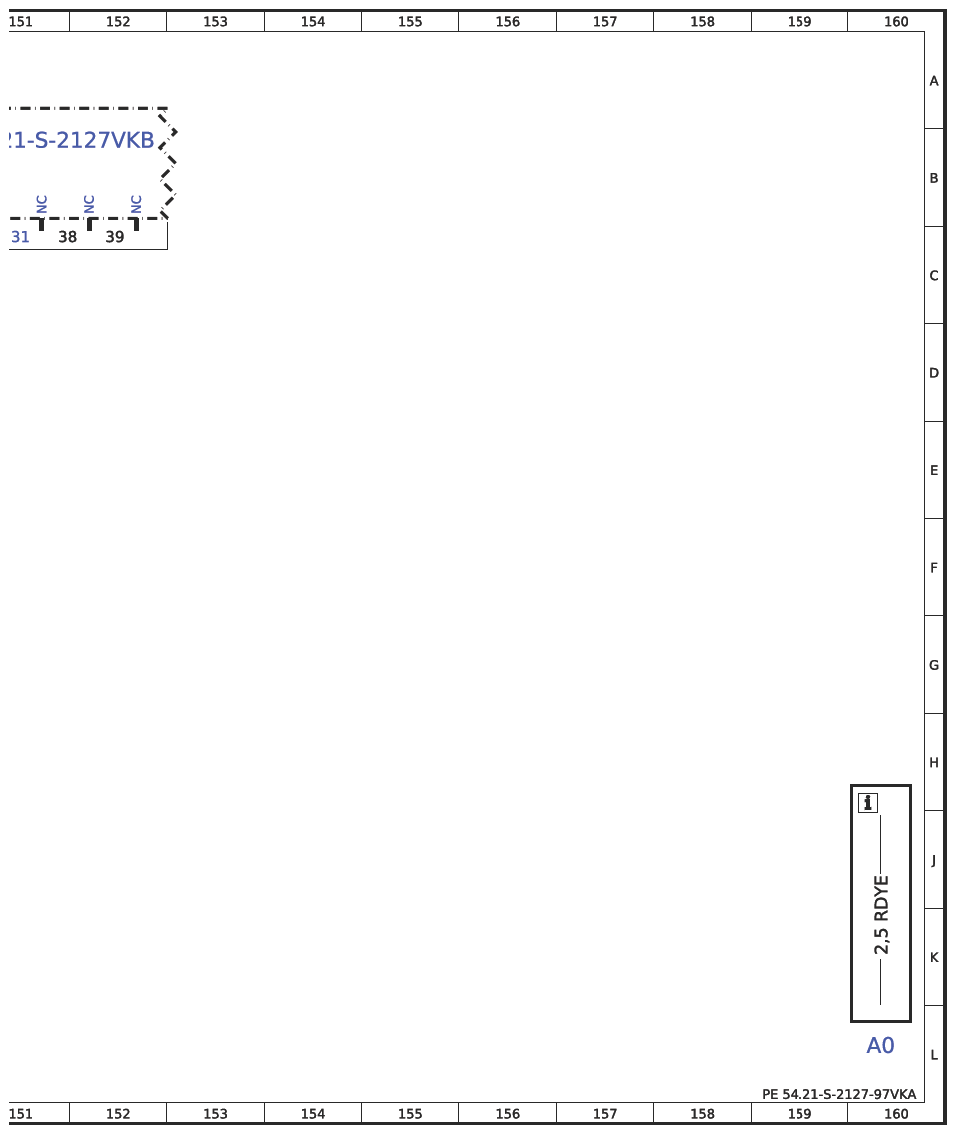

| AO | Color Code key | 160L |
| A32 | AC air recirculation unit | 133L |
| A49/5 | Stationary water heater radio remote control receiver | 139L |
| B10/4 | Interior temperature sensor | 134L |
| B10/6 | Evaporator temperature sensor | 137L |
| B161/3 | Left rear Blind Spot Assist radar sensor | 55L |
| B161/4 | Right rear Blind Spot Assist radar sensor | 55L |
| B38/5 | Rain/light sensor with additional functions | 77L |

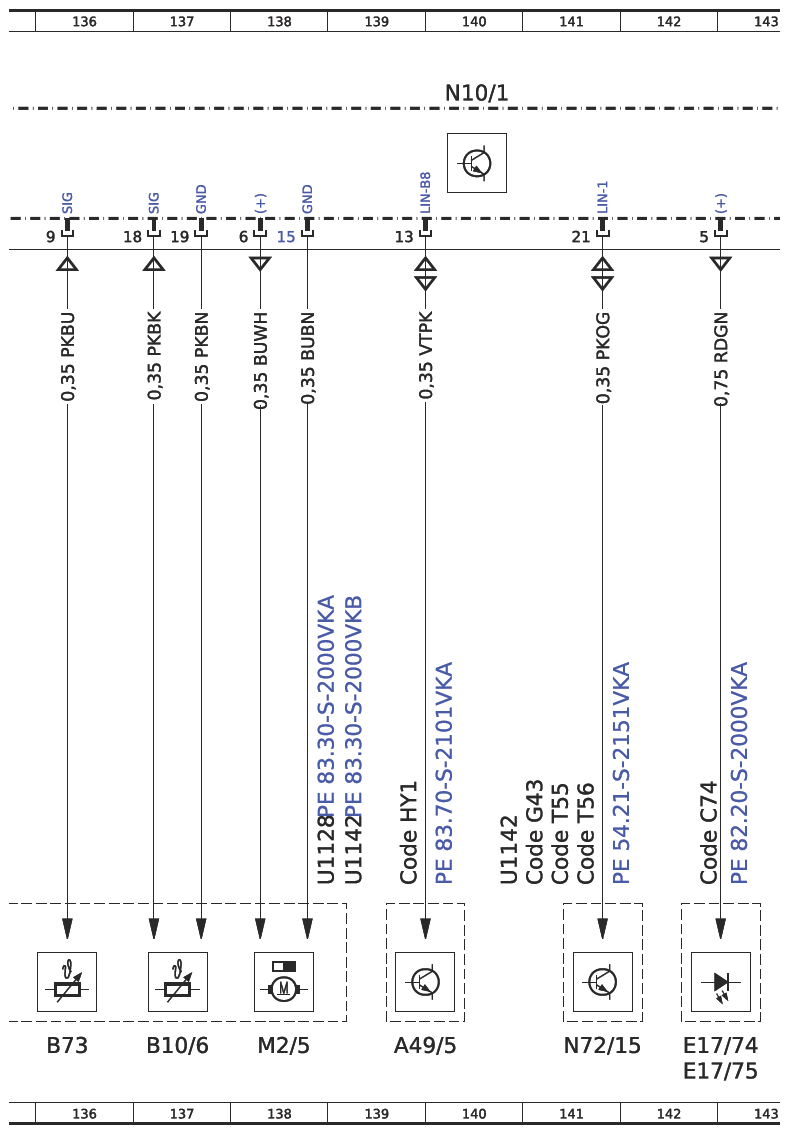

| B73 | Left footwell air outlet temperature sensor | 136L |
| B74 | Right footwell air outlet temperature sensor | 51L |
| Code B25 | Electric parking brake | 42D |
| Code B25 | Electric parking brake | 46D |
| Code B25 | Electric parking brake | 108D |
| Code C74 | Illuminated Mercedes-Benz entrance lettering | 87J |
| Code C74 | Illuminated Mercedes-Benz entrance lettering | 142J |
| Code E28 | Additional battery for retrofitted consumers | 20J |
| Code E28 | Additional battery for retrofitted consumers | 17J |
| Code E36 | Additional battery cutoff relay | 21J |
| Code EK1 | Terminal strip for electrical connection | 12J |

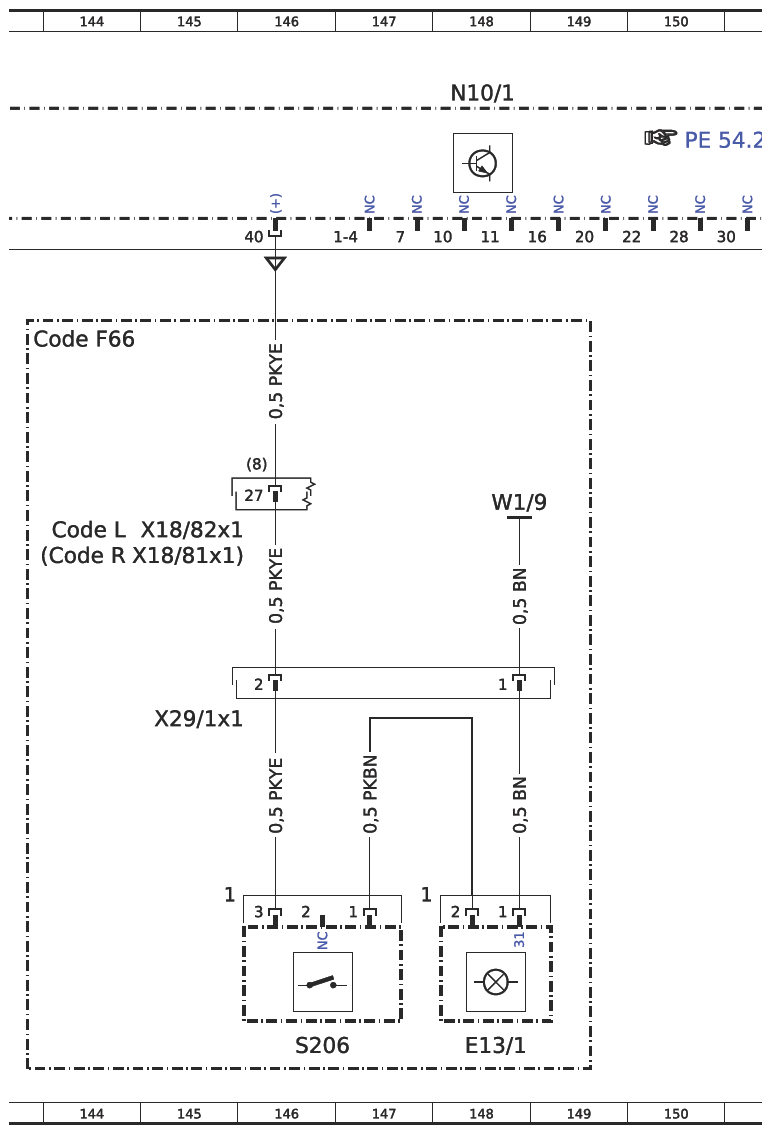

| Code F66 | Glove compartment, lockable | 143D |
| Code FY2 | Additional door lock | 40J |
| Code G43 | 9G-TRONIC | 141J |
| Code GE1 | 6-speed manual transmission TSG 380 | 52D |
| Code H16 | Heating for driver seat | 75J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 130J |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 130J |
| Code HY1 | Radio remote control for auxiliary water heater | 139J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 132J |
| Code JA7 | Blind spot assist | 55J |
| Code L | Valid for left-hand drive vehicles | 14E |
| Code L | Valid for left-hand drive vehicles | 42D |
| Code L | Valid for left-hand drive vehicles | 144F |
| Code L84 | Additional rear turn signal lamps on roof | 114J |
| Code LC7 | Lighting for front footwell | 93J |
| Code LE3 | Cockpit + rear passenger compartment 64-color ambient lighting | 30J |
| Code LE4 | Ambient lighting in cockpit with 64 colors | 30J |
| Code LE5 | Complete Marco Polo 64-color ambient lighting | 31J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 22J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 25J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 29J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 79J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 82J |
| Code R | Valid for right-hand drive vehicles | 15E |
| Code R | Valid for right-hand drive vehicles | 28J |
| Code R | Valid for right-hand drive vehicles | 29J |
| Code R | Valid for right-hand drive vehicles | 46D |
| Code R | Valid for right-hand drive vehicles | 144F |
| Code T55 | Electric controls for right sliding door | 141J |
| Code T56 | Electric controls for left sliding door | 141J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 33J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 84J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 95J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 33J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 85J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 95J |
| Code W64 | Separately opening rear window | 87J |
| Code W64 | Separately opening rear window | 37J |
| Code W64 | Separately opening rear window | 102J |
| Code W64 | Separately opening rear window | 105J |
| Code W64 | Separately opening rear window | 106J |
| Code W64 | Separately opening rear window | 73J |
| Code W65 | Liftgate | 36J |
| Code W65 | Liftgate | 86J |
| Code W65 | Liftgate | 102J |
| Code W65 | Liftgate | 104J |
| Code W68 | EASY PACK liftgate | 37J |
| Code W68 | EASY PACK liftgate | 86J |
| Code W68 | EASY PACK liftgate | 105J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 73J |
| Code YG4 | Load compartment tray | 94J |
| Code ZK7 | Marco Polo | 12J |
| Code ZK7 | Marco Polo | 21J |
| E13/1 | Glove box lamp | 148L |
| El 7/15 | Right front footwell lamp | 92L |
| E17/16 | Left front footwell lamp | 92L |
| E17/72 | Left B-pillar footwell lamp | 87L |
| E17/73 | Right B-pillar footwell lamp | 87L |
| E17/74 | Left C-pillar footwell lamp | 142L |
| E17/75 | Right C-pillar footwell lamp | 142L |
| E18/3 | Left luggage compartment lamp | 94L |
| E19/1 | Left license plate lamp | 35L |
| E19/1 | Left license plate lamp | 37L |

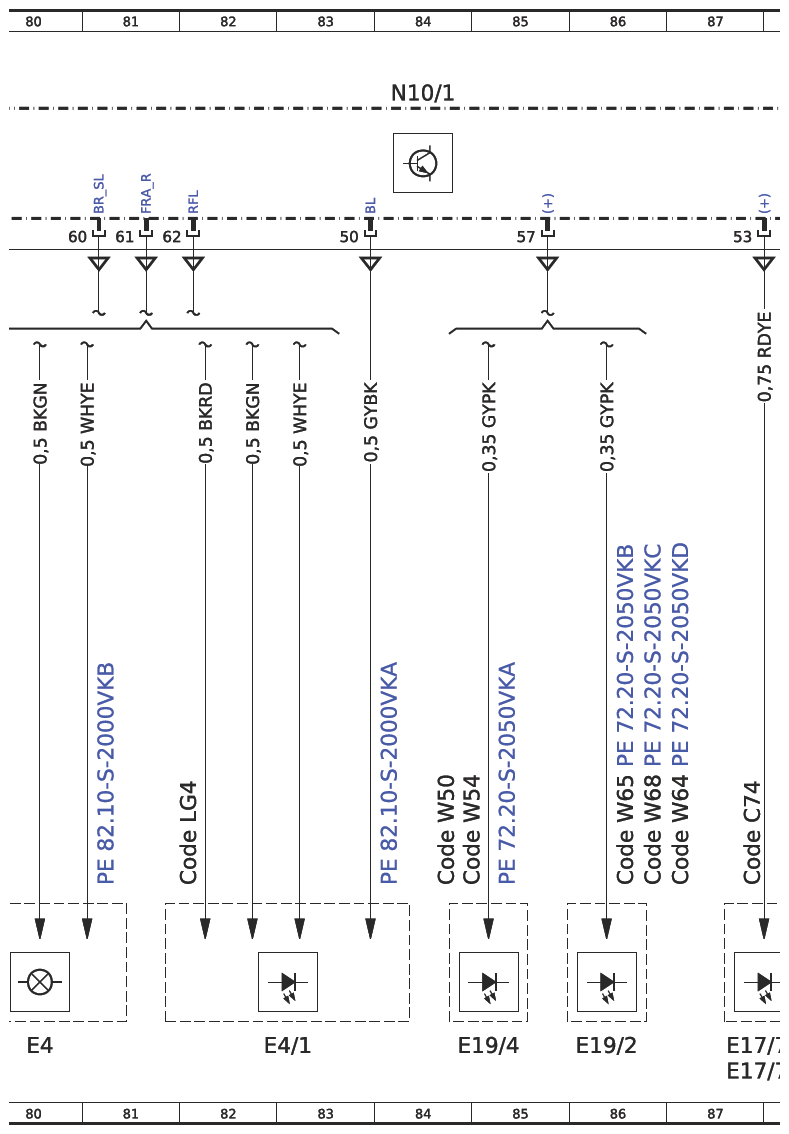

| E19/2 | Right license plate lamp | 86L |

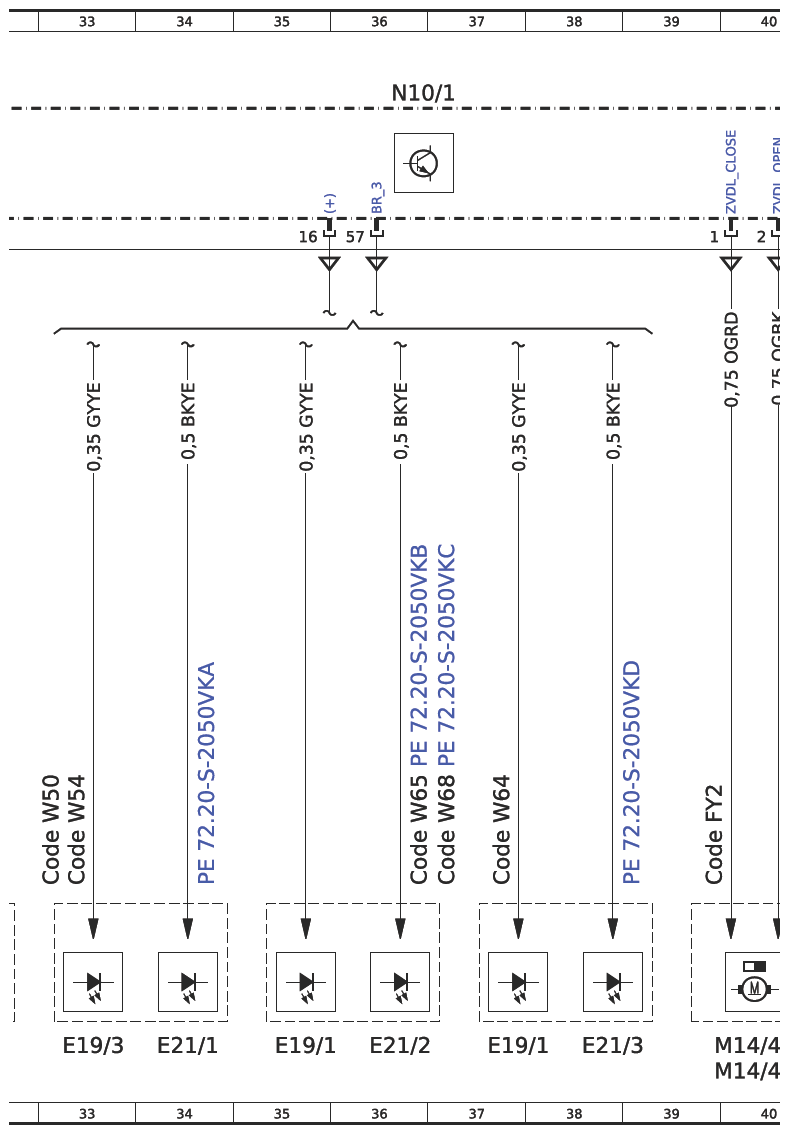

| E19/3 | Left rear-end door license plate lamp | 33L |
| E19/4 | Right rear-end door license plate lamp | 85L |
| E21/1 | Rear-end door third brake light | 34L |
| E21/2 | Liftgate third brake light | 36L |
| E21/3 | Center high-mounted brake lamp of separately opening rear window | 38L |

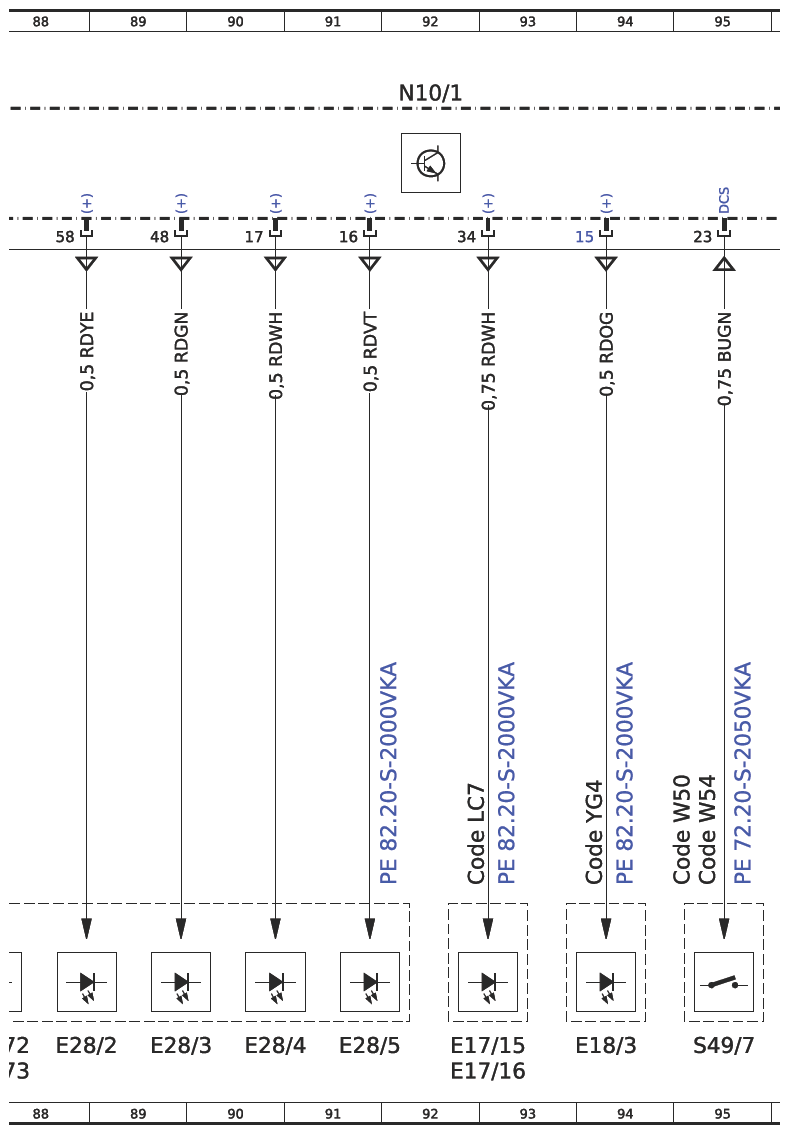

| E28/2 | Left sliding door illuminated door sill molding | 88L |
| E28/3 | Right sliding door illuminated door sill molding | 89L |
| E28/4 | Left front illuminated door sill molding | 90L |
| E28/5 | Right front illuminated door sill molding | 91L |
| E3 | Left rear lamp unit | 23L |

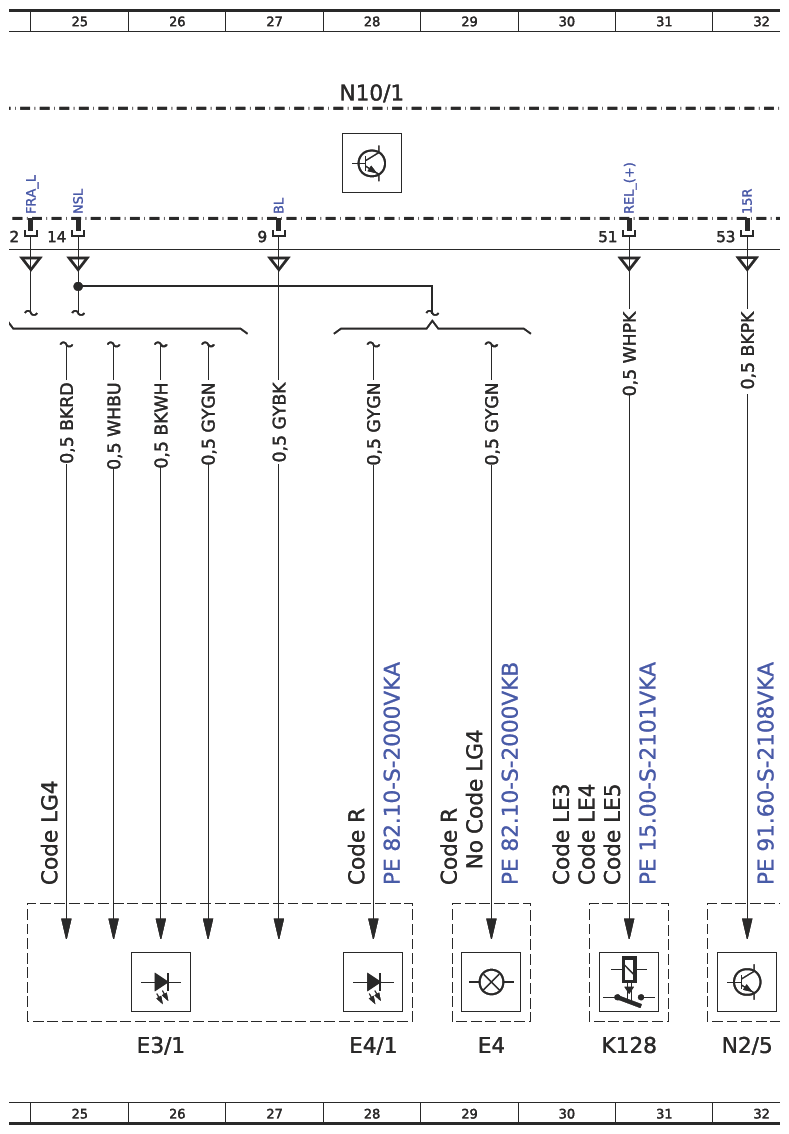

| E3/1 | Left rear LED lamp unit | 26L |
| E4 | Right rear lamp unit | 29L |
| E4 | Right rear lamp unit | 80L |
| E4/1 | Right rear LED lamp unit | 28L |
| E4/1 | Right rear LED lamp unit | 82L |

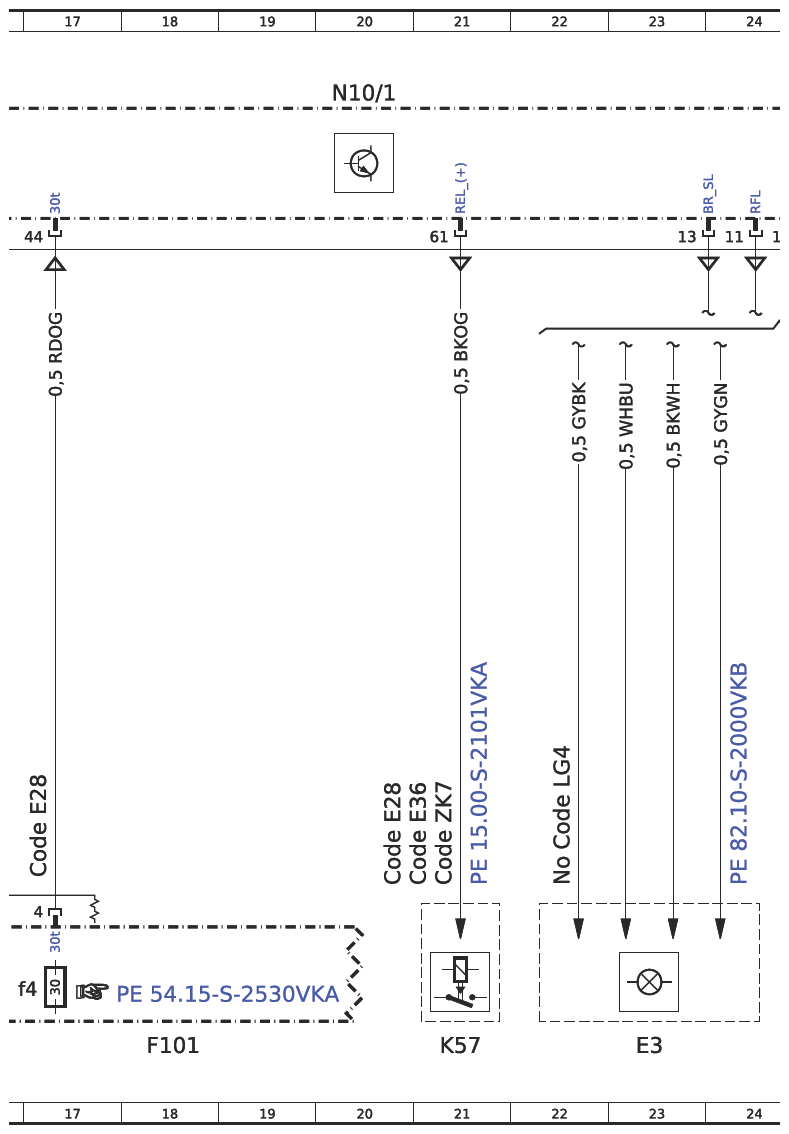

| F101 | Fuse box (11 fuses) | 18L |
| F101f4 | Fuse 4 | 17K |
| K128 | Ambient lighting relay | 31L |

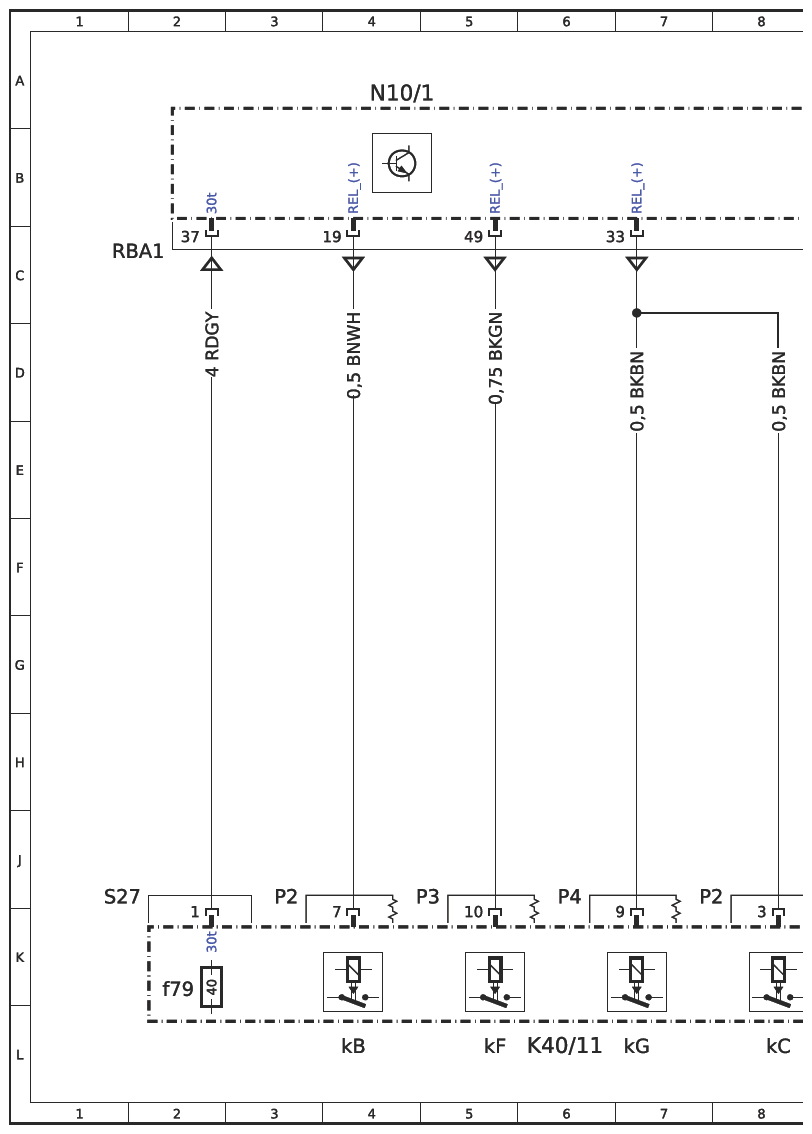

| K40/11 | Firewall fuse and relay module | 6L |
| K40/11 | Firewall fuse and relay module | 71L |

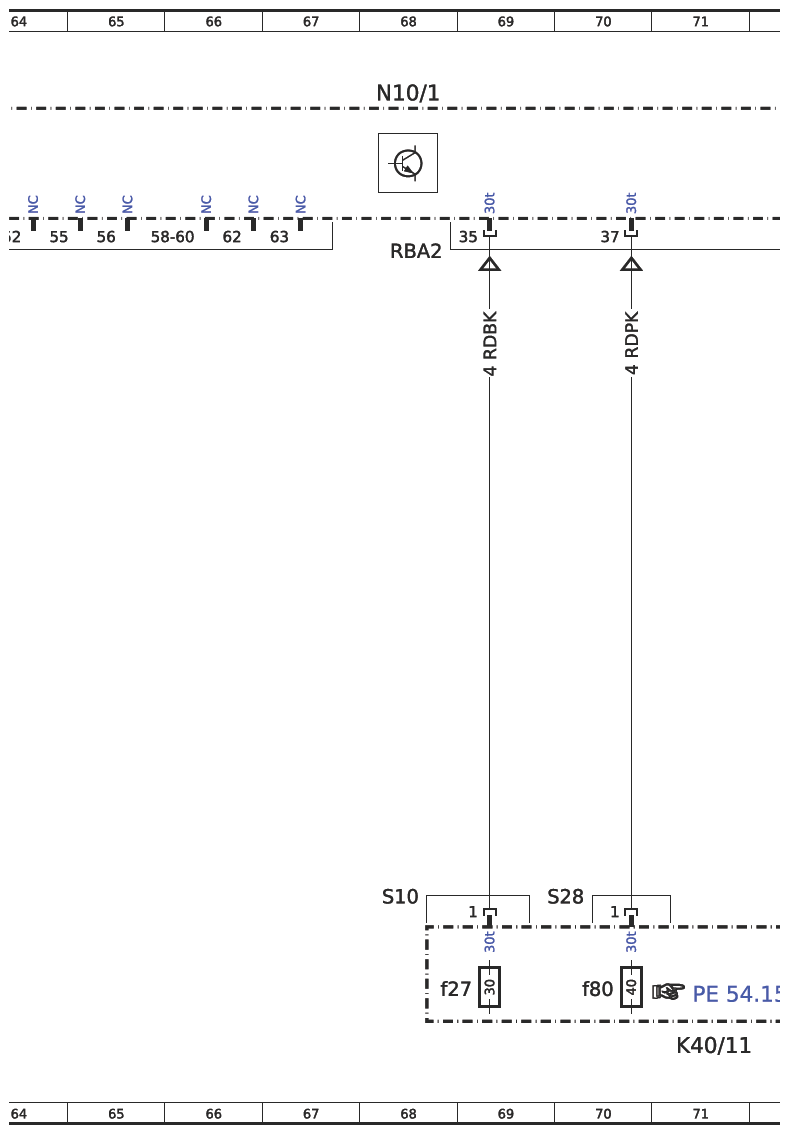

| K40/11f27 | Fuse 27 | 68K |
| K40/11f79 | Fuse 79 | 2K |
| K40/11f80 | Fuse 80 | 70K |
| K40/11 kB | Rear window wiper relay | 4L |
| K40/11 kC | Circuit 15R2 relay | 8L |
| K40/11 kD | Heated rear window relay | 73L |
| K40/11 kF | Circuit 30g relay | 5L |
| K40/11 kG | Exhaust aftertreatment SCRCM relay | 7L |

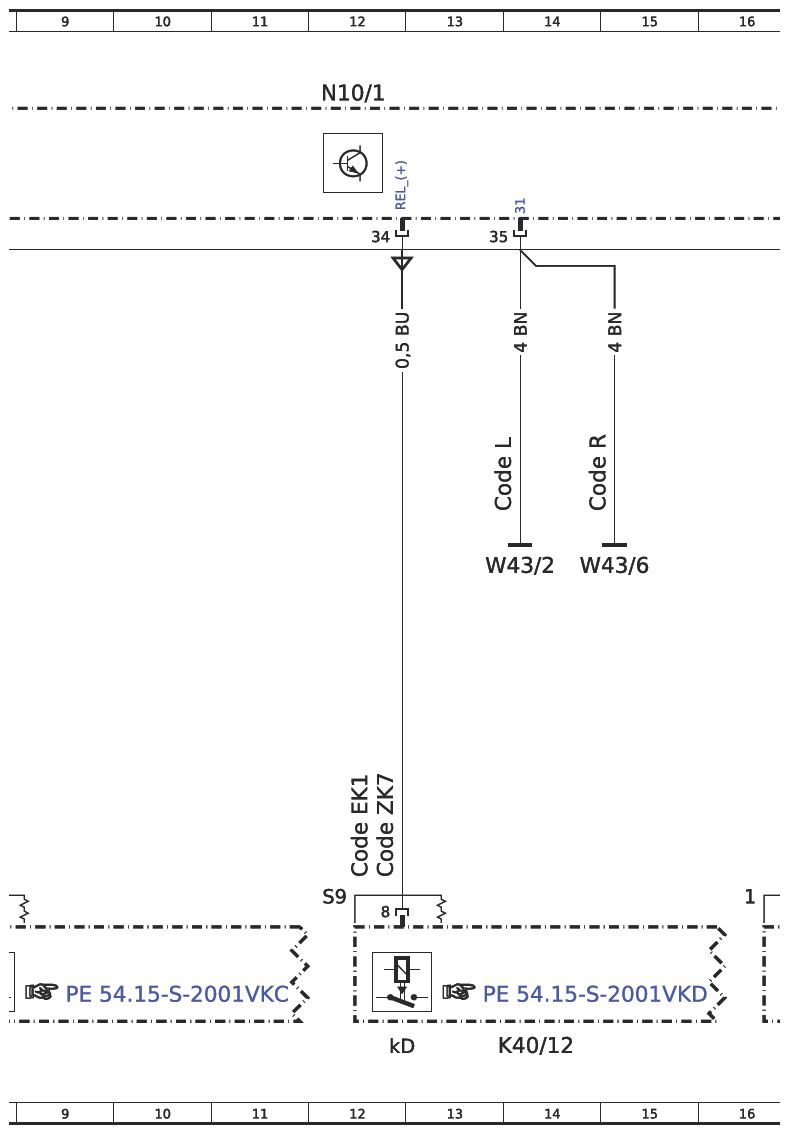

| K40/12 | Fuse and relay module, front passenger footwell | 14L |
| K40/12kD | Body manufacturer circuit 15 relay | 12L |
| K57 | Battery cutoff relay | 21L |
| M14/40 | Left manual sliding door central locking actuator | 40L |
| M14/41 | Right manual sliding door central locking actuator | 40L |

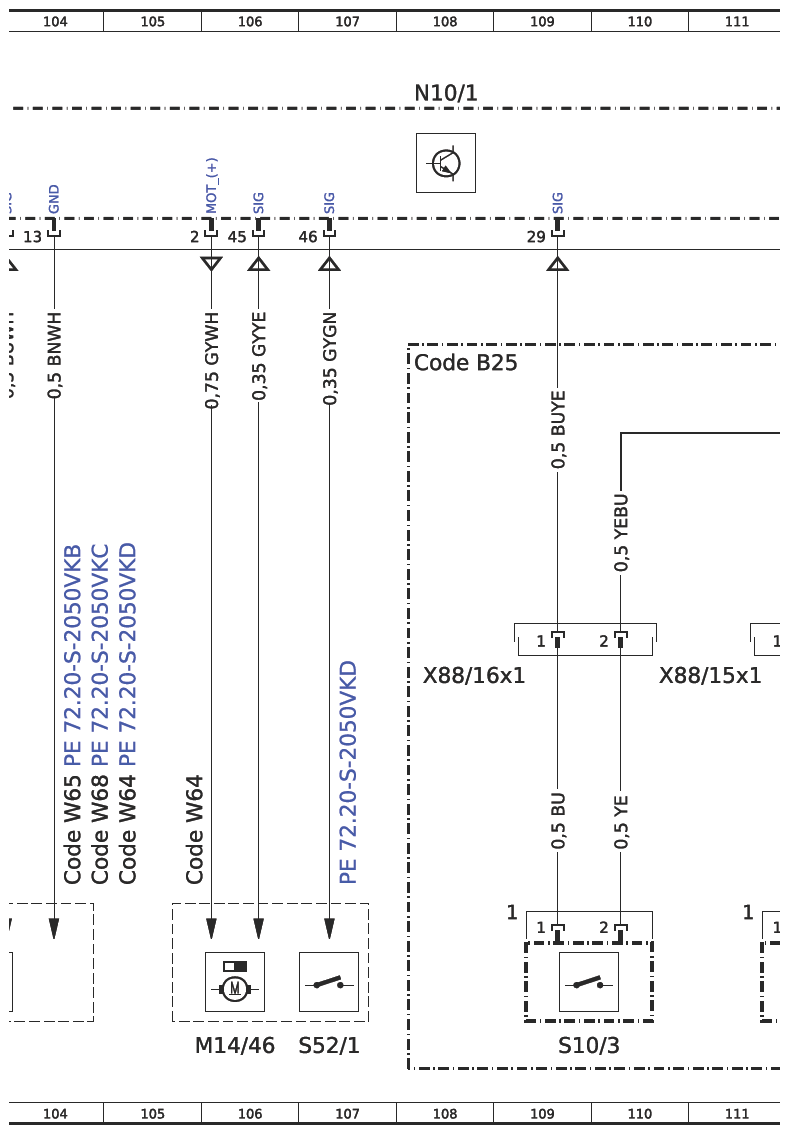

| M14/46 | Opening assist of separately opening rear window | 106L |
| M14/7 | Liftgate opening assist | 100L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 138L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 52A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 60A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 68A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 84A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 92A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 100A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 116A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 124A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 132A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 140A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 148A |
| N2/5 | Supplemental restraint system (SRS) control unit | 32L |
| N2/5 | Supplemental restraint system (SRS) control unit | 78L |
| N29 | Electronic blower controller | 133L |

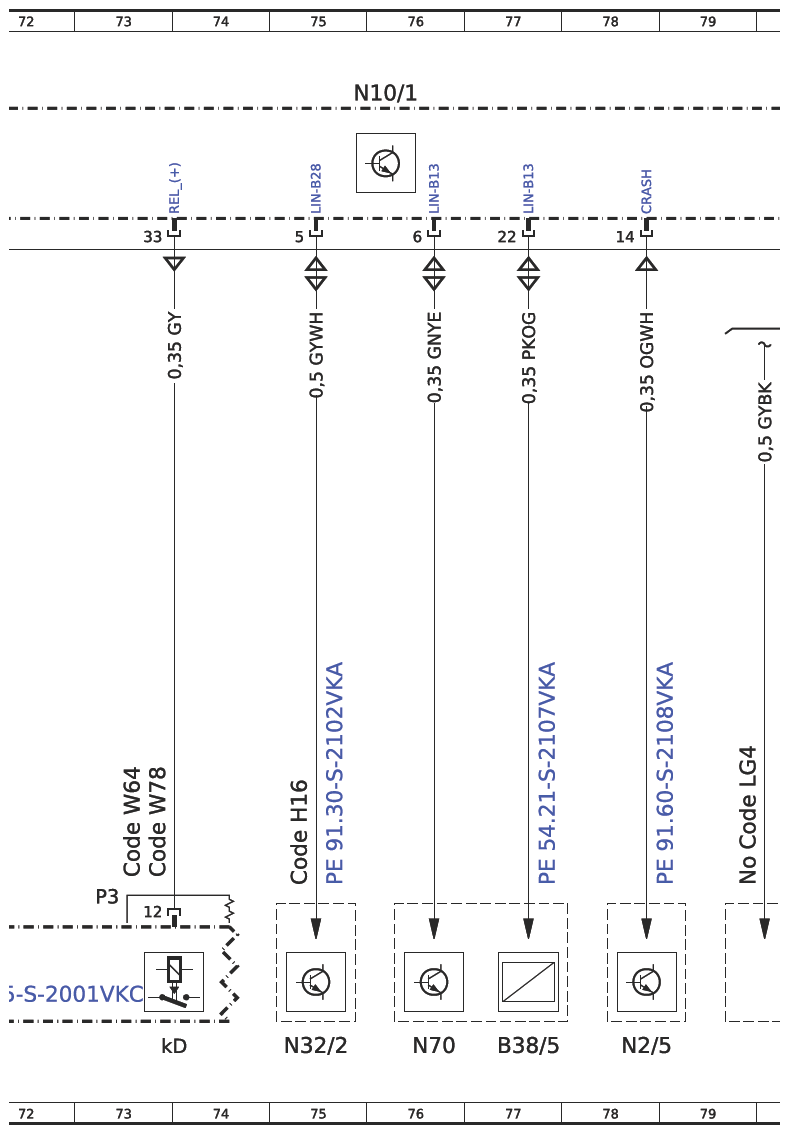

| N32/2 | Seat heating/ventilation control unit | 75L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 76L |
| N72/15 | Control panel switch control unit | 141L |

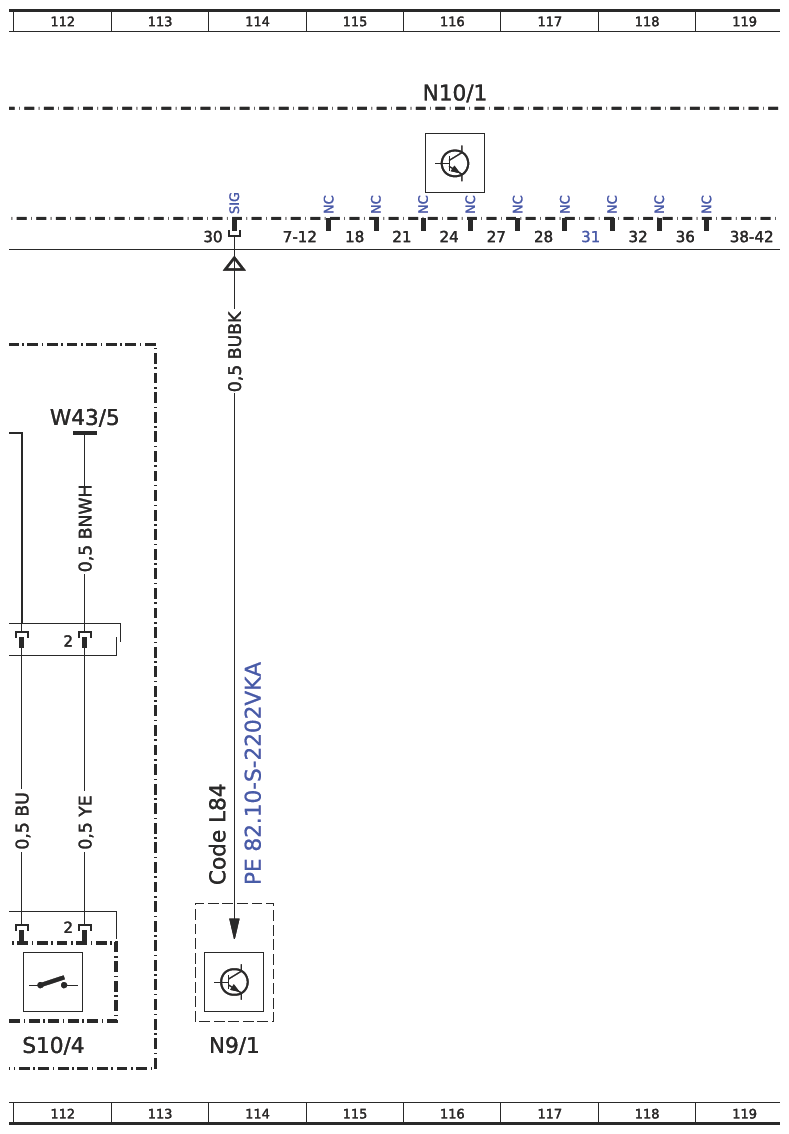

| N9/1 | Additional turn signal module control unit | 114L |

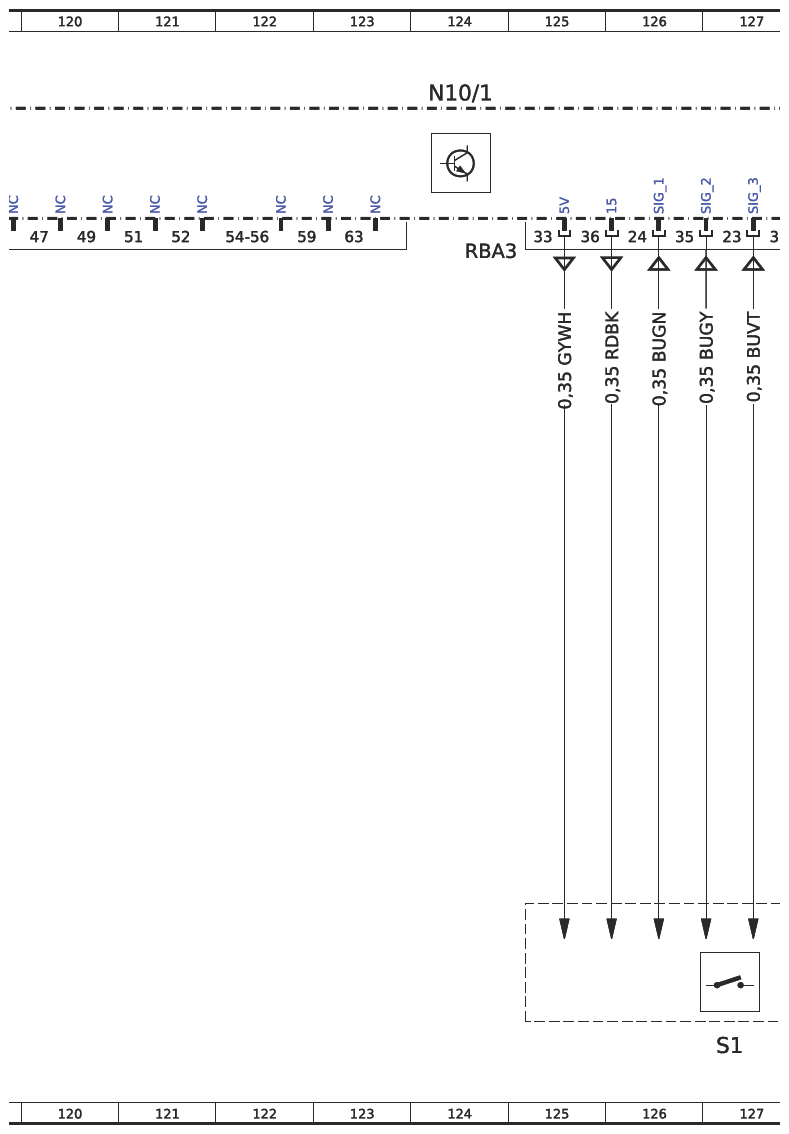

| S1 | Light switch | 127L |
| S10/3 | Left rear brakepad wear sensor | 109L |
| S10/4 | Right rear brake wear sensor | 112L |

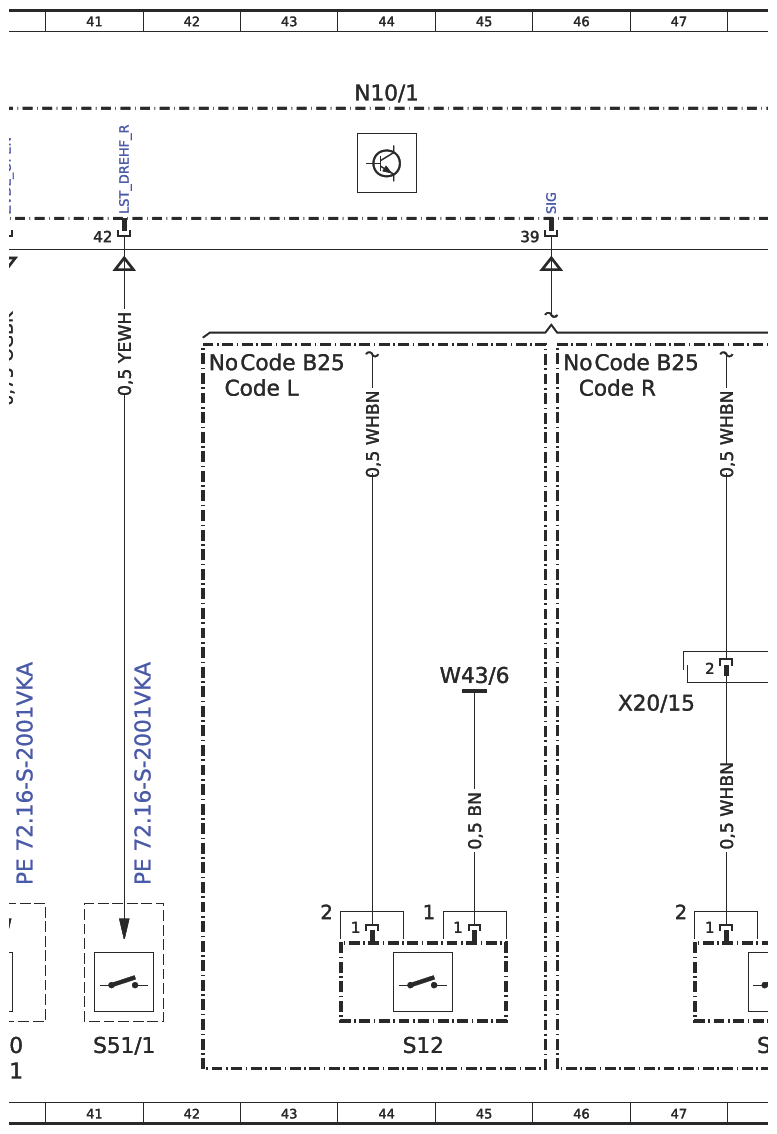

| S12 | Parking brake indicator switch | 44L |
| S12 | Parking brake indicator switch | 48L |

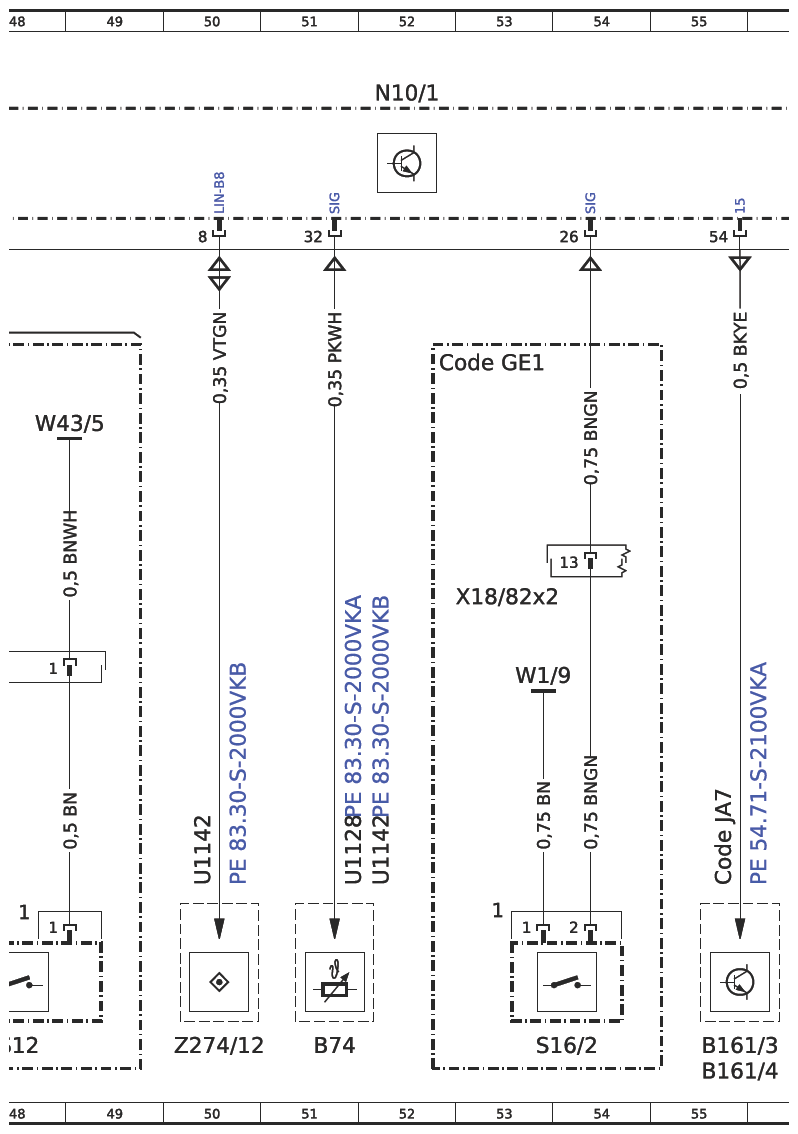

| S16/2 | Backup lamp switch | 54L |
| S202 | Reversing camera/360o camera liftgate open switch, external operation | 101L |
| S202 | Reversing camera/360o camera liftgate open switch, external operation | 103L |
| S206 | Glove compartment switch illumination | 146L |
| S49/7 | Left rear-end door rotary tumbler switch | 95L |

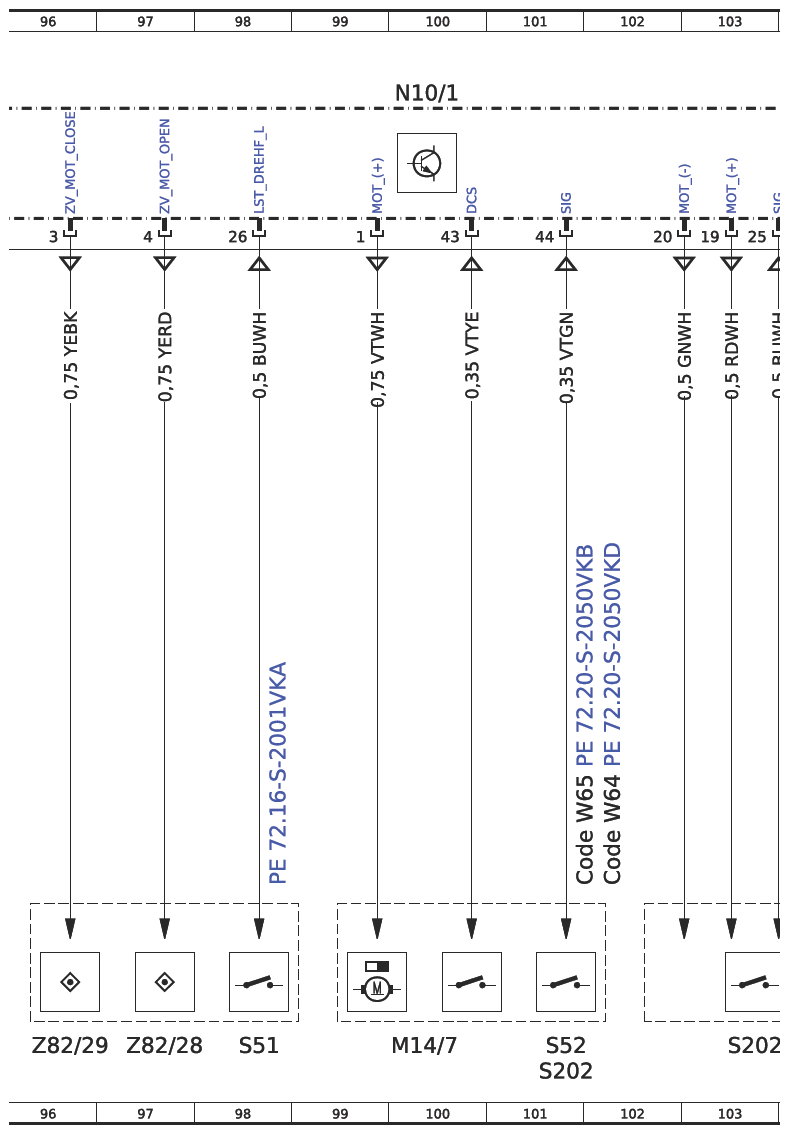

| S51 | Left manual sliding door central locking main lock switch | 98L |
| S51/1 | Right manual sliding door central locking main lock switch | 41L |
| S52 | Liftgate open switch, external operation | 101L |
| S52/1 | "Open" switch of separately opening rear window, exterior actuation | 107L |

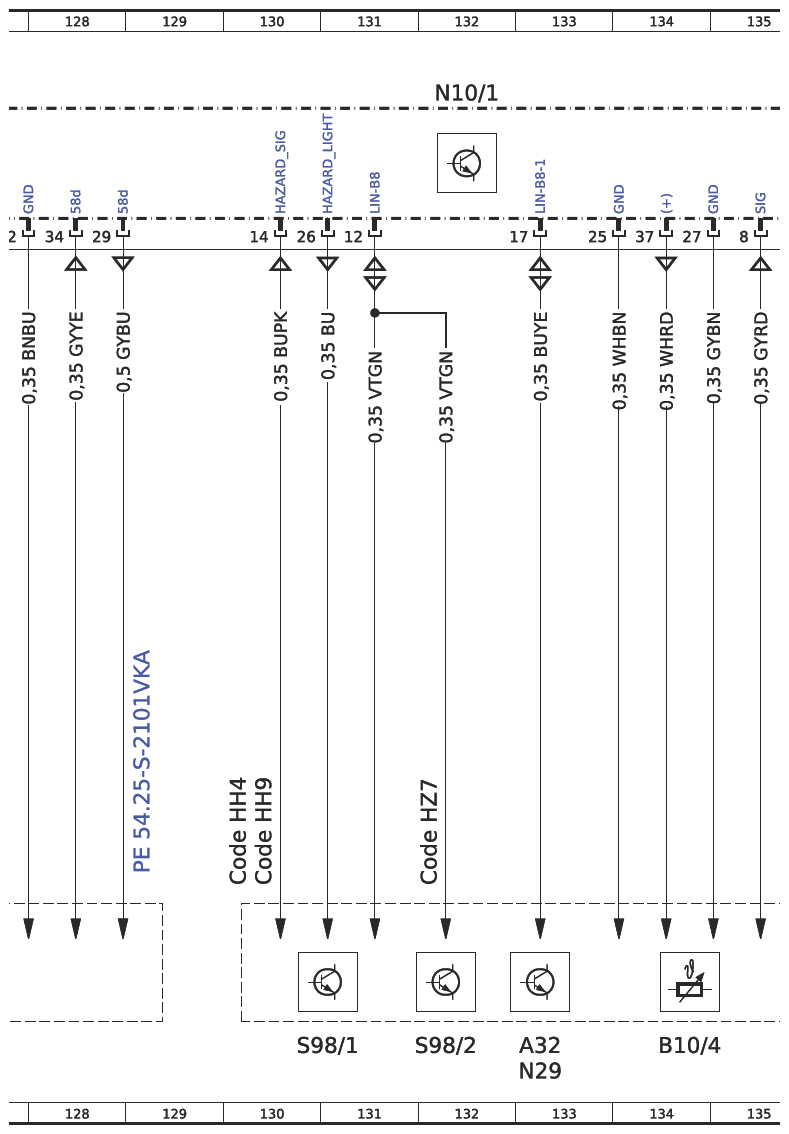

| S98/1 | Front heater/air conditioning operating unit switch | 130L |
| S98/2 | Rear heater/air conditioning operating unit switch | 132L |
| U1128 | Valid for combustion engine | 52J |
| U1128 | Valid for combustion engine | 139J |
| U1142 | Valid for electric vehicle | 50J |
| U1142 | Valid for electric vehicle | 52J |
| U1142 | Valid for electric vehicle | 139J |
| U1142 | Valid for electric vehicle | 140J |
| W1/9 | Right cockpit ground point | 53G |
| W1/9 | Right cockpit ground point | 148E |
| W43/2 | Right vehicle interior firewall ground point | 14F |
| W43/5 | Right vehicle interior firewall ground point 2 | 48E |
| W43/5 | Right vehicle interior firewall ground point 2 | 112E |
| W43/6 | Left vehicle interior firewall ground point 2 | 15F |
| W43/6 | Left vehicle interior firewall ground point 2 | 45G |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 145F |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 145F |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 53F |
| X20/15 | Foot-operated parking brake electrical connector | 47G |
| X29/1 x1 | Glove compartment electrical connector | 145H |
| X88/15x1 | Right rear brake lining wear sensor electrical connector | 111G |
| X88/16x1 | Left rear brake lining wear sensor electrical connector | 108G |
| Z274/12 | LIN for climate control (LIN B8) end sleeve | 50L |
| Z82/28 | Open sliding door central locking connector sleeve | 97L |
| Z82/29 | Close sliding door central locking connector sleeve | 96L |
