Wiring Diagram For Overhead Control Panel (OCP) Control Unit - PE54.21-S-2107-97VVD
Model 447.6 with Code XM0 (Facelift) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) N70
Model 447.7 with Code XM0 (Facelift) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) N70
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 120L |

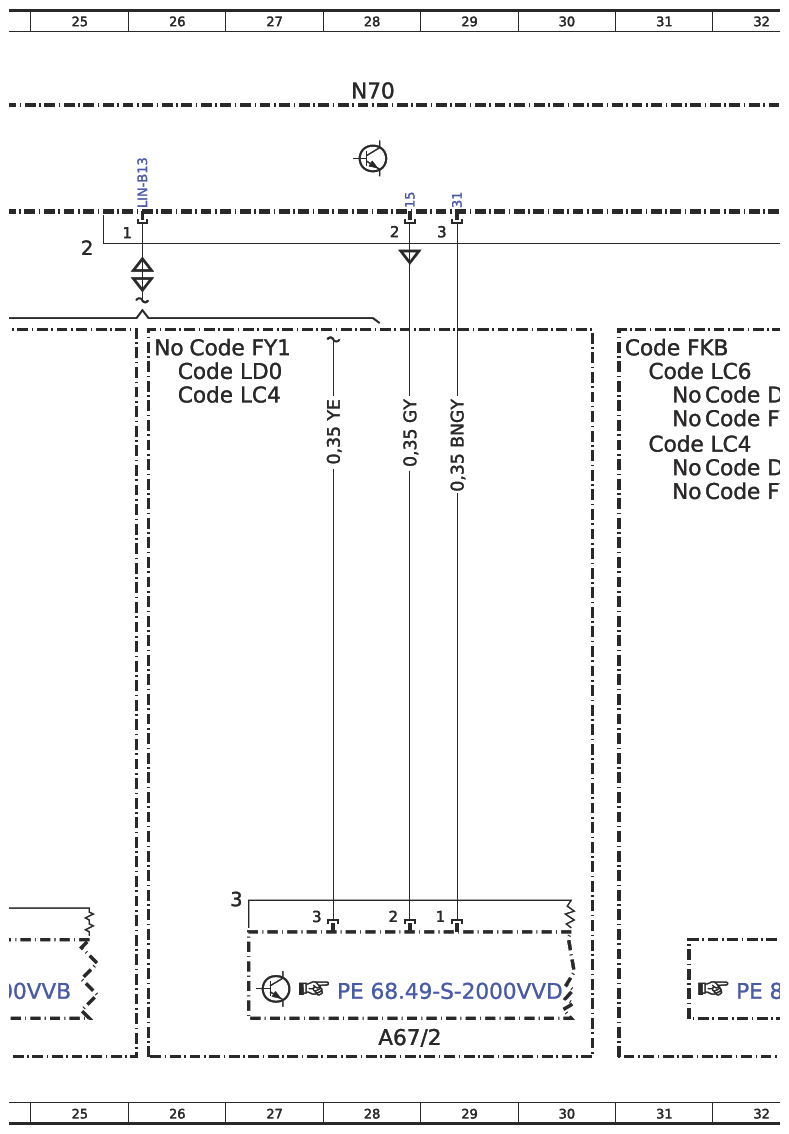

| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 76L |
| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 28L |
| A67/3 | Digital inside rearview mirror | 23L |
| A67/3 | Digital inside rearview mirror | 71L |
| B38/1 | Light sensor | 16L |
| B38/1 | Light sensor | 11L |
| B38/2 | Humidity sensor/light sensor/rain sensor | 15L |
| B38/5 | Rain/light sensor with additional functions | 15L |
| B38/5 | Rain/light sensor with additional functions | 11L |

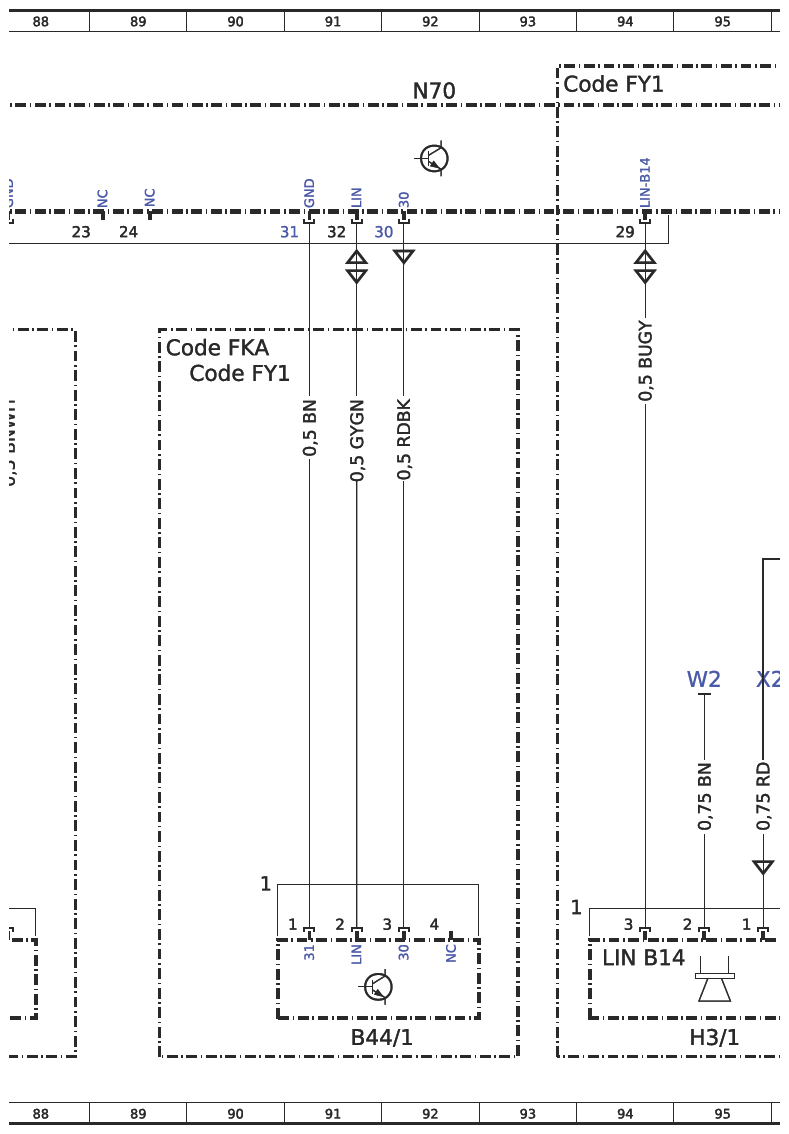

| B44/1 | Interior protection sensor | 91L |
| CAN B | Interior CAN | 80K |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 82D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 31D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 78D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 101A |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 31E |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 53D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 64D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 39D |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 39E |
| Code F72 | Automatically dimming outside mirror and inside rearview mirror | 73D |
| Code F84 | Digital inside rearview mirror | 21D |
| Code F84 | Digital inside rearview mirror | 69D |
| Code FKA | Panel van | 89D |
| Code FKB | Vito Mixto and Tourer | 31D |
| Code FKB | Vito Mixto and Tourer | 53D |
| Code FKB | Vito Mixto and Tourer | 64D |
| Code FKB | Vito Mixto and Tourer | 38D |
| Code FS5 | Illuminated mirrors for sun visors | 42D |
| Code FY1 | Theft protection package | 93A |
| Code FY1 | Theft protection package | 31E |
| Code FY1 | Theft protection package | 78D |
| Code FY1 | Theft protection package | 74D |
| Code FY1 | Theft protection package | 110A |
| Code FY1 | Theft protection package | 101B |
| Code FY1 | Theft protection package | 31E |
| Code FY1 | Theft protection package | 26D |
| Code FY1 | Theft protection package | 53E |
| Code FY1 | Theft protection package | 64E |
| Code FY1 | Theft protection package | 90D |
| Code FY1 | Theft protection package | 39E |
| Code FY1 | Theft protection package | 39E |
| Code HH4 | THERMOTRONIC automatic air conditioning | 14D |
| Code HH4 | THERMOTRONIC automatic air conditioning | 14E |
| Code HH4 | THERMOTRONIC automatic air conditioning | 13F |
| Code JF1 | Rain sensor | 14E |
| Code JF1 | Rain sensor | 14E |
| Code JF1 | Rain sensor | 14D |
| Code JF1 | Rain sensor | 10D |
| Code LA2 | Auto on/off driving lights | 13D |
| Code LA2 | Auto on/off driving lights | 14E |
| Code LA2 | Auto on/off driving lights | 10D |
| Code LA2 | Auto on/off driving lights | 10E |
| Code LC3 | Illumination in rear grab handle | 64D |
| Code LC3 | Illumination in rear grab handle | 38E |
| Code LC4 | Comfort overhead control panel | 73D |
| Code LC4 | Comfort overhead control panel | 26D |
| Code LC4 | Comfort overhead control panel | 78D |
| Code LC4 | Comfort overhead control panel | 31E |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 53D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 31D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 101A |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 38D |
| Code LDO | Overhead control panel with 2 reading spotlamps | 26D |

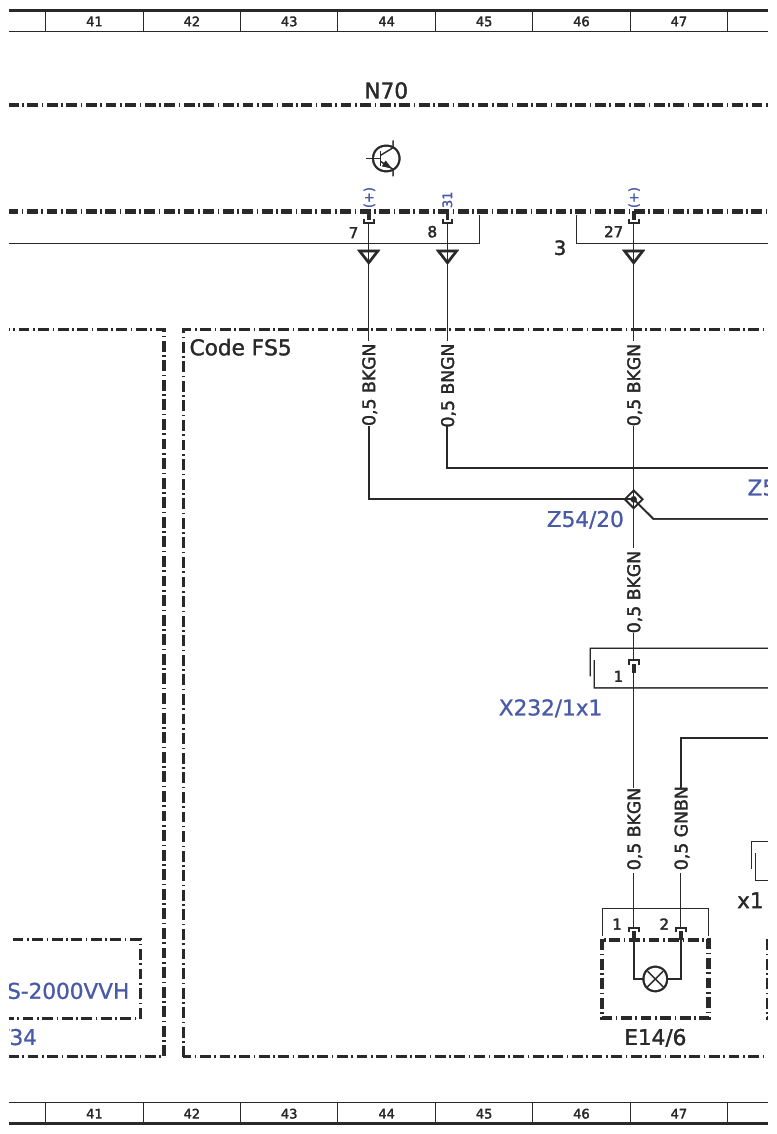

| E14/6 | Left front vanity mirror illumination | 47L |

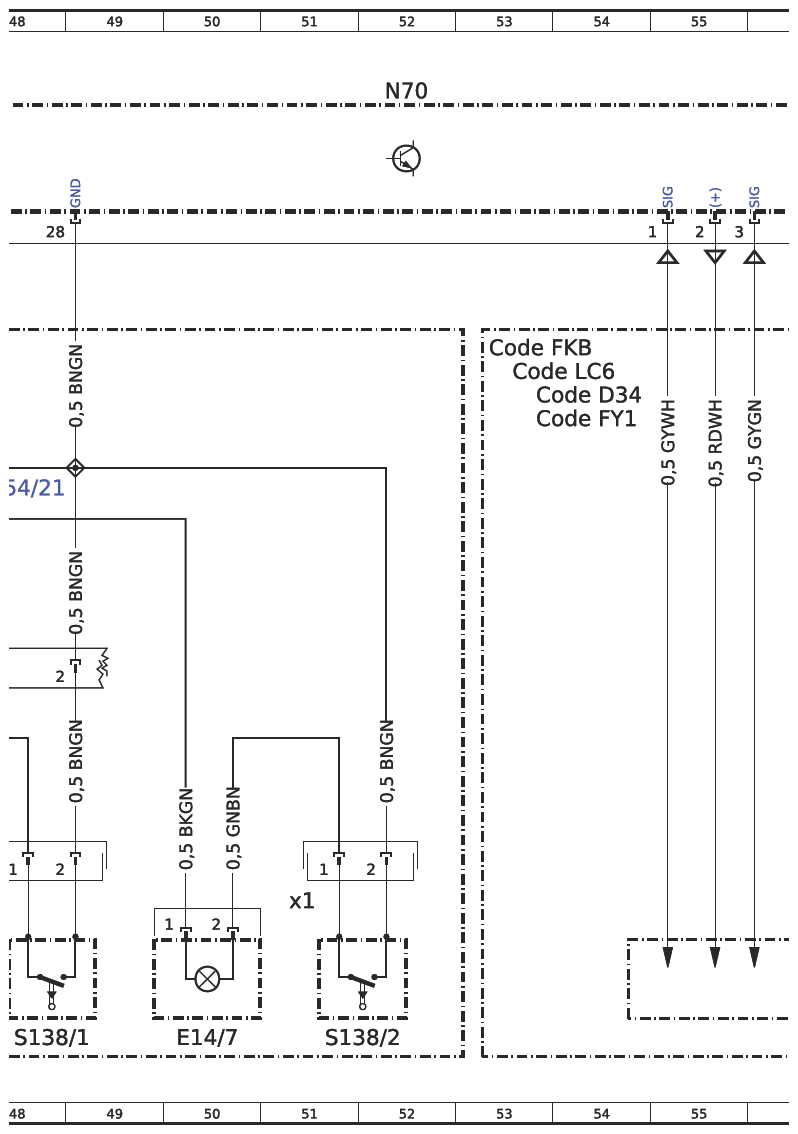

| E14/7 | Right front vanity mirror illumination | 50L |
| H3/1 | Alarm siren with additional battery | 95L |
| K40/10 | Engine compartment fuse and relay module | 98L |

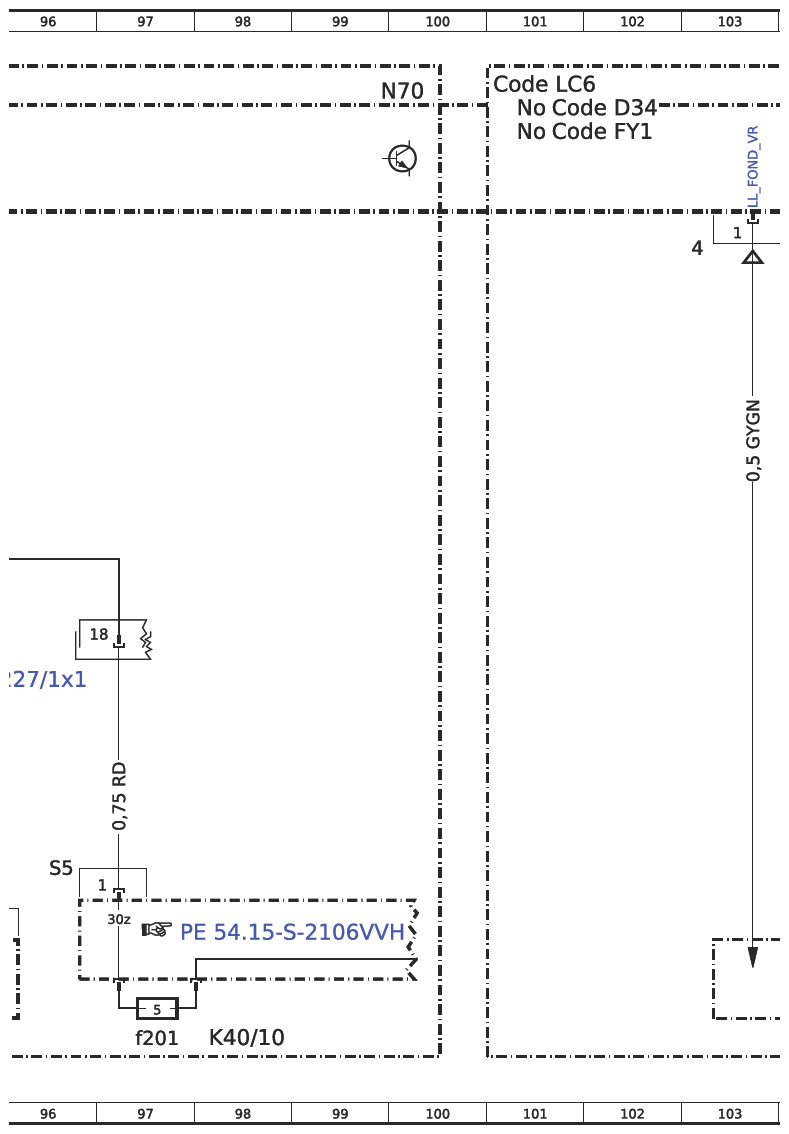

| K40/10f201 | Fuse 201 | 97L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f101 | Fuse 101 | 2L |
| LIN B13 | Roof LIN | 16J |
| LIN B13 | Roof LIN | 7K |
| LIN B13 | Roof LIN | 12J |
| LIN B14 | Alarm system LIN | 94K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 7L |

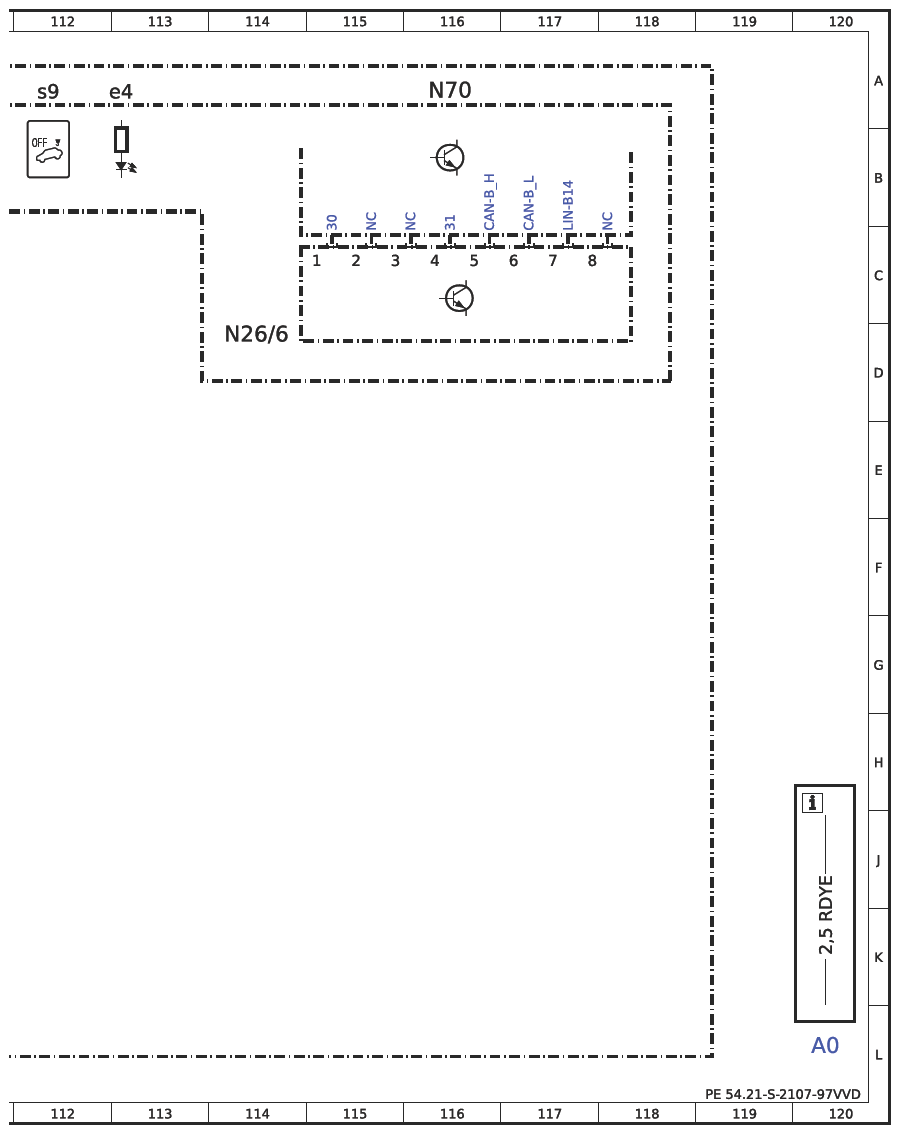

| N26/6 | Anti-theft alarm system (ATA [EDW]) control unit | 114D |

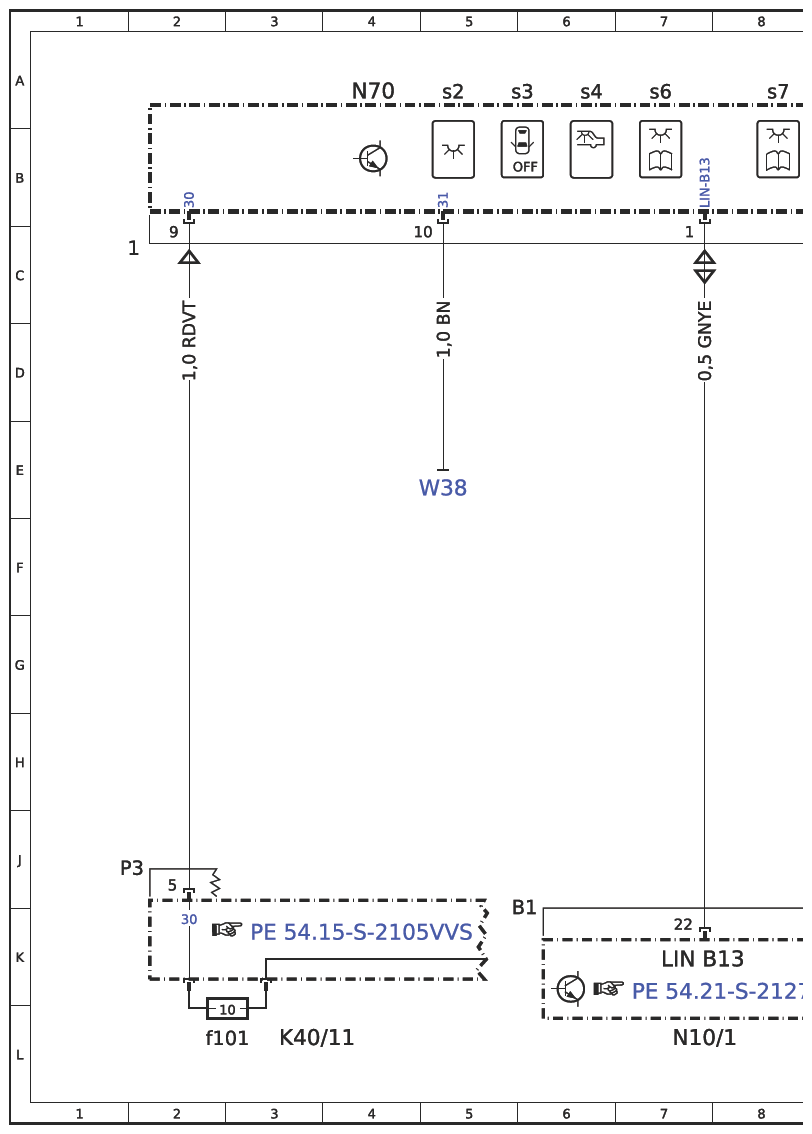

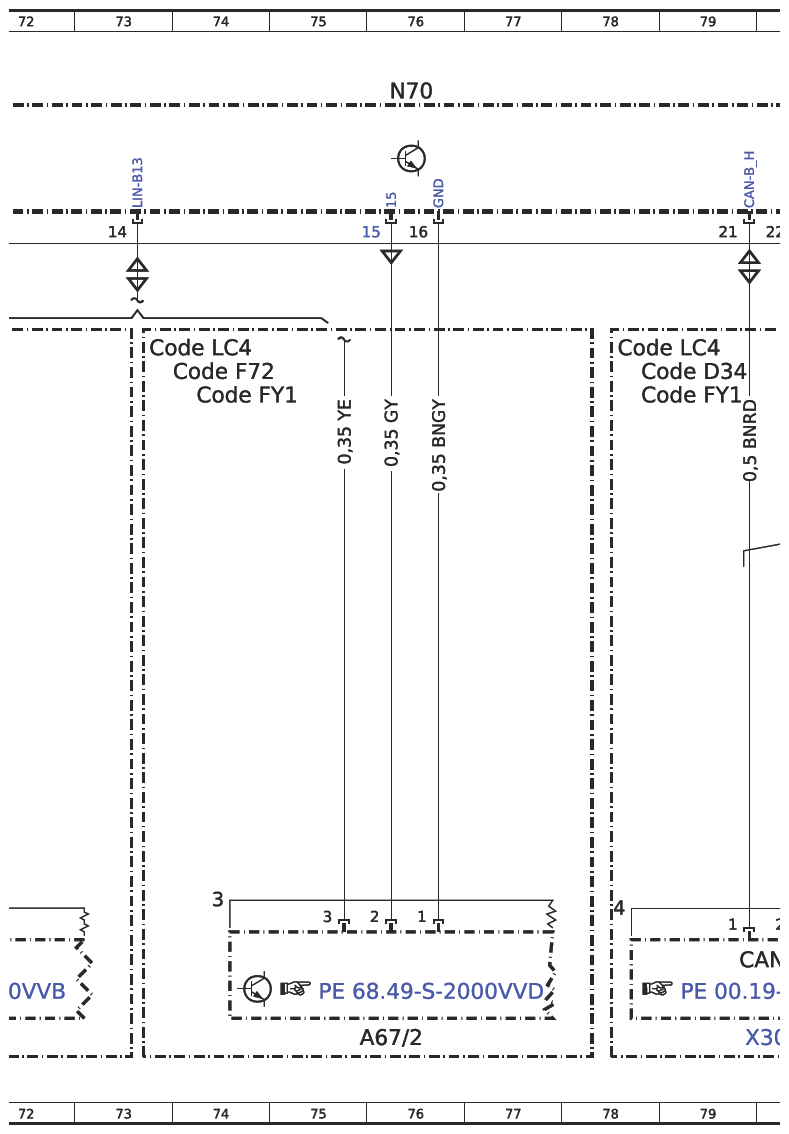

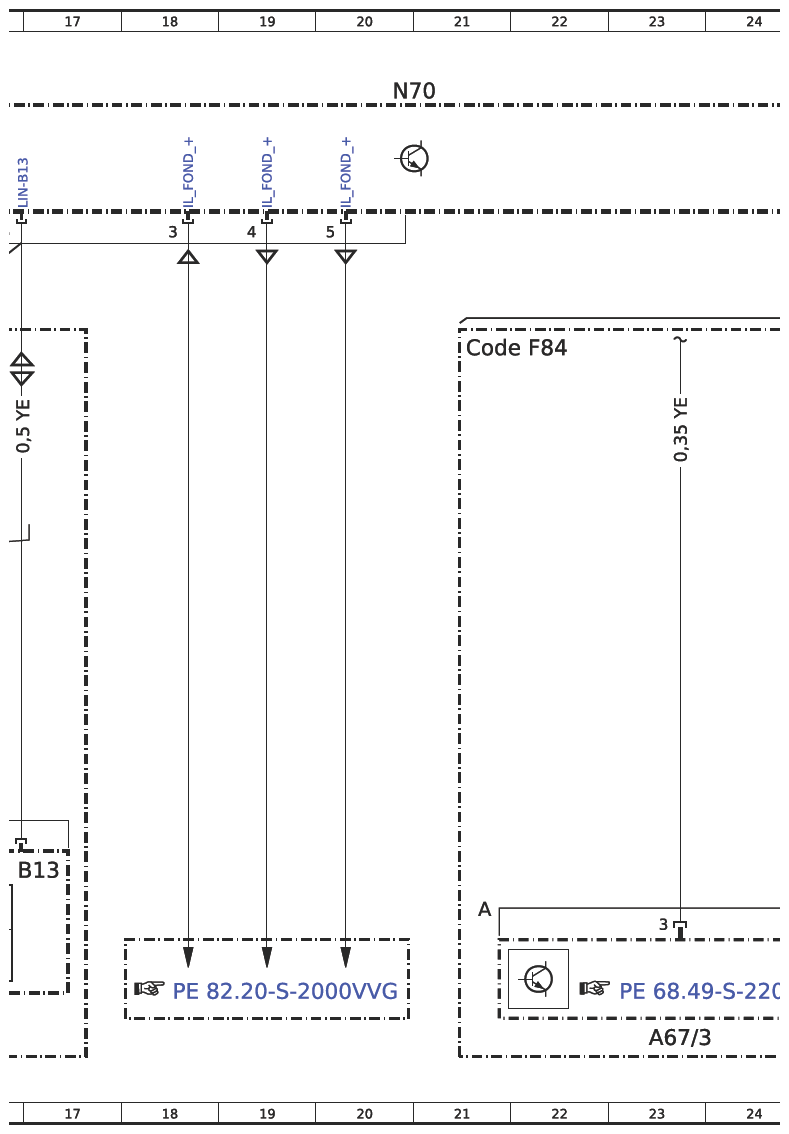

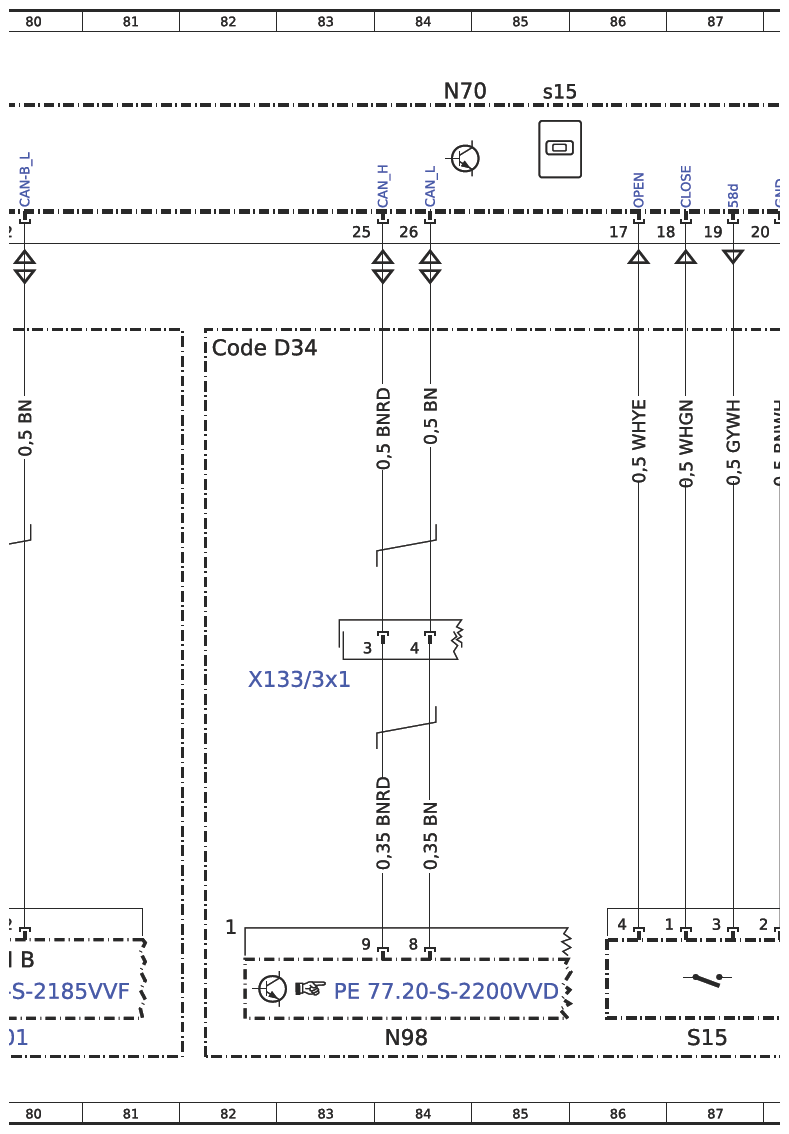

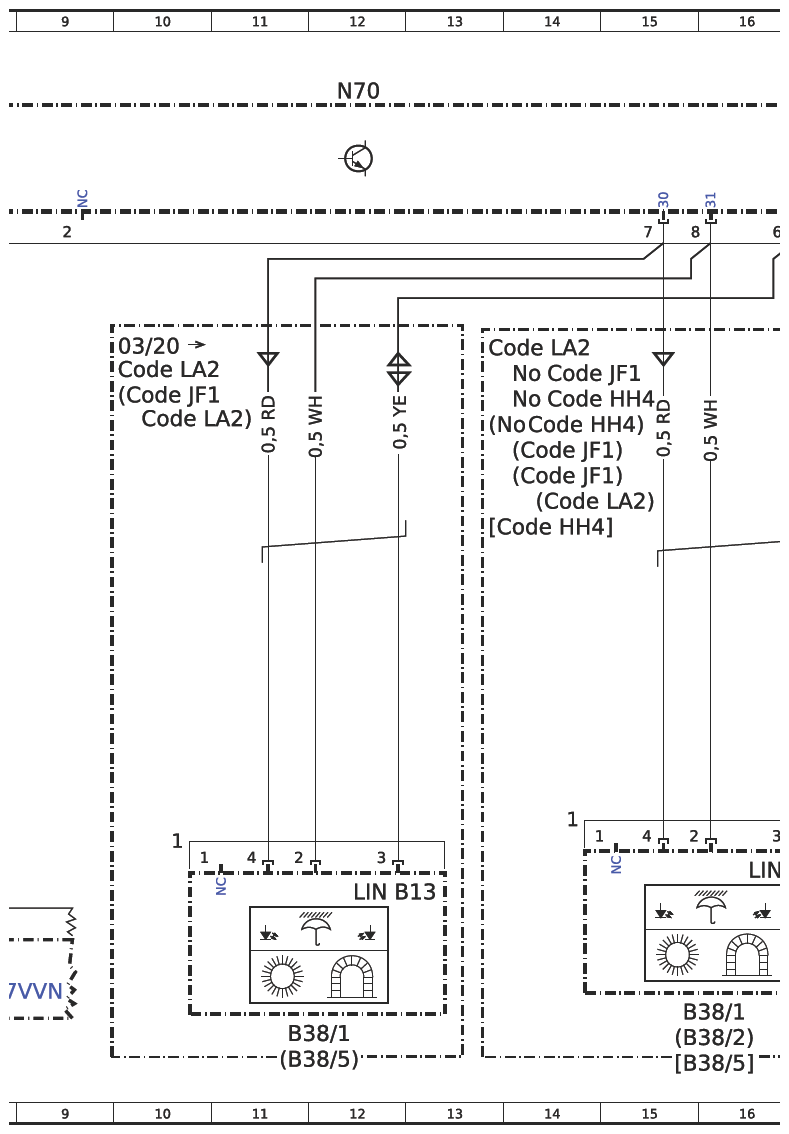

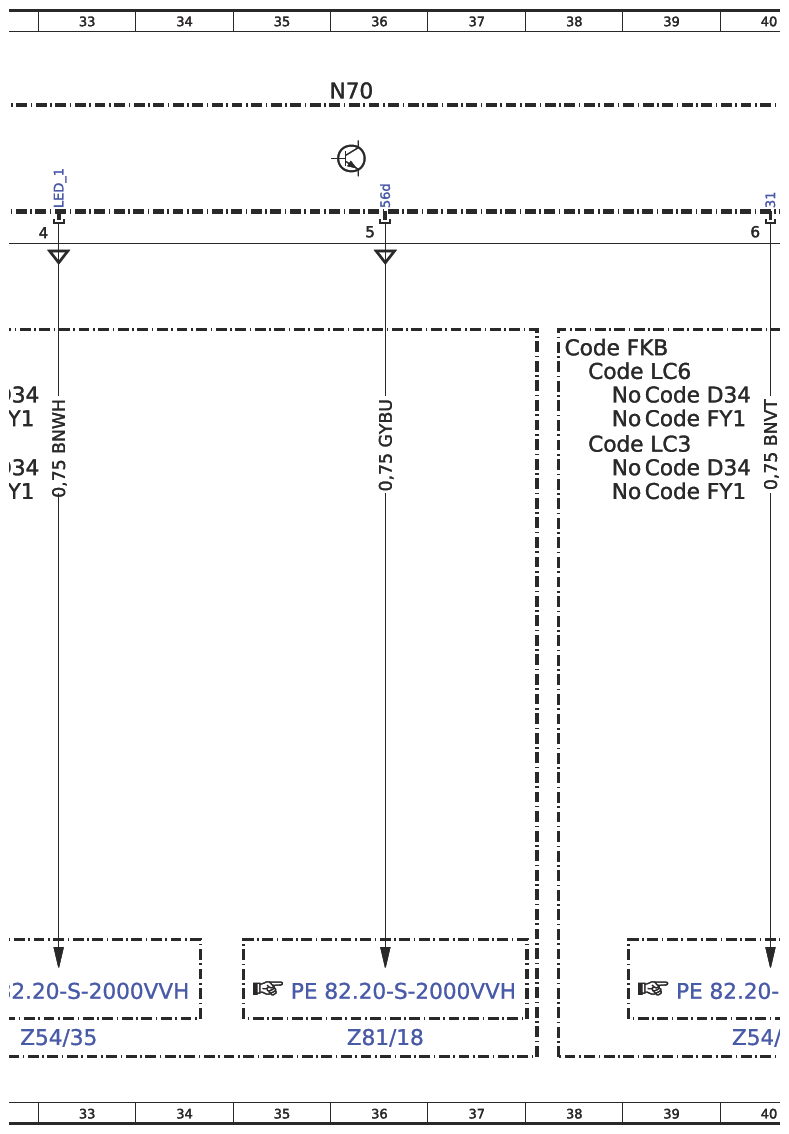

| N70 | Overhead control panel (OCP [DBE]) control unit | 4A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 109A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 68A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 76A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 84A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 92A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 116A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 100A |

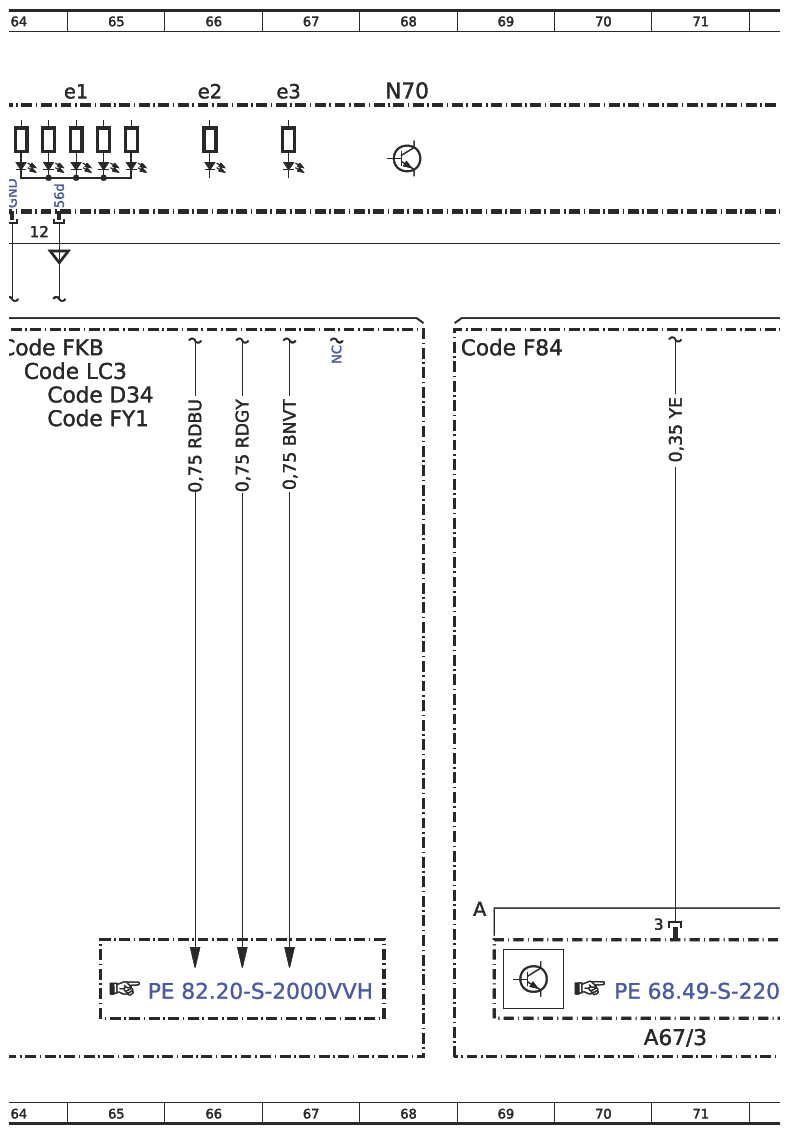

| N70e1 | Front interior lamp | 65A |
| N70e2 | Left front reading lamp | 66A |
| N70e3 | Right front reading lamp | 67A |
| N70e4 | Anti-theft alarm system readiness indicator | 113A |

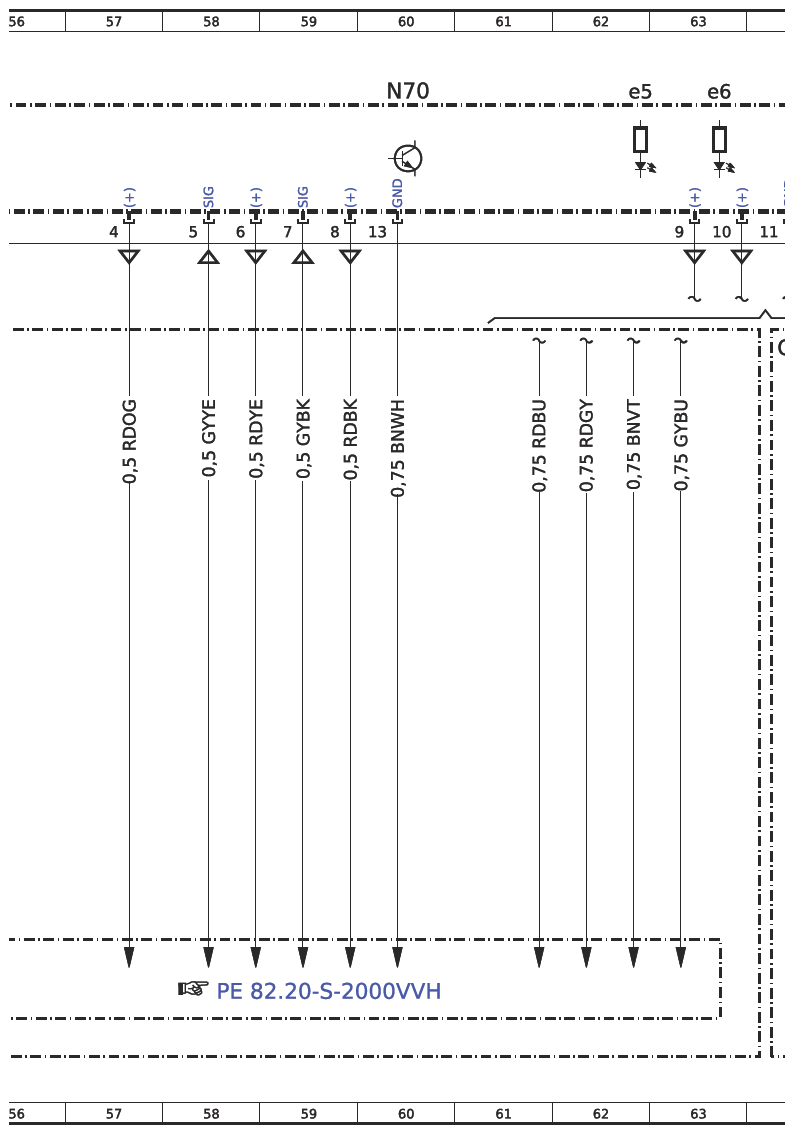

| N70e5 | Left mounting console incident illumination | 62A |
| N70e6 | Right mounting console incident illumination | 63A |
| N70s15 | Panoramic sliding roof switch | 85A |
| N70s2 | Interior lamp button | 5A |
| N70s3 | Interior lamp automatic function button | 5A |
| N70s4 | Rear lamp button | 6A |
| N70s6 | Left front reading lamp button | 7A |
| N70s7 | Right front reading lamp button | 8A |

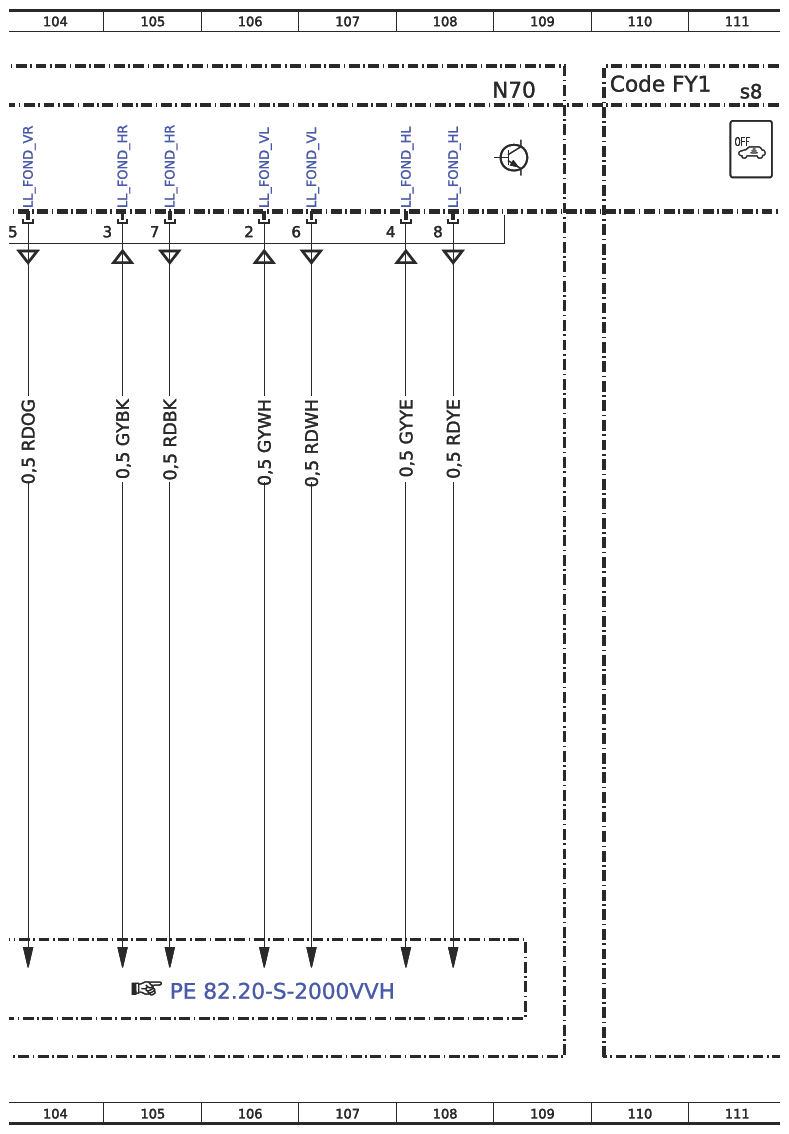

| N70s8 | Interior protection switch | 111A |
| N70s9 | Towing sensor button | 112A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 84L |
| S138/1 | Left sun visor illumination switch | 48L |
| S138/1x1 | Left sun visor illumination switch electrical connector | 48K |
| S138/2 | Right sun visor illumination switch | 51L |
| S138/2x1 | Right sun visor illumination switch electrical connector | 51K |
| S15 | Panoramic sliding sunroof roller sun blind switch | 87L |
| W2 | Right front lamp unit ground point | 95G |
| W38 | Roof frame ground point 1 | 5E |
| X133/3x1 | Panoramic sliding roof electrical connector | 83G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 96G |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 46H |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 80L |
| Z54/20 | Vanity mirror supply connector sleeve | 46F |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 48E |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 40L |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 33L |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 36L |
