Wiring Diagram For Cockpit Fuse Box - PE54.15-S-2911-97VKA
Model 447 with Code XM7 (MOPF II) F3/6
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 72L |
| A1 | Instrument cluster | 21L |
| A105 | Touchpad | 28L |
| A105 | Touchpad | 34L |
| A122 | Radio remote central locking antenna amplifier | 6L |
| A26/17 | Head unit | 51L |
| A26/17 | Head unit | 53L |
| A36 | Multimedia connection unit | 59L |
| A40/16 | Head unit/instrument cluster display cluster | 22L |
| A40/8 | Audio/COMAND display control unit | 54L |
| A49/5 | Stationary water heater radio remote control receiver | 47L |
| A56 | Digital tachograph (DTCO) control unit | 13L |
| Code E7M | MBUX multimedia system | 54) |
| Code EIO | Wireless charging system for mobile terminal devices | 62J |
| Code EQ3 | Toll system preinstallation | 39J |
| Code FY1 | Theft protection package | 14J |
| Code G43 | 9G-TRONIC | 37J |
| Code G43 | 9G-TRONIC | 29E |
| Code G43 | 9G-TRONIC | 24E |
| Code HY1 | Radio remote control for auxiliary water heater | 47J |
| Code J4V | EU intelligent tachograph pre-installation | 13J |
| Code JD6 | EU intelligent tachograph | 13J |
| Code JHO | Display package | 22J |
| Code JH3 | Communication module (LTE) for digital services | 61J |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 61J |
| Code JK8 | Driver camera | 45J |
| Code L | Valid for left-hand drive vehicles | 17F |
| Code M56 | 48V technology | 64J |
| Code R | Valid for right-hand drive vehicles | 19F |
| Code T55 | Electric controls for right sliding door | 33E |
| Code T55 | Electric controls for right sliding door | 27E |
| Code T56 | Electric controls for left sliding door | 33E |
| Code T56 | Electric controls for left sliding door | 27E |
| Code ZG2 | All-wheel drive | 33E |
| Code ZG2 | All-wheel drive | 27E |
| F1 | Pre-fuse box | 4L |
| F1fA2 | Pre-fuse A2 | 2K |

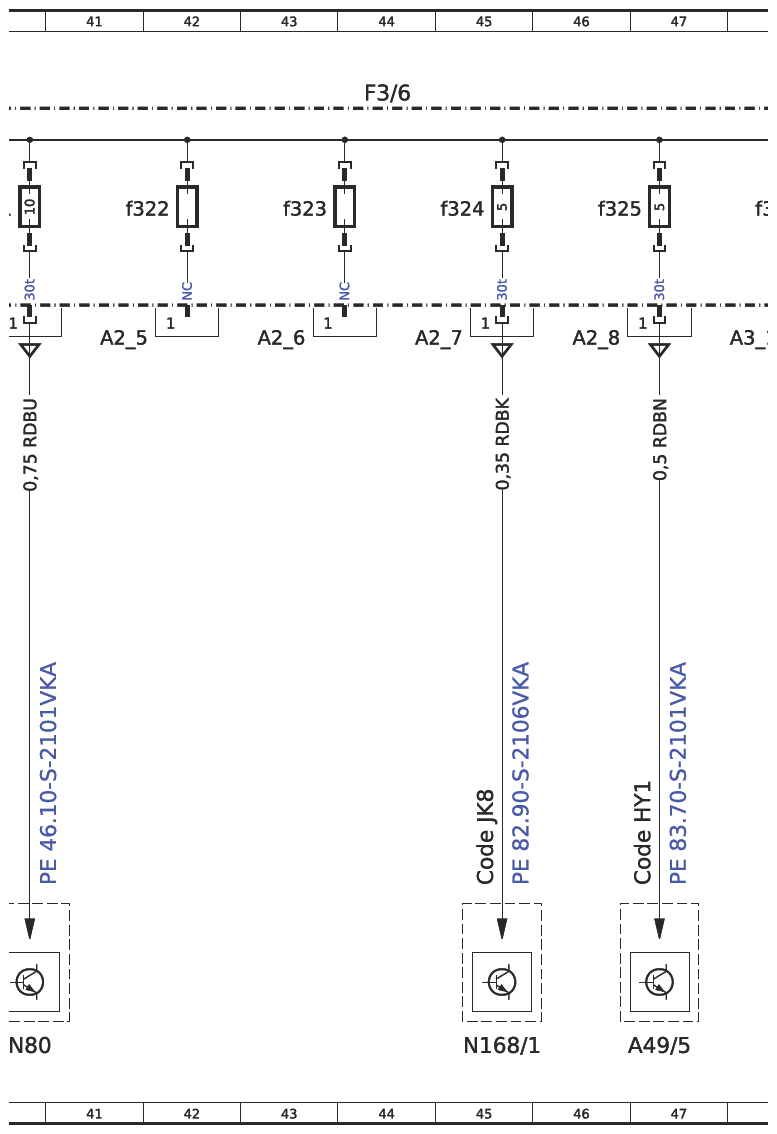

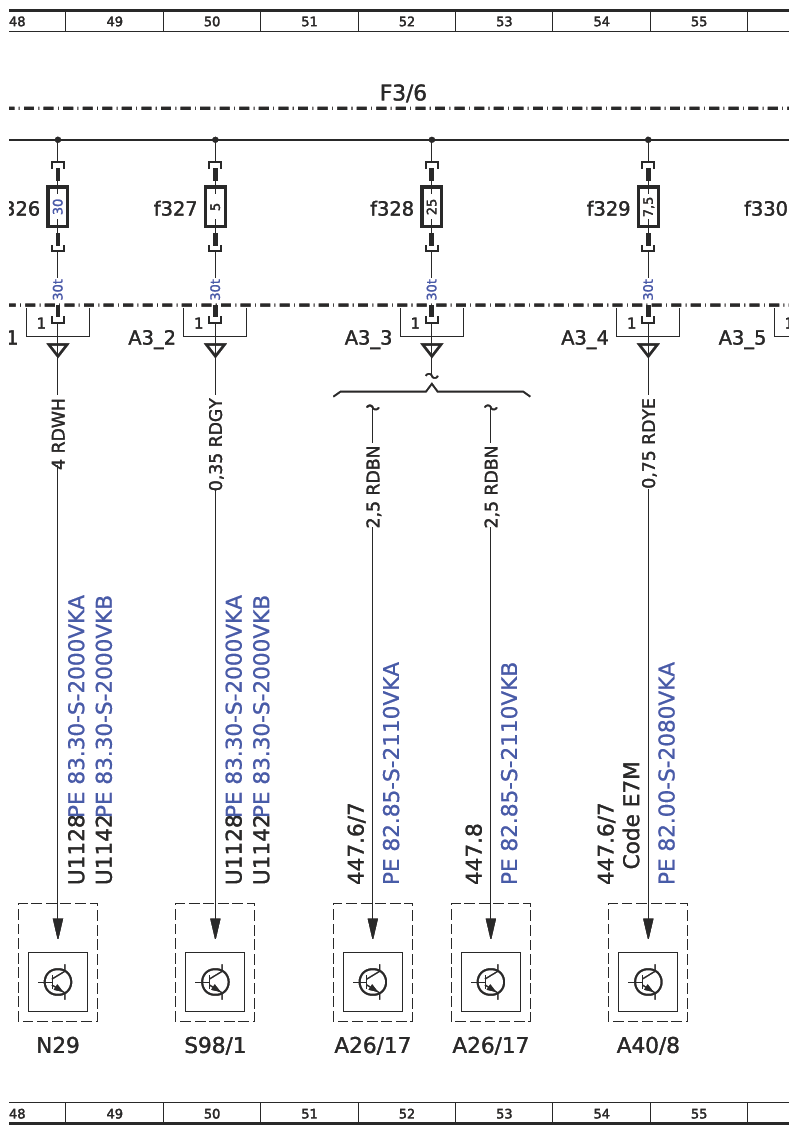

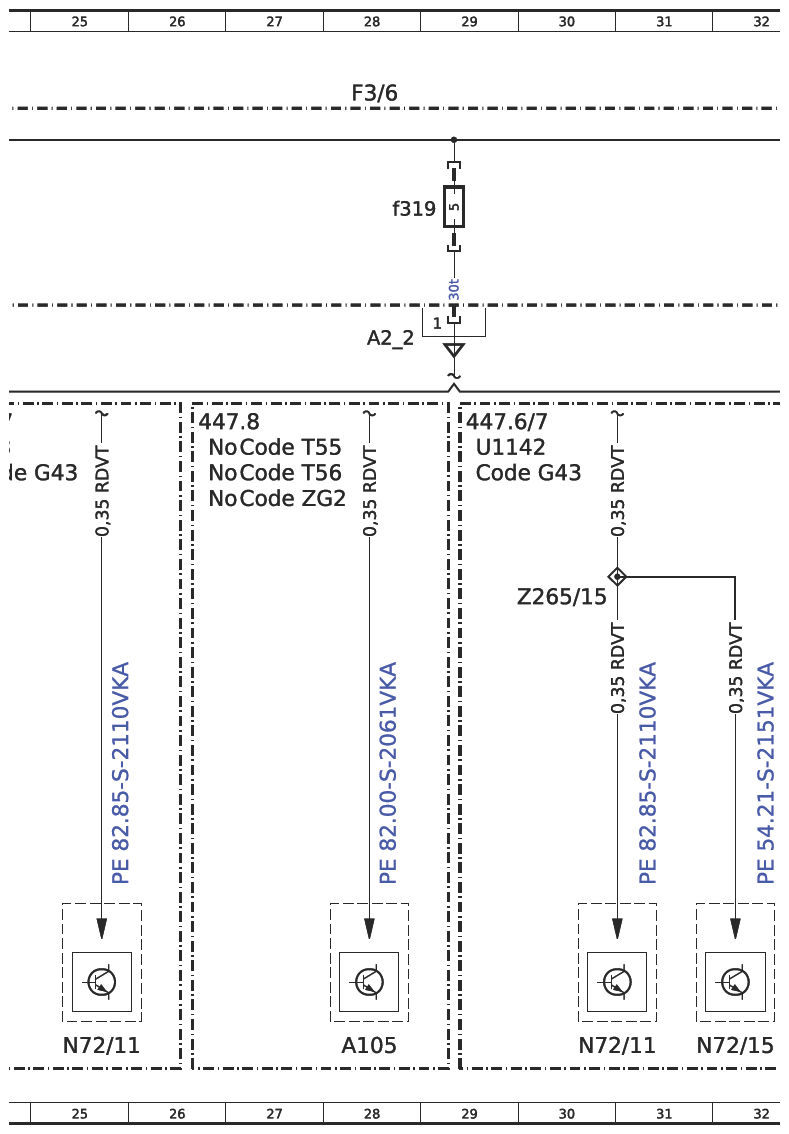

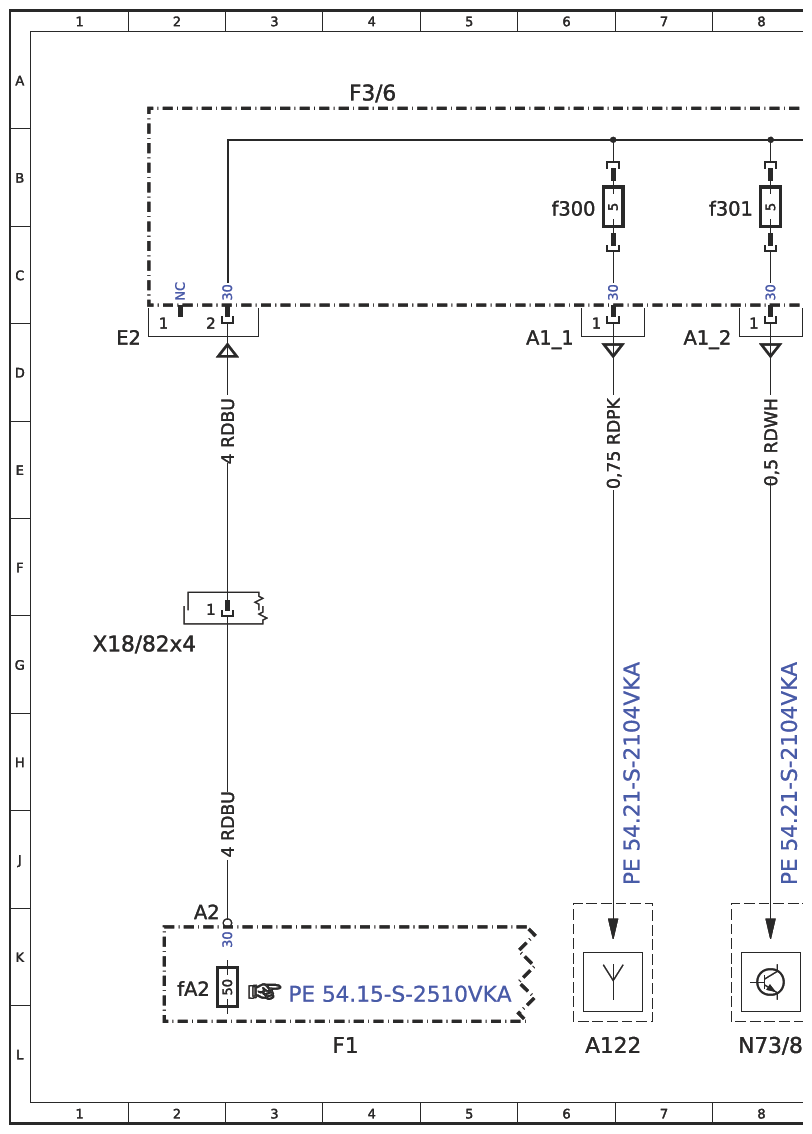

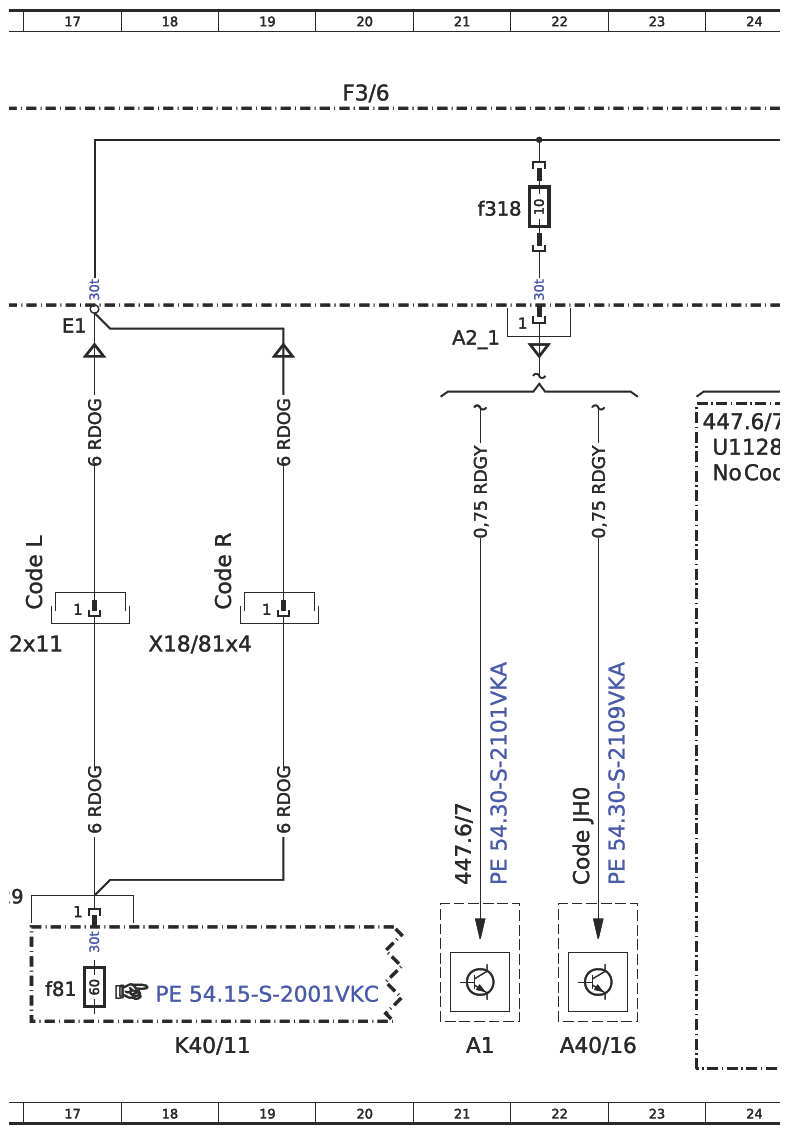

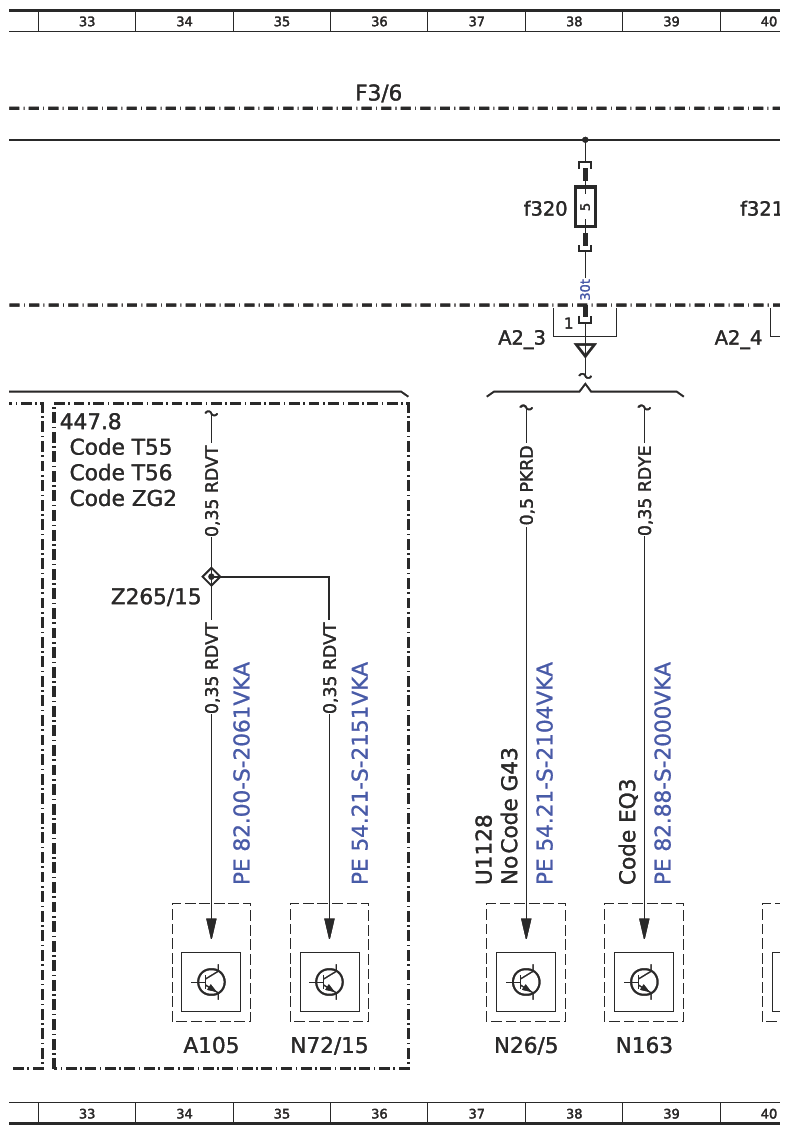

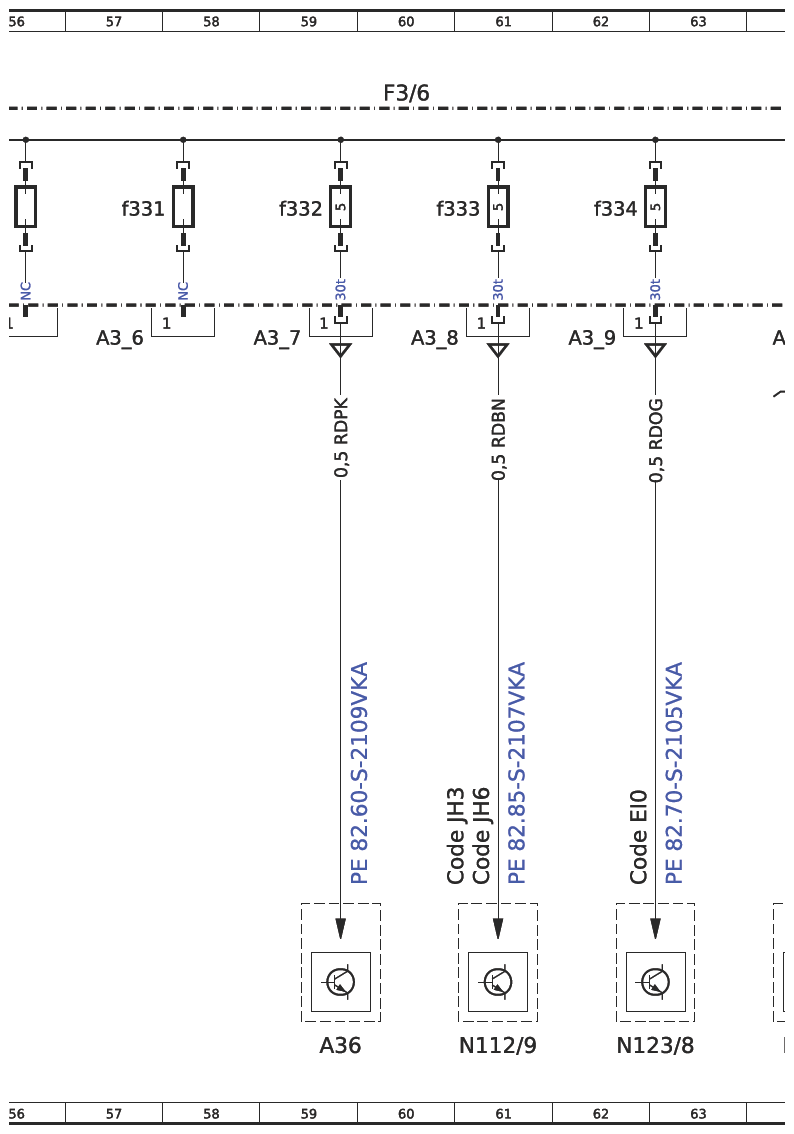

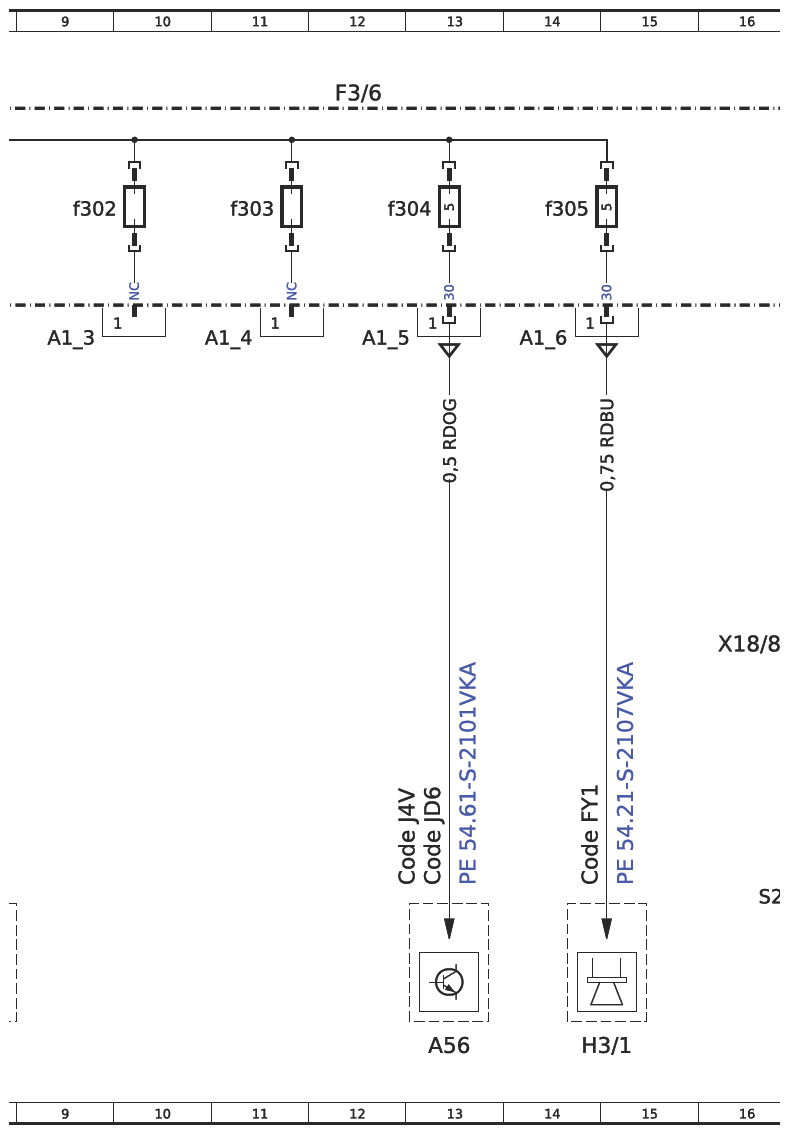

| F3/6 | Cockpit circuit 30/30t fuse box | 52A |
| F3/6 | Cockpit circuit 30/30t fuse box | 4A |
| F3/6 | Cockpit circuit 30/30t fuse box | 12A |
| F3/6 | Cockpit circuit 30/30t fuse box | 20A |
| F3/6 | Cockpit circuit 30/30t fuse box | 28A |
| F3/6 | Cockpit circuit 30/30t fuse box | 36A |
| F3/6 | Cockpit circuit 30/30t fuse box | 44A |
| F3/6 | Cockpit circuit 30/30t fuse box | 60A |
| F3/6f300 | Electrical fuse 300 | 6B |
| F3/6f301 | Fuse 301 | 8B |
| F3/6f304 | Fuse 304 | 13B |
| F3/6f305 | Fuse 305 | 14B |
| F3/6f318 | Fuse 318 | 21B |
| F3/6f319 | Fuse 319 | 28B |
| F3/6f320 | Fuse 320 | 38B |
| F3/6f321 | Fuse 321 | 40B |
| F3/6f324 | Fuse 324 | 45B |
| F3/6f325 | Fuse 325 | 46B |
| F3/6f326 | Fuse 326 | 48B |
| F3/6f327 | Fuse 327 | 50B |
| F3/6f328 | Fuse 328 | 52B |
| F3/6f329 | Electrical fuse 329 | 54B |
| F3/6f332 | Fuse 332 | 59B |
| F3/6f333 | Fuse 333 | 61B |
| F3/6f334 | Fuse 334 | 62B |
| F3/6f335 | Fuse 335 | 64B |

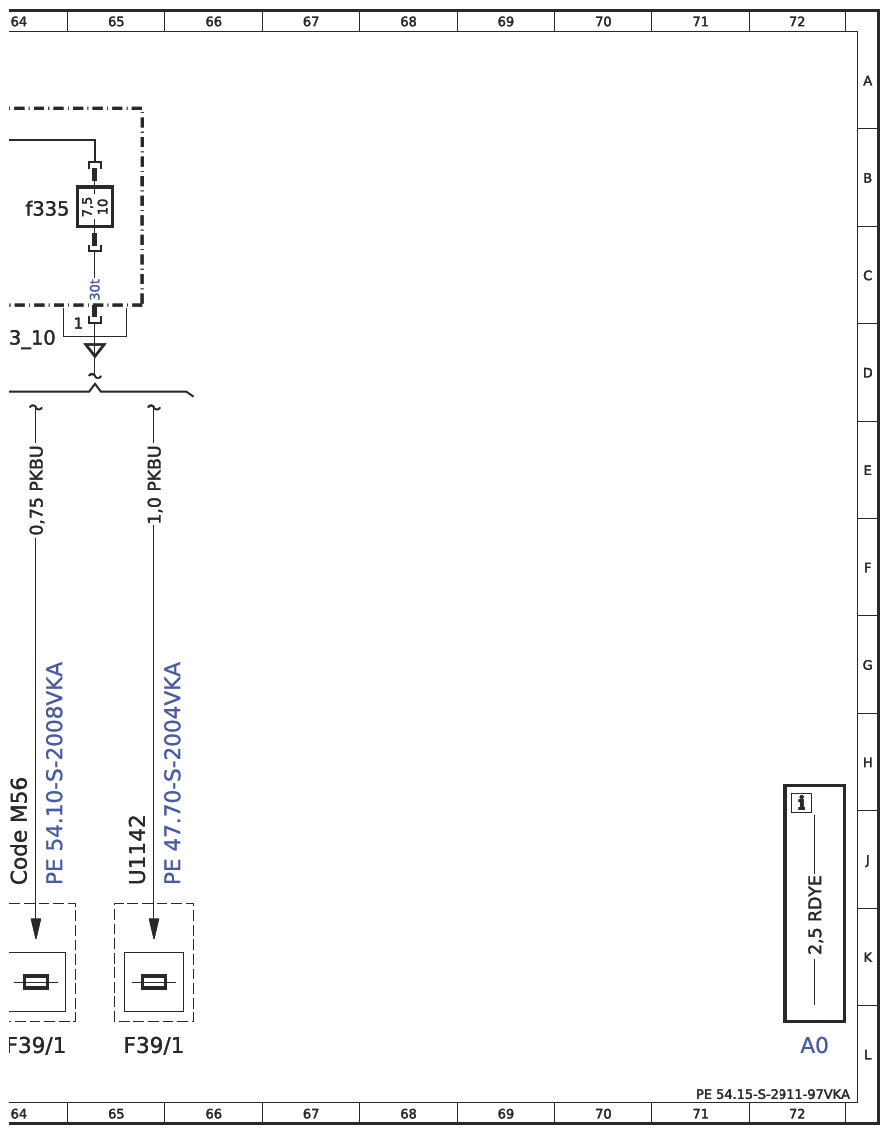

| F39/1 | Pyrofuse | 64L |
| F39/1 | Pyrofuse | 65L |
| H3/1 | Alarm siren with additional battery | 14L |
| K40/11 | Firewall fuse and relay module | 18L |
| K40/11f81 | Fuse 81 | 17K |
| N112/9 | HERMES control unit | 61L |
| N123/8 | Mobile phone cradle control unit | 62L |
| N163 | Toll system control unit | 39L |
| N168/1 | Driver camera control unit | 45L |
| N26/5 | Electric steering lock control unit | 37L |
| N29 | Electronic blower controller | 48L |
| N72/11 | Head unit control panel control unit | 25L |
| N72/11 | Head unit control panel control unit | 30L |
| N72/15 | Control panel switch control unit | 32L |
| N72/15 | Control panel switch control unit | 35L |
| N73/8 | Electronic ignition lock (EZS) control unit | 8L |
| N80 | Steering column tube module (MRM) control unit | 40L |
| S98/1 | Front heater/air conditioning operating unit switch | 50L |
| U1128 | Valid for combustion engine | 37J |
| U1128 | Valid for combustion engine | 24E |
| U1128 | Valid for combustion engine | 50J |
| U1128 | Valid for combustion engine | 49J |
| U1142 | Valid for electric vehicle | 29E |
| U1142 | Valid for electric vehicle | 65J |
| U1142 | Valid for electric vehicle | 51J |
| U1142 | Valid for electric vehicle | 49J |
| X18/81x4 | Left cockpit/main wiring harness electrical connector 4 | 18G |
| X18/82x11 | Right cockpit/main wiring harness electrical connector 11 | 16G |
| X18/82x4 | Right cockpit/main wiring harness electrical connector 4 | 2G |
| Z265/15 | Terminal 30t connector sleeve | 30F |
| Z265/15 | Terminal 30t connector sleeve | 34F |
