(Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) N10/1
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) N10/1
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) N10/1
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) N10/1
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 176L |

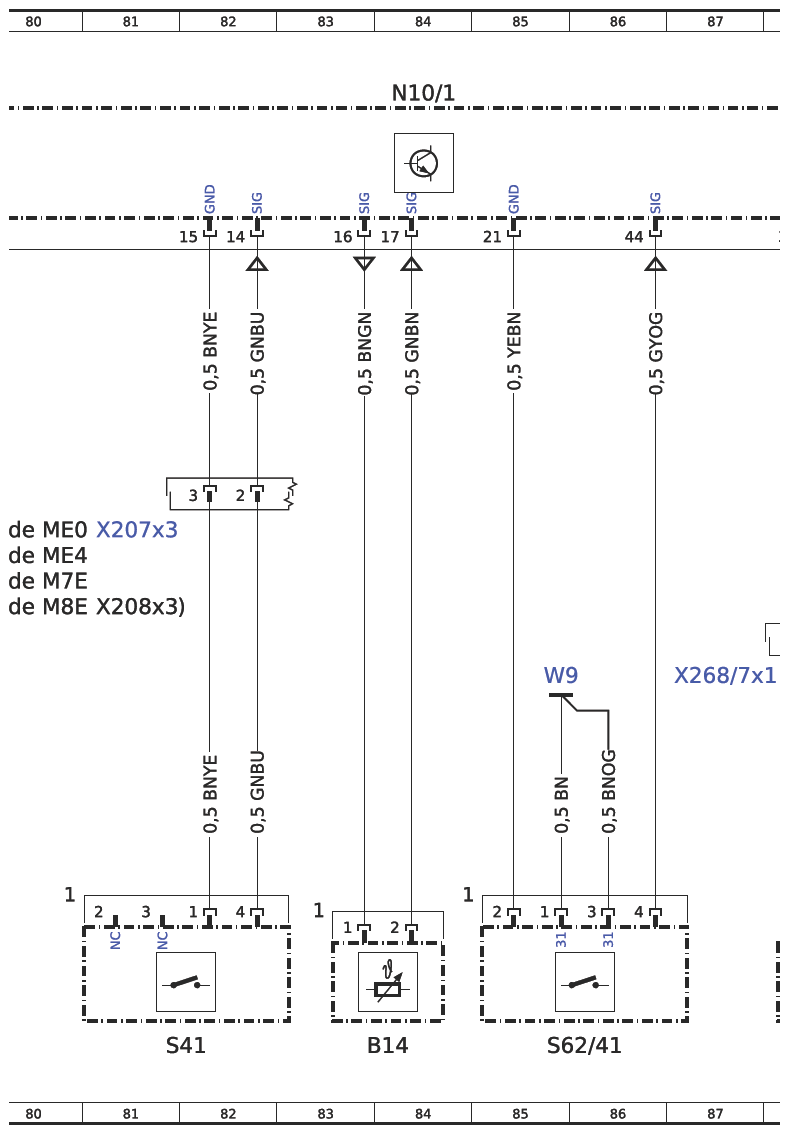

| B14 | Outside temperature sensor | 84L |
| B95 | Battery sensor | 132L |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 129K |
| Code E7A | Digital radio (DAB) pre-installation | 25J |
| Code EK1 | Terminal strip for electrical connection | 169J |
| Code ERO | Radio preinstallation | 20J |
| Code ERO | Radio preinstallation | 21J |
| Code ERO | Radio preinstallation | 23J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 79J |
| Code EZ8 | PARKTRONIC | 32D |
| Code FKA | Panel van | 66J |
| Code FKA | Panel van | 68J |
| Code FKA | Panel van | 70J |
| Code FKA | Panel van | 72J |
| Code FKB | Vito Mixto and Tourer | 156J |
| Code FKB | Vito Mixto and Tourer | 68J |
| Code FKB | Vito Mixto and Tourer | 72J |
| Code FKB | Vito Mixto and Tourer | 26J |
| Code FY2 | Additional door lock | 158J |
| Code FY2 | Additional door lock | 156J |
| Code JA1 | Warning lamp for washer fluid for level | 134F |
| Code JAl | Warning lamp for washer fluid for level | 136F |
| Code JWO | Backup warning system | 52J |
| Code L | Valid for left-hand drive vehicles | 7E |
| Code L | Valid for left-hand drive vehicles | 15E |
| Code L | Valid for left-hand drive vehicles | 92G |
| Code L | Valid for left-hand drive vehicles | 134F |
| Code L16 | Halogen front fog lamps | 58J |
| Code L16 | Halogen front fog lamps | 119J |
| Code L84 | Additional rear turn signal lamps on roof | 57J |
| Code L84 | Additional rear turn signal lamps on roof | 118J |
| Code L84 | Additional rear turn signal lamps on roof | 166J |
| Code LC7 | Lighting for front footwell | 31J |
| Code LG2 | LED Intelligent Light System | 40J |
| Code LG2 | LED Intelligent Light System | 43J |
| Code LG2 | LED Intelligent Light System | 42J |
| Code LG2 | LED Intelligent Light System | 102J |
| Code LG2 | LED Intelligent Light System | 105J |
| Code LG2 | LED Intelligent Light System | 104J |
| Code LG2 | LED Intelligent Light System | 18J |
| Code LG2 | LED Intelligent Light System | 18J |
| Code LG2 | LED Intelligent Light System | 107J |
| Code LG2 | LED Intelligent Light System | 109J |
| Code LG2 | LED Intelligent Light System | 47J |
| Code LG2 | LED Intelligent Light System | 46J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 48J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 50J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 54J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 110J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 113J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 115J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 56J |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 117J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 77J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 80F |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 77J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 80F |
| Code MEO | Electric motor 85 kW | 80F |
| Code MEO | Electric motor 85 kW | 76J |
| Code ME4 | Electric motor 145 kW | 80F |
| Code ME4 | Electric motor 145 kW | 76J |
| Code R | Valid for right-hand drive vehicles | 8E |
| Code R | Valid for right-hand drive vehicles | 16E |
| Code R | Valid for right-hand drive vehicles | 158J |
| Code R | Valid for right-hand drive vehicles | 155J |
| Code R | Valid for right-hand drive vehicles | 93G |
| Code R | Valid for right-hand drive vehicles | 135F |
| Code R | Valid for right-hand drive vehicles | 113J |
| Code R | Valid for right-hand drive vehicles | 111J |
| Code S00 | Airbag control unit generation AB12 | 127J |
| Code S00 | Airbag control unit generation AB12 | 126J |
| Code T19 | Left sliding door | 156J |
| Code V85 | Smoker's package | 21J |
| Code V85 | Smoker's package | 22J |
| Code V85 | Smoker's package | 24J |
| Code W32 | Rear passenger compartment electr. pop-out window | 160J |
| Code W32 | Rear passenger compartment electr. pop-out window | 128J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 62J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 73J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 123J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 63J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 74J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 123J |
| Code W65 | Liftgate | 60J |
| Code W65 | Liftgate | 120J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 123J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 149F |
| Code YG4 | Load compartment tray | 59J |
| Code ZK2 | Taxi version with emergency alarm system | 26J |
| Code ZK3 | Taxi version without emergency alarm system | 27J |
| Code ZM7 | Rental vehicle package with emergency alarm system | 27J |
| Code ZM8 | Rental vehicle package without emergency alarm system | 27J |

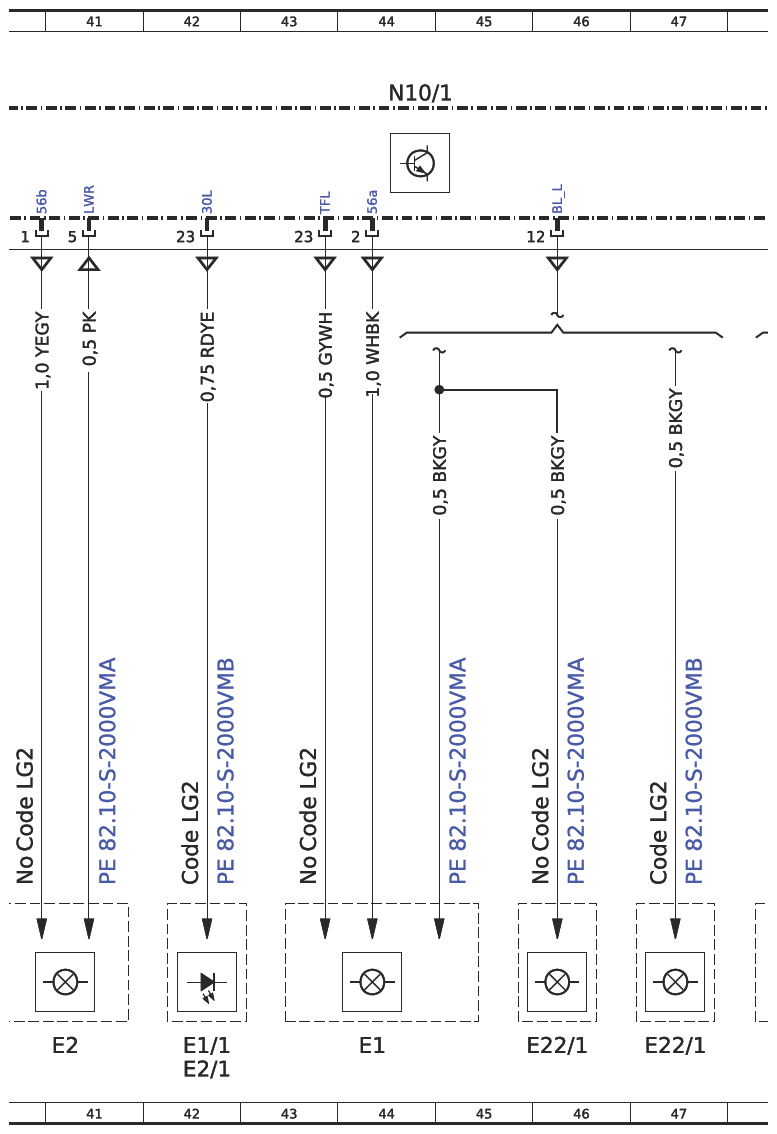

| E1 | Left front lamp unit | 44L |
| E1 | Left front lamp unit | 102L |
| E1/1 | Left front LED lamp unit | 42L |
| E1/1 | Left front LED lamp unit | 104L |
| E17/15 | Right front footwell lamp | 31L |
| El7/16 | Left front footwell lamp | 31L |
| E18/3 | Left luggage compartment lamp | 59L |
| E19/1 | Left license plate lamp | 61L |
| E19/2 | Right license plate lamp | 61L |
| E19/3 | Left rear-end door license plate lamp | 64L |
| E19/4 | Right rear-end door license plate lamp | 64L |

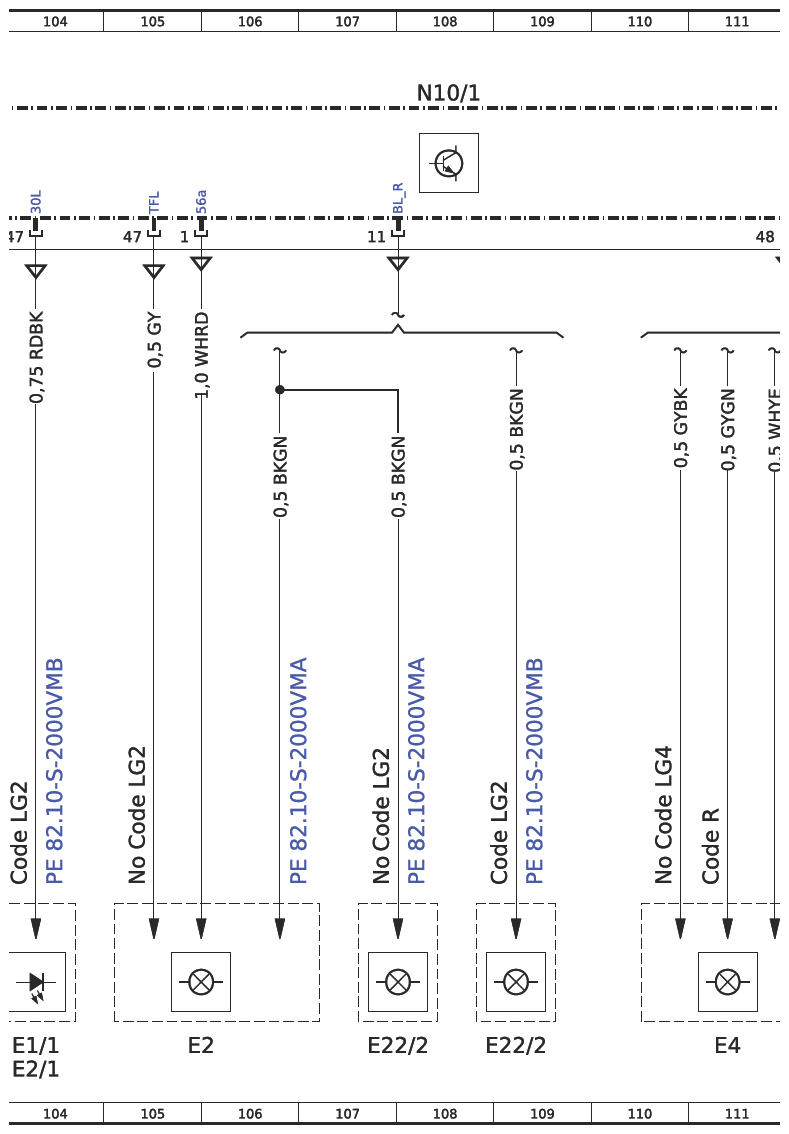

| E2 | Right front lamp unit | 41L |
| E2 | Right front lamp unit | 105L |
| E2/1 | Right front LED lamp unit | 42L |
| E2/1 | Right front LED lamp unit | 104L |
| E21/1 | Rear-end door third brake light | 63L |
| E21/2 | Liftgate third brake light | 60L |
| E22/1 | Left additional turn signal lamp | 46L |
| E22/1 | Left additional turn signal lamp | 47L |
| E22/2 | Right additional turn signal lamp | 107L |
| E22/2 | Right additional turn signal lamp | 109L |
| E3 | Left rear lamp unit | 117L |

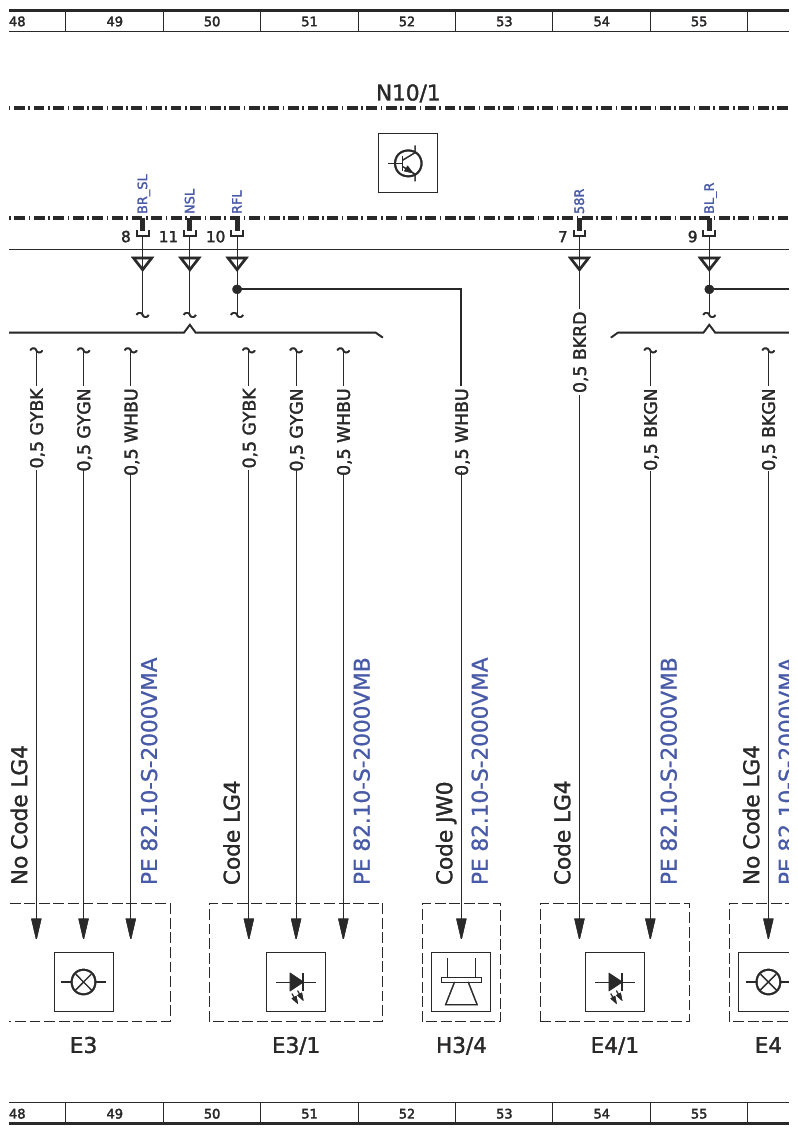

| E3 | Left rear lamp unit | 49L |
| E3/1 | Left rear LED lamp unit | 51L |
| E3/1 | Left rear LED lamp unit | 115L |
| E4 | Right rear lamp unit | 56L |
| E4 | Right rear lamp unit | 111L |

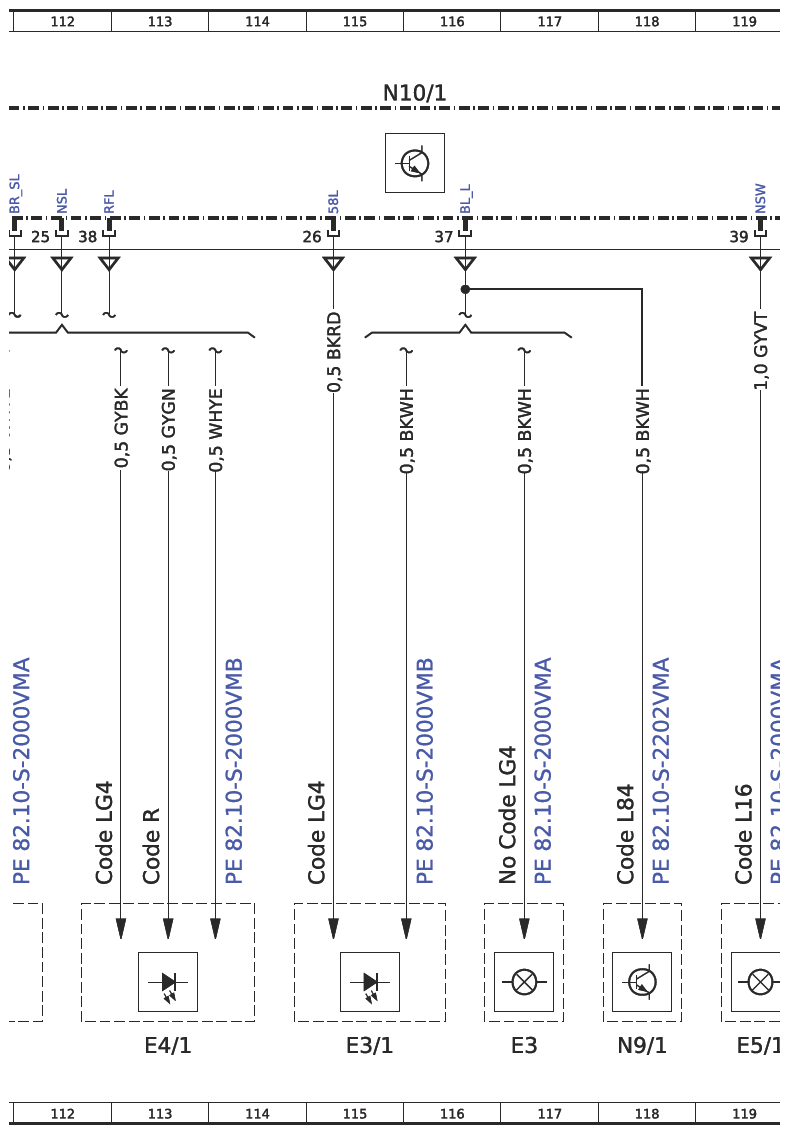

| E4/1 | Right rear LED lamp unit | 54L |
| E4/1 | Right rear LED lamp unit | 113L |
| E5/1 | Left fog lamp | 119L |
| E5/2 | Right fog lamp | 58L |
| F1 | Pre-fuse box | 15L |
| F109 | Emergency-P battery or backup battery fuse | 165L |
| F1fA13 | Pre-fuse A13 | 13K |
| H3/4 | Backup warning system horn | 52L |
| K10 | Rear window wiper 2 relay | 123L |
| K127 | Rear passenger compartment socket relay | 79L |
| K40/10 | Engine compartment fuse and relay module | 11L |
| K40/10 | Engine compartment fuse and relay module | 97L |
| K40/10 | Engine compartment fuse and relay module | 141L |
| K40/10f236 | Fuse 236 | 9K |

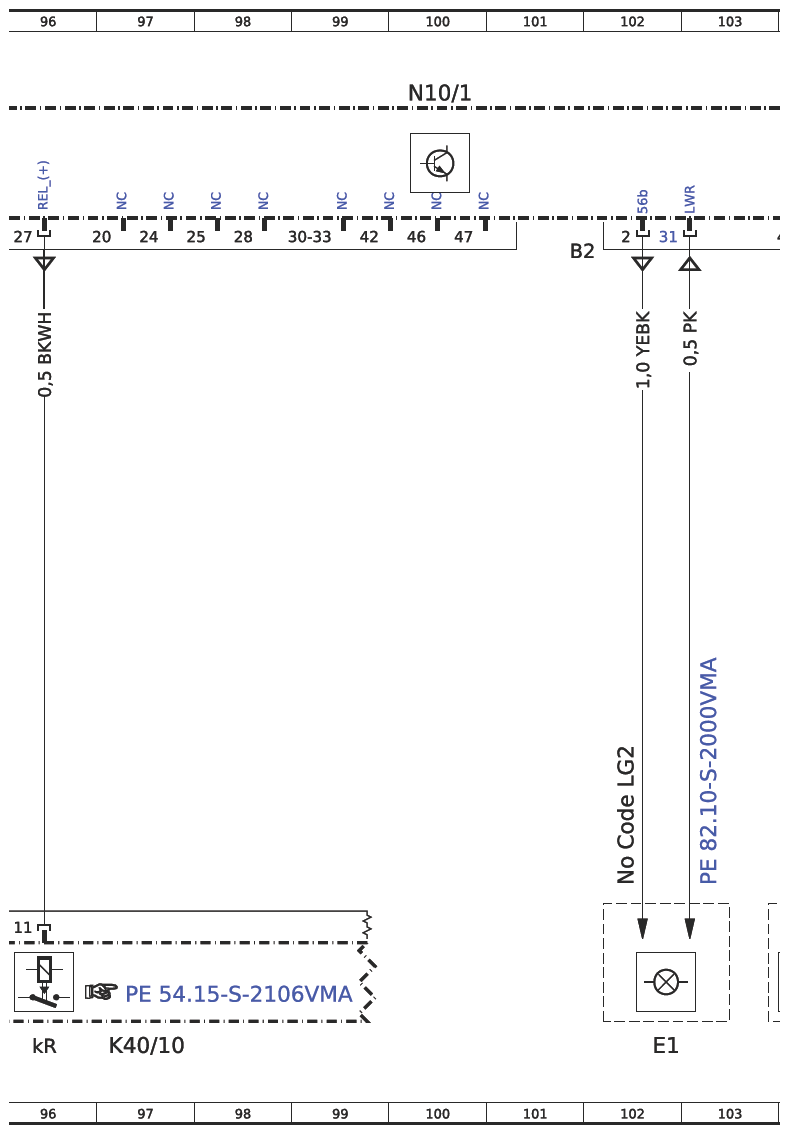

| K40/10kJ | Fanfare horn relay | 95L |
| K40/10kK | Wiper level 1/2 relay | 139L |
| K40/10kL | Windshield wiper ON/OFF relay | 140L |
| K40/10kR | Circuit 15 relay | 96L |

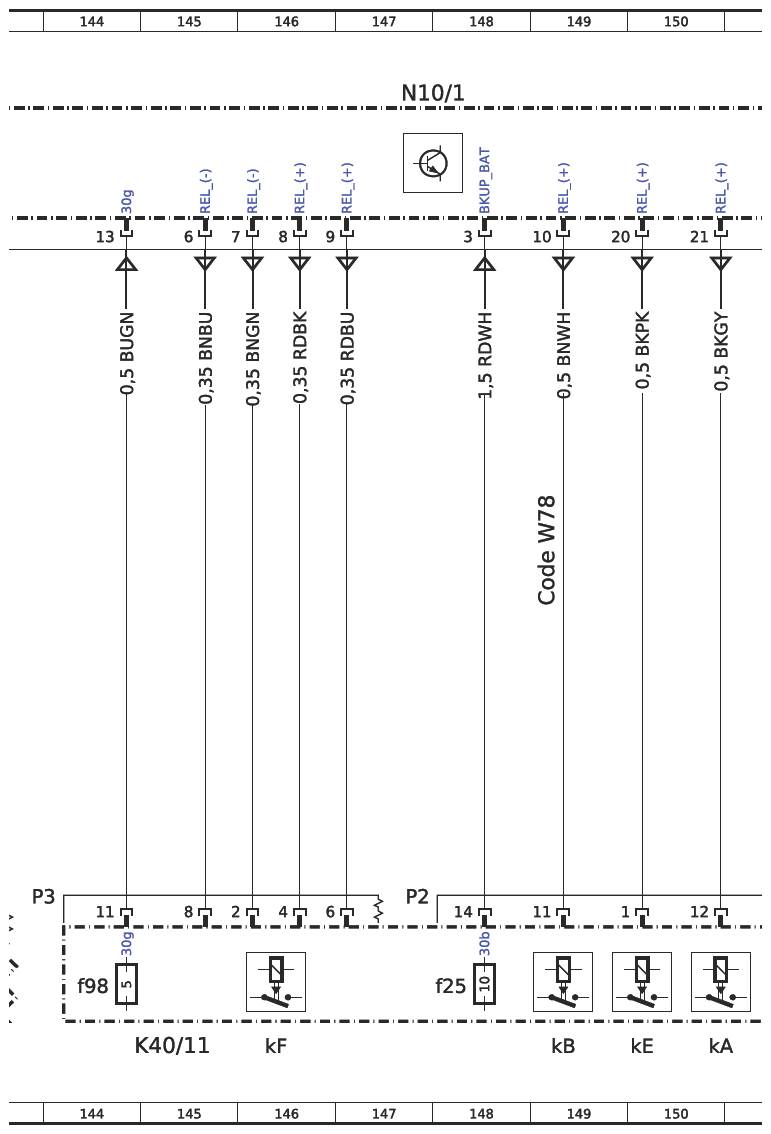

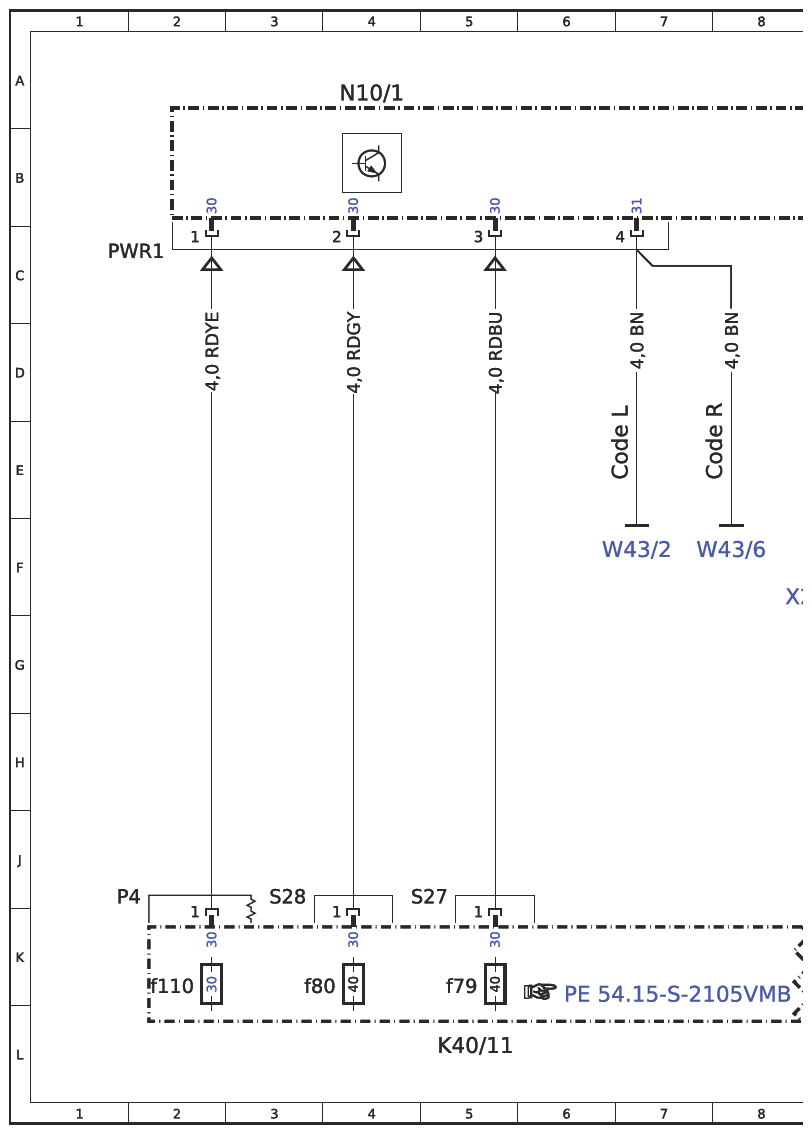

| K40/11 | Firewall fuse and relay module | 5L |
| K40/11 | Firewall fuse and relay module | 37L |
| K40/11 | Firewall fuse and relay module | 153L |
| K40/11 | Firewall fuse and relay module | 145L |
| K40/11f110 | Fuse 110 | 2K |
| K40/11f25 | Fuse 25 | 148K |
| K40/11f79 | Fuse 79 | 5K |
| K40/11f80 | Fuse 80 | 3K |
| K40/11f84 | Fuse 84 | |
| K40/11f98 | Fuse 98 | 144K |
| K40/11 kA | Circuit 15 relay | 150L |
| K40/11 kB | Rear window wiper relay | 149L |
| K40/11 kC | Circuit 15R2 relay | 151L |
| K40/11 kE | Circuit 15R1 relay | 150L |
| K40/11 kF | Circuit 30g relay | 146L |

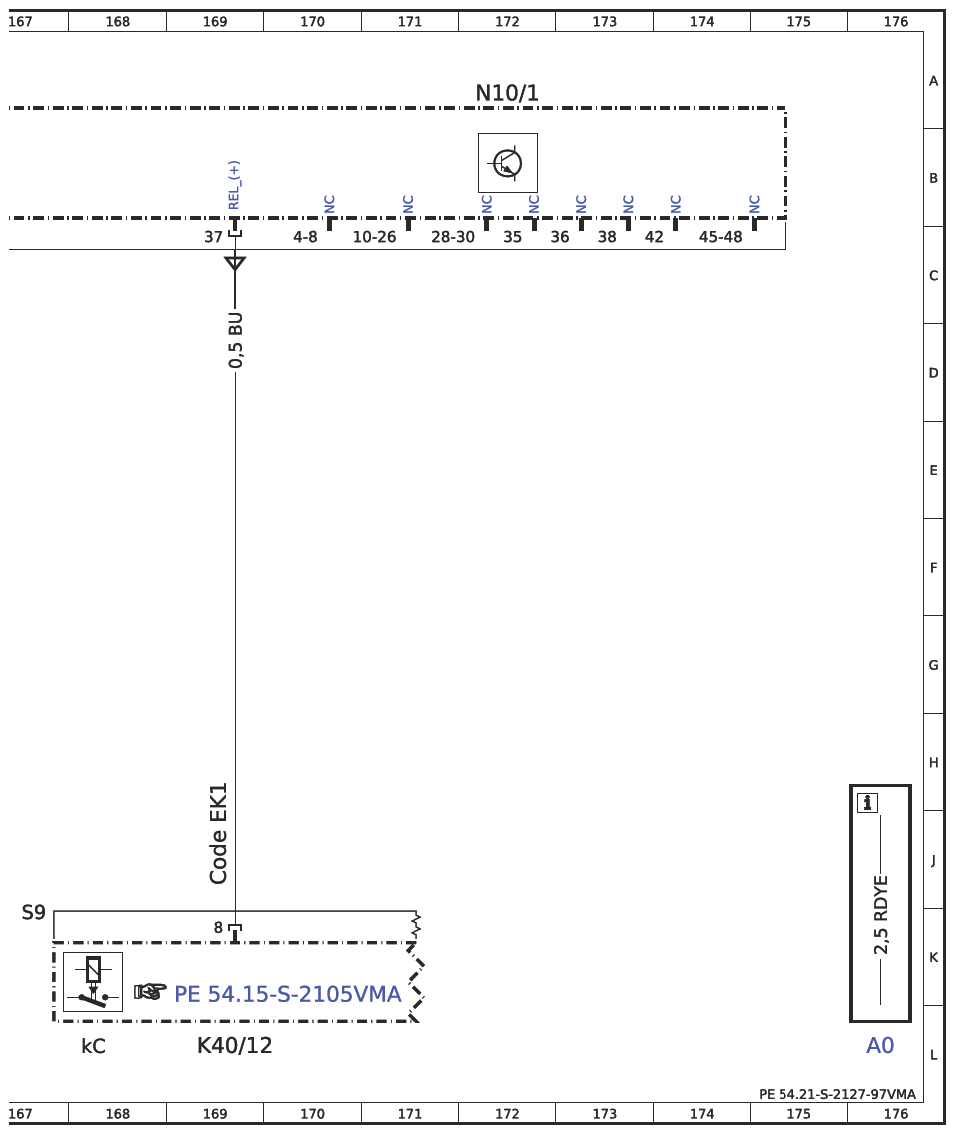

| K40/12 | Fuse and relay module, front passenger footwell | 169L |
| K40/12kC | Body manufacturer terminal 61 relay | 168L |

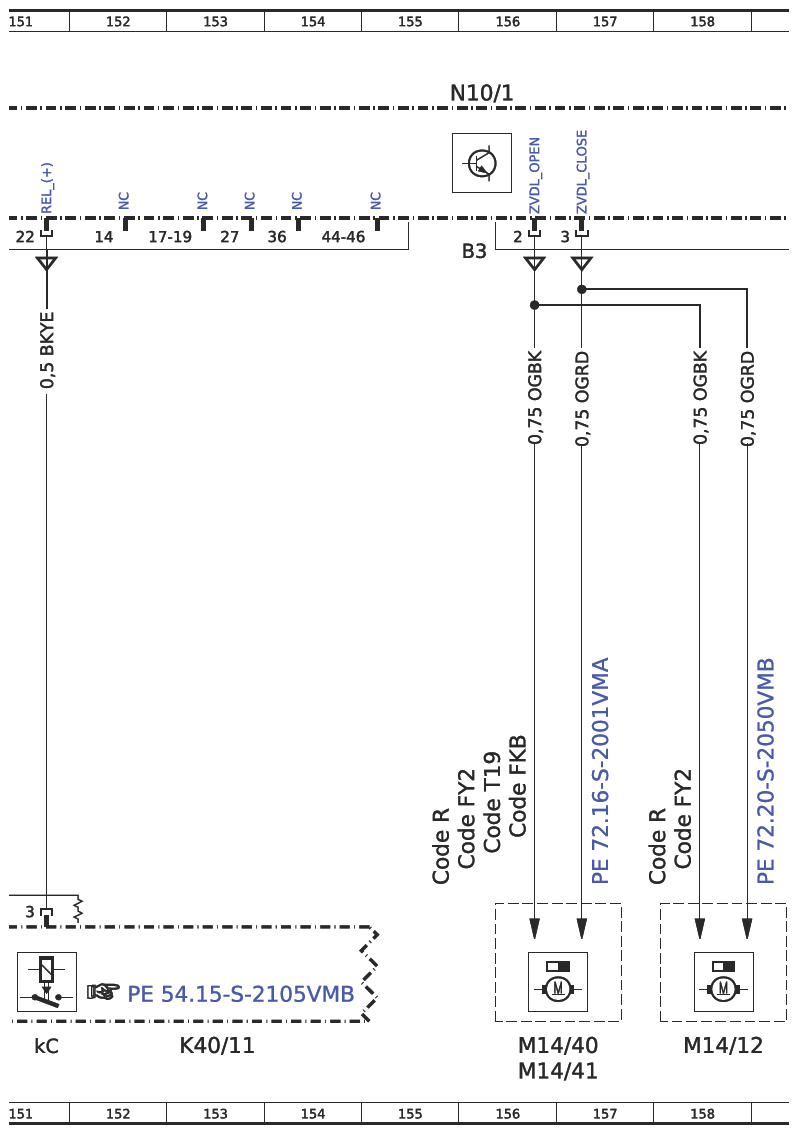

| M14/12 | Rear-end door operation central locking motor | 158L |
| M14/12 | Rear-end door operation central locking motor | 74L |

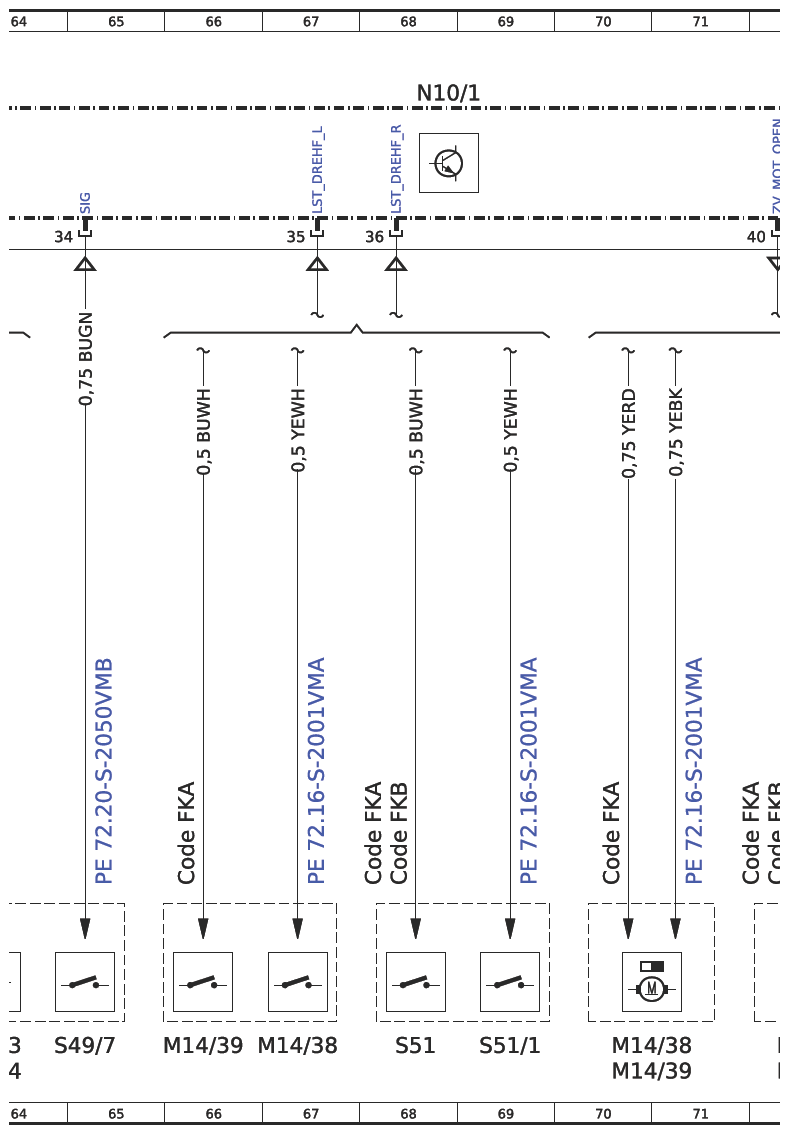

| M14/38 | Right manual sliding door central locking actuator | 67L |
| M14/38 | Right manual sliding door central locking actuator | 70L |
| M14/39 | Left manual sliding door central locking actuator | 66L |
| M14/39 | Left manual sliding door central locking actuator | 70L |
| M14/40 | Left manual sliding door central locking actuator | 156L |
| M14/40 | Left manual sliding door central locking actuator | 72L |
| M14/41 | Right manual sliding door central locking actuator | 156L |
| M14/41 | Right manual sliding door central locking actuator | 72L |

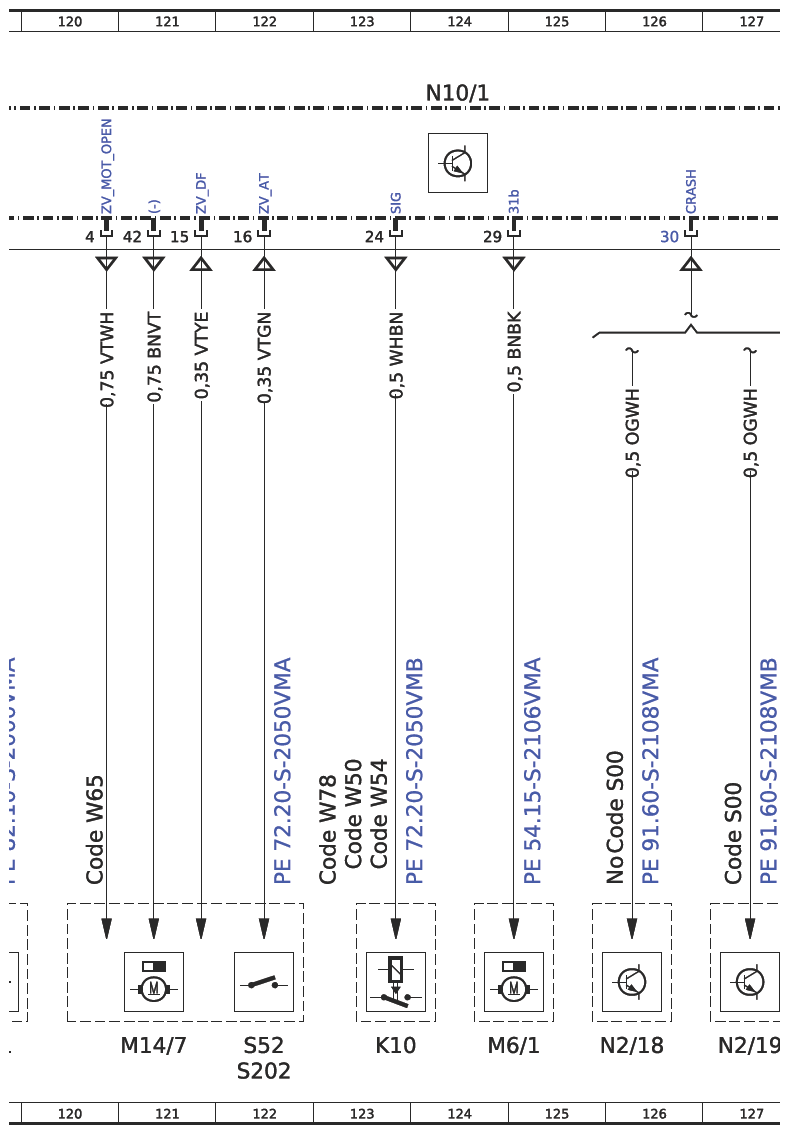

| M14/7 | Liftgate opening assist | 121L |

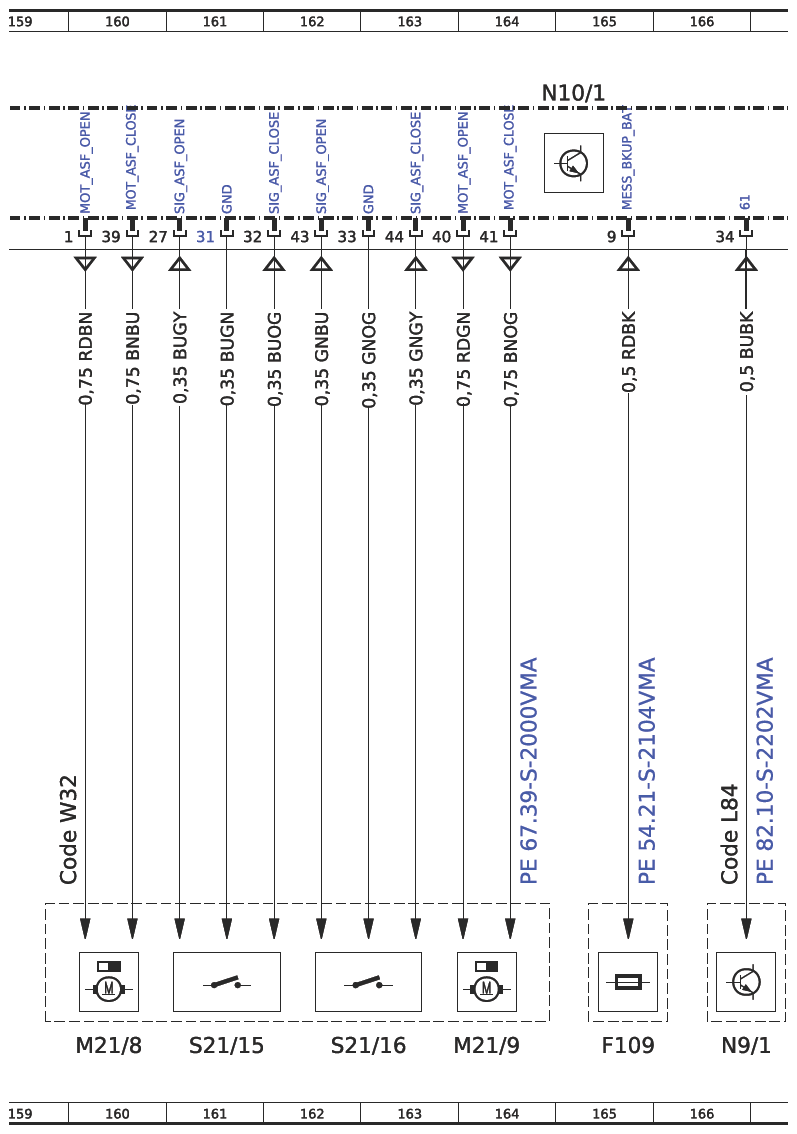

| M21/8 | Left vent window motor | 160L |
| M21/9 | Right vent window motor | 164L |
| M5/4 | Windshield washer system pump | 137L |
| M6/1 | Wiper motor | 124L |

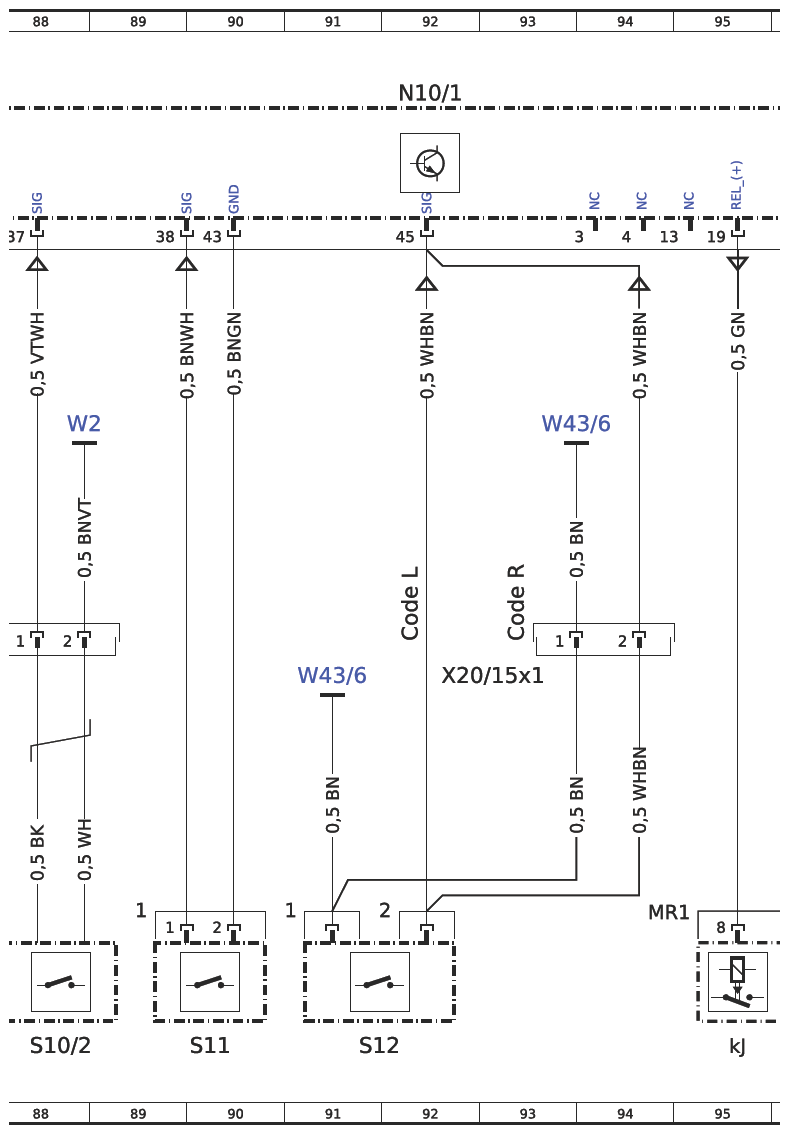

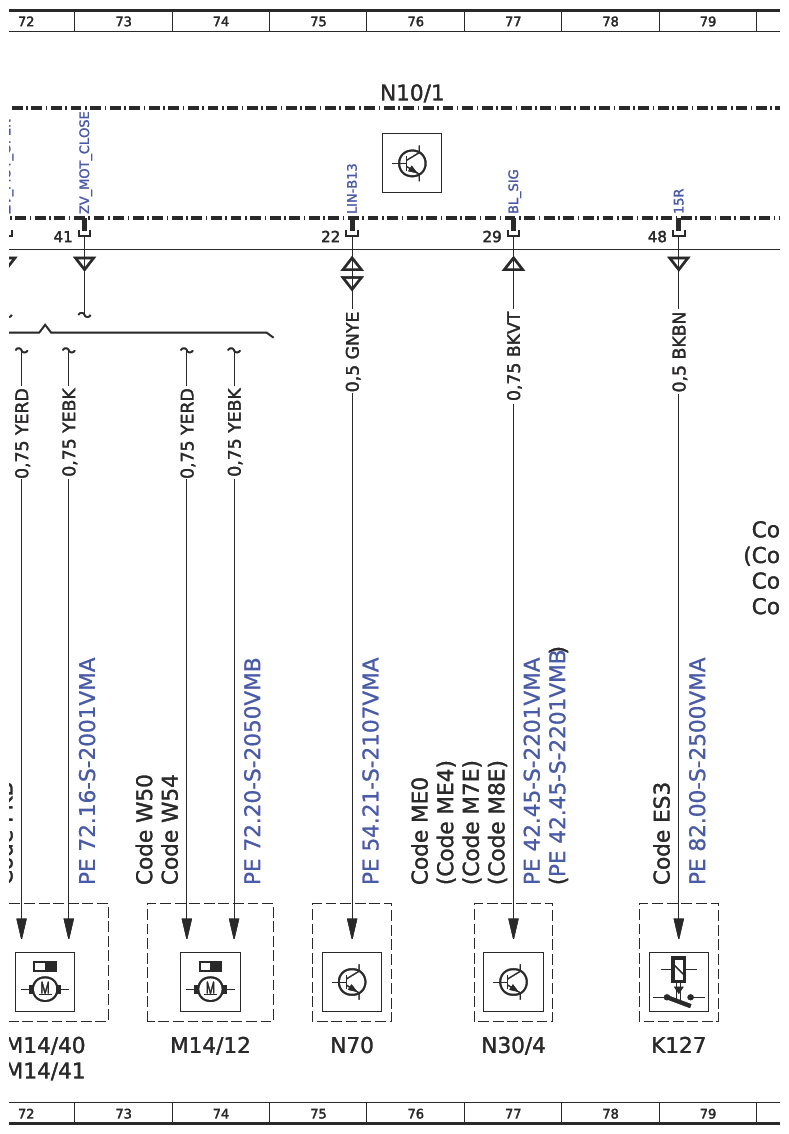

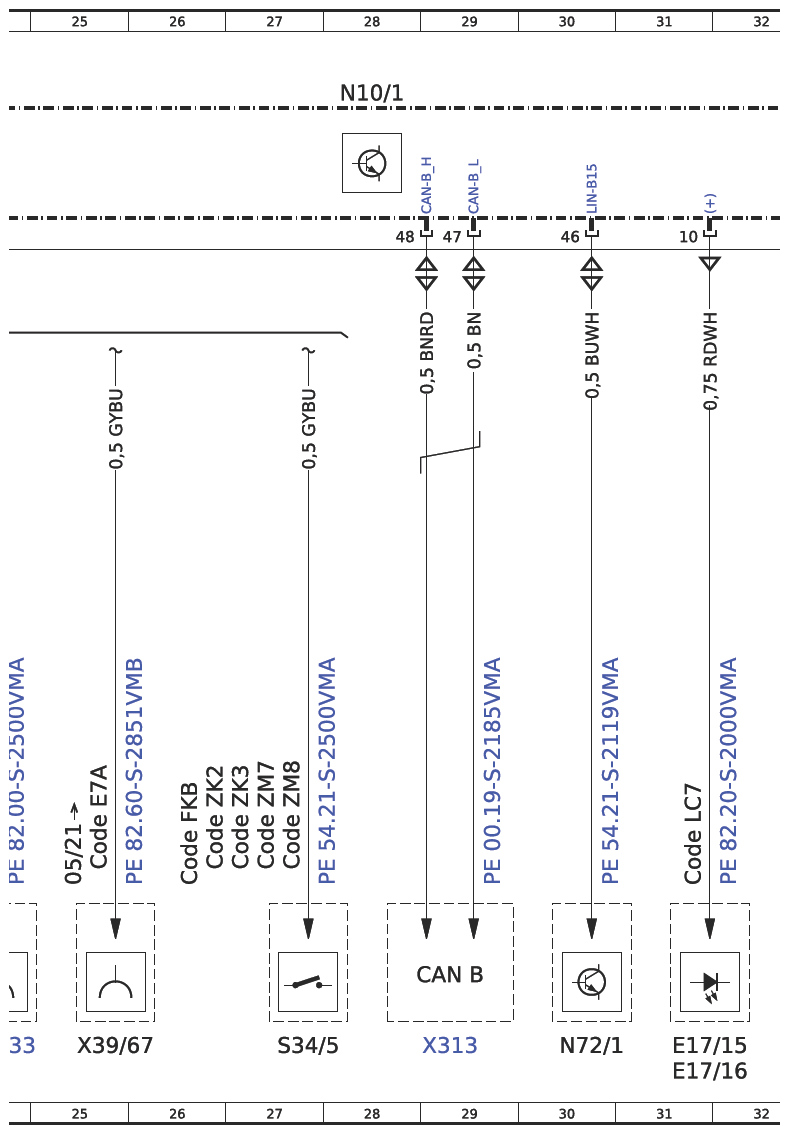

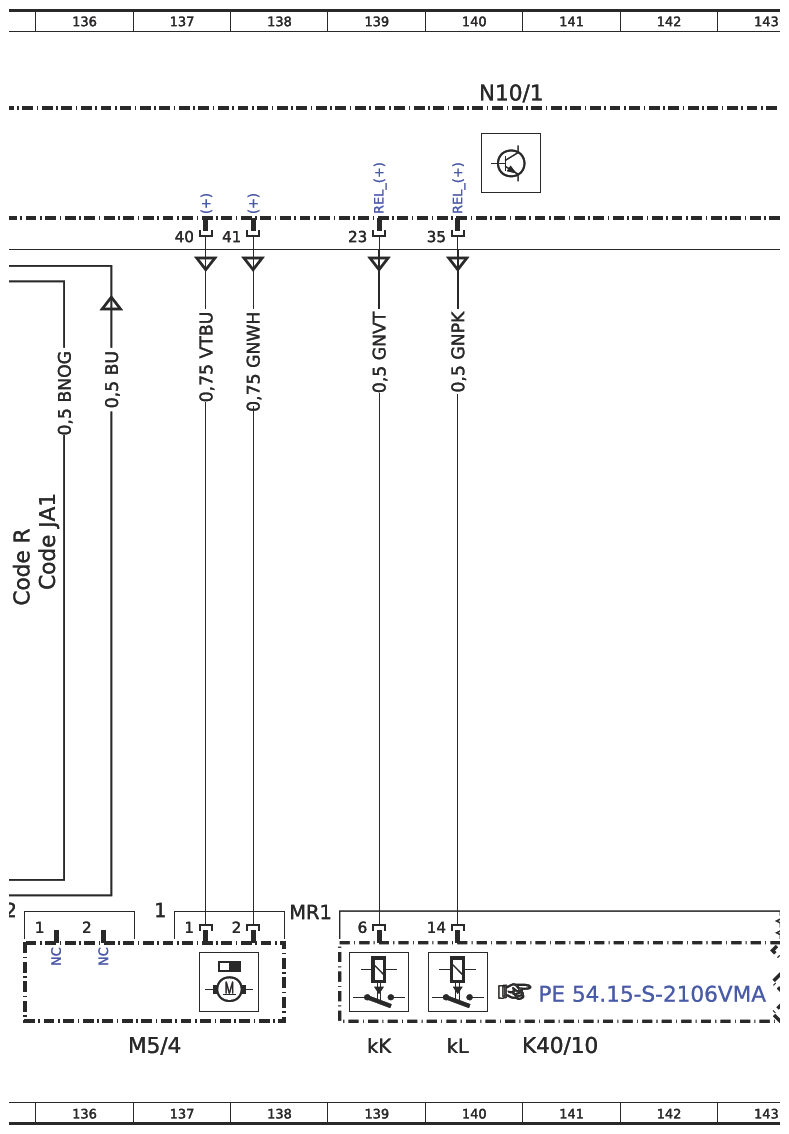

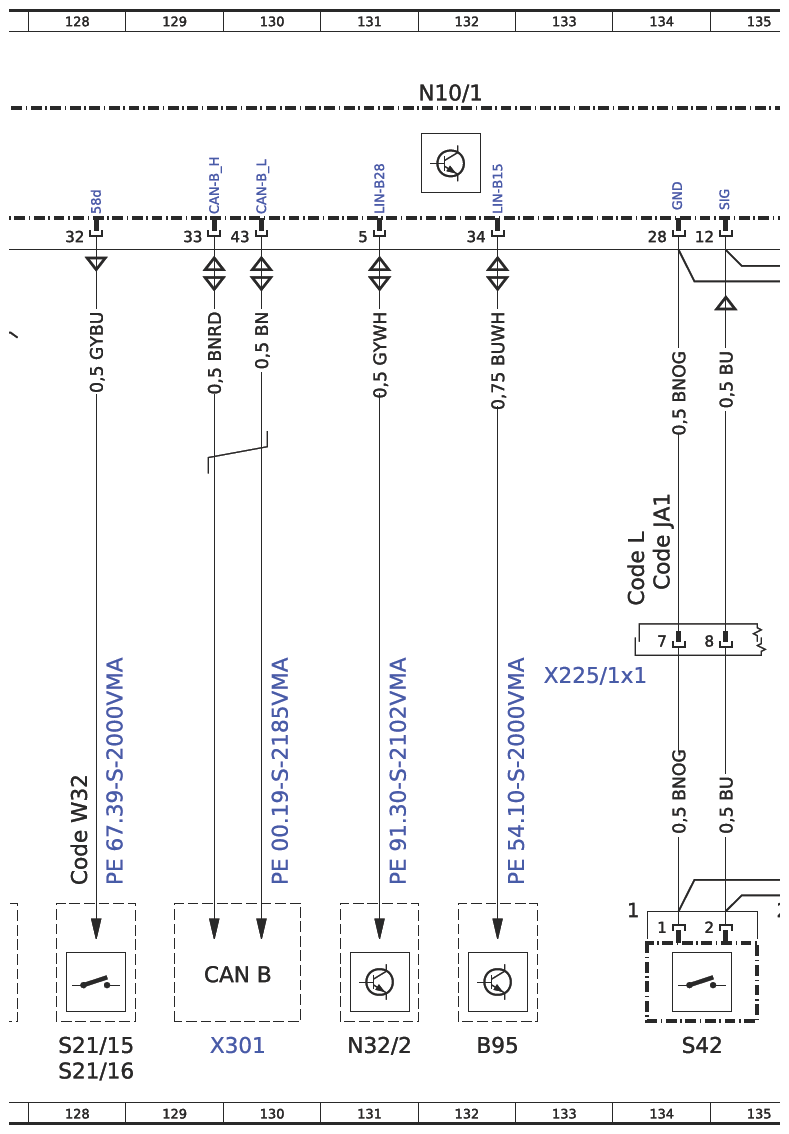

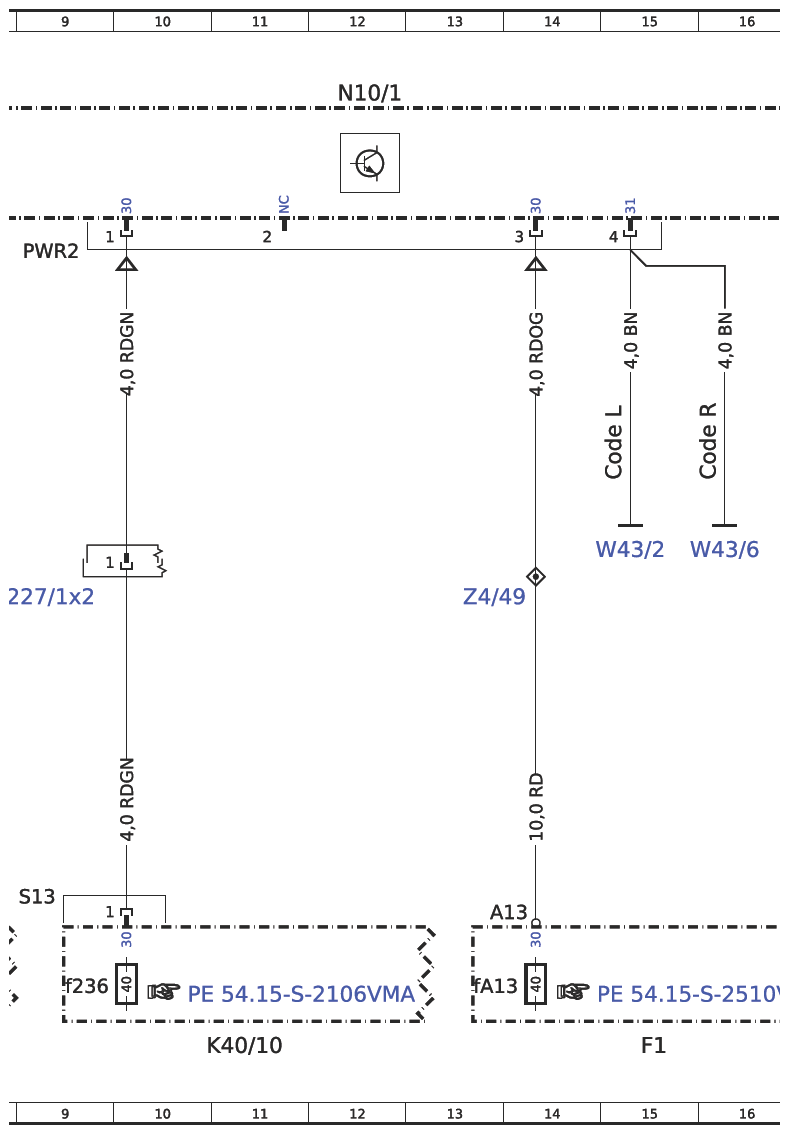

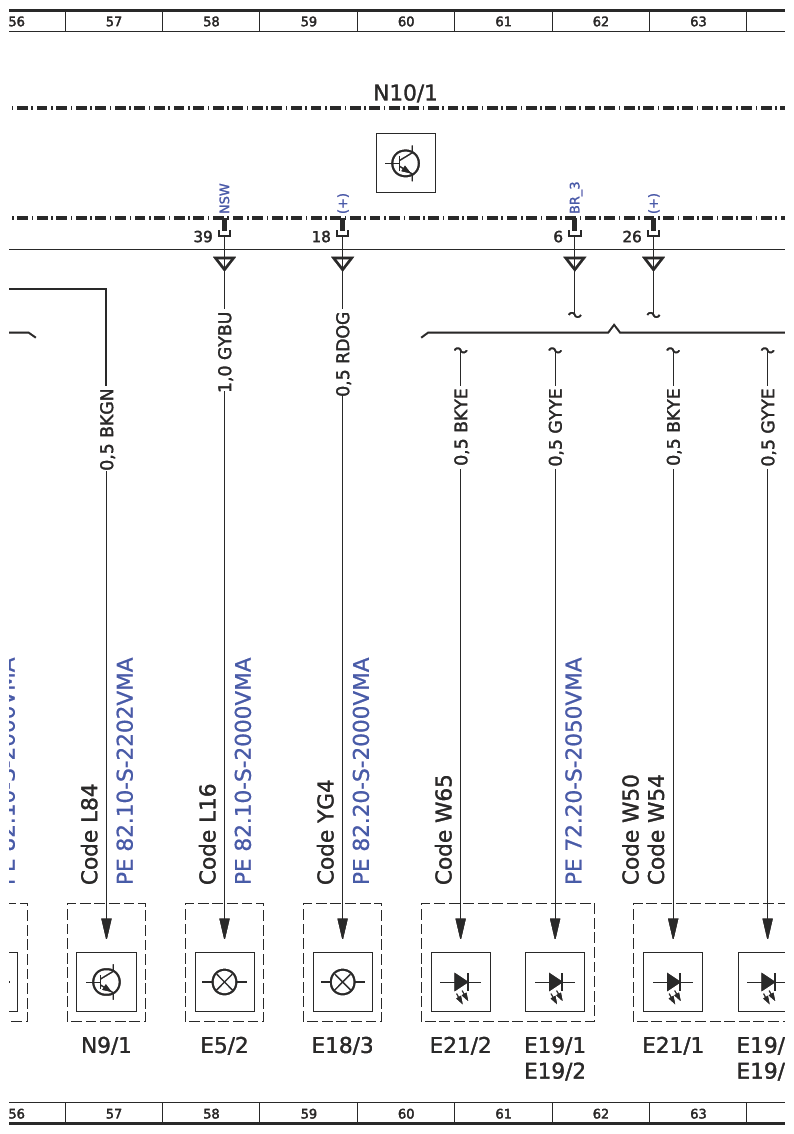

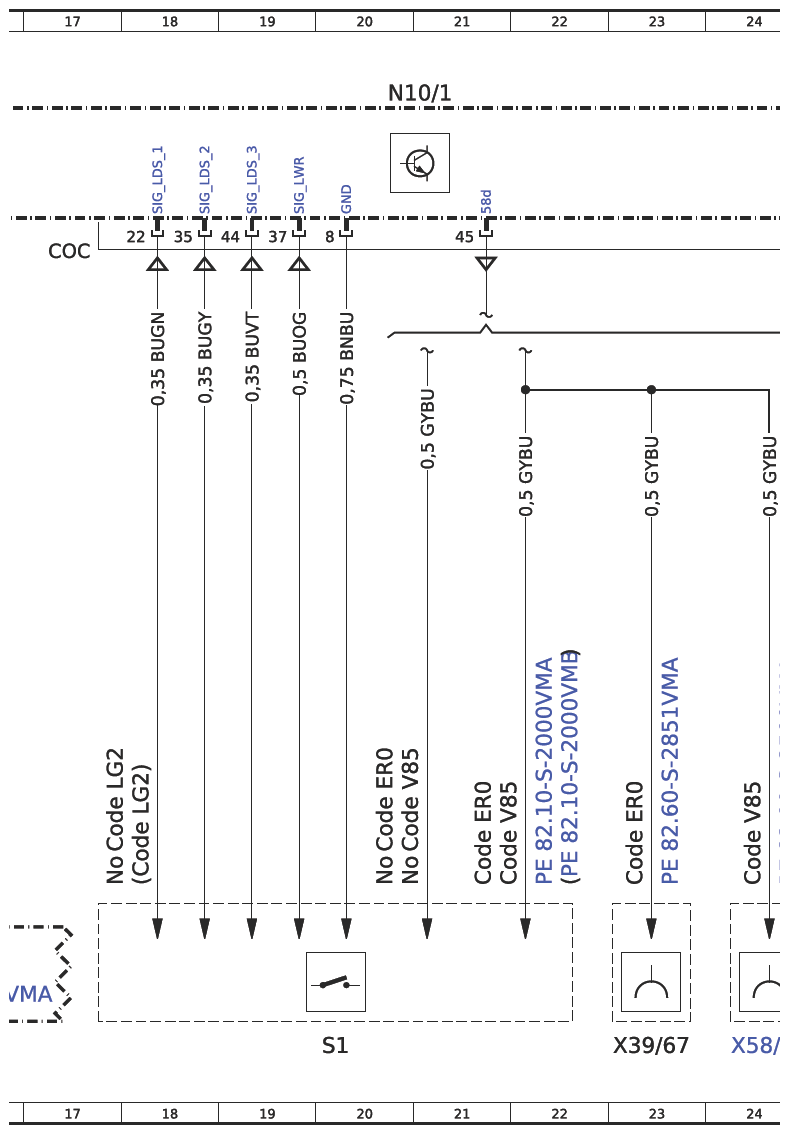

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 52A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 60A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 68A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 84A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 92A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 100A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 132A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 140A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 156A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 165A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 115A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 124A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 172A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 147A |
| N2/18 | Supplemental restraint system (SRS) control unit | 126L |
| N2/19 | Supplemental restraint system (SRS) control unit | 127L |
| N30/4 | Electronic Stability Program (ESP) control unit | 77L |
| N32/2 | Seat heating/ventilation control unit | 131L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 75L |
| N72/1 | Upper control panel (UCP [OBF]) control unit | 30L |

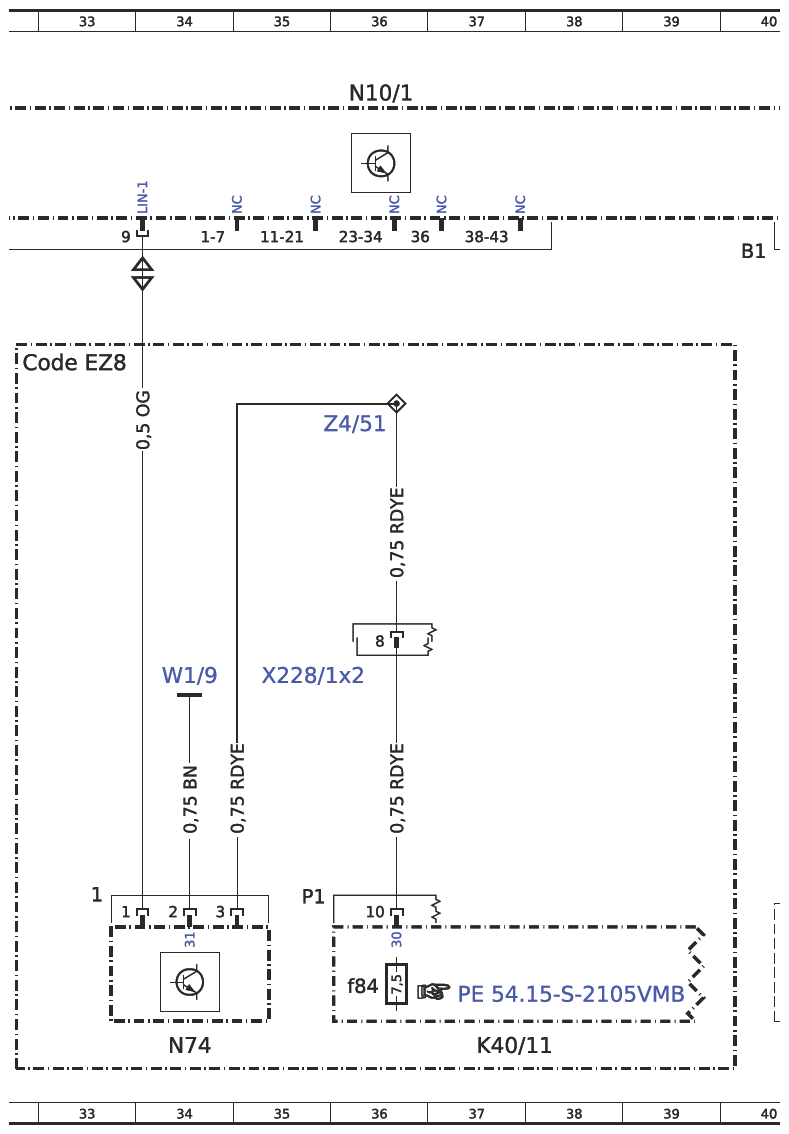

| N74 | Driver assistance systems operating panel control unit | 34L |
| N9/1 | Additional turn signal module control unit | 57L |
| N9/1 | Additional turn signal module control unit | 118L |
| N9/1 | Additional turn signal module control unit | 166L |
| S1 | Light switch | 20L |
| S10/2 | Right front brake wear sensor | 88L |
| S11 | Brake fluid level switch | 90L |
| S12 | Parking brake indicator switch | 91L |
| S202 | Reversing camera/360o camera liftgate open switch, external operation | 122L |
| S21/15 | Left vent window switch | 161L |
| S21/15 | Left vent window switch | 128L |
| S21/16 | Right vent window switch | 162L |
| S21/16 | Right vent window switch | 128L |
| S34/5 | Radio push-button | 27L |
| S41 | Coolant level indicator switch | 81L |
| S42 | Windshield washer system water level indicator switch | 134L |
| S49/7 | Left rear-end door rotary tumbler switch | 65L |
| S51 | Left manual sliding door central locking main lock switch | 68L |
| S51/1 | Right manual sliding door central locking main lock switch | 69L |
| S52 | Liftgate open switch, external operation | 122L |
| S62/41 | Engine hood switch | 85L |
| W1/9 | Right cockpit ground point | 34G |
| W2 | Right front lamp unit ground point | 88E |
| W43/2 | Right vehicle interior firewall ground point | 7F |
| W43/2 | Right vehicle interior firewall ground point | 15F |
| W43/6 | Left vehicle interior firewall ground point 2 | 8F |
| W43/6 | Left vehicle interior firewall ground point 2 | 16F |
| W43/6 | Left vehicle interior firewall ground point 2 | 91G |
| W43/6 | Left vehicle interior firewall ground point 2 | 93E |
| W9 | Left front lamp unit ground point | 85G |
| X20/15x1 | Parking brake indicator switch electrical connector | 93G |
| X207x3 | Electric machine electrical connector 3 | 81F |
| X208x3 | Electric machine electrical connector 3 | 81F |
| X225/1 x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 133G |
| X227/1x2 | Main wiring harness/fuse and relay module electrical connector 2 | 9F |
| X228/1 x2 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 35G |
| X268/7x1 | Right front axle brakepad wear sensor electrical connector | 87G |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 130L |
| X313 | Interior CAN (CAN B) potential distributor electrical connector | 29L |
| X39/67 | Radio preinstallation electrical connector | 23L |
| X39/67 | Radio preinstallation electrical connector | 25L |
| X58/33 | Cockpit socket | 24L |
| Z4/49 | Pre-fuse box tml. 30 connector sleeve | 13F |
| Z4/51 | Upper control panel/driver assistance systems tml. 30 connector sleeve | 36E |
