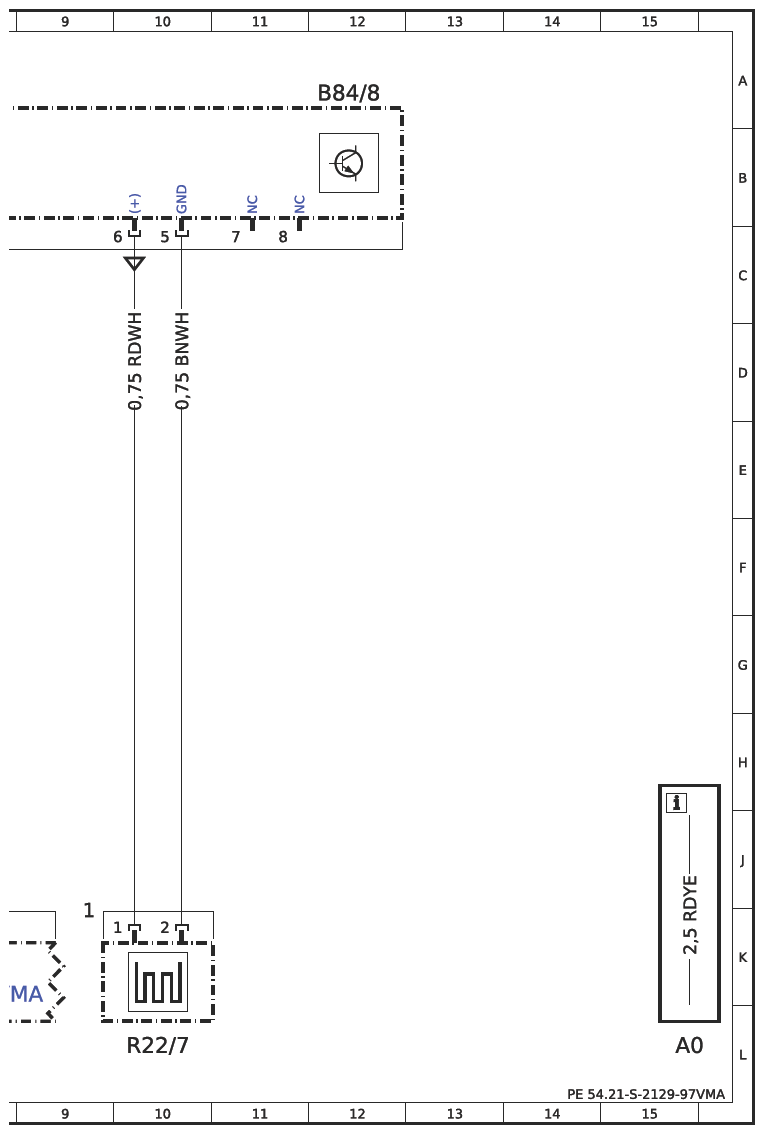

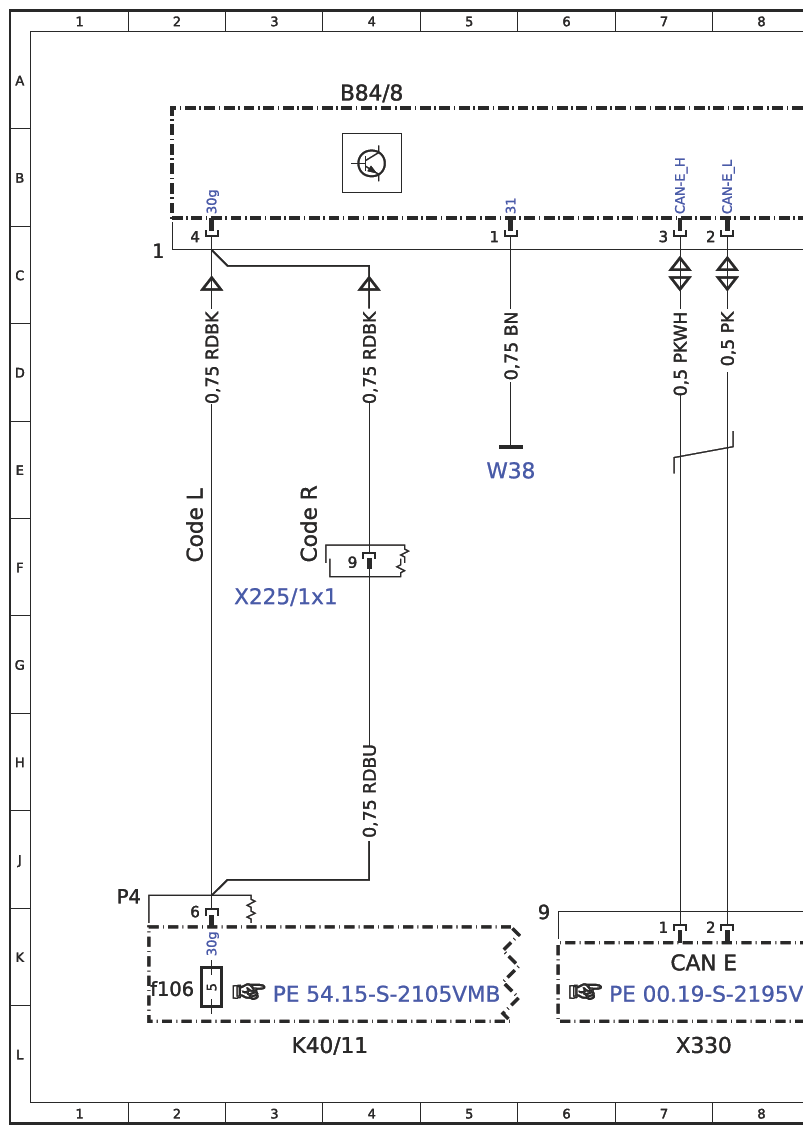

(Wiring Diagram For Multifunction Camera - PE54.21-S-2129-97VMA)
Model 447.6 with Code JW5 (Lane keeping assist) with Code LG2 (LED Intelligent Light System) with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) B84/8
Model 447.7 with Code JW5 (Lane keeping assist) with Code LG2 (LED Intelligent Light System) with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) B84/8
Model 447.7 with Code JW5 (Lane keeping assist) with Code LG2 (LED Intelligent Light System) with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) B84/8
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 15L |
| B84/8 | Multifunction camera (MFK) control unit | 4A |
| B84/8 | Multifunction camera (MFK) control unit | 12A |
| CAN E | Chassis CAN | 7K |
| Code L | Valid for left-hand drive vehicles | 2F |
| Code R | Valid for right-hand drive vehicles | 3F |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f106 | Fuse 106 | 2K |
| R22/7 | Multifunction camera windshield heater field | 10L |
| W38 | Roof frame ground point 1 | 5E |
| X225/1 x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 3F |
| X330 | CAN for suspension (CAN E) potential distributor electrical connector | 7L |
