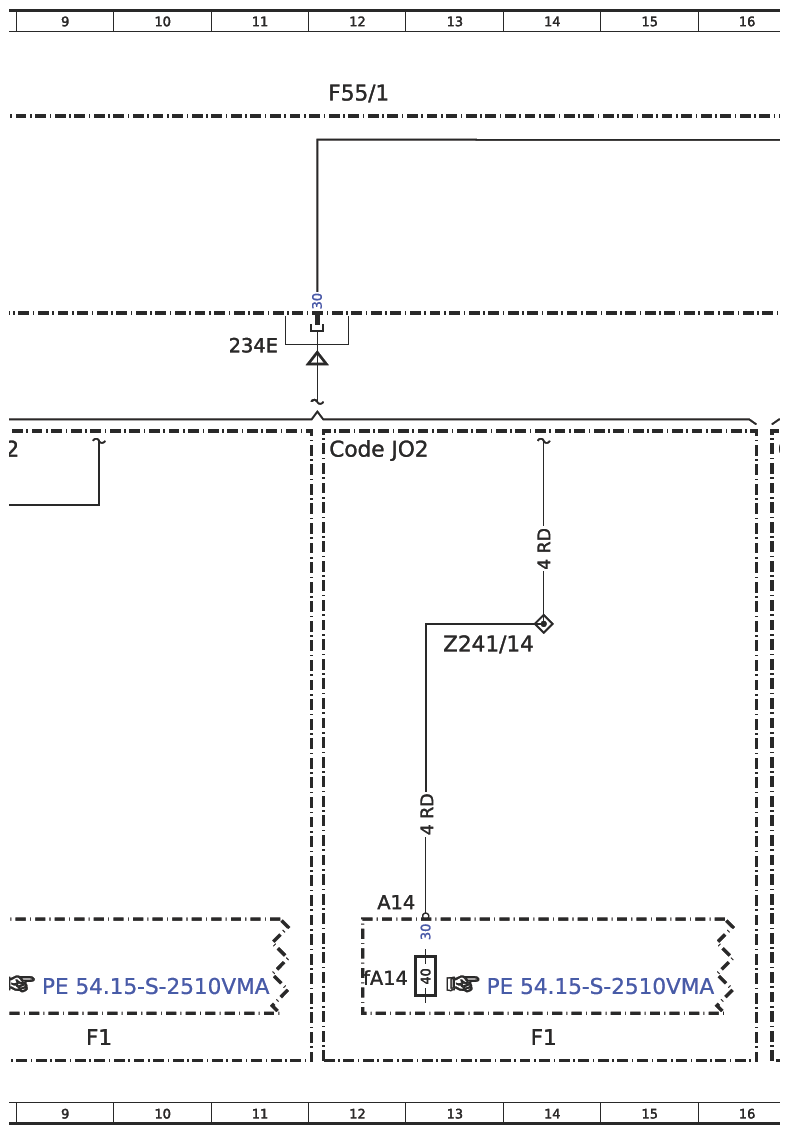

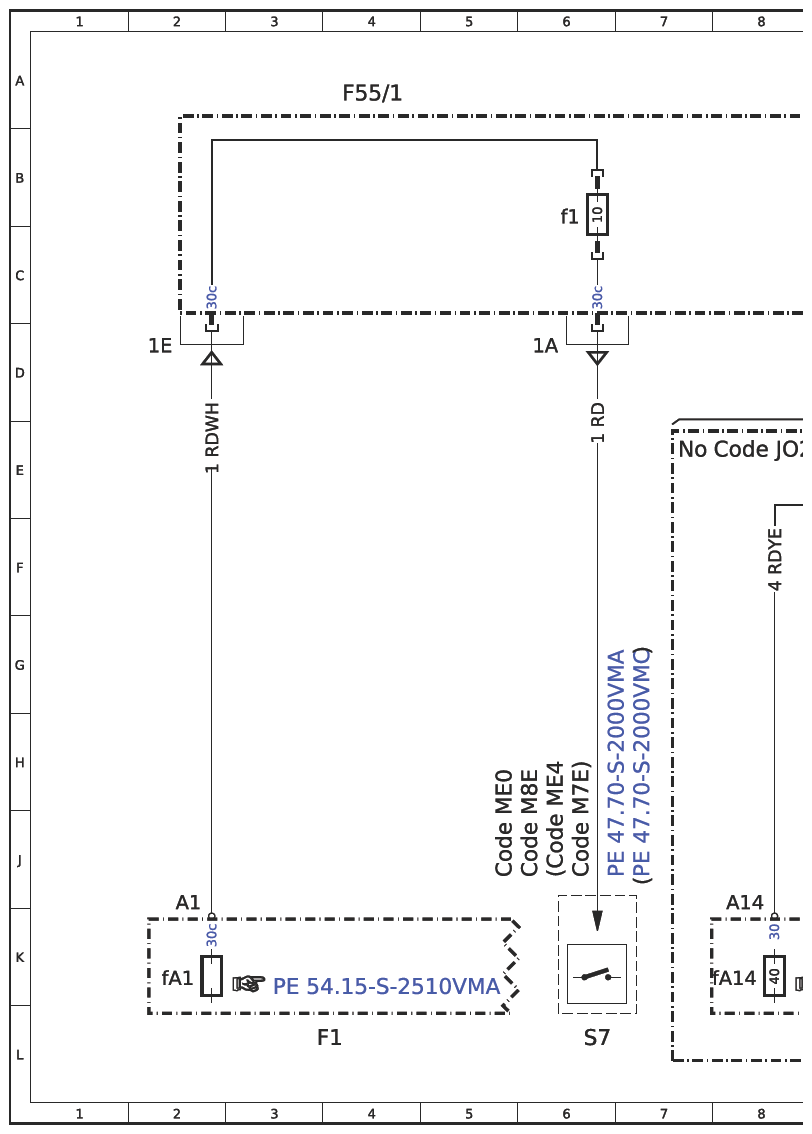

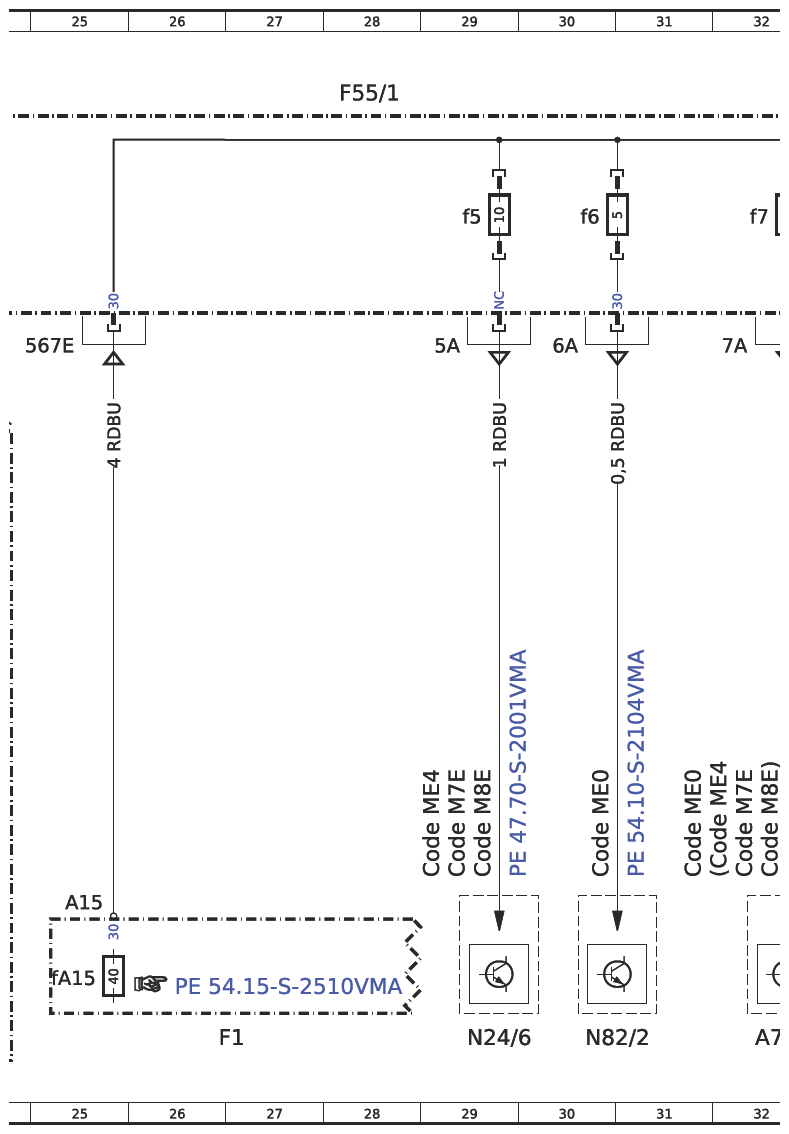

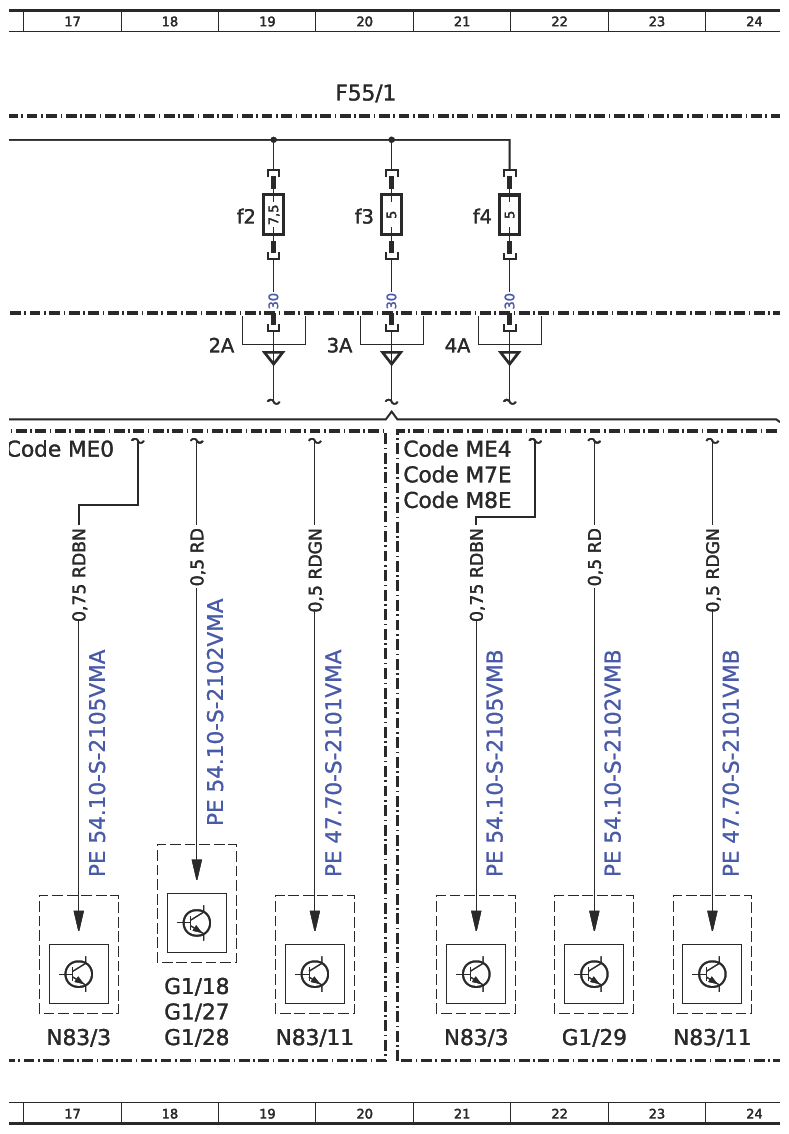

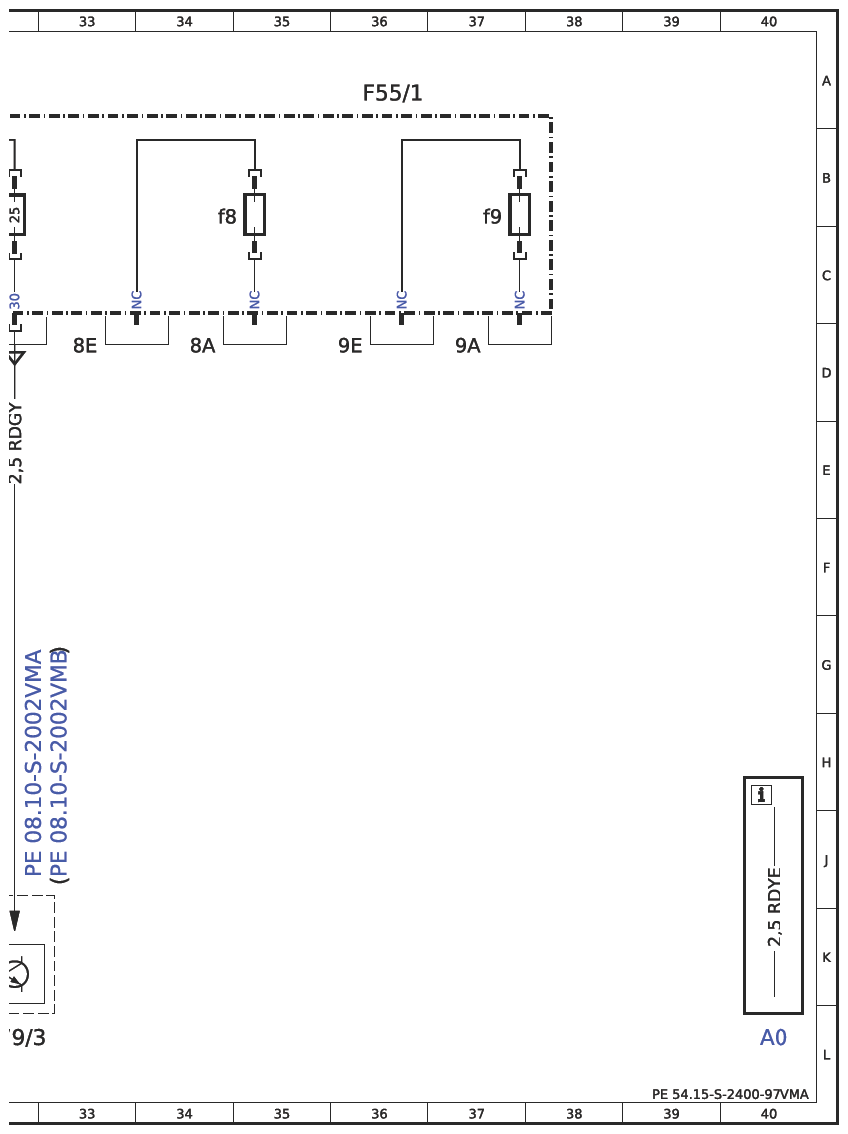

(Wiring Diagram For Fuse Block (9 Fuses) - PE54.15-S-2400-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) F55/1
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F55/1
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) F55/1
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) F55/1
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 40L |
| A79/3 | Power electronics control unit | 32L |
| Code J02 | OLU pre-installation | 12E |
| Code J02 | OLU pre-installation | 8E |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 6J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 32J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 20E |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 29J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 29J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 32J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 6J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 20E |
| Code MEO | Electric motor 85 kW | 30J |
| Code MEO | Electric motor 85 kW | 16E |
| Code MEO | Electric motor 85 kW | 5J |
| Code MEO | Electric motor 85 kW | 31J |
| Code ME4 | Electric motor 145 kW | 6J |
| Code ME4 | Electric motor 145 kW | 20E |
| Code ME4 | Electric motor 145 kW | 29J |
| Code ME4 | Electric motor 145 kW | 32J |
| F1 | Pre-fuse box | 4L |
| F1 | Pre-fuse box | 9L |
| F1 | Pre-fuse box | 27L |
| F1 | Pre-fuse box | 14L |
| F1fA1 | Pyrofuse A1 | 2K |
| F1fA14 | Pre-fuse A14 | 8K |
| F1fA14 | Pre-fuse A14 | 12K |
| F1fA15 | Pre-fuse A15 | 25K |
| F55/1 | Fuse block (1, 9-pin) | 4A |
| F55/1 | Fuse block (1, 9-pin) | 12A |
| F55/1 | Fuse block (1, 9-pin) | 20A |
| F55/1 | Fuse block (1, 9-pin) | 28A |
| F55/1 | Fuse block (1, 9-pin) | 36A |
| F55/1F1 | Fuse 1 | 6B |
| F55/1f2 | Fuse 2 | 19B |
| F55/1f3 | Fuse 3 | 20B |
| F55/1f4 | Fuse 4 | 21B |
| F55/1f5 | Fuse 5 | 29B |
| F55/1f6 | Fuse 6 | 30B |
| F55/1f7 | Fuse 7 | 32B |
| G1/18 | High-voltage battery 1 | 18K |
| G1/27 | High-voltage battery 2 | 18L |
| G1/28 | High-voltage battery 3 | 18L |
| G1/29 | High-voltage battery | 22L |
| N24/6 | DC/DC converter charger | 29L |
| N82/2 | Battery management system control unit | 30L |
| N83/11 | Alternating current charger for high-voltage battery | 19L |
| N83/11 | Alternating current charger for high-voltage battery | 23L |
| N83/3 | DC/DC converter control unit | 17L |
| N83/3 | DC/DC converter control unit | 21L |
| S7 | High-voltage disconnect device | 6L |
| Z241/14 | Tml. 30 connector sleeve | 13G |
