Wiring Diagram For Passenger-Side Fuse And Relay Module - PE54.15-S-2105-97VVR
Model 447.6 with Code XM0 (Facelift) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) K40/12
Model 447.7 with Code XM0 (Facelift) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) K40/12
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 56L |
| A56 | Digital tachograph (DTCO) control unit | 30L |
| Code E28 | Additional battery for retrofitted consumers | 48J |
| Code E28 | Additional battery for retrofitted consumers | 45J |
| Code E3V | 230 V exterior connection | 39J |
| Code ED5 | - | 15J |
| Code EK1 | Terminal strip for electrical connection | 42J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 11J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 46J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 48J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 44J |
| Code J4V | EU intelligent tachograph pre-installation | 29J |
| Code JD6 | EU intelligent tachograph | 28J |
| Code J02 | OLU pre-installation | 15J |
| Code J02 | OLU pre-installation | 21J |
| Code J03 | OLU Connect Unit | 16J |
| Code J03 | OLU Connect Unit | 22J |
| Code L | Valid for left-hand drive vehicles | 34G |
| Code R | Valid for right-hand drive vehicles | 34G |
| Code T56 | Electric controls for left sliding door | 20J |
| Code ZH6 | Marco Polo ACTIVITY | 38J |
| Code ZK2 | Taxi version with emergency alarm system | 13J |
| Code ZK3 | Taxi version without emergency alarm system | 13J |
| Code ZM7 | Rental vehicle package with emergency alarm system | 13J |
| Code ZM8 | Rental vehicle package without emergency alarm system | 14J |

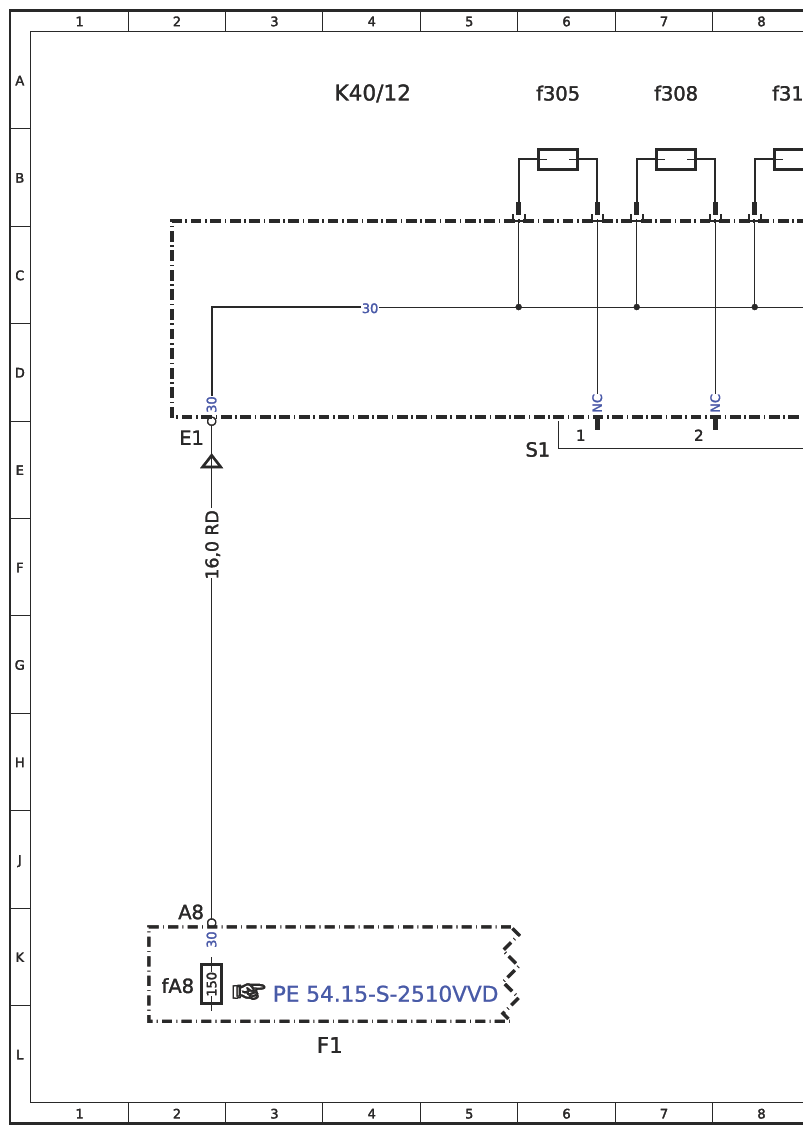

| F1 | Pre-fuse box | 4L |
| F1fA8 | Pre-fuse A8 | 2K |
| F60/8 | Voltage converter fuse 1 | 46L |
| K40/11 | Firewall fuse and relay module | 35L |
| K40/11f27 | Fuse 27 | 34K |
| K40/12 | Fuse and relay module, front passenger footwell | 4A |
| K40/12 | Fuse and relay module, front passenger footwell | 13A |
| K40/12 | Fuse and relay module, front passenger footwell | 28A |
| K40/12 | Fuse and relay module, front passenger footwell | 35A |
| K40/12 | Fuse and relay module, front passenger footwell | 46A |
| K40/12 | Fuse and relay module, front passenger footwell | 20A |

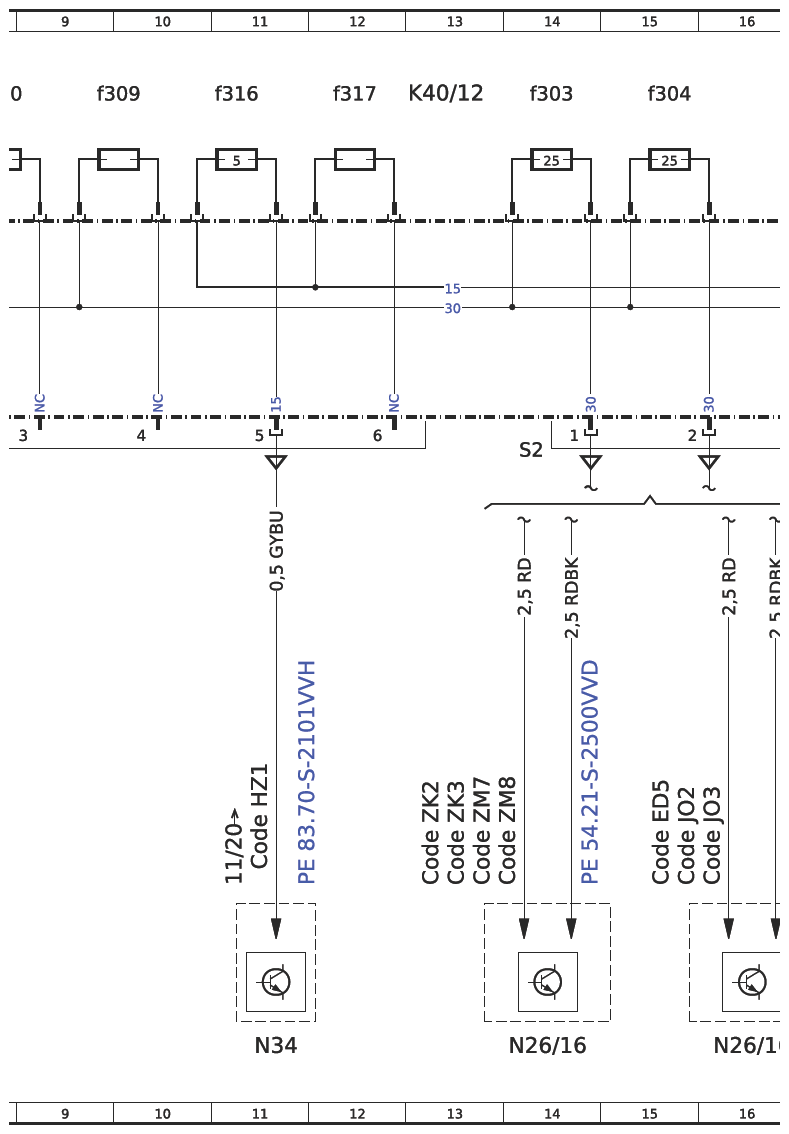

| K40/12f301 | Fuse 301 | 28A |
| K40/12f303 | Fuse 303 | 14A |
| K40/12f304 | Fuse 304 | 15A |
| K40/12f311 | Fuse 311 | 19A |

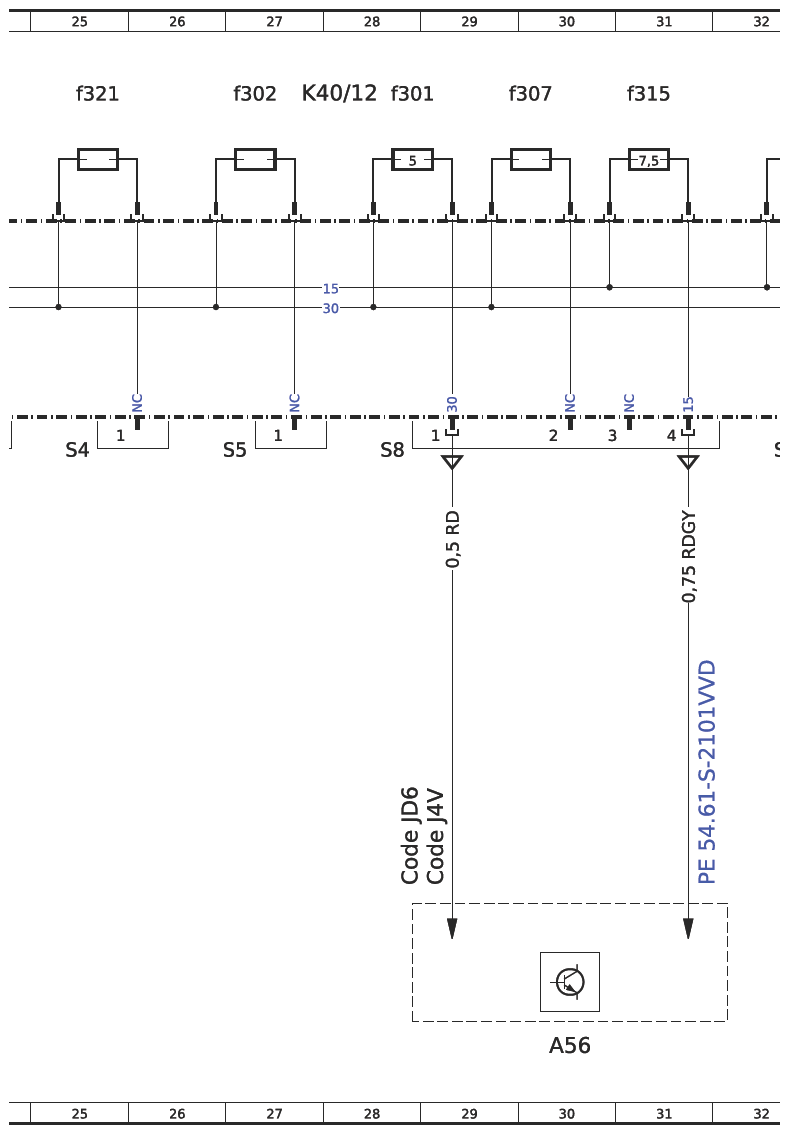

| K40/12f315 | Fuse 315 | 31A |
| K40/12f316 | Fuse 316 | 11A |

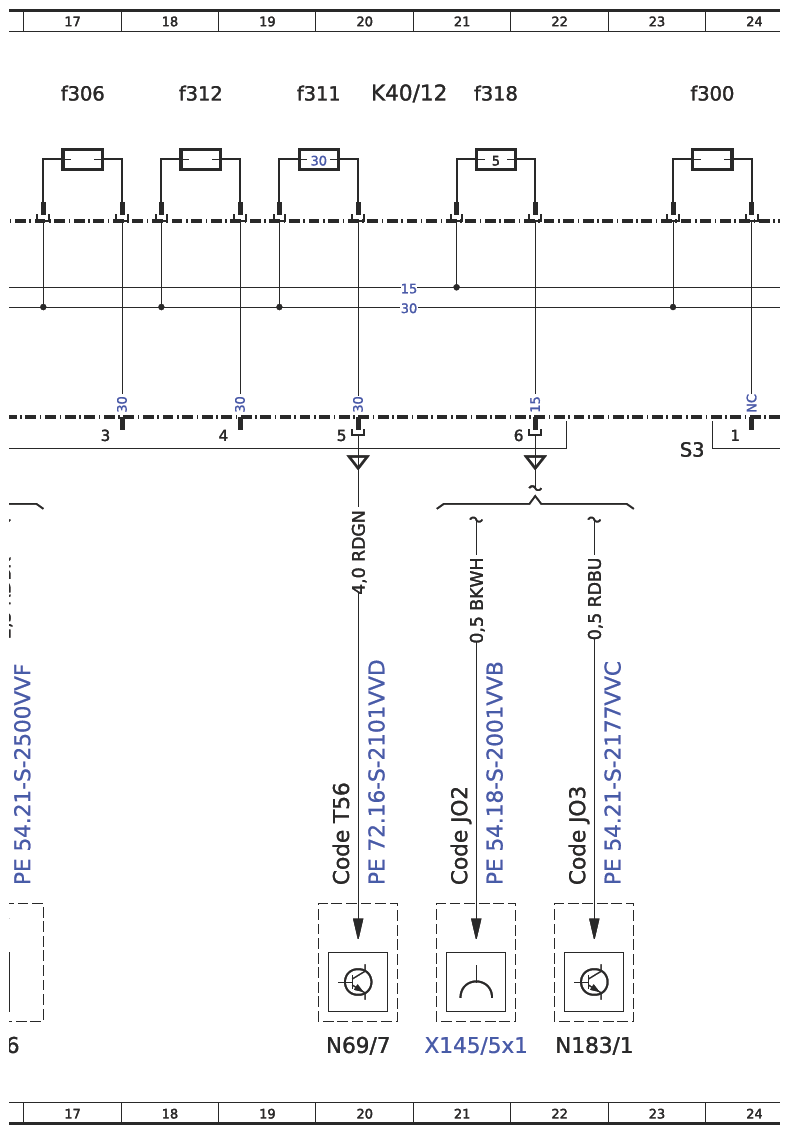

| K40/12f318 | Fuse 318 | 21A |
| K40/12f320 | Fuse 320 | 38A |
| K40/12f322 | Fuse 322 | 45A |

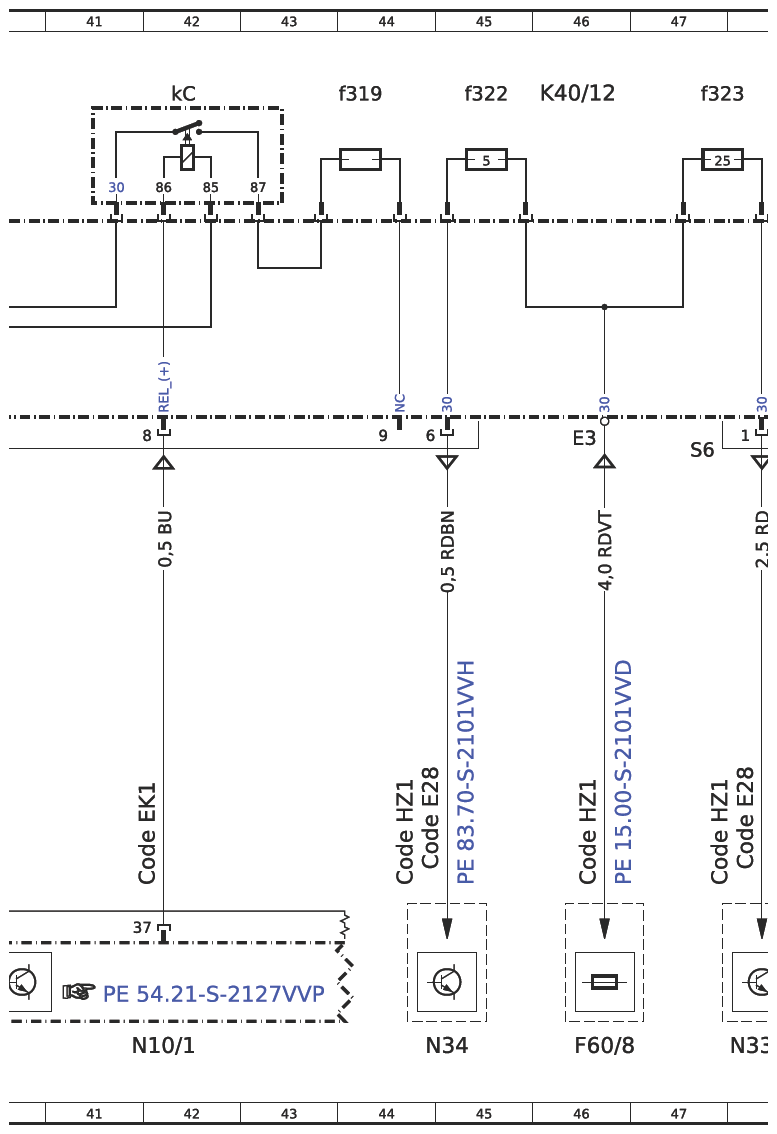

| K40/12f323 | Electrical fuse 323 | 47A |

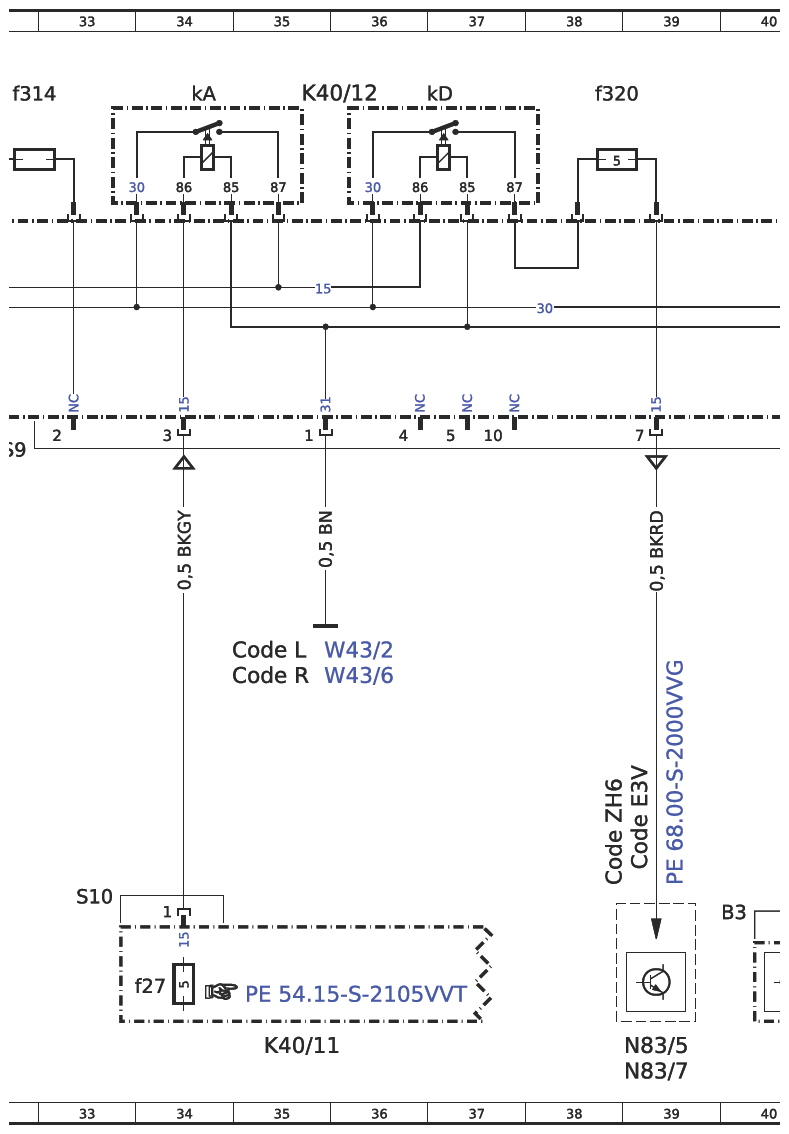

| K40/12kA | Circuit 15 relay | 34A |
| K40/12kC | Body manufacturer terminal 61 relay | 42A |
| K40/12kD | Body manufacturer circuit 15 relay | 37A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 42L |
| N183/1 | Onboard Logic Unit (OLU) control unit - Connect Unit | 22L |
| N26/16 | Parameterizable special module (PSM) control unit | 14L |
| N26/16 | Parameterizable special module (PSM) control unit | 16L |
| N33/5 | Warm air stationary heater control unit (WLSTH) | 48L |
| N34 | Stationary heater timer | 11L |
| N34 | Stationary heater timer | 45L |
| N69/7 | Left sliding door (E-LSTL) control unit | 20L |
| N83/5 | 230 V/12 V charger control unit | 39L |
| N83/7 | Battery cutoff relay control unit | 39L |
| W43/2 | Right vehicle interior firewall ground point | 36G |
| W43/6 | Left vehicle interior firewall ground point 2 | 36G |
| X145/5x1 | OLU 1 body manufacturer electrical connector | 21L |
