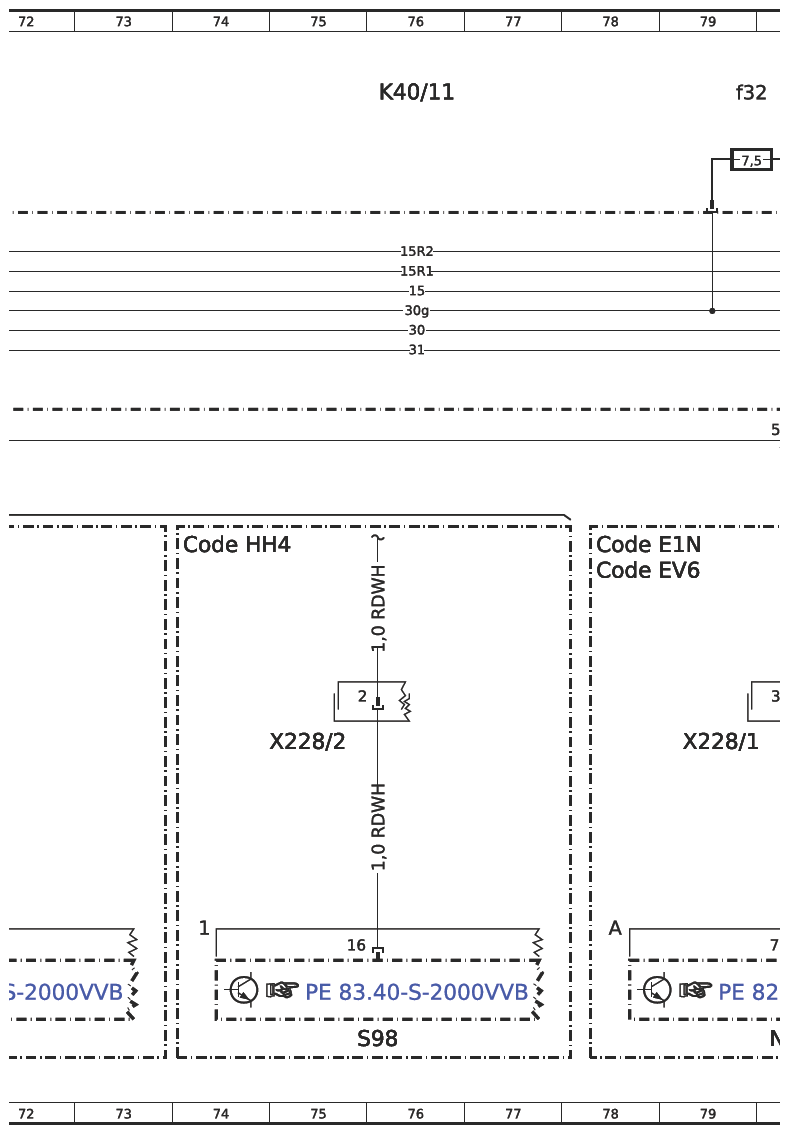

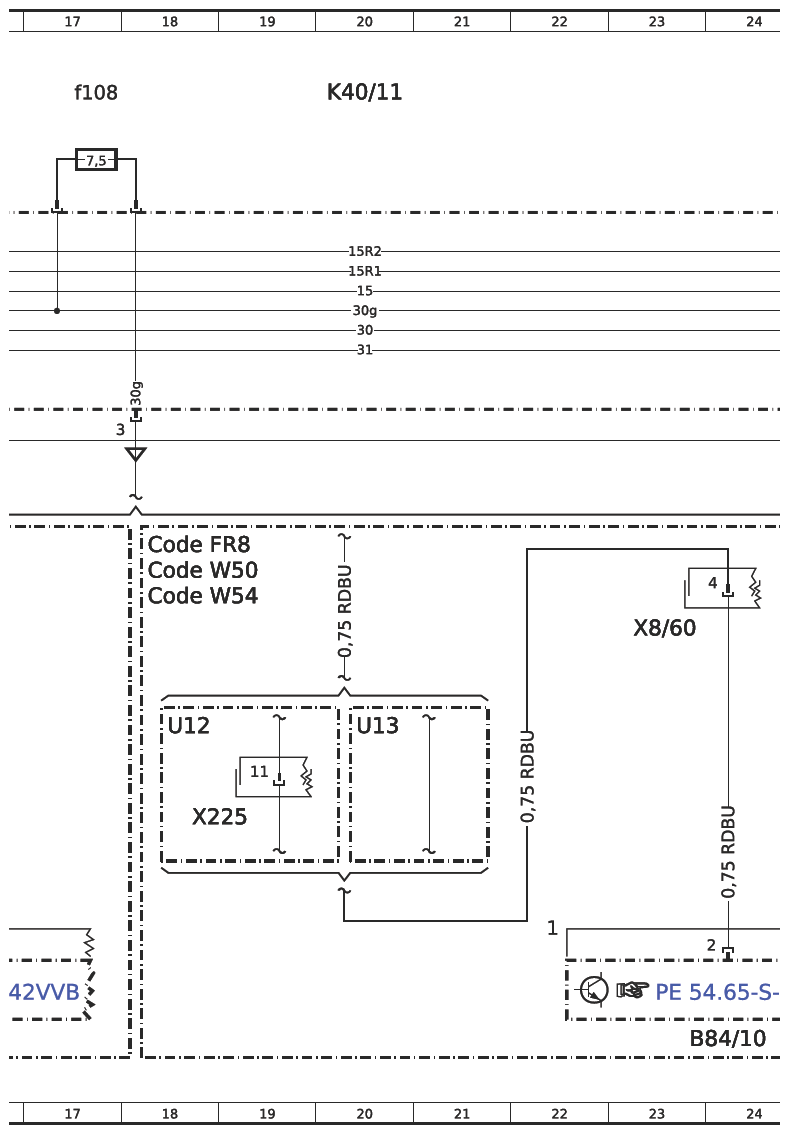

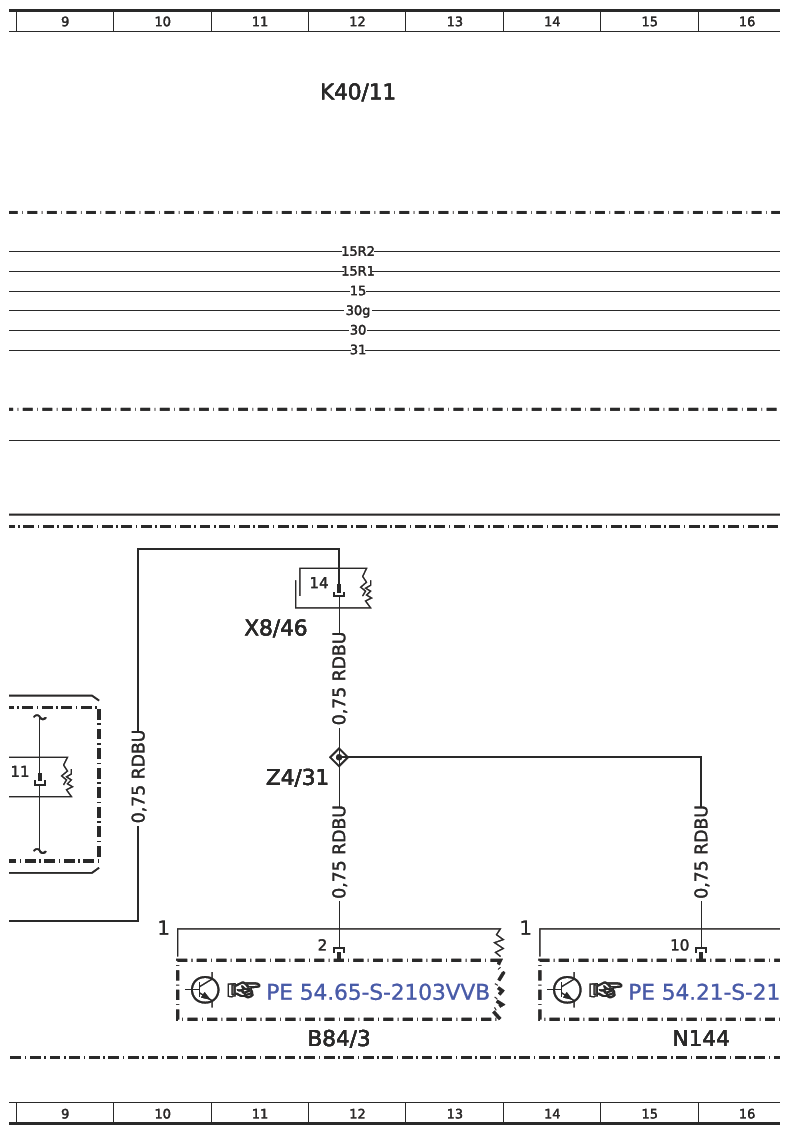

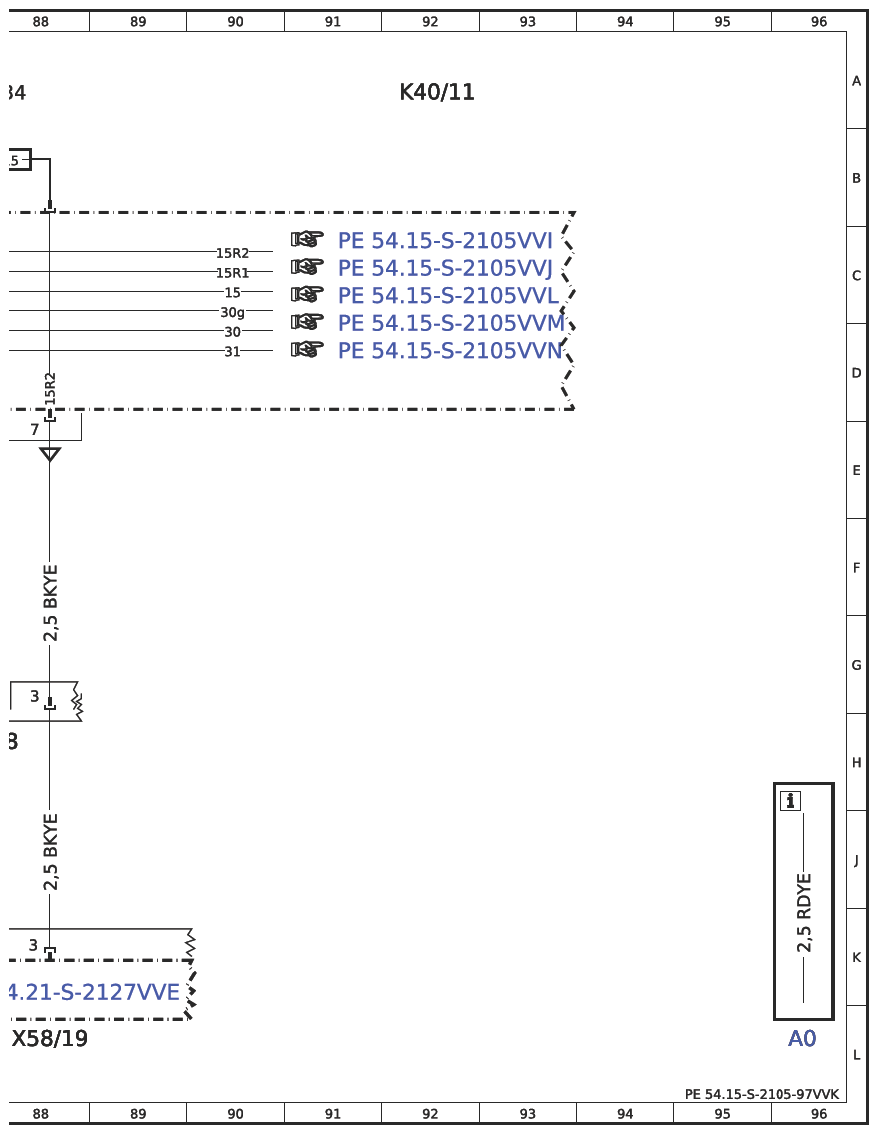

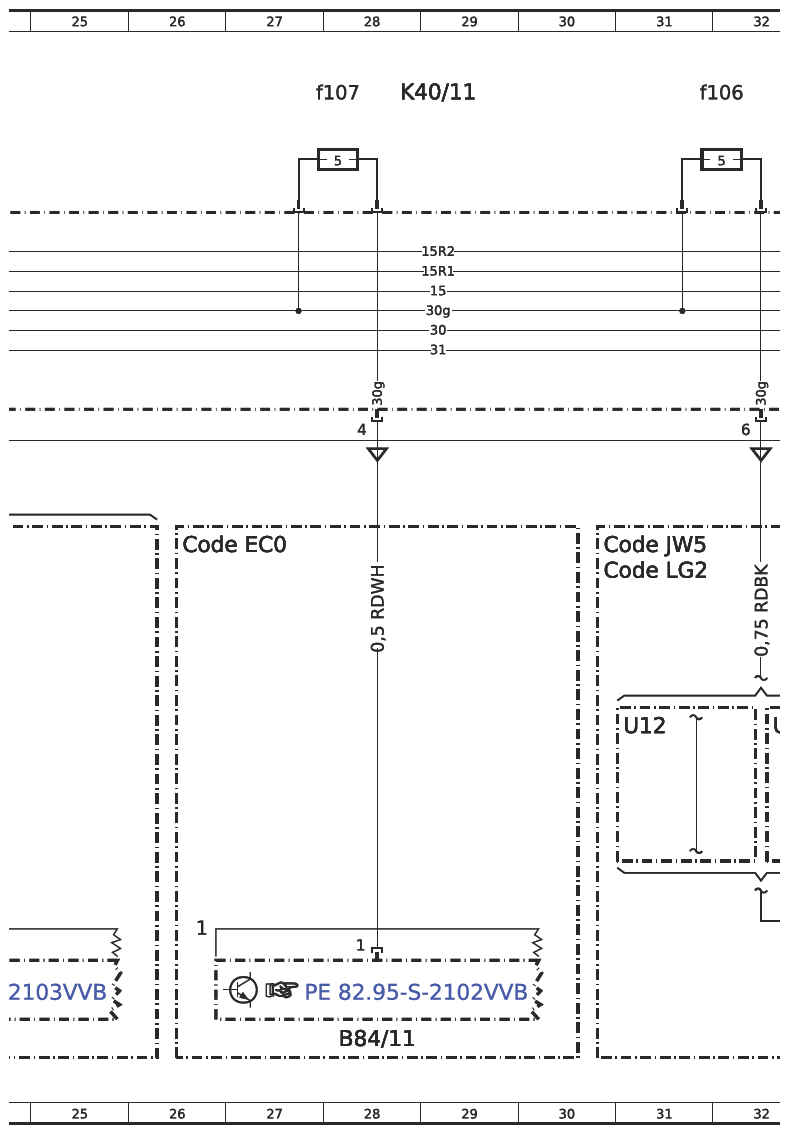

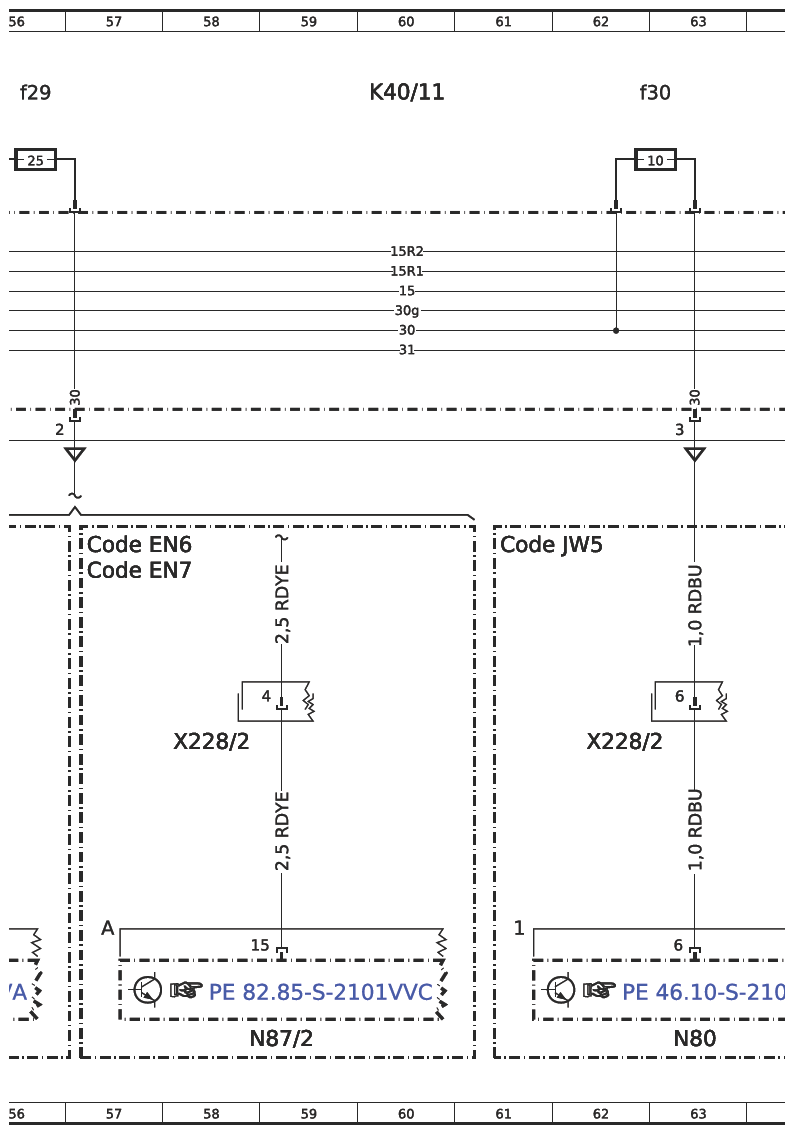

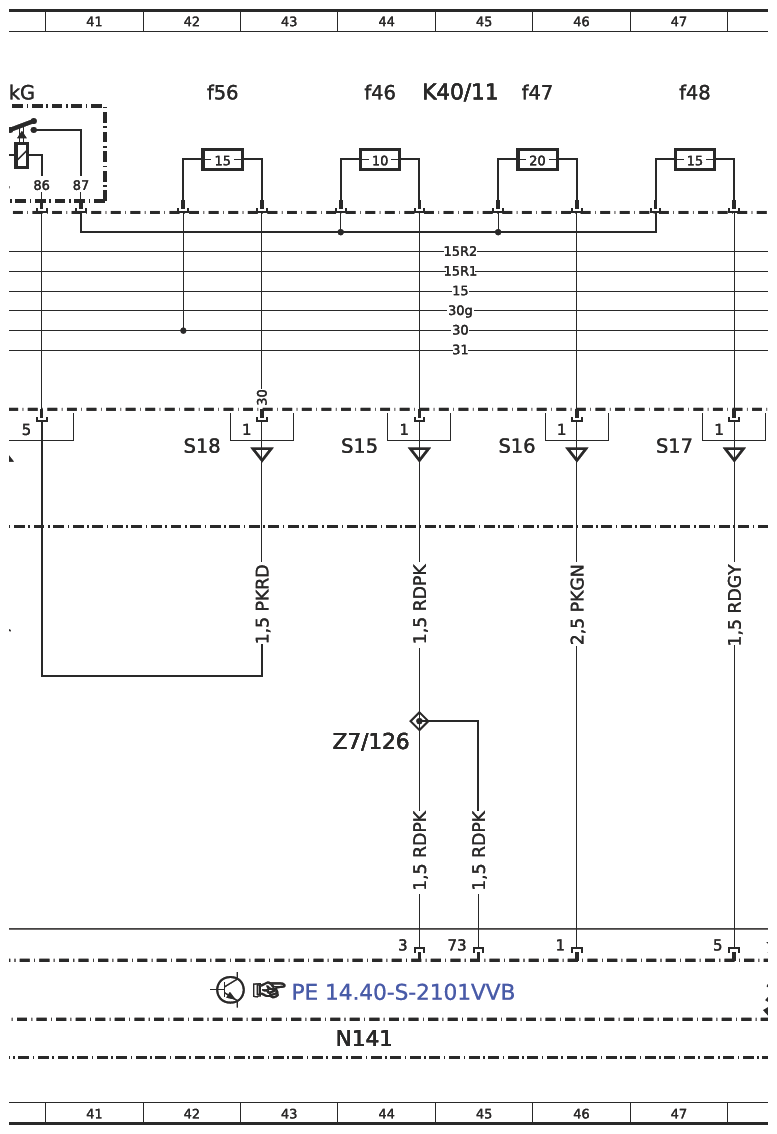

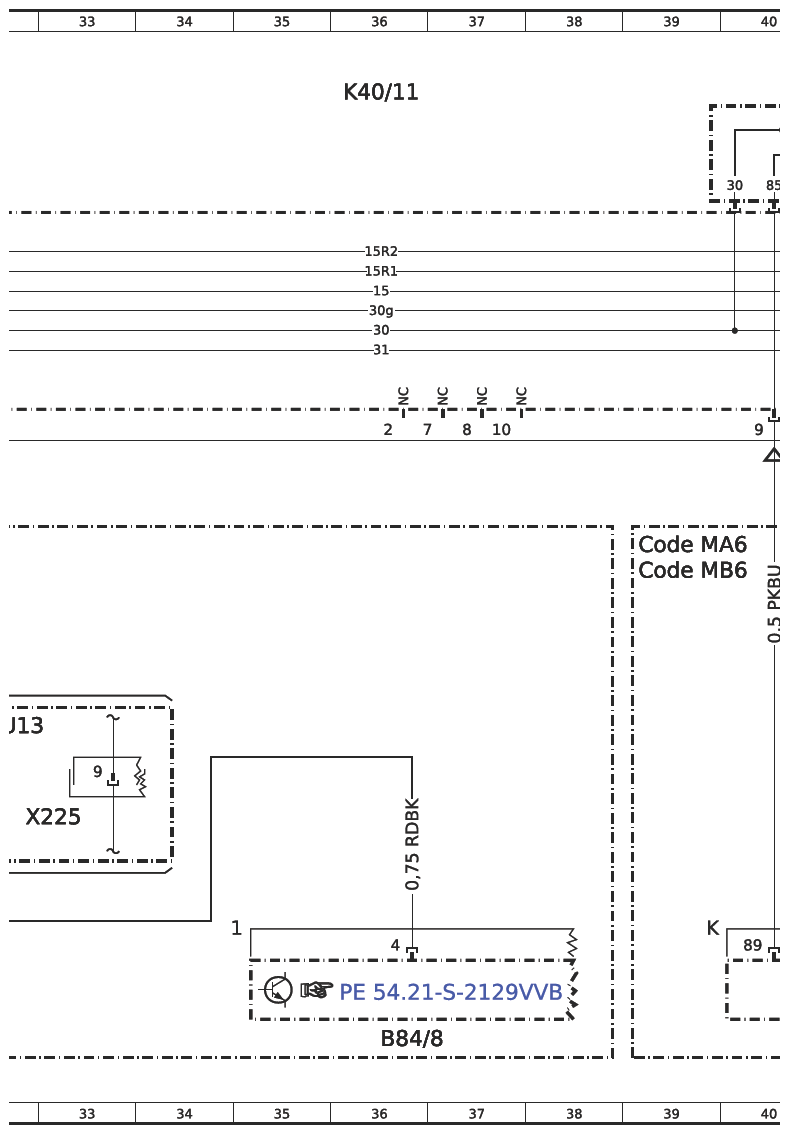

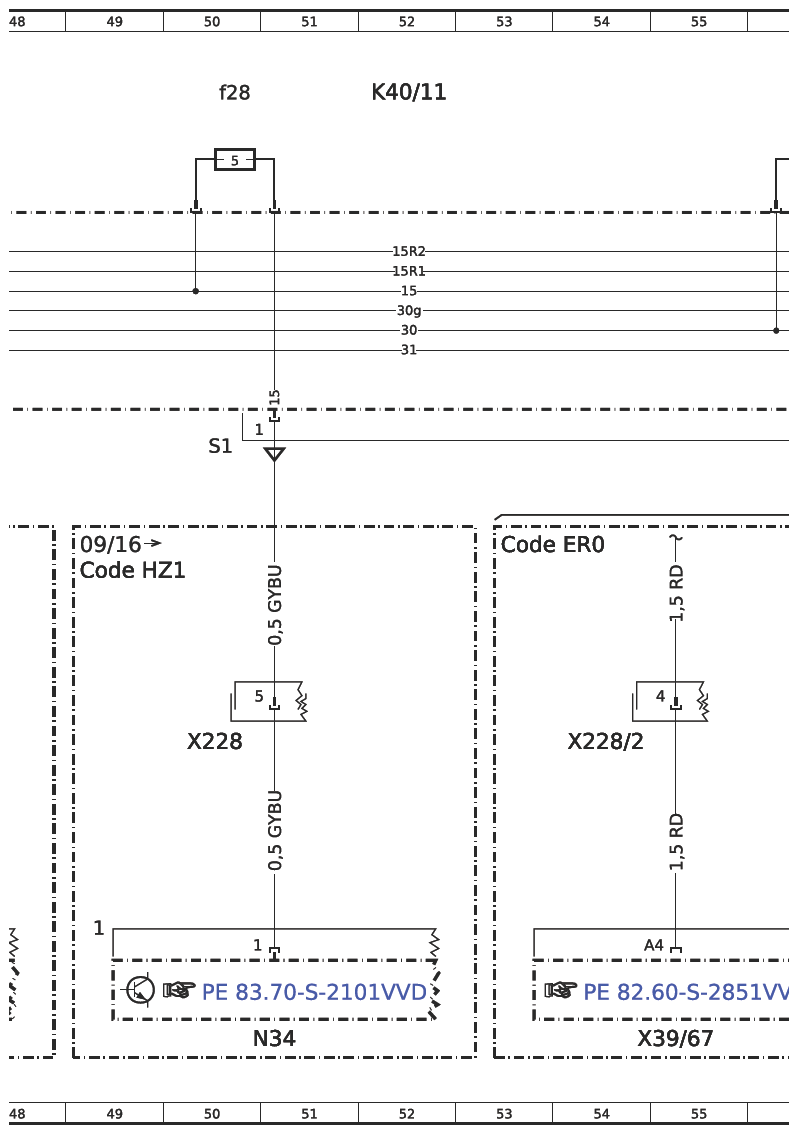

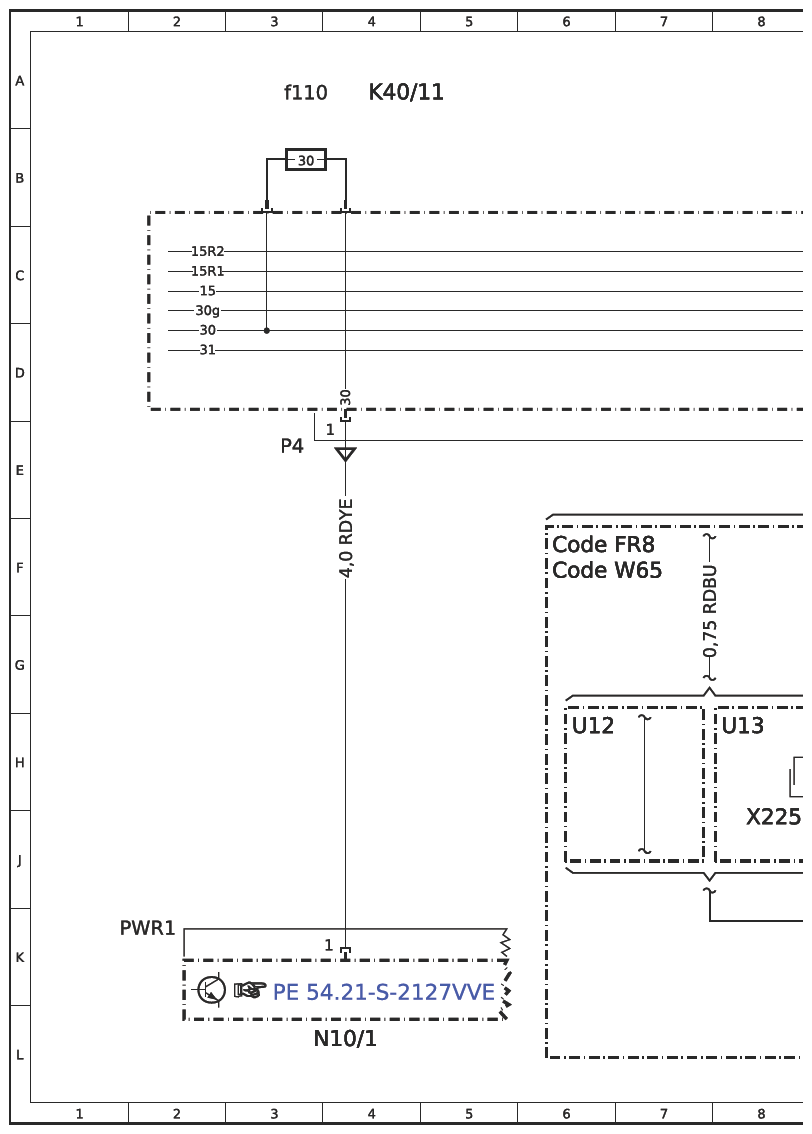

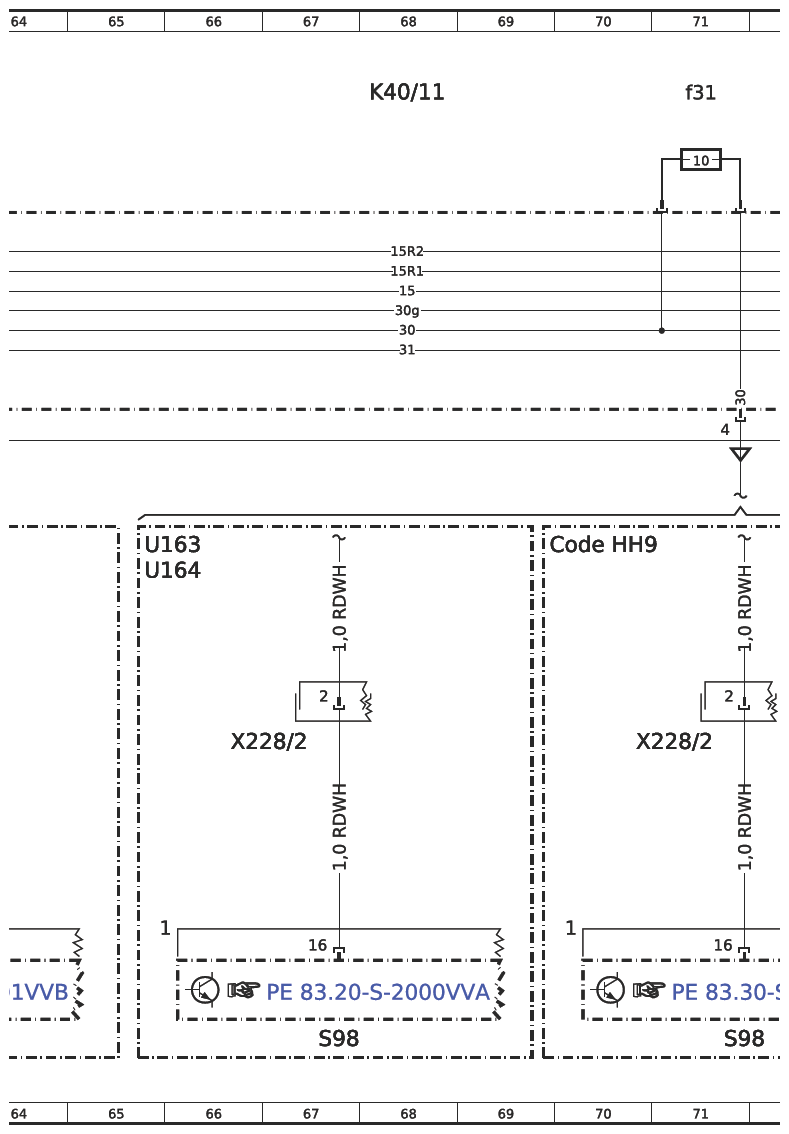

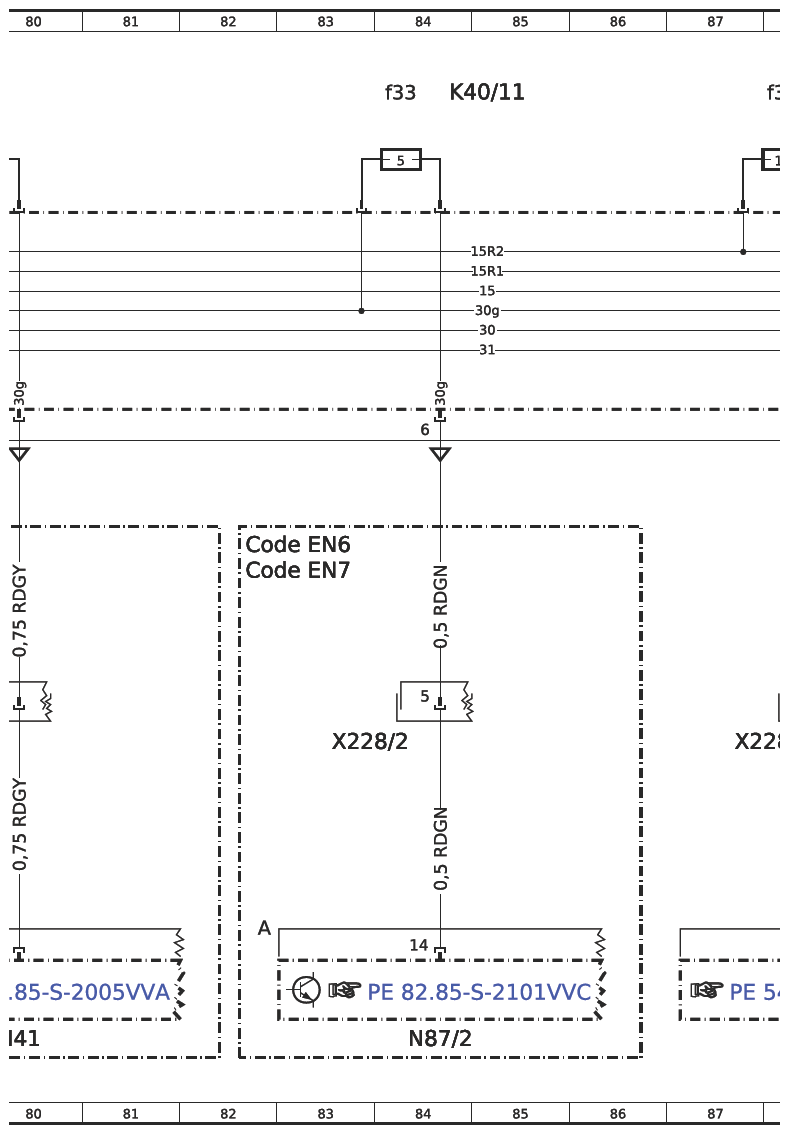

Wiring Diagram For Passenger-Side Fuse And Relay Module - PE54.15-S-2105-97VVK
Model 447.6 except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/11, connector P4, S1, S15-S18
Model 447.7 except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/11, connector P4, S1, S15-S18
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 96L |
| B84/10 | Rear-end door reversing camera (RFK) control unit | 24L |
| B84/11 | ERA-Glonass control unit | 28L |
| B84/3 | Reversing camera (RFK) control unit | 12L |
| B84/8 | Multifunction camera (MFK) control unit | 36L |
| Code E1N | Becker® MAP PILOT | 78F |
| Code EC0 | eCall Russia (ERA-GLONASS) incl. camera | 26F |
| Code EN6 | Audio 10 | 57F |
| Code EN6 | Audio 10 | 82F |
| Code EN7 | Audio 15 | 57F |
| Code EN7 | Audio 15 | 82F |
| Code ER0 | Radio preinstallation | 53F |
| Code EV6 | Preinstallation for Becker® MAP PILOT | 78F |
| Code FR8 | Backup camera | 6F |
| Code FR8 | Backup camera | 18F |
| Code HH4 | THERMOTRONIC automatic air conditioning | 74F |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 69F |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 49F |
| Code JW5 | Lane Keeping Assist | 61F |
| Code JW5 | Lane Keeping Assist | 30F |
| Code LG2 | LED Intelligent Light System | 30F |
| Code MA6 | Low-emission vehicle. Euro 6 Gr. Ill | 39F |
| Code MB6 | Low-emission vehicle Euro 6 Group I | 39F |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 18F |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 18F |
| Code W65 | Liftgate | 6F |
| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11 | Firewall fuse and relay module | 20A |
| K40/11 | Firewall fuse and relay module | 29A |
| K40/11 | Firewall fuse and relay module | 36A |
| K40/11 | Firewall fuse and relay module | 45A |
| K40/11 | Firewall fuse and relay module | 52A |
| K40/11 | Firewall fuse and relay module | 60A |
| K40/11 | Firewall fuse and relay module | 68A |
| K40/11 | Firewall fuse and relay module | 92A |
| K40/11 | Firewall fuse and relay module | 76A |
| K40/11 | Firewall fuse and relay module | 84A |
| K40/11f106 | Fuse 106 | 31A |
| K40/11fl07 | Fuse 107 | 28A |
| K40/11f108 | Fuse 108 | 17A |
| K40/11f110 | Fuse 110 | 3A |
| K40/11f28 | Fuse 28 | 50A |
| K40/11f29 | Fuse 29 | 56A |
| K40/11f30 | Fuse 30 | 62A |
| K40/11f31 | Fuse 31 | 71A |
| K40/11f32 | Fuse 32 | 79A |
| K40/11f33 | Fuse 33 | 84A |
| K40/11f34 | Fuse 34 | 88A |
| K40/11f46 | Fuse 46 | 44A |
| K40/11f47 | Fuse 47 | 45A |
| K40/11f48 | Fuse 48 | 47A |
| K40/11f56 | Fuse 56 | 42A |
| K40/11 kG | Exhaust aftertreatment SCRCM relay | 40A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4L |
| N141 | AdBlue® (SCR) control unit | 44L |
| N144 | Camera cover (KAB) control unit | 15L |
| N34 | Stationary heater timer | 51L |
| N41 | Becker® MAP PILOT control unit | 80L |
| N80 | Steering column tube module (MRM) control unit | 63L |
| N87/2 | Radio (Audio) | 59L |
| N87/2 | Radio (Audio) | 84L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 76L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 71L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 67L |
| U12 | Valid for left-hand drive vehicles | 6H |
| U12 | Valid for left-hand drive vehicles | 31H |
| U12 | Valid for left-hand drive vehicles | 18H |
| U13 | Valid for right-hand drive vehicles | 8H |
| U13 | Valid for right-hand drive vehicles | 32H |
| U13 | Valid for right-hand drive vehicles | 20H |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 65F |
| U164 | Valid without Code HH4THERMOTRONIC automatic climate control | 65F |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 8J |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 33J |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 19J |
| X228 | Cockpit wiring harness/fuse and relay module electrical connector 1 | 88H |
| X228 | Cockpit wiring harness/fuse and relay module electrical connector 1 | 50H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 79H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 58H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 54H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 62H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 84H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 71H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 67H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 75H |
| X39/67 | Radio preinstallation electrical connector | 55L |
| X58/19 | Front cigarette lighter with illumination electrical connector | 88L |
| X8/46 | Right liftgate electrical connector 2 | 11G |
| X8/60 | Left rear-end door electrical connector 1 | 23G |
| Z4/31 | Reversing camera tml. 30 connector sleeve | 11H |
| Z7/126 | AdBlue® control unit supply connector sleeve | 44H |
