Wiring Diagram For Passenger-Side Fuse And Relay Module - PE54.15-S-2105-97VVI
Model 447.6 except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/11, connector P1, S11
Model 447.7 except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/11, connector P1, S11
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 104L |
| A1/1 | Instrument cluster (KI) control unit | 16L |
| A2/18 | FM/AM antenna amplifier | 65L |

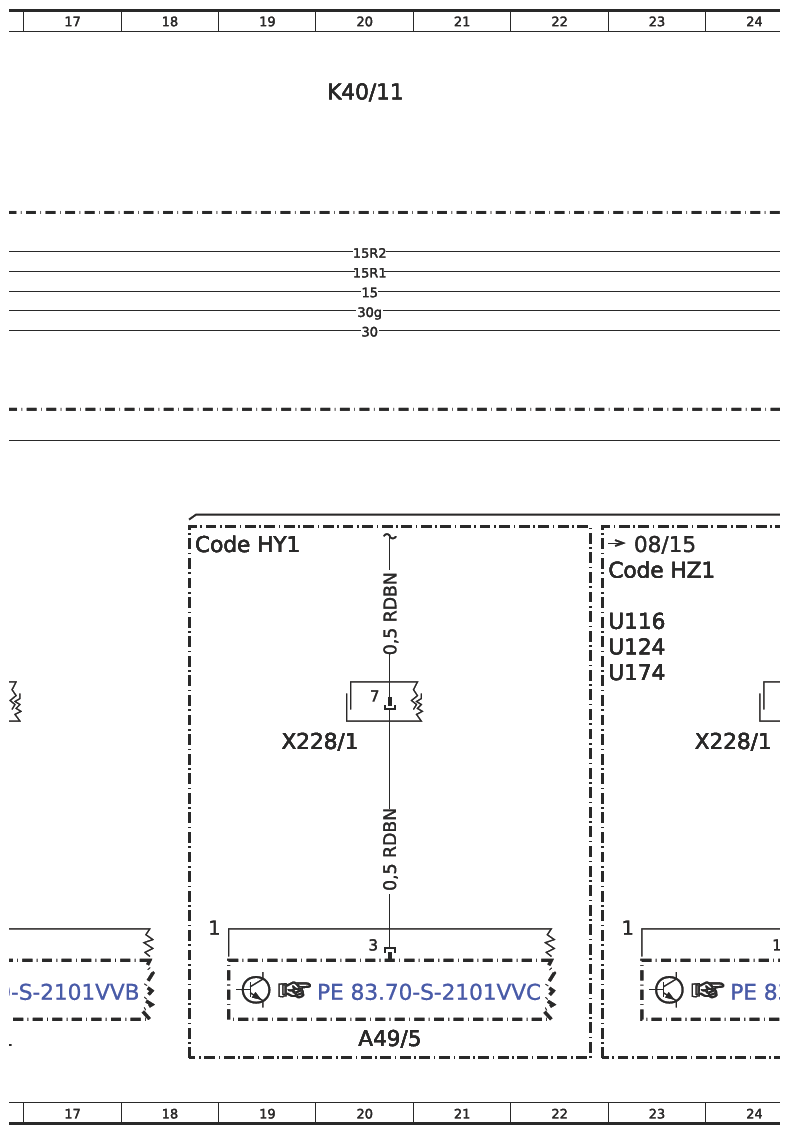

| A49/5 | Stationary water heater radio remote control receiver | 20L |
| A49/5 | Stationary water heater radio remote control receiver | 30L |

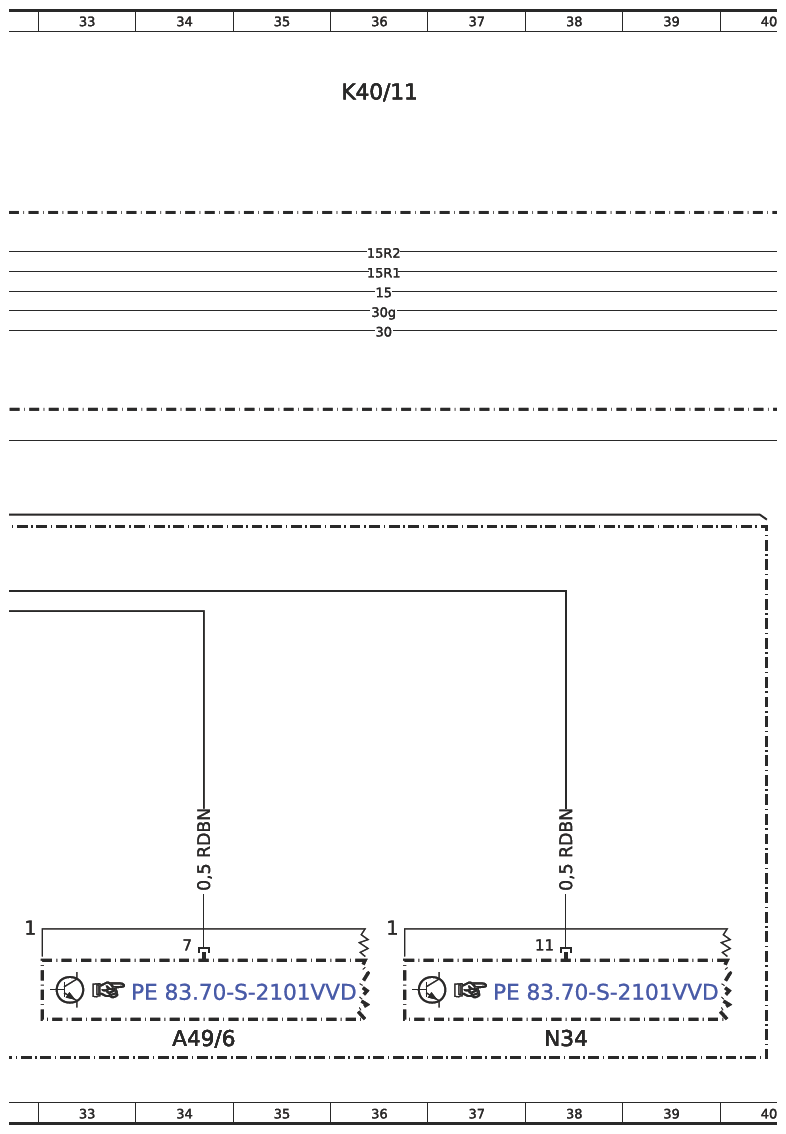

| A49/6 | Stationary air heater radio remote control receiver | 34L |
| Code ER0 | Radio preinstallation | 73F |
| Code EZ7 | Active Parking Assist | 40H |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 55F |
| Code H22 | Heated rear window | 93G |
| Code HH4 | THERMOTRONIC automatic air conditioning | 6G |
| Code HH4 | THERMOTRONIC automatic air conditioning | 81G |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 6G |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 81G |
| Code HY1 | Radio remote control for auxiliary water heater | 18F |
| Code HY1 | Radio remote control for auxiliary water heater | 27G |
| Code HY2 | Radio remote control for auxiliary air heater | 27G |
| Code HZ0 | Electric heater booster | 6F |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 23F |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 27F |
| Code JW5 | Lane Keeping Assist | 40F |
| Code MJ8 | ECO start/stop function | 10F |
| Code MW1 | Engine run-on (MWS) | 40F |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 93F |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 93F |
| Code W65 | Liftgate | 86F |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 81F |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 86F |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 93G |
| Code ZG2 | All-wheel drive | 40F |
| Code ZK2 | Taxi version with emergency alarm system | 40G |
| Code ZK3 | Taxi version without emergency alarm system | 40G |
| Code ZM7 | Rental vehicle package with emergency alarm system | 40G |
| Code ZM8 | Rental vehicle package without emergency alarm system | 40G |
| E13/1 | Glove box lamp | 72L |

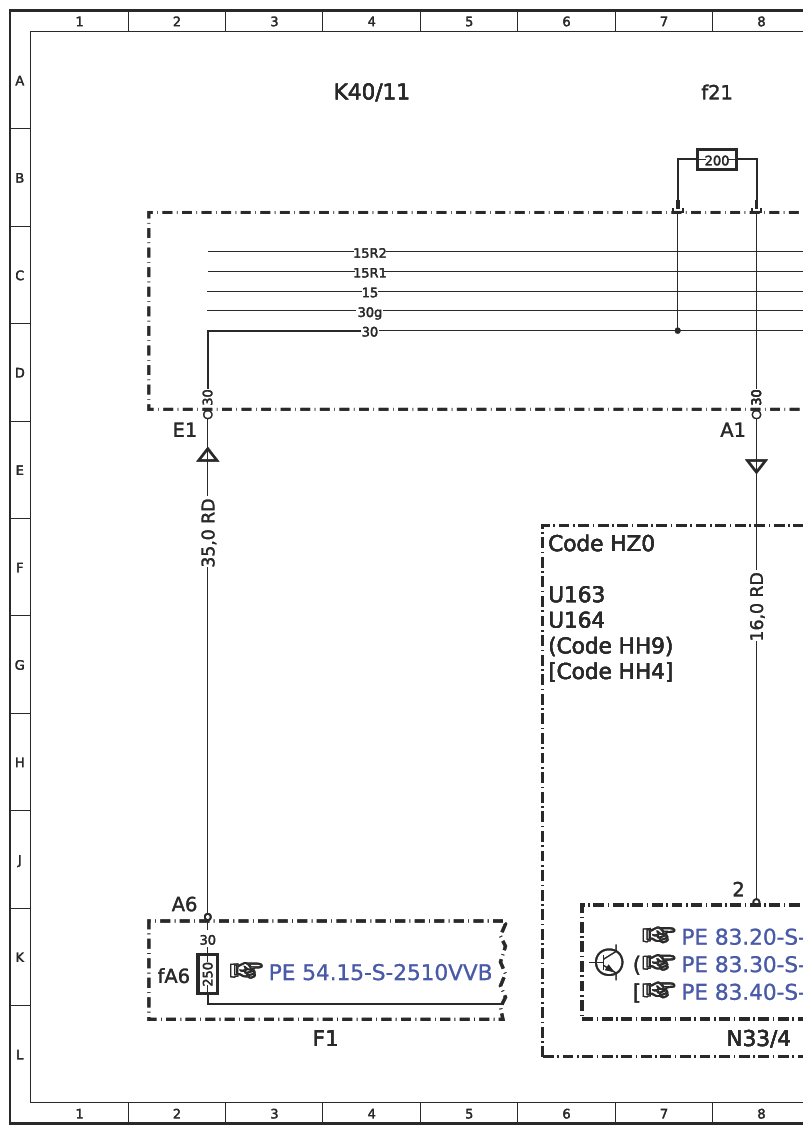

| F1 | Pre-fuse box | 3L |
| F1fA6 | Pre-fuse A6 | 2K |
| K120 | On-board electrical system backup battery relay | 12L |
| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 60A |
| K40/11 | Firewall fuse and relay module | 13A |
| K40/11 | Firewall fuse and relay module | 20A |
| K40/11 | Firewall fuse and relay module | 28A |
| K40/11 | Firewall fuse and relay module | 36A |
| K40/11 | Firewall fuse and relay module | 44A |
| K40/11 | Firewall fuse and relay module | 52A |
| K40/11 | Firewall fuse and relay module | 68A |
| K40/11 | Firewall fuse and relay module | 76A |
| K40/11 | Firewall fuse and relay module | 84A |
| K40/11 | Firewall fuse and relay module | 93A |
| K40/11f21 | Fuse 21 | 7A |

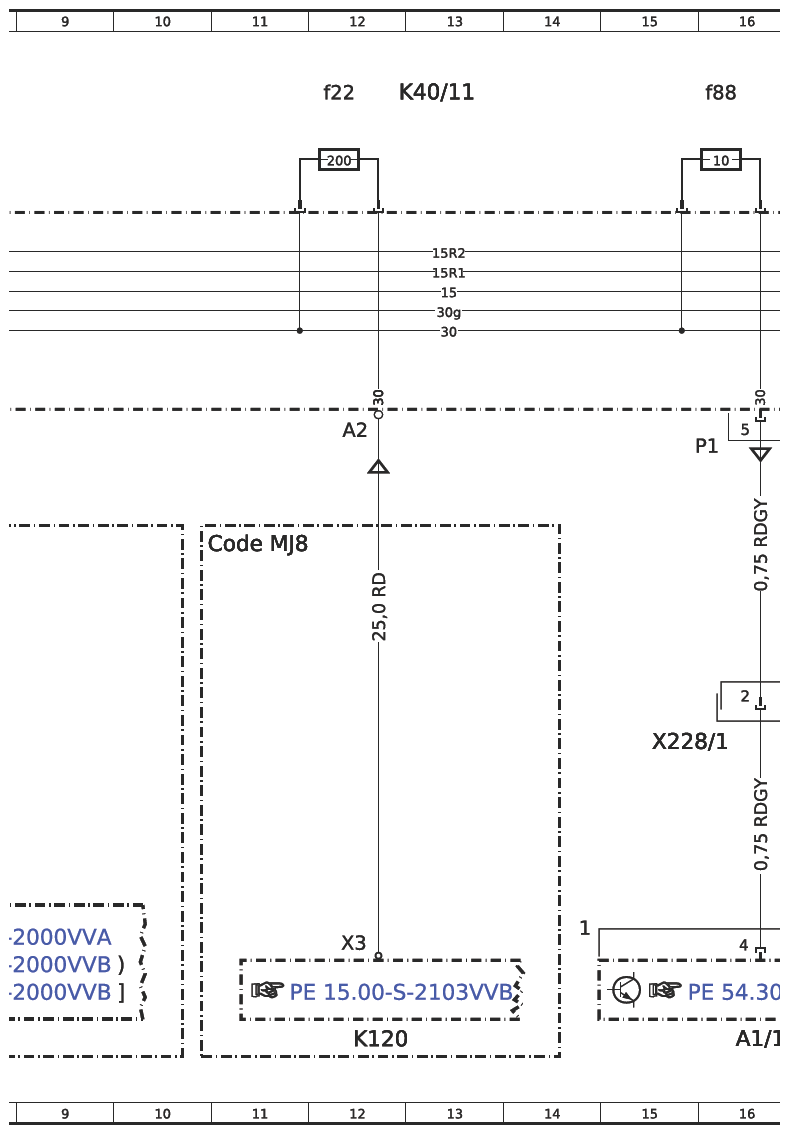

| K40/11f22 | Fuse 22 | 12A |

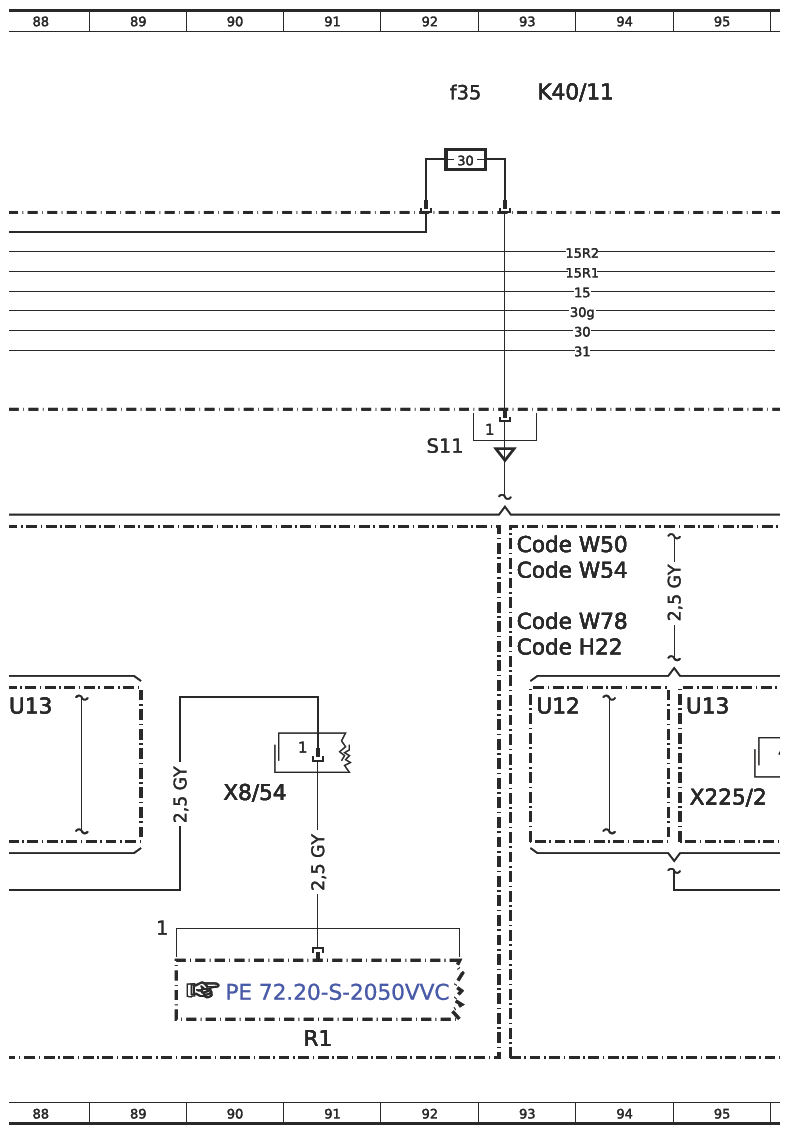

| K40/11f35 | Fuse 35 | 92A |
| K40/11f82 | Fuse 82 | 66A |

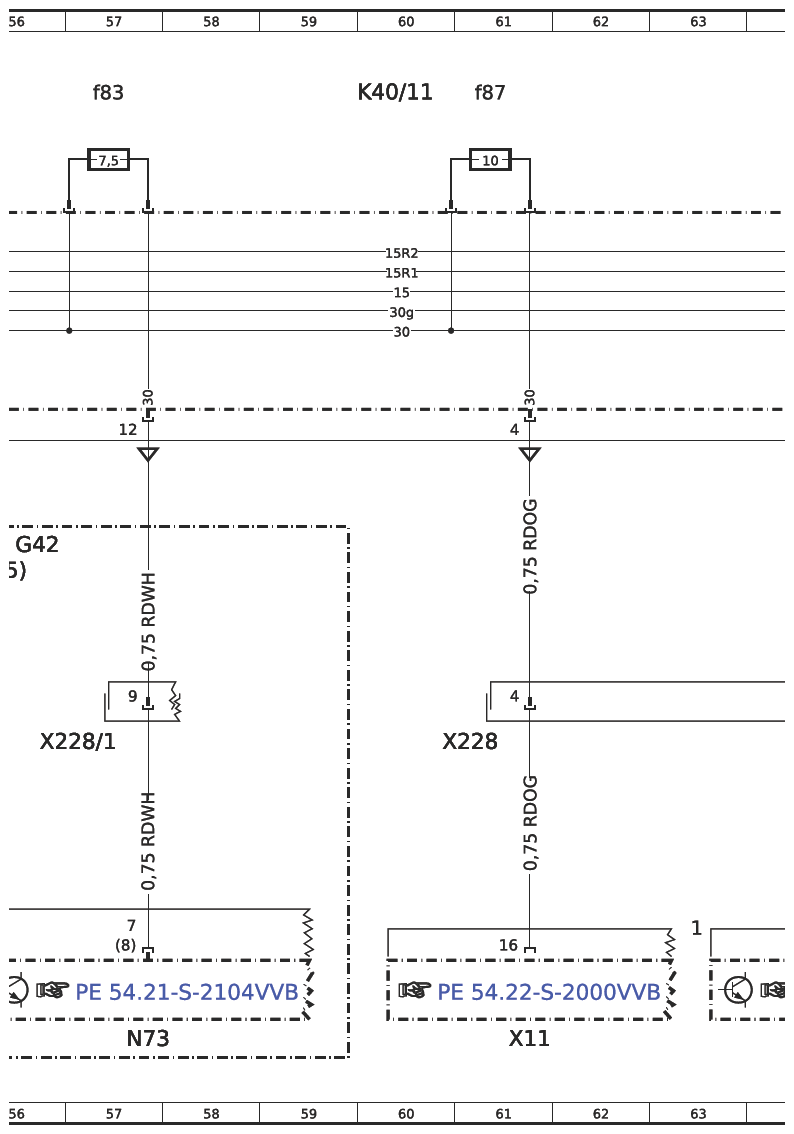

| K40/11f83 | Fuse 83 | 57A |

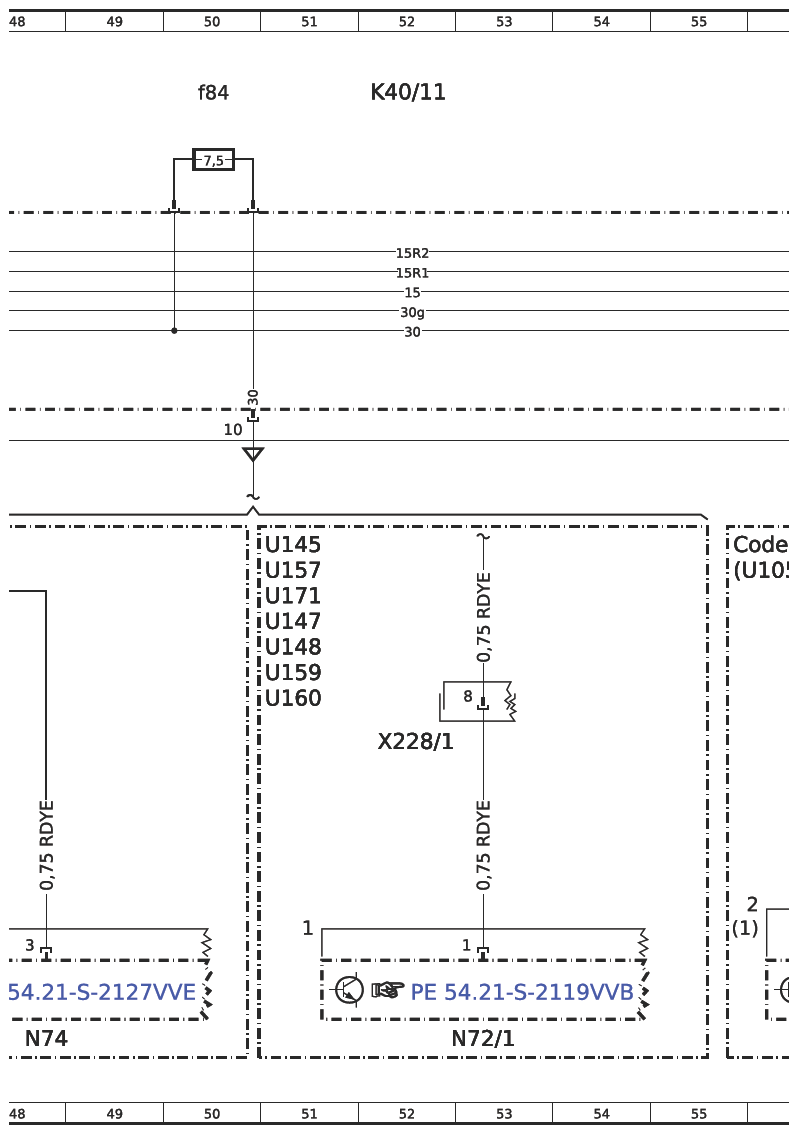

| K40/11f84 | Fuse 84 | 50A |

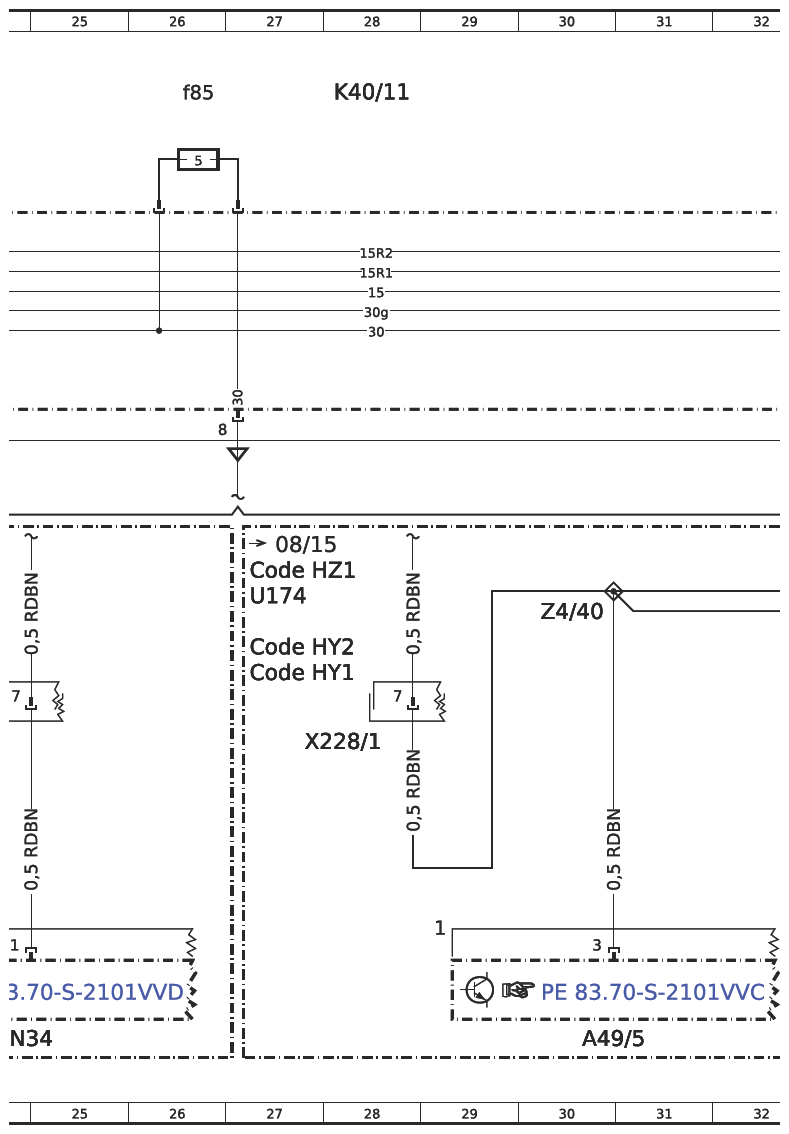

| K40/11f85 | Fuse 85 | 26A |

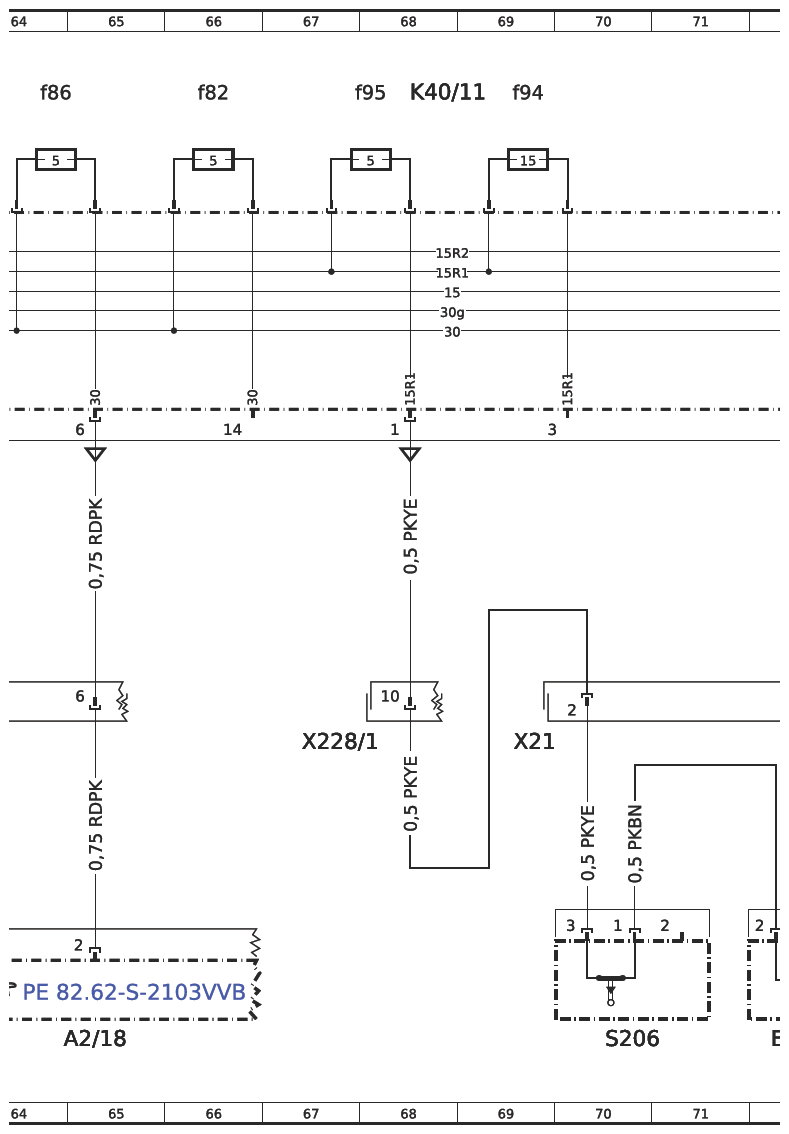

| K40/11f86 | Fuse 86 | 64A |
| K40/11f87 | Fuse 87 | 61A |
| K40/11f88 | Fuse 88 | 16A |
| K40/11f89 | Fuse 89 | 78A |

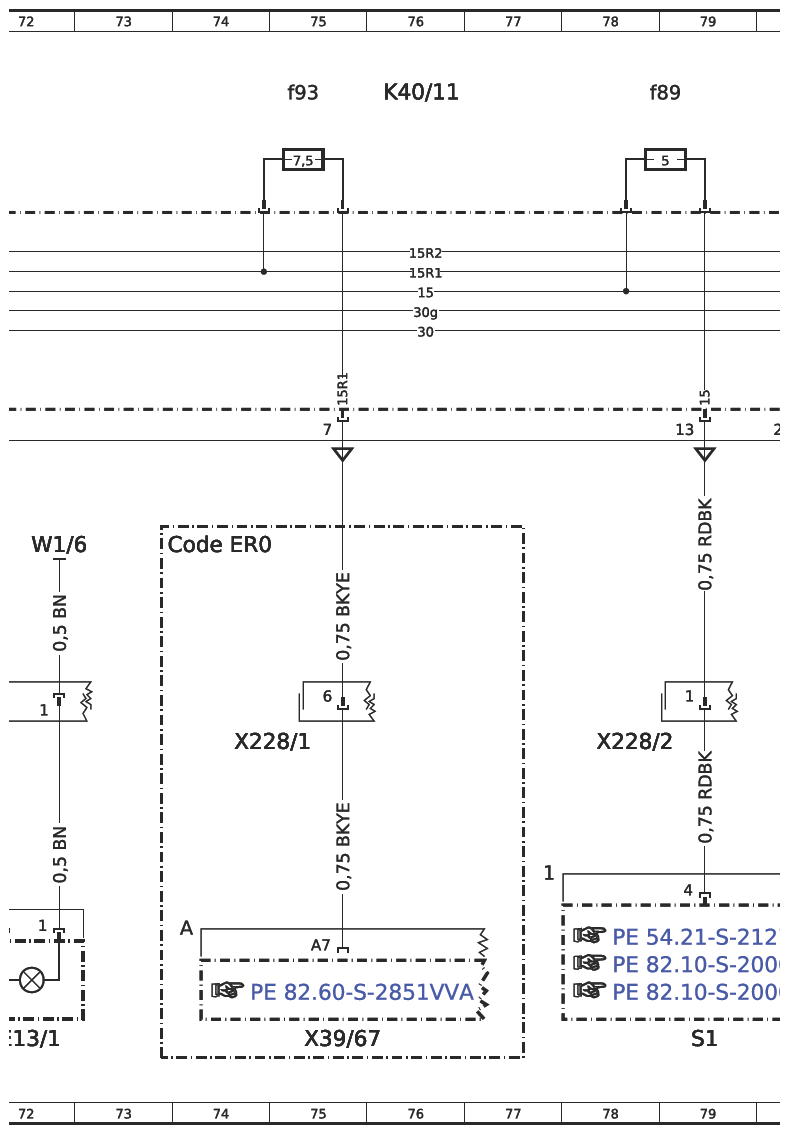

| K40/11f93 | Fuse 93 | 75A |
| K40/11f94 | Fuse 94 | 69A |
| K40/11f95 | Fuse 95 | 68A |

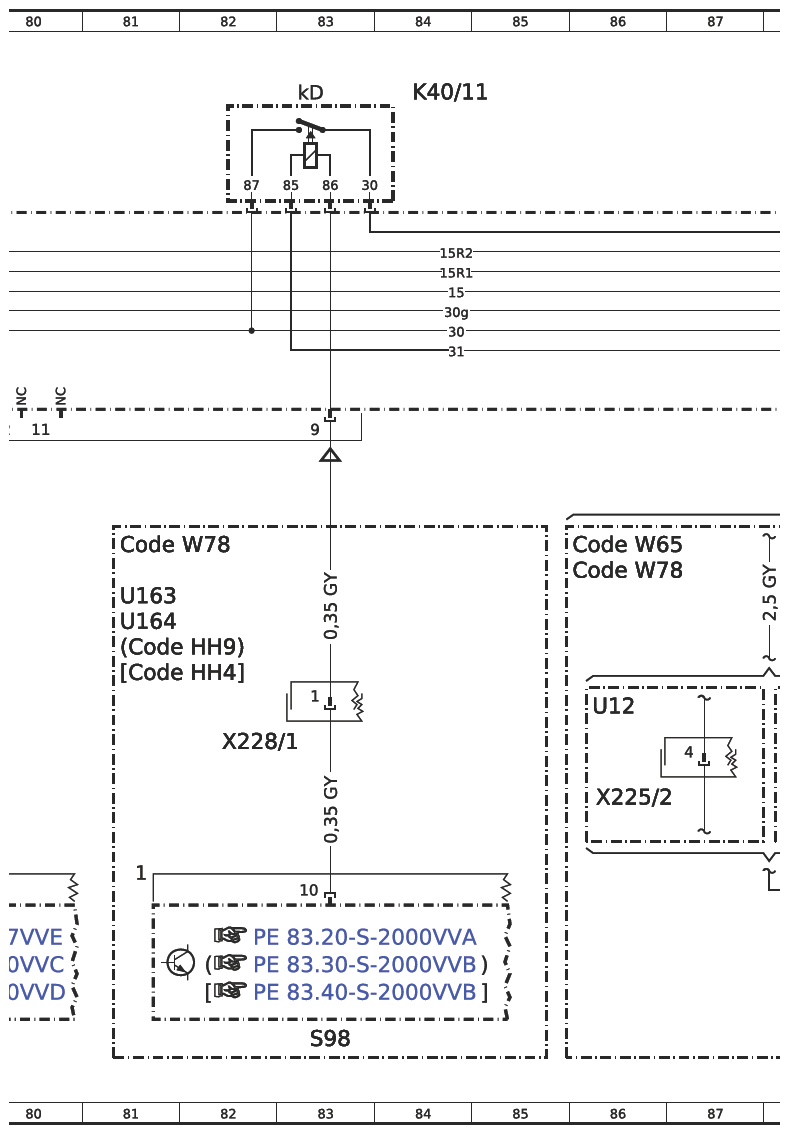

| K40/11 kD | Heated rear window relay | 83A |
| N33/4 | PTC heater booster control unit | 8L |
| N34 | Stationary heater timer | 24L |
| N34 | Stationary heater timer | 38L |

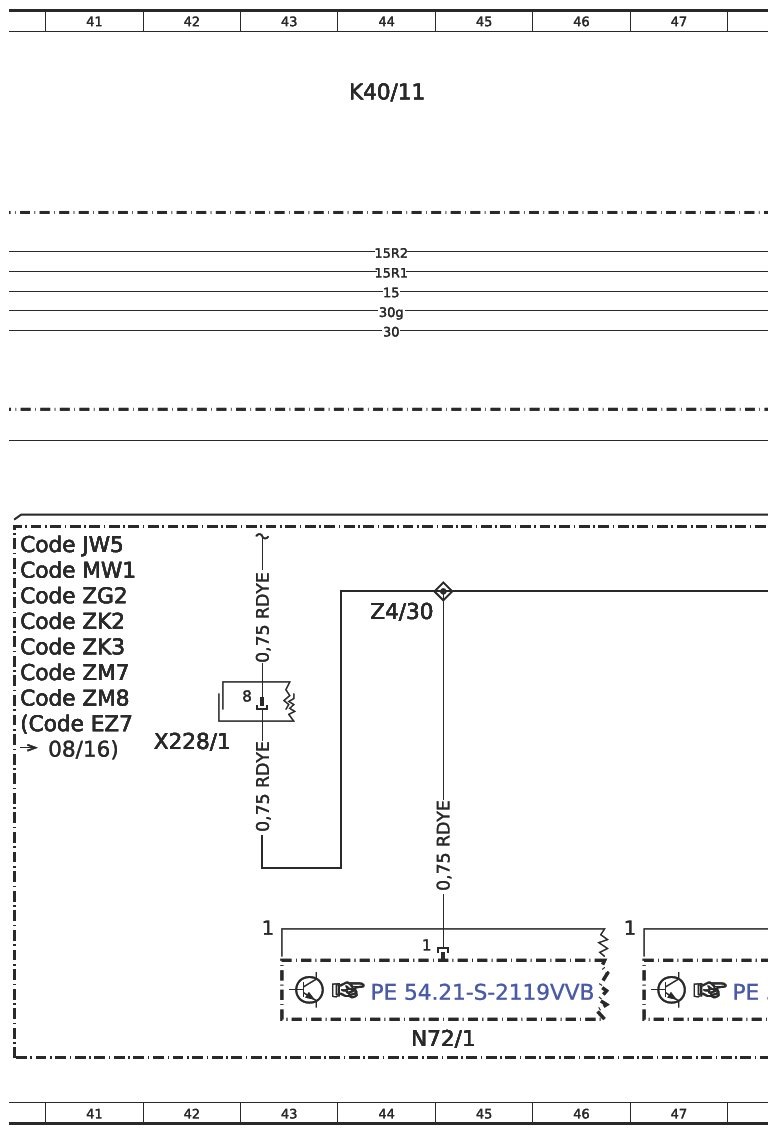

| N72/1 | Upper control panel (UCP [OBF]) control unit | 44L |
| N72/1 | Upper control panel (UCP [OBF]) control unit | 53L |
| N73 | Electronic ignition lock (EZS) control unit | 57L |
| N74 | Driver assistance systems operating panel control unit | 48L |
| R1 | Rear window heater | 91L |

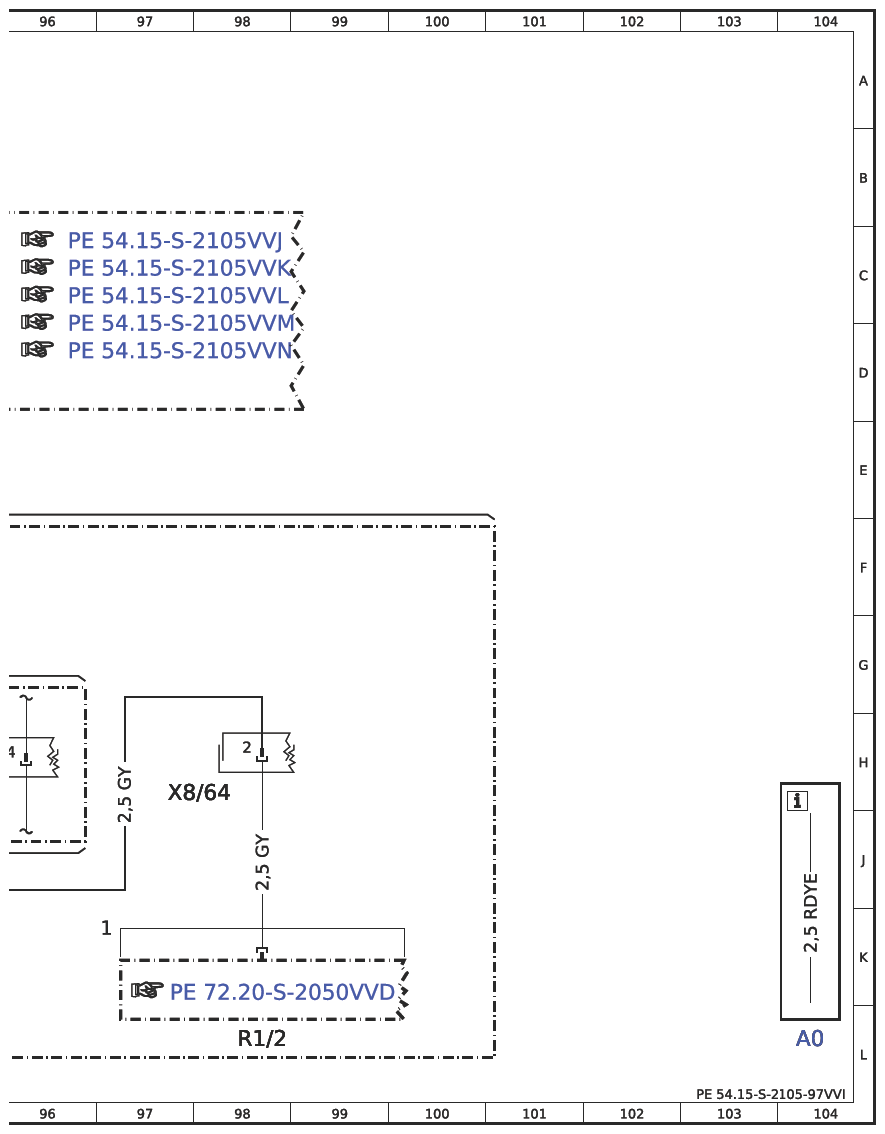

| R1/2 | Right rear-end door rear window heater | 98L |
| S1 | Light switch | 79L |
| S206 | Glove compartment switch illumination | 70L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 83L |
| U105 | Valid without Code G42 7G-TRONIC automatic transmission | 55F |
| U116 | Valid without Code HY2 Radio remote control for auxiliary air heater | 23G |
| U12 | Valid for left-hand drive vehicles | 86H |
| U12 | Valid for left-hand drive vehicles | 93H |
| U124 | Valid without Code HY1 Radio remote control for auxiliary water heater | 23G |
| U13 | Valid for right-hand drive vehicles | 88H |
| U13 | Valid for right-hand drive vehicles | 95H |
| U145 | Valid without Code JWS Lane Keeping Assist | 51F |
| U147 | Valid without Code ZK2 Taxi version with emergency alarm system | 51G |
| U148 | Valid without Code ZK3 Taxi version without emergency alarm system | 51G |
| U157 | Valid without Code MW1 Engine run-on (MWS) | 51F |
| U159 | Valid without Code ZM7 Rental vehicle package with emergency alarm system | 51G |
| U160 | Valid without Code ZM8 Rental vehicle package without emergency alarm system | 51G |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 6F |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 81F |
| U164 | Valid without Code HH4THERMOTRONIC automatic climate control | 6G |
| U164 | Valid without Code HH4THERMOTRONIC automatic climate control | 81G |
| U171 | Valid without Code ZG2 All-wheel drive | 51F |
| U174 | Valid without Code E28 Additional battery for retrofitted consumers | 23G |
| U174 | Valid without Code E28 Additional battery for retrofitted consumers | 27F |
| W1/6 | Cockpit ground point | 72F |
| X11 | Diagnostic connector | 61L |
| X21 | Glove compartment electrical connector | 69H |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 86H |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 95H |
| X228 | Cockpit wiring harness/fuse and relay module electrical | 61H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 15H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 20H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 24H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 28H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 42H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 52H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 57H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 67H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 75H |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical | 82H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical | 78H |
| X39/67 | Radio preinstallation electrical connector | 75L |
| X8/54 | Left liftgate electrical connector 1 | 90H |
| X8/64 | Right rear-end door electrical connector 2 | 98H |
| Z4/30 | Upper control panel/driver assistance systems tml. 30 connector sleeve | 44G |
| Z4/40 | Auxiliary heater radio remote control tml. 30 connector sleeve | 30G |
