Wiring Diagram For Fuse And Relay Module - PE54.15-S-2001-97VKD
Model 447 with Code XM7 (MOPF II) K40/12
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 48L |
| Code EK1 | Terminal strip for electrical connection | 2J |
| Code EK1 | Terminal strip for electrical connection | 30F |
| Code L | Valid for left-hand drive vehicles | 33H |
| Code R | Valid for right-hand drive vehicles | 34H |
| Code ZK7 | Marco Polo | 2J |
| Code ZK7 | Marco Polo | 41J |
| Code ZK7 | Marco Polo | 30F |
| F1 | Pre-fuse box | 4L |

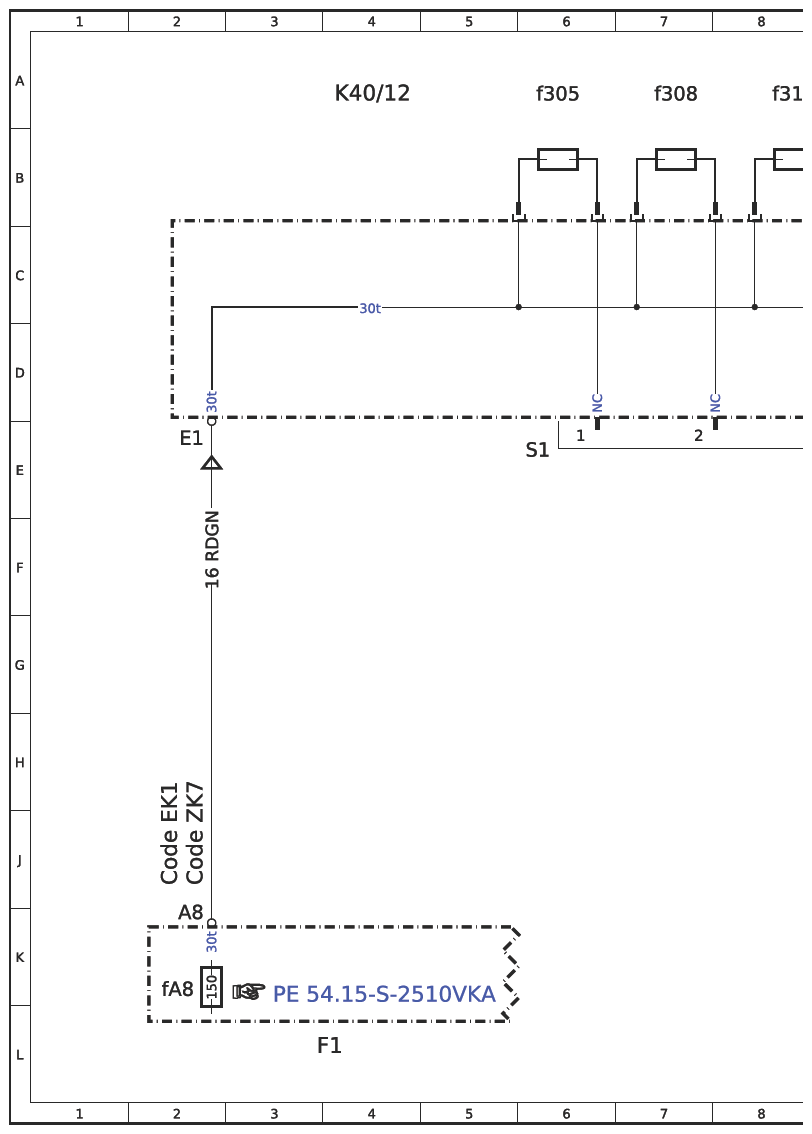

| F1fA8 | Pre-fuse A8 | 2K |
| K40/11 | Firewall fuse and relay module | 33L |
| K40/11f90 | Fuse 90 | 31K |

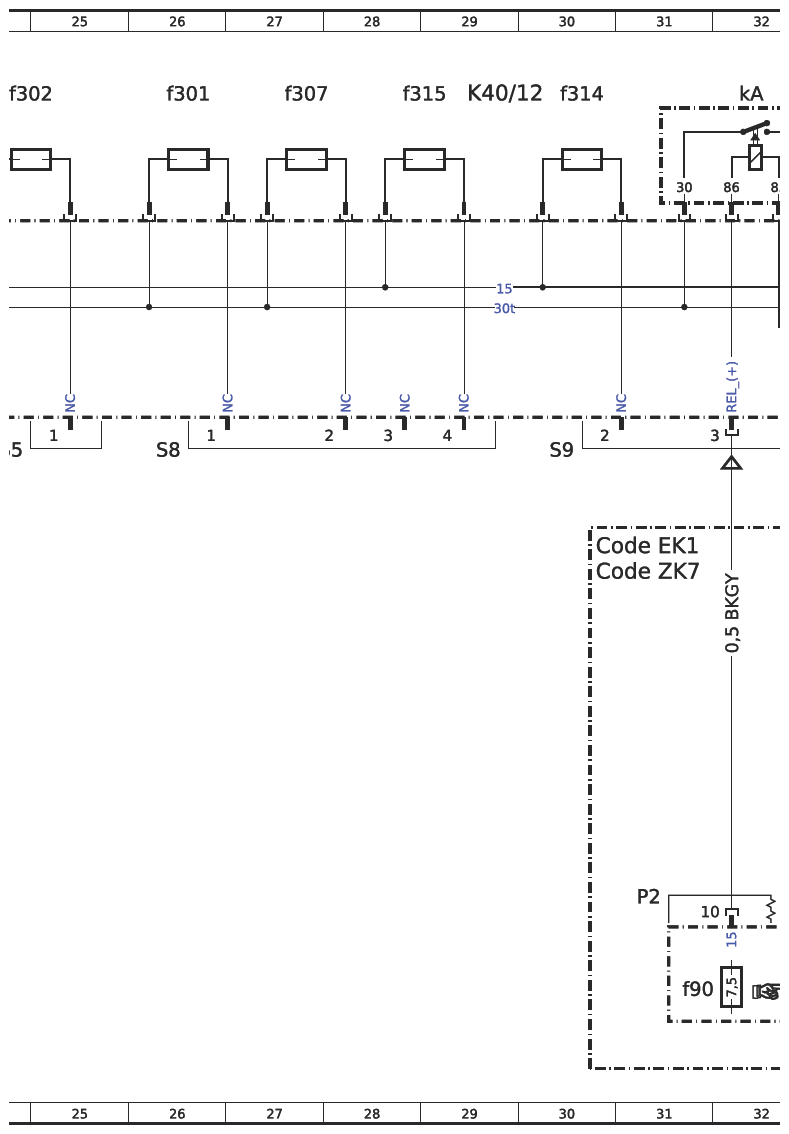

| K40/12 | Fuse and relay module, front passenger footwell | 4A |
| K40/12 | Fuse and relay module, front passenger footwell | 13A |
| K40/12 | Fuse and relay module, front passenger footwell | 20A |
| K40/12 | Fuse and relay module, front passenger footwell | 29A |
| K40/12 | Fuse and relay module, front passenger footwell | 43A |
| K40/12 | Fuse and relay module, front passenger footwell | 35A |

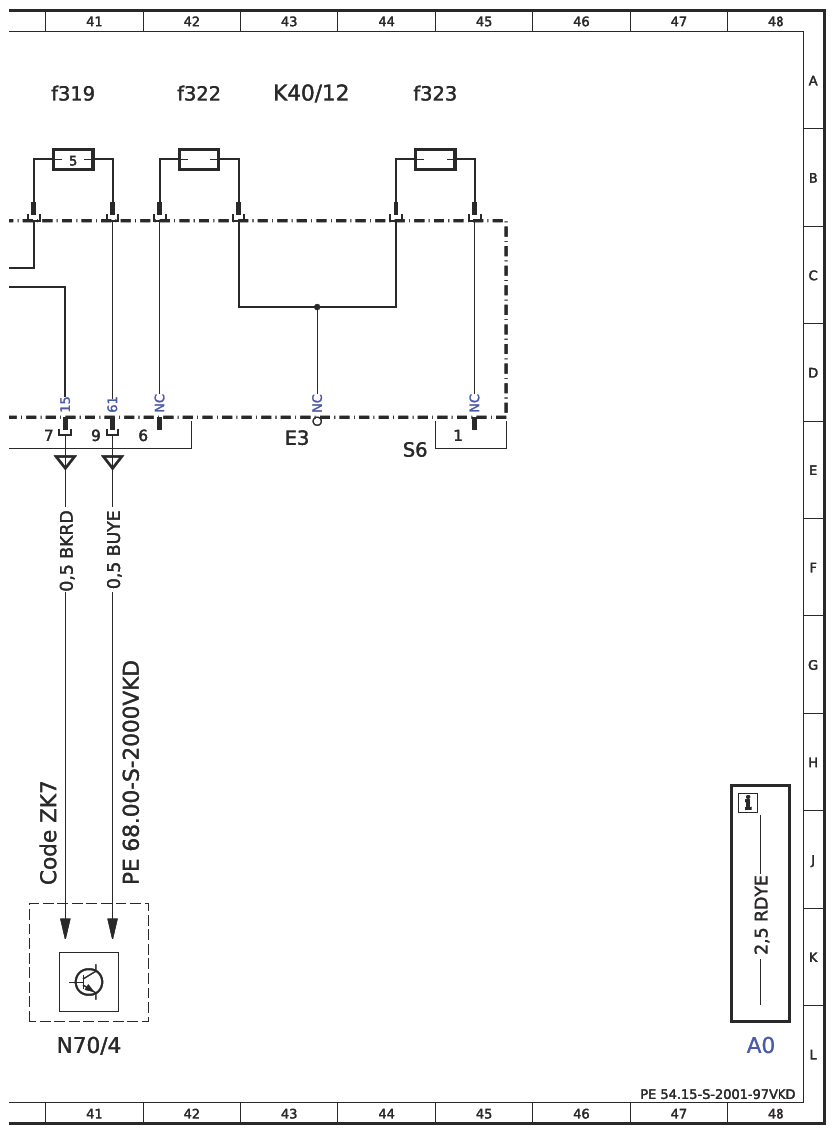

| K40/12f319 | Fuse 319 | 41A |
| K40/12f320 | Fuse 320 | 36A |

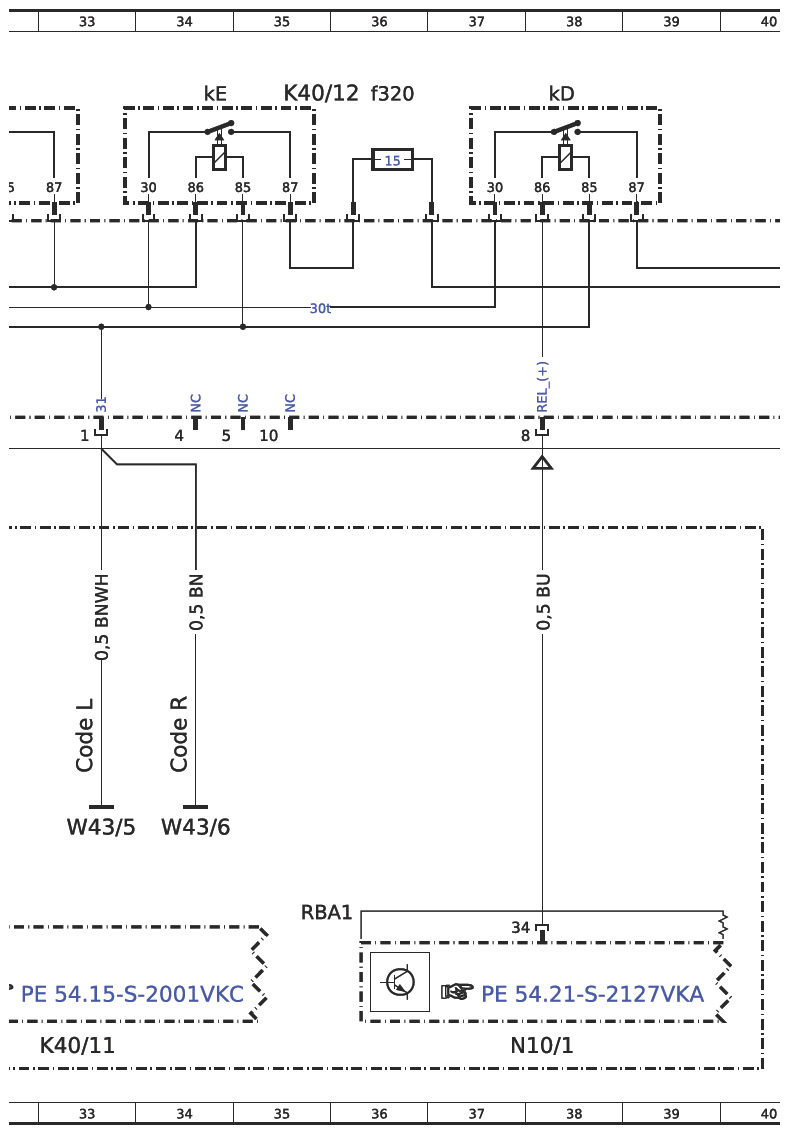

| K40/12kA | Circuit 15 relay | 32A |
| K40/12kD | Body manufacturer circuit 15 relay | 38A |
| K40/12kE | Body manufacturer circuit 15 relay | 34A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 38L |
| N70/4 | Pop-up roof control unit | 41L |
| W43/5 | Right vehicle interior firewall ground point 2 | 33J |
| W43/6 | Left vehicle interior firewall ground point 2 | 34J |
