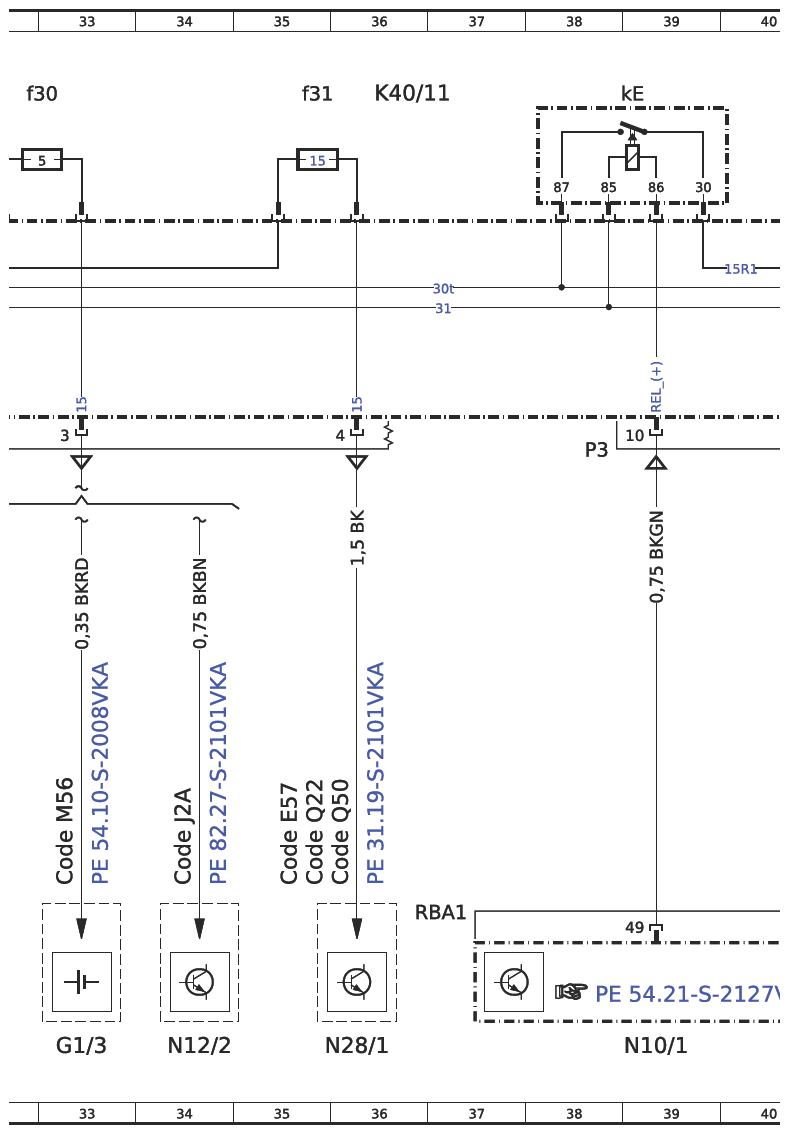

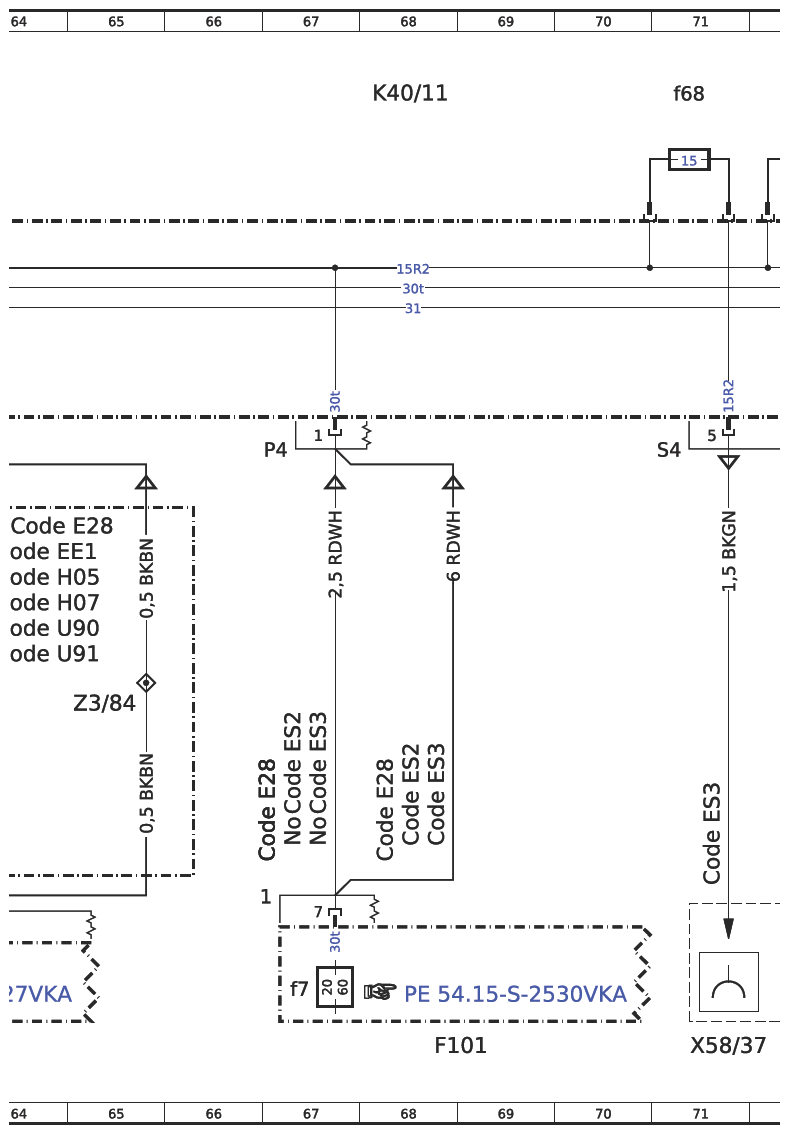

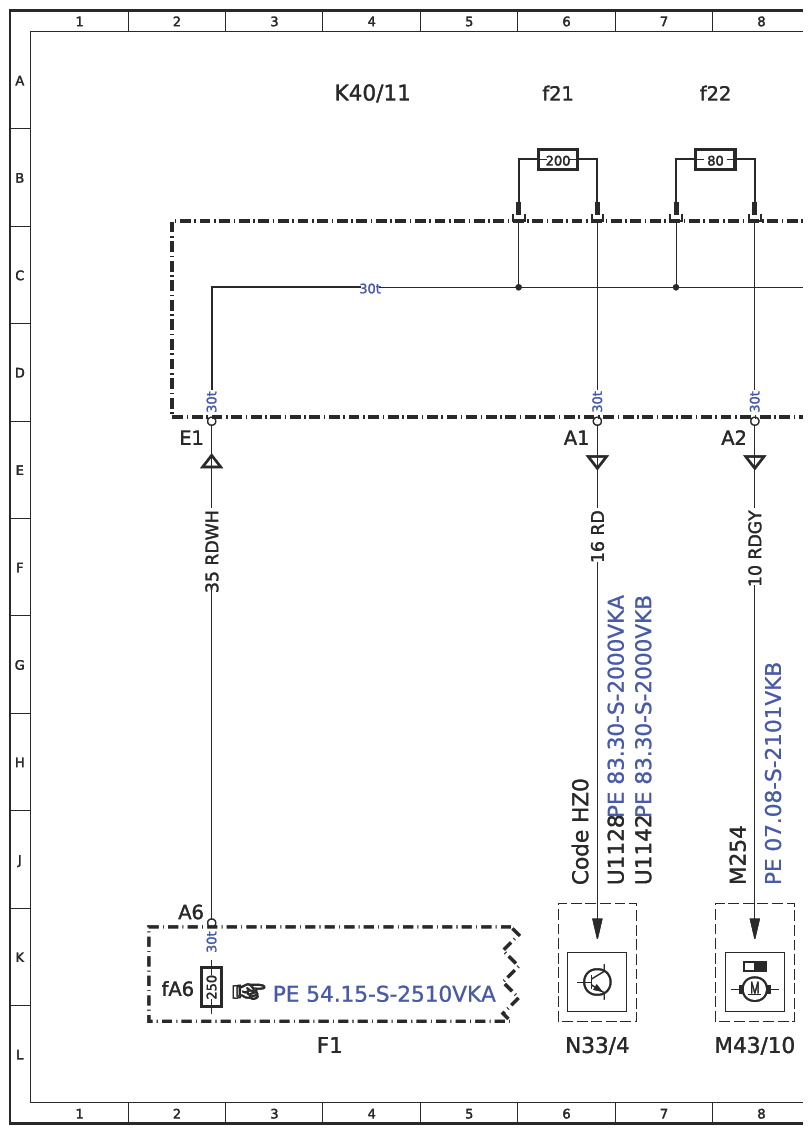

Wiring Diagram For Fuse And Relay Module - PE54.15-S-2001-97VKC
Model 447 with Code XM7 (MOPF II) K40/11
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 224L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 192L |
| A56 | Digital tachograph (DTCO) control unit | 30L |
| A67/3 | Digital inside rearview mirror | 117L |
| A79/8 | Integrated starter generator | 169L |
| B84/8 | Multifunction camera (MFK) control unit | 110L |
| C8 | Park pawl capacitor | 42L |
| Code CA4 | AIRMATIC | 189J |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 163J |
| Code E28 | Additional battery for retrofitted consumers | 80F |
| Code E28 | Additional battery for retrofitted consumers | 83F |
| Code E28 | Additional battery for retrofitted consumers | 61F |
| Code E28 | Additional battery for retrofitted consumers | 64F |
| Code E28 | Additional battery for retrofitted consumers | 68J |
| Code E28 | Additional battery for retrofitted consumers | 67J |
| Code E57 | Electrical system for trailer socket | 35J |
| Code E57 | Electrical system for trailer socket | 193J |
| Code E57 | Electrical system for trailer socket | 201J |
| Code E57 | Electrical system for trailer socket | 204J |
| Code E65 | Burmester surround sound system | 203J |
| Code ED5 | - | 136J |
| Code EE1 | 230 V socket | 80F |
| Code EE1 | 230 V socket | 83F |
| Code EE1 | 230 V socket | 61F |
| Code EE1 | 230 V socket | 64F |
| Code EE1 | 230 V socket | 92J |
| Code EK1 | Terminal strip for electrical connection | 2U |
| Code ES2 | Trunk/load compartment 12 V socket | 78J |
| Code ES2 | Trunk/load compartment 12 V socket | 68J |
| Code ES2 | Trunk/load compartment 12 V socket | 67J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 71J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 76J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 68J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 67J |
| Code EZ5 | Parking package | 114J |
| Code EZ6 | Parking package with 360° camera | 114J |
| Code F10 | Center console with stowage compartment and cup holder, cent. vers. | 74J |
| Code F10 | Center console with stowage compartment and cup holder, cent. vers. | 75J |
| Code F84 | Digital inside rearview mirror | 117J |
| Code FG0 | Center console with roller shutter door | 74J |
| Code FG0 | Center console with roller shutter door | 75J |
| Code FLK | Luxury MPV | 196J |
| Code FLK | Luxury MPV | 85J |
| Code FLK | Luxury MPV | 88J |
| Code G43 | 9G-TRONIC | 42J |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 80F |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 83F |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 61F |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 64F |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 118J |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 123J |
| Code H05 | Seat climate control in rear passenger compartment, 1st seat row | 87J |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 80F |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 83F |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 61F |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 64F |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 125J |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 127J |
| Code H07 | Seat climate control in rear passenger compartment, 2nd seat row | 88J |
| Code HZ0 | Electric heater booster | 6J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 26J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 116J |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 192J |
| Code J2A | Acoustic ambient protection | 34J |
| Code J4V | EU intelligent tachograph pre-installation | 30J |
| Code JB6 | Parking package with 360° camera | 114J |
| Code JB7 | Parking Package with reversing camera | 114J |
| Code JD6 | EU intelligent tachograph | 30J |
| Code JH0 | Display package | 161J |
| Code JO3 | OLU Connect Unit | 28J |
| Code KP7 | SCR Generation 4 exhaust gas cleaning | 32J |
| Code KP7 | SCR Generation 4 exhaust gas cleaning | 156J |
| Code KP7 | SCR Generation 4 exhaust gas cleaning | 168J |
| Code L | Valid for left-hand drive vehicles | 9G |
| Code L | Valid for left-hand drive vehicles | 76J |
| Code L | Valid for left-hand drive vehicles | 212G |
| Code L84 | Additional rear turn signal lamps on roof | 150J |
| Code LE3 | Cockpit + rear passenger compartment 64-color ambient lighting | 111J |
| Code LE3 | Cockpit + rear passenger compartment 64-color ambient lighting | 151J |
| Code LE4 | Ambient lighting in cockpit with 64 colors | 111J |
| Code LE4 | Ambient lighting in cockpit with 64 colors | 151J |
| Code LE5 | Complete Marco Polo 64-color ambient lighting | 111J |
| Code LE5 | Complete Marco Polo 64-color ambient lighting | 152J |
| Code M56 | 48V technology | 33J |
| Code M56 | 48V technology | 157J |
| Code M56 | 48V technology | 169J |
| Code Q22 | Trailer hitch with non-removable ball head | 35J |
| Code Q22 | Trailer hitch with non-removable ball head | 193J |
| Code Q22 | Trailer hitch with non-removable ball head | 201J |
| Code Q22 | Trailer hitch with non-removable ball head | 204J |
| Code Q50 | Trailer hitch with removable ball head | 36J |
| Code Q50 | Trailer hitch with removable ball head | 193J |
| Code Q50 | Trailer hitch with removable ball head | 202J |
| Code Q50 | Trailer hitch with removable ball head | 205J |
| Code R | Valid for right-hand drive vehicles | 9G |
| Code R | Valid for right-hand drive vehicles | 212H |
| Code RY2 | Tire pressure monitor on FA and RA, wireless | 112J |
| Code SE4 | Front passenger seat lumbar support | 122J |
| Code SE5 | Driver seat lumbar support | 133J |
| Code SF1 | Electrically adjustable driver seat | 165J |
| Code SF1 | Electrically adjustable driver seat | 166J |
| Code SF1 | Electrically adjustable driver seat | 131J |
| Code SF1 | Electrically adjustable driver seat | 132J |
| Code SF1 | Electrically adjustable driver seat | 133J |
| Code SF2 | Electrically adjustable front passenger seat | 164J |
| Code SF2 | Electrically adjustable front passenger seat | 121J |
| Code SF2 | Electrically adjustable front passenger seat | 122J |
| Code SK5 | Automatic child seat recognition (ACSR) in front passenger seat | 45J |
| Code T19 | Left sliding door | 77J |
| Code T55 | Electric controls for right sliding door | 177J |
| Code T56 | Electric controls for left sliding door | 77J |
| Code T56 | Electric controls for left sliding door | 200J |
| Code U90 | Left 1st seat row luxury seat | 80G |
| Code U90 | Left 1st seat row luxury seat | 83G |
| Code U90 | Left 1st seat row luxury seat | 61G |
| Code U90 | Left 1st seat row luxury seat | 64G |
| Code U90 | Left 1st seat row luxury seat | 95J |
| Code U90 | Left 1st seat row luxury seat | 119J |
| Code U90 | Left 1st seat row luxury seat | 90J |
| Code U91 | Right 1st seat row luxury seat | 80G |
| Code U91 | Right 1st seat row luxury seat | 83G |
| Code U91 | Right 1st seat row luxury seat | 61G |
| Code U91 | Right 1st seat row luxury seat | 64G |
| Code U91 | Right 1st seat row luxury seat | 96J |
| Code U91 | Right 1st seat row luxury seat | 124J |
| Code U91 | Right 1st seat row luxury seat | 90J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 47J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 54J |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 55J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 48J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 54J |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 55J |
| Code W64 | Separately opening rear window | 59J |
| Code W64 | Separately opening rear window | 99J |
| Code W65 | Liftgate | 57J |
| Code W68 | EASY PACK liftgate | 57J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 57J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 47J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 53J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 55J |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 99J |
| Code ZK7 | Marco Polo | 21J |
| Code ZK7 | Marco Polo | 80G |
| Code ZK7 | Marco Polo | 61G |
| Code ZK7 | Marco Polo | 197J |
| Code ZK7 | Marco Polo | 86J |
| Code ZK7 | Marco Polo | 88J |
| F1 | Pre-fuse box | 4L |
| F101 | Fuse box (11 fuses) | 68L |
| F101f7 | Fuse 7 | 67K |
| F1fA6 | Pre-fuse A6 | 2K |

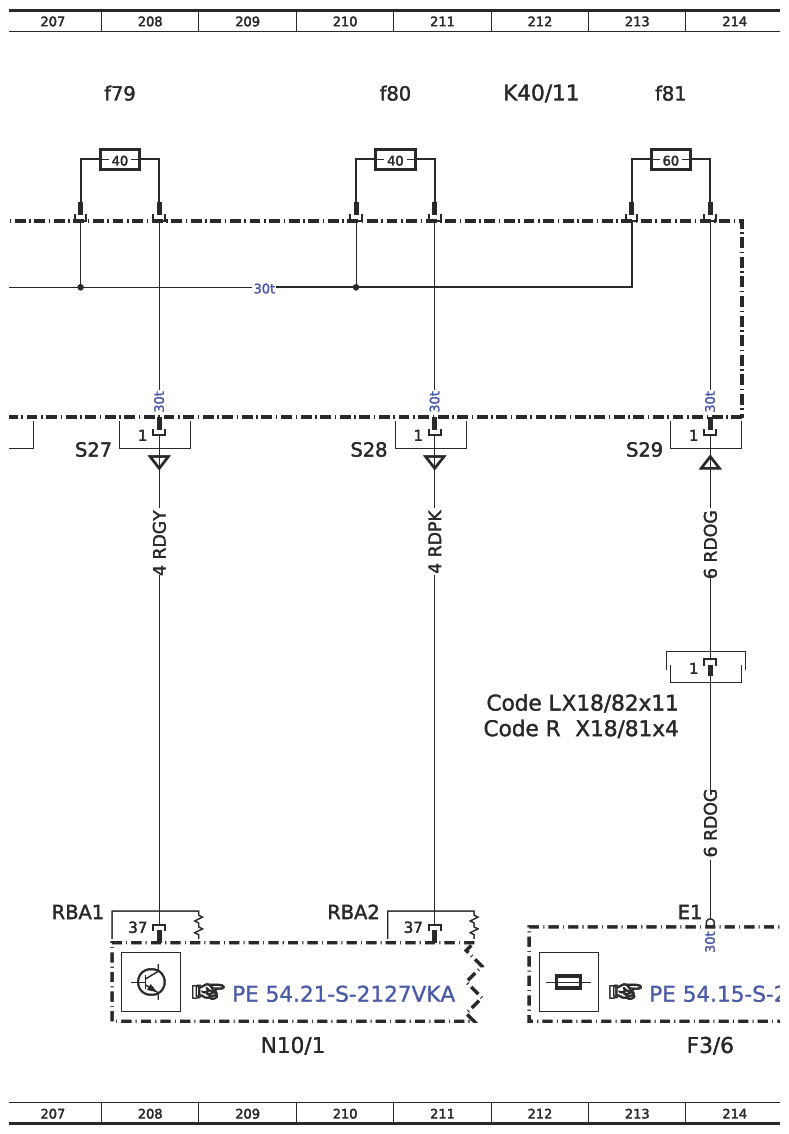

| F3/6 | Cockpit circuit 30/30t fuse box | 214L |
| G1/3 | - | 33L |
| G1/3 | - | 157L |
| K128 | Ambient lighting relay | 152L |
| K40/10 | Engine compartment fuse and relay module | 16L |
| K40/10 | Engine compartment fuse and relay module | 181L |

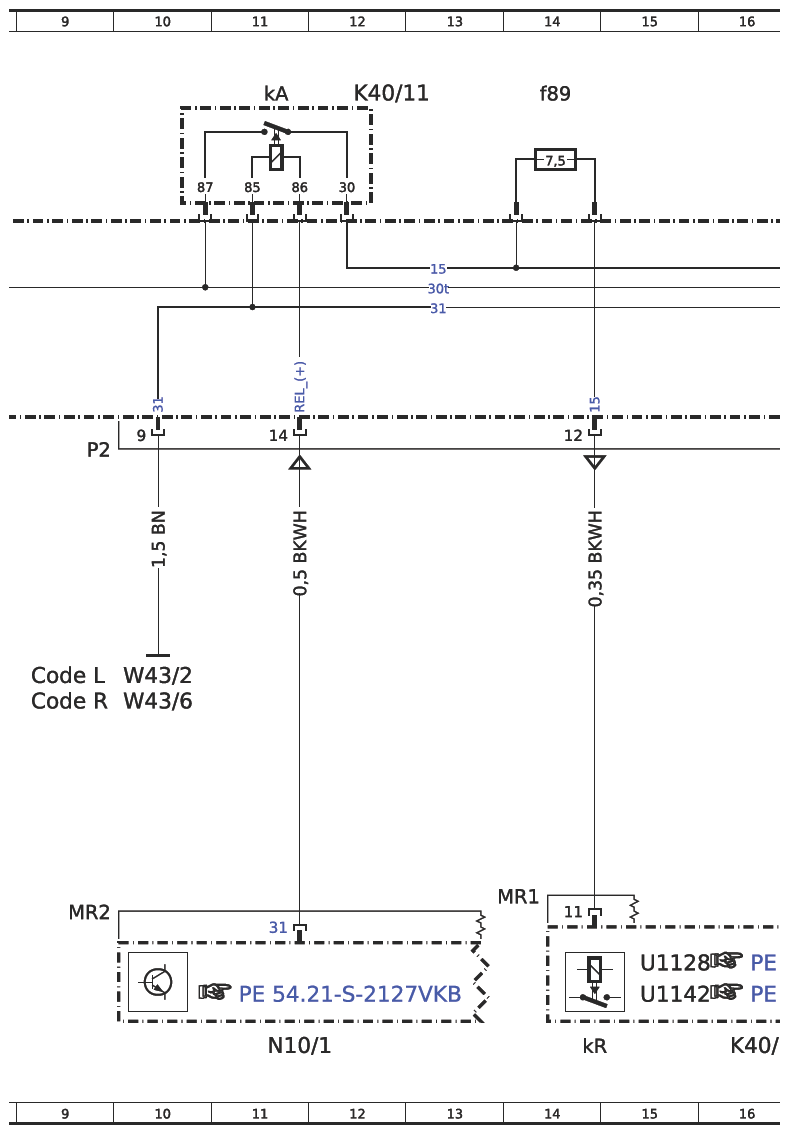

| K40/10kR | Circuit 15 relay | 14L |

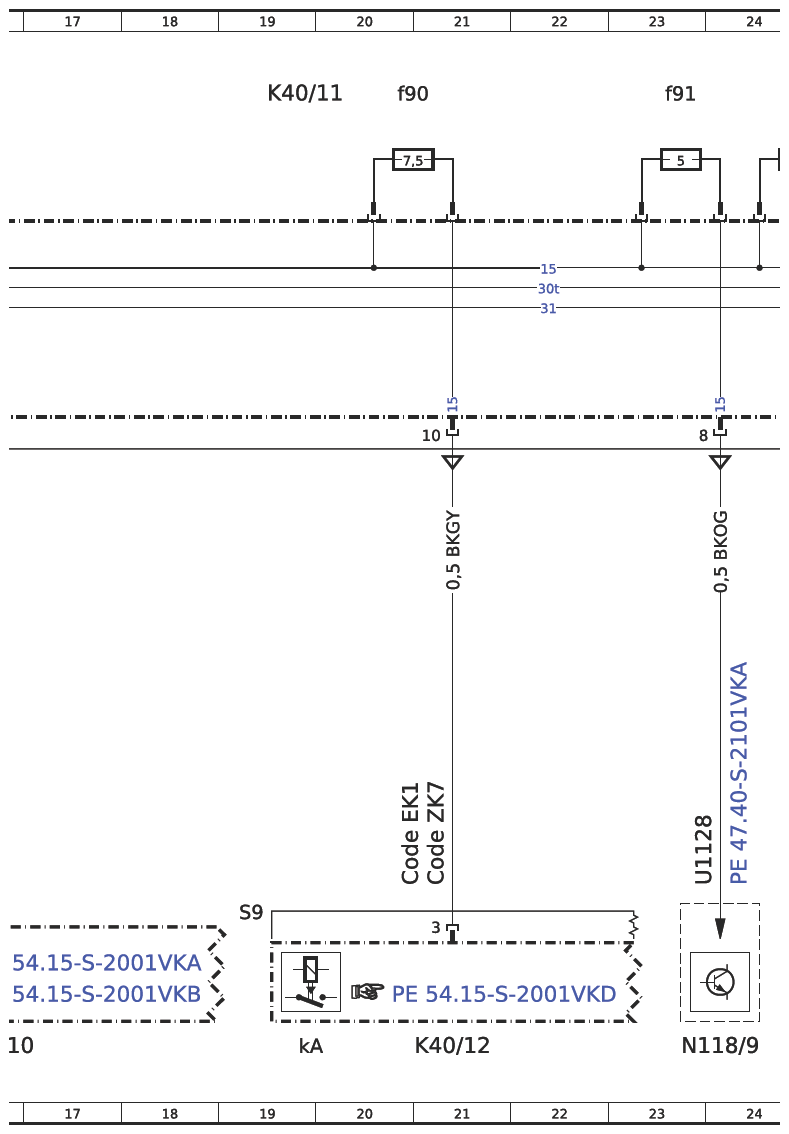

| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11 | Firewall fuse and relay module | 19A |
| K40/11 | Firewall fuse and relay module | 28A |
| K40/11 | Firewall fuse and relay module | 36A |
| K40/11 | Firewall fuse and relay module | 44A |
| K40/11 | Firewall fuse and relay module | 52A |

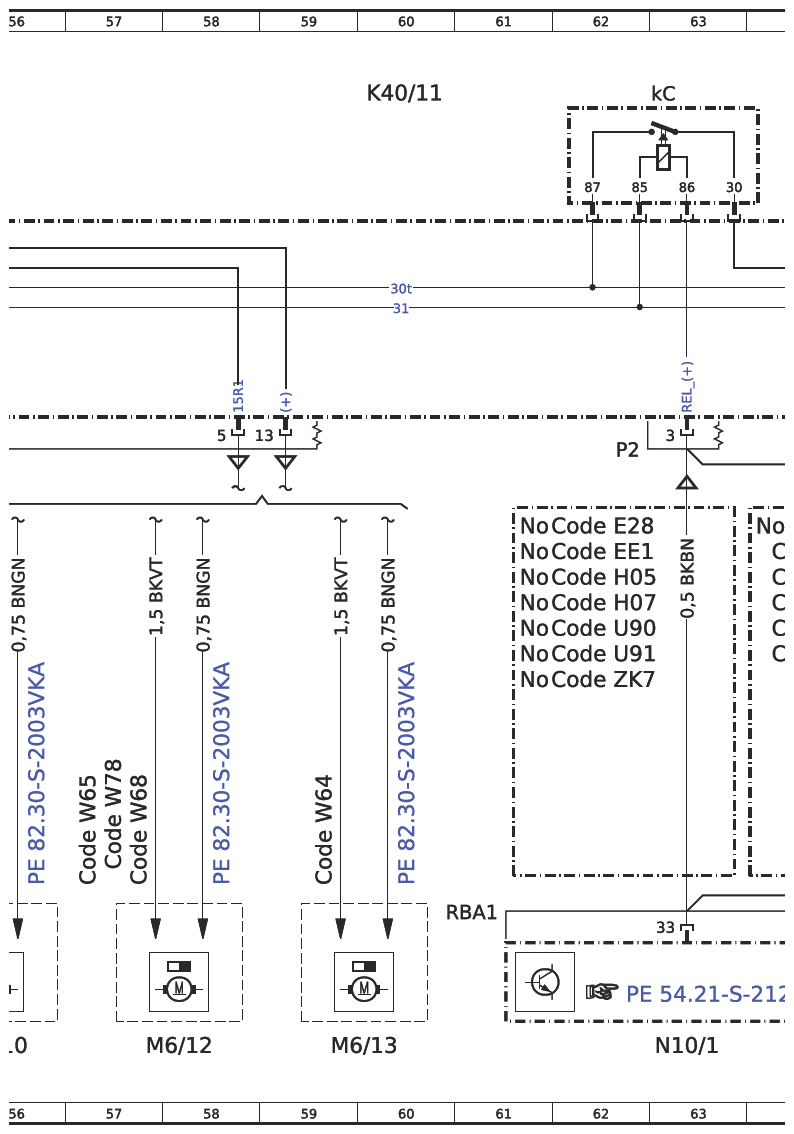

| K40/11 | Firewall fuse and relay module | 60A |
| K40/11 | Firewall fuse and relay module | 68A |
| K40/11 | Firewall fuse and relay module | 76A |
| K40/11 | Firewall fuse and relay module | 84A |
| K40/11 | Firewall fuse and relay module | 108A |
| K40/11 | Firewall fuse and relay module | 116A |
| K40/11 | Firewall fuse and relay module | 124A |
| K40/11 | Firewall fuse and relay module | 132A |
| K40/11 | Firewall fuse and relay module | 140A |
| K40/11 | Firewall fuse and relay module | 148A |

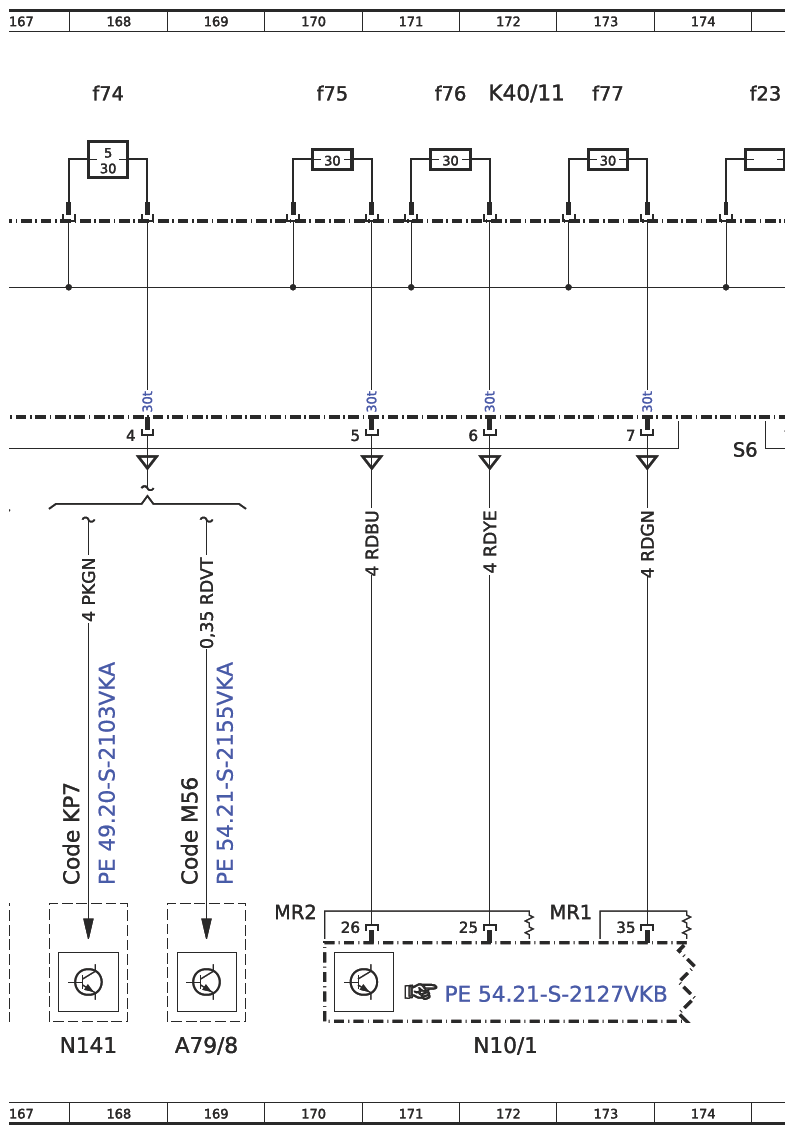

| K40/11 | Firewall fuse and relay module | 156A |
| K40/11 | Firewall fuse and relay module | 164A |
| K40/11 | Firewall fuse and relay module | 172A |
| K40/11 | Firewall fuse and relay module | 180A |
| K40/11 | Firewall fuse and relay module | 187A |
| K40/11 | Firewall fuse and relay module | 195A |
| K40/11 | Firewall fuse and relay module | 203A |
| K40/11 | Firewall fuse and relay module | 212A |
| K40/11 | Firewall fuse and relay module | 91A |
| K40/11 | Firewall fuse and relay module | 100A |

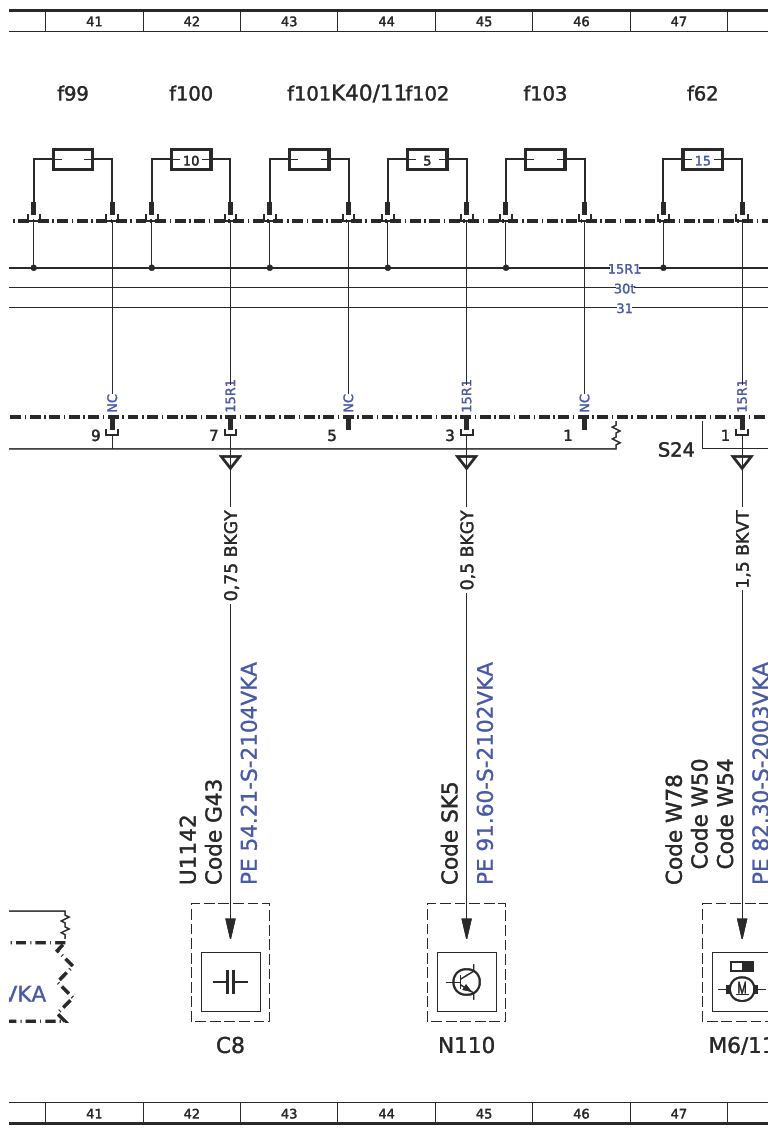

| K40/11f100 | Fuse 100 | 42A |
| K40/11fl02 | Fuse 102 | 44A |

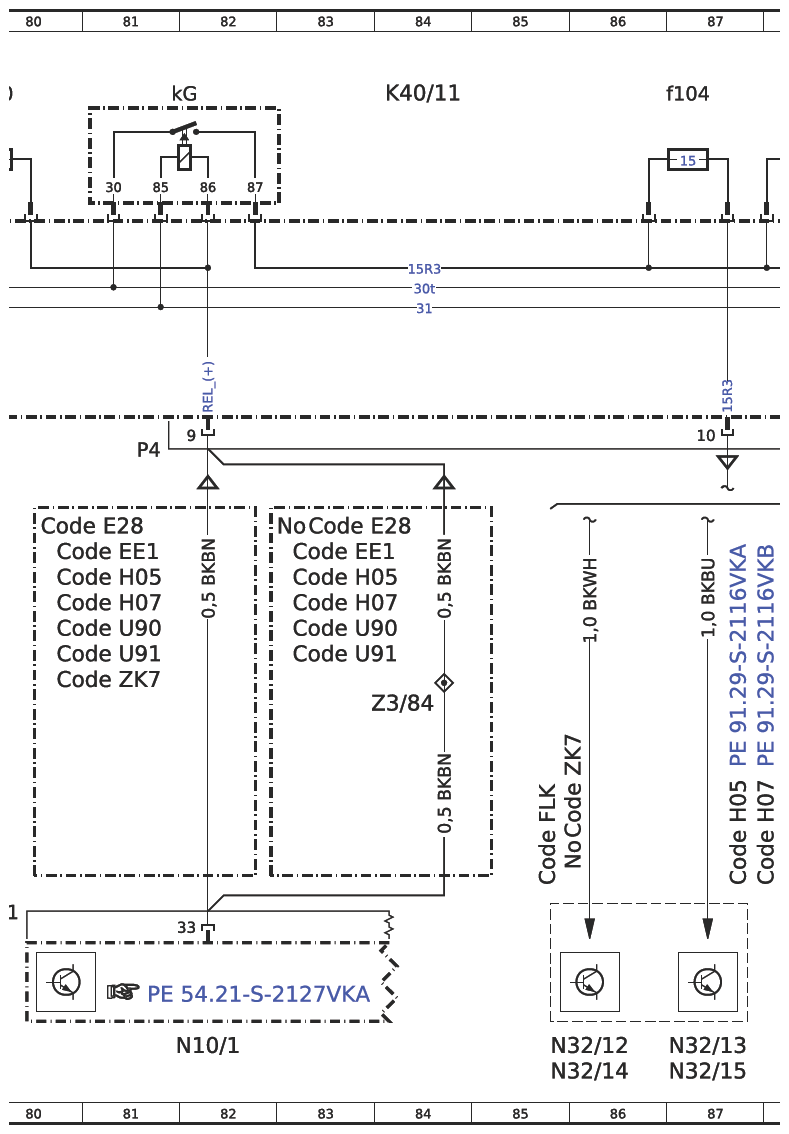

| K40/11f104 | Fuse 104 | 87A |

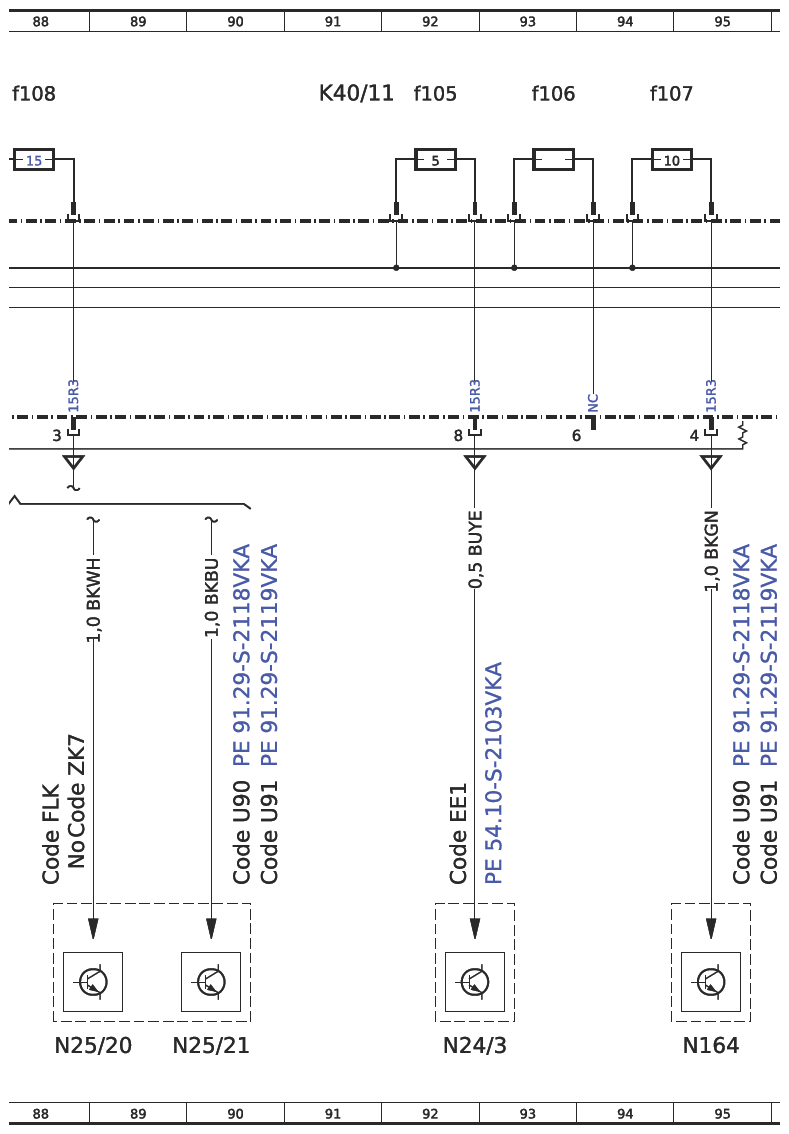

| K40/11f105 | Fuse 105 | 92A |
| K40/11fl07 | Fuse 107 | 94A |
| K40/11f108 | Fuse 108 | 88A |
| K40/11f110 | Fuse 110 | 79A |
| K40/11f21 | Fuse 21 | 6A |
| K40/11f22 | Fuse 22 | 7A |

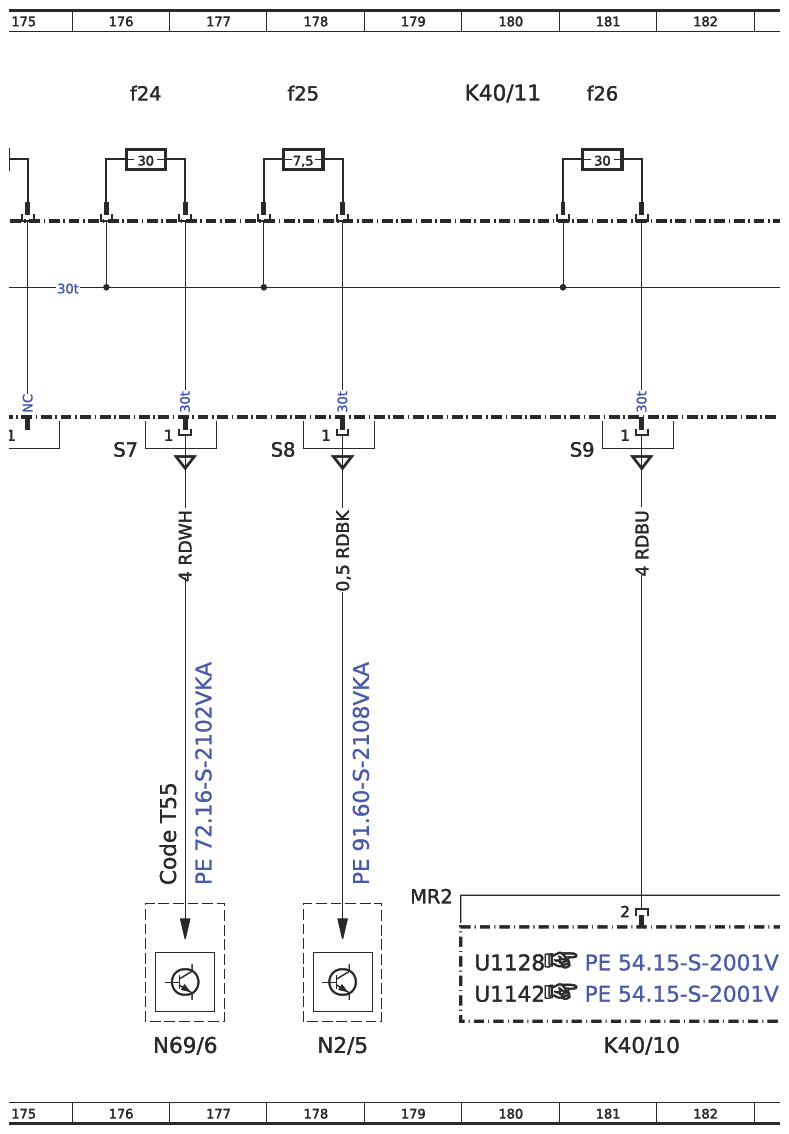

| K40/11f24 | Fuse 24 | 176A |
| K40/11f25 | Fuse 25 | 178A |
| K40/11f26 | Fuse 26 | 181A |
| K40/11f27 | Fuse 27 | 185A |
| K40/11f29 | Fuse 29 | 30A |
| K40/11f30 | Fuse 30 | 32A |
| K40/11f31 | Fuse 31 | 35A |
| K40/11f34 | Fuse 34 | 132A |

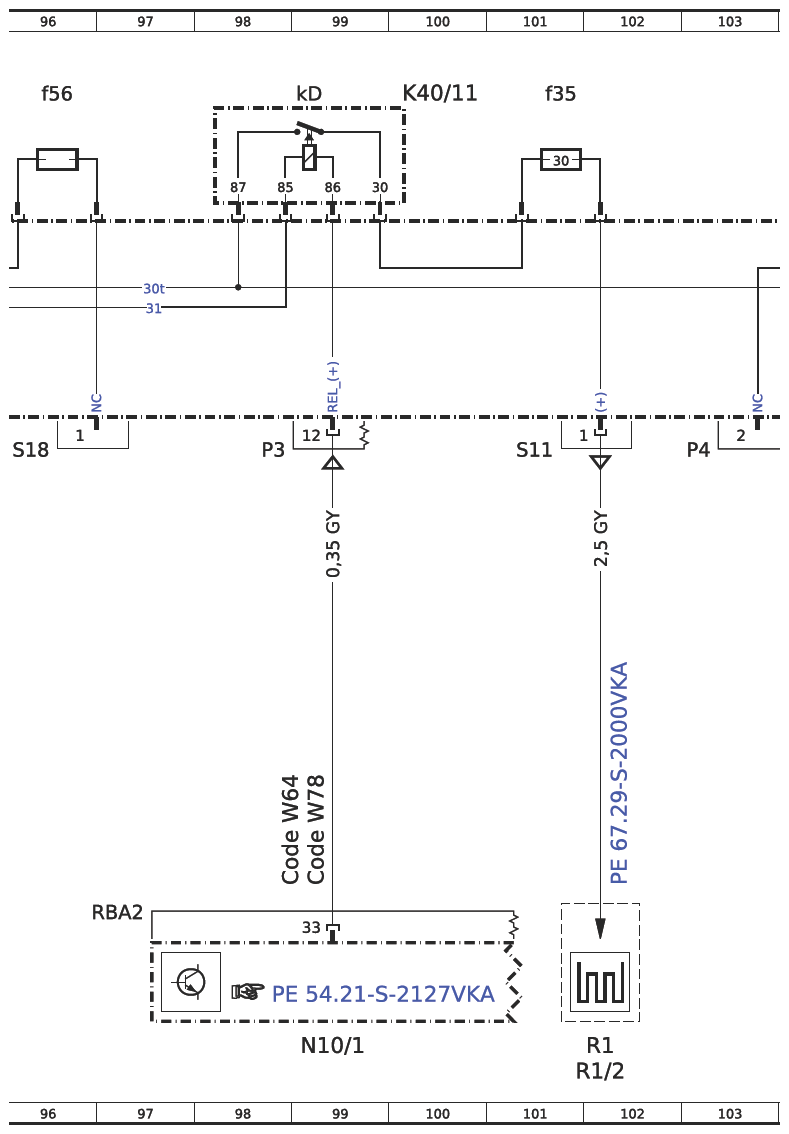

| K40/11f35 | Fuse 35 | 101A |
| K40/11f36 | Fuse 36 | 136A |
| K40/11f37 | Fuse 37 | 137A |
| K40/11f43 | Fuse 43 | 188A |
| K40/11f44 | Fuse 44 | 190A |

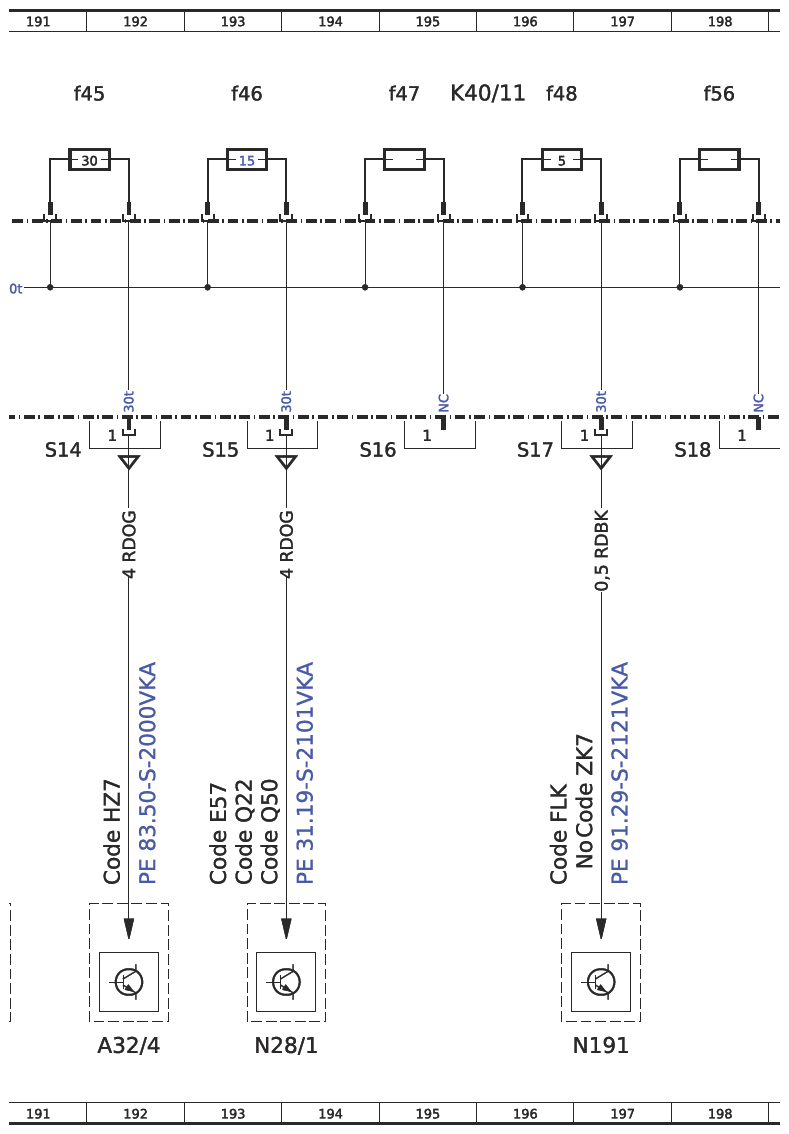

| K40/11f45 | Fuse 45 | 191A |
| K40/11f46 | Fuse 46 | 193A |
| K40/11f48 | Fuse 48 | 196A |

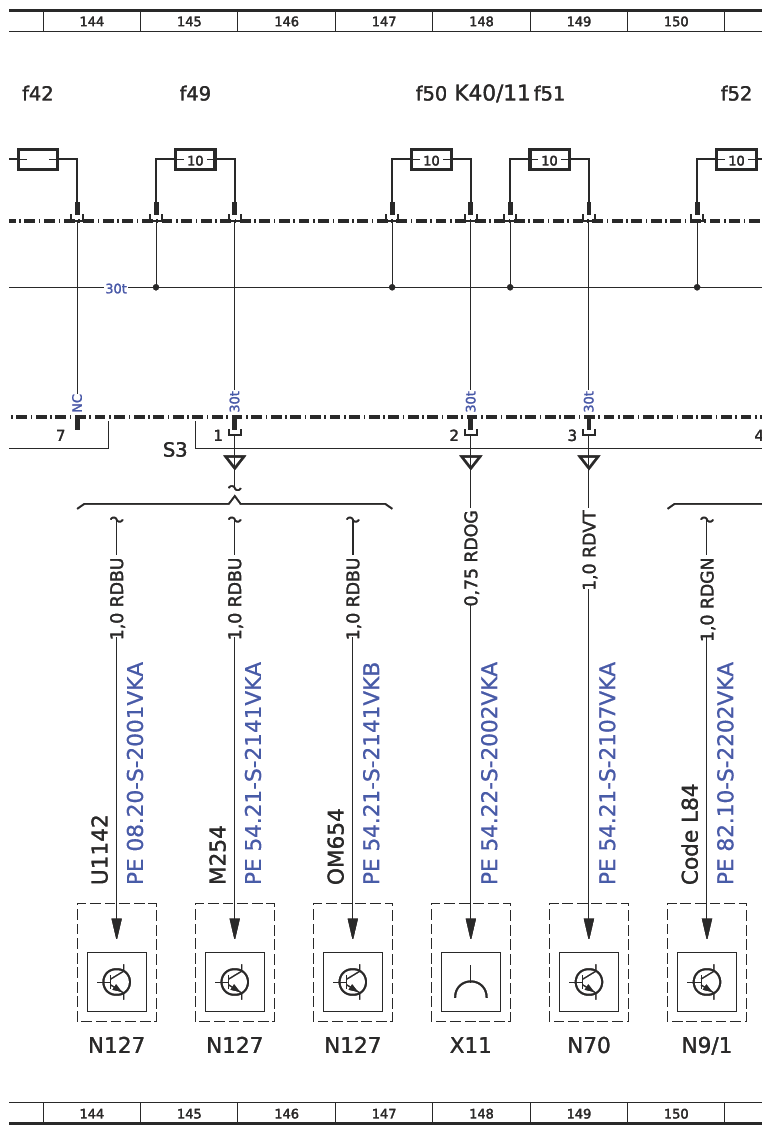

| K40/11f49 | Fuse 49 | 145A |
| K40/11f50 | Fuse 50 | 147A |
| K40/11f51 | Fuse 51 | 149A |
| K40/11f52 | Fuse 52 | 151A |

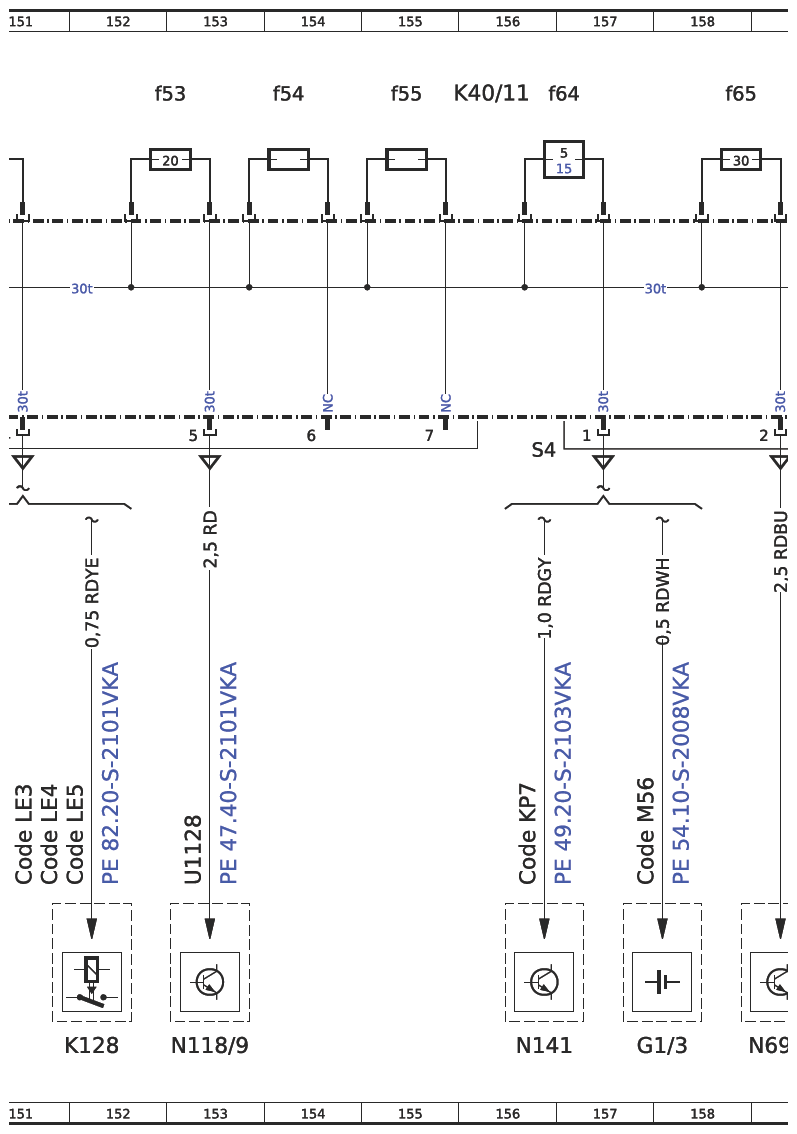

| K40/11f53 | Fuse 53 | 152A |

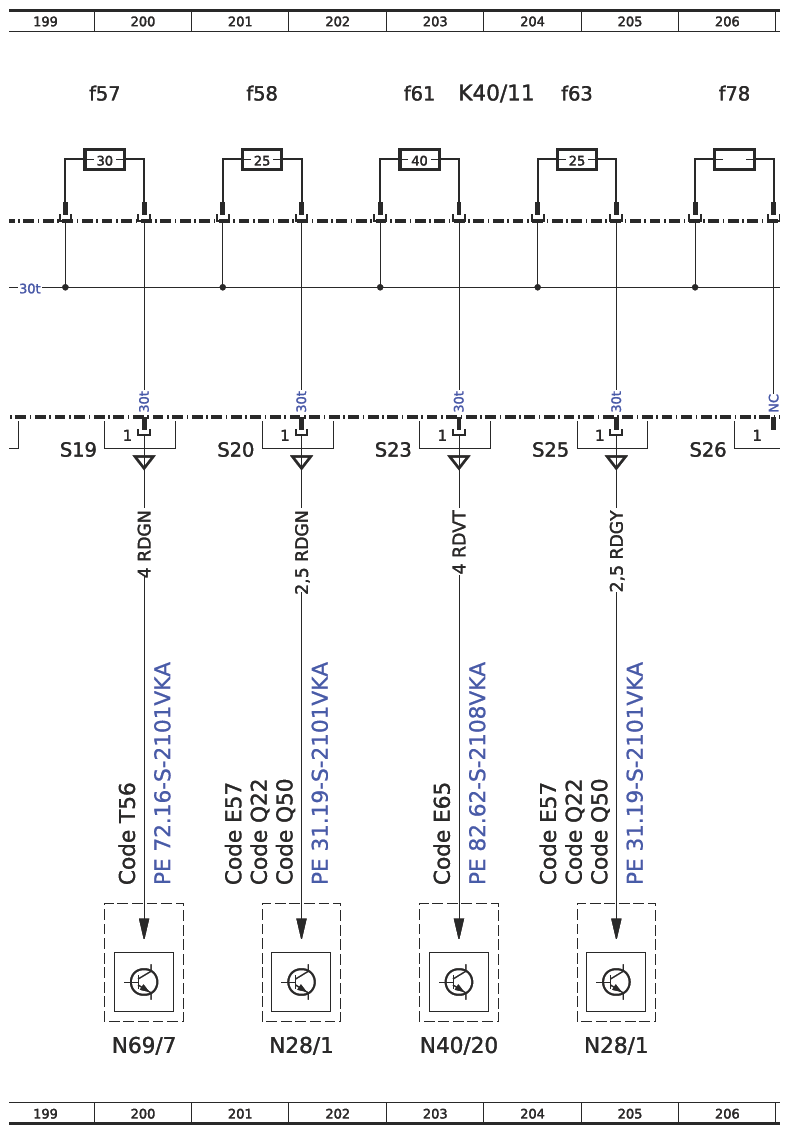

| K40/11f57 | Fuse 57 | 199A |
| K40/11f58 | Fuse 58 | 201A |
| K40/11f59 | Fuse 59 | 76A |
| K40/11f60 | Fuse 60 | 78A |
| K40/11f61 | Fuse 61 | 203A |
| K40/11f62 | Fuse 62 | 47A |
| K40/11f63 | Fuse 63 | 204A |
| K40/11f64 | Fuse 64 | 156A |
| K40/11f65 | Fuse 65 | 158A |
| K40/11f66 | Fuse 66 | 160A |
| K40/11f67 | Fuse 67 | 161A |
| K40/11f68 | Fuse 68 | 71A |
| K40/11f69 | Fuse 69 | 72A |
| K40/11f70 | Fuse 70 | 74A |
| K40/11f71 | Fuse 71 | 162A |
| K40/11f72 | Fuse 72 | 164A |
| K40/11f73 | Fuse 73 | 165A |
| K40/11f74 | Fuse 74 | 168A |
| K40/11f75 | Fuse 75 | 170A |
| K40/11f76 | Fuse 76 | 171A |
| K40/11f77 | Fuse 77 | 173A |
| K40/11f79 | Fuse 79 | 208A |
| K40/11f80 | Fuse 80 | 210A |
| K40/11f81 | Fuse 81 | 213A |

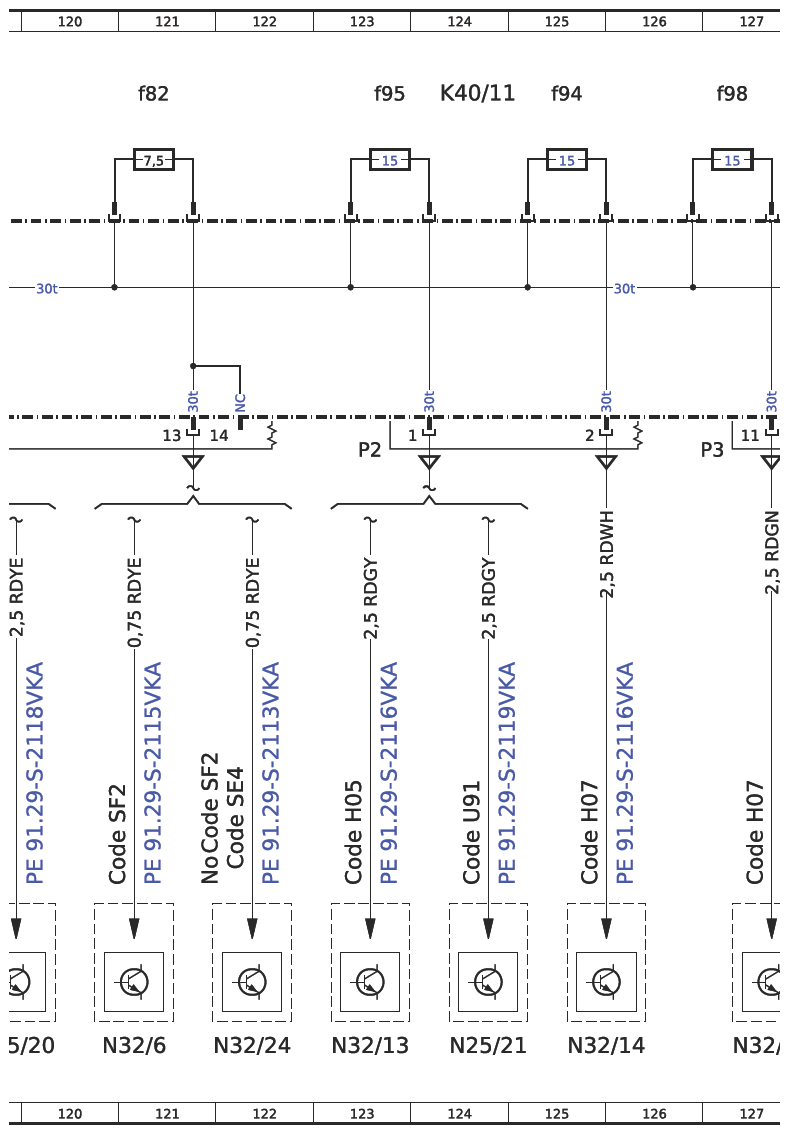

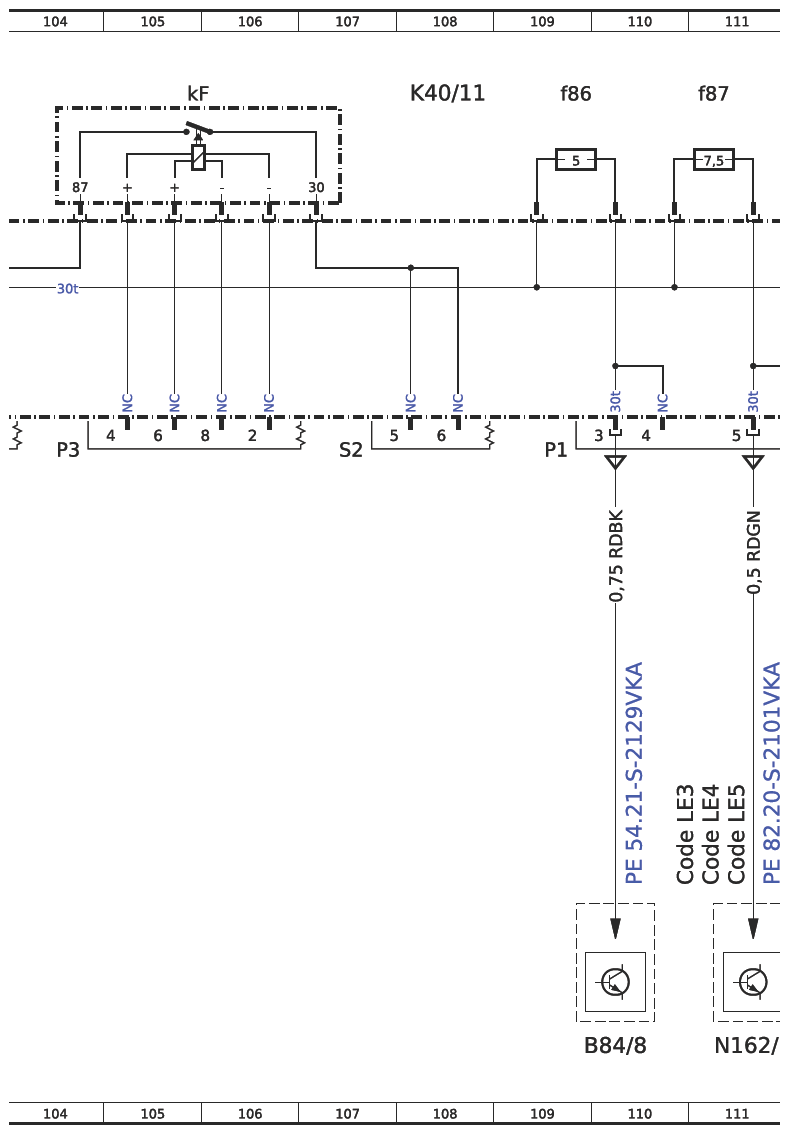

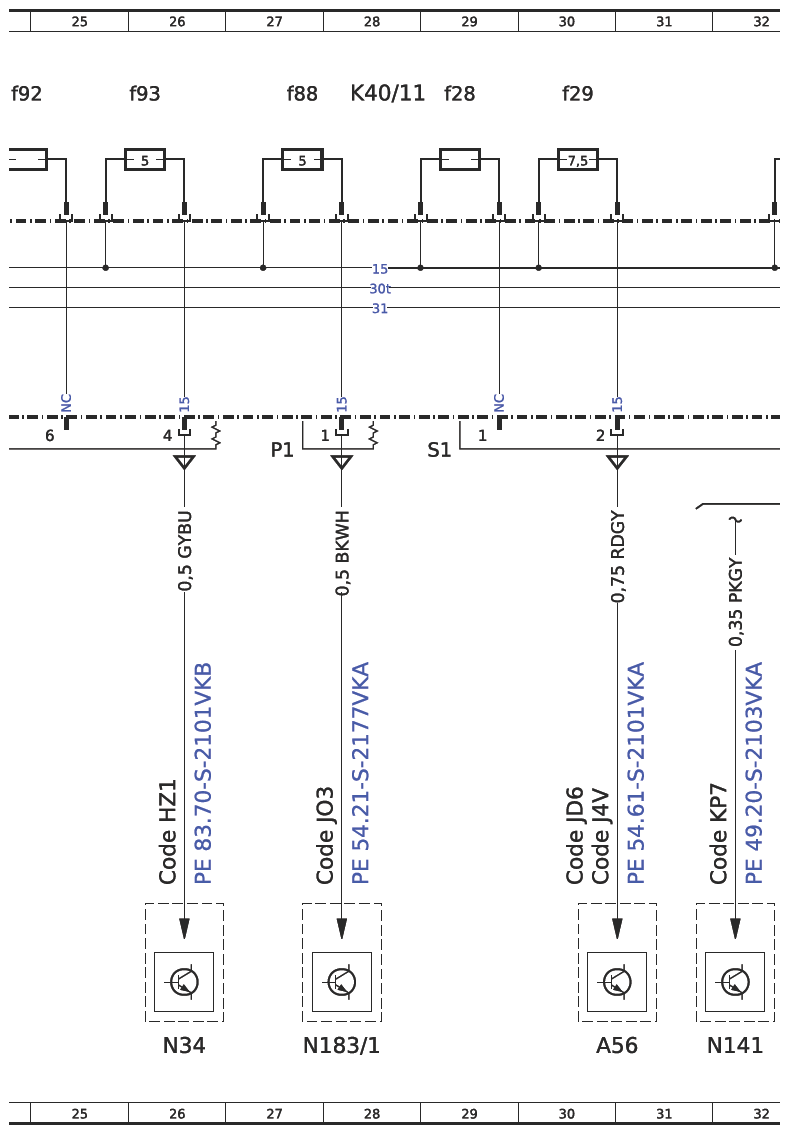

| K40/11f82 | Fuse 82 | 121A |
| K40/11f83 | Fuse 83 | 118A |
| K40/11f84 | Fuse 84 | 115A |
| K40/11f85 | Fuse 85 | 112A |
| K40/11f86 | Fuse 86 | 109A |
| K40/11f87 | Fuse 87 | 111A |
| K40/11f88 | Fuse 88 | 27A |
| K40/11f89 | Fuse 89 | 14A |
| K40/11f90 | Fuse 90 | 20A |
| K40/11f91 | Fuse 91 | 23A |
| K40/11f93 | Fuse 93 | 26A |
| K40/11f94 | Fuse 94 | 125A |
| K40/11f95 | Fuse 95 | 123A |
| K40/11f96 | Fuse 96 | 48A |
| K40/11f98 | Fuse 98 | 127A |
| K40/11 kA | Circuit 15 relay | 11A |

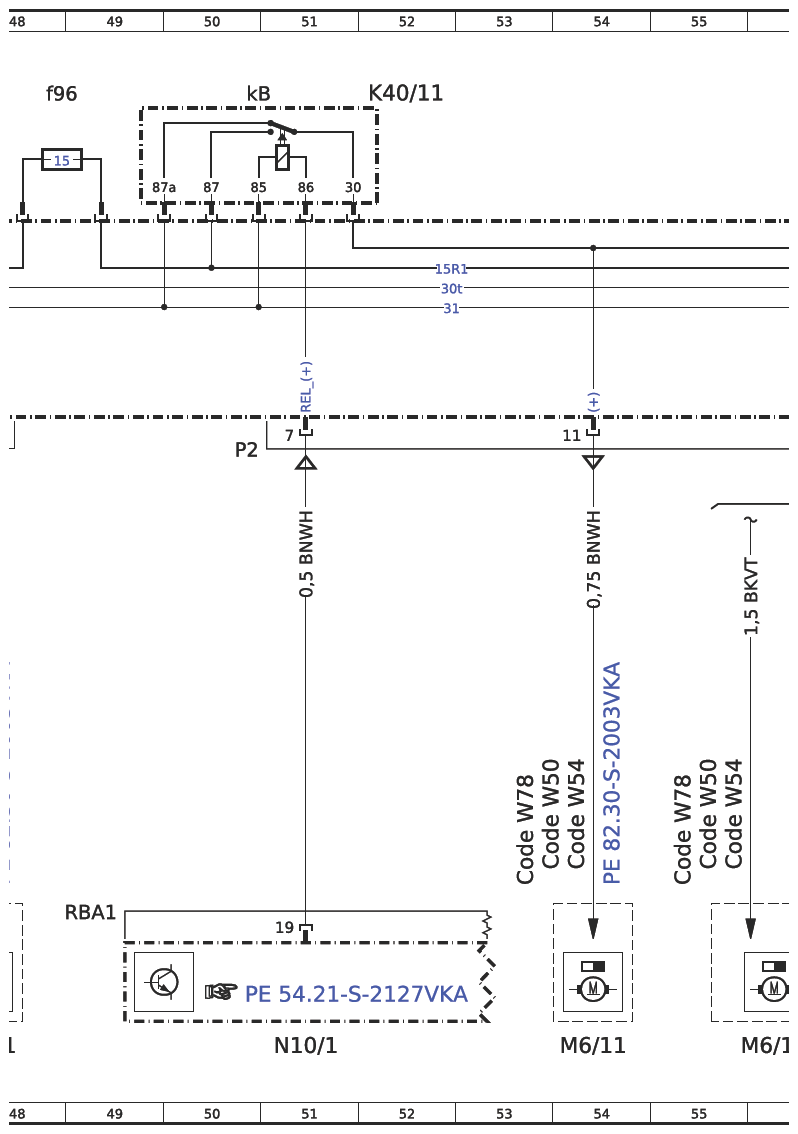

| K40/11 kB | Rear window wiper relay | 50A |
| K40/11 kC | Circuit 15R2 relay | 63A |
| K40/11 kD | Heated rear window relay | 99A |
| K40/11 kE | Circuit 15R1 relay | 39A |
| K40/11 kG | Exhaust aftertreatment SCRCM relay | 81A |
| K40/12 | Fuse and relay module, front passenger footwell | 21L |
| K40/12kA | Circuit 15 relay | 19L |
| M43/10 | - | 8L |
| M6/10 | Left rear-end door wiper motor | 56L |
| M6/11 | Right rear-end door wiper motor | 48L |
| M6/11 | Right rear-end door wiper motor | 54L |
| M6/12 | Tailgate wiper motor | 58L |
| M6/13 | Wiper motor of separately opening rear window | 59L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 11L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 39L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 63L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 186L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 99L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 51L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 82L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 172L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 209L |
| N110 | Weight Sensing System (WSS) control unit | 45L |
| N118/9 | Fuel system control unit (FSCU) | 23L |
| N118/9 | Fuel system control unit (FSCU) | 153L |
| N12/2 | Sound generator control unit | 34L |
| N127 | Drivetrain control unit | 144L |
| N127 | Drivetrain control unit | 145L |
| N127 | Drivetrain control unit | 147L |
| N133/1 | Instrument cluster control unit | 161L |
| N141 | AdBlue® (SCR) control unit | 32L |
| N141 | AdBlue® (SCR) control unit | 156L |
| N141 | AdBlue® (SCR) control unit | 168L |
| N162/1 | Ambiance illumination control unit | 111L |
| N164 | Decoupler CAN control unit | 95L |
| N183/1 | Onboard Logic Unit (OLU) control unit - Connect Unit | 28L |
| N191 | Rear seat monitoring control unit | 197L |
| N2/5 | Supplemental restraint system (SRS) control unit | 178L |
| N24/3 | DC/AC converter control unit | 92L |
| N25/20 | Left 1st rear seat row seat adjustment with memory control unit | 119L |
| N25/20 | Left 1st rear seat row seat adjustment with memory control unit | 88L |
| N25/21 | Right 1st rear seat row seat adjustment with memory control unit | 124L |
| N25/21 | Right 1st rear seat row seat adjustment with memory control unit | 90L |

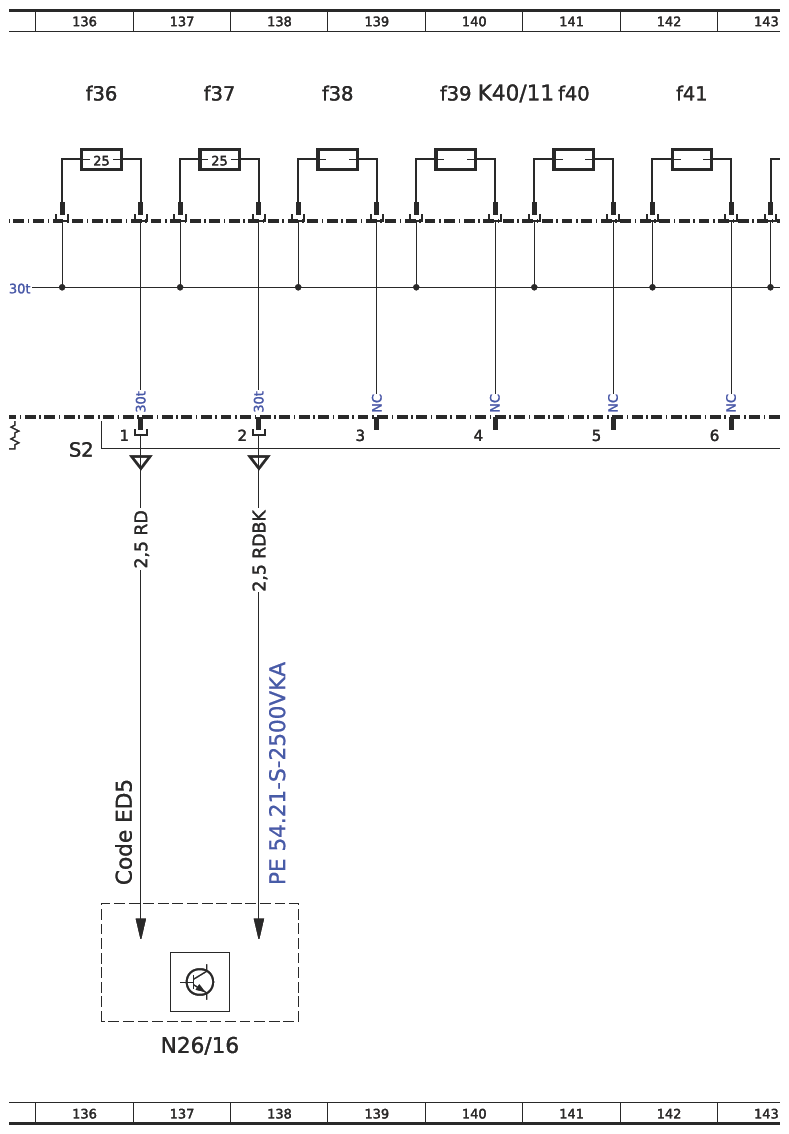

| N26/16 | Parameterizable special module (PSM) control unit | 137L |
| N28/1 | Trailer recognition (AAG) control unit | 36L |
| N28/1 | Trailer recognition (AAG) control unit | 193L |
| N28/1 | Trailer recognition (AAG) control unit | 201L |
| N28/1 | Trailer recognition (AAG) control unit | 205L |
| N30/4 | Electronic Stability Program (ESP) control unit | 190L |
| N32/12 | Left 1st rear seat row seat heater/ventilation control unit | 118L |
| N32/12 | Left 1st rear seat row seat heater/ventilation control unit | 86L |
| N32/13 | Right 1st rear seat row seat heater/ventilation control unit | 123L |
| N32/13 | Right 1st rear seat row seat heater/ventilation control unit | 87L |
| N32/14 | Left 2nd rear seat row seat heater/ventilation control unit | 125L |
| N32/14 | Left 2nd rear seat row seat heater/ventilation control unit | 86L |
| N32/15 | Right 2nd rear seat row seat heater/ventilation control unit | 127L |
| N32/15 | Right 2nd rear seat row seat heater/ventilation control unit | 87L |
| N32/2 | Seat heating/ventilation control unit | 166L |
| N32/2 | Seat heating/ventilation control unit | 132L |

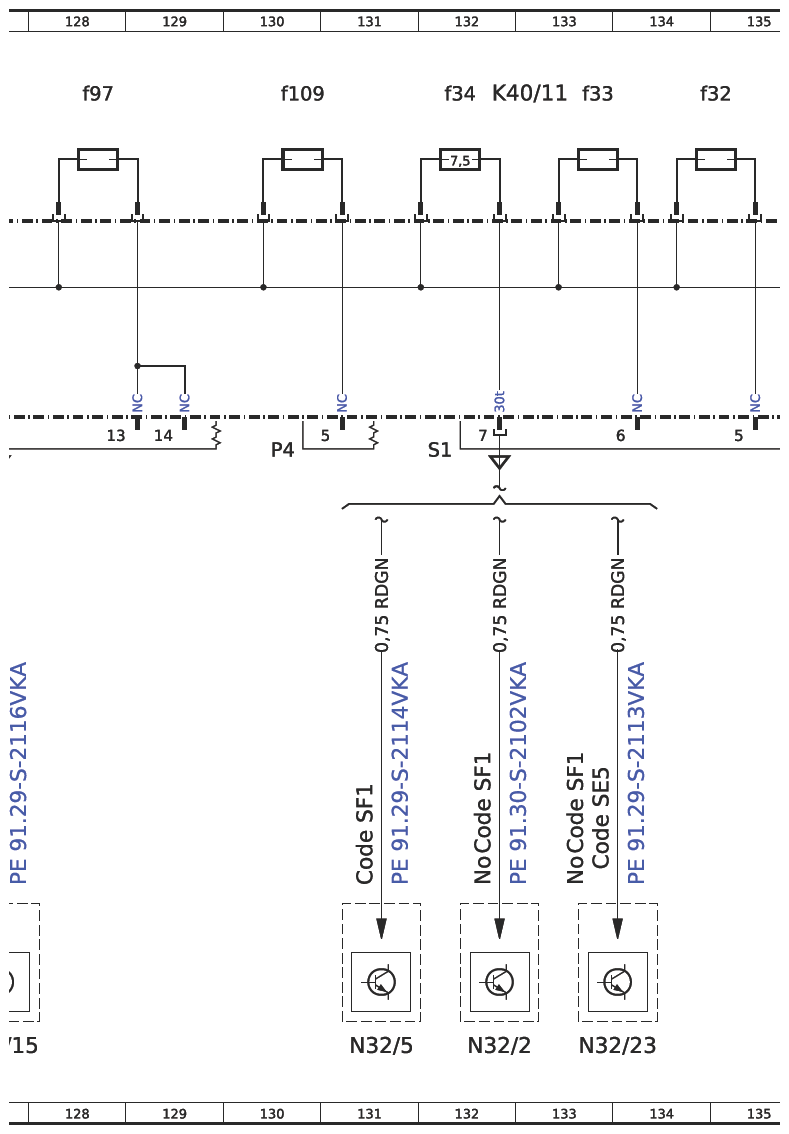

| N32/23 | Driver seat lumbar support adjustment control unit | 133L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 122L |
| N32/5 | Driver seat adjustment with memory control unit | 165L |
| N32/5 | Driver seat adjustment with memory control unit | 131L |
| N32/6 | Front passenger seat adjustment with memory control unit | 164L |
| N32/6 | Front passenger seat adjustment with memory control unit | 121L |
| N33/4 | PTC heater booster control unit | 6L |
| N34 | Stationary heater timer | 26L |
| N40/20 | Sound system control unit | 203L |

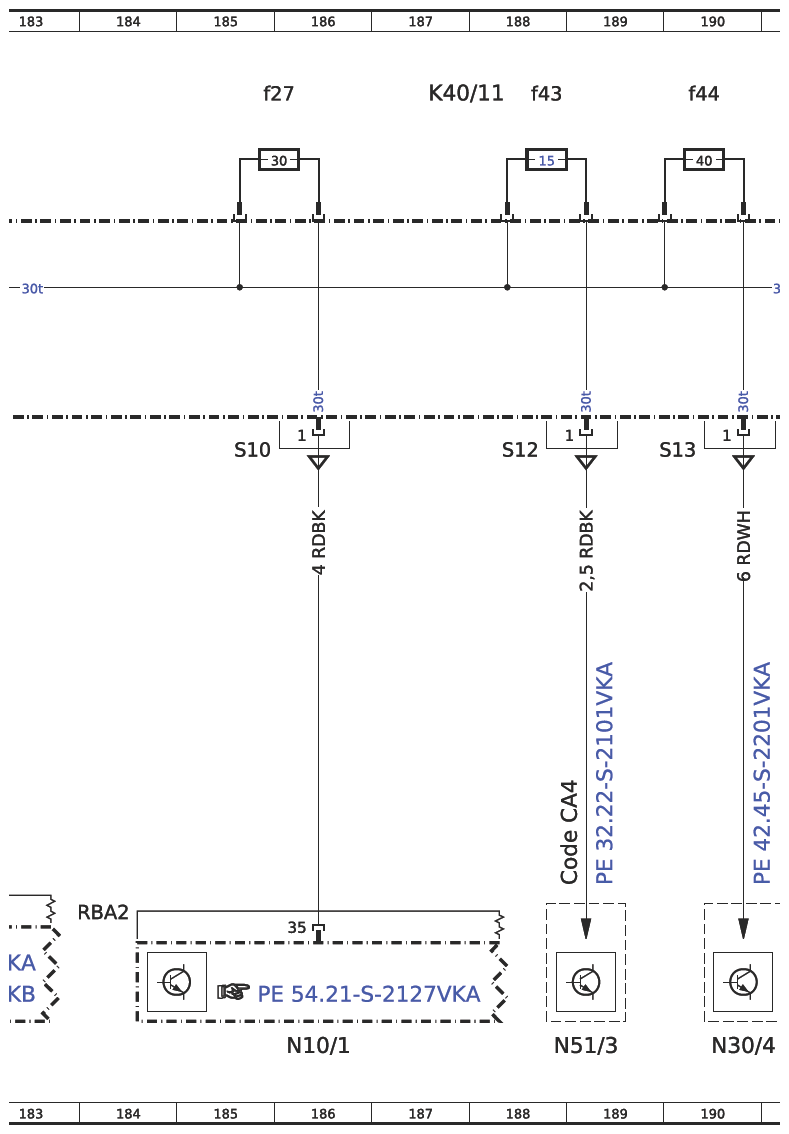

| N51/3 | AIRMATIC control unit | 189L |
| N62/3 | Parking system control unit | 114L |

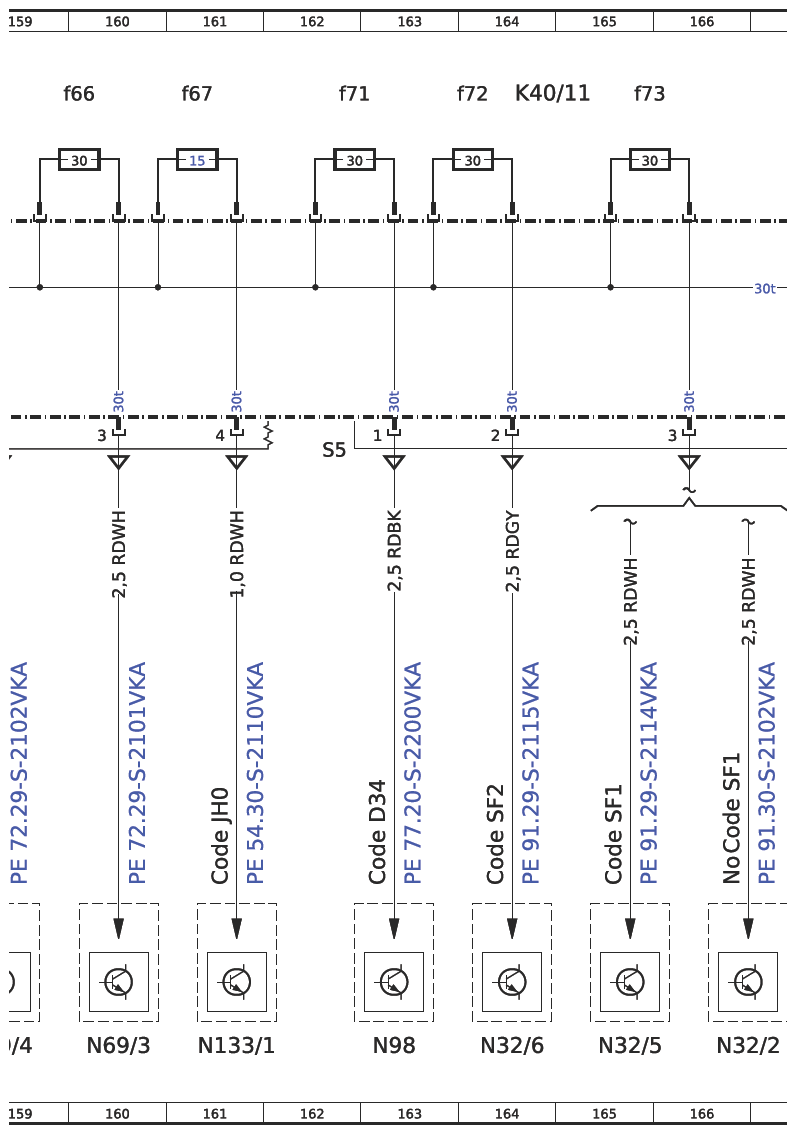

| N69/3 | Left front door control unit | 160L |
| N69/4 | Right front door control unit | 159L |
| N69/6 | Right sliding door (E-LSTR) control unit | 176L |
| N69/7 | Left sliding door (E-LSTL) control unit | 200L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 149L |

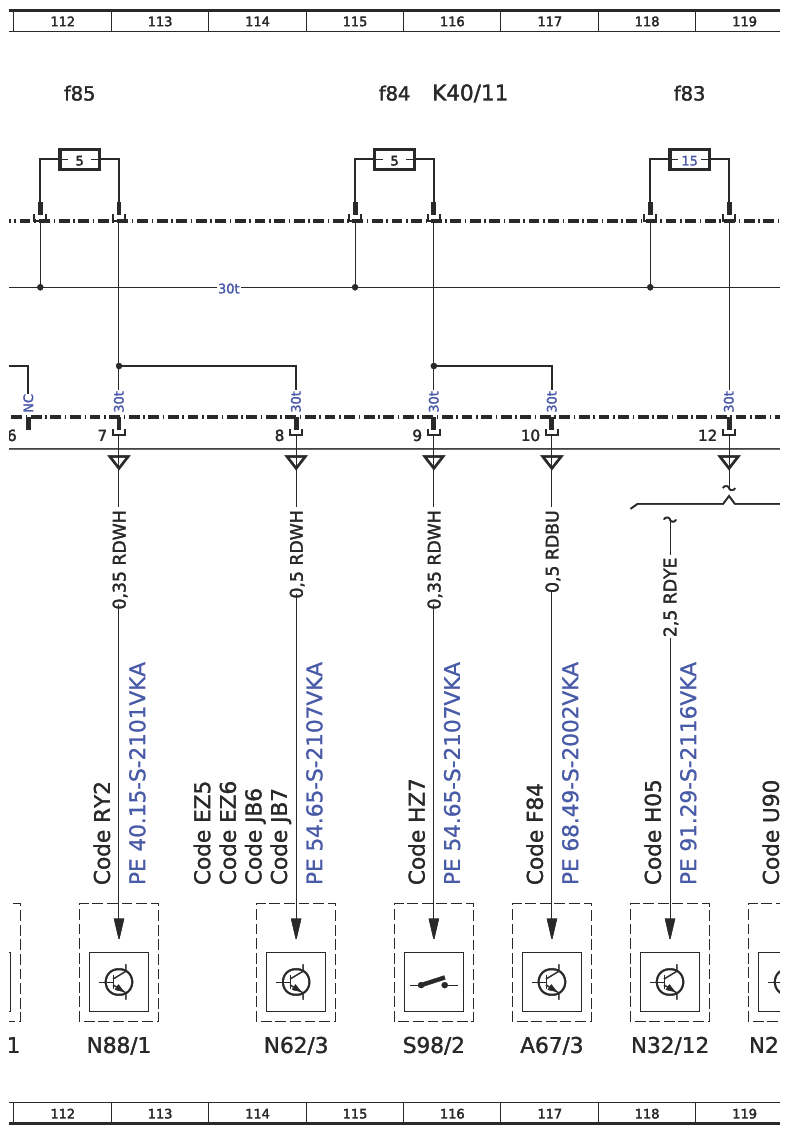

| N88/1 | Tire pressure monitor (RDK) control unit | 112L |
| N9/1 | Additional turn signal module control unit | 150L |
| N98 | Panoramic sliding sunroof (PSD) control unit | 163L |
| R1 | Rear window heater | 102L |
| R1/2 | Right rear-end door rear window heater | 102L |
| S98/2 | Rear heater/air conditioning operating unit switch | 116L |
| U1128 | Valid for combustion engine | 24J |
| U1128 | Valid for combustion engine | 15K |
| U1128 | Valid for combustion engine | 153J |
| U1128 | Valid for combustion engine | 180K |
| U1128 | Valid for combustion engine | 7J |
| U1142 | Valid for electric vehicle | 15K |
| U1142 | Valid for electric vehicle | 42J |
| U1142 | Valid for electric vehicle | 144J |
| U1142 | Valid for electric vehicle | 180K |
| U1142 | Valid for electric vehicle | 7J |
| W43/2 | Right vehicle interior firewall ground point | 10G |
| W43/6 | Left vehicle interior firewall ground point 2 | 10G |
| X11 | Diagnostic connector | 148L |
| X18/81x4 | Left cockpit/main wiring harness electrical connector 4 | 213H |
| X18/82x11 | Right cockpit/main wiring harness electrical connector 11 | 213G |

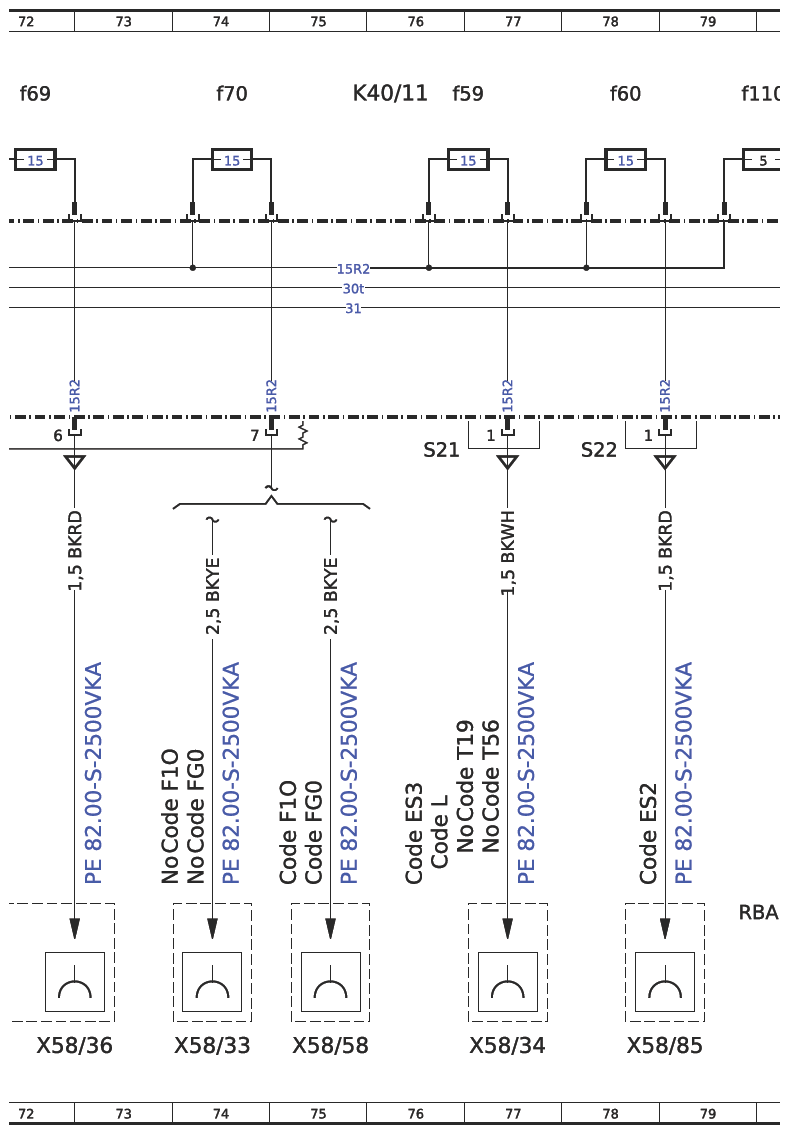

| X58/33 | Cockpit socket | 74L |
| X58/34 | Left 1st seat row socket | 77L |
| X58/36 | Left 2nd seat row socket | 72L |
| X58/37 | Right 2nd seat row socket | 71L |
| X58/58 | Front 12 V socket/cigarette lighter | 75L |
| X58/85 | Left load compartment socket | 78L |
| Z3/84 | Relay actuation end sleeve | 84G |
| Z3/84 | Relay actuation end sleeve | 65G |
