Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-S-2106-97VVD
Model 447.6 except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/10, connector MR1, MR2, S1
Model 447.7 except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) K40/10, connector MR1, MR2, S1
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 80L |
| A80 | Intelligent servo module (ISM) control unit for DIRECT SELECT | 11L |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 10F |

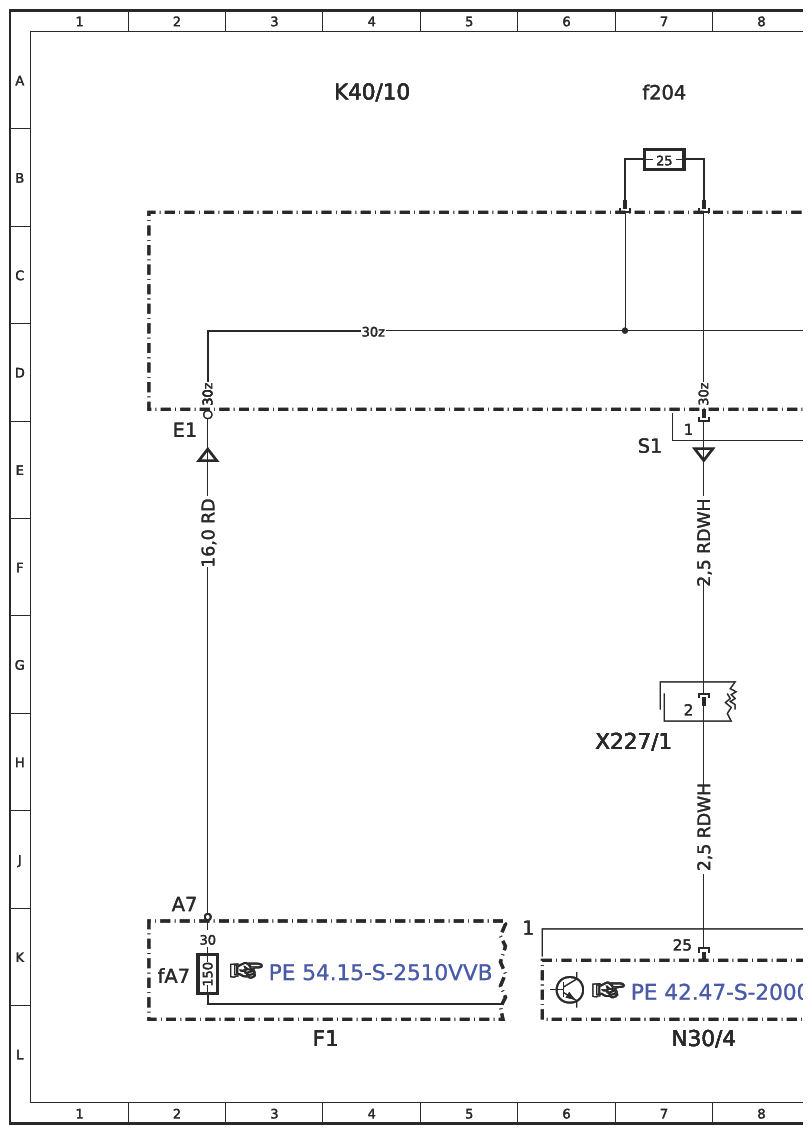

| F1 | Pre-fuse box | 3L |
| F1fA7 | Pre-fuse A7 | 2K |
| H2/1 | Left fanfare horn | 16L |
| H2/1 | Left fanfare horn | 19L |

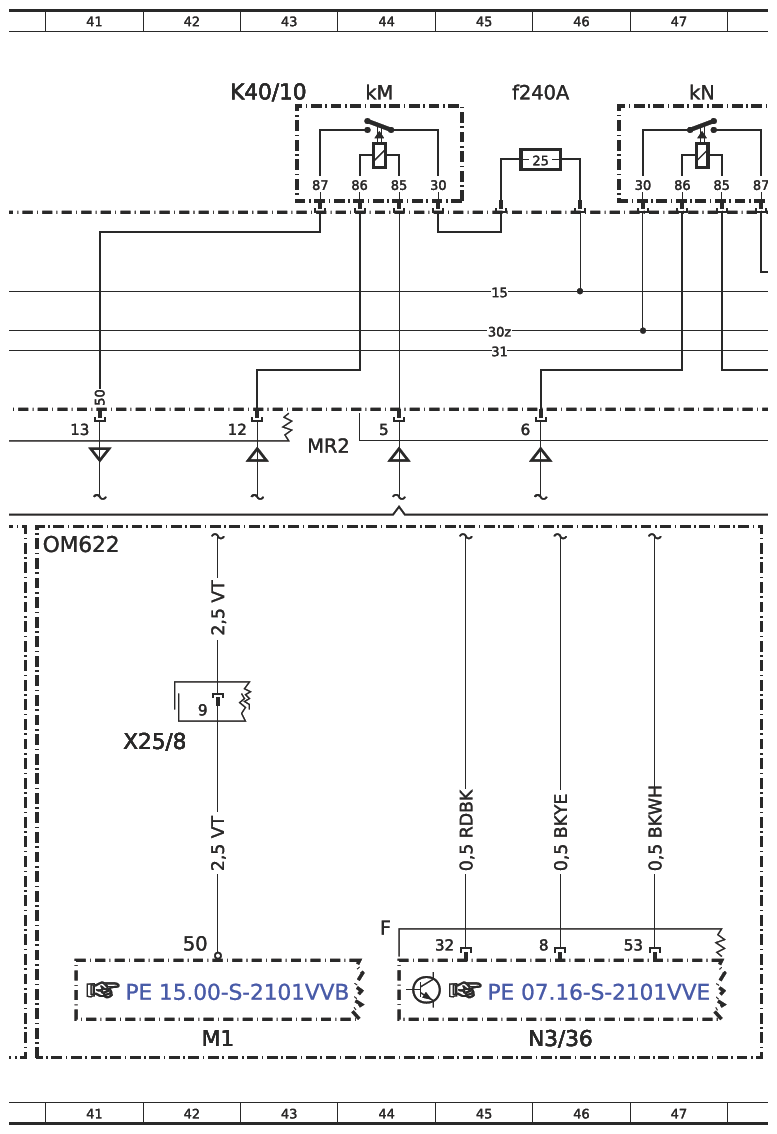

| K40/10 | Engine compartment fuse and relay module | 4A |
| K40/10 | Engine compartment fuse and relay module | 12A |
| K40/10 | Engine compartment fuse and relay module | 20A |

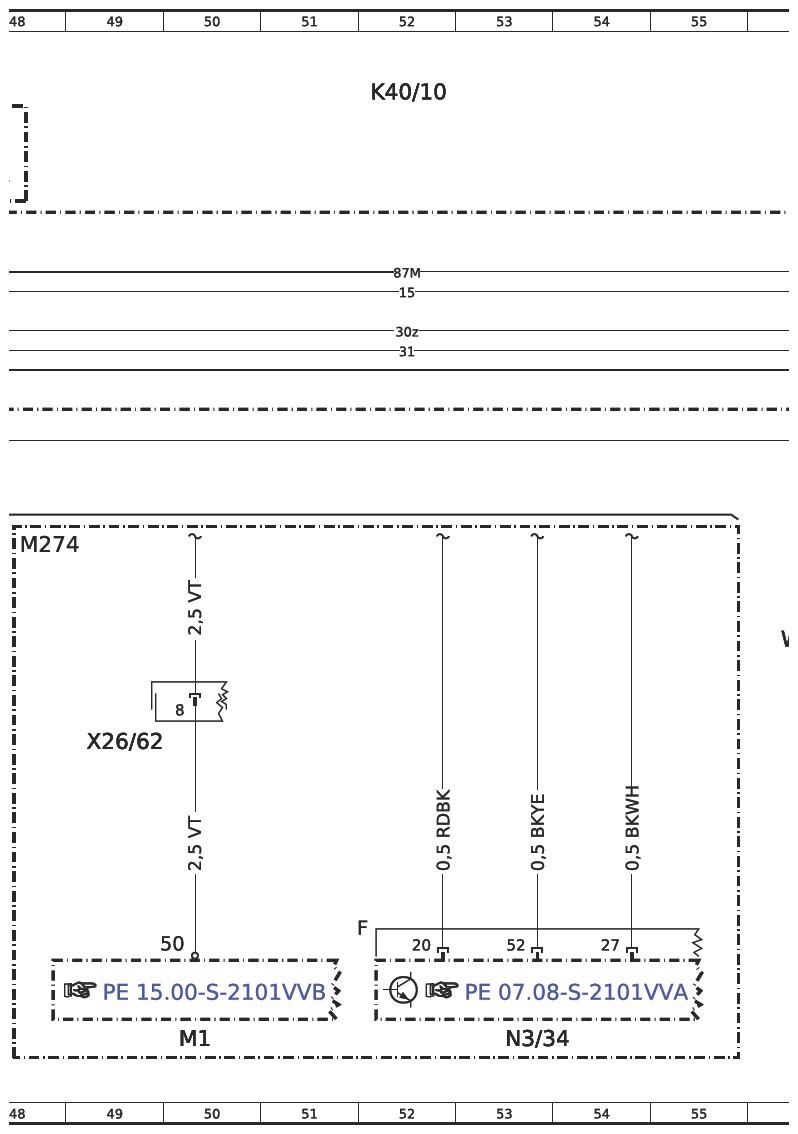

| K40/10 | Engine compartment fuse and relay module | 28A |
| K40/10 | Engine compartment fuse and relay module | 36A |

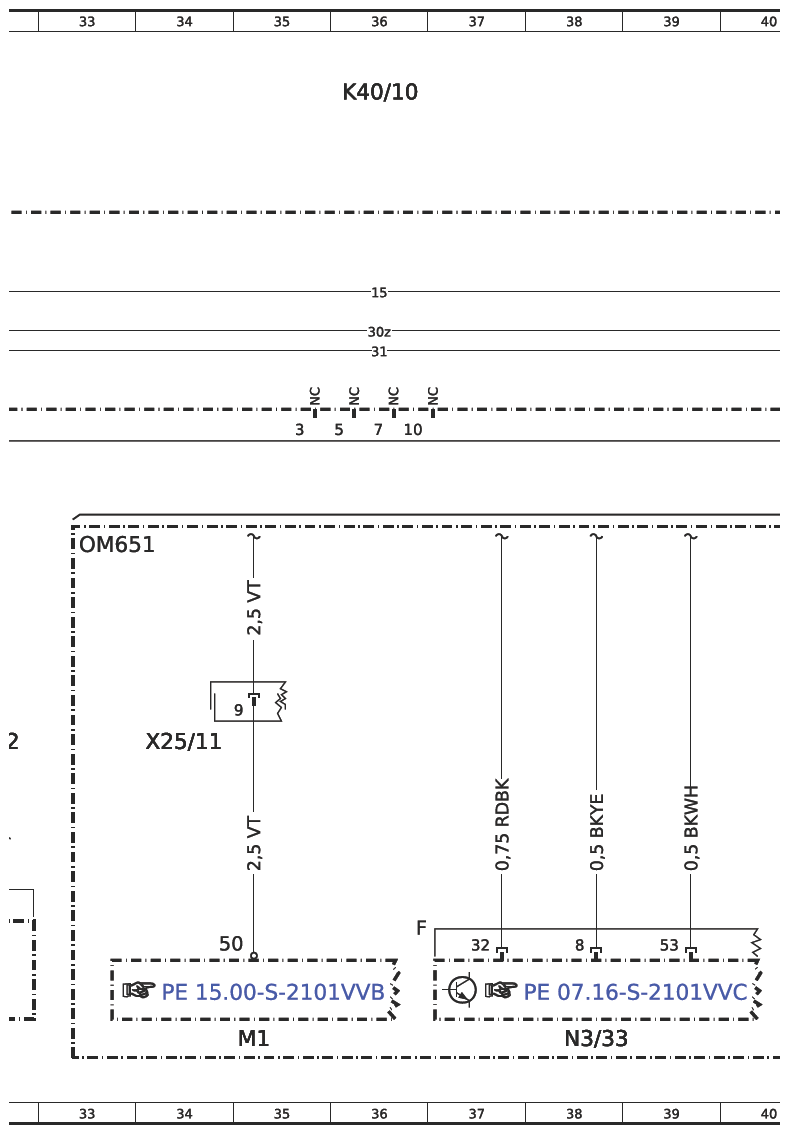

| K40/10 | Engine compartment fuse and relay module | 43A |
| K40/10 | Engine compartment fuse and relay module | 52A |
| K40/10 | Engine compartment fuse and relay module | 60A |
| K40/10 | Engine compartment fuse and relay module | 69A |

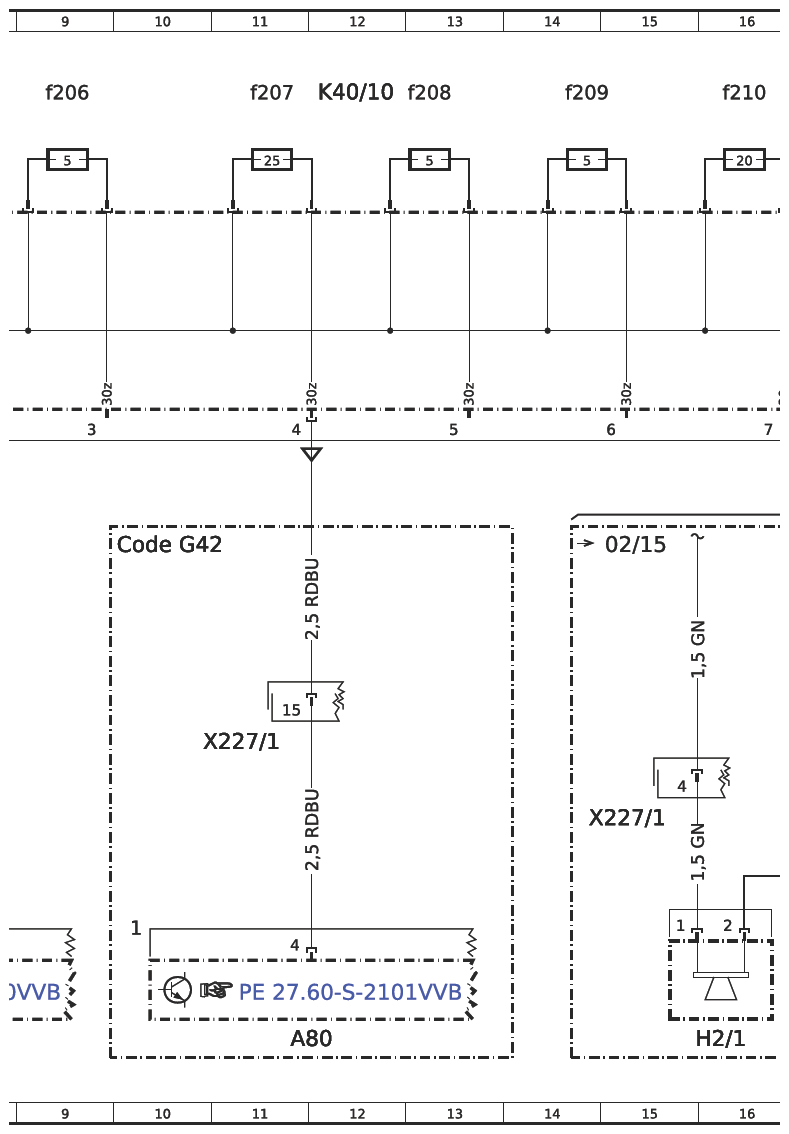

| K40/10f204 | Fuse 204 | 7A |
| K40/10f205 | Fuse 205 | 17A |
| K40/10f206 | Fuse 206 | 9A |
| K40/10f207 | Fuse 207 | 11A |
| K40/10f208 | Fuse 208 | 13A |
| K40/10f209 | Fuse 209 | 14A |
| K40/10f210 | Fuse 210 | 16A |
| K40/10f220 | Fuse 220 | 63A |
| K40/10f238 | Fuse 238 | 67A |
| K40/10f239 | Fuse 239 | 29A |
| K40/10f240A | Fuse240A | 45A |

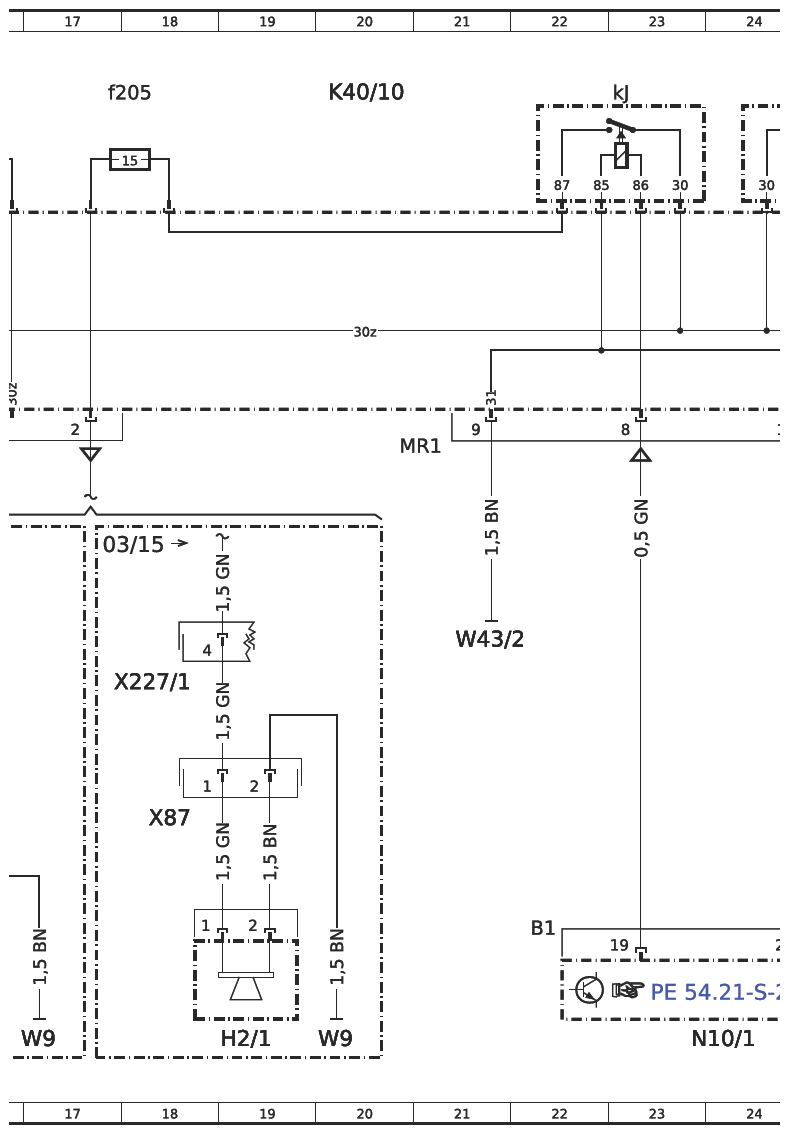

| K40/10kJ | Fanfare horn relay | 23A |

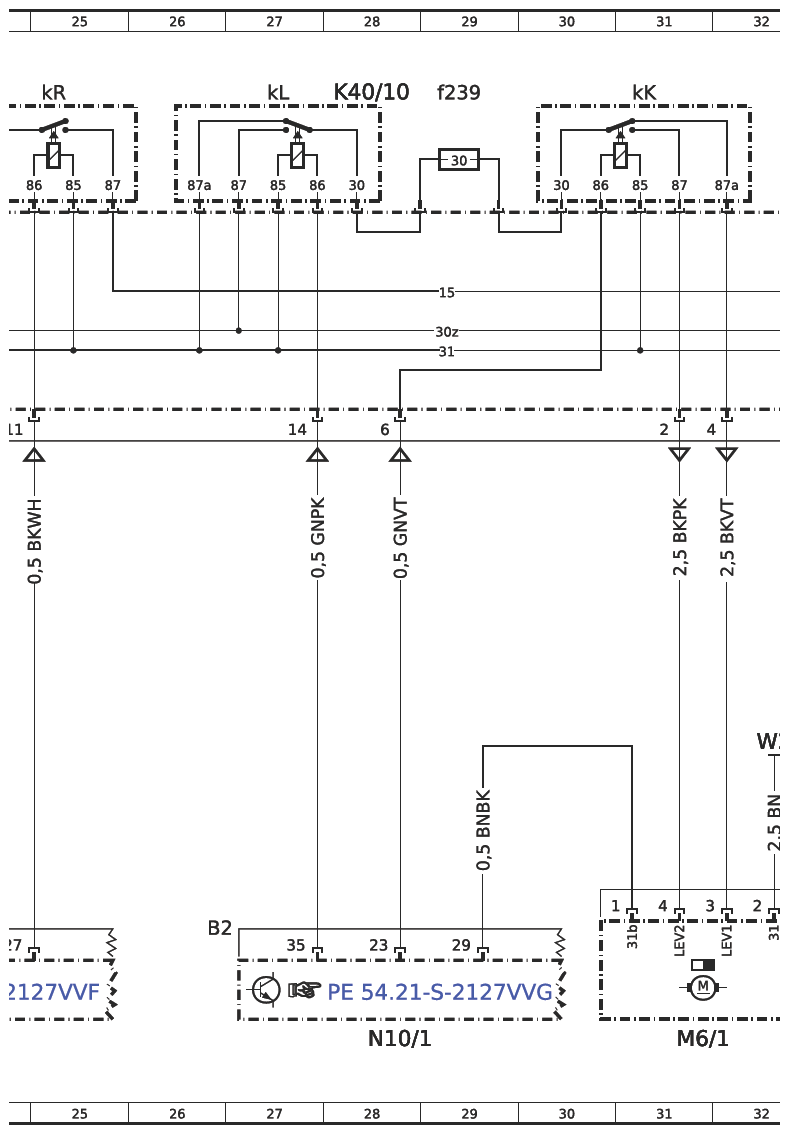

| K40/1 OkK | Wiper level 1/2 relay | 31A |
| K40/10kL | Windshield wiper ON/OFF relay | 27A |
| K40/10kM | Starter circuit 50 relay | 44A |
| K40/1 OkN | Circuit 87M relay | 47A |

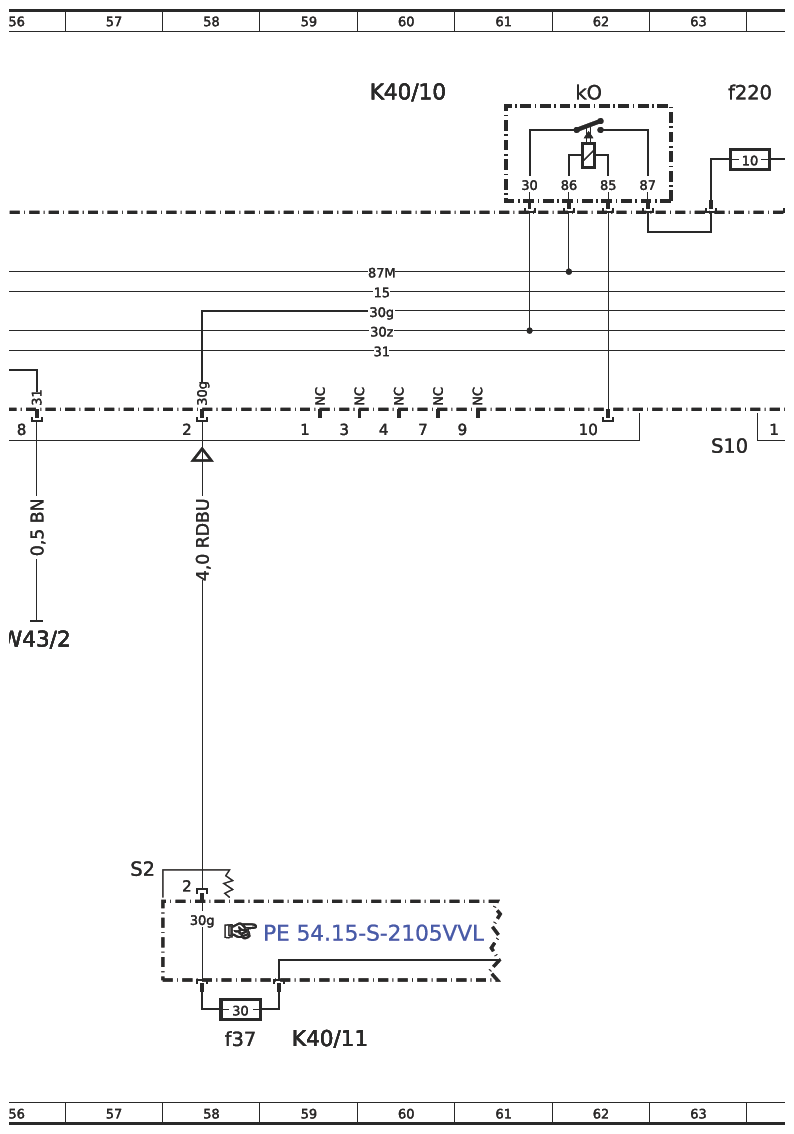

| K40/10k0 | Backup relay | 62A |
| K40/10kR | Circuit 15 relay | 25A |
| K40/10kT | Backup relay | 66A |
| K40/11 | Firewall fuse and relay module | 59L |
| K40/11f37 | Fuse 37 | 58L |
| M1 | Starter | 35L |
| M1 | Starter | 42L |
| M1 | Starter | 50L |
| M6/1 | Wiper motor | 31L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 24L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28L |
| N3/33 | CDI control unit | 38L |
| N3/34 | ME-SFI [ME] control unit | 53L |
| N3/36 | CDI control unit | 46L |
| N30/4 | Electronic Stability Program (ESP) control unit | 7L |
| W2 | Right front lamp unit ground point | 32H |
| W43/2 | Right vehicle interior firewall ground point | 21G |
| W43/2 | Right vehicle interior firewall ground point | 56G |
| W9 | Left front lamp unit ground point | 17L |
| W9 | Left front lamp unit ground point | 20L |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 7H |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 11H |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 15J |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 18G |
| X25/11 | Main wiring harness/engine wiring harness electrical connector 2 | 34H |
| X25/8 | Main wiring harness/engine wiring harness electrical connector 2 | 42H |
| X26/62 | Main wiring harness/engine wiring harness electrical connector | 49H |
| X87 | Horn electrical connector | 18J |
