Electrical Function Schematic For Consumer Shutoff - PE54.10-S-2066-97TRB
Model 447.6/7 except Code XM0 (Facelift)
| Code : | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9F |
| 2 | On-board electrical system energy state, signal | 8G |
| 3 | Consumer shutoff, request | 5H |
| 3 | Consumer shutoff, request | 12H |
| 3 | Consumer shutoff, request | 12F |
| 3 | Consumer shutoff, request | 6C |
| 3 | Consumer shutoff, request | 9E |
| 3 | Consumer shutoff, request | 15H |
| 3 | Consumer shutoff, request | 15F |

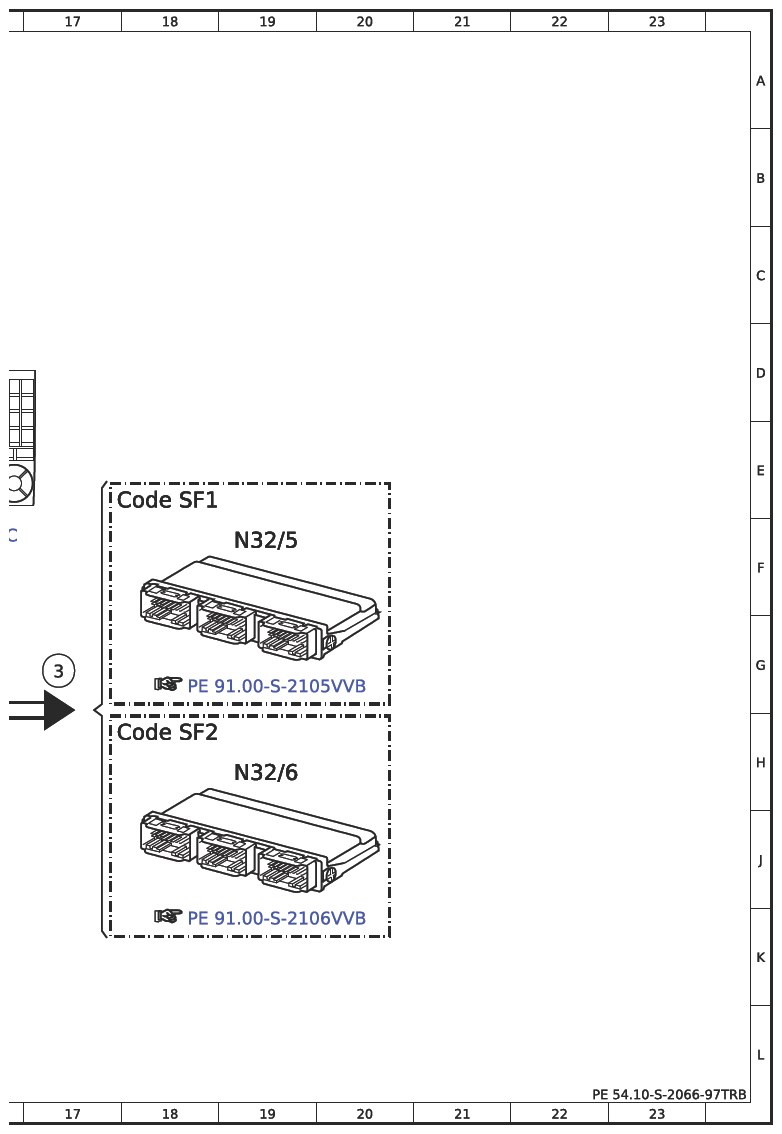

| 3 | Consumer shutoff, request | 17G |
| B95 | Battery sensor | 6G |

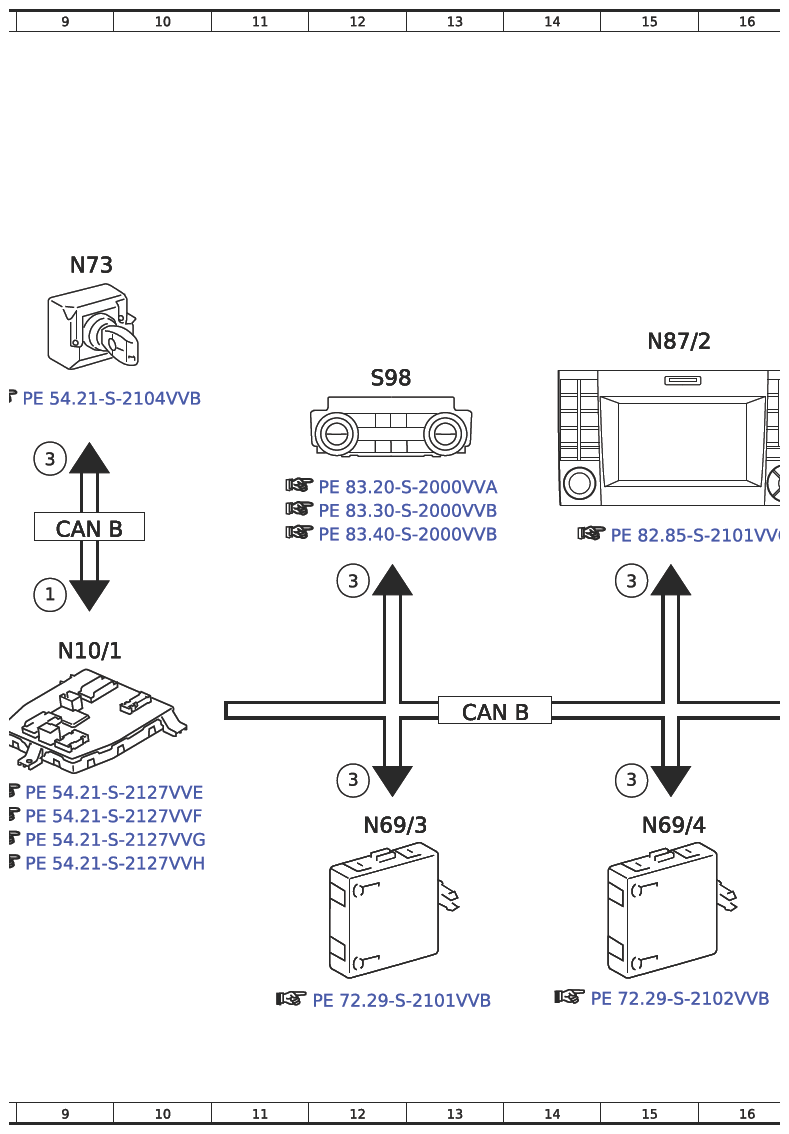

| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 13H |
| CANE | Chassis CAN | 7C |
| Code H15 | Heating for front passenger seat | U |
| Code H16 | Heating for driver seat | 1F |
| Code SE0 | Active seat ventilation for driver seat | 1F |
| Code SE1 | Active seat ventilation for front passenger seat | 1H |
| Code SF1 | Electrically adjustable driver seat | 17E |
| Code SF2 | Electrically adjustable front passenger seat | 17H |

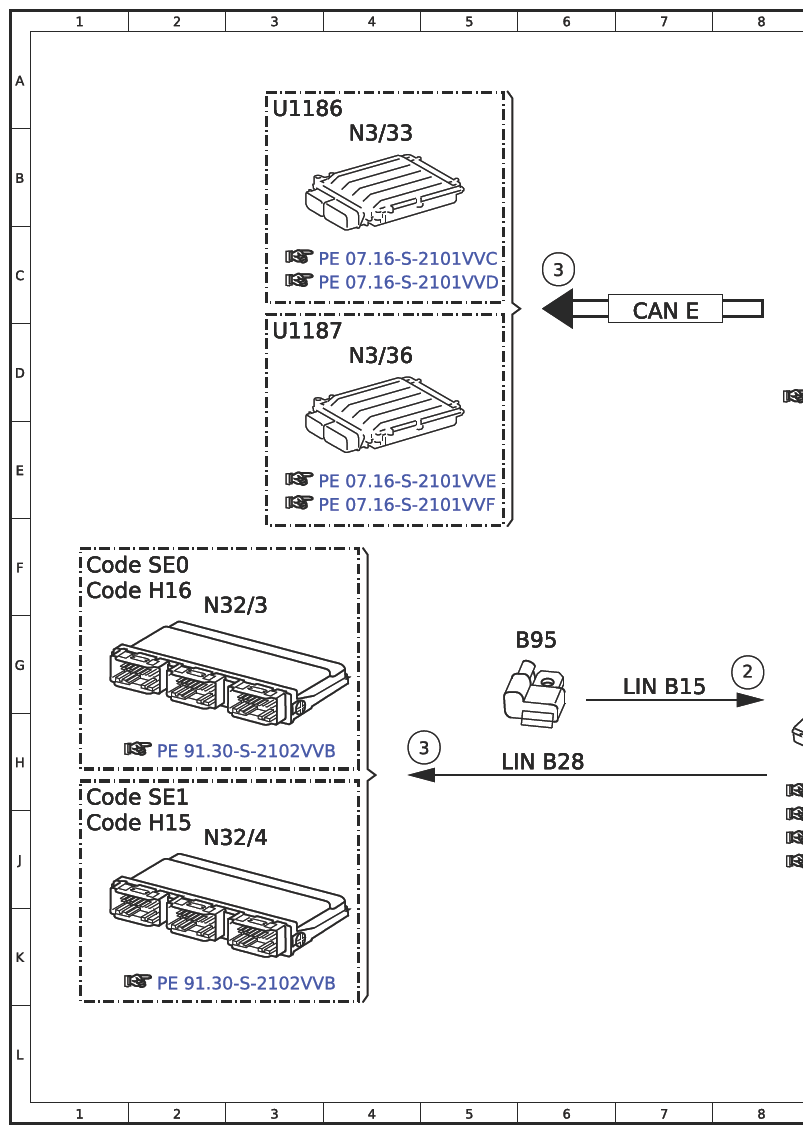

| LINB15 | Battery sensor LIN | 7G |
| LIN B28 | Heater LIN | 6H |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 9G |
| N3/33 | CDI control unit | 4B |
| N3/36 | CDI control unit | 4D |
| N32/3 | Driver seat heater/ventilation control unit | 2F |
| N32/4 | Front passenger seat heater/ventilation control unit | 2J |
| N32/5 | Driver seat adjustment with memory control unit | 19F |
| N32/6 | Front passenger seat adjustment with memory control unit | 19H |
| N69/3 | Left front door control unit | 12J |
| N69/4 | Right front door control unit | 15J |
| N73 | Electronic ignition lock (EZS) control unit | 9C |
| N87/2 | Radio (Audio) | 15D |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 12D |
| U1186 | Valid for engine 651.9 | 3A |
| U1187 | Valid for engine 622.9 | 3D |
