(Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-S-2106-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) K40/10
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) K40/10
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) K40/10
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) K40/10

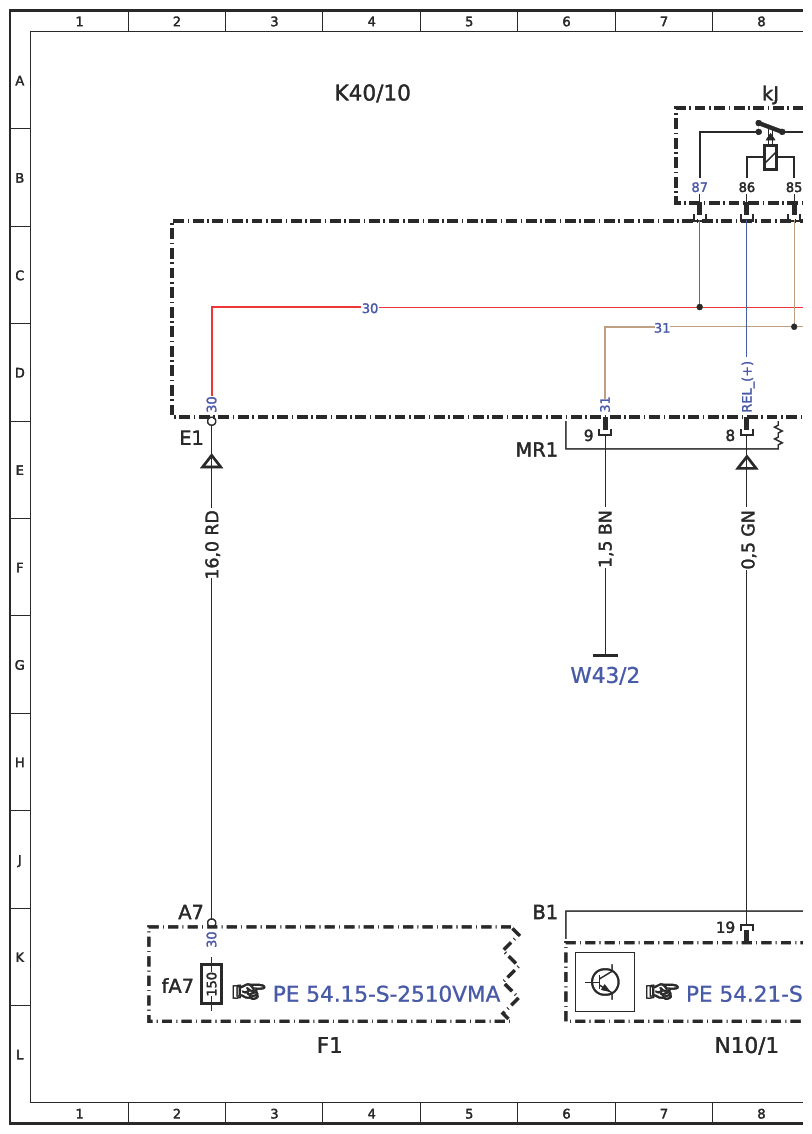

| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 112L |
| A9/6 | Electric refrigerant compressor | 103L |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 46L |
| B92 | Active Brake Assist controller unit | 51L |
| B92/1 | Active Distance Assist DISTRONIC electric controller unit | 52L |
| Code BA3 | Active Brake Assist | 51J |
| Code ET4 | DISTRONIC PLUS adaptive cruise control | 52J |
| Code FY1 | Theft protection package | 32J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 92J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 88J |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 91J |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 86J |
| Code LG2 | LED Intelligent Light System | 34J |
| Code LG2 | LED Intelligent Light System | 29J |
| Code LG2 | LED Intelligent Light System | 44J |
| Code LG2 | LED Intelligent Light System | 48J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 15J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 28J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 46J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 49J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 103J |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 98J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 15J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 28J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 46J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 49J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 103J |
| Code M8E | Electric motor 85 kW/battery 60 kWh (usable) | 98J |
| Code ME0 | Electric motor 85 kW | 14J |
| Code ME0 | Electric motor 85 kW | 27J |
| Code ME0 | Electric motor 85 kW | 35J |
| Code ME0 | Electric motor 85 kW | 45J |
| Code ME0 | Electric motor 85 kW | 49J |
| Code ME0 | Electric motor 85 kW | 104J |
| Code ME0 | Electric motor 85 kW | 102J |
| Code ME0 | Electric motor 85 kW | 98J |
| Code ME4 | Electric motor 145 kW | 14J |
| Code ME4 | Electric motor 145 kW | 27J |
| Code ME4 | Electric motor 145 kW | 46J |
| Code ME4 | Electric motor 145 kW | 49J |
| Code ME4 | Electric motor 145 kW | 102J |
| Code ME4 | Electric motor 145 kW | 98J |
| E1 | Left front lamp unit | 44L |
| E1/1 | Left front LED lamp unit | 29L |
| E1/1 | Left front LED lamp unit | 34L |
| E2 | Right front lamp unit | 48L |
| E2/1 | Right front LED lamp unit | 29L |
| E2/1 | Right front LED lamp unit | 34L |
| F1 | Pre-fuse box | 4L |
| F1fA7 | Pre-fuse A7 | 2K |
| H2/1 | Left fanfare horn | 13L |
| H3/1 | Alarm siren with additional battery | 32L |

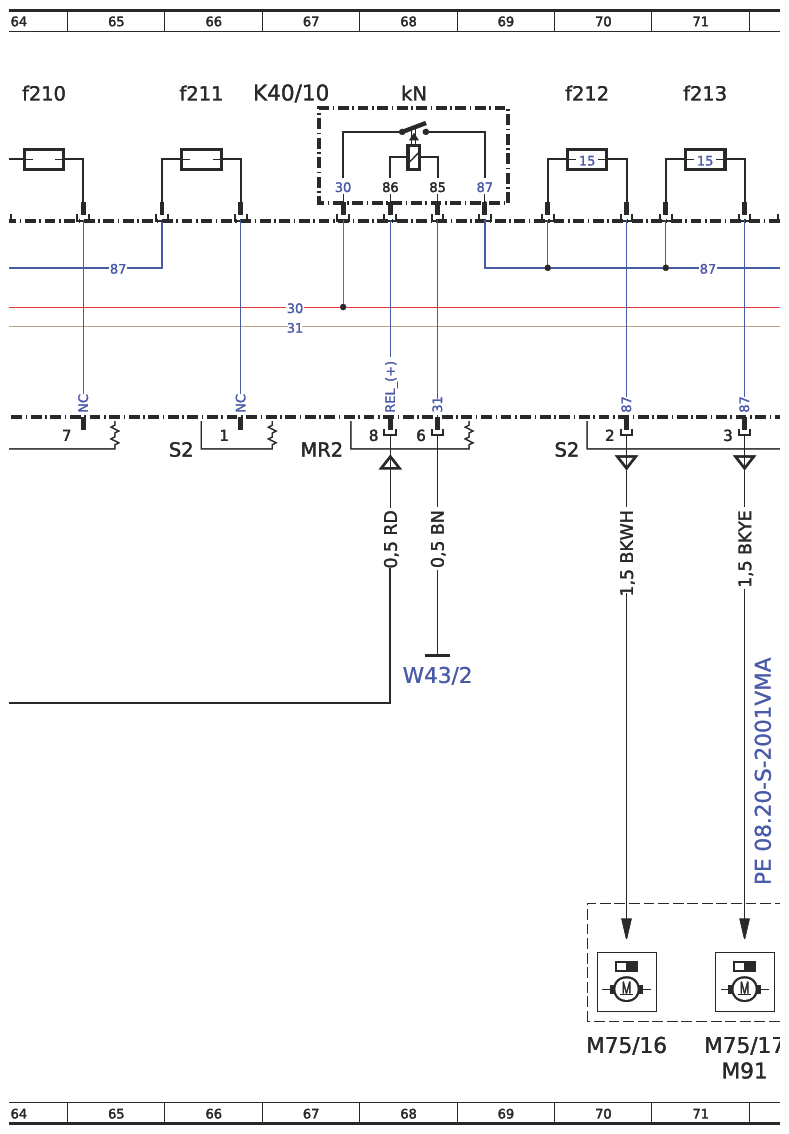

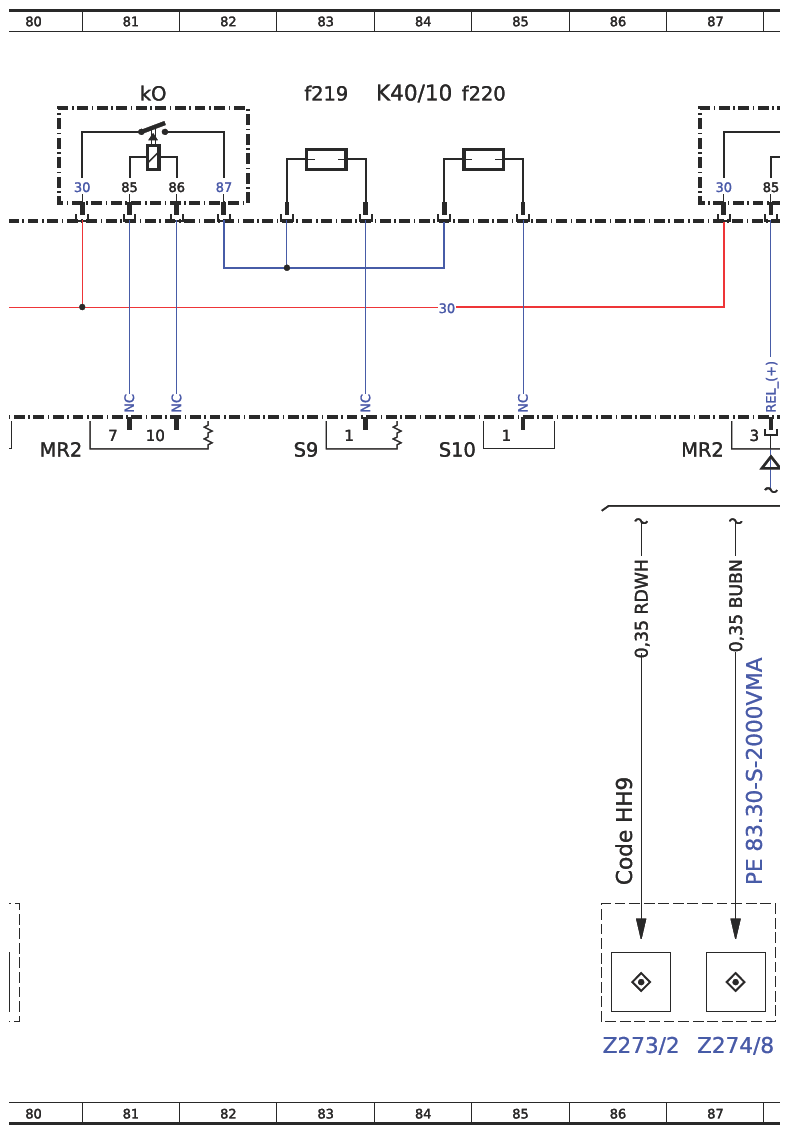

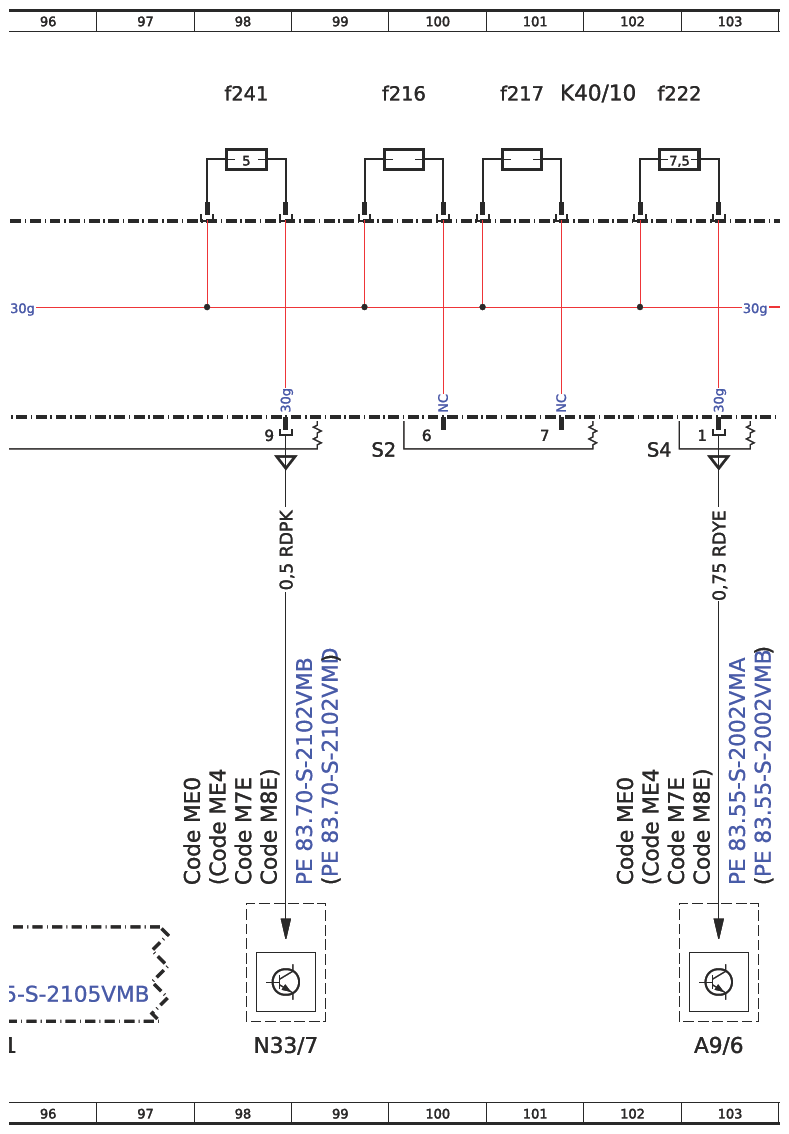

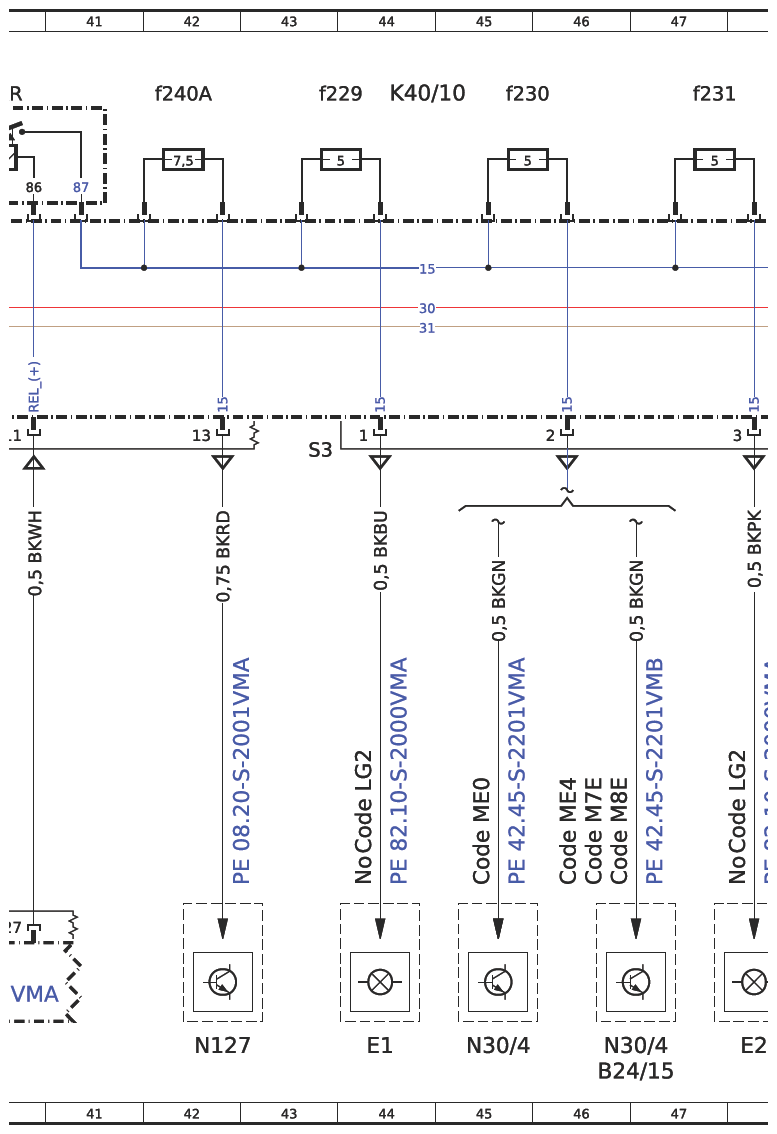

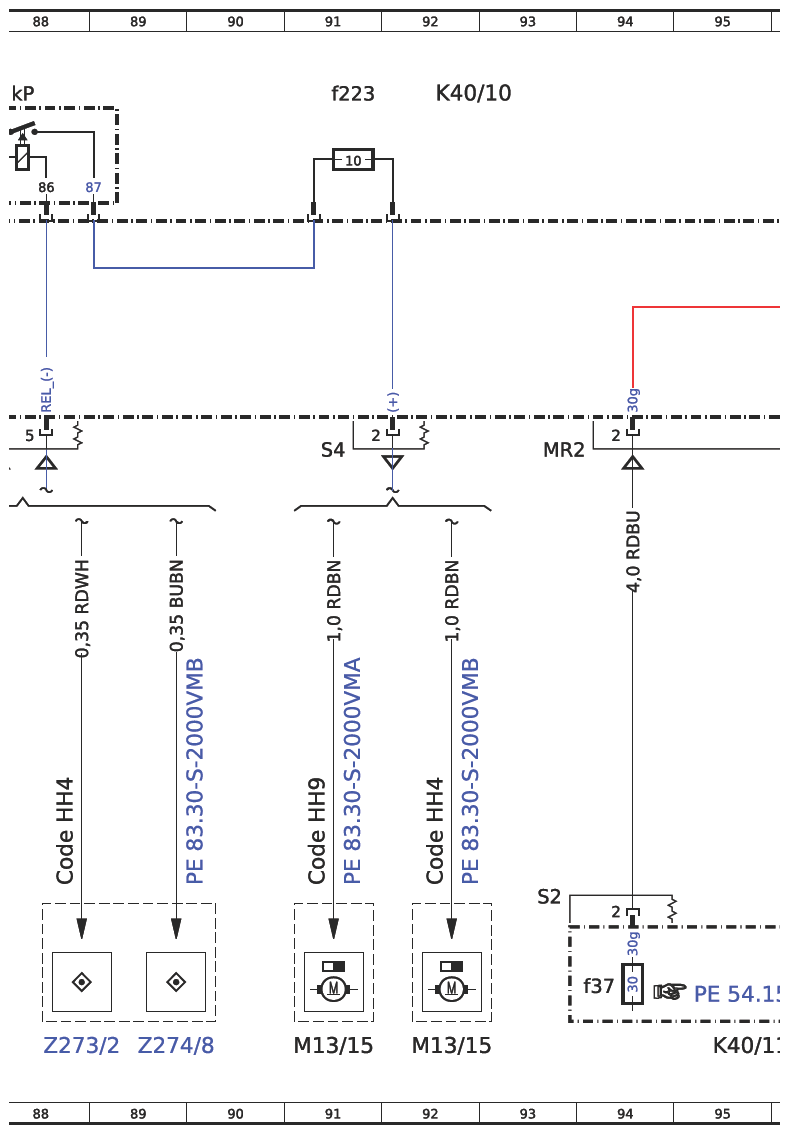

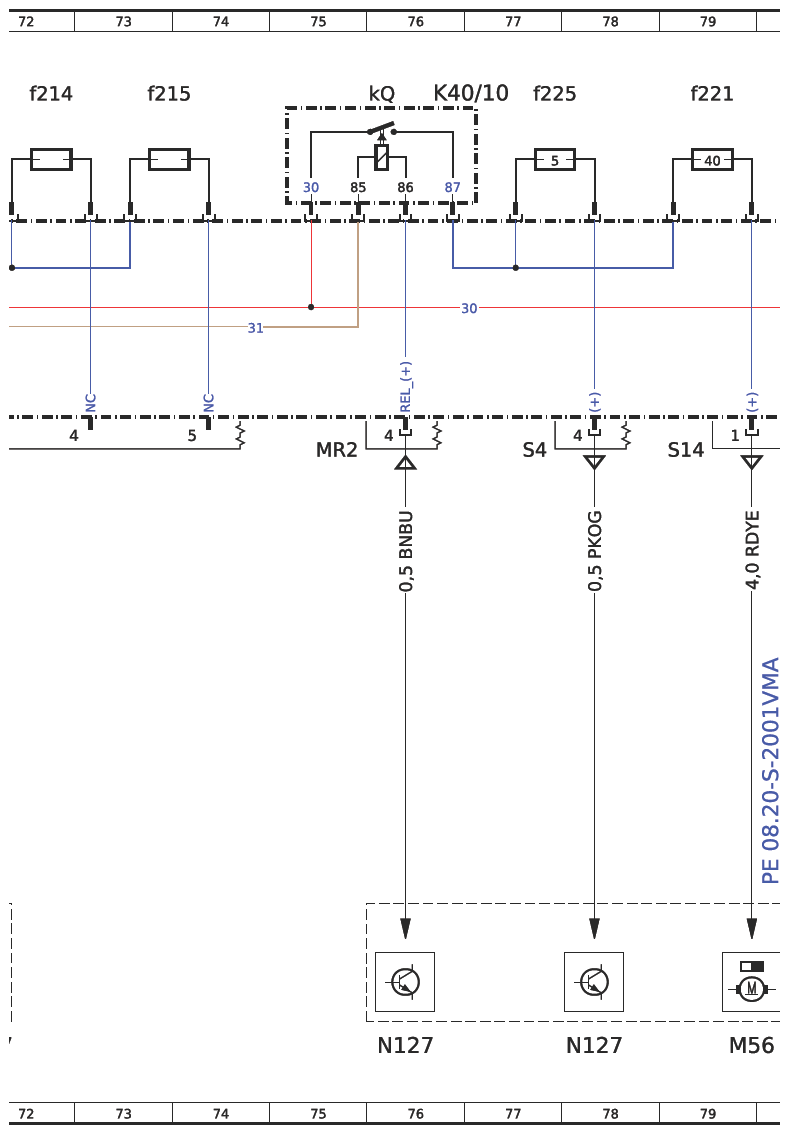

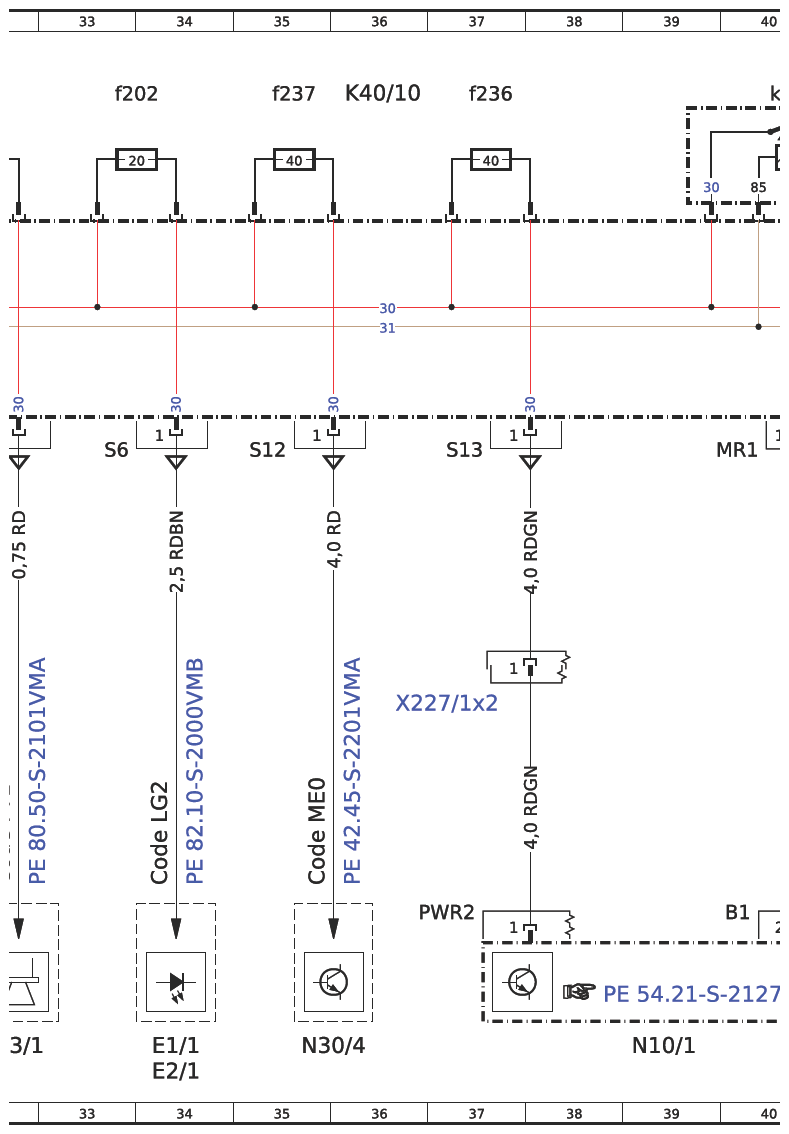

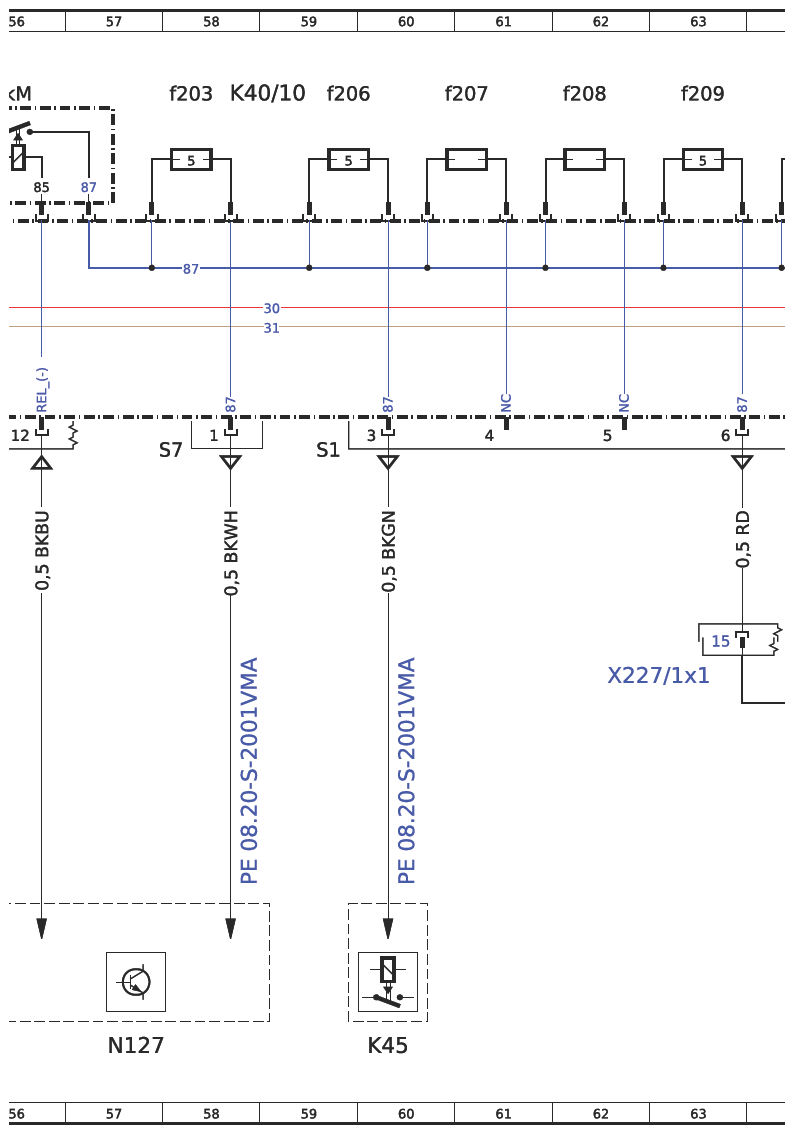

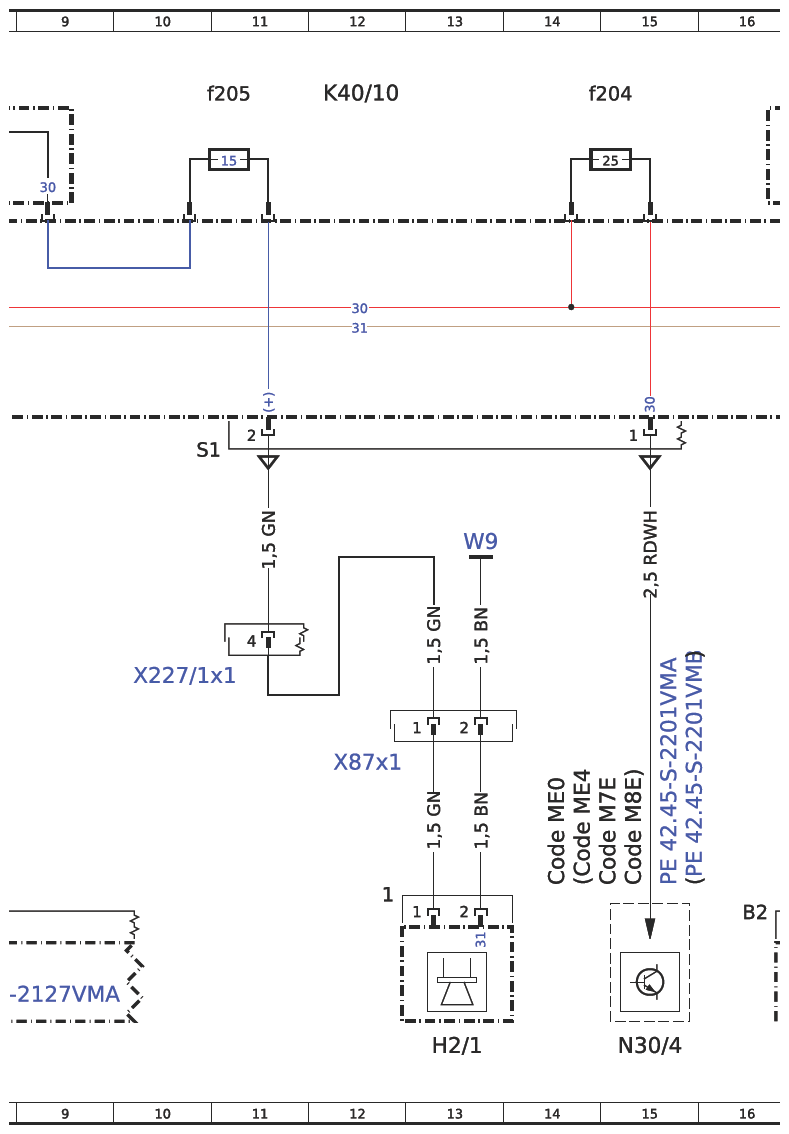

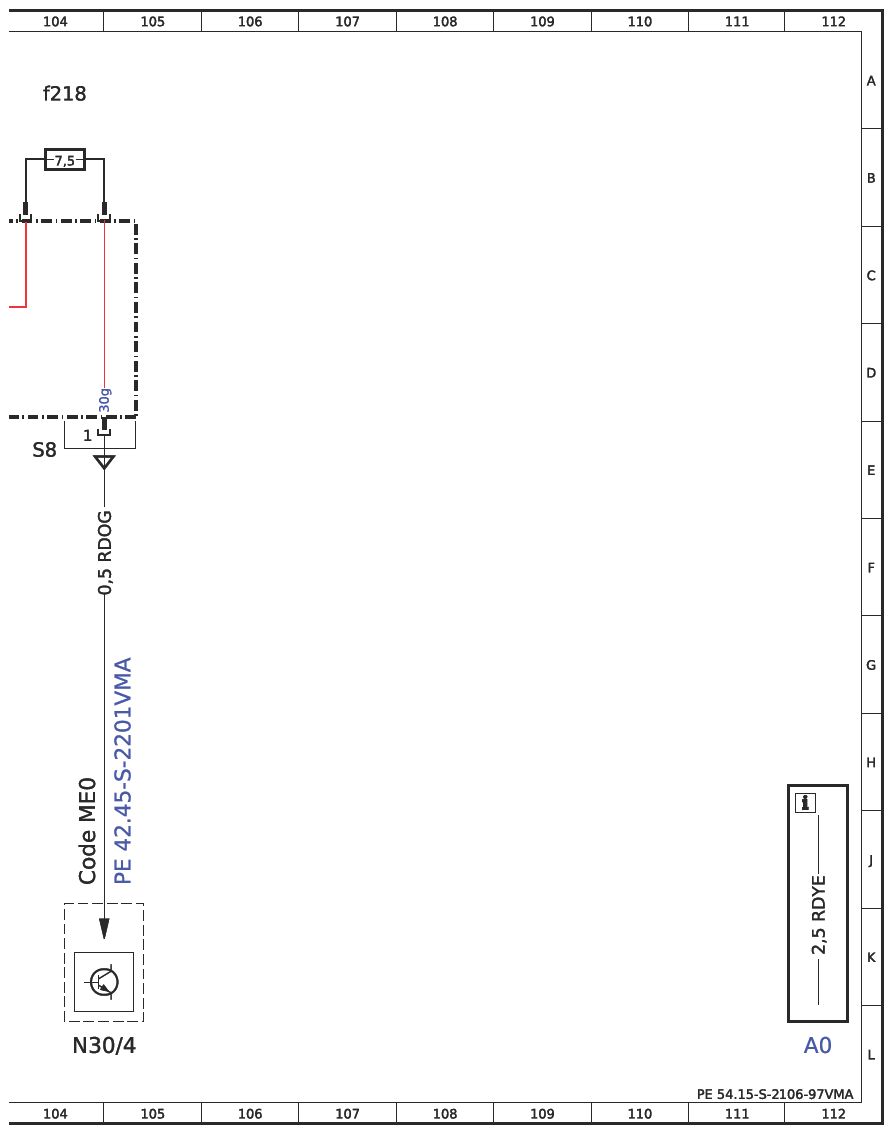

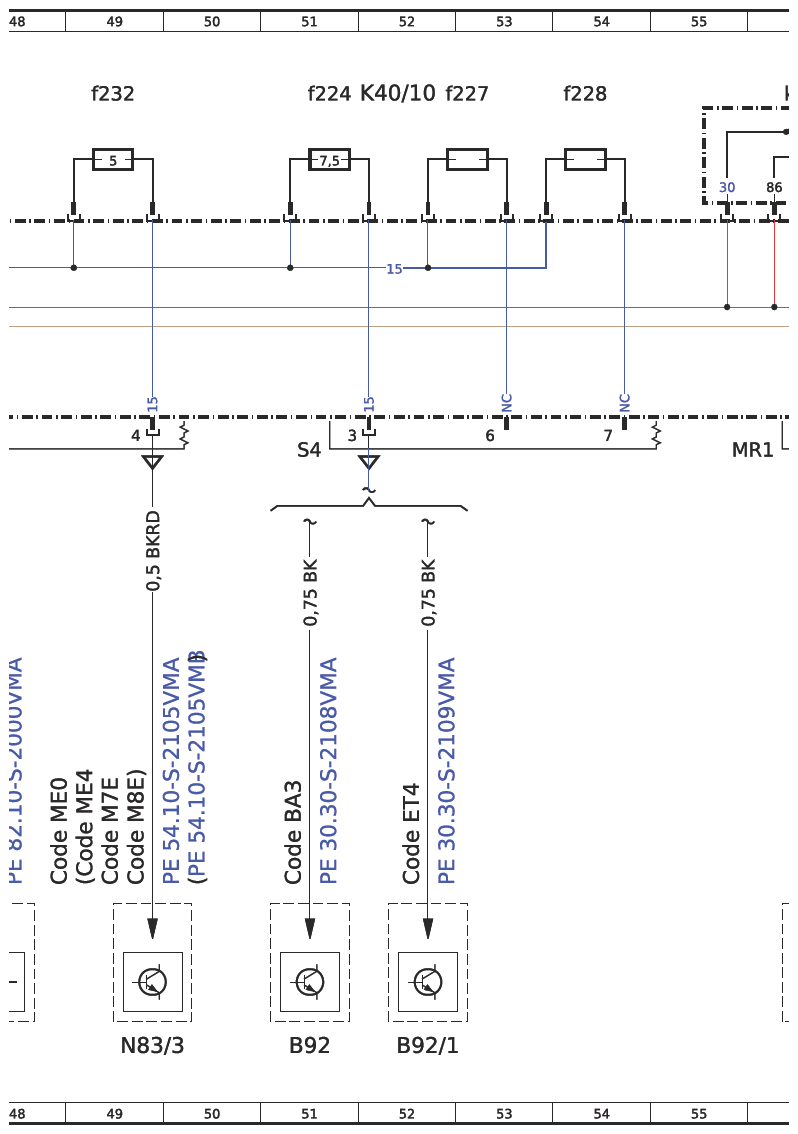

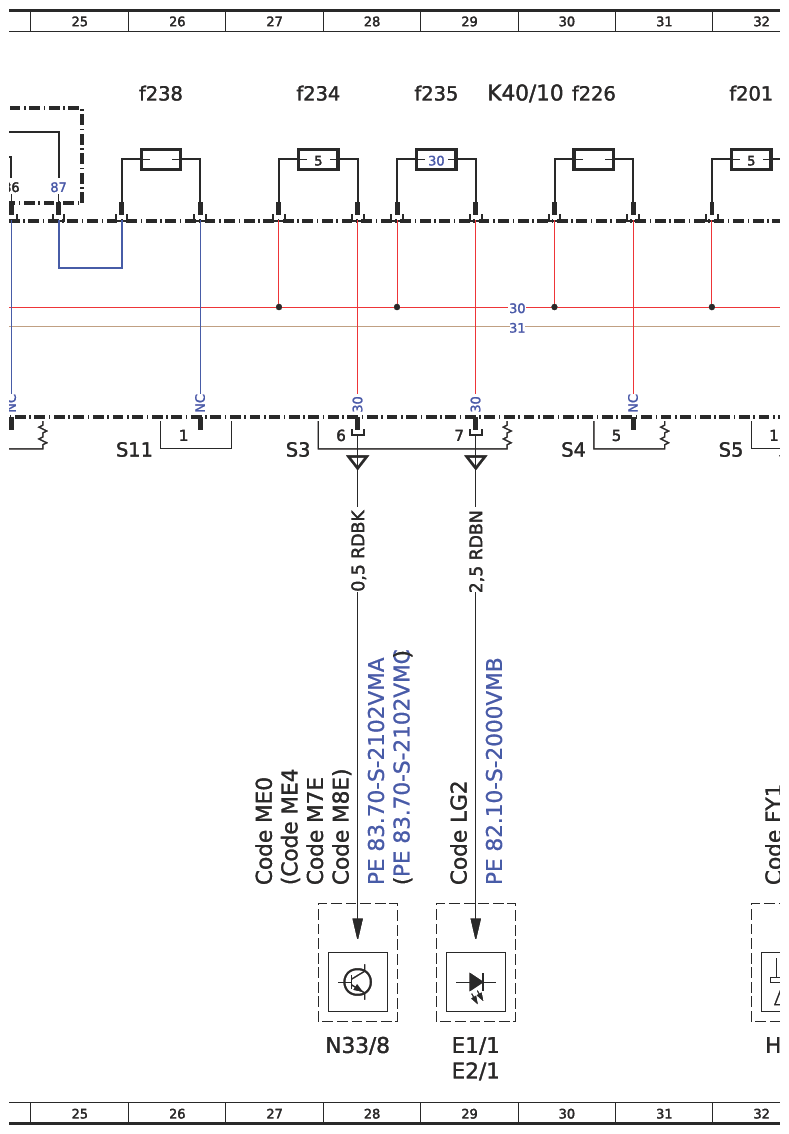

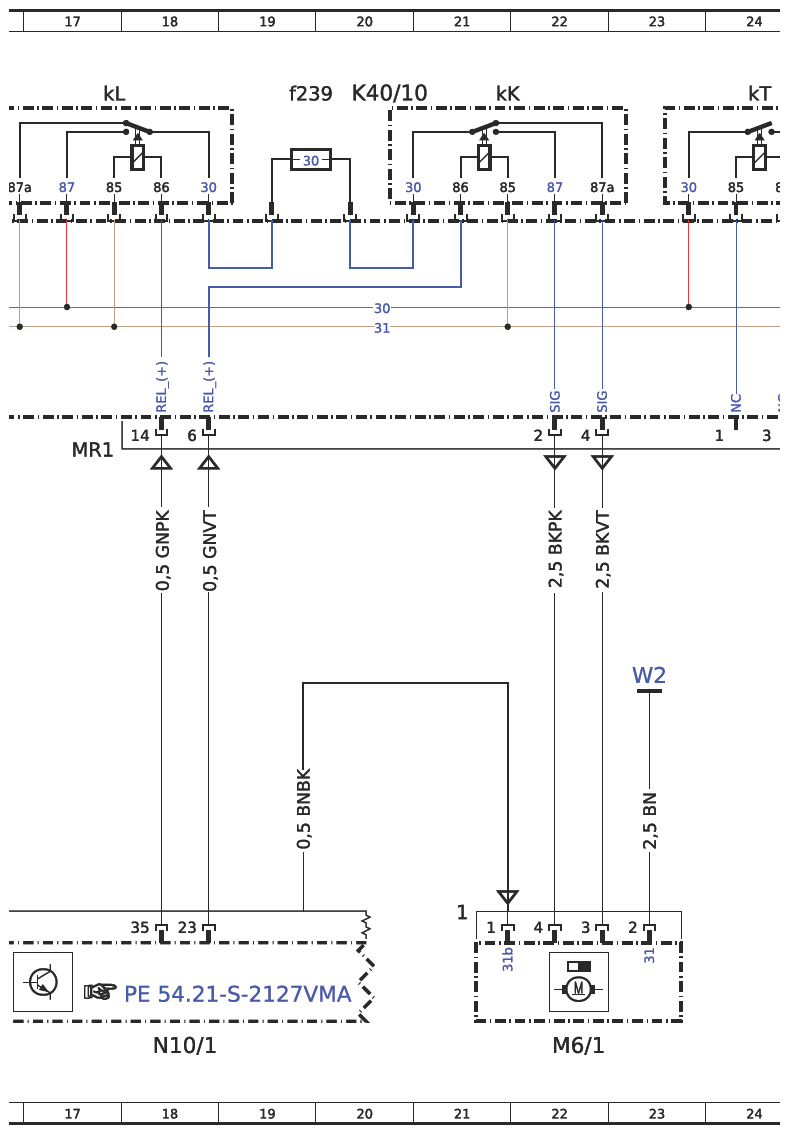

| K40/10 | Engine compartment fuse and relay module | 4A |
| K40/10 | Engine compartment fuse and relay module | 20A |
| K40/10 | Engine compartment fuse and relay module | 29A |
| K40/10 | Engine compartment fuse and relay module | 36A |
| K40/10 | Engine compartment fuse and relay module | 44A |
| K40/10 | Engine compartment fuse and relay module | 52A |
| K40/10 | Engine compartment fuse and relay module | 84A |
| K40/10 | Engine compartment fuse and relay module | 101A |
| K40/10 | Engine compartment fuse and relay module | 58A |
| K40/10 | Engine compartment fuse and relay module | 76A |
| K40/10 | Engine compartment fuse and relay module | 92A |
| K40/10 | Engine compartment fuse and relay module | 12A |
| K40/10 | Engine compartment fuse and relay module | 67A |
| K40/10f201 | Fuse 201 | 32A |
| K40/10f202 | Fuse 202 | 33A |
| K40/10f203 | Fuse 203 | 58A |
| K40/10f204 | Fuse 204 | 14A |
| K40/10f205 | Fuse 205 | 11A |
| K40/10f206 | Fuse 206 | 59A |
| K40/10f209 | Fuse 209 | 63A |
| K40/10f212 | Fuse 212 | 70A |
| K40/10f213 | Fuse 213 | 71A |
| K40/10f218 | Fuse 218 | 104A |
| K40/10f221 | Fuse 221 | 79A |
| K40/10f222 | Fuse 222 | 102A |
| K40/10f223 | Fuse 223 | 91A |
| K40/10f224 | Fuse 224 | 51A |
| K40/10f225 | Fuse 225 | 77A |
| K40/10f229 | Fuse 229 | 43A |
| K40/10f230 | Fuse 230 | 45A |
| K40/10f231 | Fuse 231 | 47A |
| K40/10f232 | Fuse 232 | 49A |
| K40/10f234 | Fuse 234 | 27A |
| K40/10f235 | Fuse 235 | 29A |
| K40/10f236 | Fuse 236 | 37A |
| K40/10f237 | Fuse 237 | 35A |
| K40/10f239 | Fuse 239 | 19A |
| K40/10f240A | Fuse 240A | 42A |
| K40/10f241 | Fuse 241 | 98A |
| K40/10kJ | Fanfare horn relay | 8A |
| K40/10kK | Wiper level 1/2 relay | 21A |
| K40/10kL | Windshield wiper ON/OFF relay | 17A |
| K40/10kM | Starter circuit 50 relay | 56A |
| K40/10kN | Circuit 87M relay | 68A |
| K40/10kP | Electric auxiliary water pump relay | 88A |
| K40/10kQ | Electric vacuum pump relay | 76A |
| K40/10kR | Circuit 15 relay | 40A |
| K40/11 | Firewall fuse and relay module | 95L |
| K40/11f37 | Fuse 37 | 94K |
| K45 | Electric vacuum pump relay | 60L |
| M13/15 | Electric auxiliary water pump | 91L |
| M13/15 | Electric auxiliary water pump | 92L |
| M56 | Electric vacuum pump | 79L |
| M6/1 | Wiper motor | 22L |
| M75/16 | High-temperature circuit 1 coolant pump | 70L |
| M75/17 | Low-temperature circuit coolant pump 2 | 71L |
| M91 | Electric fan | 71L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 18L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 39L |
| N127 | Drivetrain control unit | 42L |
| N127 | Drivetrain control unit | 76L |
| N127 | Drivetrain control unit | 78L |
| N127 | Drivetrain control unit | 57L |
| N30/4 | Electronic Stability Program (ESP) control unit | 15L |
| N30/4 | Electronic Stability Program (ESP) control unit | 46L |
| N30/4 | Electronic Stability Program (ESP) control unit | 35L |
| N30/4 | Electronic Stability Program (ESP) control unit | 45L |
| N30/4 | Electronic Stability Program (ESP) control unit | 104L |
| N33/7 | High-voltage PTC heater control unit | 98L |
| N33/8 | Battery heater control unit | 28L |
| N83/3 | DC/DC converter control unit | 49L |
| W2 | Right front lamp unit ground point | 23G |
| W43/2 | Right vehicle interior firewall ground point | 6G |
| W43/2 | Right vehicle interior firewall ground point | 68G |
| W9 | Left front lamp unit ground point | 13F |
| X227/1X1 | Main wiring harness/fuse and relay module electrical connector 1 | 63G |
| X227/1X1 | Main wiring harness/fuse and relay module electrical connector 1 | 10G |
| X227/1x2 | Main wiring harness/fuse and relay module electrical connector 2 | 37G |
| X87x1 | Horn electrical connector | 12H |
| Z273/2 | Sensor power supply connector sleeve | 86L |
| Z273/2 | Sensor power supply connector sleeve | 88L |
| Z274/8 | Negative LIN signal connector sleeve | 87L |
| Z274/8 | Negative LIN signal connector sleeve | 89L |
