(Wiring Diagram For DC/DC Converter Control Unit - PE54.10-S-2105-97VMB)
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) Control unit N83/3
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) Control unit N83/3
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) Control unit N83/3
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 40L |
| CAN L | Hybrid CAN | 16K |
| F1 | Pre-fuse box | 30L |
| F1fE2 | Pre-fuse E2 | 29K |
| F55/1 | Fuse block (1, 9-pin) | 3L |
| F55/1f2 | Fuse 2 | 2K |
| K40/10 | Engine compartment fuse and relay module | 8L |
| K40/10f232 | Fuse 232 | 6K |
| N116/11 | High-voltage power distributor | 35L |
| N24/6 | DC/DC converter charger | 20L |
| N83/11 | Alternating current charger for high-voltage battery | 24L |

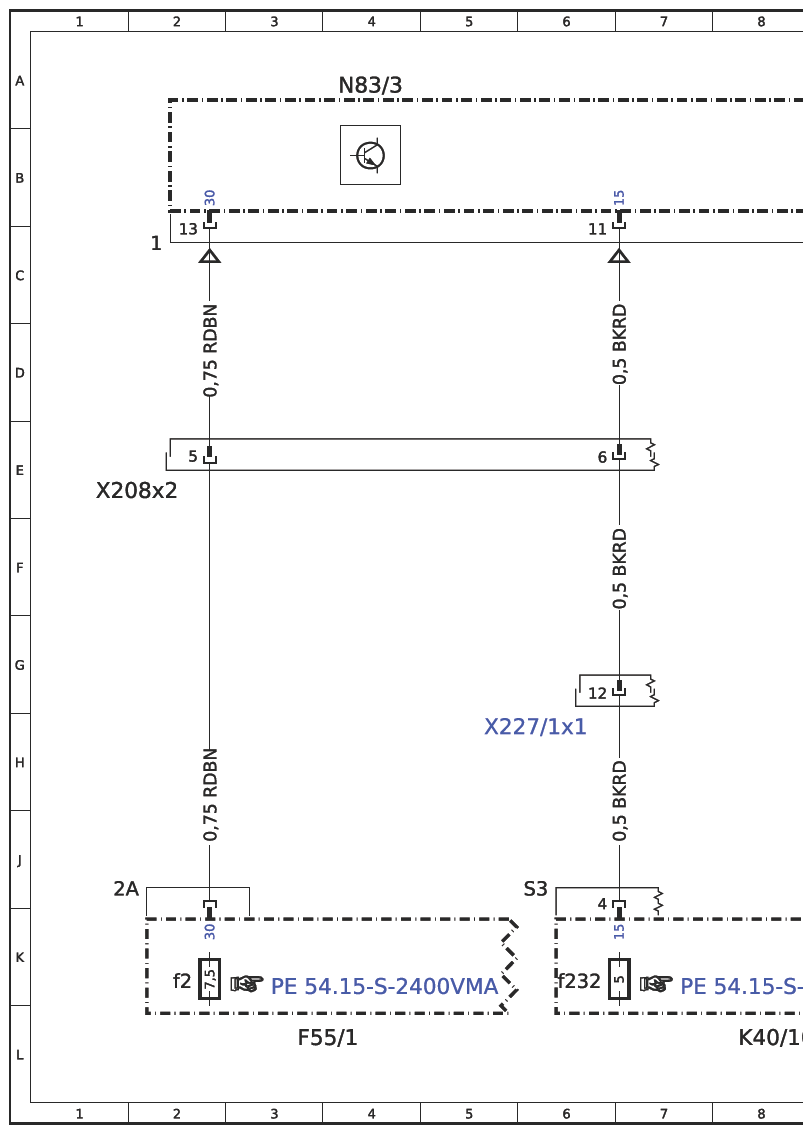

| N83/3 | DC/DC converter control unit | 4A |

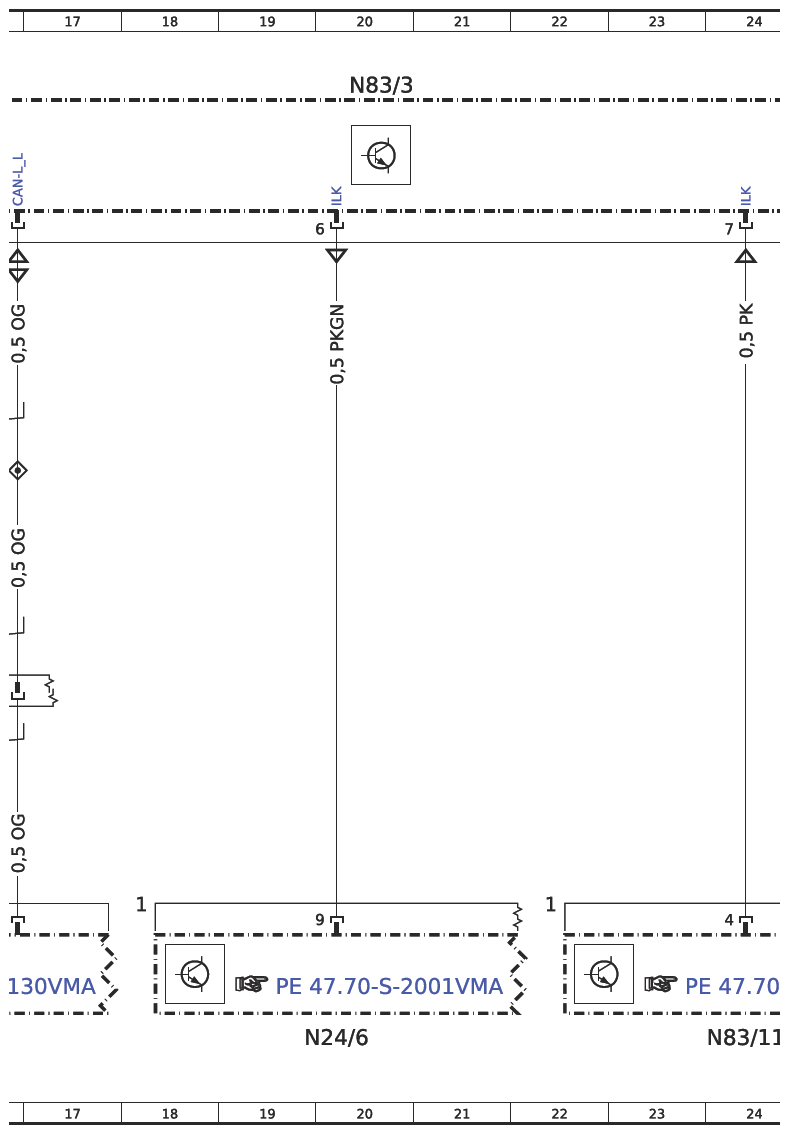

| N83/3 | DC/DC converter control unit | 12A |

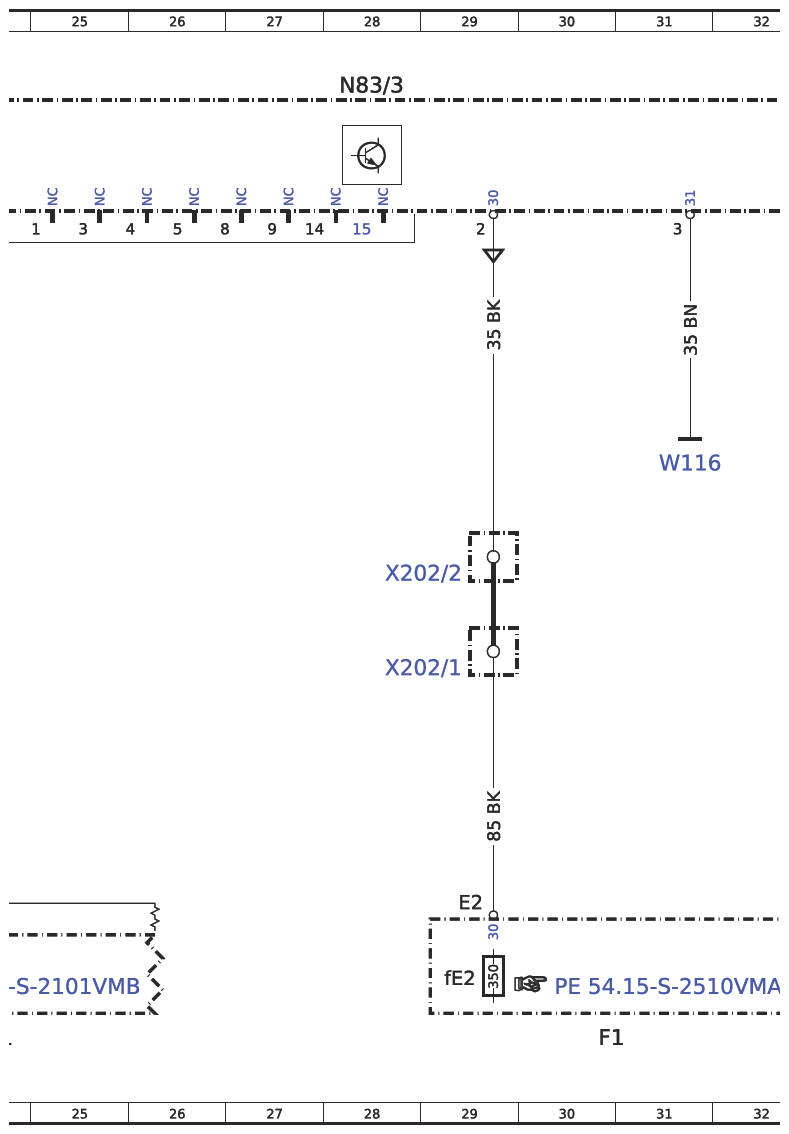

| N83/3 | DC/DC converter control unit | 20A |

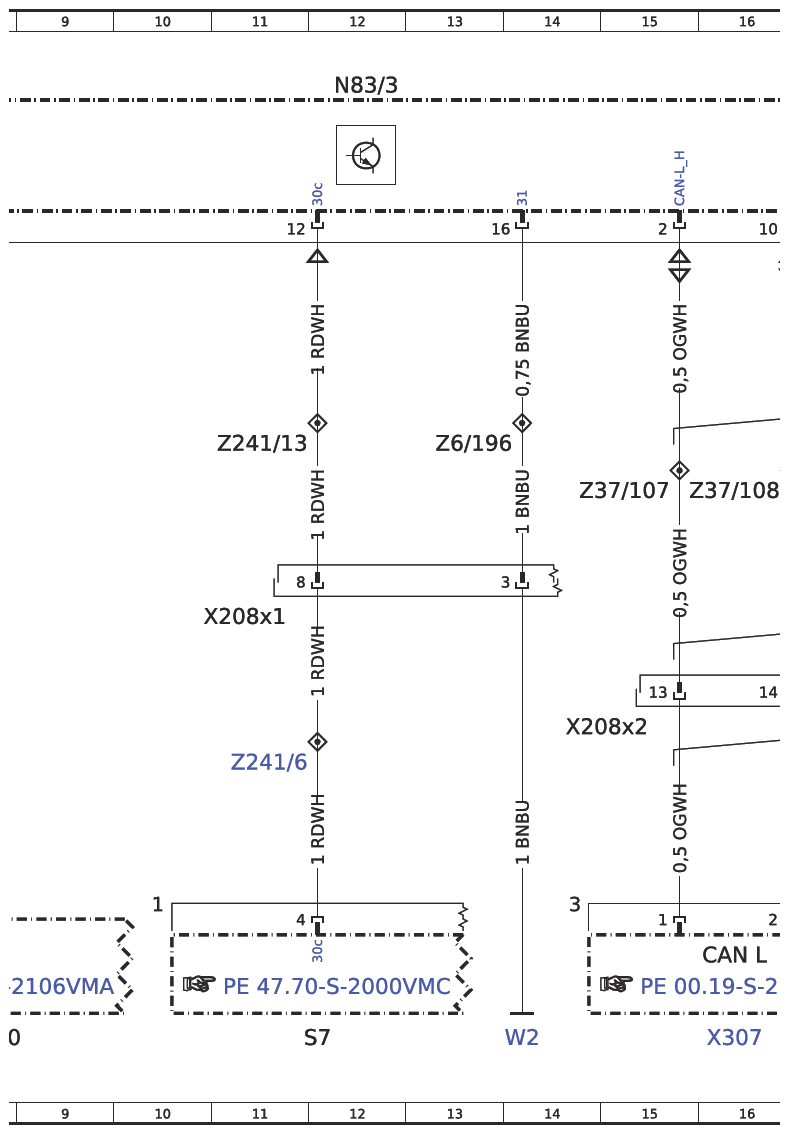

| N83/3 | DC/DC converter control unit | 28A |

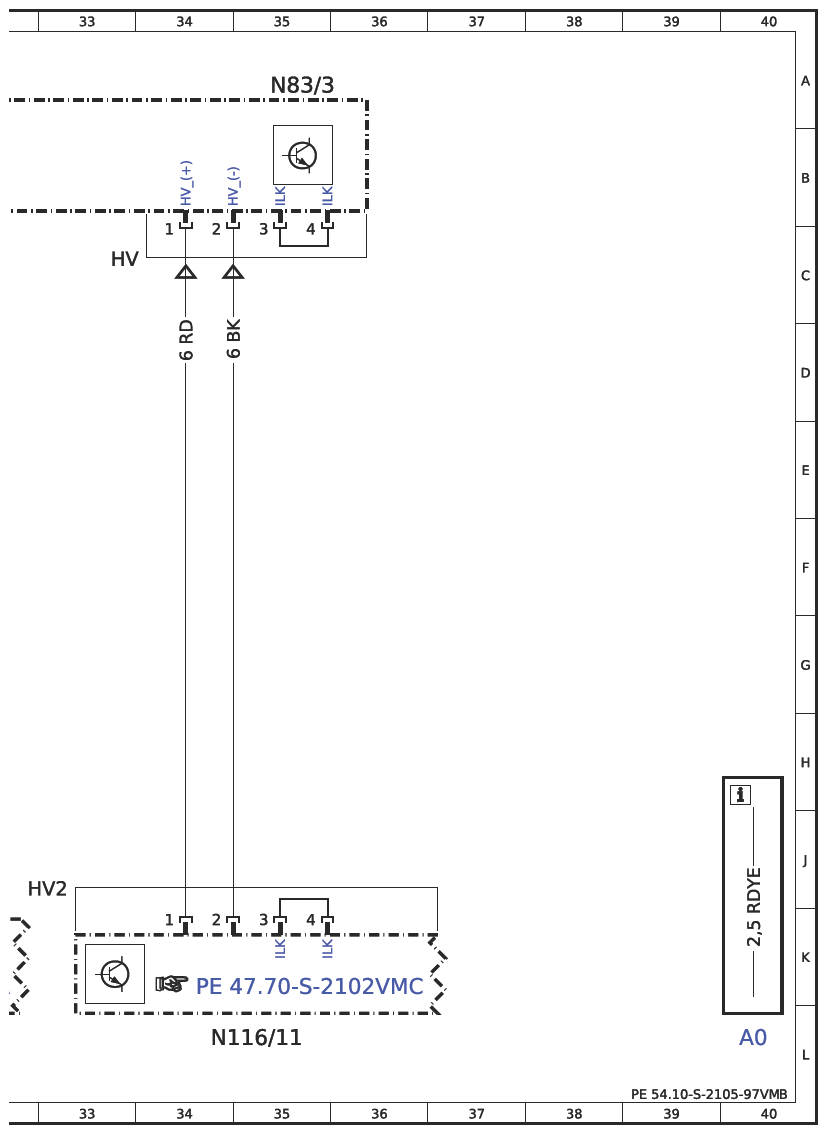

| N83/3 | DC/DC converter control unit | 35A |
| S7 | High-voltage disconnect device | 12L |
| W116 | DC/DC converter ground point | 31E |
| W2 | Right front lamp unit ground point | 14L |
| X202/1 | Pre-fuse box/alternator electrical distributor rail | 29G |
| X202/2 | Pre-fuse box/starter electrical distributor rail | 29F |
| X208x1 | Electric machine electrical connector 1 | 11G |
| X208x2 | Electric machine electrical connector 2 | 2E |
| X208x2 | Electric machine electrical connector 2 | 15H |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 6H |
| X307 | Hybrid CAN (CAN L) potential distributor electrical connector | 16L |
| Z241/13 | Circuit 30c connector sleeve | 11E |
| Z241/6 | Circuit 30c end sleeve 1 | 11H |
| Z37/107 | CAN for HYBRID (CAN L) high end sleeve | 15E |
| Z37/108 | CAN for HYBRID (CAN L) low end sleeve | 16E |
| Z6/196 | Circuit 31 connector sleeve | 13E |
