(Function Schematic For Charging On-Board Electrical System Battery Through DC/DC converter - PE54.10-S-2510-97A)
Model 447 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) with Code ME4 (Electric motor 145 kW) with Code XM7 (MOPF II)
| Code : | Designation: | Position: |
|---|---|---|
| 1 | 5C | |
| 1 | 9B | |
| 1 | 14C | |
| 1 | 14G | |
| 2 | Instrument cluster, message | 14F |
| 2 | Instrument cluster, message | 19D |
| 3 | 2F | |
| 4 | 1F | |
| 5 | 5D | |

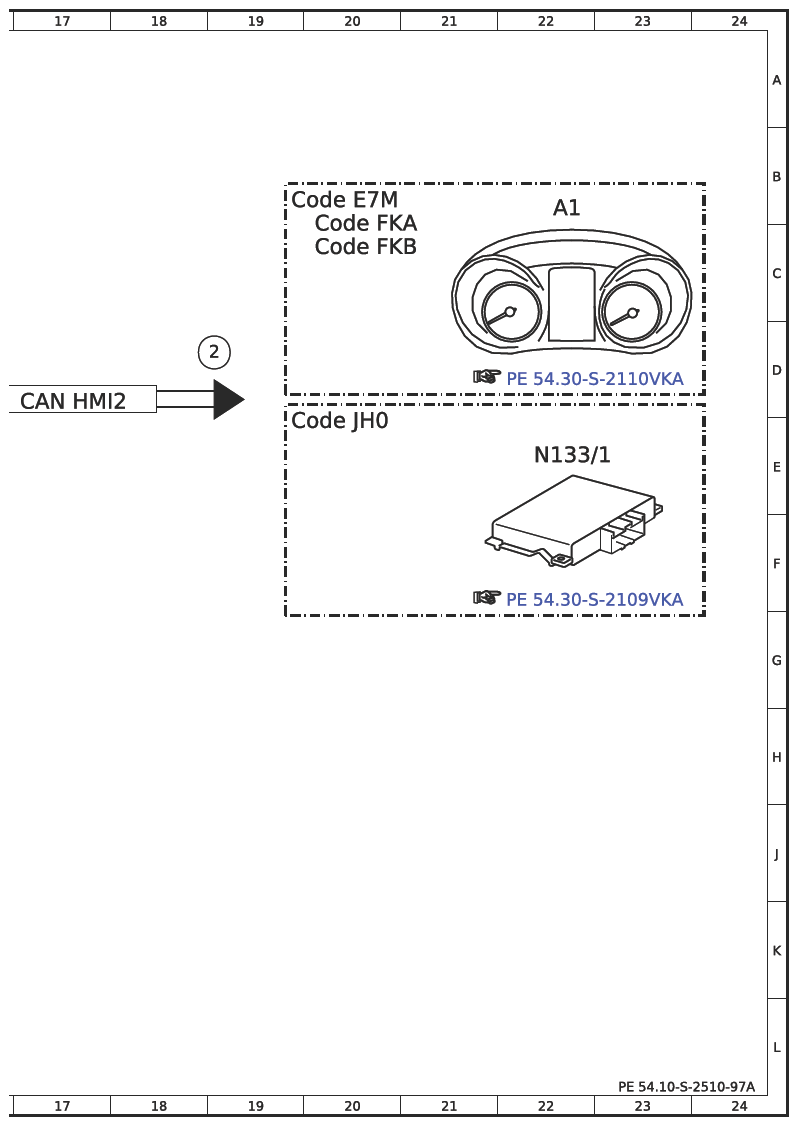

| A1 | Instrument cluster | 22B |
| B95 | Battery sensor | 6B |
| CAN B | Interior CAN | 13B |
| CANED | Electric drive system CAN | 8H |
| CAN HMI2 | User interface CAN 2 | 17D |
| Code E7M | MBUX multimedia system | 19B |
| Code FKA | Panel van | 20C |
| Code FKB | Vito Mixto and Tourer | 20C |
| Code JH0 | Display package | 19E |
| Flex E | Chassis FlexRay | 14F |
| G1 | On-board electrical system battery | 6D |
| LINB15 | Battery sensor LIN | 7B |

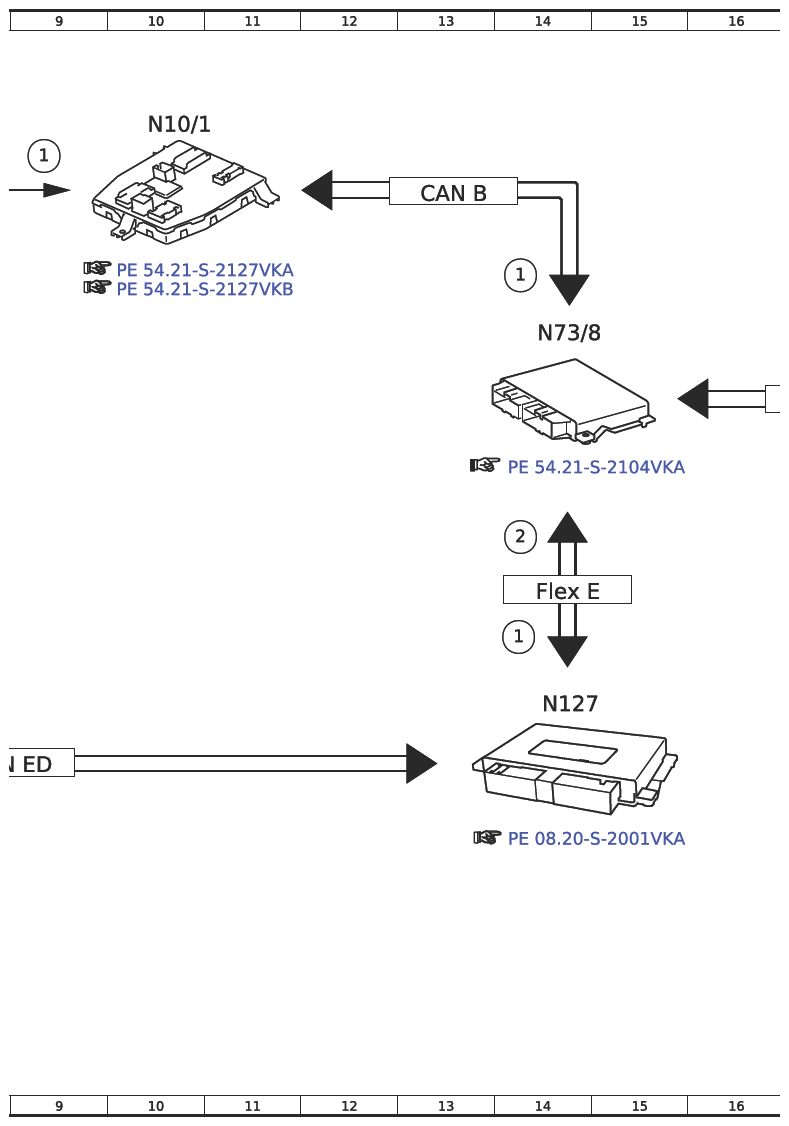

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 10B |
| N127 | Drivetrain control unit | 14H |
| N133/1 | Instrument cluster control unit | 22E |
| N73/8 | Electronic ignition lock (EZS) control unit | 14D |

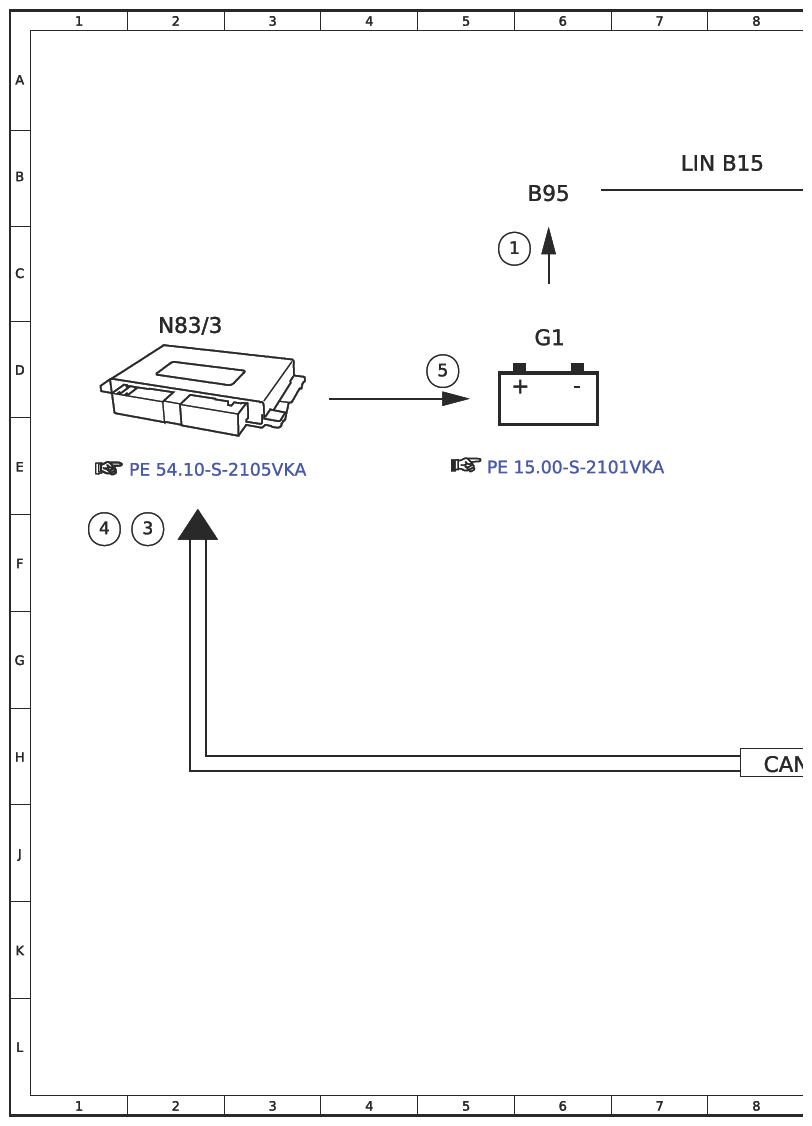

| N83/3 | DC/DC converter control unit | 2D |
