Remove/Install Outside Temperature Sensor - AR54.30-S-6341E

Model 447, 448

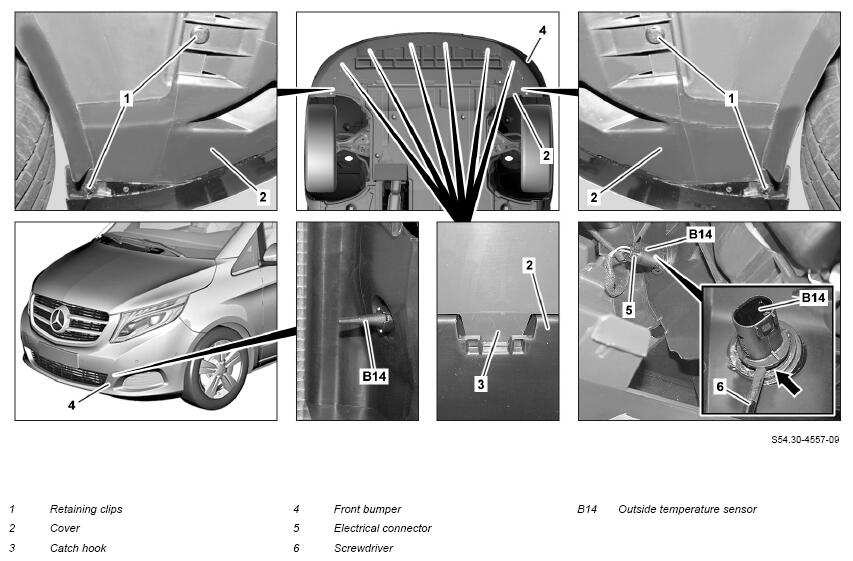

Fig 1: Outside Temperature Sensor Components Location - Model 447

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach lower engine compartment paneling		AR61.20-S-1105E
2	Remove retaining clips (1)
3	Unclip cover (2) at catch hooks (3) from front bumper (4)	Check catch hooks (3) are properly latched into place.
4	Remove cover (2) rearwards from front bumper (4)
5	Disconnect electrical connector (5) from outside temperature sensor (B14)
6	Unclip outside temperature sensor (B14) using a suitable screwdriver (6) (arrow) and remove
7	Install in the reverse order
