Remove/Install Antenna For Digital Tachographs (DTCO) - AR54.61-S-0014E

Model 447

Courtesy of MERCEDES-BENZ USA

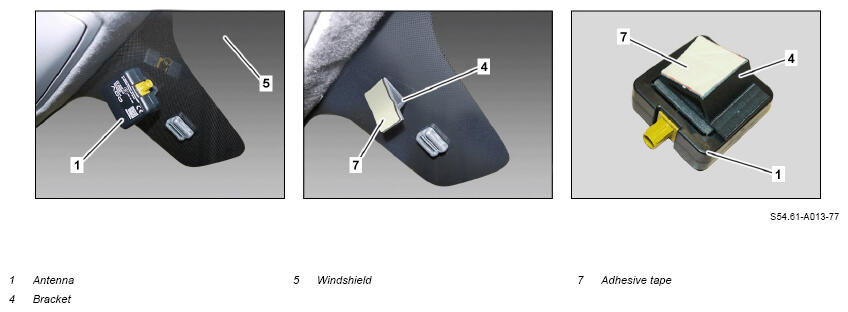

Shown With Code JA9 (Traffic Sign Assist) or With Code JF1 (Rain sensor)

Courtesy of MERCEDES-BENZ USA

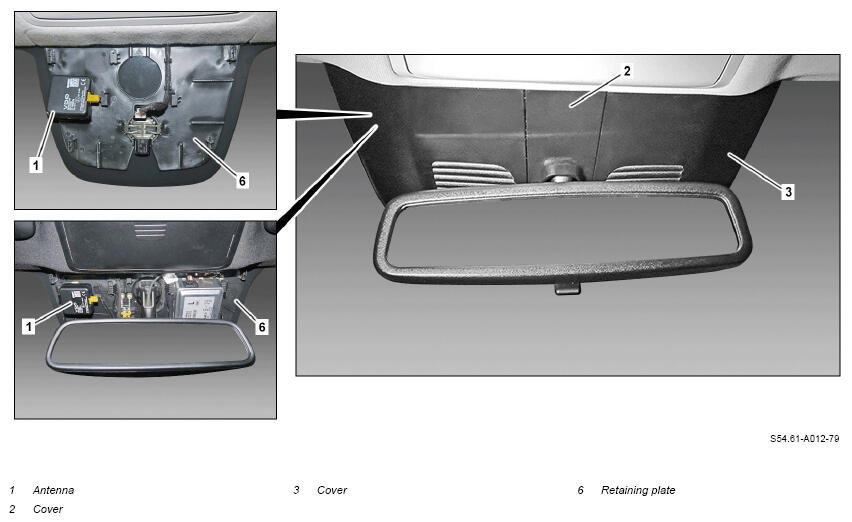

Shown without code ET4 (Active Distance Assist DISTRONIC), without code JA9 (Traffic Sign Assist), without code JF1 (Rain sensor), without code LG2 (LED Intelligent Light System)

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Unclip cover (2) and remove.	Model 447 with code ET4 (Active Distance Assist DISTRONIC) Model 447 with code JA9 (Traffic Sign Assist) Model 447 with code JF1 (rain sensor) Model 447 with code LG2 (LED Intelligent Light System) Ensure that cover (2) is seated correctly. Clip remover	Fig 1
3	Unclip cover (3) and remove.	Model 447 with code ET4 (Active Distance Assist DISTRONIC) Model 447 with code JA9 (Traffic Sign Assist) Model 447 with code JF1 (rain sensor) Model 447 with code LG2 (LED Intelligent Light System) Ensure that cover (3) is properly seated. Clip remover	Fig 1
4	Disconnect electrical connector from antenna (1).
5	Remove antenna (1) from holder (4).	Observe installation position of antenna (1). The electrical connector of the antenna (1) must face toward the front passenger side. Double-sided adhesive tape TESA 77811	*BR00.45-Z-1201-02A
		Clip remover If the holder (4) has detached from the windshield (5) or retaining plate (6) during removal of the antenna (1): ↓ Remove holder (4) from windshield (5) or retaining plate (6).	Fig 1
	Clean
6	Completely remove any residue of old tape (7) from rear or front side of holder (4) and clean bonding surfaces.	Cleaner	*BR00.45-Z-1025-04A
7	Remove any residue of old tape (7) from windshield (5) or retaining plate (6) and clean bonding surface.	If holder (4) has detached from windshield (5) or retaining plate (6) during removal of the antenna (1). Cleaner	*BR00.45-Z-1025-04A
8	Remove any residue of old tape (7) from antenna (1) and clean bonding surface.	Not when replacing antenna (1). Cleaner	*BR00.45-Z-1025-04A
9	Install in the reverse order.
	Check
10	Check digital tachographs for proper operation.

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
