Remove/Install 12 Volt Socket - AR54.10-S-1000S

Model 415, 447, 448, 636, 639

Model 900, 906

Shown by way of an example using a front vehicle interior socket on model 447 Except Code V85 (Smoker package)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Switch off ignition and remove transmitter key
2	Open flap on corresponding socket (2)
3	Release socket (2) using pliers (1) and pull out far enough until the electrical connection is accessible	The studs of the pliers (1) must engage into the cutouts on the socket housing (2) (arrows). Pliers	Fig 1
4	Detach electrical connection from socket (2)
5	Install in the reverse order
	Check
6	Check socket (2) is correctly seated
7	Check socket (2) for proper operation

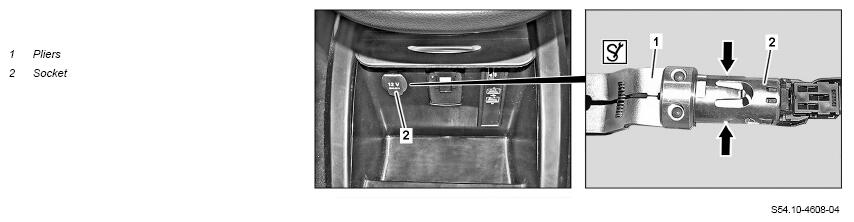

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
